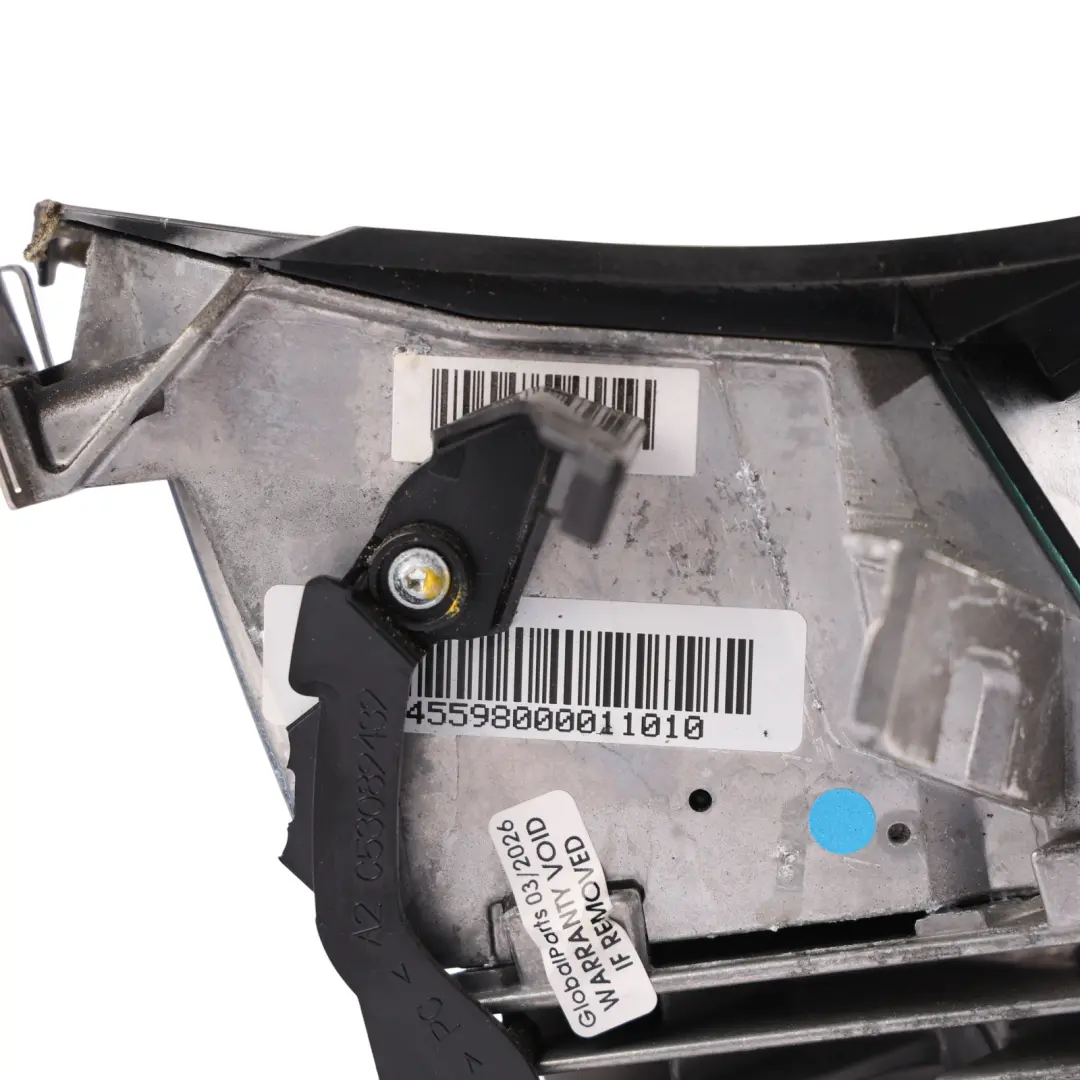

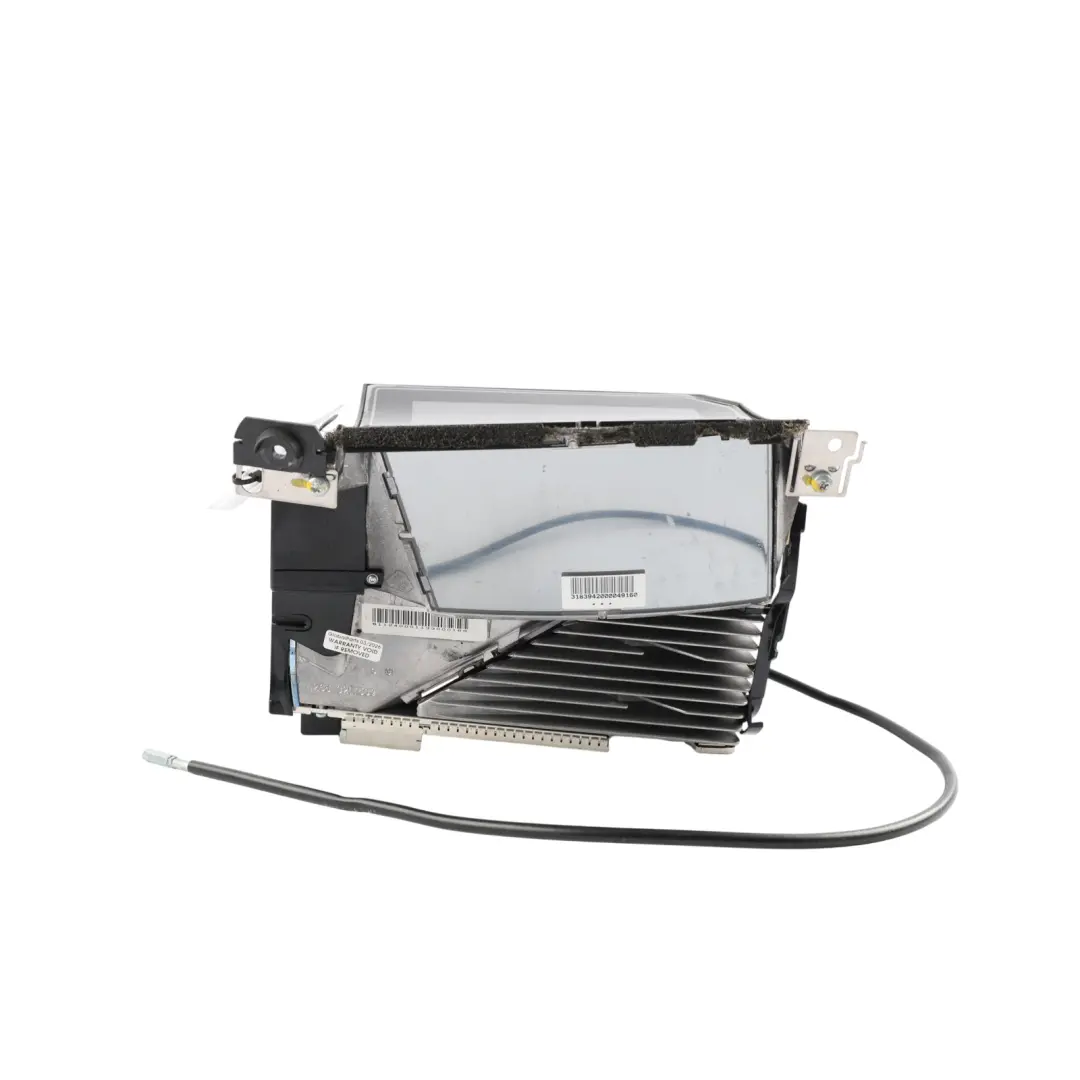

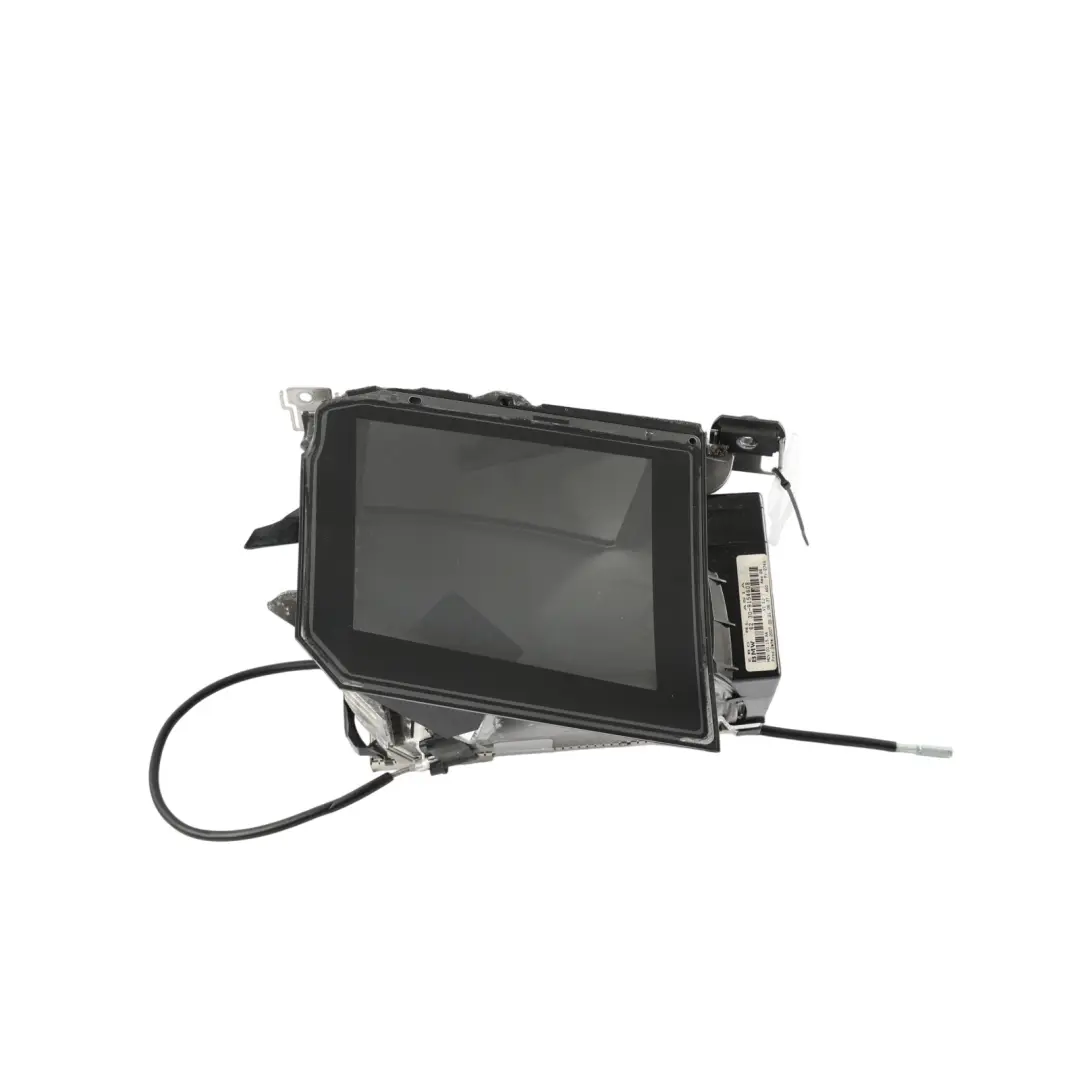

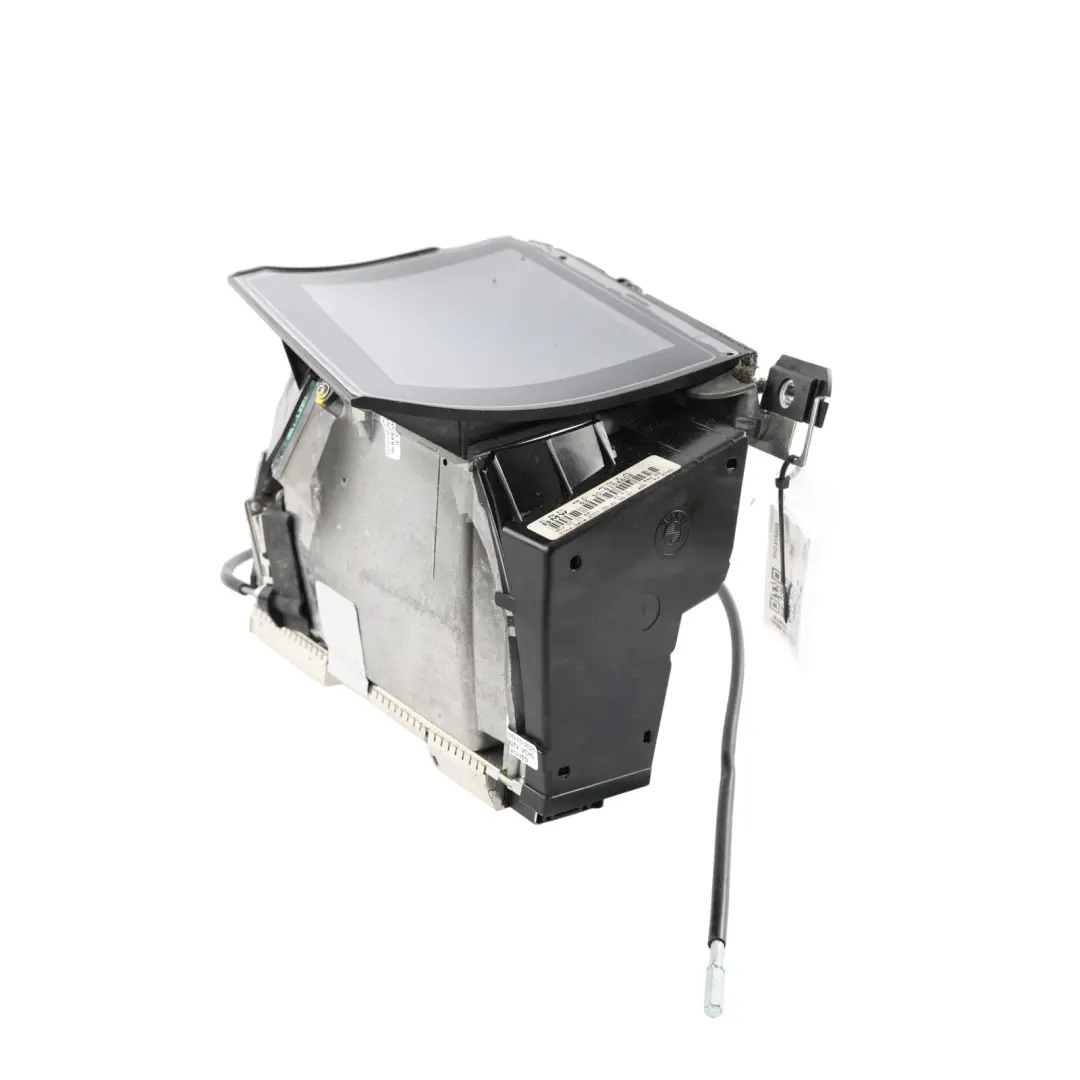

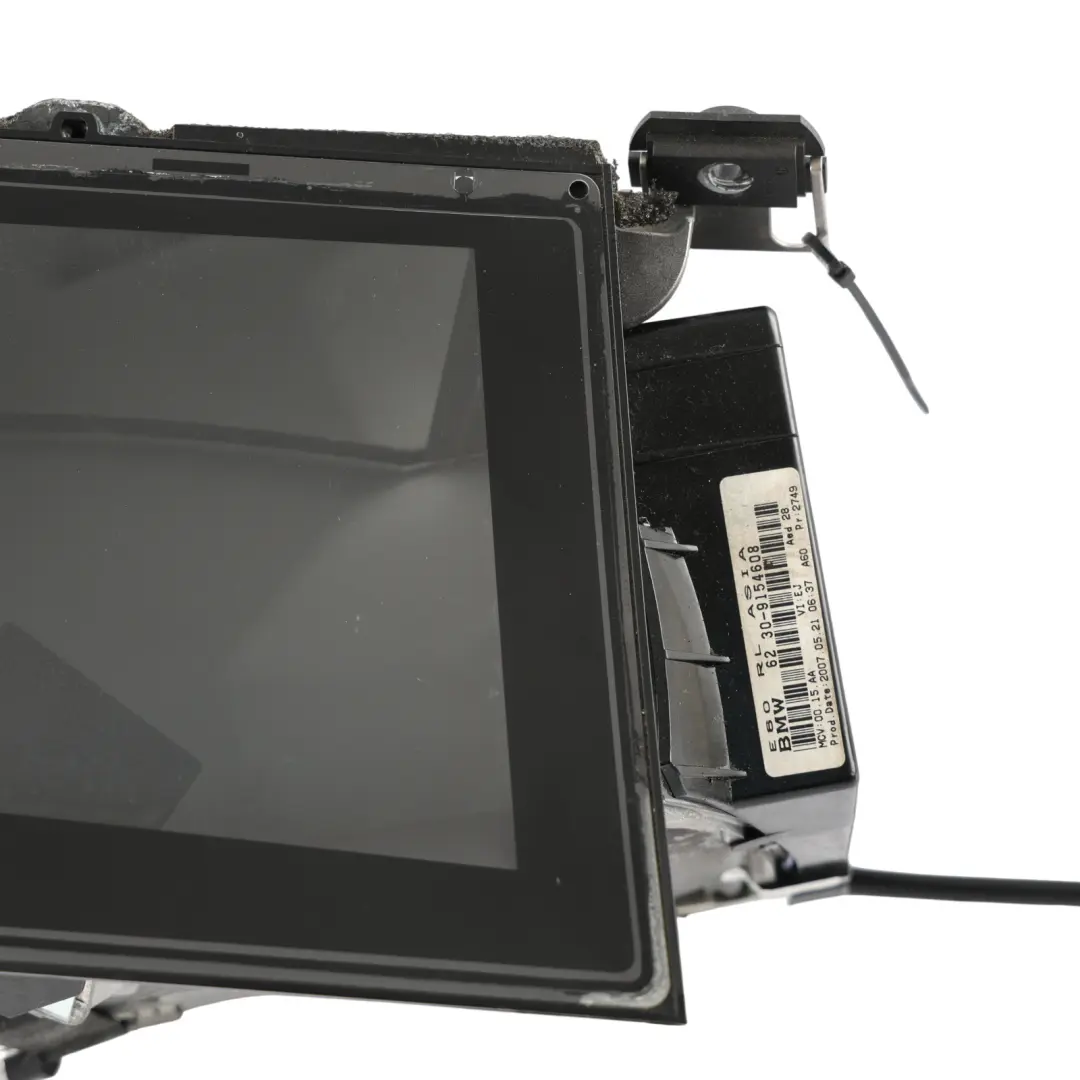

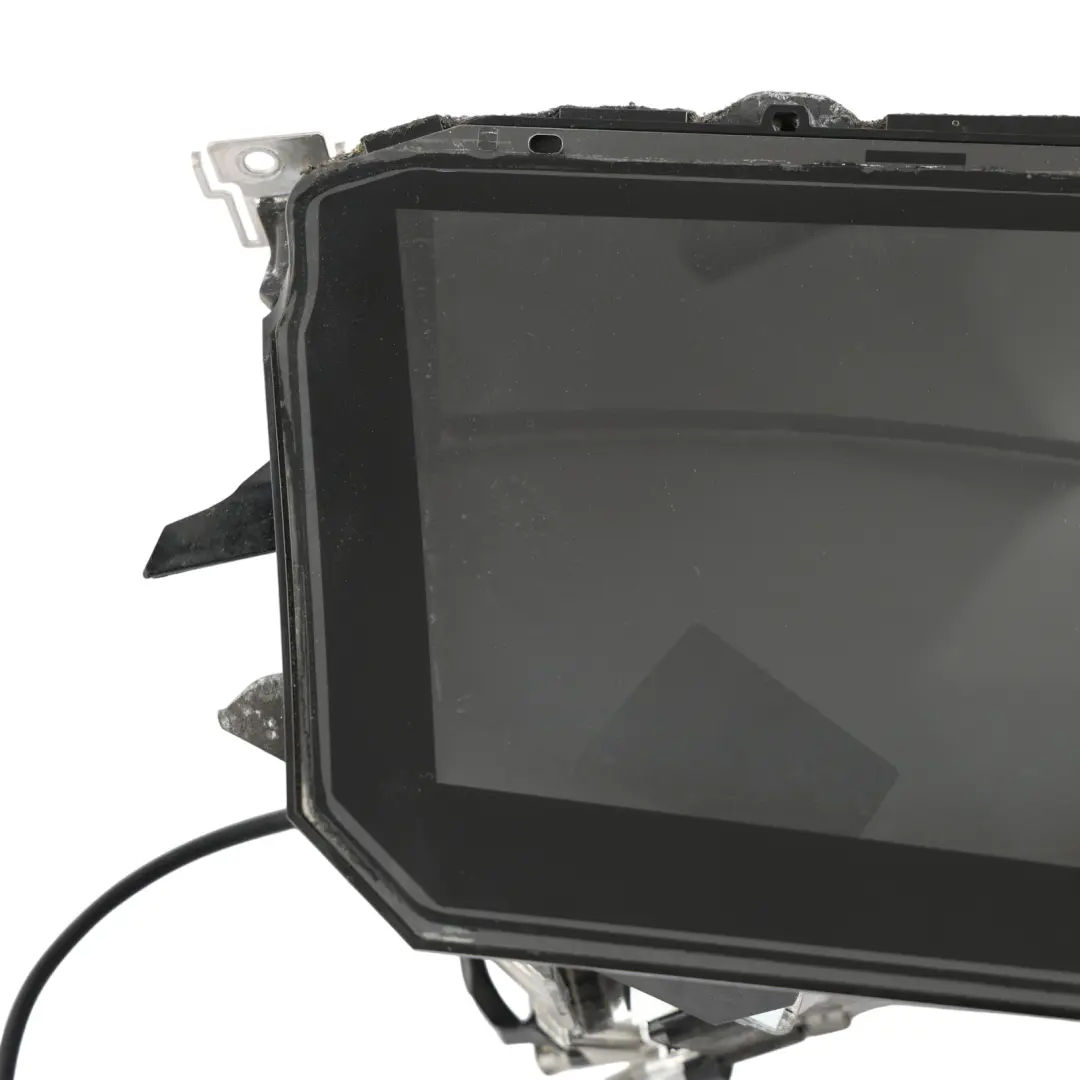

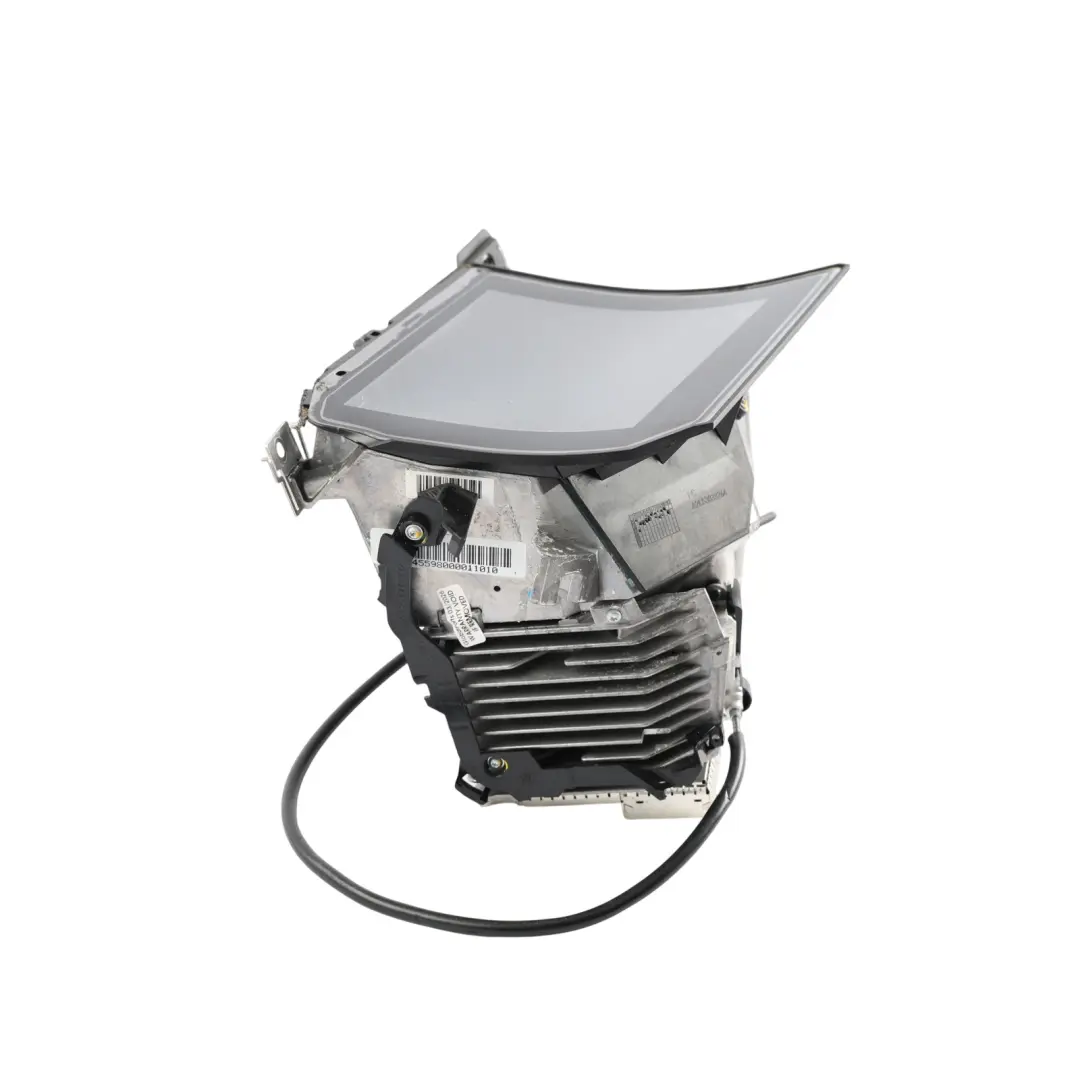

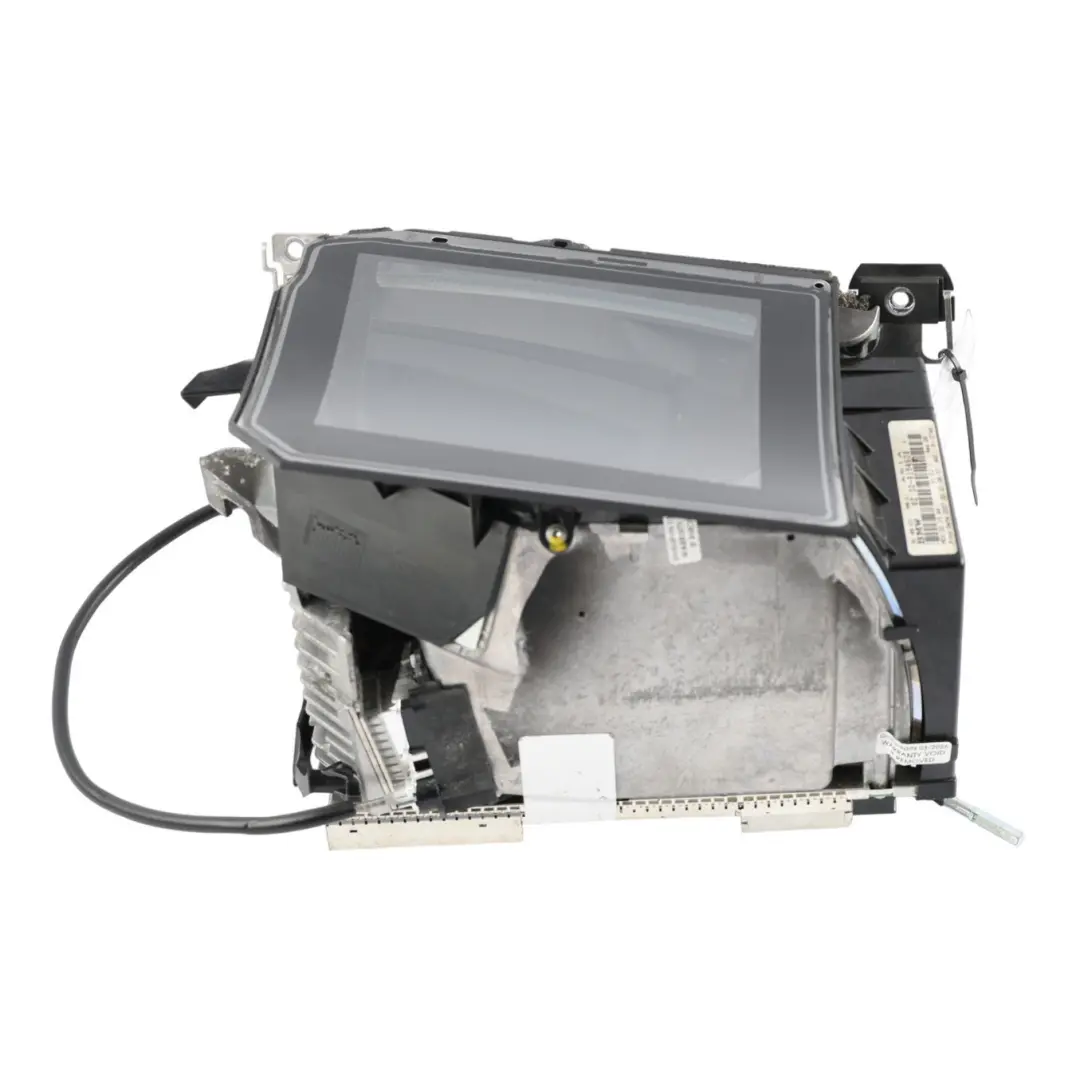

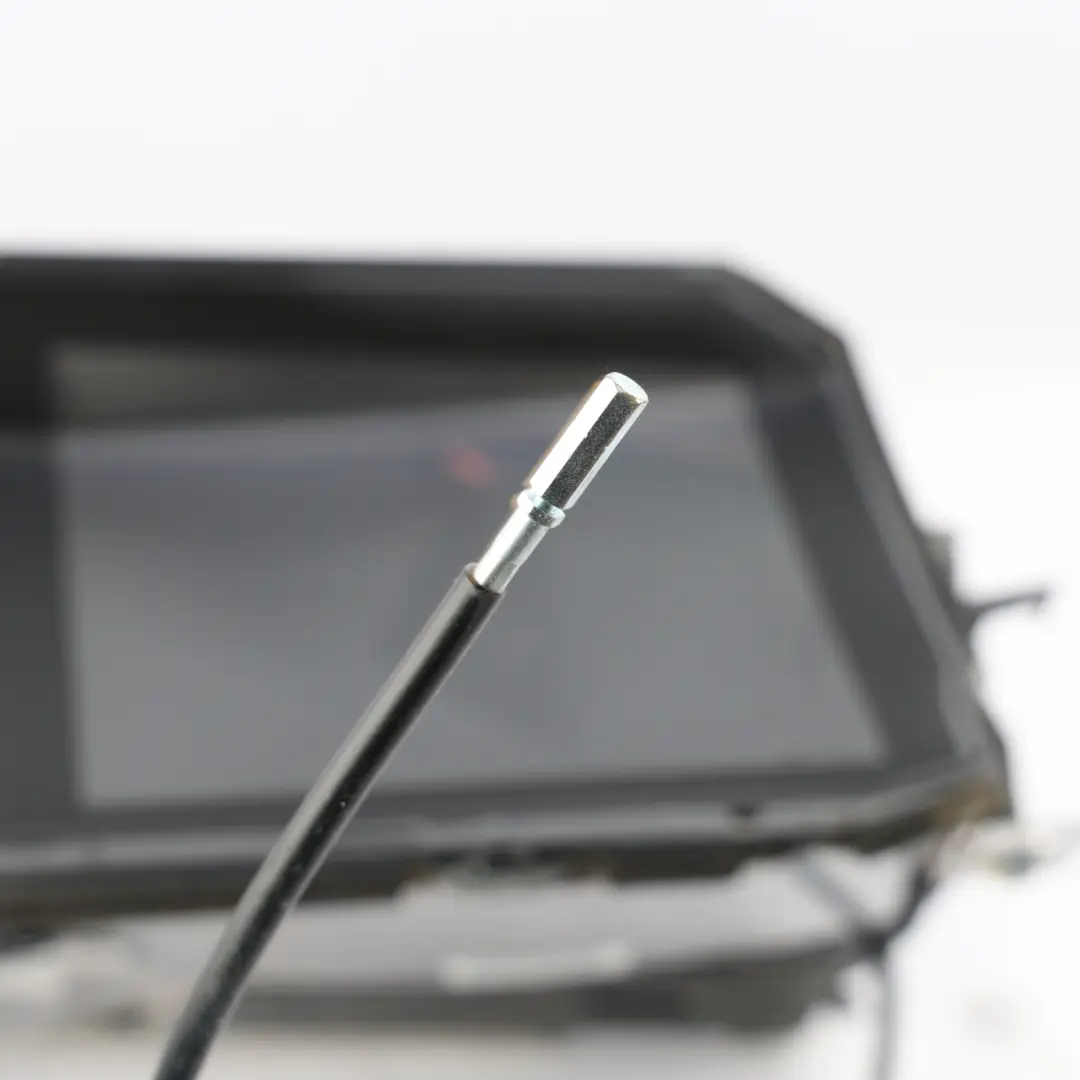

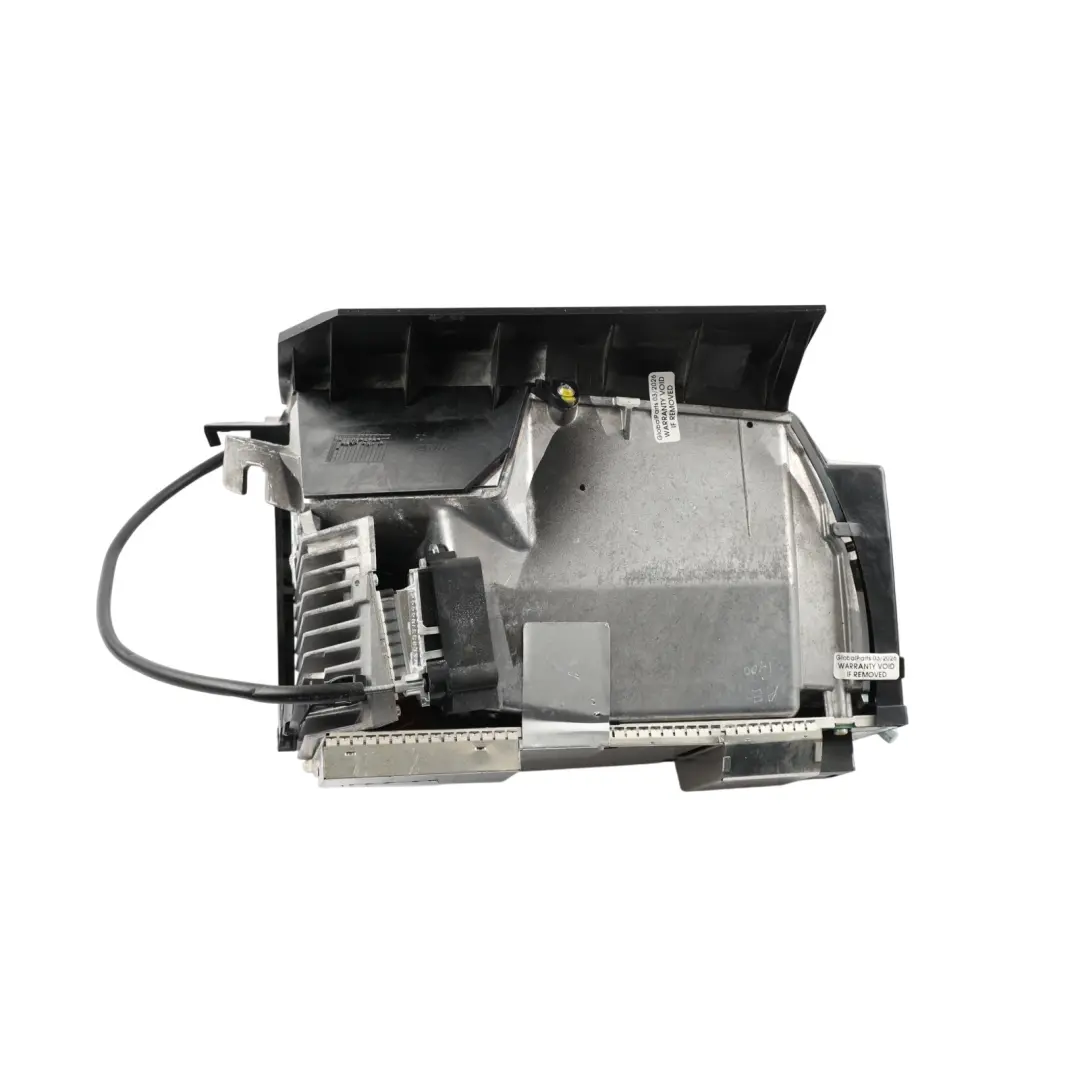

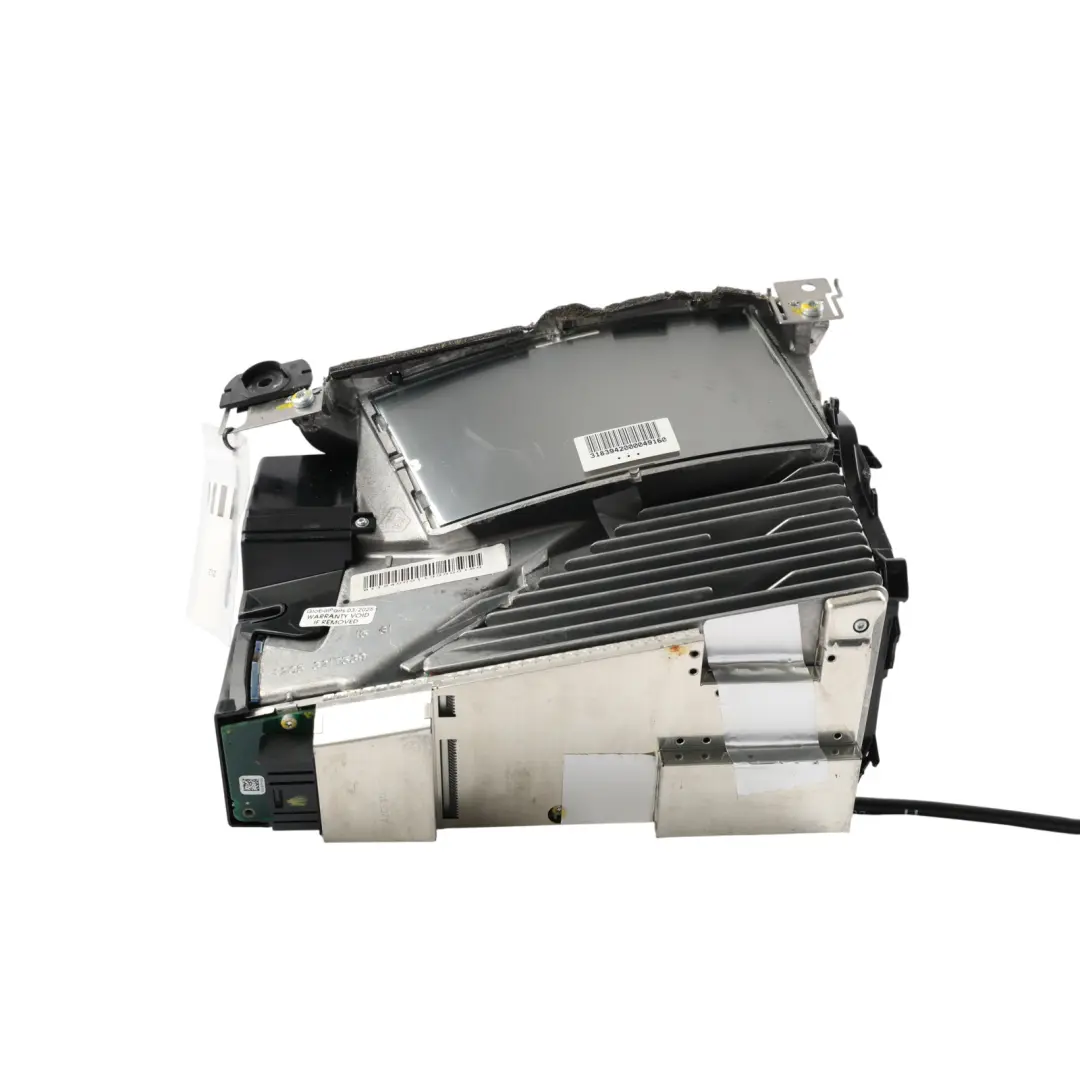

BMW E60 E61 Head Up Display Screen Control Unit Panel 9154608

The BMW E60 E61 Head Up Display Screen Control Unit Panel is an original electronic control module responsible for the operation of the Head-Up Display in BMW 5 Series E60 and E61 models. This component from the Electronic Control Units and Controllers group ensures precise management of the projected image on the windshield, supporting the readability of key information for the driver and maintaining the factory functionality of the HUD system.

Specifications and technical data

• SKU: RHD-9154608
• Mark: BMW (Genuine OE)
• Condition: Used

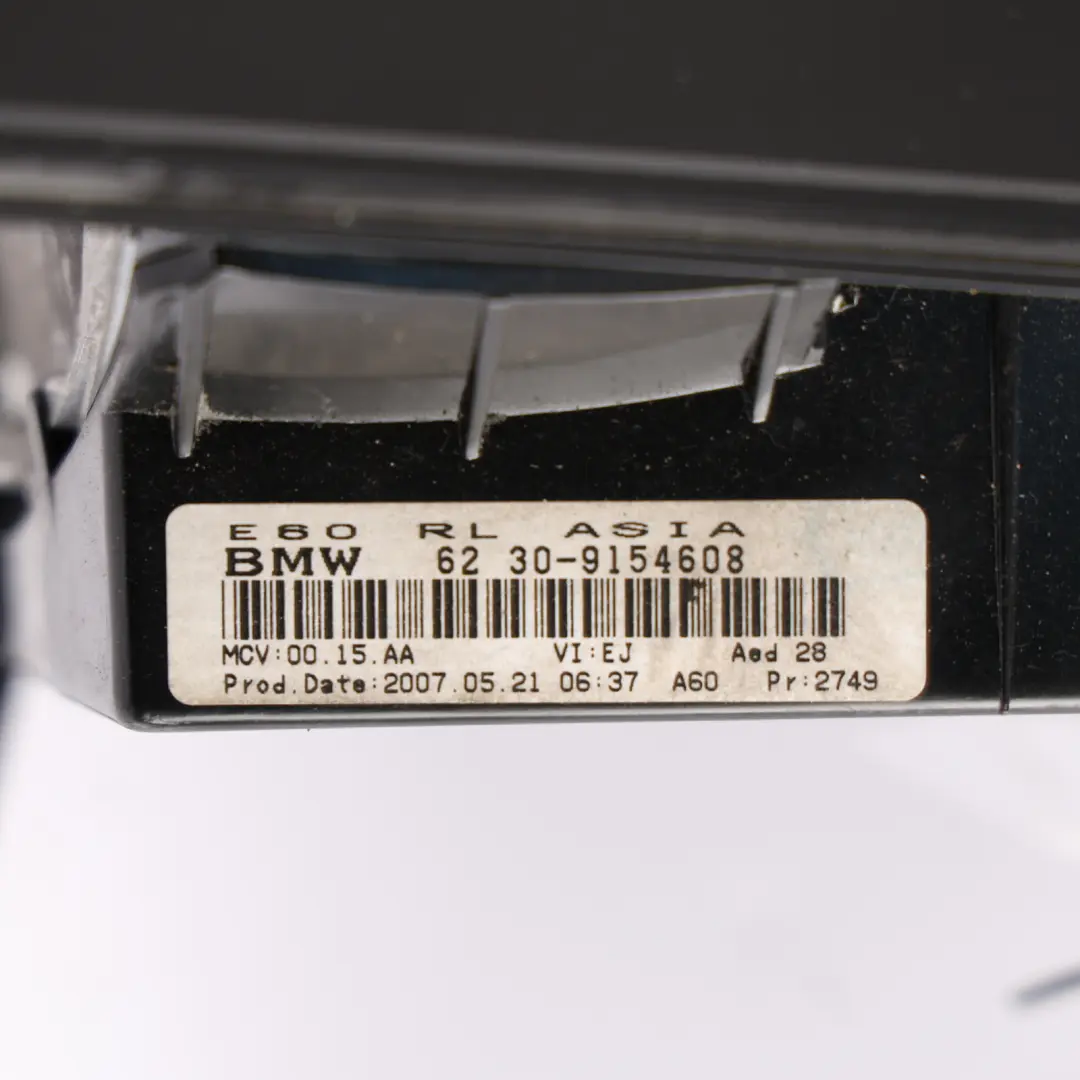

• OEM Part Number: 9154608
• Substitutable numbers: 9154608, 62309154608, 9190876, 62309190876, 9159646, 62309159646, 9115966, 62309115966, 6980900, 62306980900, 6949093, 62306949093, 6919675, 62306919675, 9140316, 62309140316, 9126350, 62309126350
• Category: ECUs & Computer Modules

Function and Application of the HUD Control Module

The presented Head Up Display control panel is the central element responsible for processing signals from the vehicle's system and transmitting them to the HUD projector. The module manages, among other things, image parameters such as position, brightness, and display stability, ensuring the driver receives clear information without taking their eyes off the road.

In BMW 5 Series E60/E61 vehicles, the use of a dedicated HUD controller allows for consistent operation with other onboard electronics, including the instrument cluster and driver assistance systems. Replacing a damaged module with an original control panel is crucial for maintaining proper communication within the vehicle's bus system and avoiding system errors.

Benefits of Using an Original BMW Module

An original module from the Electronic Control Units and Controllers group ensures full compatibility with the factory electrical architecture of the BMW E60/E61. This allows for:

• maintained correct cooperation with the existing system and other controllers,
• preserved Head-Up Display system logic consistent with manufacturer's specifications,
• minimized risk of coding and adaptation issues compared to low-quality aftermarket alternatives,
• effective diagnostics using factory BMW service tools.

Choosing an original HUD control panel is the preferred solution for both professional workshops and discerning users who value the precision of BMW's electronic systems.

Product Characteristics and Fitment

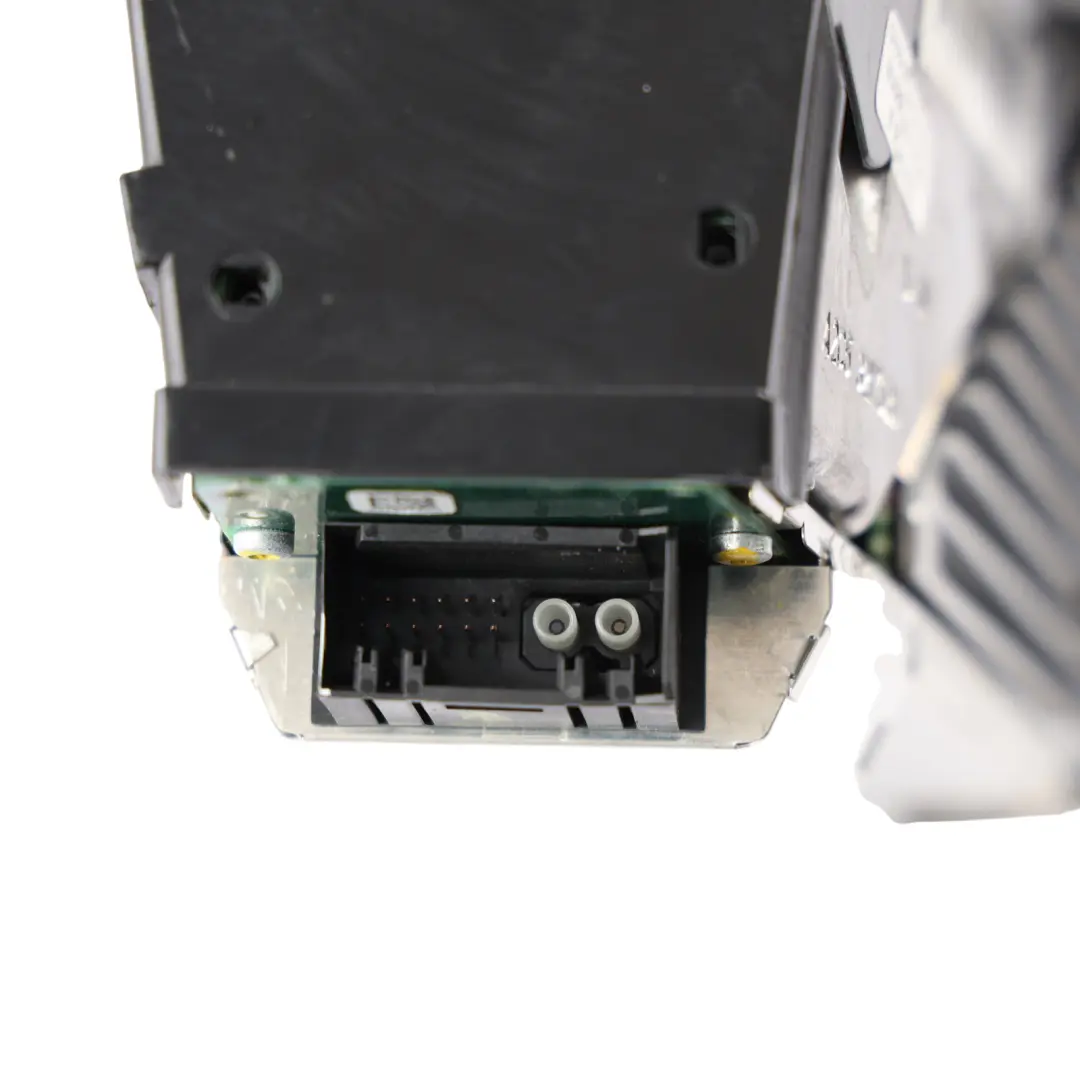

The module is designed specifically for the BMW 5 Series E60/E61 platform equipped with a factory Head-Up Display. As a component from the electronic controllers category, it interfaces with the vehicle's system via dedicated connectors and is intended for installation in its original structural location.

The product comes from the BMW line, meaning it adheres to the manufacturer's quality standards for onboard electronics. The used nature of the part allows for an economical repair of the HUD system while maintaining the vehicle's original specifications, which is particularly important for cars where compliance with the factory configuration is key.

Condition, Verification, and Service Application

The component is offered as a used part, which in workshop practice often represents an optimal compromise between repair cost and maintaining original BMW electronics. Such modules are frequently used for:

• Head-Up Display system repairs after control unit failure,
• restoring full functionality of optional equipment after collisions or water damage,
• services specializing in BMW 5 Series E60/E61 electronics.

Before installation, a standard diagnostic procedure is recommended, and if necessary, appropriate module coding according to the specific vehicle's configuration.
