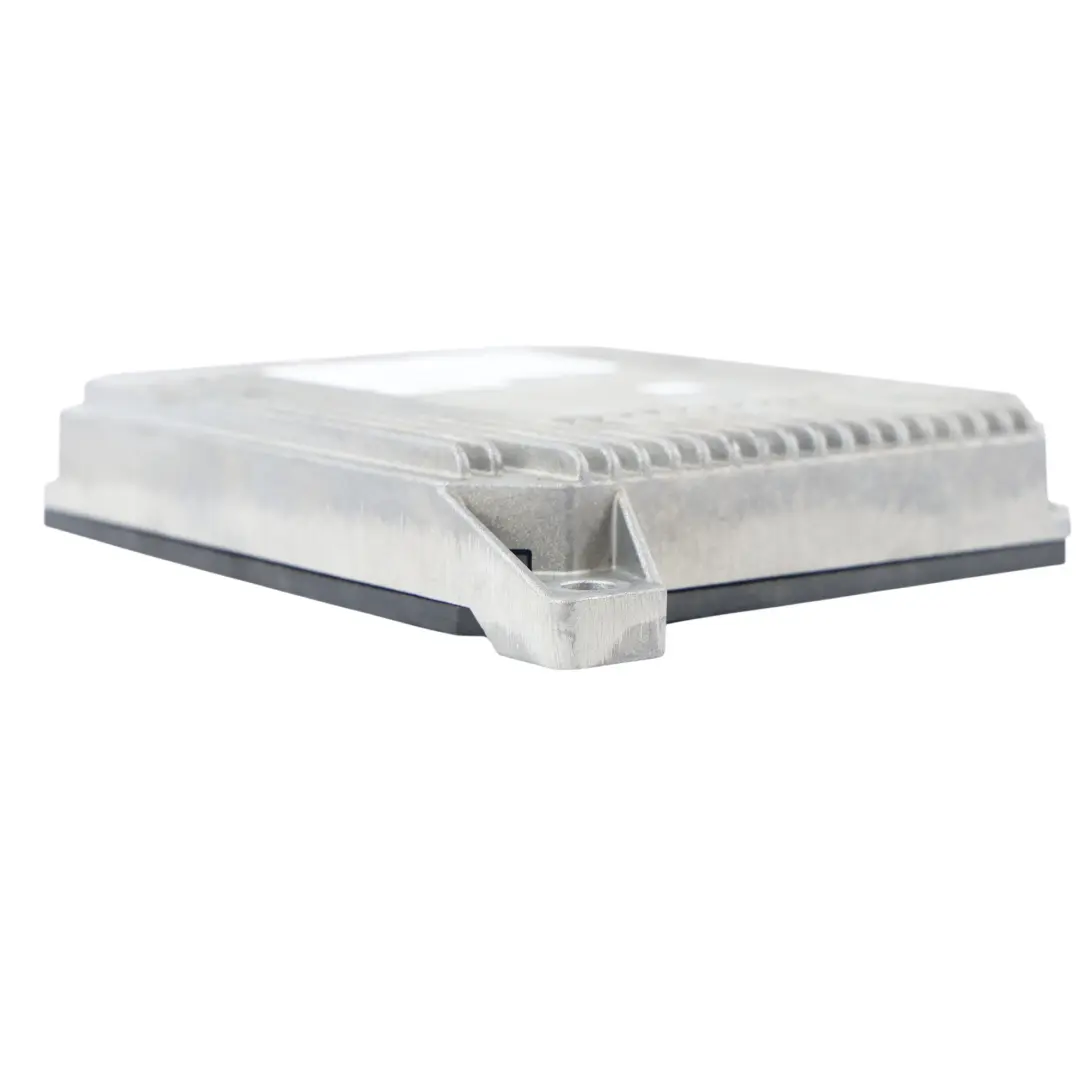

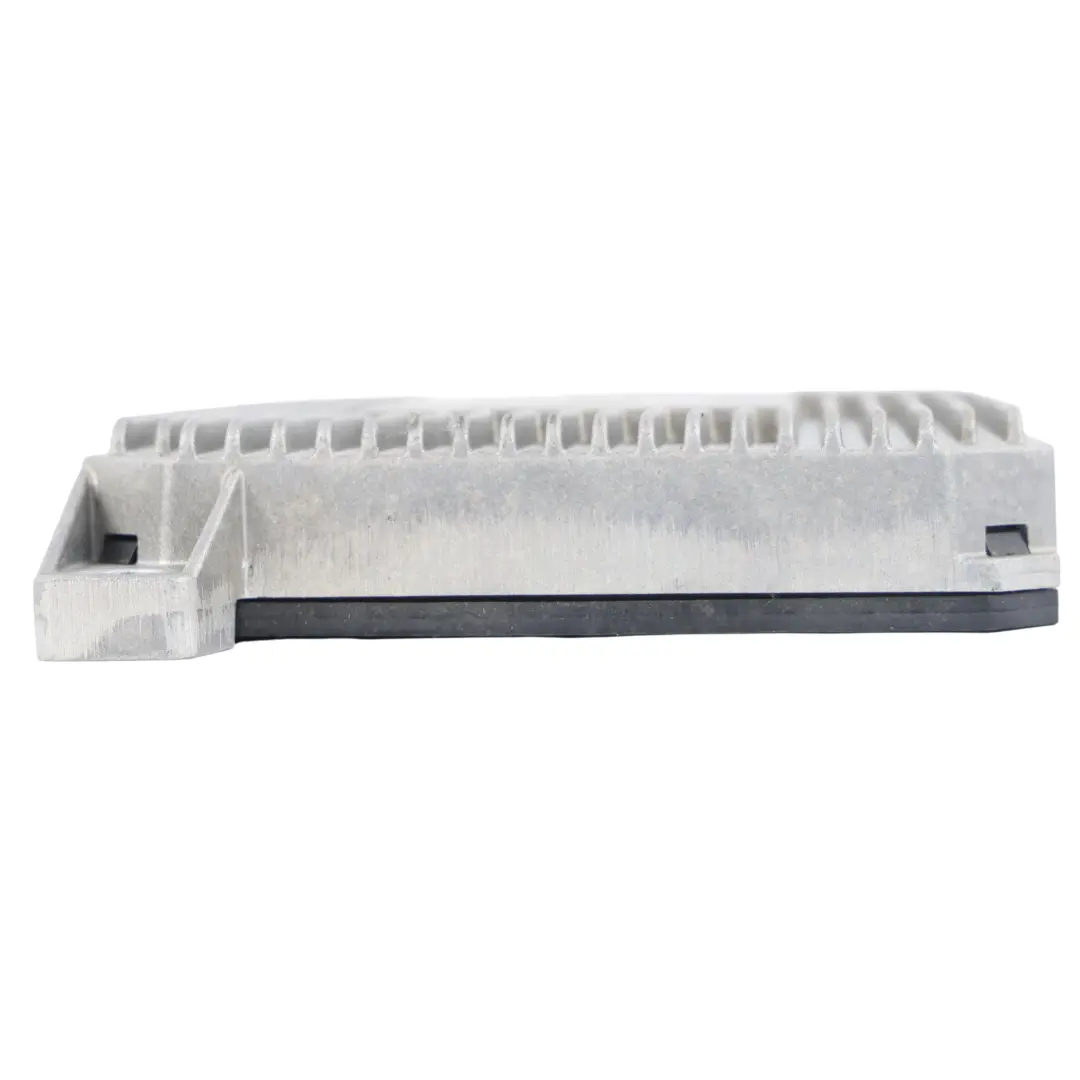

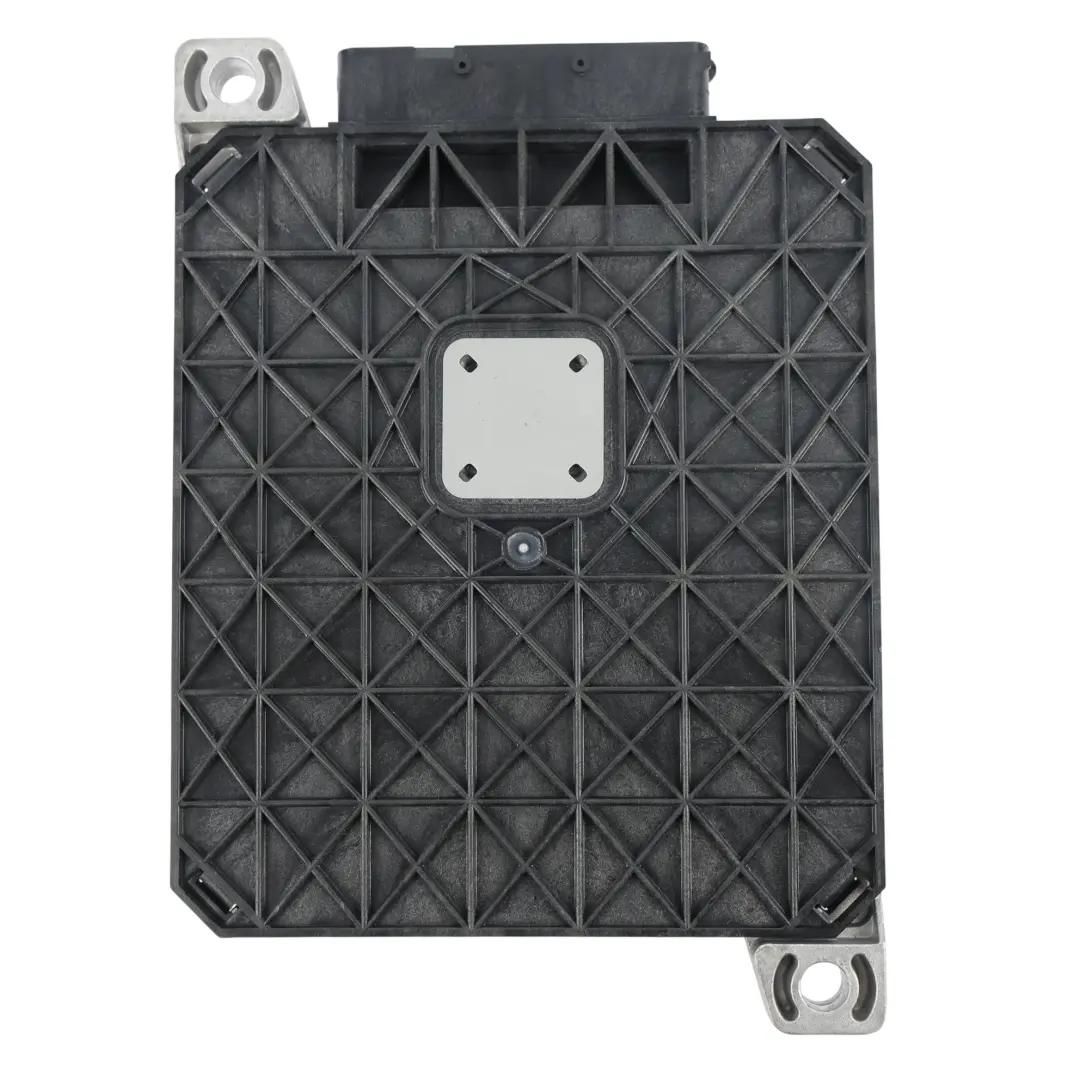

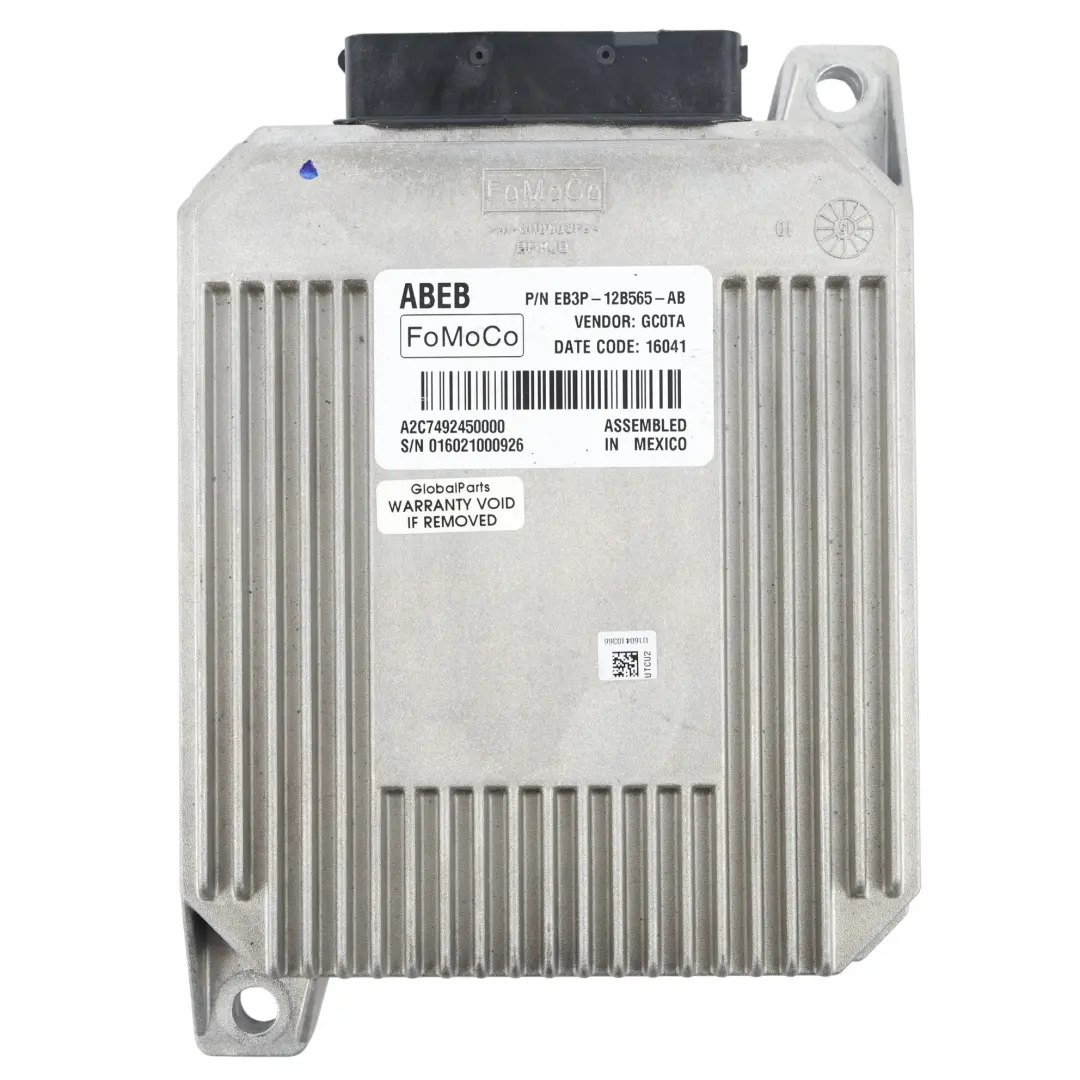

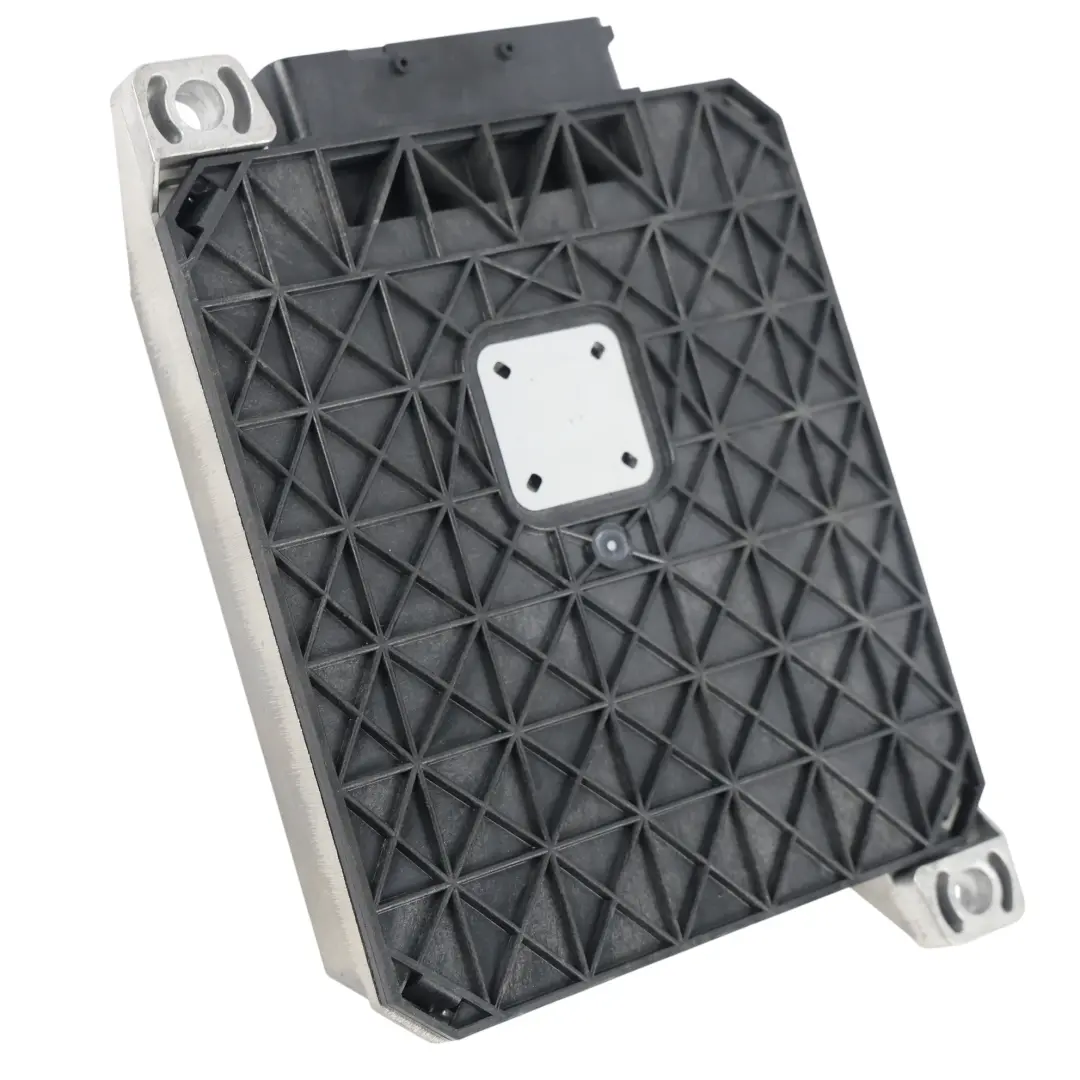

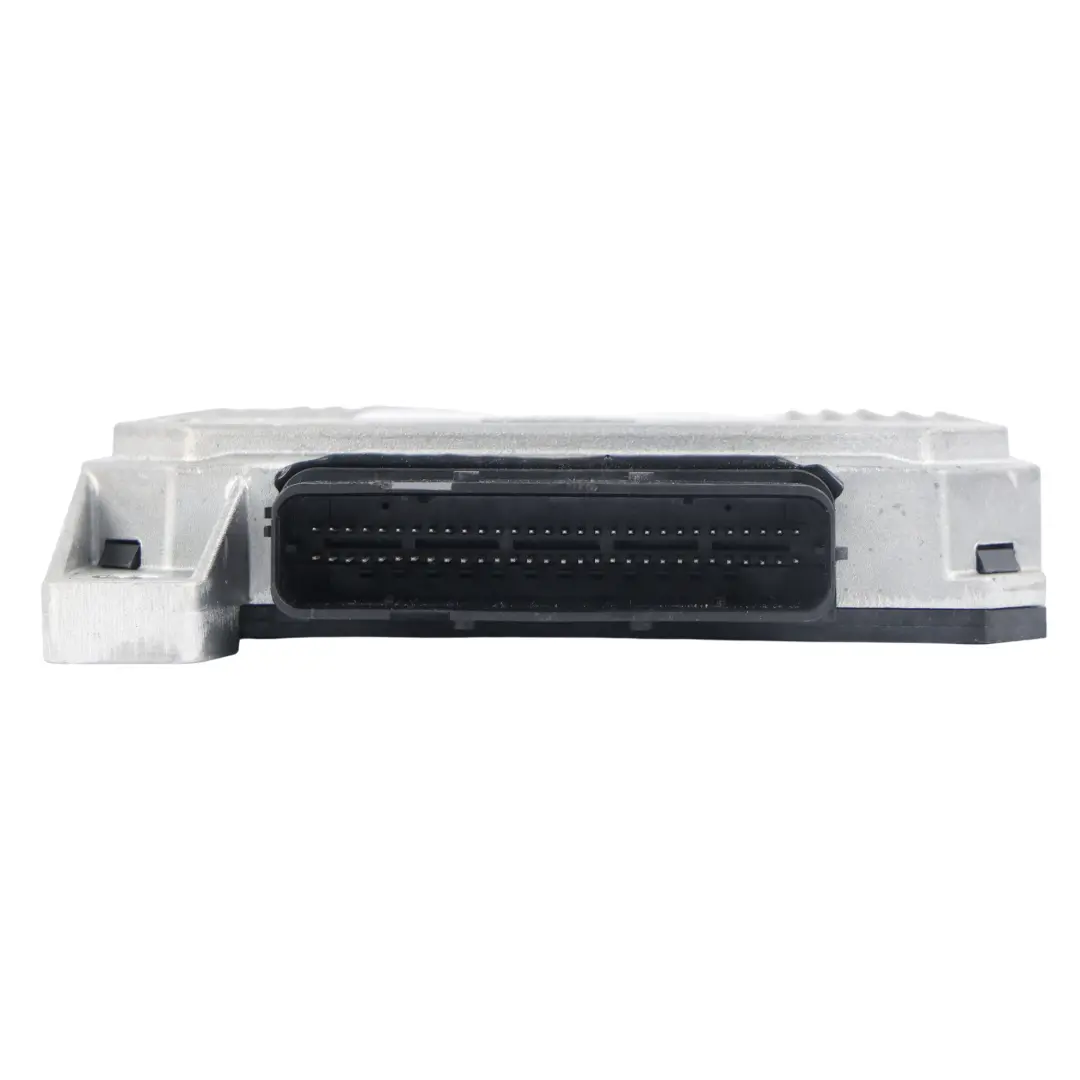

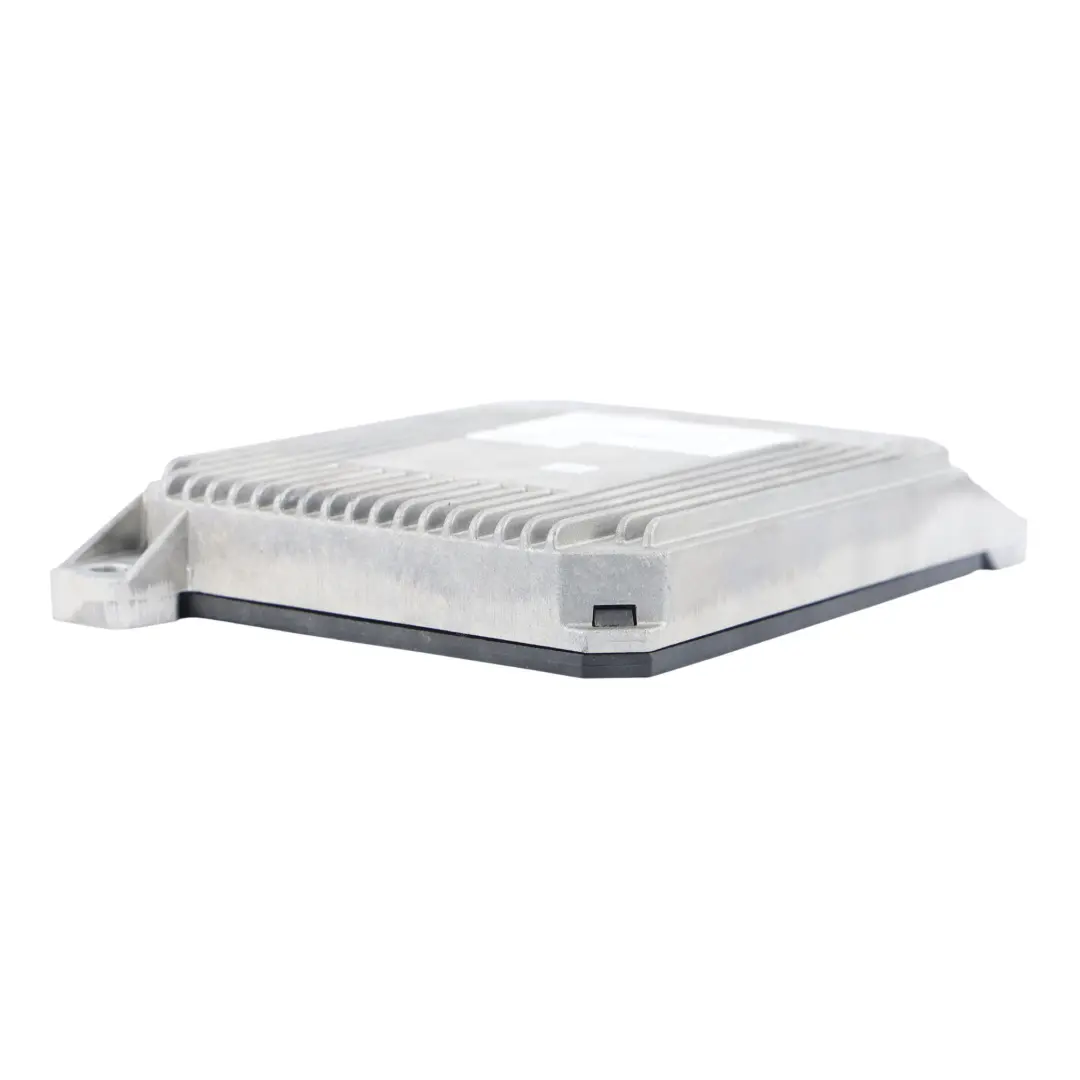

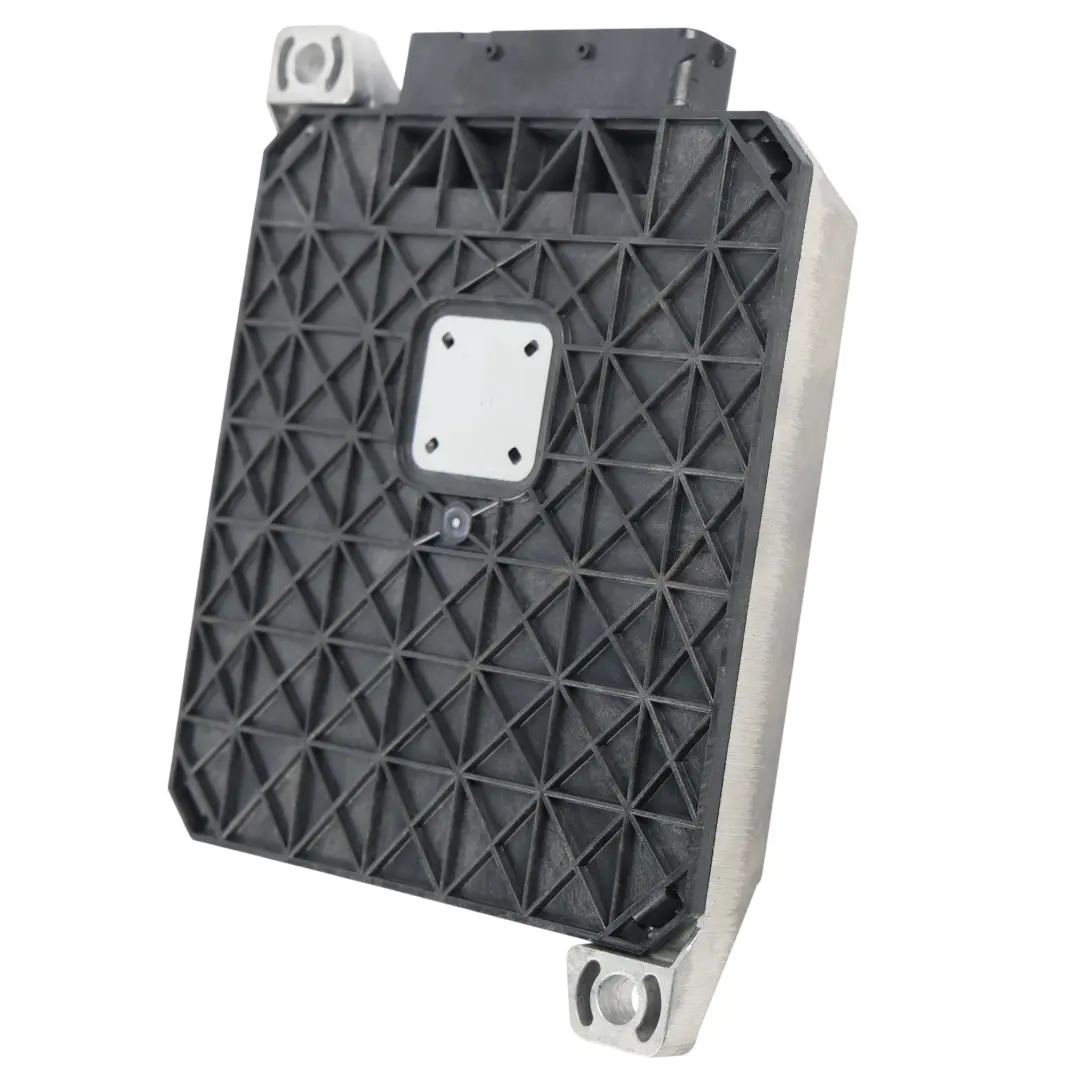

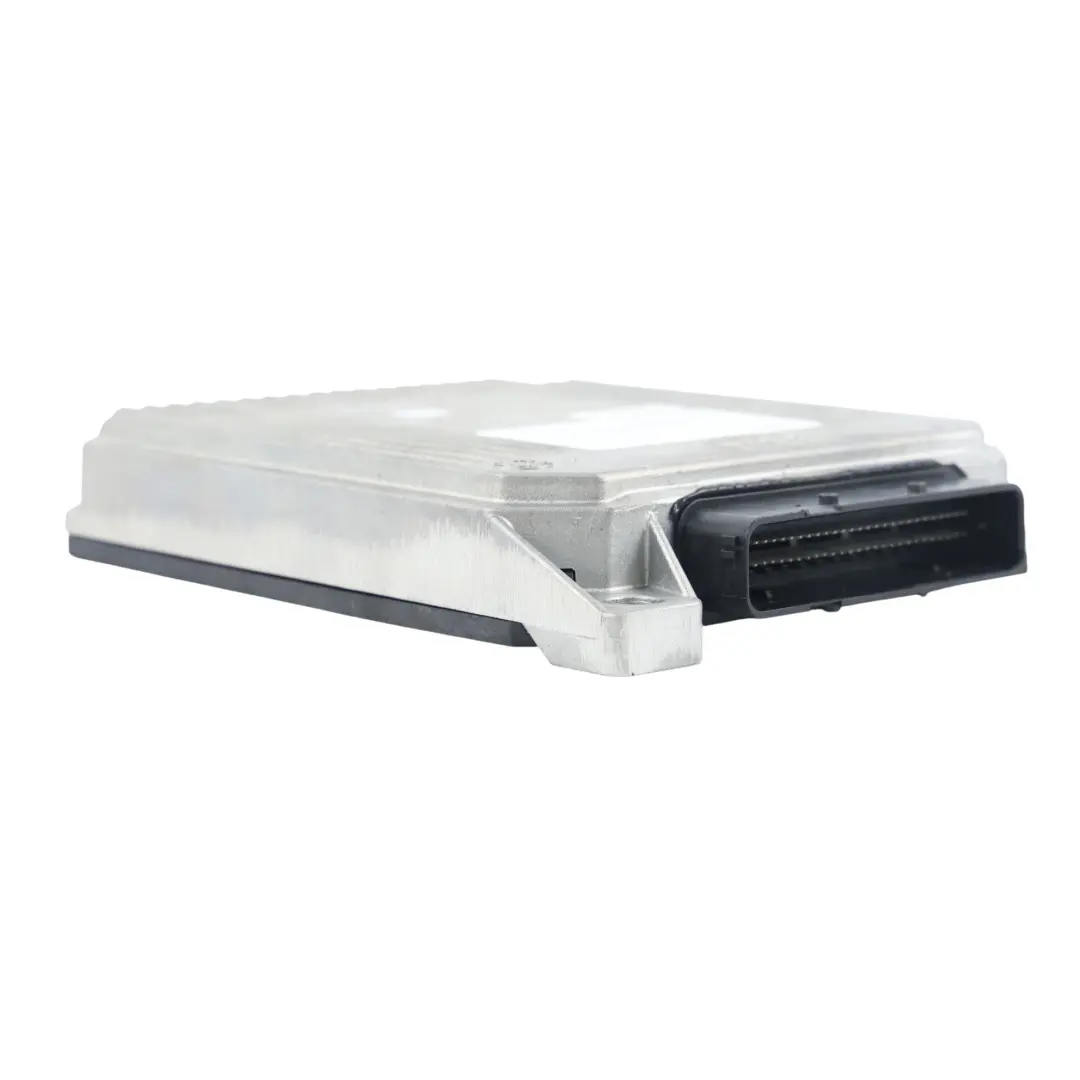

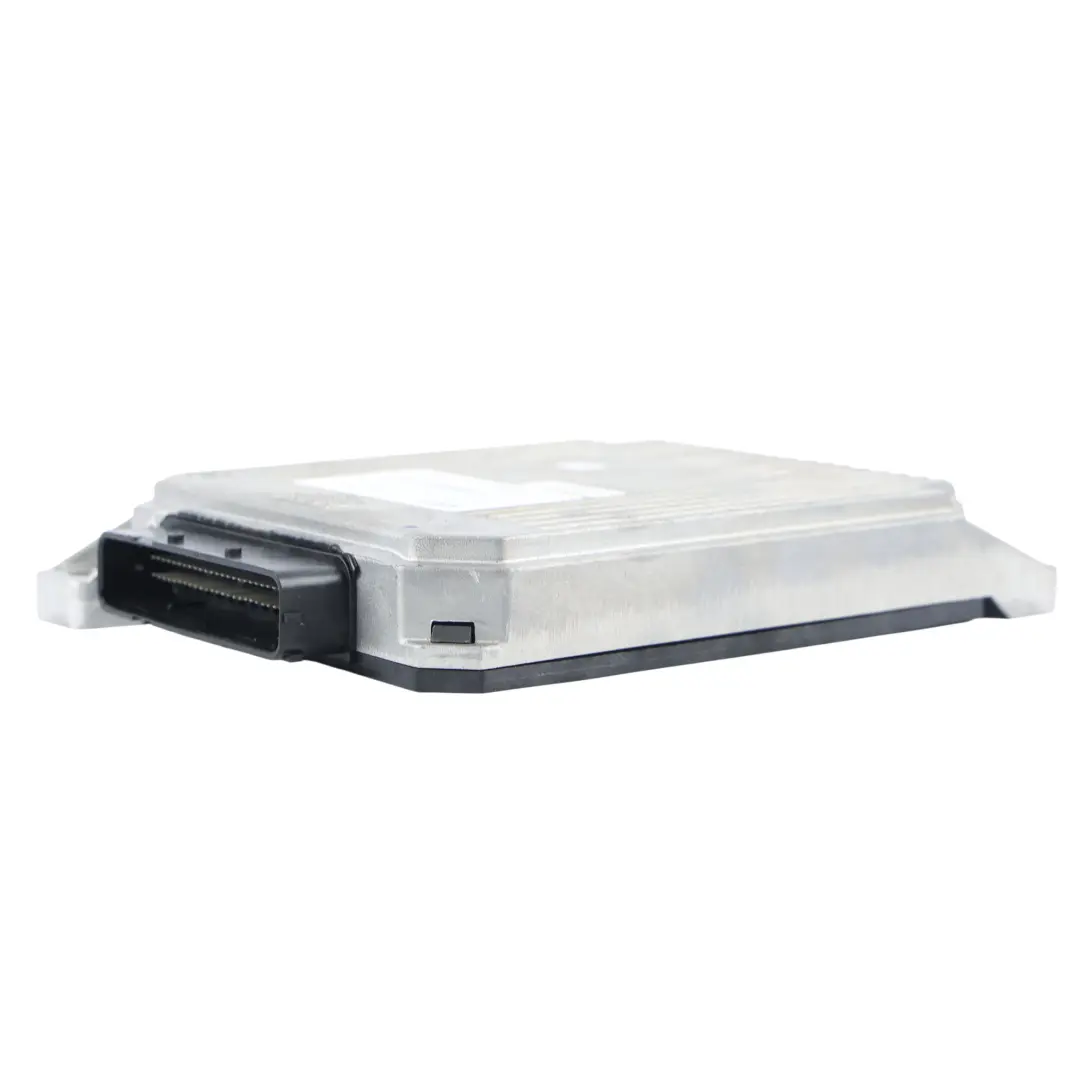

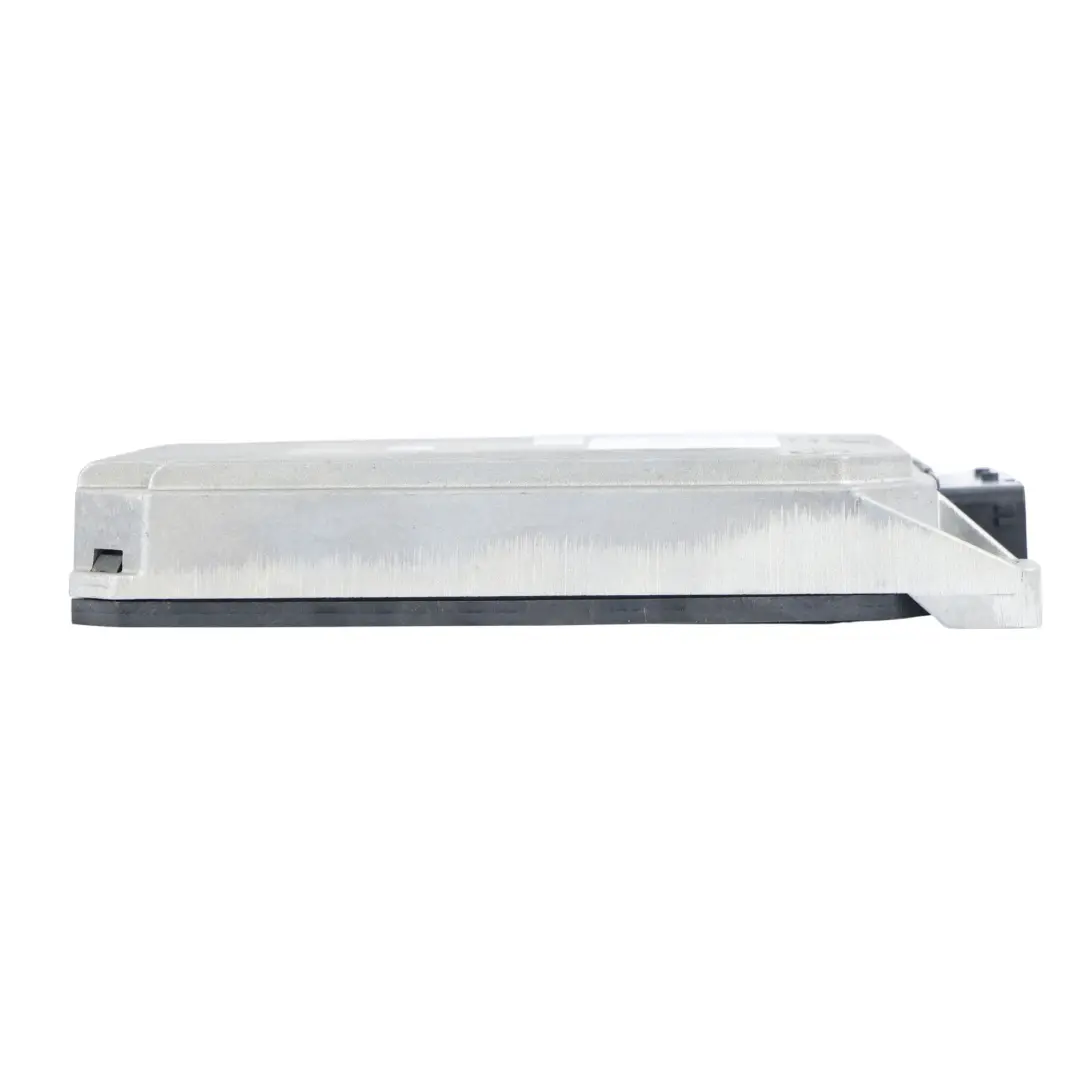

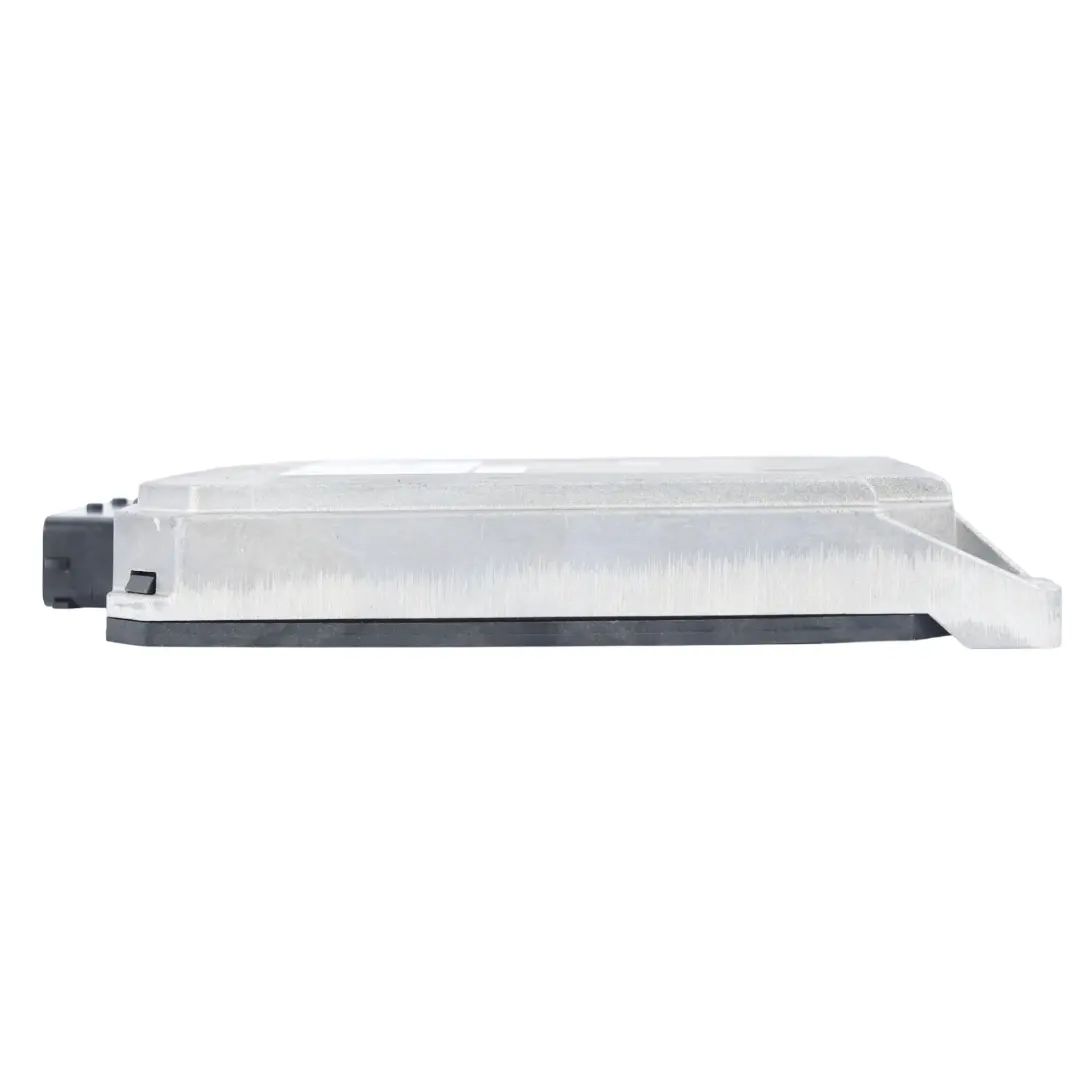

Ford Ranger Lim 2.2 Diesel AutomaticGearbox ECU Control Unit EB3P-12B565-AB

Ford Ranger Lim 2.2 Diesel AutomaticGearbox ECU Control Unit is a specialized component from the Electronic control modules and controllers group, designed to manage the operation of the automatic transmission in diesel-powered vehicles. It enables precise gear shift control, supporting smooth driving, drivetrain stability, and proper cooperation with the Diesel powertrain system.

Specifications and technical data

• SKU: EB3P-12B565-AB
• Mark: Ford
• Condition: Used
• OEM Part Number: EB3P-12B565-AB
• Substitutable numbers: EB3P-12B565-AB, EB3P12B565AB
• Fuel type: Diesel
• Part type: Transmission Control Module
• Category: ECUs & Computer Modules

Purpose and function of the transmission controller

The presented controller is a component dedicated to automatic transmission systems in Ford models with diesel engines. It is responsible for analyzing signals from sensors, selecting the appropriate gear ratio, and coordinating the transmission's operation with the powertrain, which translates into stable acceleration and predictable drivetrain responses. Thanks to the use of specialized electronics, the controller supports:

• correct gear shifting logic in automatic mode,
• maintaining appropriate diesel engine RPM,
• reducing jerking and unwanted delays during gear changes.

Benefits of using an original Ford module

As a component from the Electronic control modules and controllers group intended for Ford vehicles, the module ensures factory-fit compatibility with the electrical installation and the vehicle's system architecture. The specific operating characteristics for the Diesel engine allow for maintaining compliance with factory control maps and transmission operating logic. Key advantages include, among others:

• maintaining the original gear shifting characteristics intended by the manufacturer,
• consistency with other electronic systems of the vehicle,
• the ability to use the existing wiring harness and connectors without modifying the installation.

Operational and installation characteristics

The offered controller is a used component, which in practice means a favorable combination of price and the preservation of the manufacturer's original specifications. Such modules are frequently chosen for automatic transmission repairs when the goal is to maintain factory control logic without the need to use replacements with uncertain parameters. Before installation, it is recommended to verify compatibility with the vehicle (e.g., in terms of software version and configuration) and to perform appropriate adaptation procedures in the vehicle, in accordance with Ford service documentation. A correctly selected and configured controller allows for restoring proper transmission operation after the failure of a previous module or after interference with the drivetrain.

Selection, compatibility, and practical tips

Due to the specific nature of automatic transmission control electronics, it is crucial to match the module to the specific vehicle configuration. In practice, this means the necessity of checking compatibility with service documentation, and often also selecting based on catalog numbers and software parameters. A properly selected controller minimizes the risk of communication errors in the vehicle network and transmission operation problems. If you want to deepen your knowledge on the selection and installation of used electronic modules, including transmission controllers and other ECUs, it is worth using the guide: Used automotive electronics – ECU modules and second-hand sensors. There you will find practical information on selection by numbers, hardware and software compatibility, and typical installation procedures.

Expansion of the control system in Ford vehicles

If you are planning a comprehensive repair or upgrade of the electronic powertrain control area in your Ford and need other components from the same group, such as additional ECU modules, comfort controllers, or transmission controllers, check the available parts in the Ford electronic control modules and controllers category.
