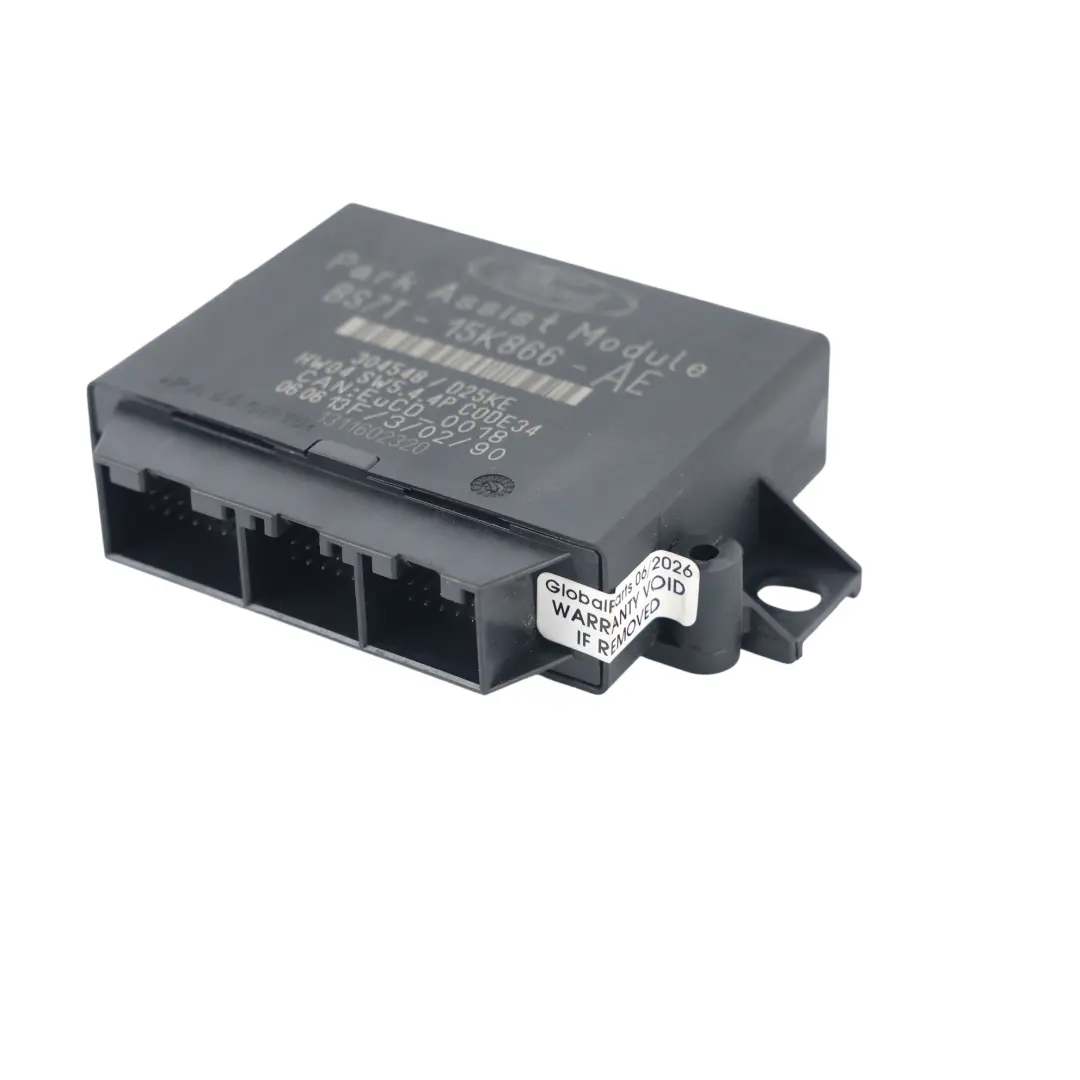

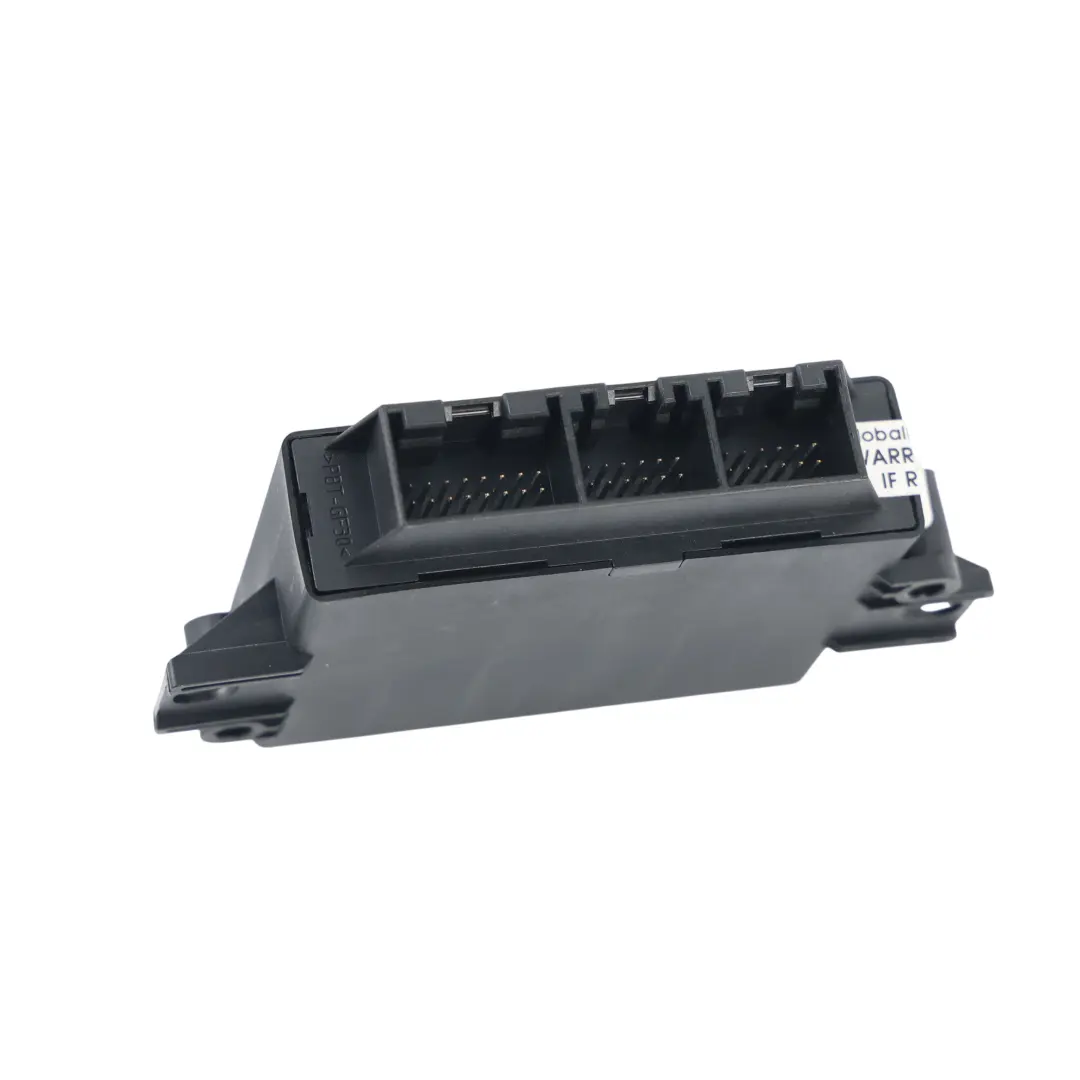

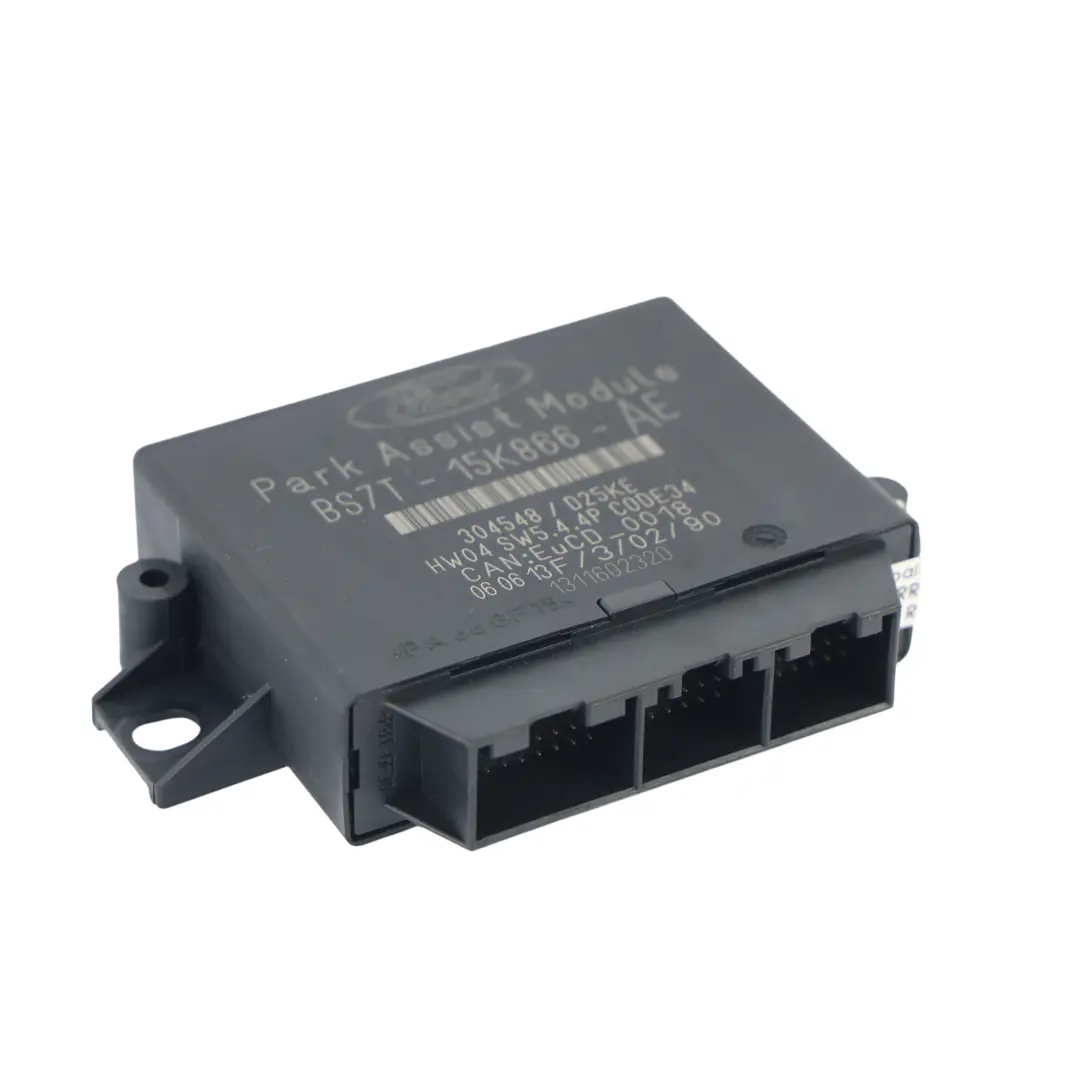

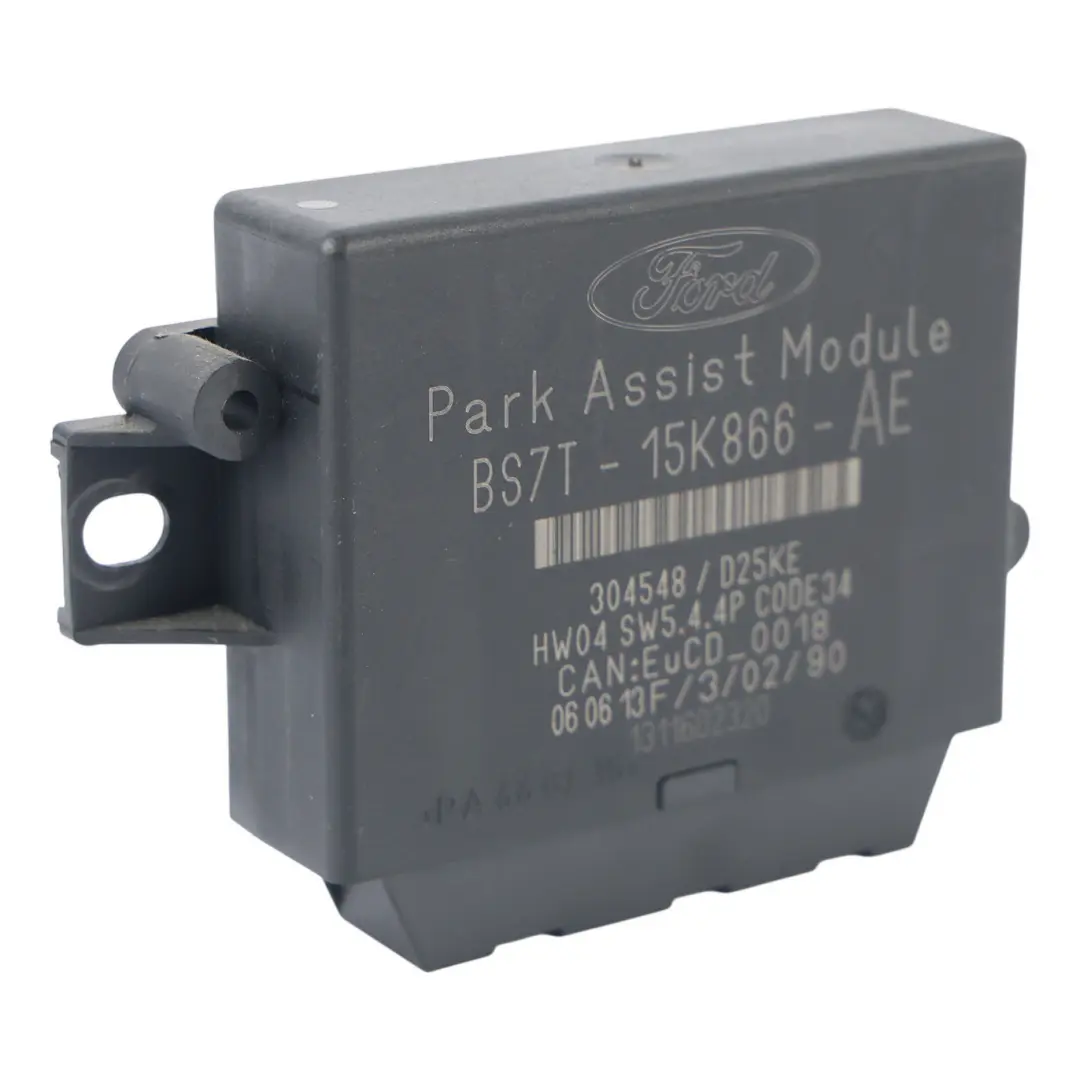

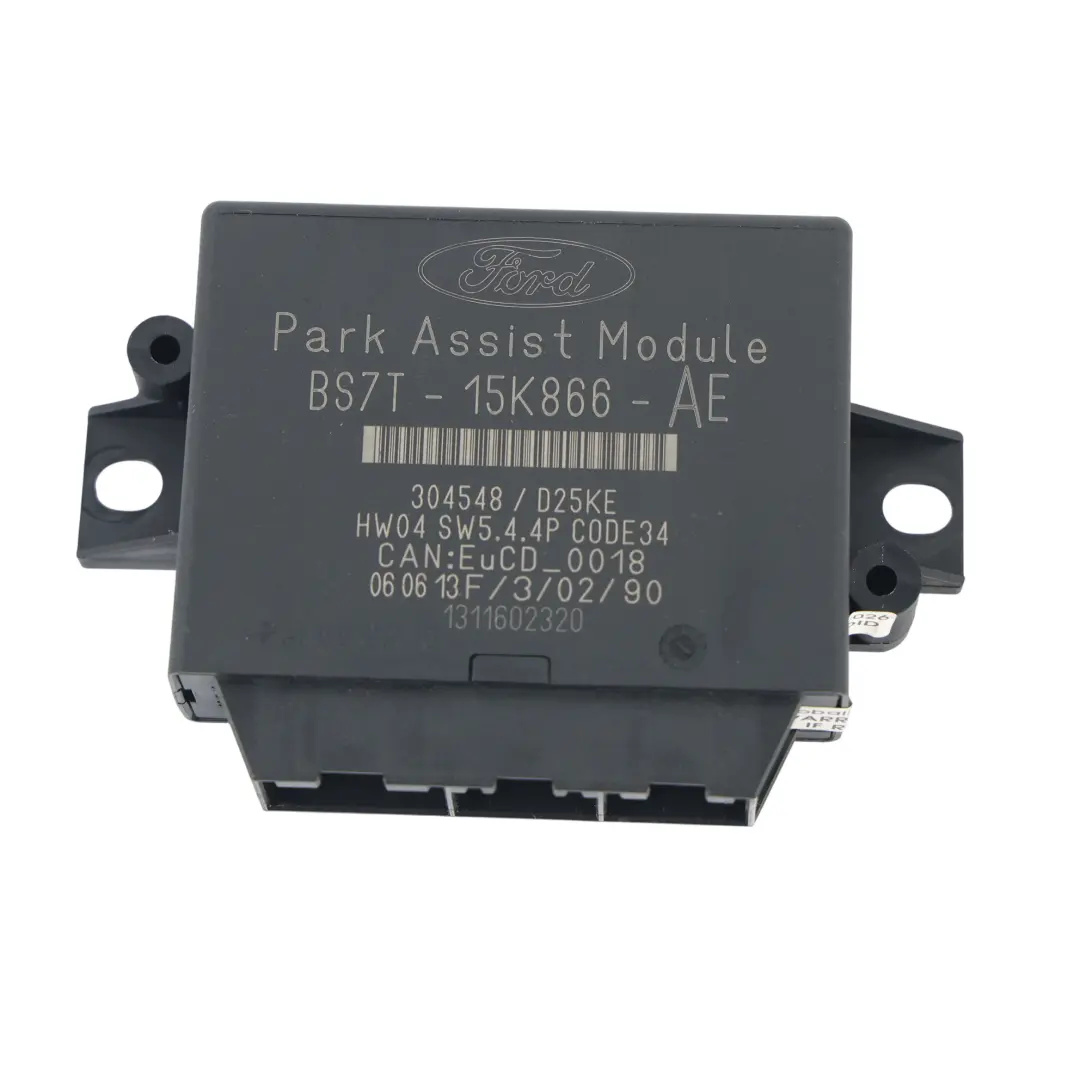

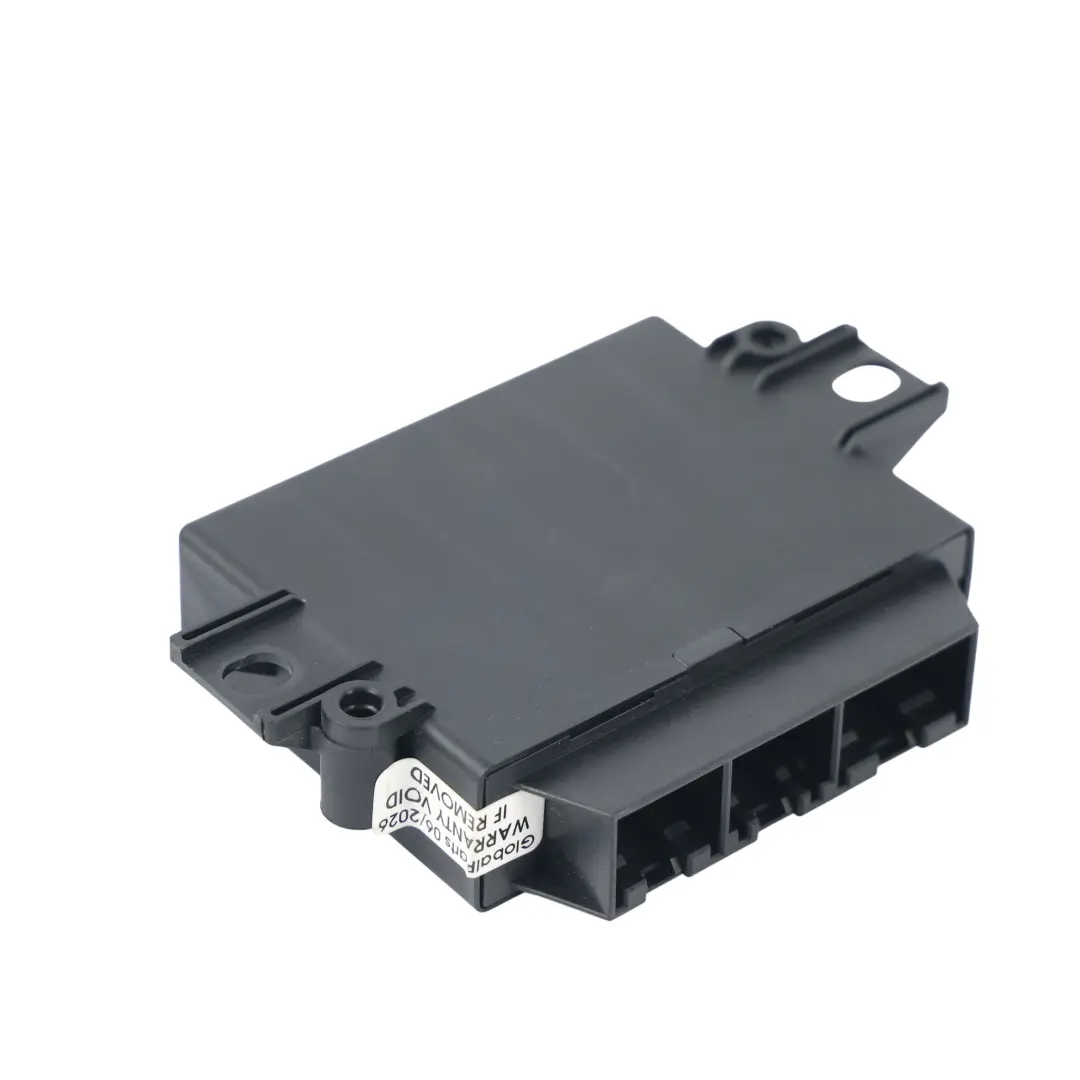

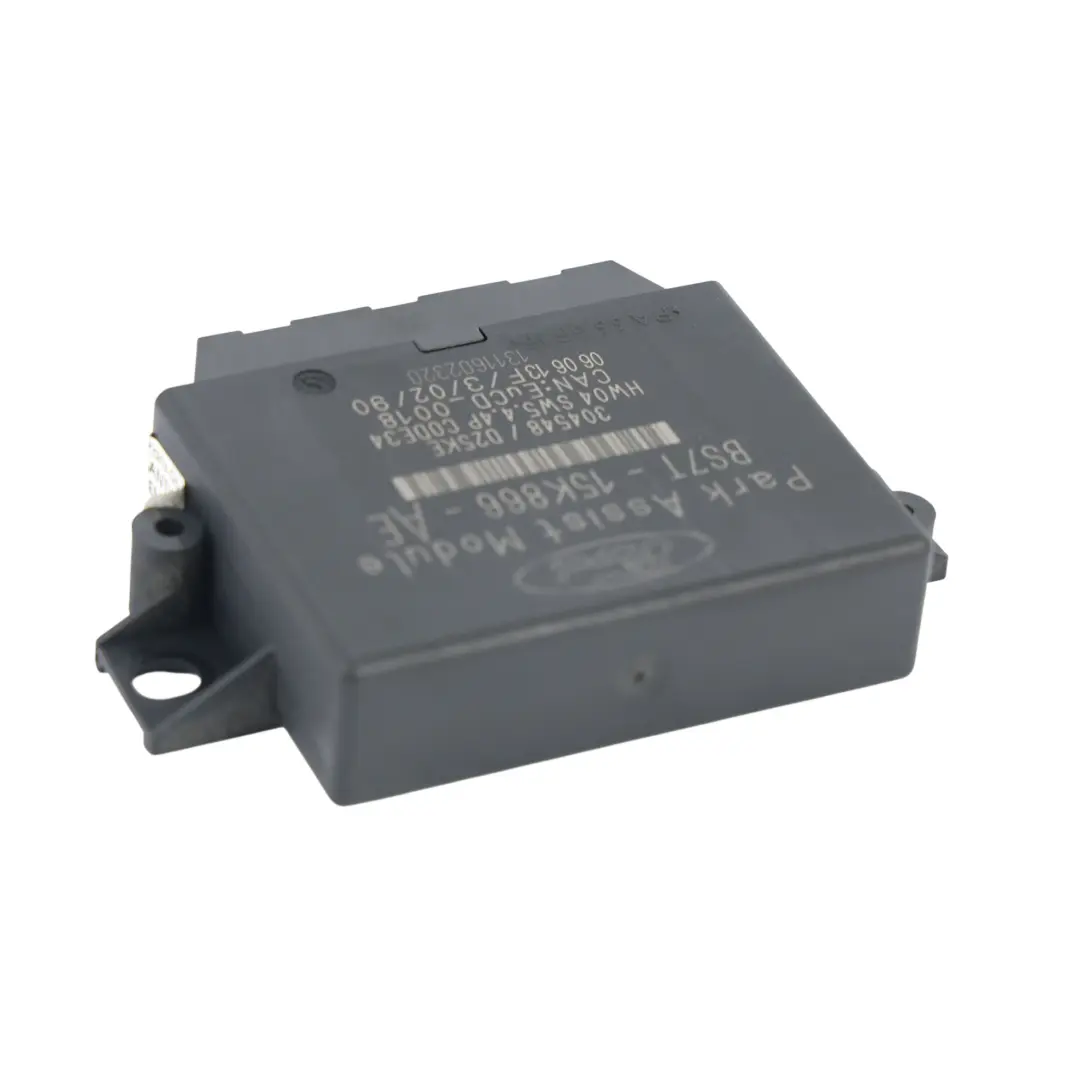

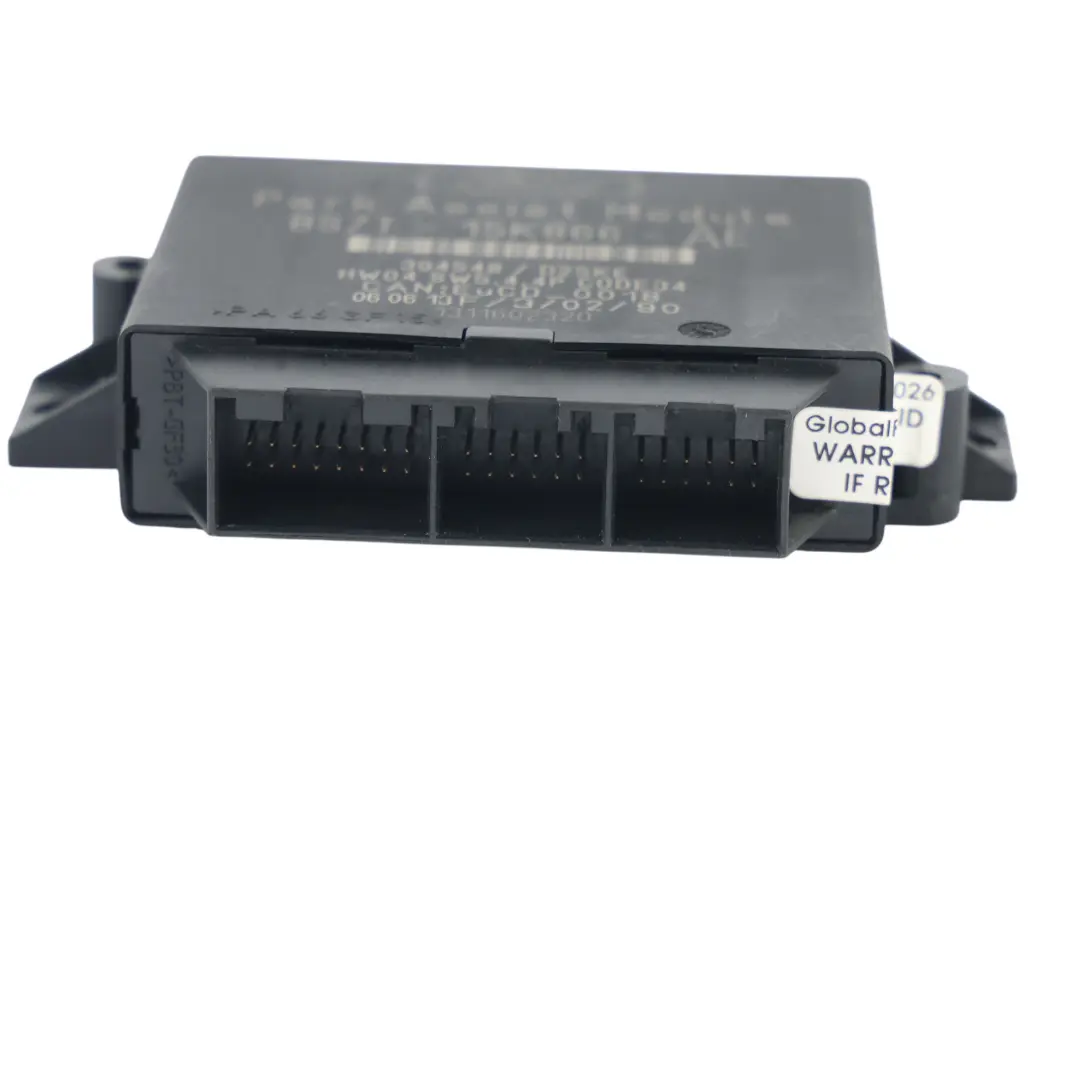

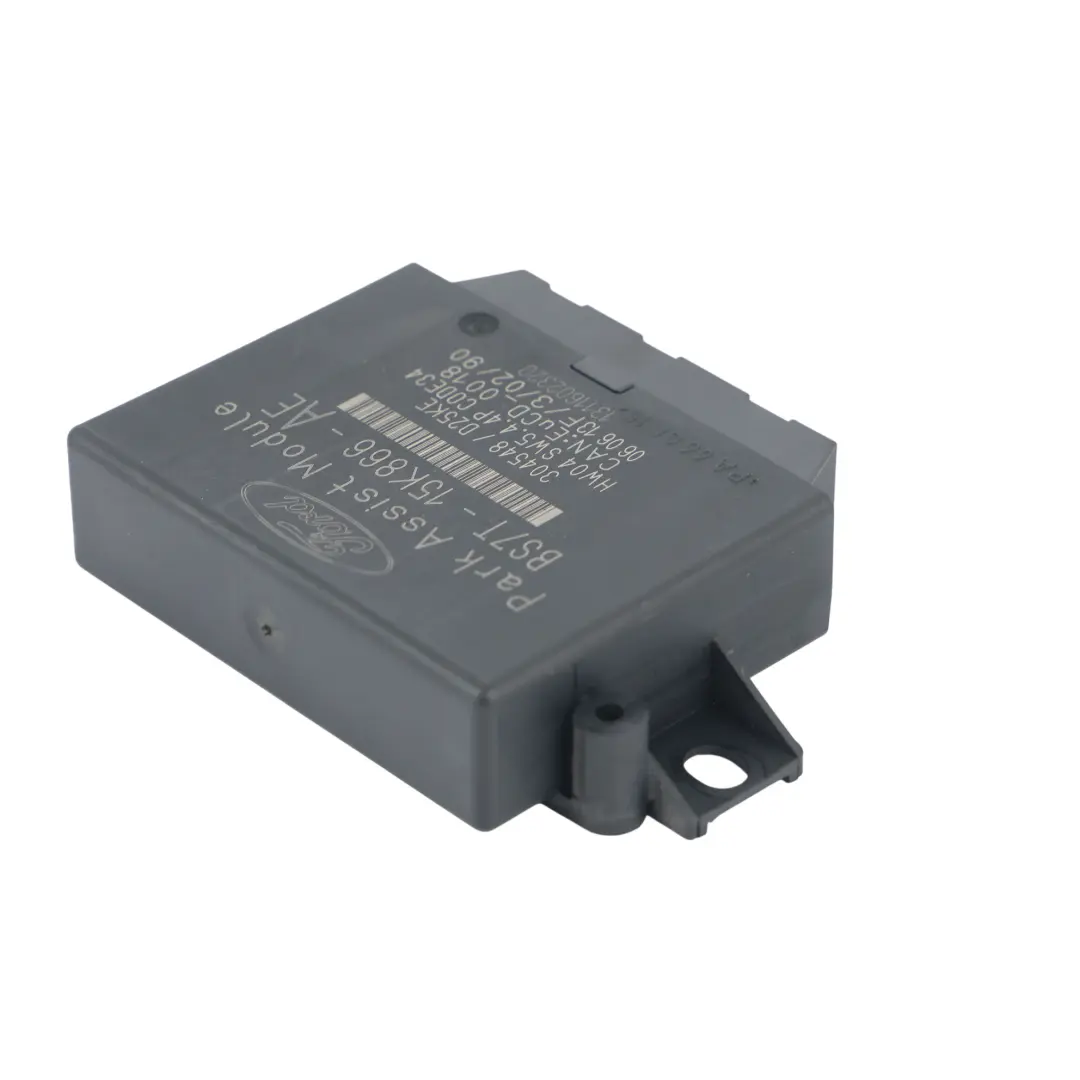

Ford Mondeo Mk4 Galaxy Mk2 S-Max PDC Parking Distance Module BS7T-15K866-AE

Ford Mondeo Mk4 Galaxy Mk2 S-Max PDC Parking Distance Module is a component from the Electronic control modules and controllers group, responsible for precise management of the factory parking sensor system. This solution allows you to restore full functionality of the parking assistant, ensuring convenient maneuvering and consistency with the original Ford electrical installation.

Specifications and technical data

• SKU: BS7T-15K866-AE
• Mark: Ford
• Condition: Used
• OEM Part Number: BS7T-15K866-AE
• Substitutable numbers: BS7T-15K866-AE, BS7T15K866AE, 1771637
• Category: ECUs & Computer Modules

Purpose and function of the PDC module

The presented PDC module is designed for Ford Mondeo Mk4, Galaxy Mk2, and S-Max vehicles equipped with the factory parking assistance system. The controller is responsible for processing signals from ultrasonic sensors, communicating with the vehicle's installation, and generating feedback for the driver (audible or visual signals – depending on the car's equipment).

By using an original module from the Electronic control modules and controllers group, compatibility with the wiring harness, CAN architecture, and other controllers in the vehicle is maintained, which reduces the risk of communication errors and diagnostic issues.

Advantages of using an original Ford module

Choosing an original PDC module for a Ford brings a number of practical technical benefits:

• maintaining factory operating parameters of the parking system,
• proper cooperation with the existing electrical installation and other controllers,
• easier diagnostics using service testers supporting Ford,
• reducing the risk of software incompatibility and communication errors in the vehicle network.

This solution is particularly recommended for post-collision repairs, replacing a damaged controller, or restoring the efficiency of the PDC system after fault codes appear in the memory.

Condition, origin, and installation aspects

The module comes from a Ford vehicle and is offered as a used component, which allows for lower repair costs while maintaining the manufacturer's original specifications. Such controllers are designed as long-lasting components, so with proper selection and installation, they can continue to operate in the vehicle without the need for a costly investment in a new part.

Before installation, it is recommended to verify compatibility with the specific vehicle's equipment and – if necessary – perform adaptation or coding using an appropriate diagnostic interface. This ensures the module is correctly recognized by other controllers and will work with the existing parking system configuration.

Module selection by numbers and integration with the installation

Due to various equipment variants (number of sensors, body versions, model years), selecting the controller based on the manufacturer's markings is crucial. For this purpose, you can use parameters such as OEM part number, available interchangeable numbers, and the SKU identifier visible in the technical specification. This allows you to match the module to the specific vehicle configuration and avoid compatibility problems.

After proper selection and installation, the module integrates with the vehicle's installation as a plug-in component, using factory connectors and the existing wiring harness. As a result, there is no need to interfere with the car's original electrical architecture.

Expanding knowledge and selecting used electronics

If you want to better understand when choosing a used PDC controller is justified and how to safely select electronic modules for your car, it is worth checking out practical advice. A detailed discussion can be found in the article The second life of electronics – when is it worth choosing used engine controllers, comfort modules, and parking sensors?, which describes, among other things, the principles of module selection and the cost-effectiveness of such solutions.

Additionally, if you are considering a broader service strategy and want to compare the advantages of new versus used components, the entry Car parts – new or used? We compare costs, quality, and durability will be helpful, allowing you to consciously plan future repairs and upgrades in your car.
