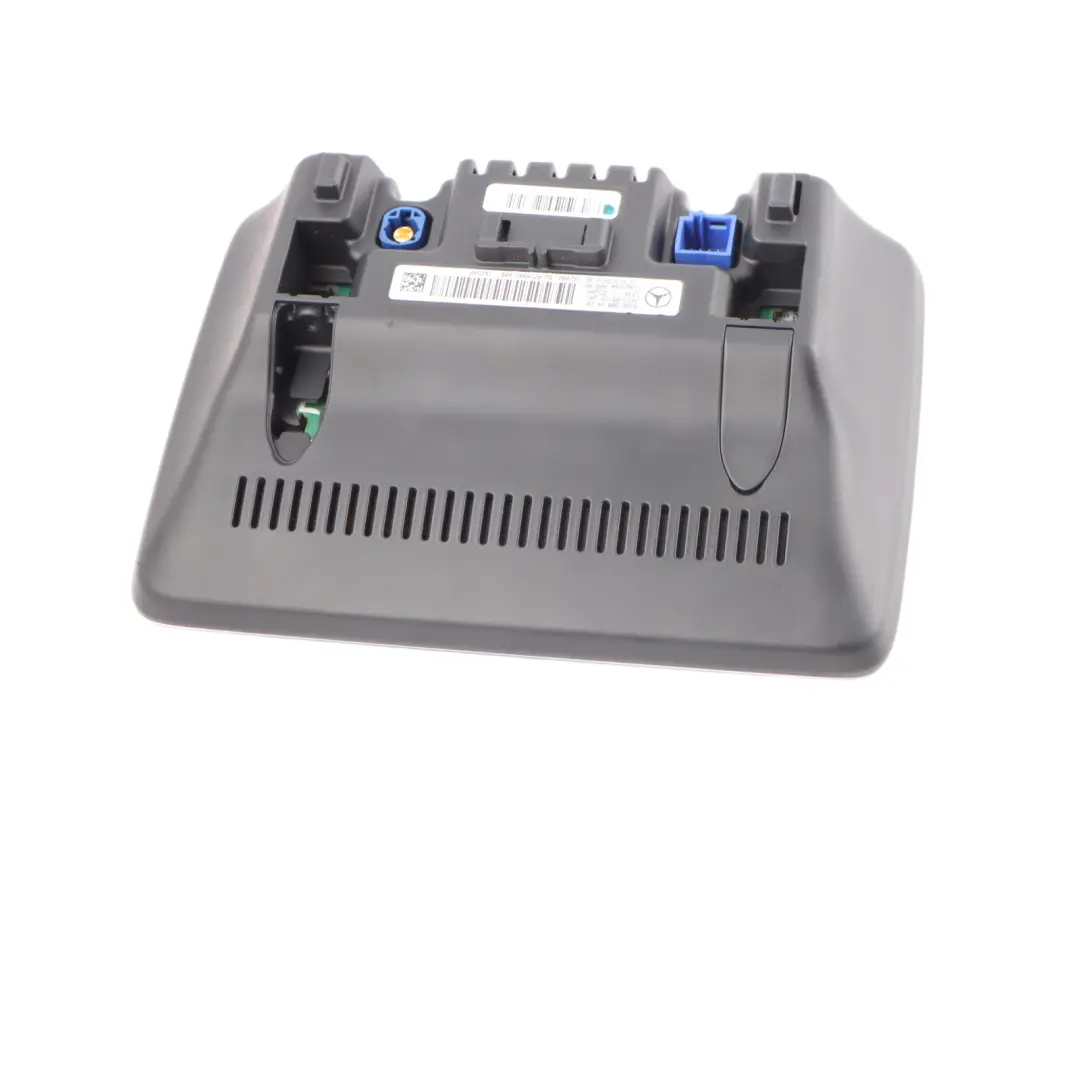

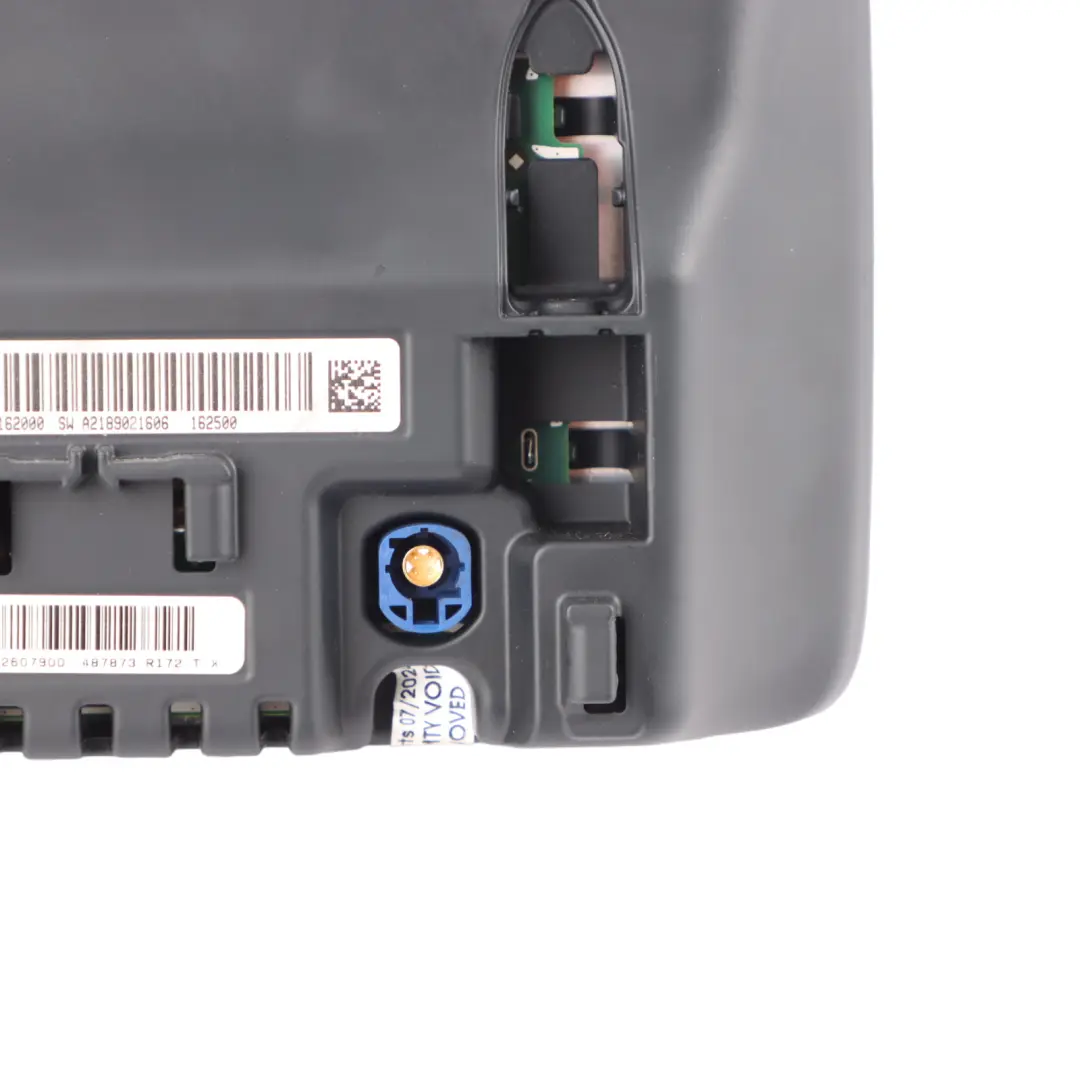

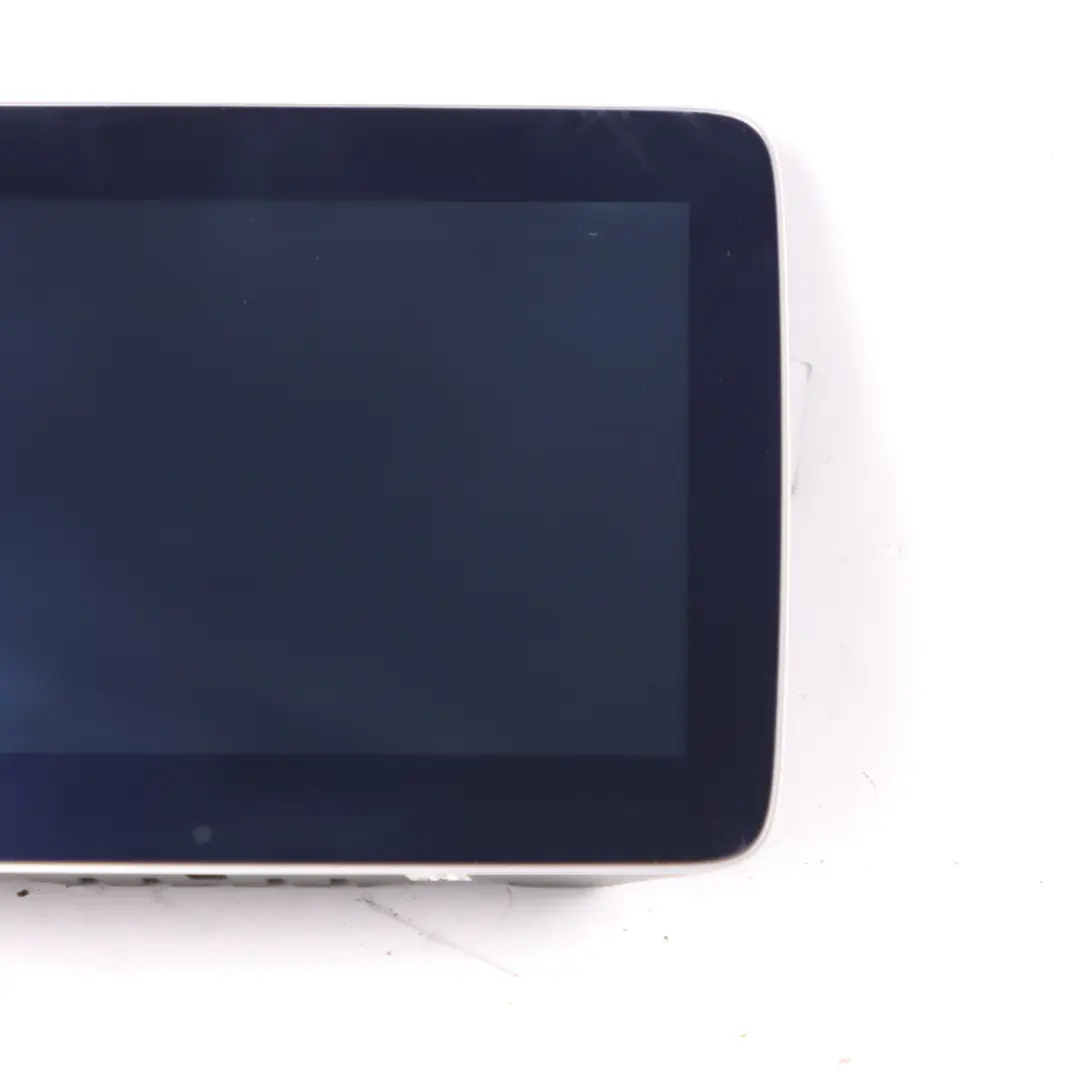

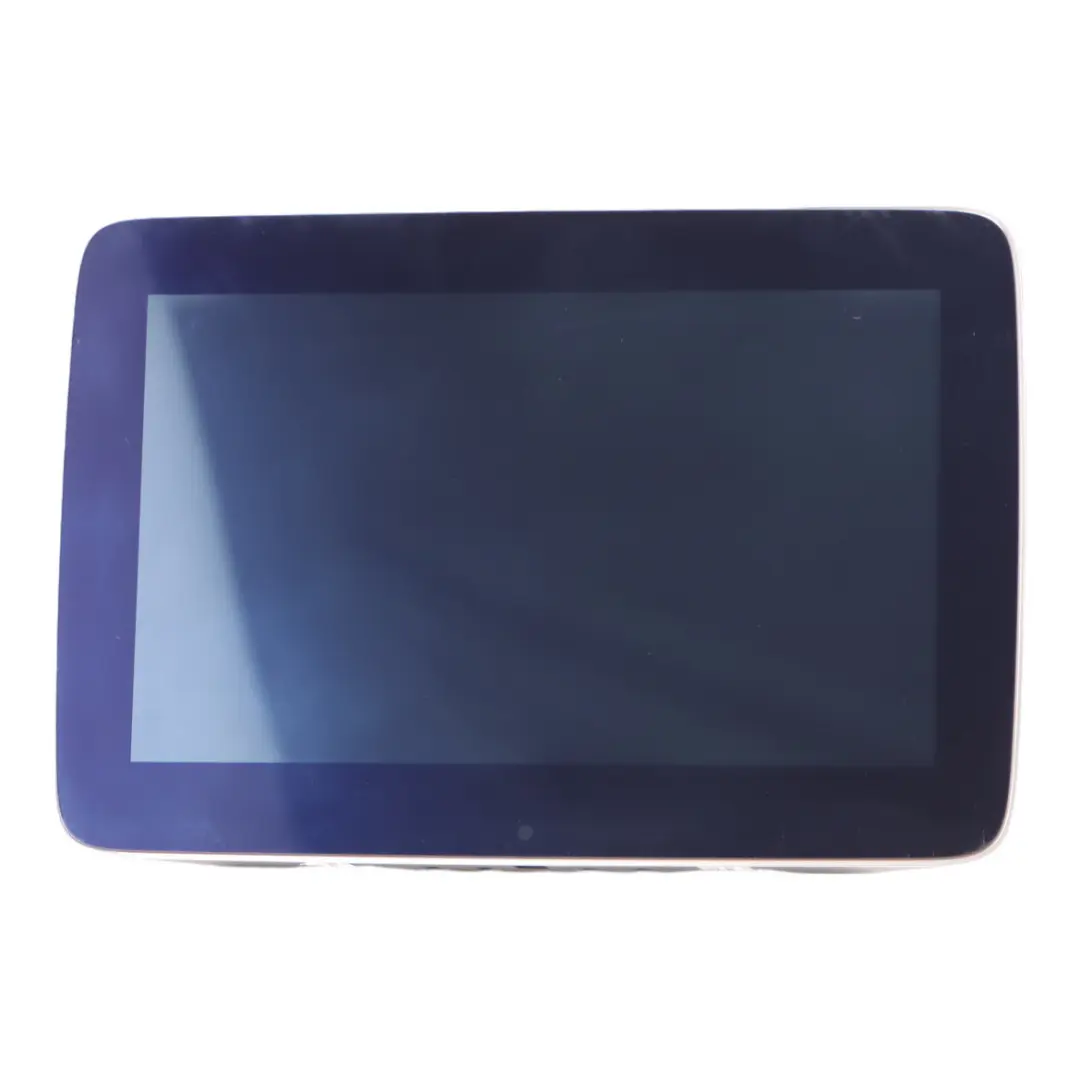

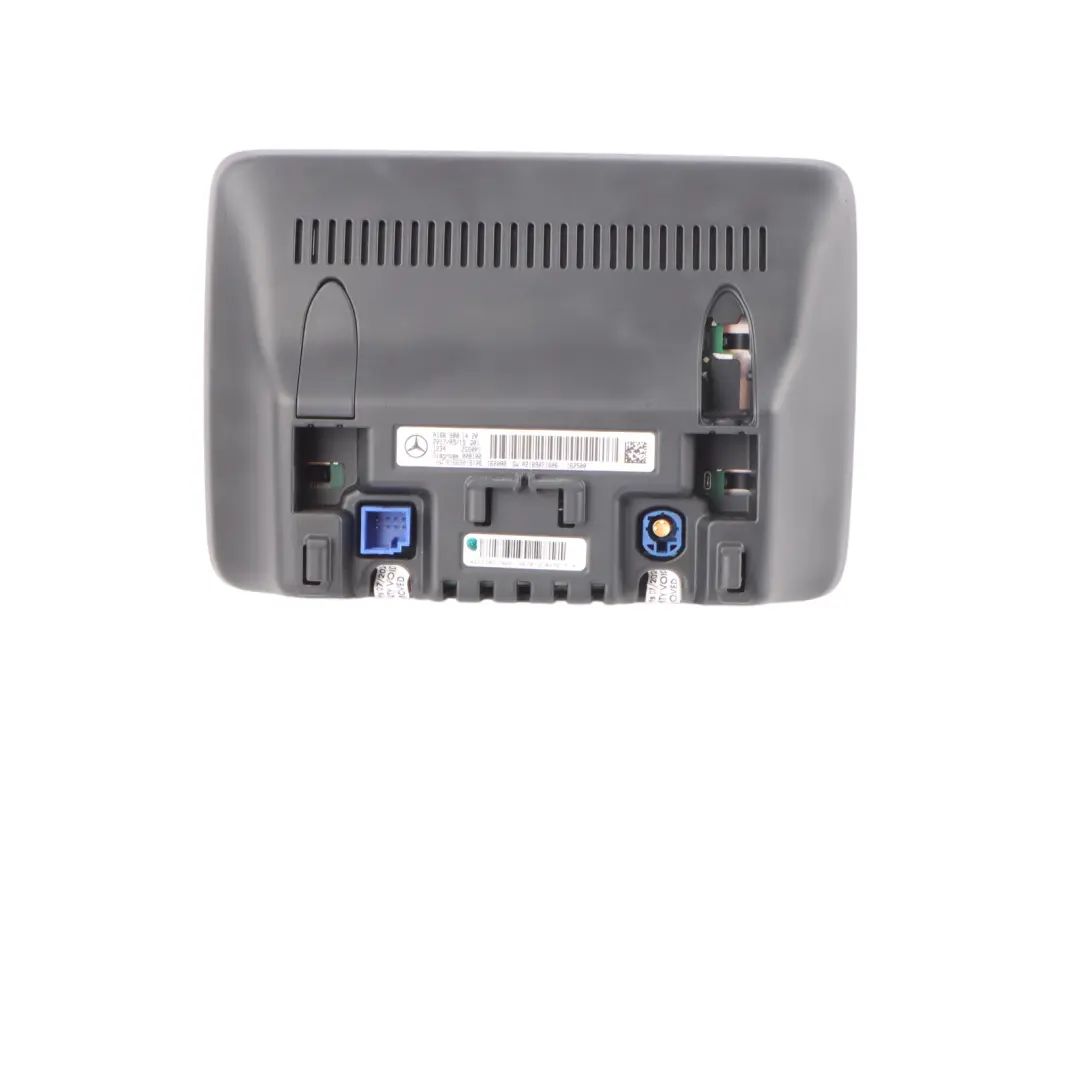

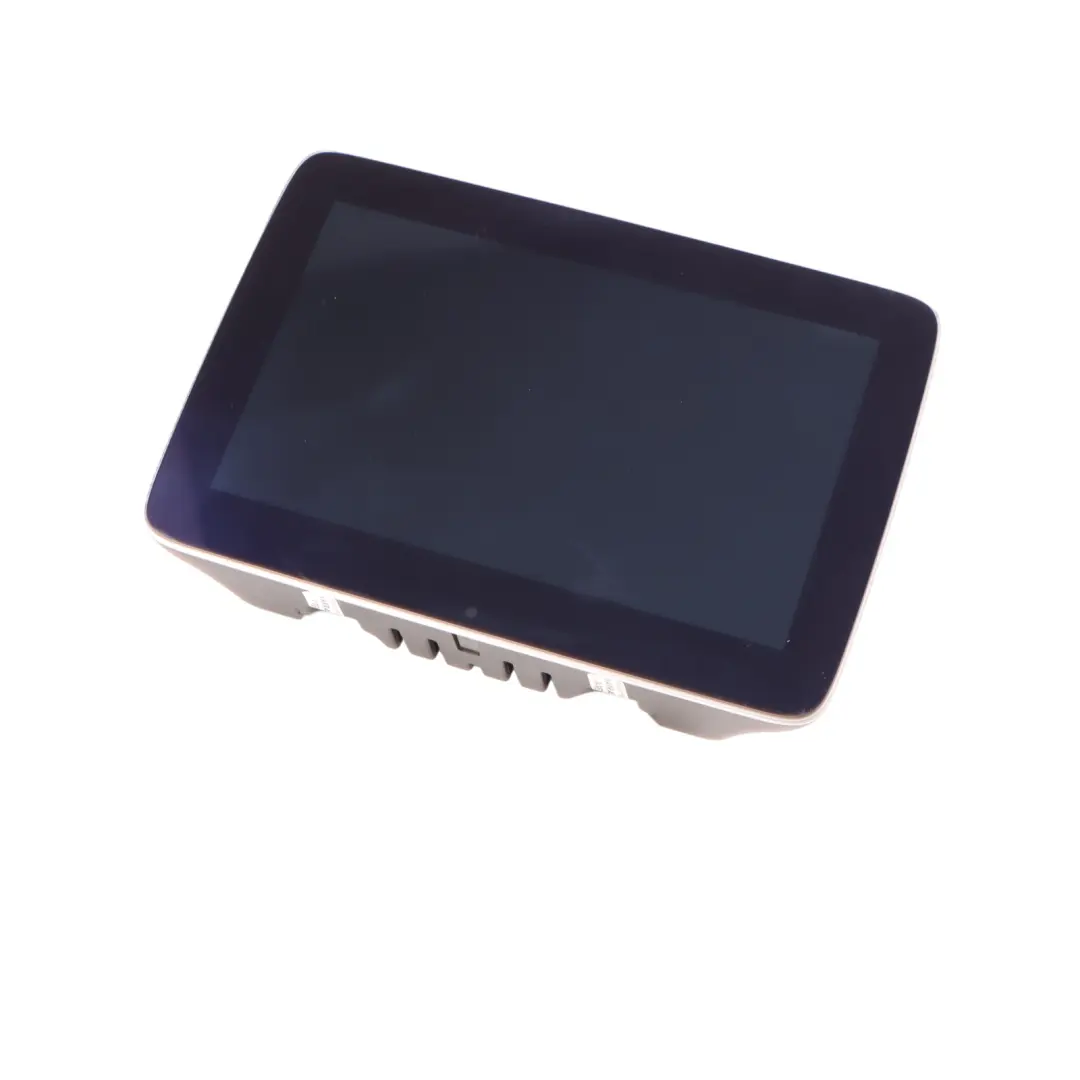

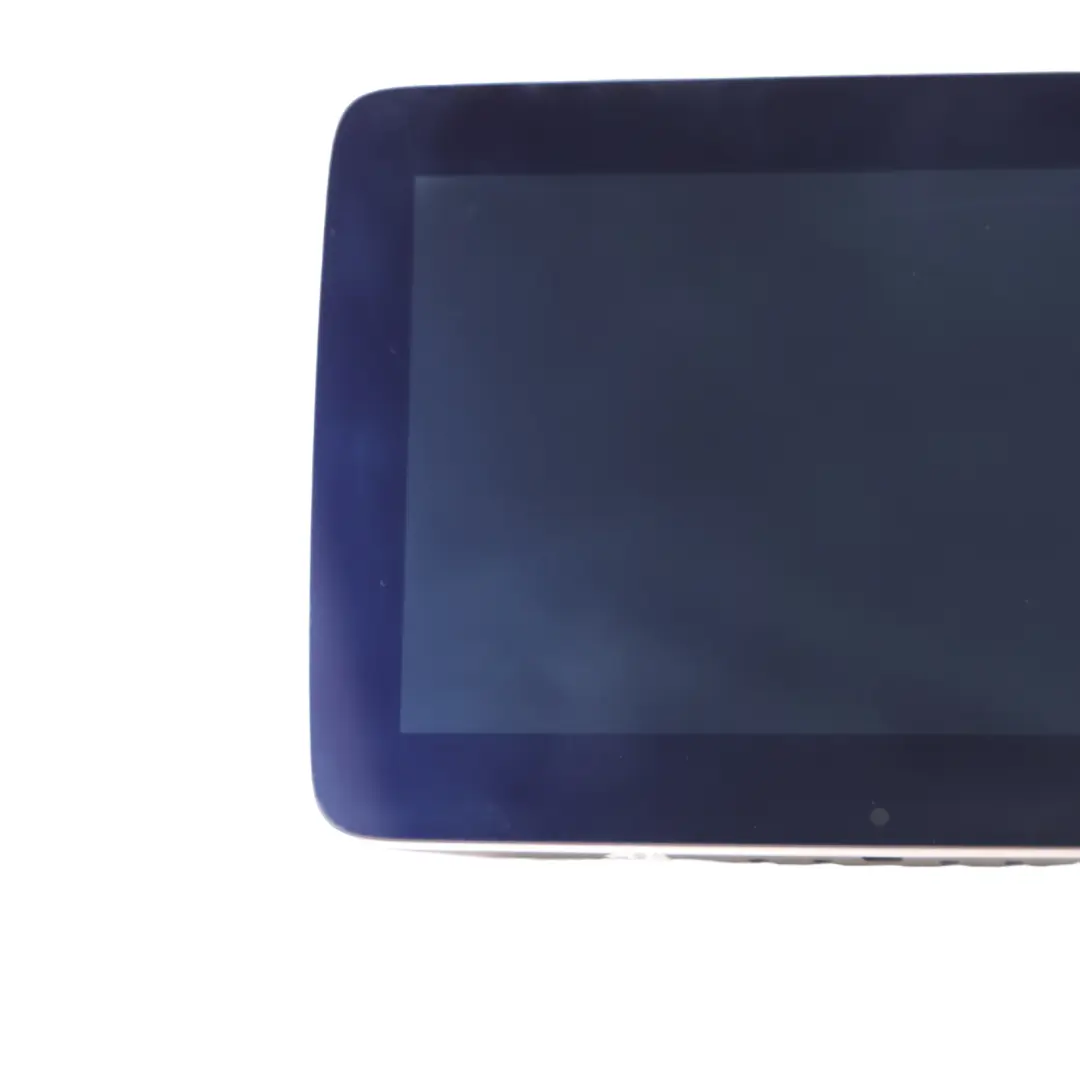

Mercedes-Benz CLA C117 W166 Head Unit Sat Nav Navigation Display Screen

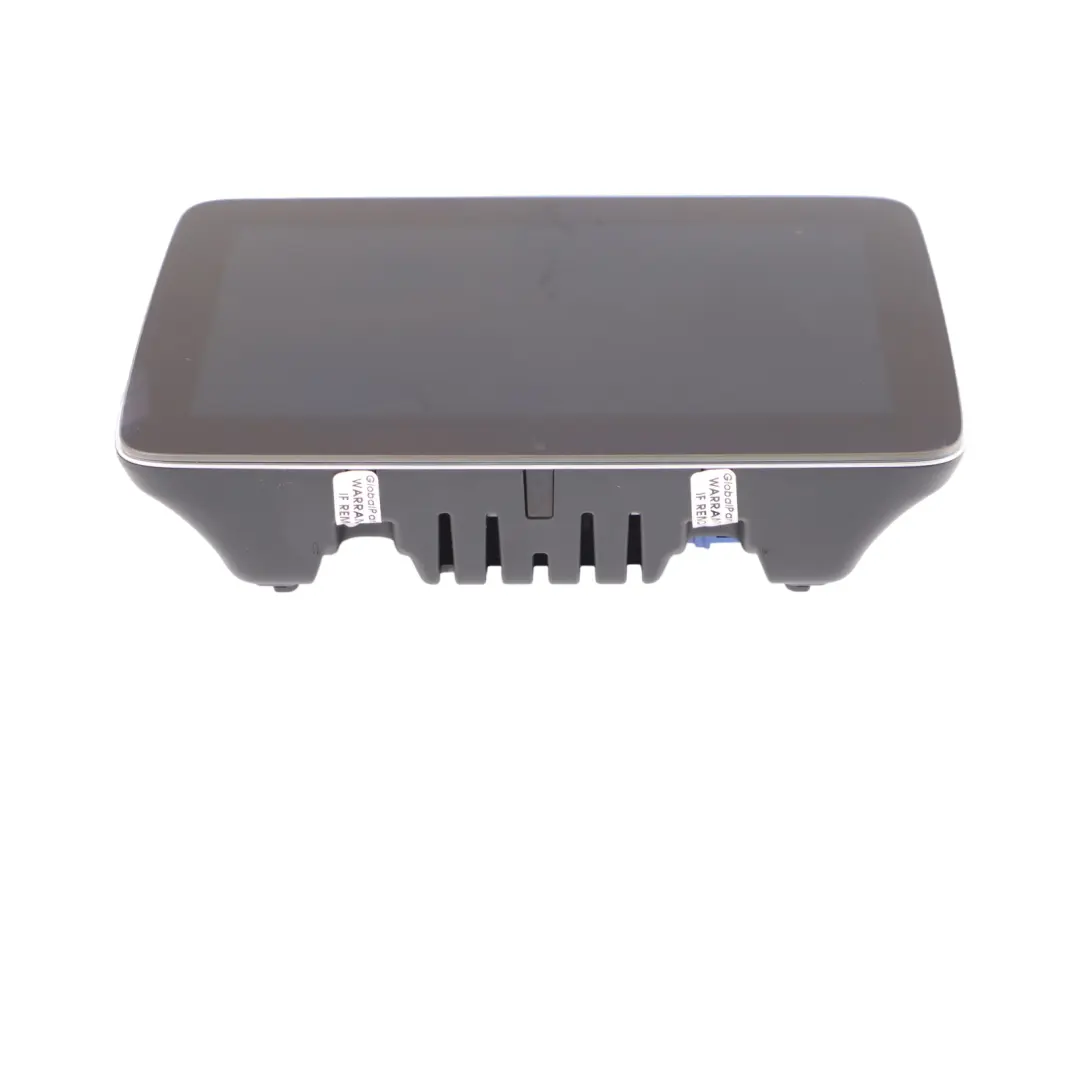

Mercedes-Benz CLA C117 W166 Head Unit Sat Nav Navigation Display Screen is a factory-original component from the Electronic control modules and controllers category, designed for installation in the rear part of the vehicle. This solution ensures the consistency of the multimedia system, providing clear presentation of navigation data and stable cooperation with the vehicle's other electronic components.

Specifications and technical data

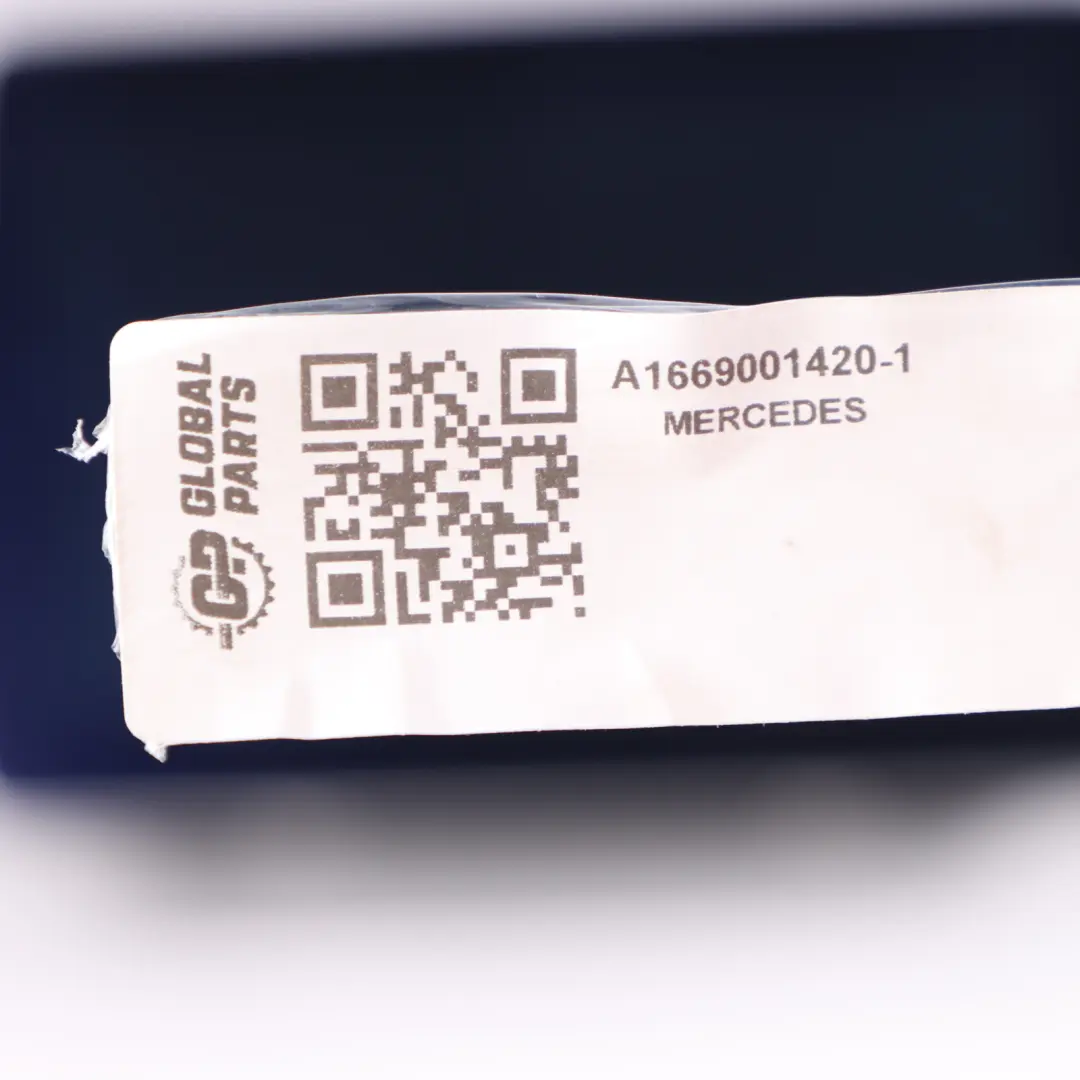

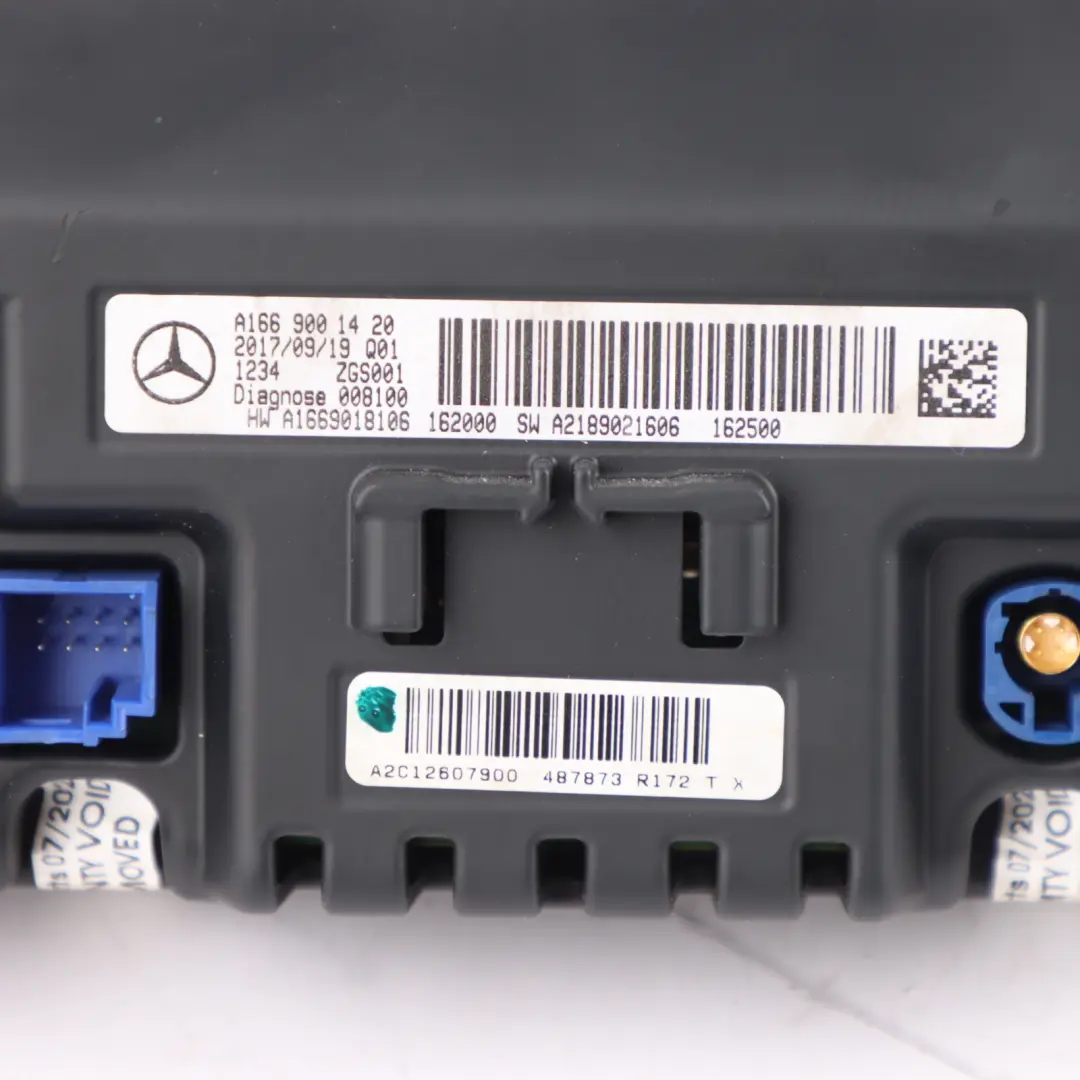

• SKU: A1669001420-1
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A1669001420
• Substitutable numbers: A1669001420, A 166 900 14 20
• Location on the vehicle: Rear
• Category: ECUs & Computer Modules

Purpose and function in the vehicle

This navigation display screen is a component of the infotainment system used in Mercedes-Benz CLA C117 and W166 series models. As part of the control system, it is responsible for displaying navigation information, system messages, and data from other electronic modules, working in conjunction with the central control unit.

Its placement in the rear of the vehicle means that the component is integrated with the electrical installation in the rear body area, which is important when planning installation, routing wiring harnesses, and diagnosing potential faults.

Benefits of using an original Mercedes module

The original display module designed for Mercedes ensures:

• consistency with the vehicle's factory electronic architecture,
• proper communication with other controllers via data buses,
• perfect fit in terms of mounts and connectors,
• preservation of the factory functionality of the navigation system.

Thanks to this, the installation process is orderly, and the risk of compatibility issues is limited compared to universal solutions. OEM Electronic control modules and controllers are designed for specific vehicle platforms, which translates into predictable performance in daily operation.

Characteristics of the used component

The offered display is a used component, which allows for cost-effective repair or restoration of the factory multimedia system configuration. Such components are often chosen in cases of:

• damage to the factory screen due to electronic failure,
• problems with image or message display,
• the need to replace the module after a collision or interference with the installation.

Choosing a used module allows for cost reduction while maintaining the manufacturer's original specifications. The used condition is particularly attractive in the case of advanced electronic components, where new parts can be significantly more expensive.

Professional selection and installation

To correctly select this display for a specific Mercedes vehicle, it is worth paying attention to the manufacturer's markings, reference numbers, and the vehicle's equipment configuration. This data is crucial for verifying compatibility with the existing installation and other controllers.

During installation, it is recommended to:

• perform computer diagnostics after installing the module,
• check communication with other multimedia system controllers,
• verify the correct operation of navigation and display functions.

This approach minimizes the risk of system errors and ensures stable operation of the entire system.

If you want to better understand when choosing a used component is a reasonable solution and how to safely select electronic modules, it is worth reading our guide: The second life of electronics – when is it worth choosing used controllers and modules.

Expanding the electronics system in Mercedes-Benz

In the case of expansion or comprehensive repair of electronic systems in a Mercedes, it is often necessary to use several cooperating components. This applies especially to vehicles equipped with extensive multimedia systems, where the display, control unit, and other modules form one coherent ecosystem.

If you are planning a comprehensive repair or upgrade of the onboard electronics in your Mercedes and need other elements from the same group, such as comfort controllers, multimedia modules, or driver assistance system management units, check the available parts in the Mercedes Electronic control modules and controllers category.
