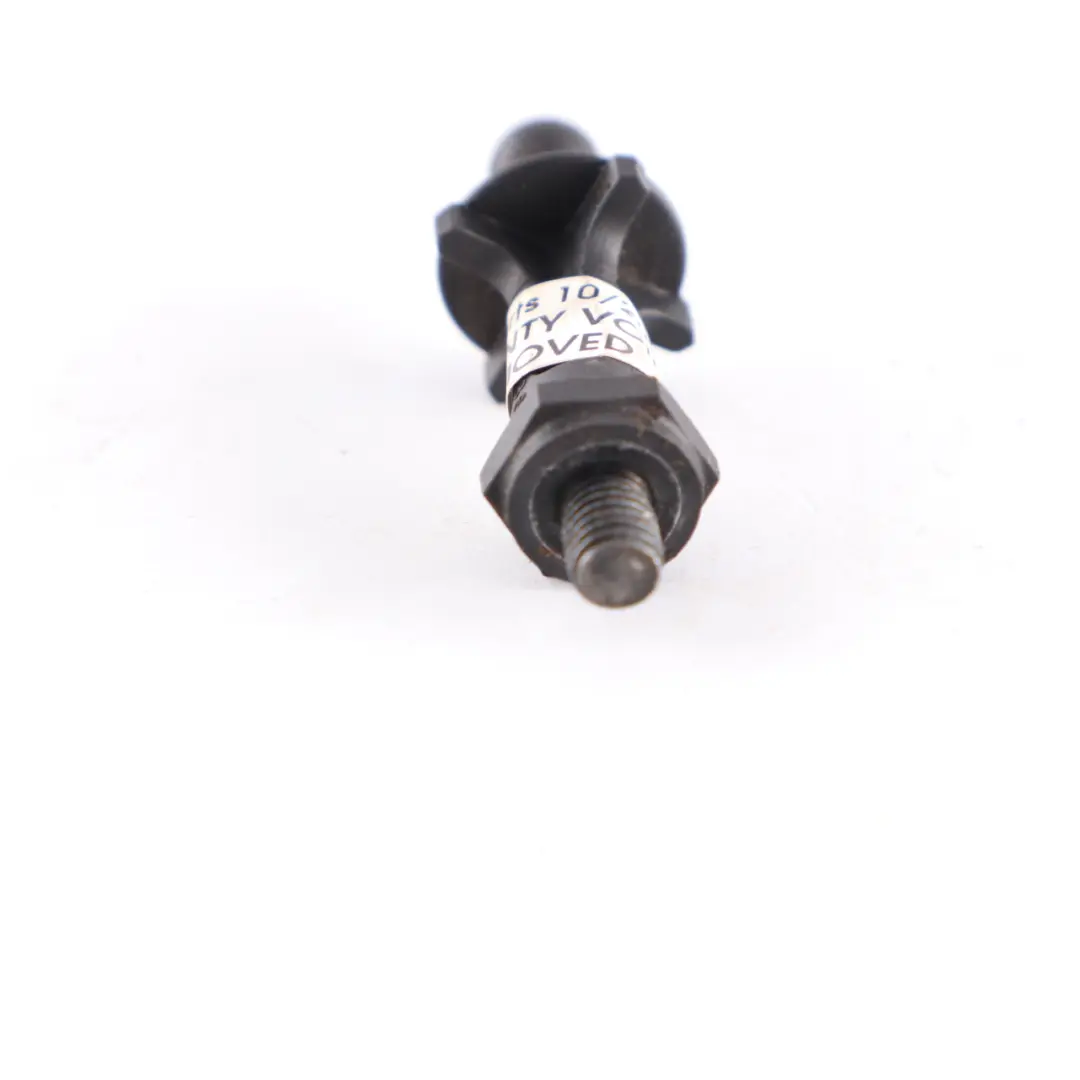

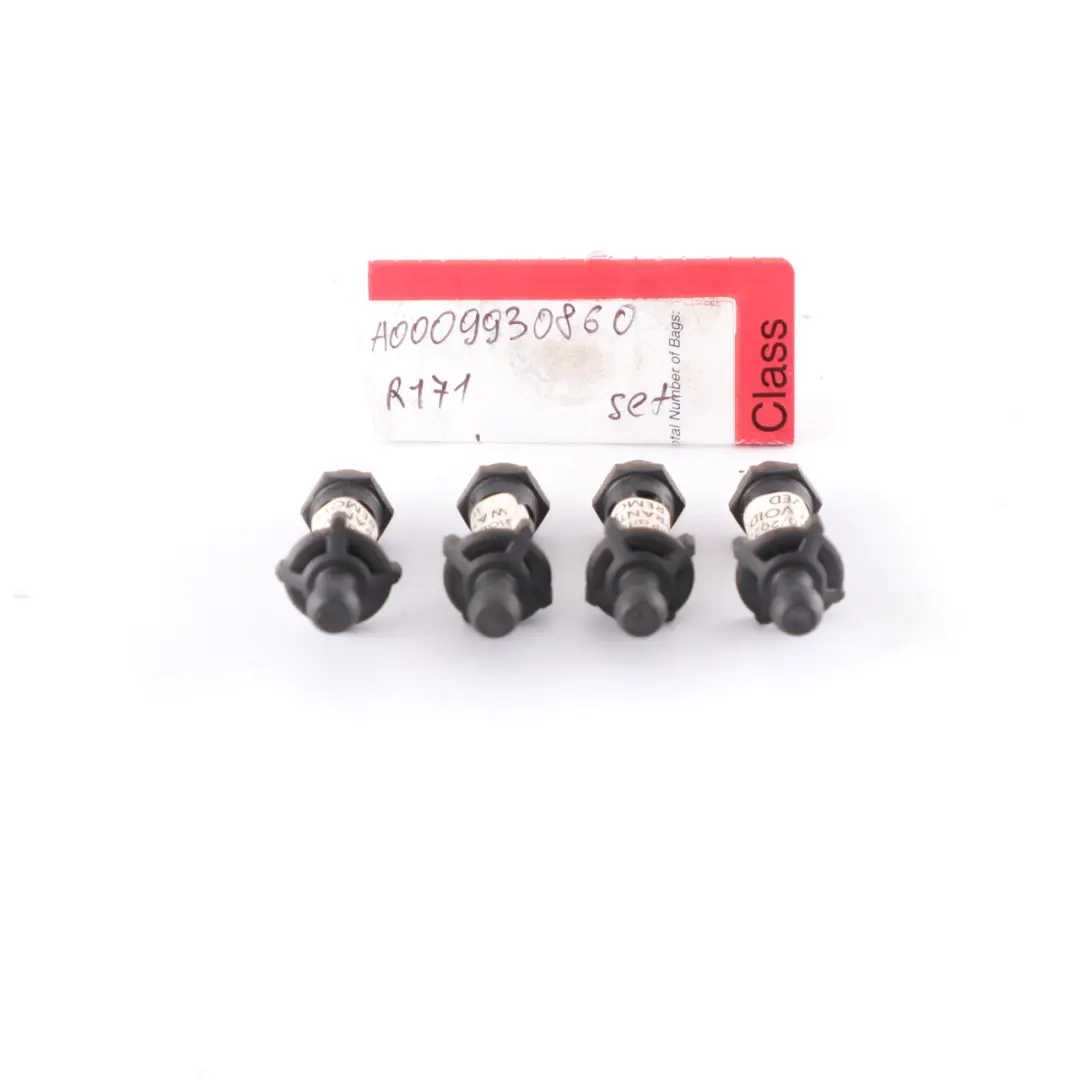

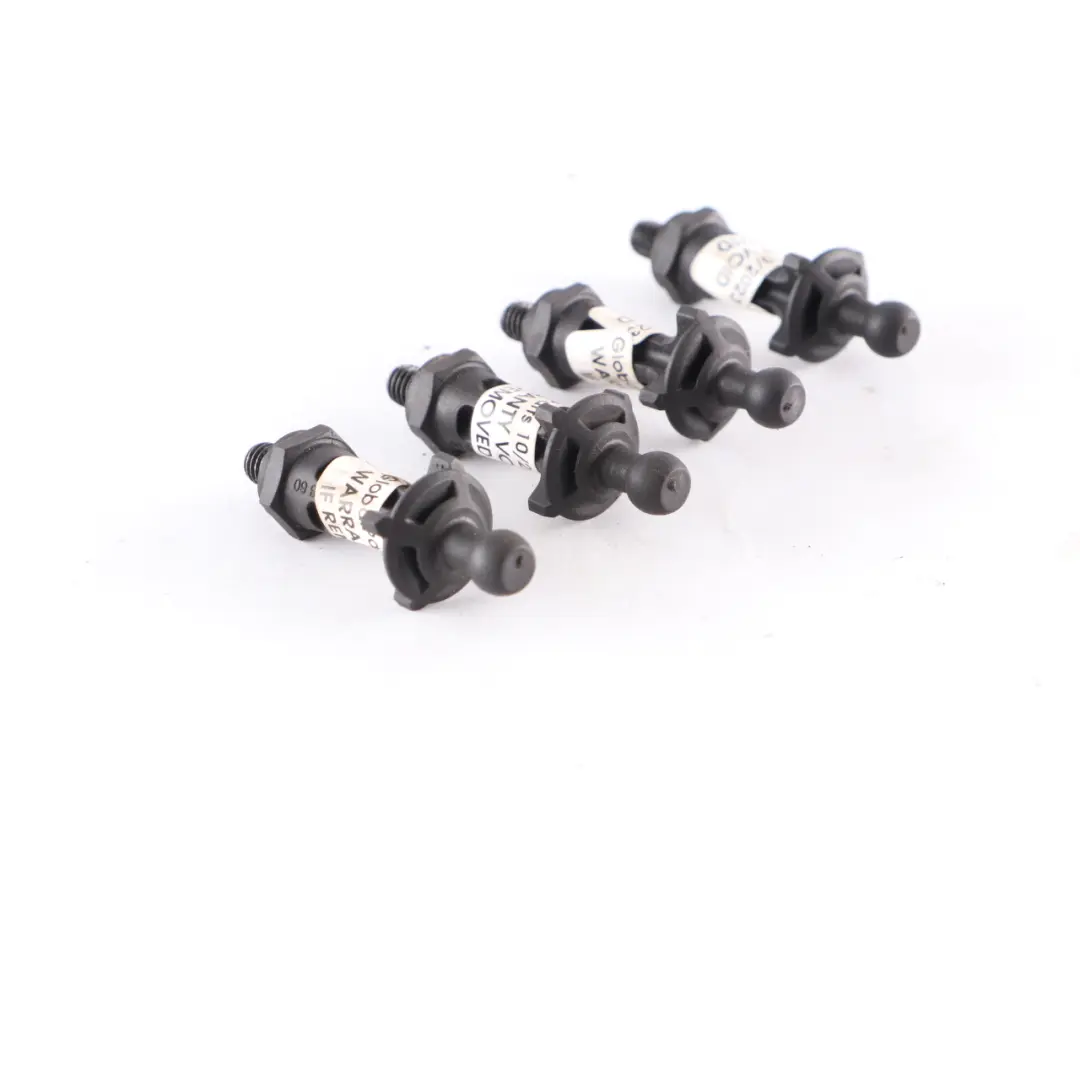

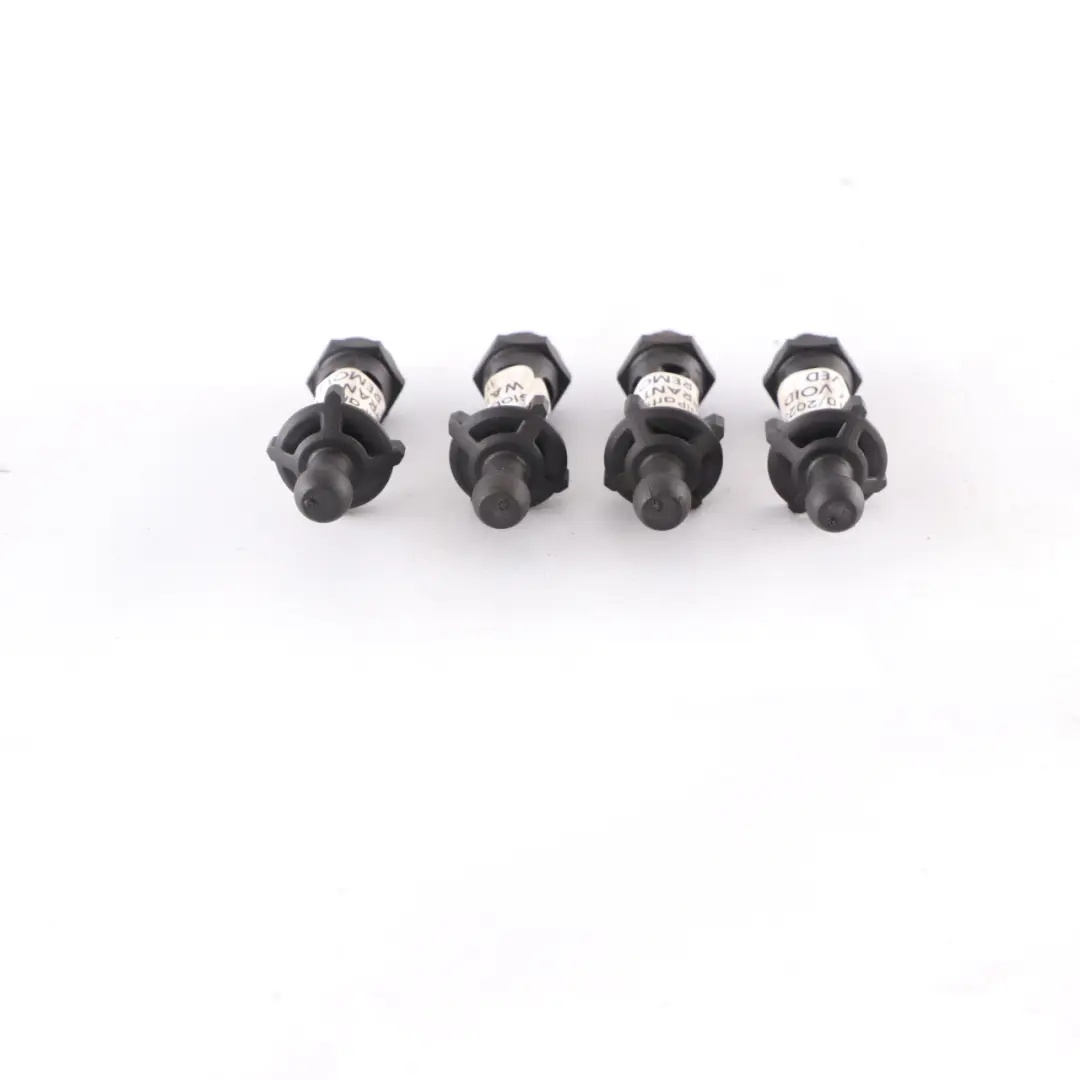

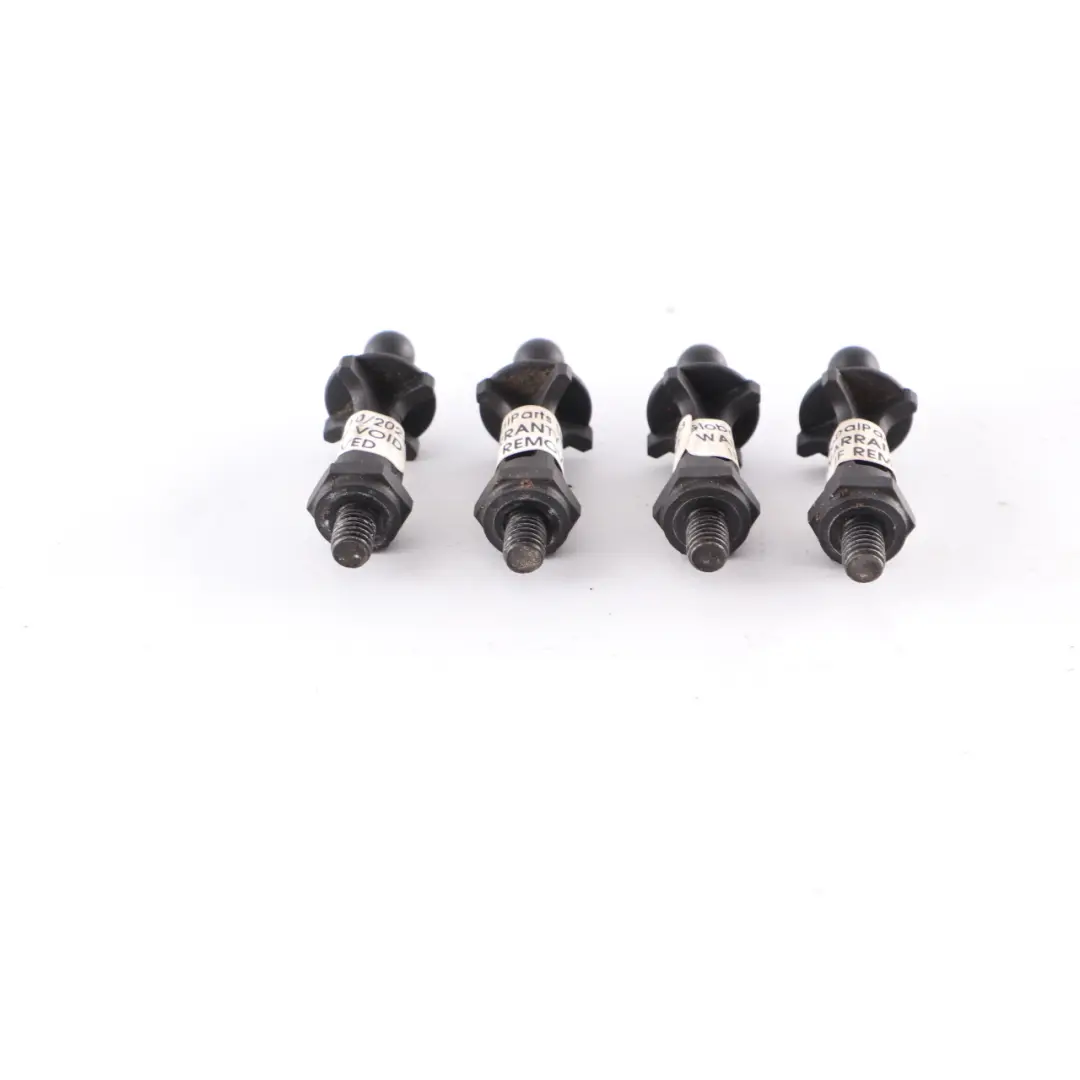

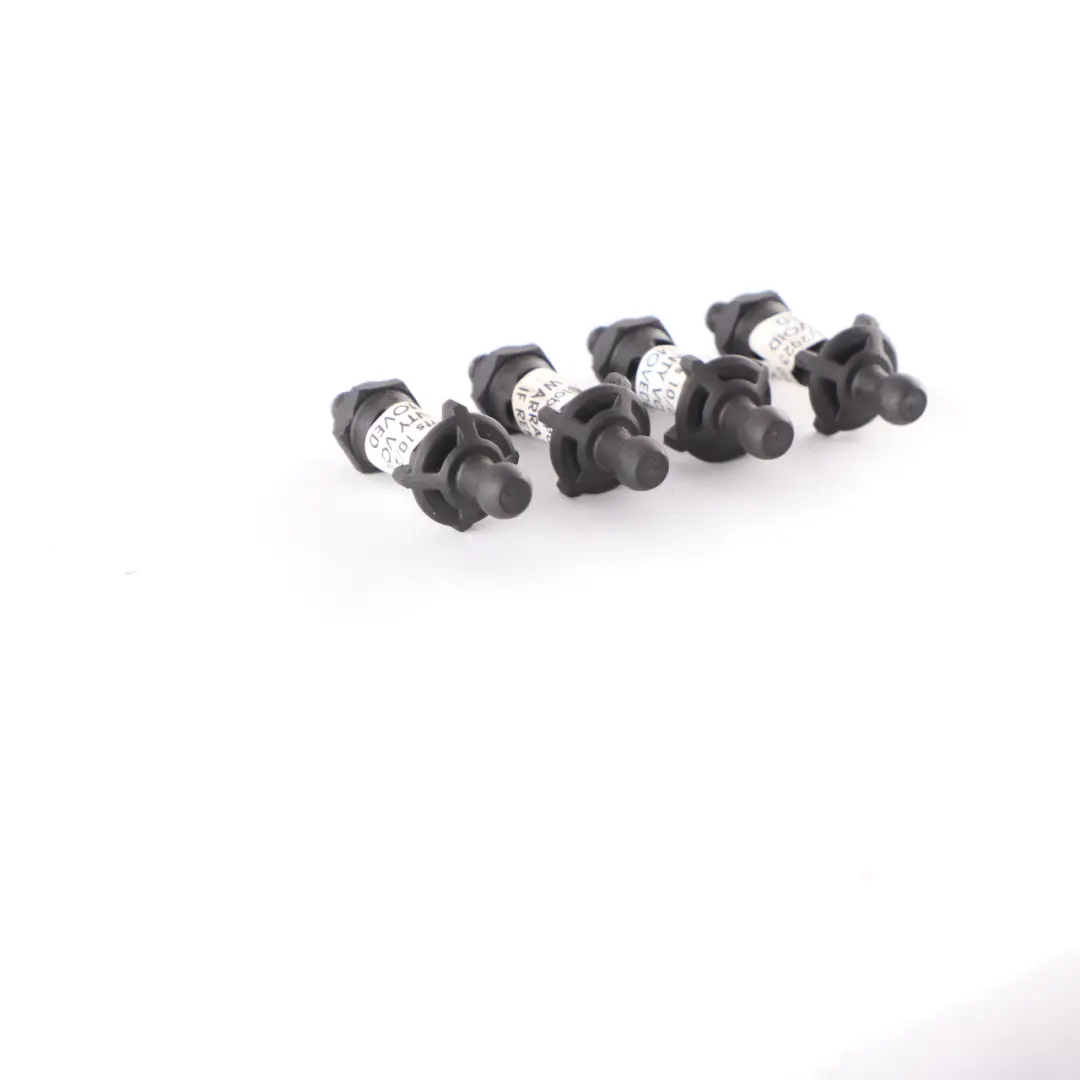

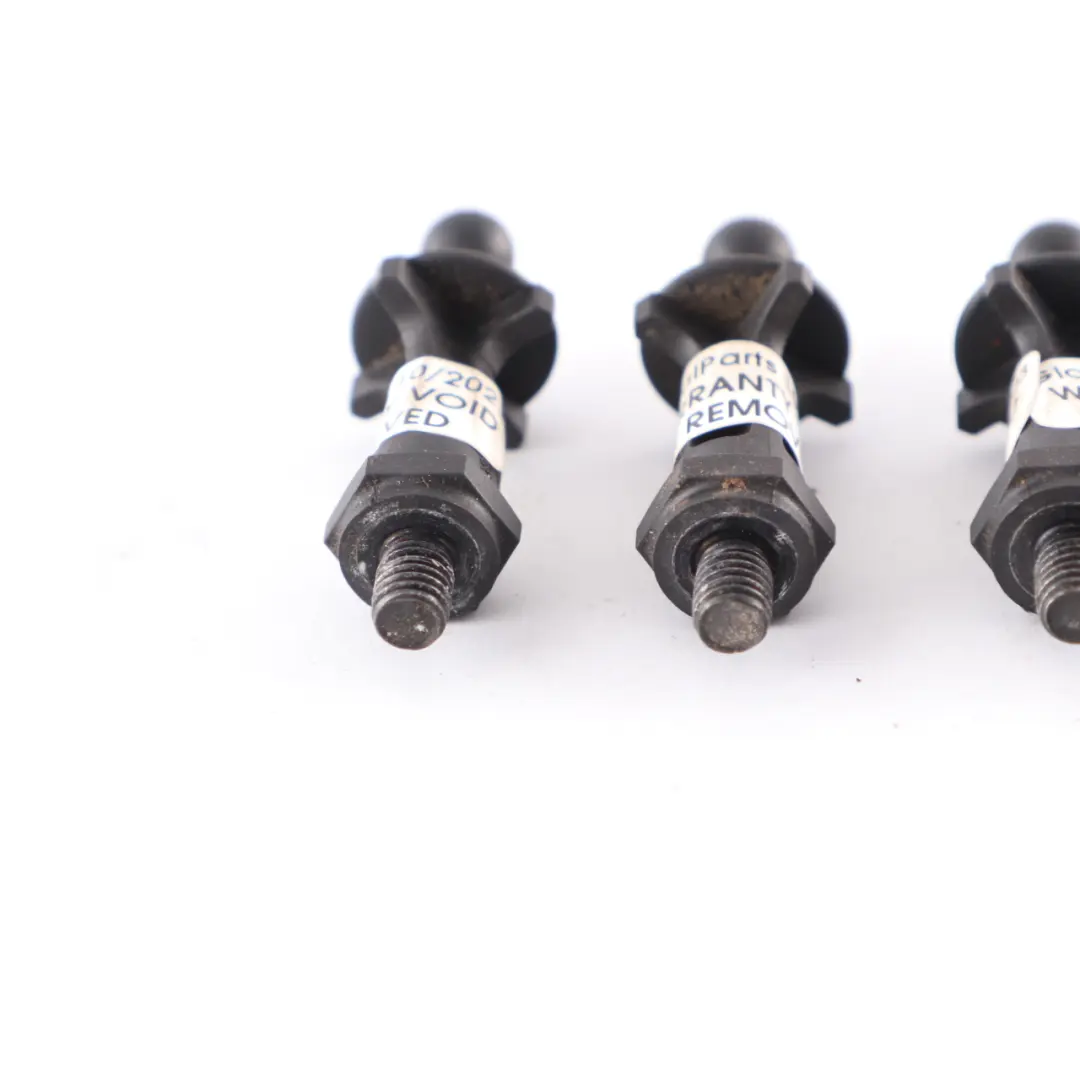

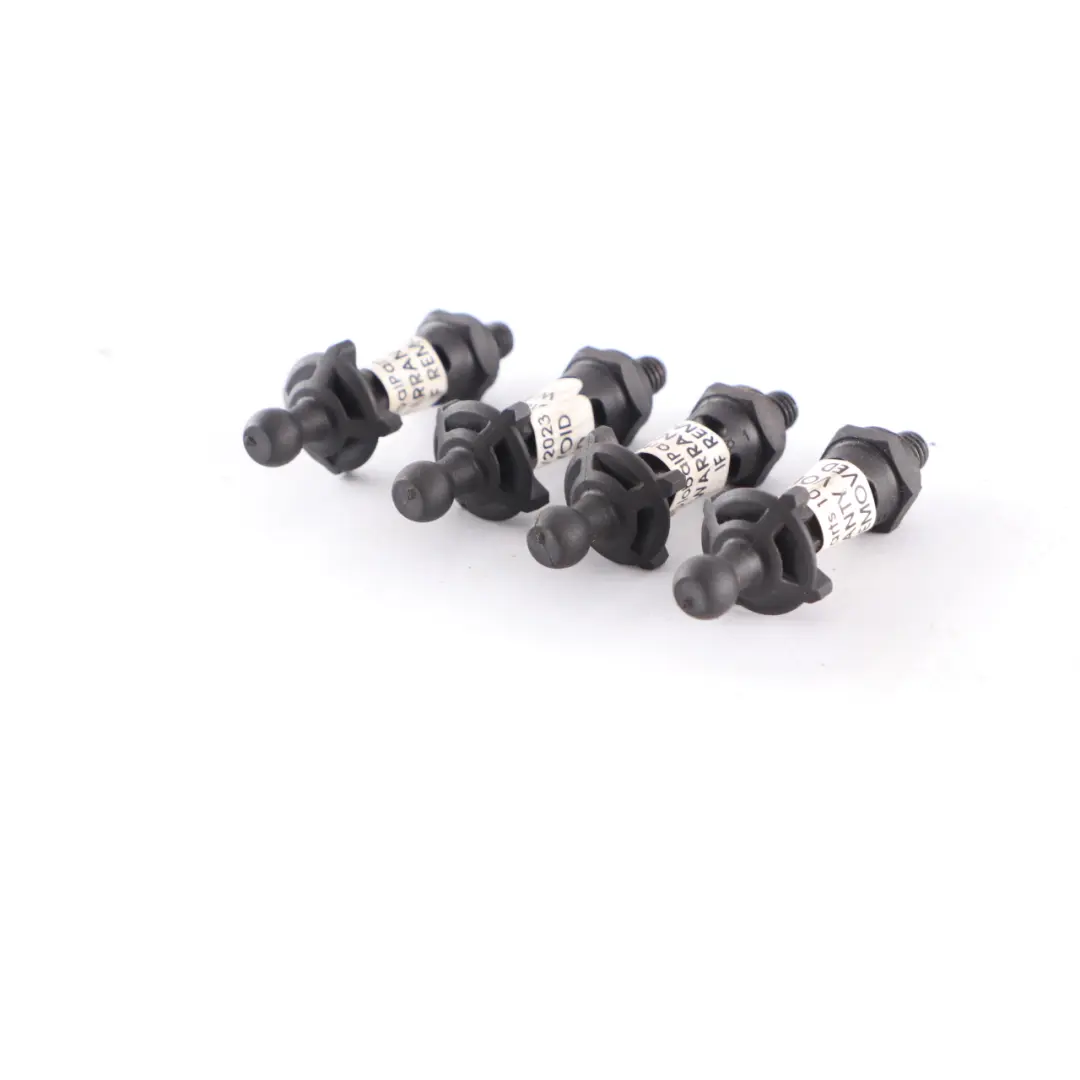

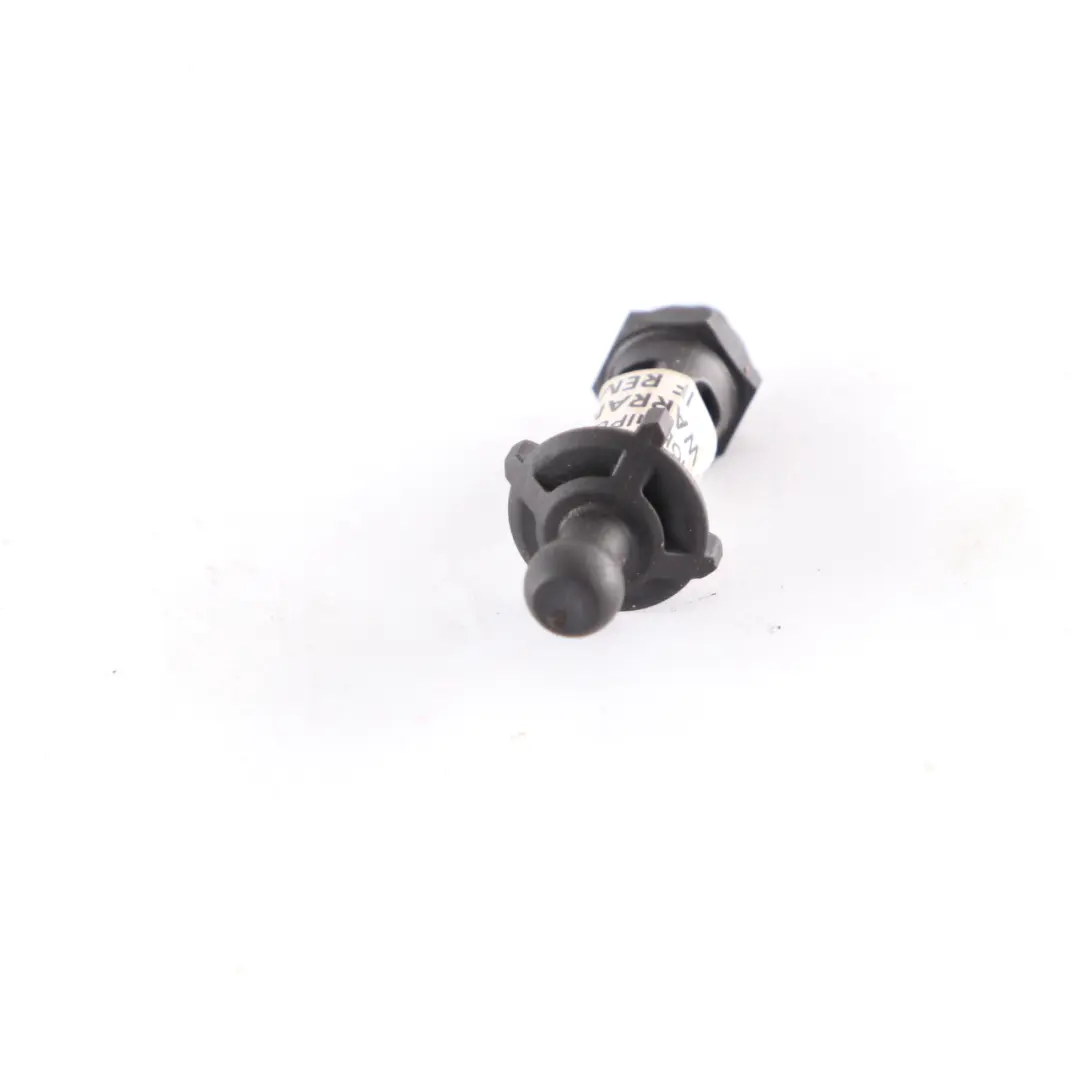

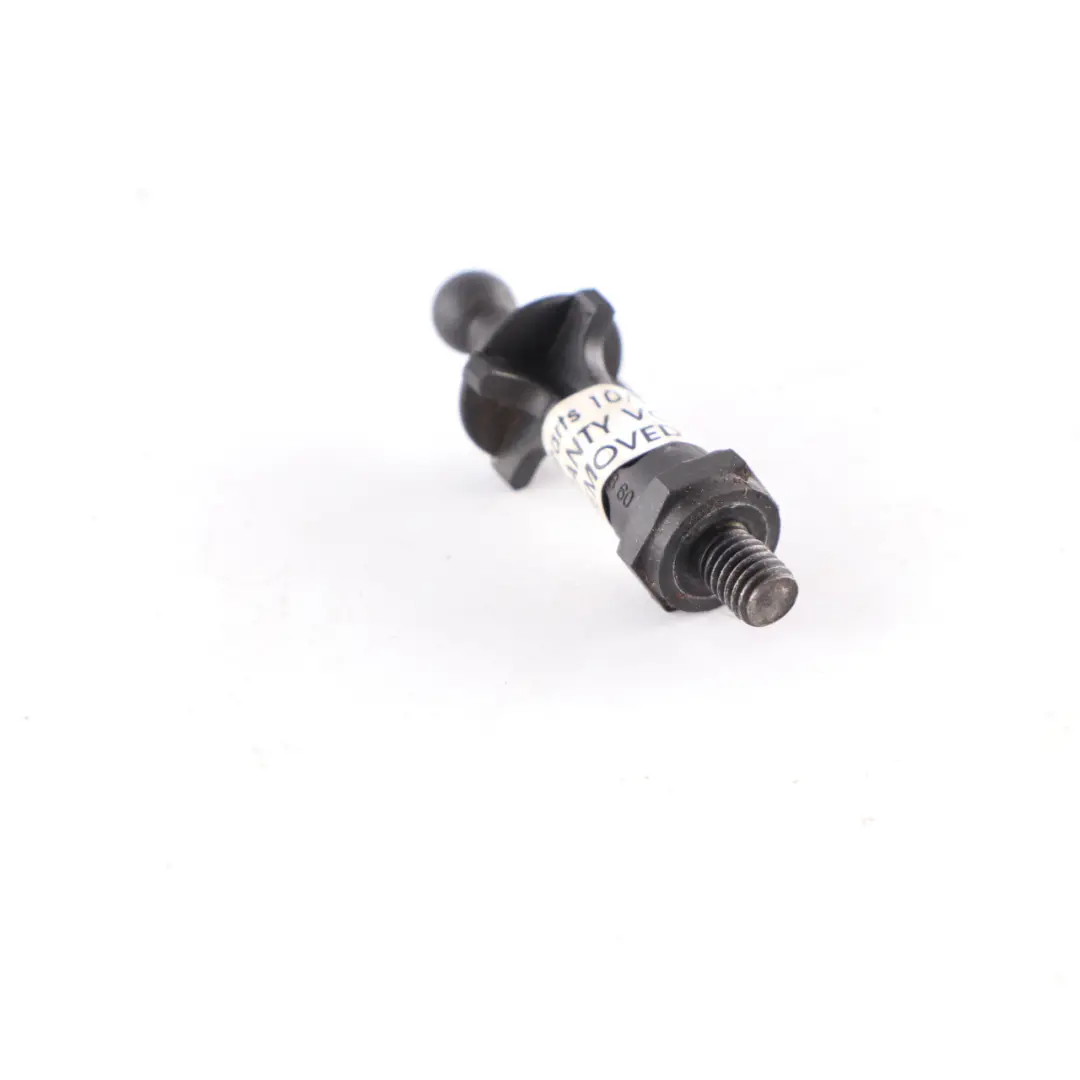

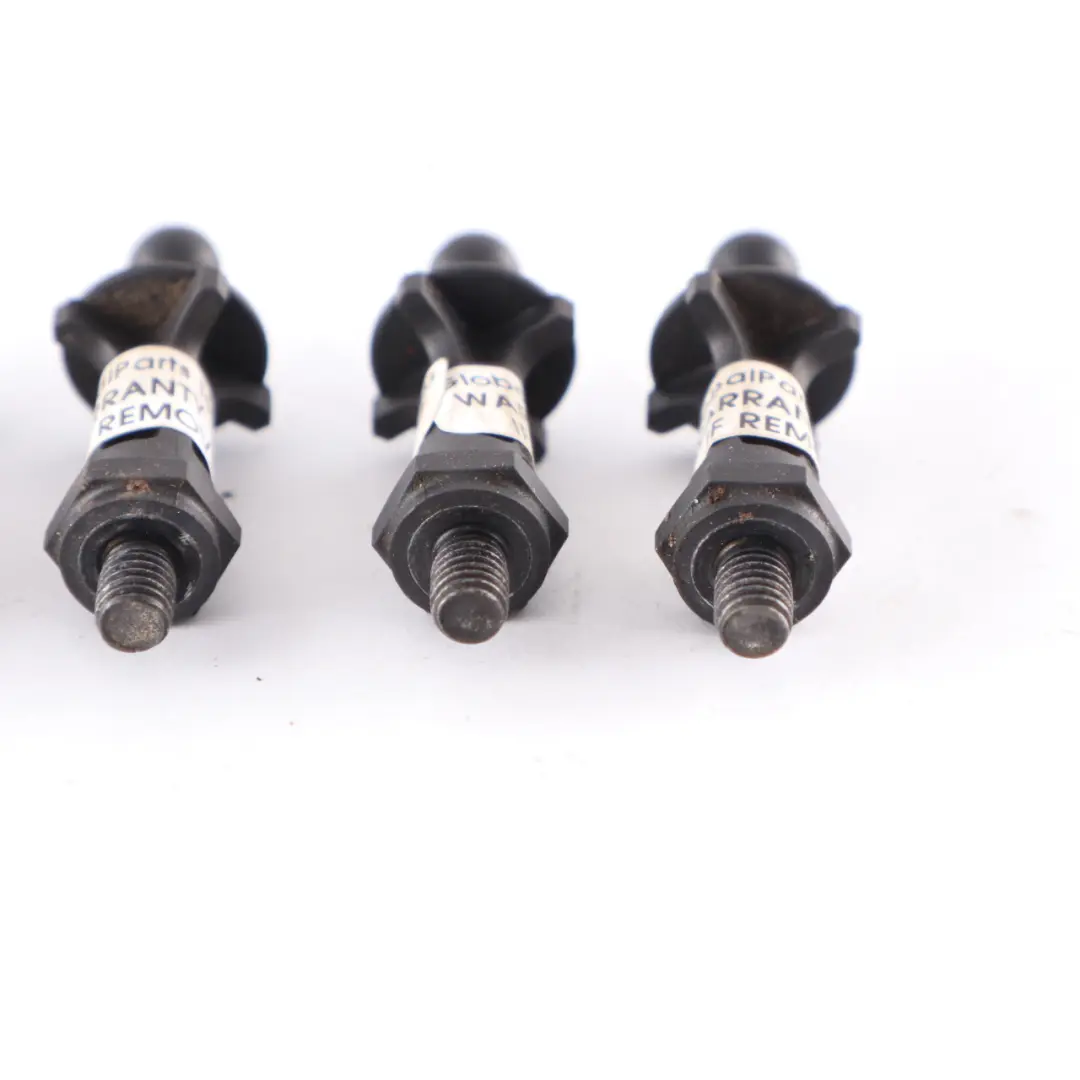

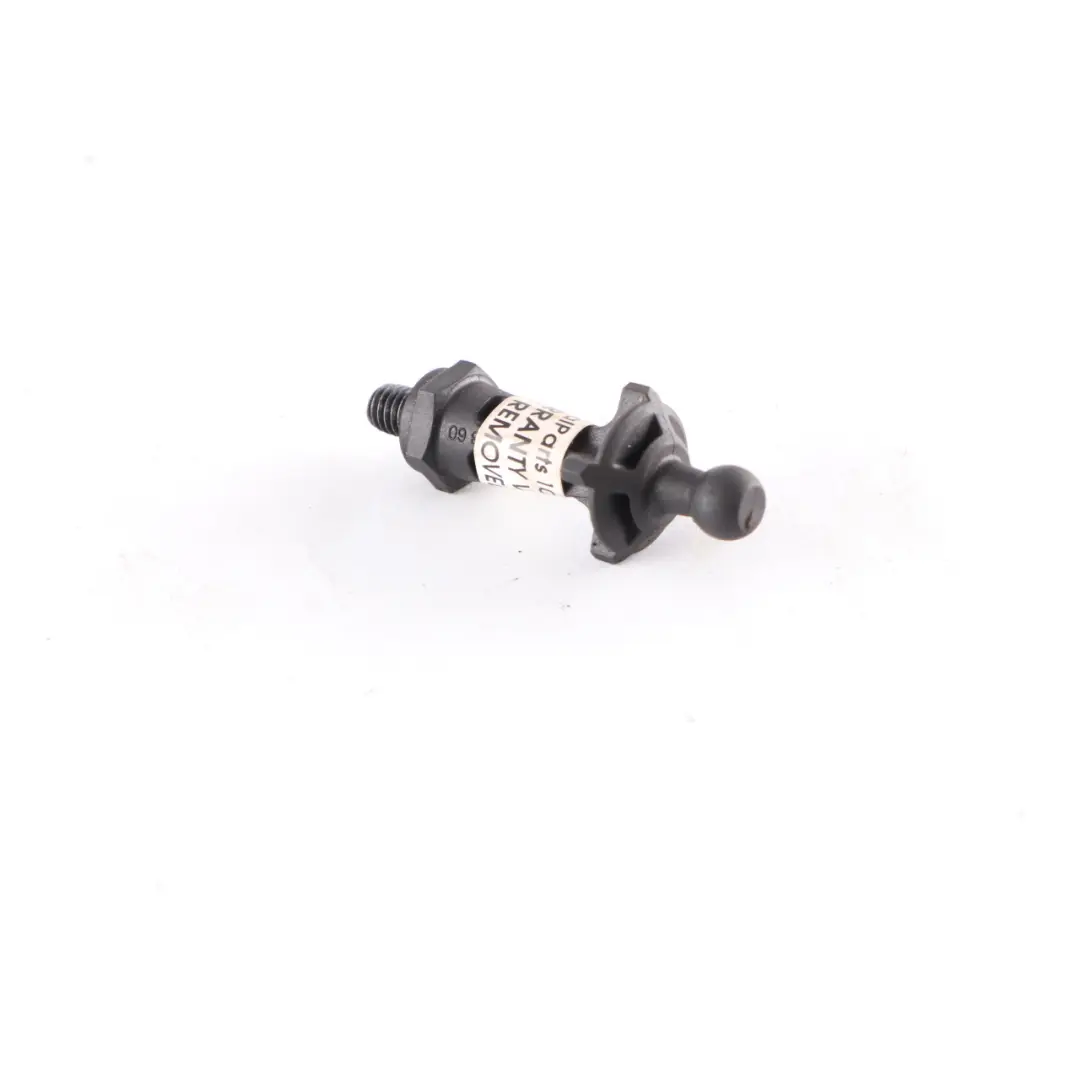

Mercedes R171 W203 W204 W212 Engine Control Unit ECU Pin Bracket Set A0009930860

Mercedes R171 W203 W204 W212 Engine Control Unit ECU Pin Bracket Set for R171, W203, W204, and W212 models is a component from the Electronic control modules and ECUs category, designed for stable mounting of the wiring harness at the ECU unit. This practical solution allows for organizing connectors, reducing stress on wires, and improving the reliability of the engine control system.

Specifications and technical data

• SKU: A0009930860
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A0009930860
• Substitutable numbers: A0009930860, A 000 993 08 60
• Category: ECUs & Computer Modules

Purpose and function of the ECU bracket

The presented ECU pin bracket set is dedicated to Mercedes vehicles from the R171, W203, W204, and W212 series, where the engine control unit operates in a demanding thermal and vibrational environment. The purpose of the bracket is to precisely guide and support pins and connectors, reducing the risk of contact looseness, micro-cracks in solder joints, or damage to the harness at the controller.

Using the correct pin bracket is particularly important in modern injection and ignition systems, where the stability of electrical connections directly translates into engine performance, proper operation of safety systems, and OBD diagnostics.

Benefits of using an original bracket

Compared to replacements or makeshift mounts, the original ECU pin bracket provides:

• proper wire routing geometry at the engine controller,
• repeatable, factory mounting points in the engine bay,
• better protection of connectors against vibrations and insulation abrasion,
• easier removal and reinstallation of the controller during service.

This reduces the risk of CAN communication issues, errors stored in the ECU memory, and hard-to-diagnose circuit breaks in sensors and actuators.

Characteristics of the used component

The offered bracket comes from disassembly and is classified as a used original component. Such components, while maintaining correct geometry and mounting points, retain full functionality in terms of supporting the harness and connectors. In practice, this means an economical way to repair or restore the factory wiring routing at the ECU without the need for expensive new parts.

A used pin bracket is a good choice wherever maintaining the original electrical installation design is crucial, and the element itself does not serve as a wear-and-tear part, but rather a structural and mounting one.

Professional selection and installation in the engine control system

When selecting a bracket for an engine controller, it is worth paying attention to compatibility with the specific ECU generation and the type of housing used in a given Mercedes model. A properly matched bracket:

• facilitates servicing of the controller and engine harness,
• ensures predictable wire routing relative to the manifold, valve cover, and other auxiliary components,
• minimizes the risk of accidental stress on connectors during workshop work.

If you want to better understand how to safely use used electronic components in the engine bay, select them by OEM numbers, and check hardware and software compatibility, the following guide will be helpful: Used automotive electronics on board – why is it worth choosing second-hand ECU modules and sensors?

Expanding the control system upgrade in your Mercedes

If you are planning a comprehensive repair or upgrade of the engine area in your Mercedes and need other elements from the same group, such as controllers, engine management modules, or additional controllers, check the available parts in the Mercedes electronic control modules and ECUs category.

By using original mounting and control components, you can restore the factory operating logic of the powertrain while optimizing service costs through the conscious selection of used elements with verified functionality.
