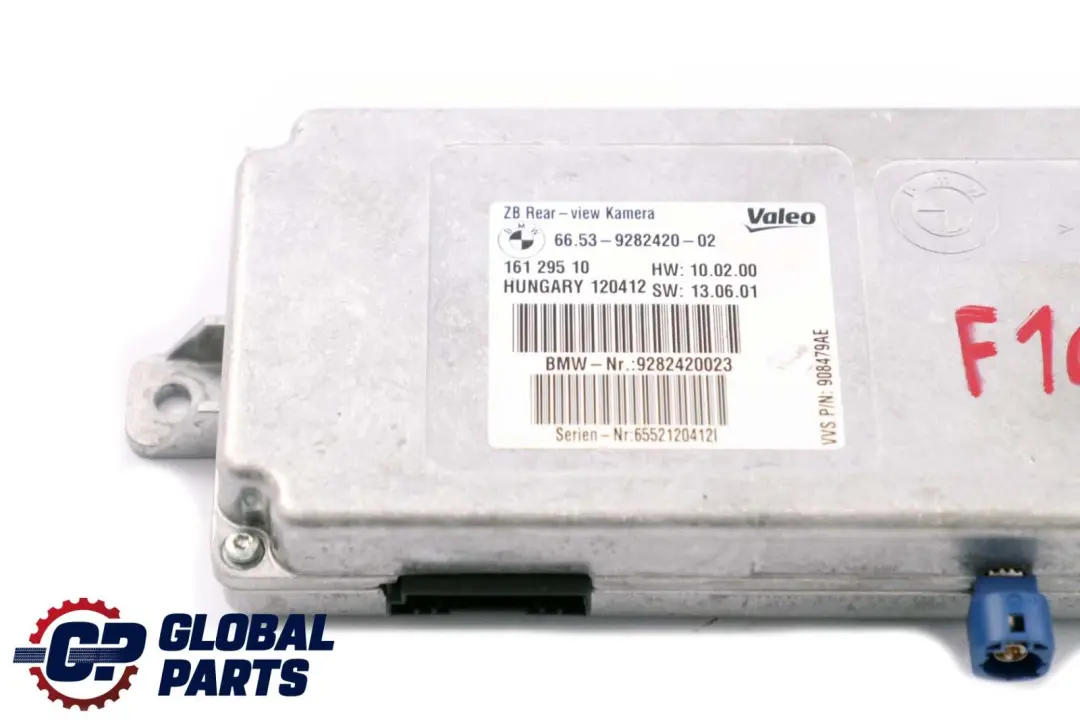

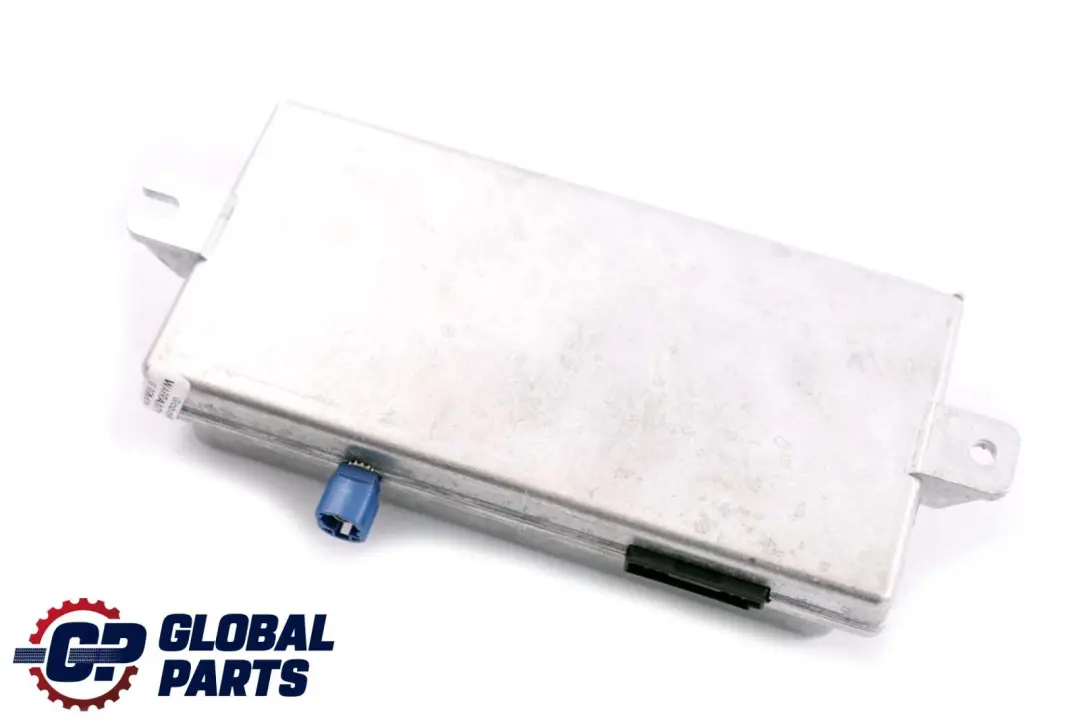

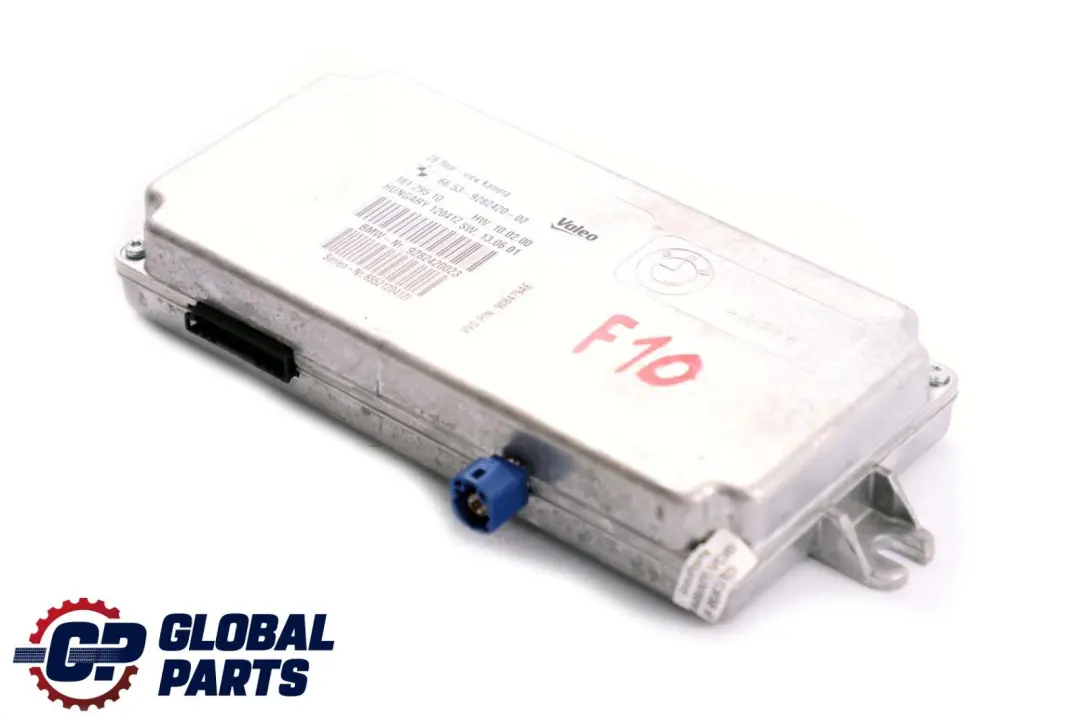

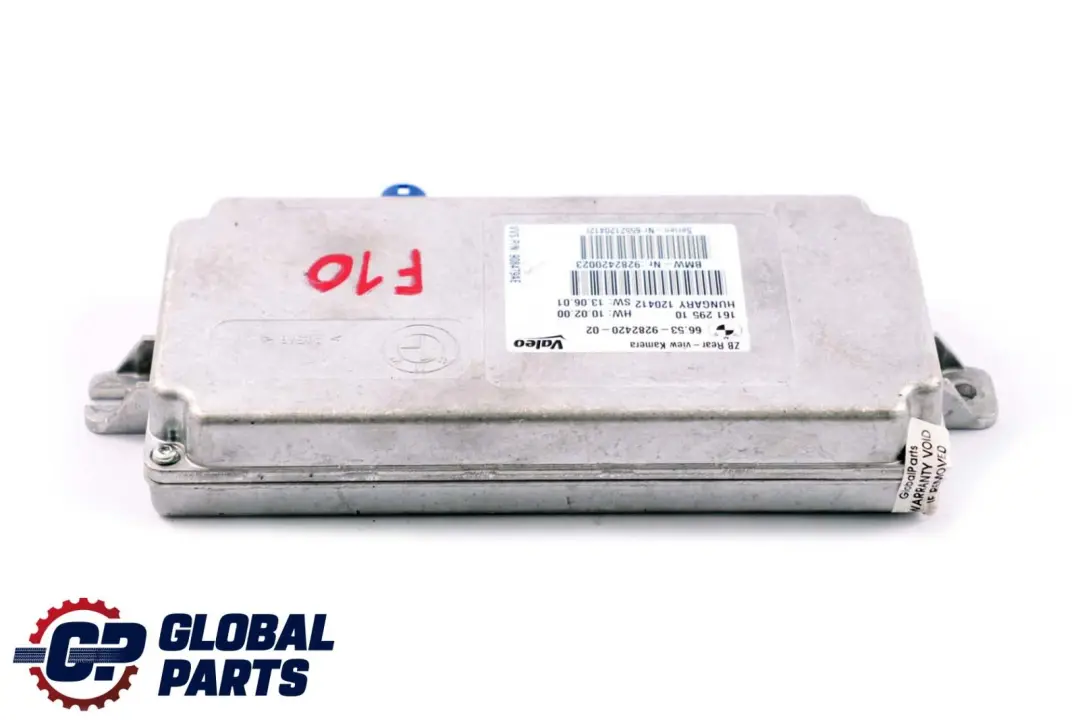

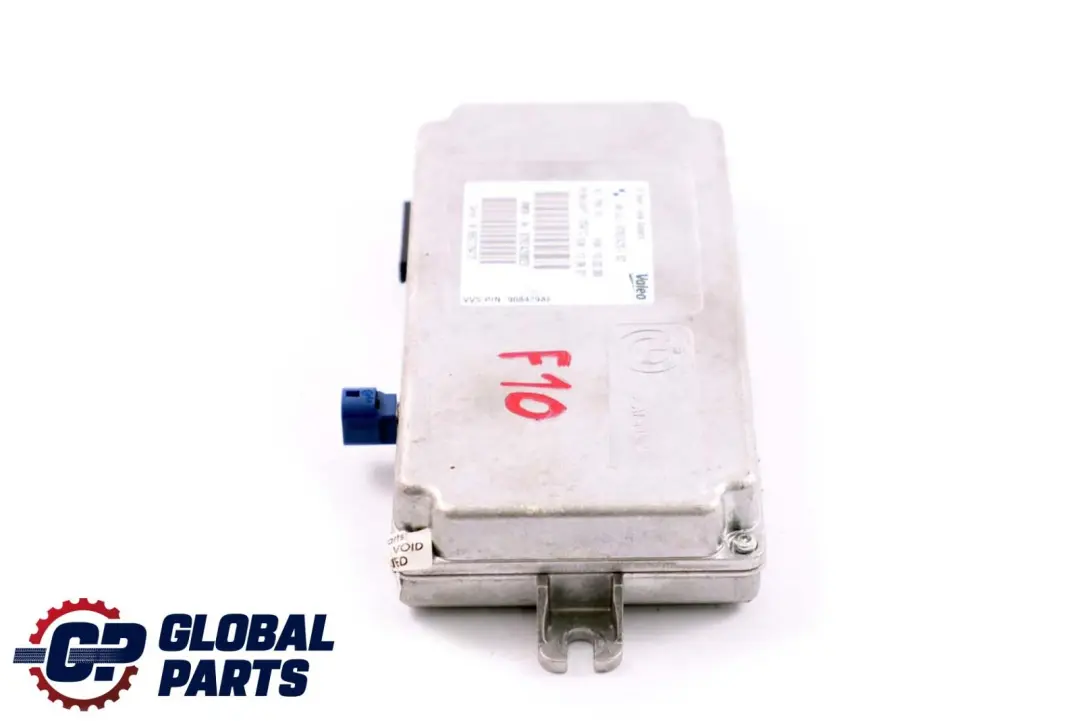

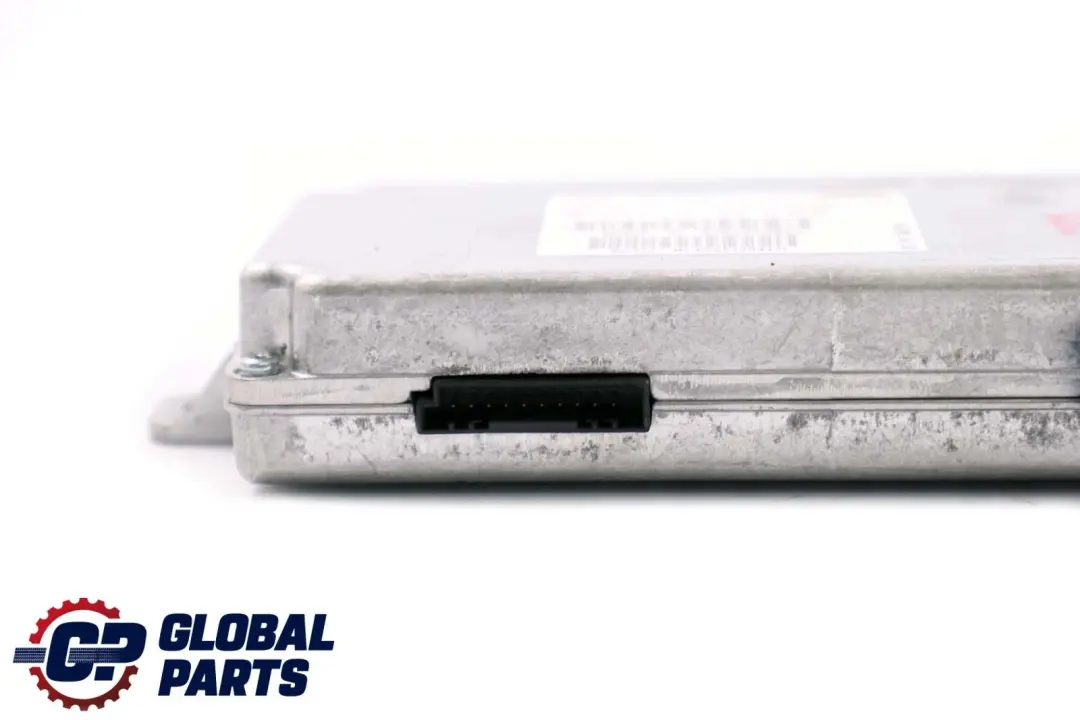

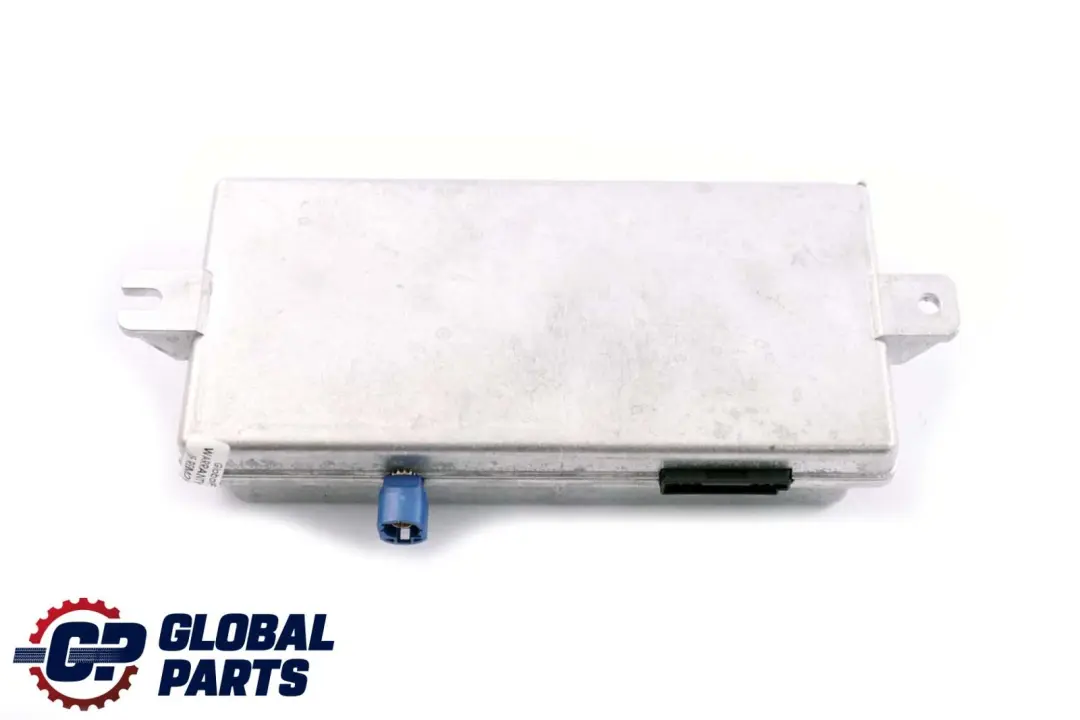

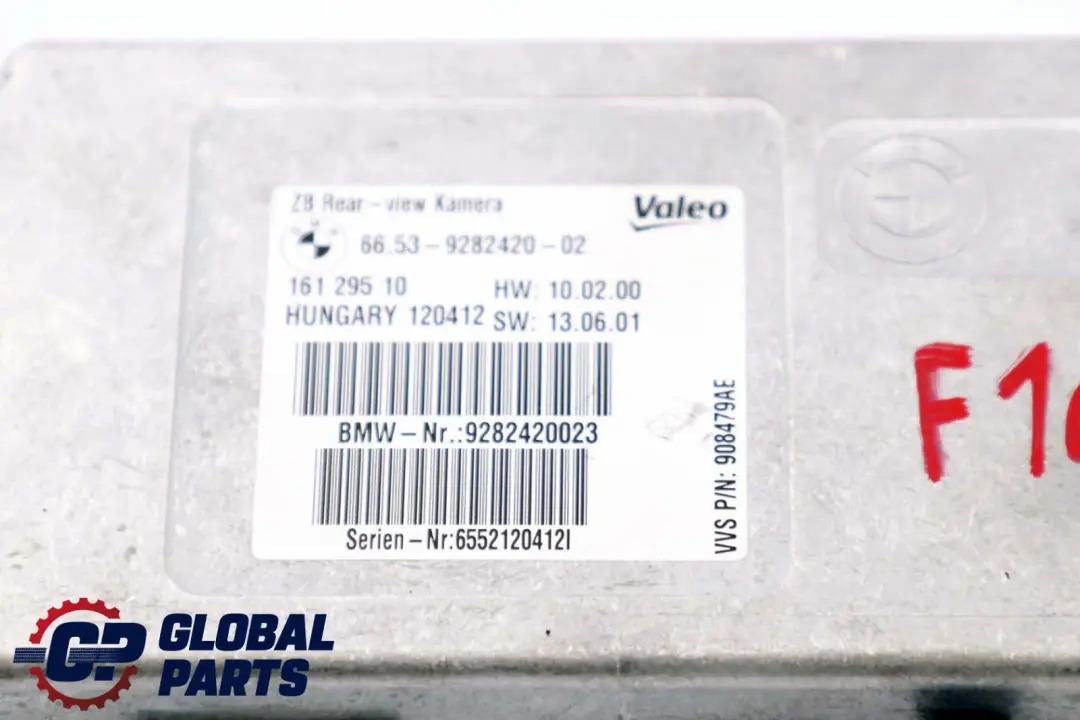

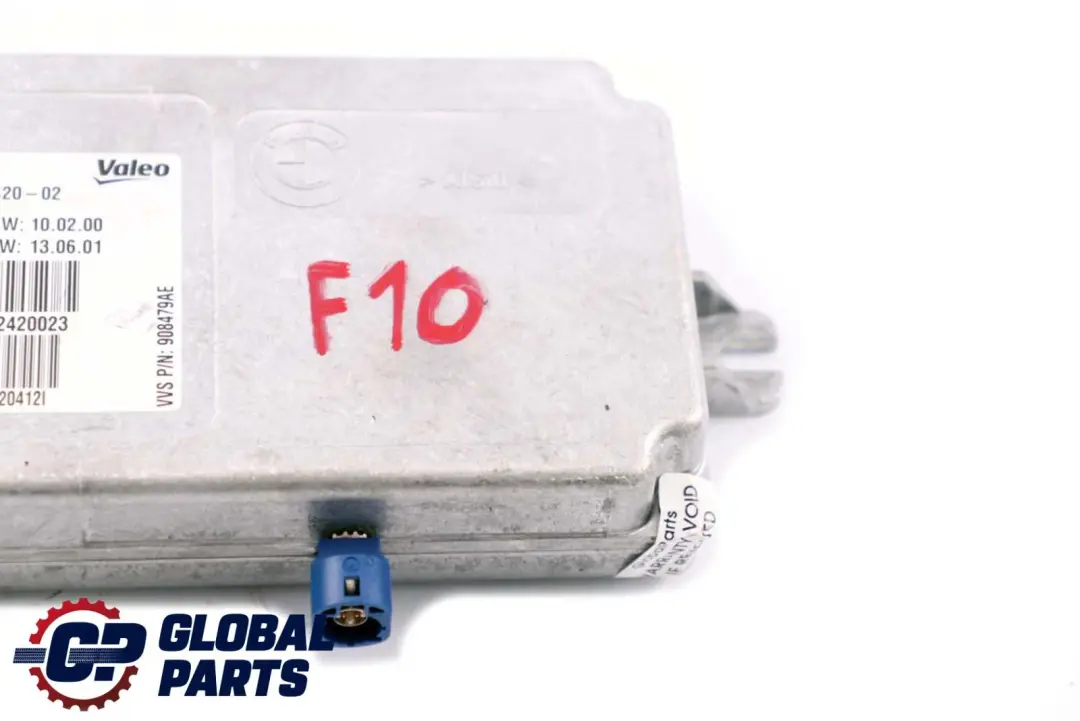

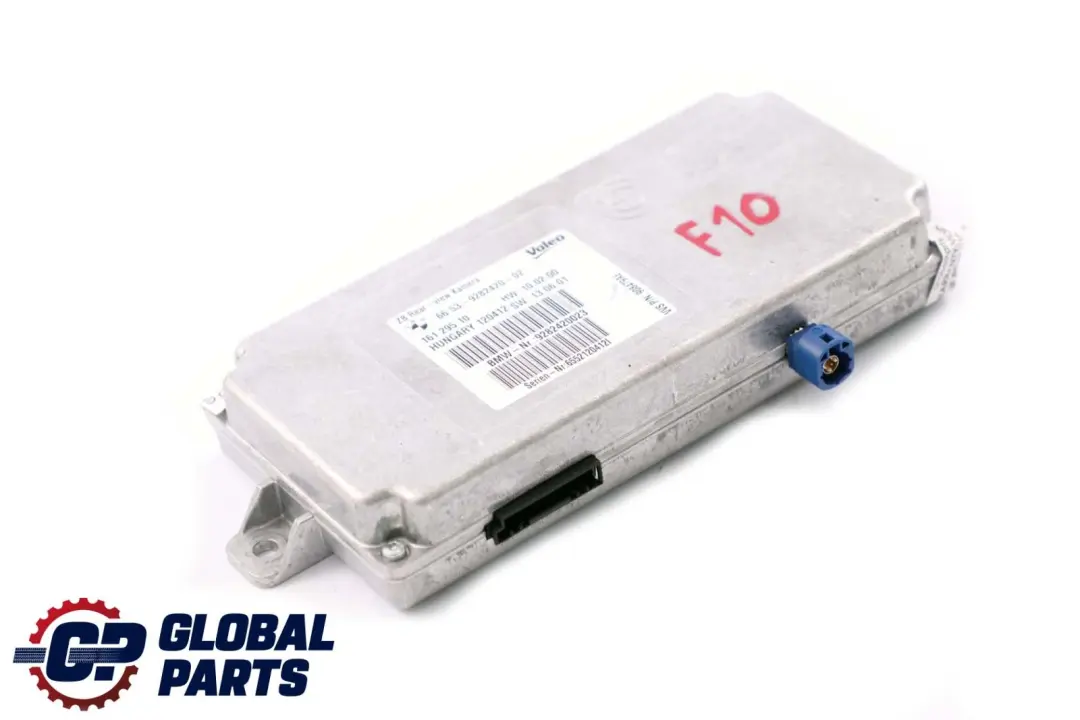

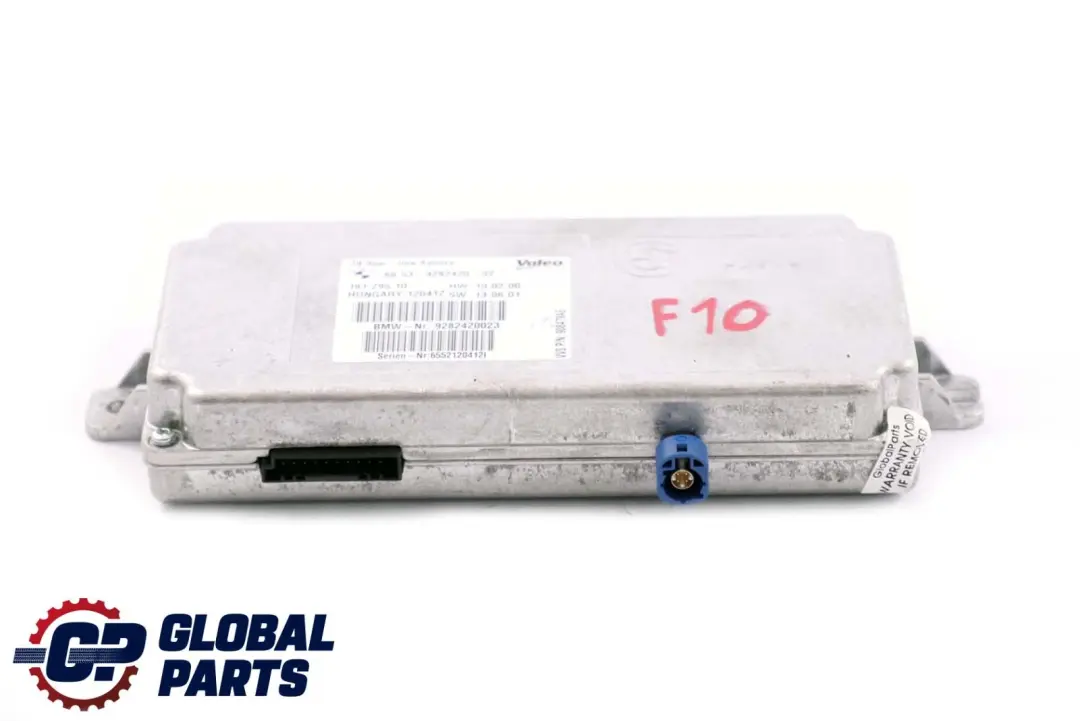

BMW 1 3 5 Series F10 F20 F30 Reversing Camera Rear View Control Unit 9282420

BMW 1 3 5 Series F10 F20 F30 Reversing Camera Rear View Control Unit is a specialized component from the Electronic control modules and controllers group, designed for operation in the rear area of the vehicle. It is responsible for managing the reversing camera system, assisting the driver during maneuvering and parking. The used nature of the module allows for an economical yet fully functional replacement of the factory controller.

Specifications and technical data

• SKU: 9282420
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6994555
• Substitutable numbers: 66536994555, 6994555, 66539228323, 9228323, 66539218198, 9218198, 66539200567, 9200567, 66539215012, 9215012, 66539240984, 9240984, 66539205257, 9205257, 66539249462, 9249462, 66539393953, 9393953, 66539350995, 9350995, 66539282420, 9282420, 66539253121, 9253121, 66539288002, 928
• Location on the vehicle: Rear
• Category: ECUs & Computer Modules

Purpose and function of the module

The presented module is dedicated to the reversing camera system in BMW F-series models, where it operates in the rear part of the vehicle. Its task is to process the signal from the camera and cooperate with other elements of the electronic installation, such as the display and the body wiring harness. Thanks to this, the reversing assistance system works stably, ensuring a clear image and correct response to shifting into reverse gear.

As an element from the Electronic control modules and controllers group, the reversing camera module is an integral part of the BMW electrical architecture, designed to operate within the vehicle's communication bus environment. Proper matching of the controller to the specific car configuration allows for maintaining the original functionality of the parking system.

Compatibility and replacement numbers

The module has been marked with an OEM part number and has assigned interchangeable numbers, which facilitates the selection of the appropriate controller for a specific equipment version. Using an original BMW solution limits the risk of communication problems in the vehicle network and minimizes the need for additional installation modifications.

Thanks to an extensive list of reference numbers, it is possible to match the module to various body variants and equipment configurations in the F10, F20, and F30 model family, while maintaining compliance with the manufacturer's factory specifications.

Vehicle placement and installation aspects

The module is intended for installation in the rear part of the vehicle, near the reversing camera installation and body wiring harnesses. Such placement shortens the signal path from the camera and facilitates integration with the factory wiring harness. In practice, this translates into stable system operation and reduced interference.

Module replacement usually takes place in a plug-and-play mode within the original BMW installation, while following appropriate service procedures. In many cases, after installation, configuration or adaptation using appropriate diagnostic software is required so that the controller is correctly recognized by the vehicle's other systems.

Characteristics of the used module

The offered item is in a used condition, which allows for a significant reduction in repair costs compared to purchasing a new controller. At the same time, the original BMW design is preserved, which promotes compatibility with the factory electrical installation and safety systems. A used reversing camera module is a sensible choice for post-accident repairs, installation damage, or failure of the electronics responsible for the image during reversing.

To better understand when choosing a used controller is cost-effective and what to pay attention to when selecting electronics, it is worth reading the guide: The second life of electronics – when is it worth choosing used controllers and modules. The article discusses practical evaluation criteria as well as issues related to the selection and installation of such components.

Reversing system expansion and related components

In the case of expanding or upgrading the parking assistance system in a BMW, the reversing camera module is one of the key components of the entire system. In combination with the appropriate camera, wiring harness, and display unit, it creates a coherent system that increases the comfort of maneuvering in tight spaces and improves orientation behind the vehicle.

If you are planning a comprehensive repair or upgrade of the electronic zone in your BMW and need other components from the same group, such as controllers, body modules, or comfort management systems, check the available parts in the BMW electronic control modules and controllers category.
