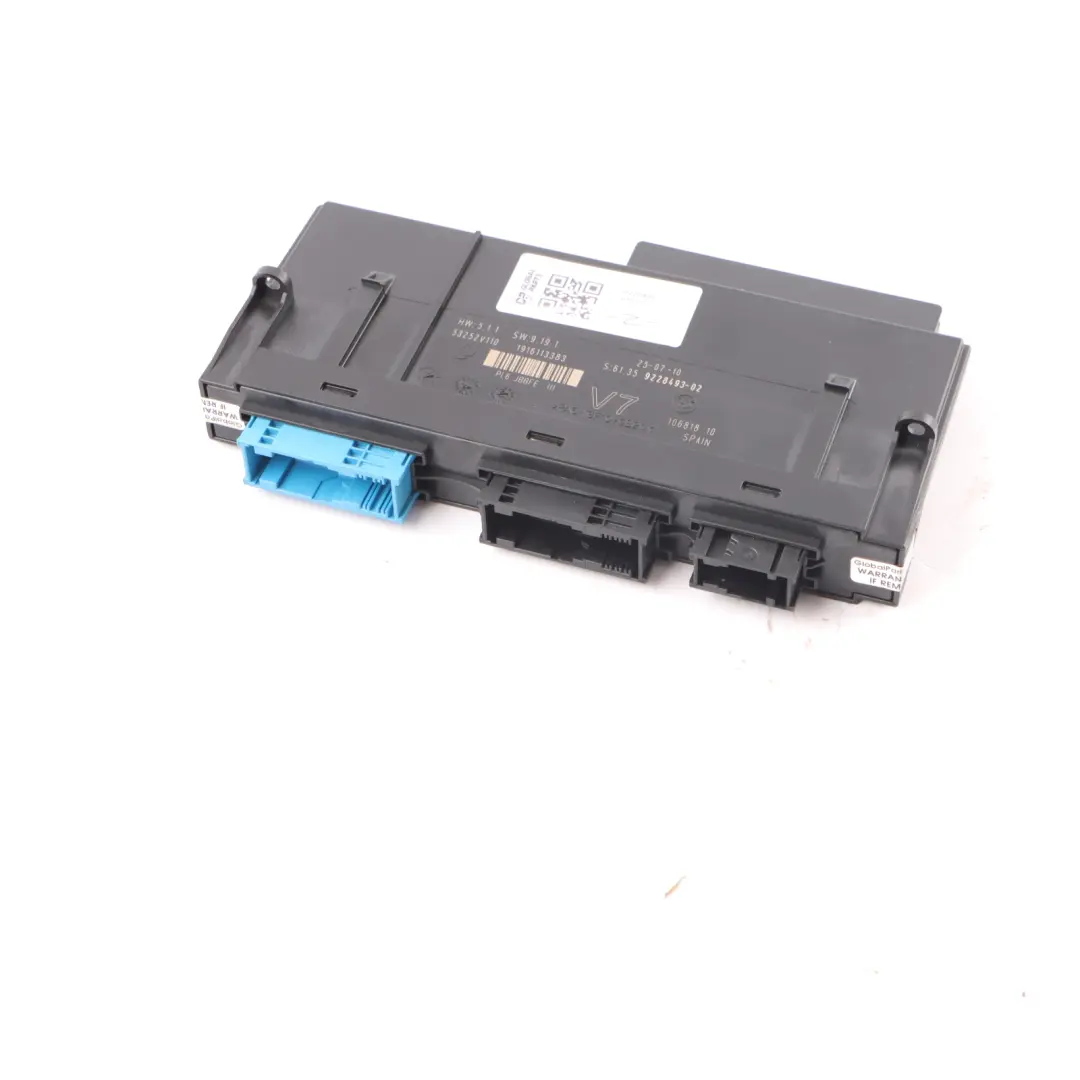

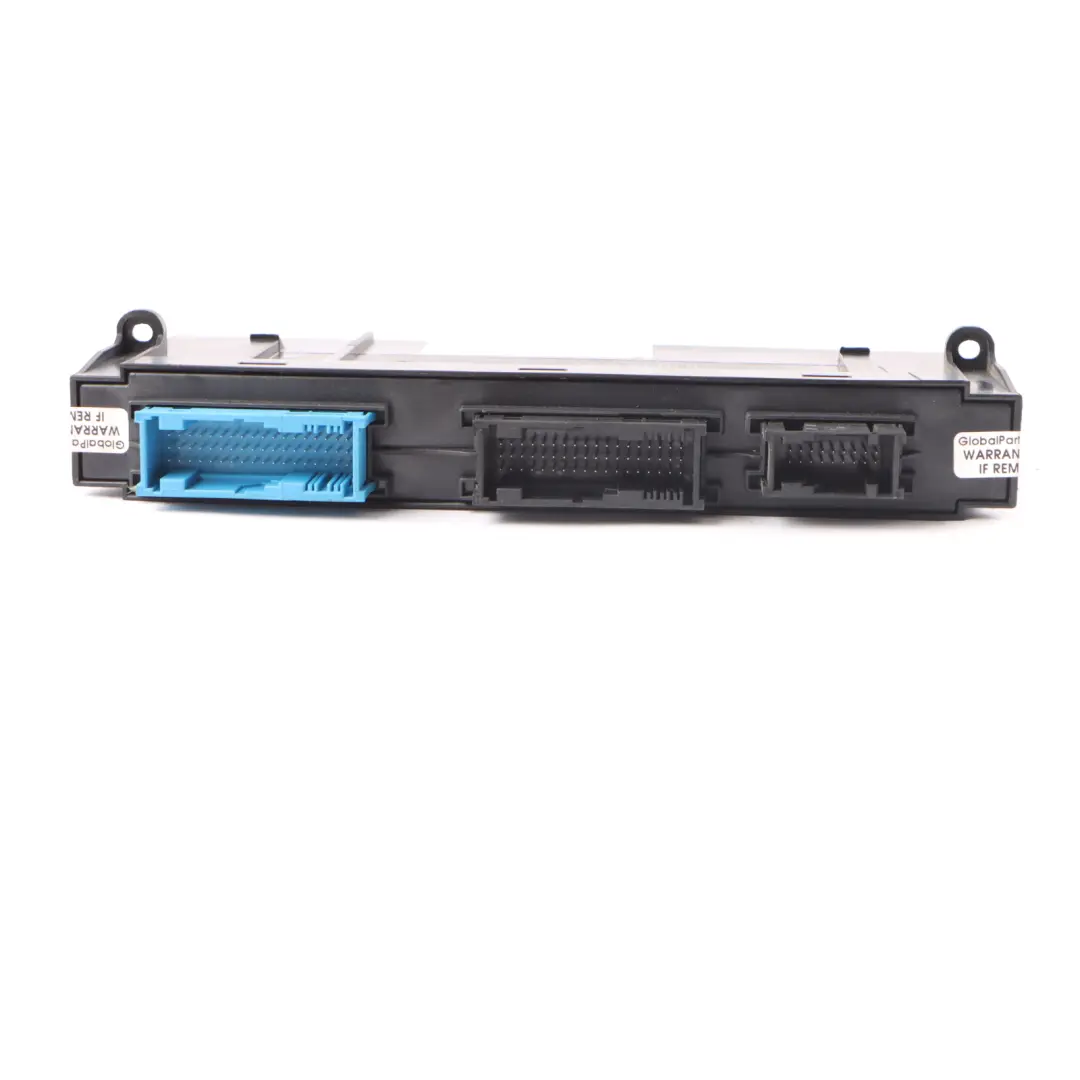

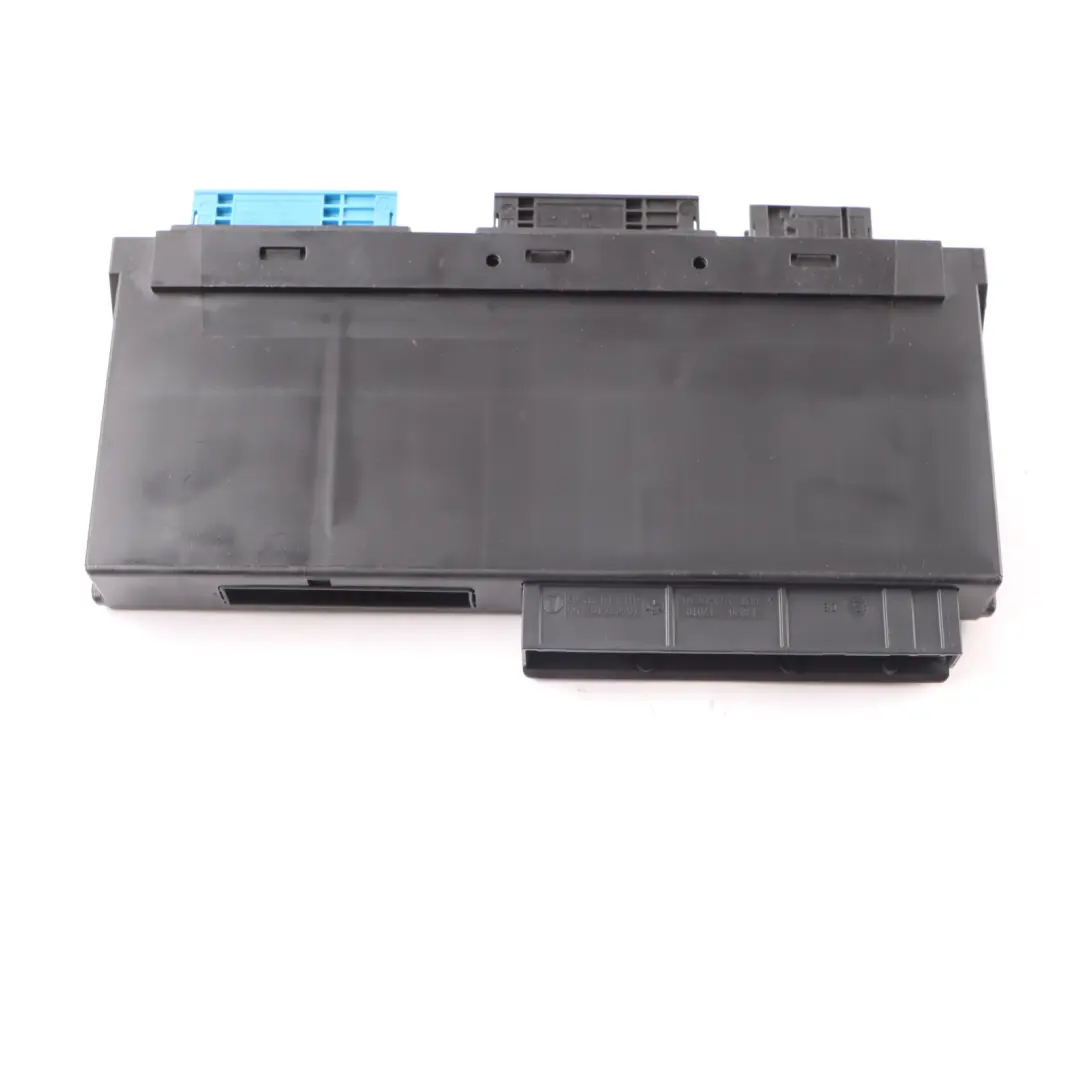

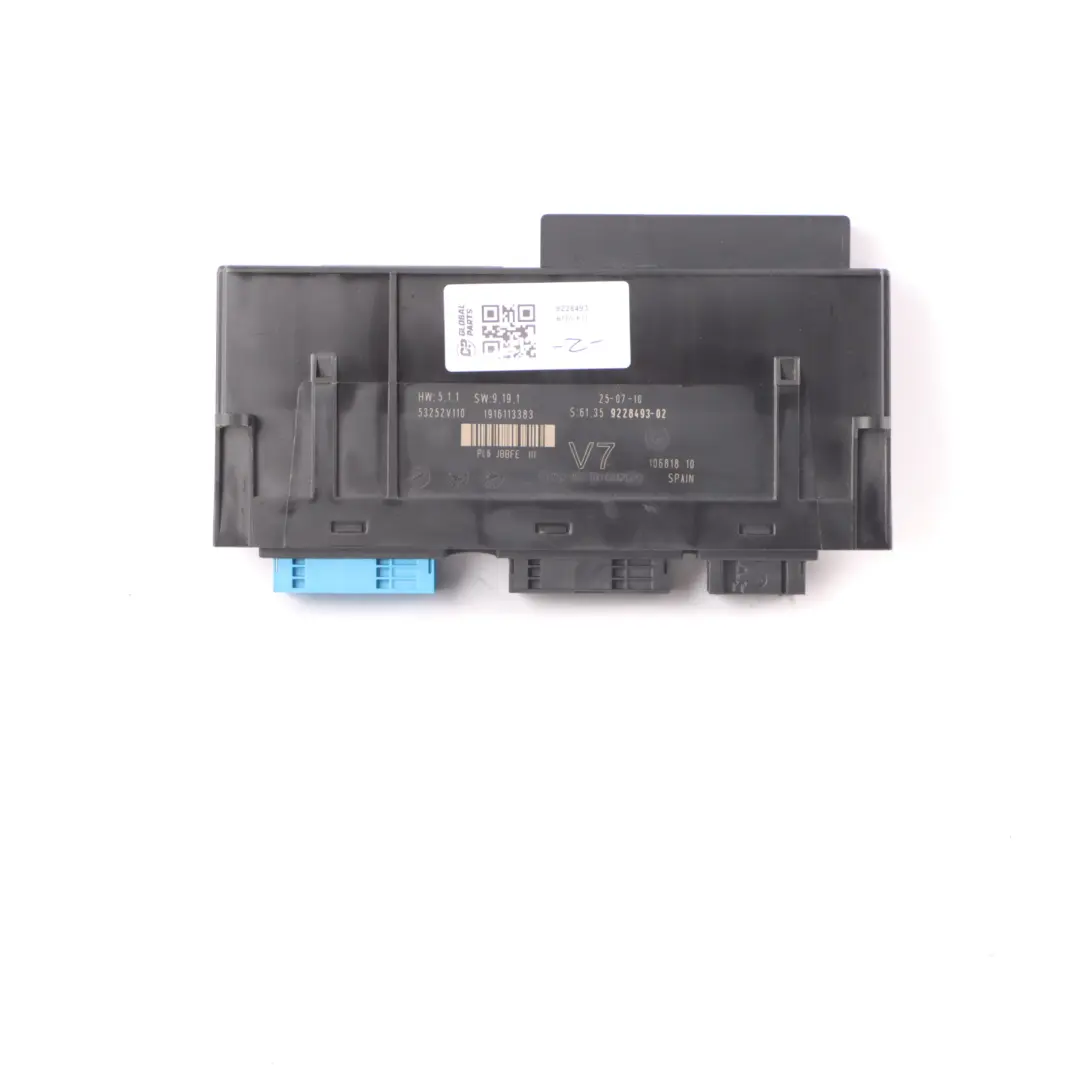

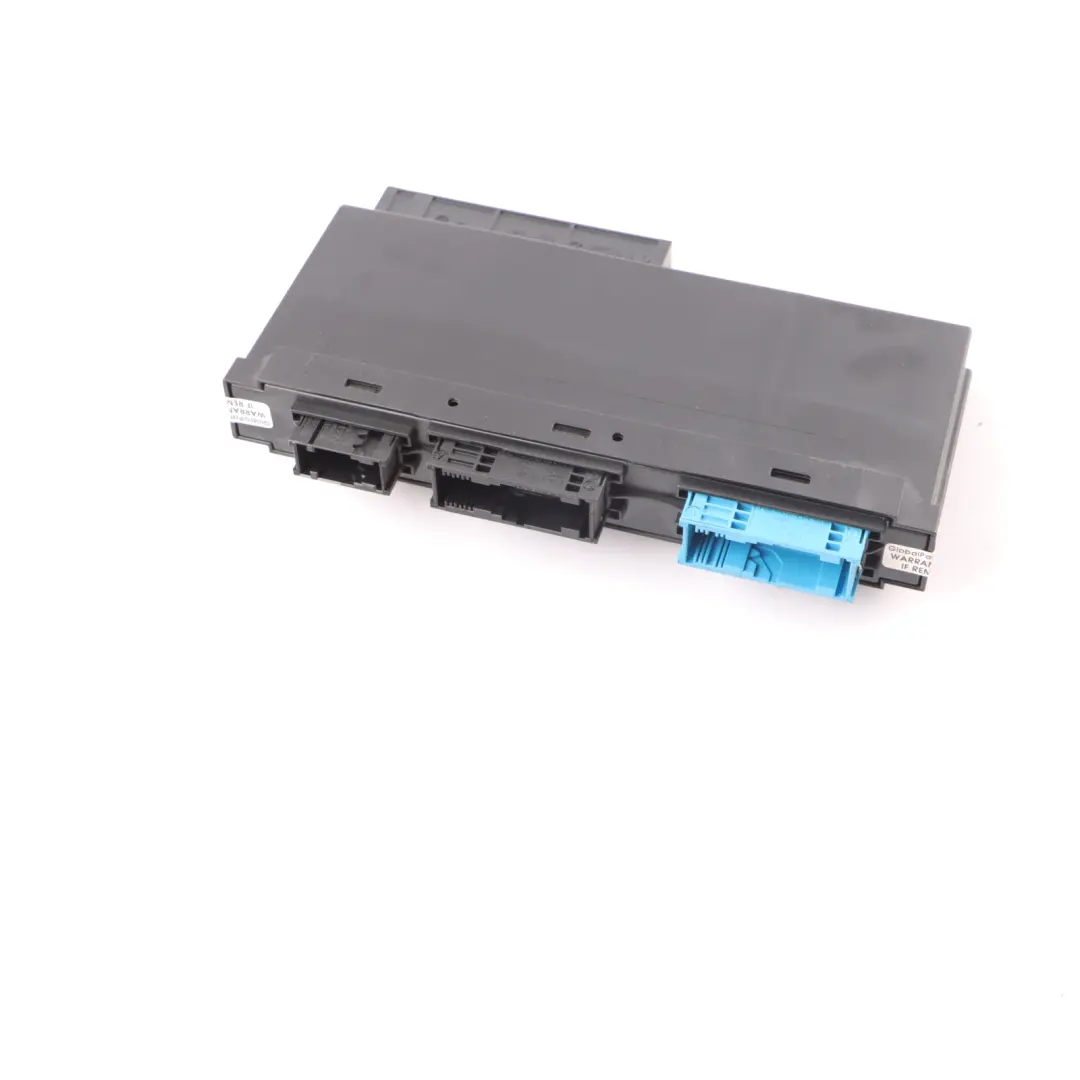

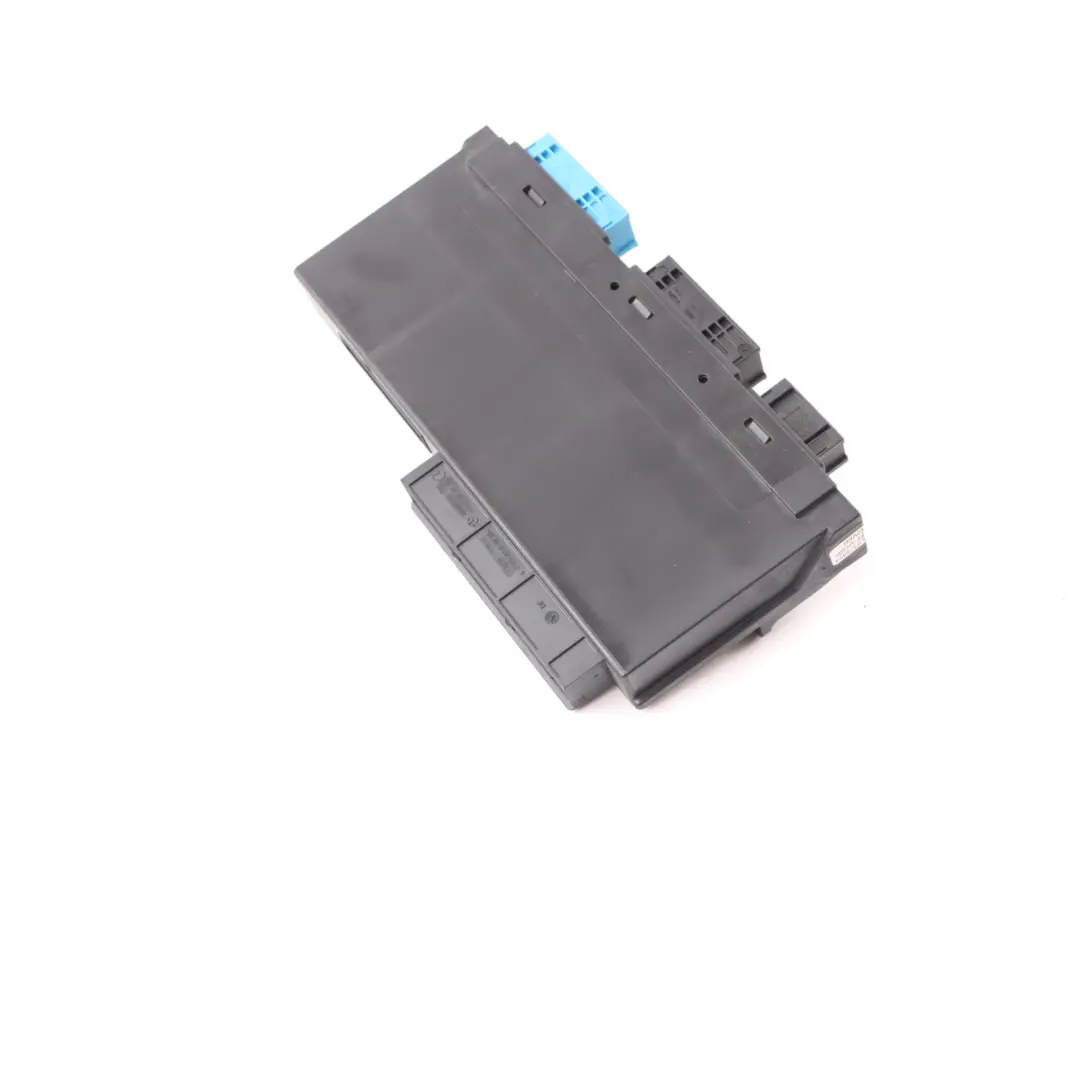

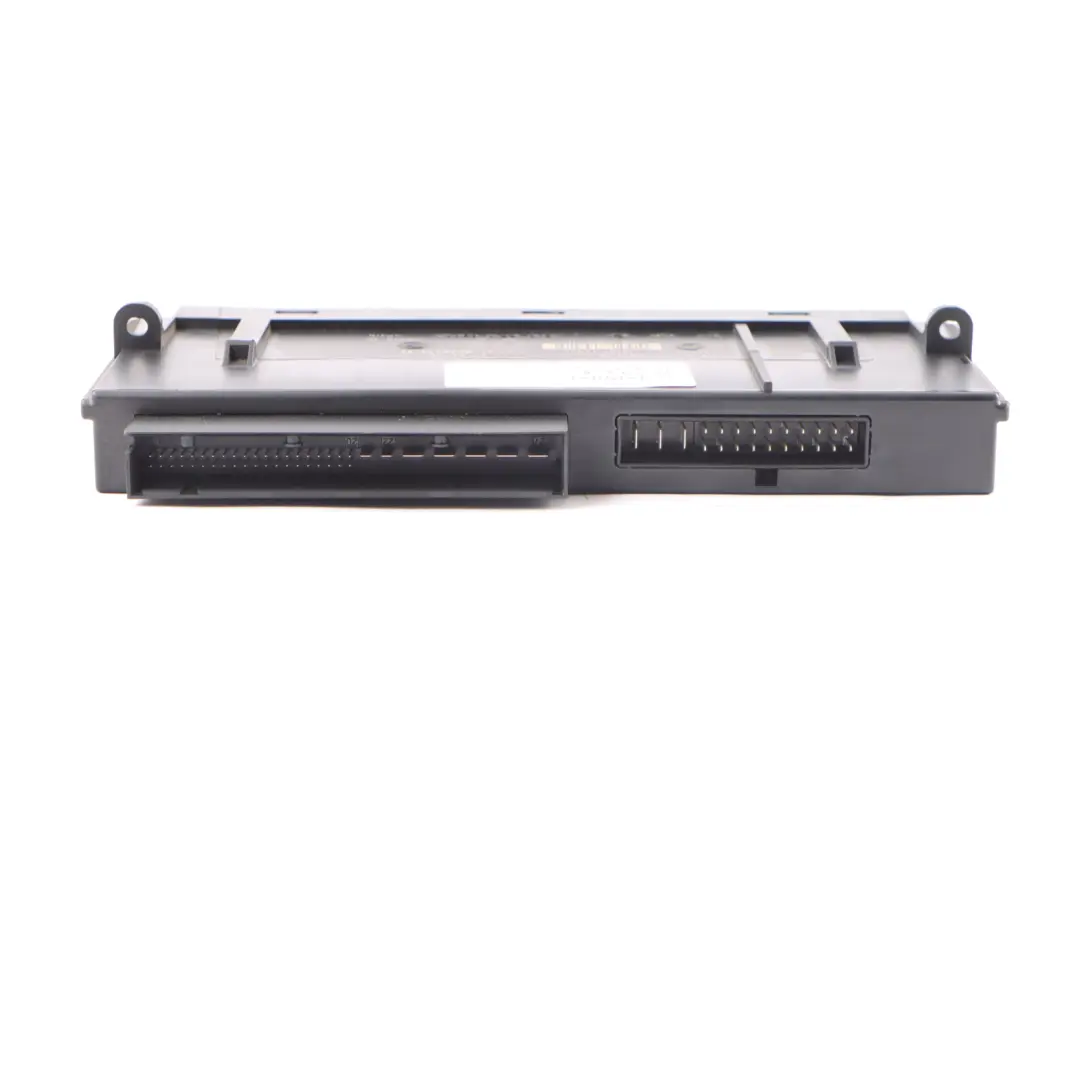

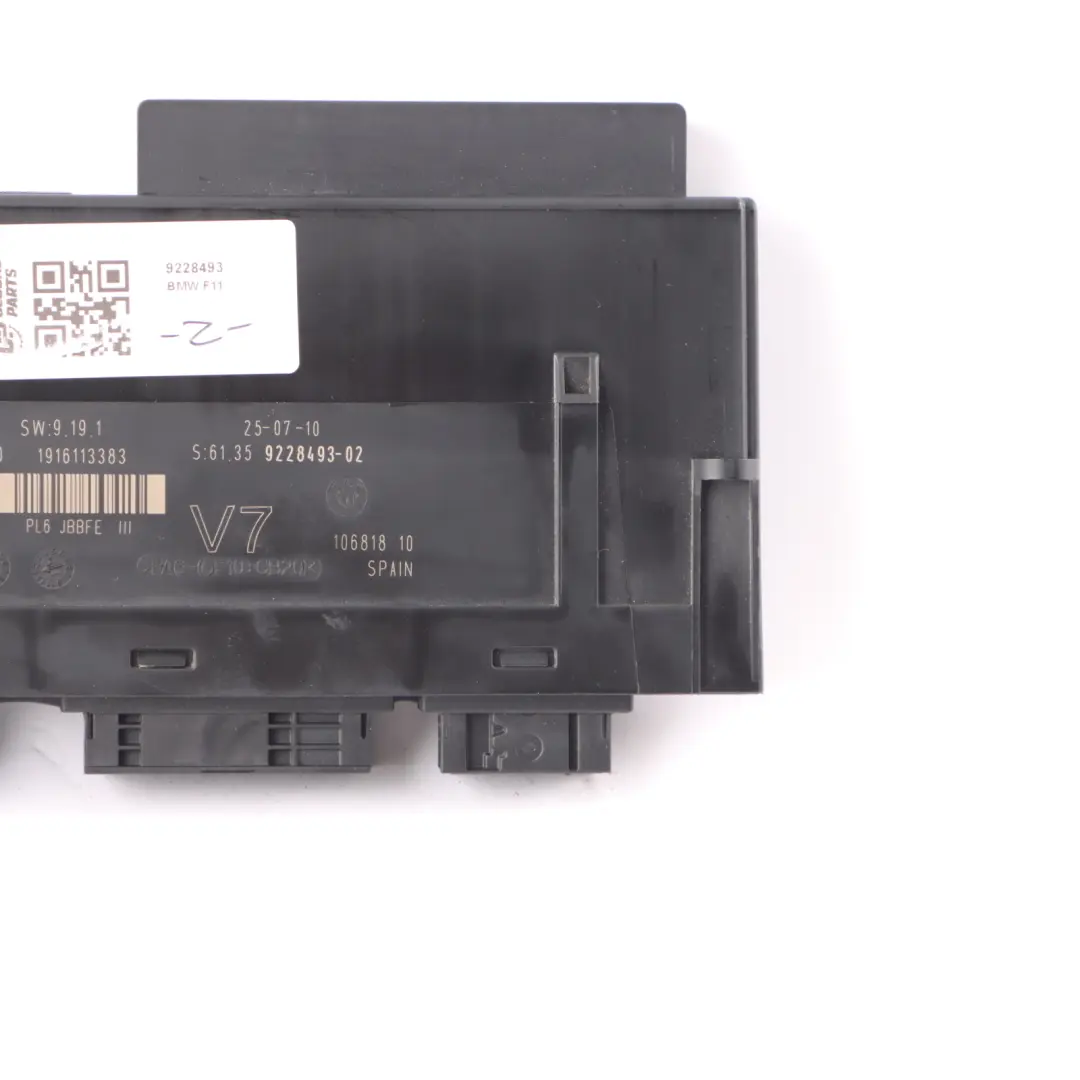

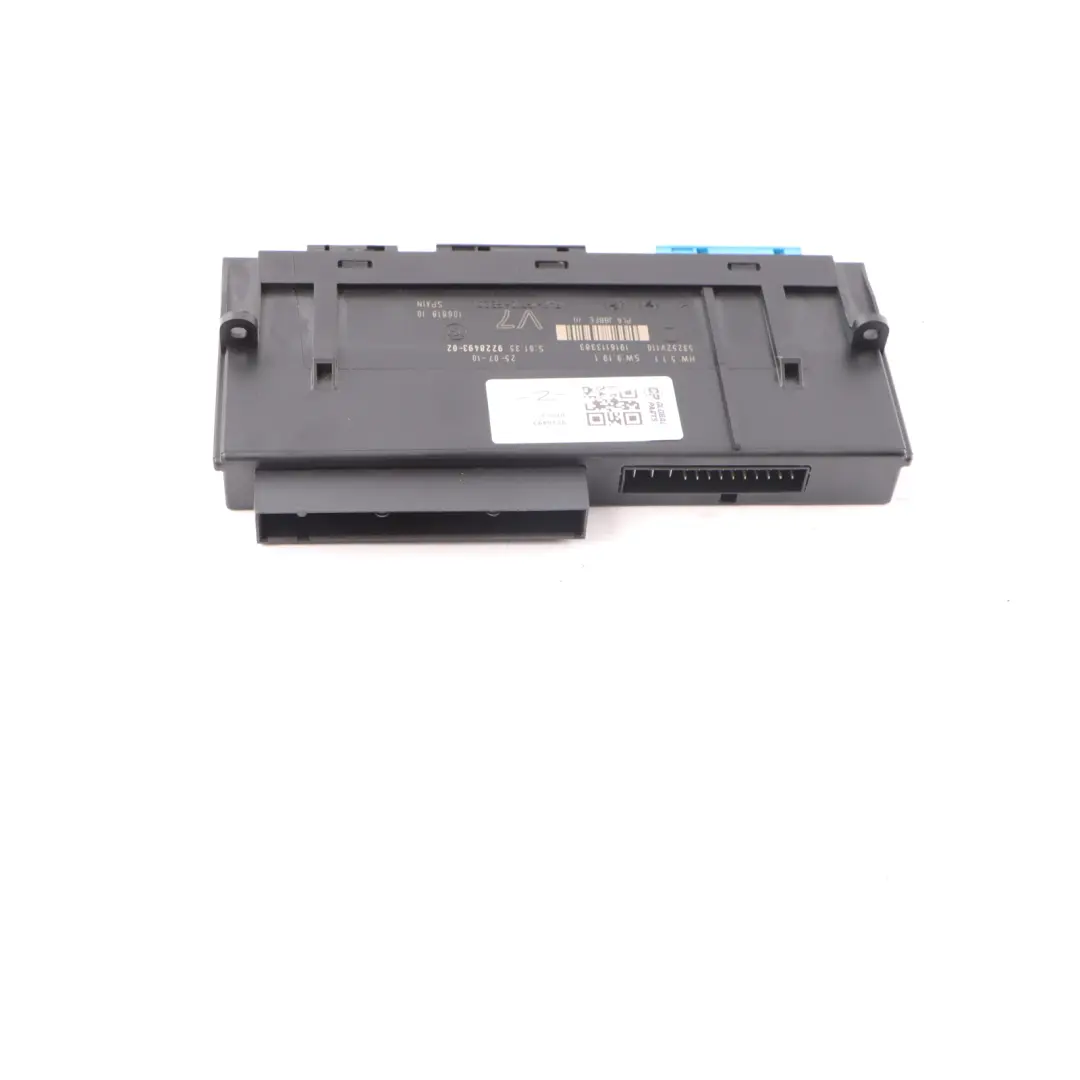

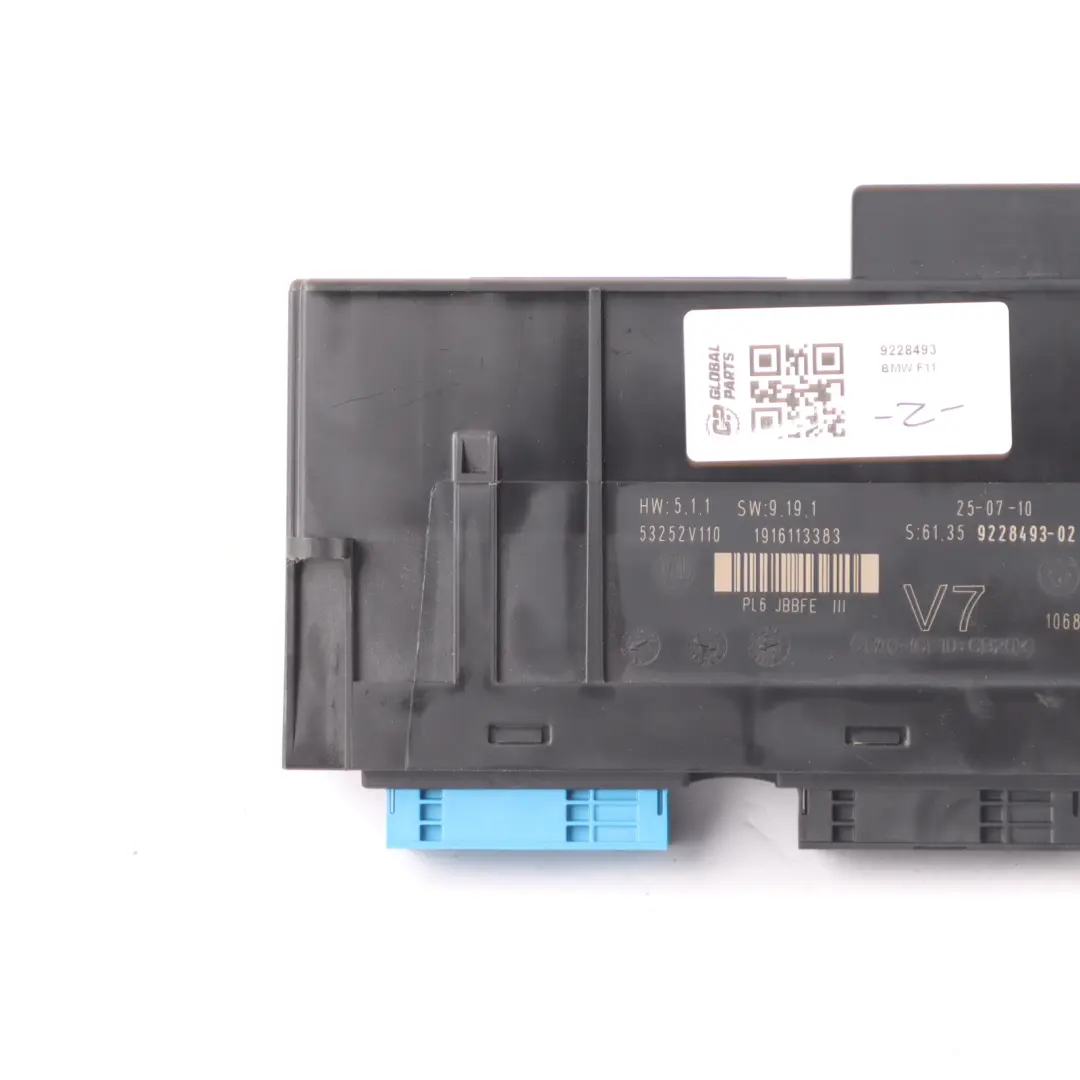

BMW F11 Body Control Module Unit Junction Box 9228493

The BMW F11 Body Control Module Unit Junction Box is a central, used body module designed to control numerous electrical circuits in the BMW 5 Series F11. As a component from the Electronic Control Modules and Controllers group, it is responsible for the stable operation of key comfort and safety functions, ensuring consistent management of the vehicle's electrical system. This is a solution for users seeking a proven OEM component instead of a costly replacement of the entire wiring harness or new parts.

Specifications and technical data

• SKU: 9228493
• Mark: BMW (Genuine OE)
• Condition: Used

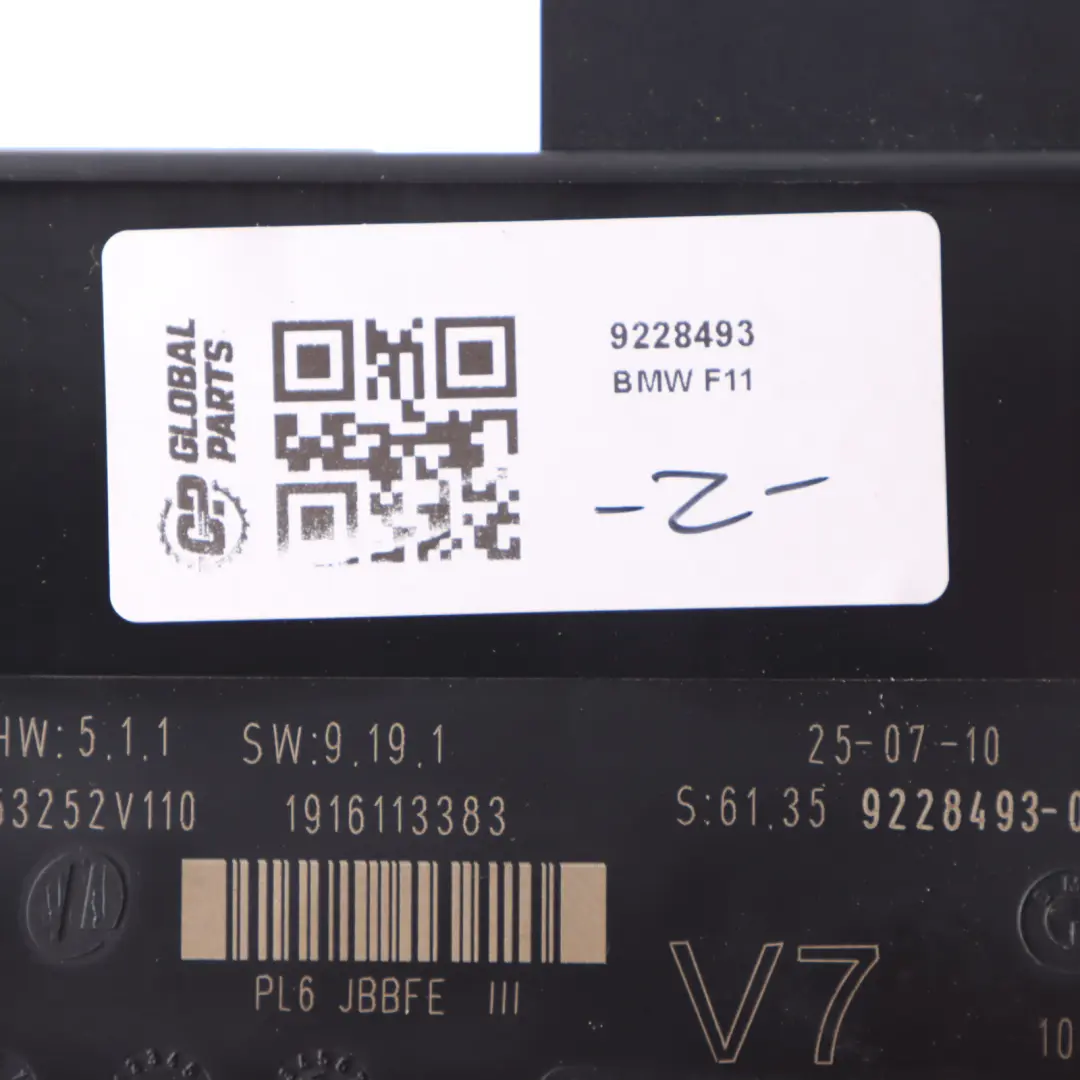

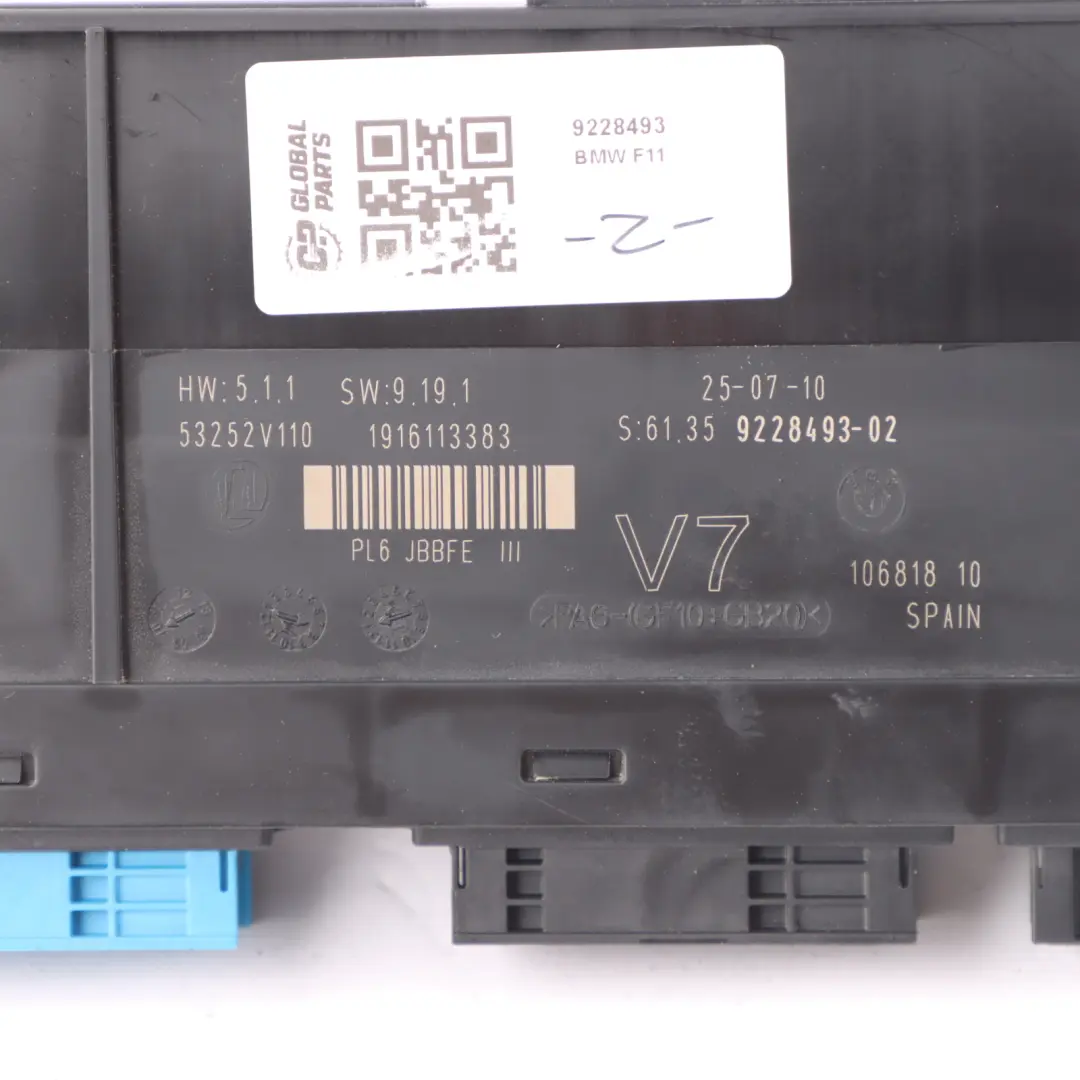

• OEM Part Number: 9228493
• Substitutable numbers: 9228493, 61359228493, 9244394, 61359244394, 9240503, 61359240503, 9212279, 61359212279
• Category: ECUs & Computer Modules

Role of the Body Module in the BMW F11

The body module in the BMW F11 acts as a central hub for power distribution and control of many electrical consumers. It integrates signals from various sensors and switches, then transmits them to the appropriate actuators, enabling consistent management of lighting, comfort, and selected auxiliary systems. This ensures the entire electrical system operates in an organized manner, and fault diagnostics are more predictable.

Benefits of Using an Original BMW Module

Using an original module from the same family as the one factory-fitted in the BMW F11 allows for compatibility with the vehicle's electrical architecture and controller software. This means:

• maintaining the factory operating logic for comfort and body systems,
• proper cooperation with other controllers in the vehicle network,
• easier diagnostics using standard BMW service tools,
• reduced risk of communication errors on data buses.

For workshops and users, this translates to more predictable installation and a lower risk of post-replacement issues. Choosing an original BMW module is particularly important for advanced electronics where hardware and software compatibility are crucial.

Condition, Origin, and Practical Application

The offered module is a used part from disassembly and is classified as a used OEM component. Such components are often chosen by workshops specializing in the BMW brand because they allow for economical repairs while maintaining original quality. The module is suitable for both typical replacement of a damaged controller and more complex work related to rebuilding the electrical system after a collision or flooding.

Thanks to the presence of the OEM part number and associated interchangeable numbers (visible in the specifications section), it is possible to precisely match the module to the specific vehicle configuration. Before purchasing, it is advisable to verify compatibility using the VIN and compare the hardware and software designations with the currently installed controller.

Selection, Installation, and Service Aspects

When selecting a body module for the BMW F11, it is crucial to pay attention to compatibility with the existing installation and vehicle equipment. In practice, this means:

• verifying the OEM part number and reference numbers in BMW catalogs,
• checking that the module comes from the same vehicle generation and a similar equipment version,
• considering the potential need for coding or programming after installation.

The installation itself usually involves mechanically seating the module in the junction box and connecting the appropriate wiring harness connectors. In many cases, after replacement, adaptive procedures or coding using dedicated service software are required for all body functions to be correctly recognized by other controllers. It is also good practice to perform a full error scan before and after installation, which facilitates monitoring the repair results.

Technical Support and Additional Resources

If you want to better understand how to safely use used controllers, how to select them by OEM number, and what the issues of hardware and software compatibility are, consult the guide: Used Car Electronics – Second-Hand ECU Modules and Sensors. This is a practical source of knowledge that helps reduce the risk of errors when purchasing and installing electronics from disassembly.

Additionally, if you are interested in how to care for electronics and other aftermarket components in the long term, it is worth reading the article: How to Extend the Lifespan of Used Car Parts. You will find tips on operation and maintenance that help maximize the potential of used components.

If you are planning a comprehensive repair or upgrade of the electrical system area in your BMW and need other parts from the same group, such as additional controllers, comfort modules, or power management units, check the available parts in the category BMW Electronic Control Modules and Controllers.
