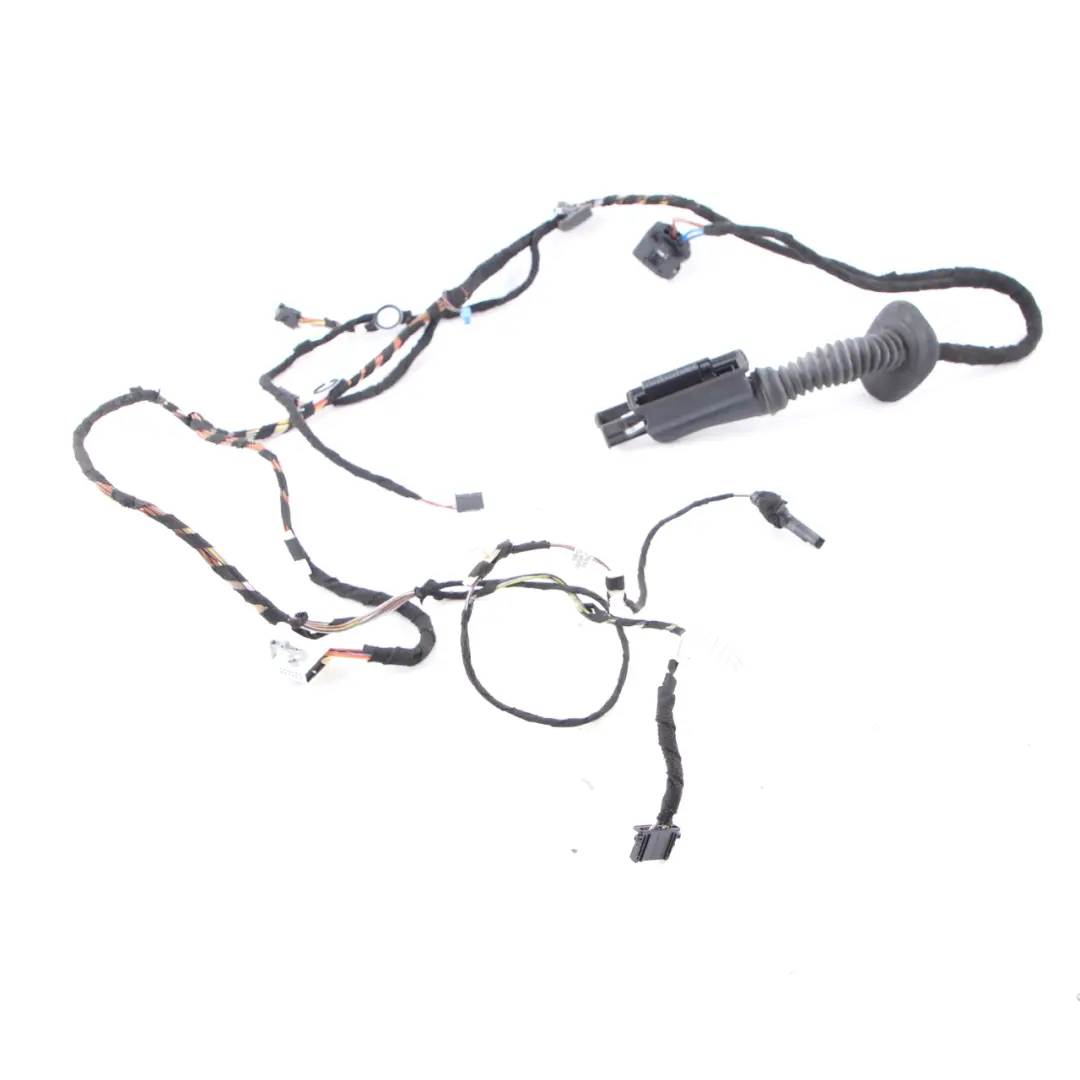

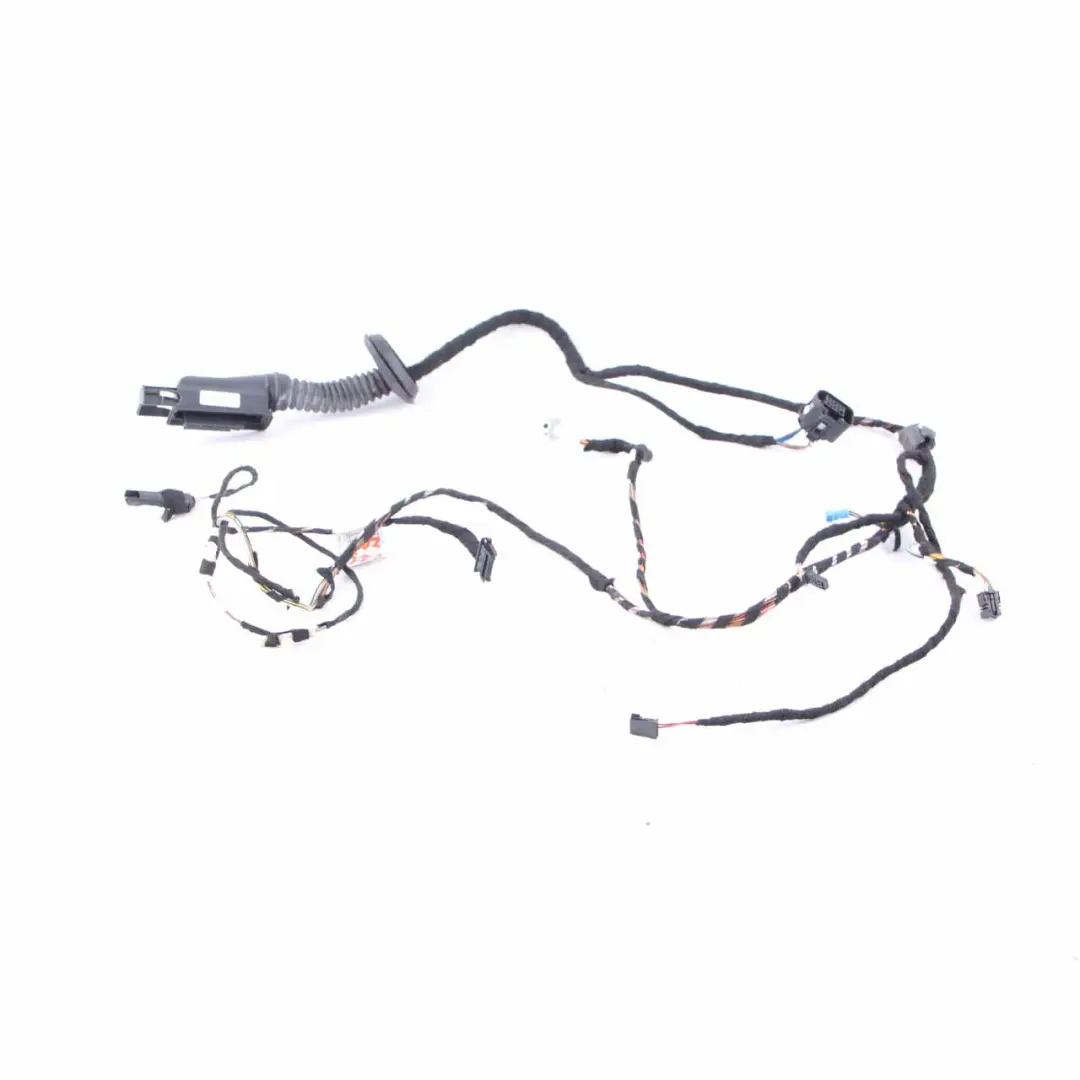

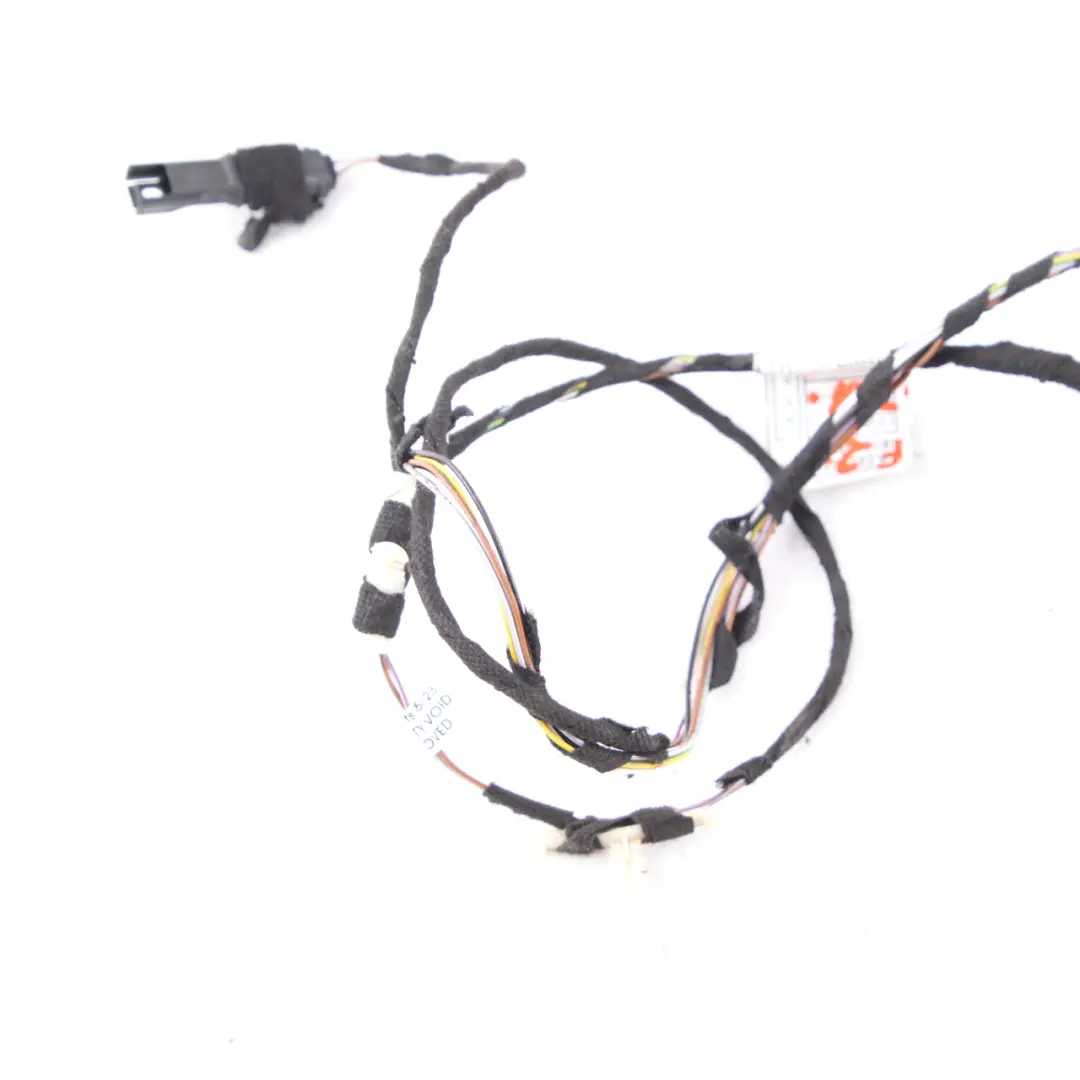

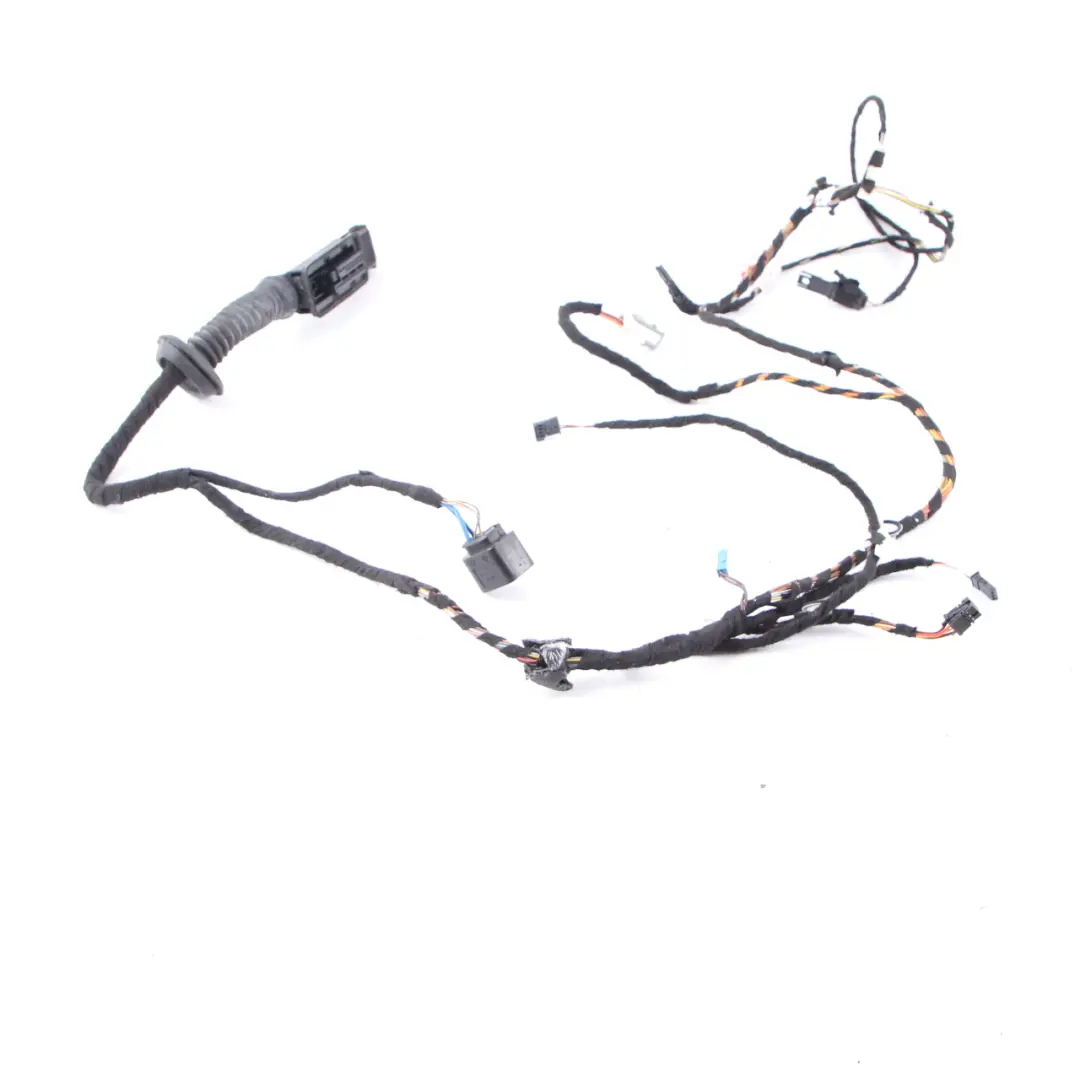

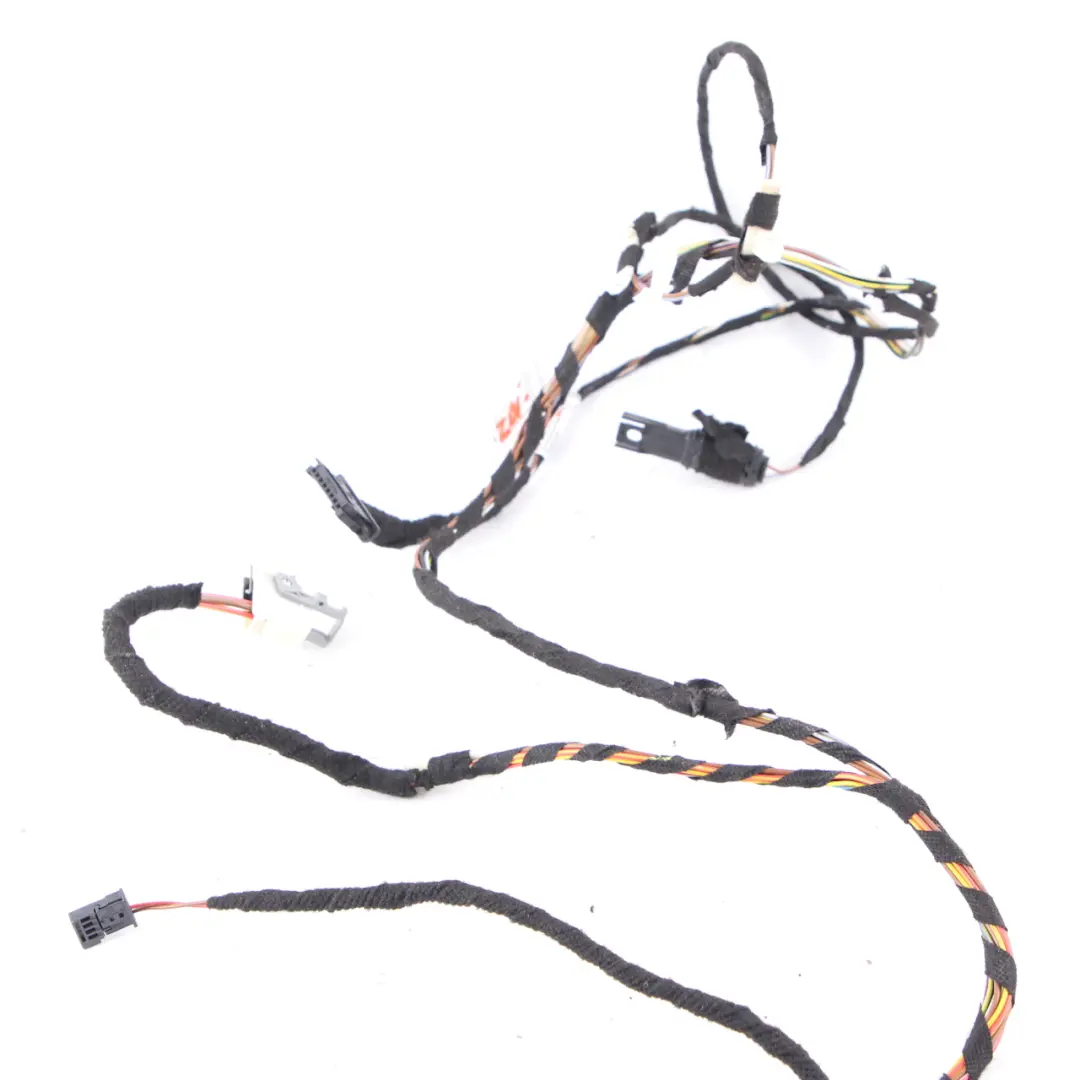

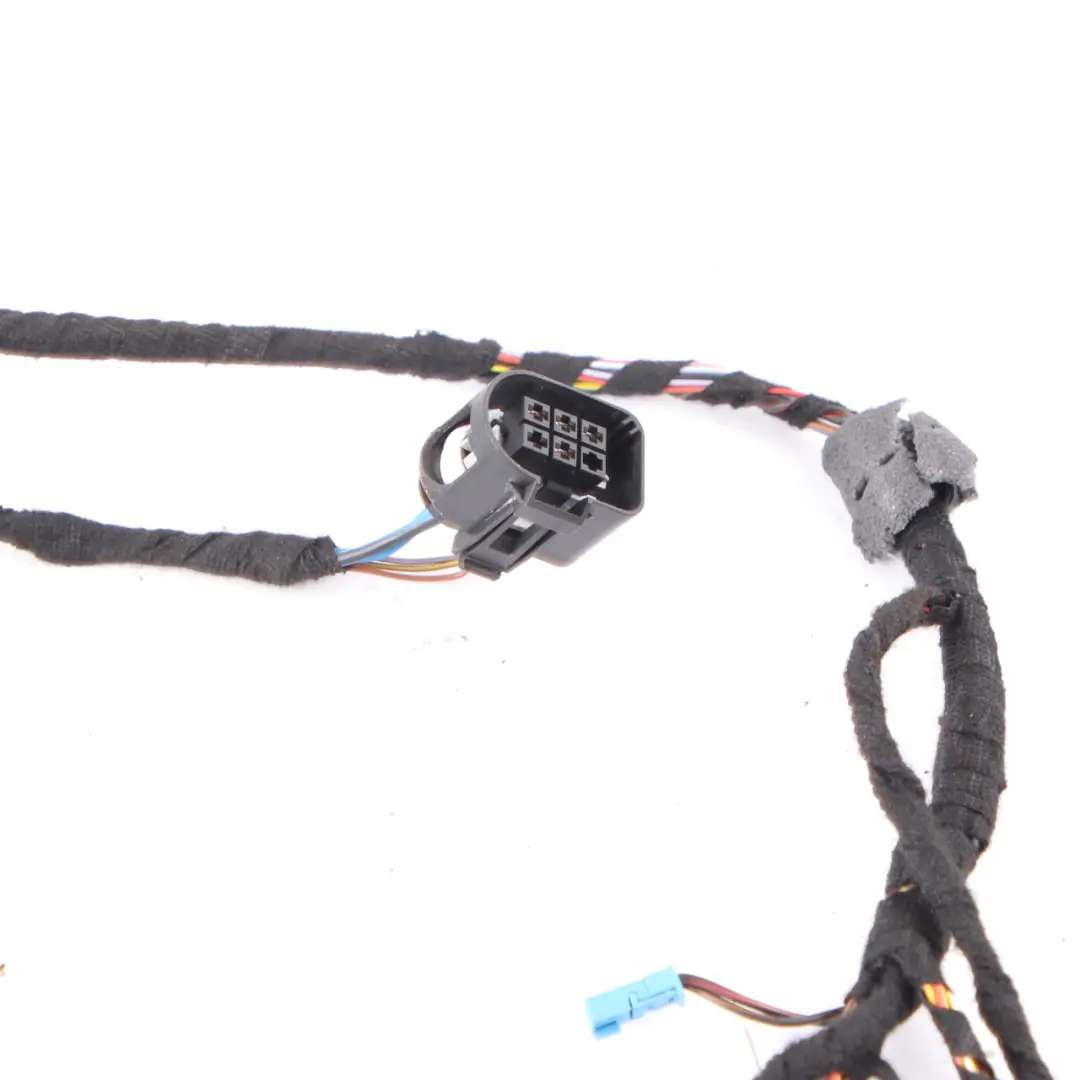

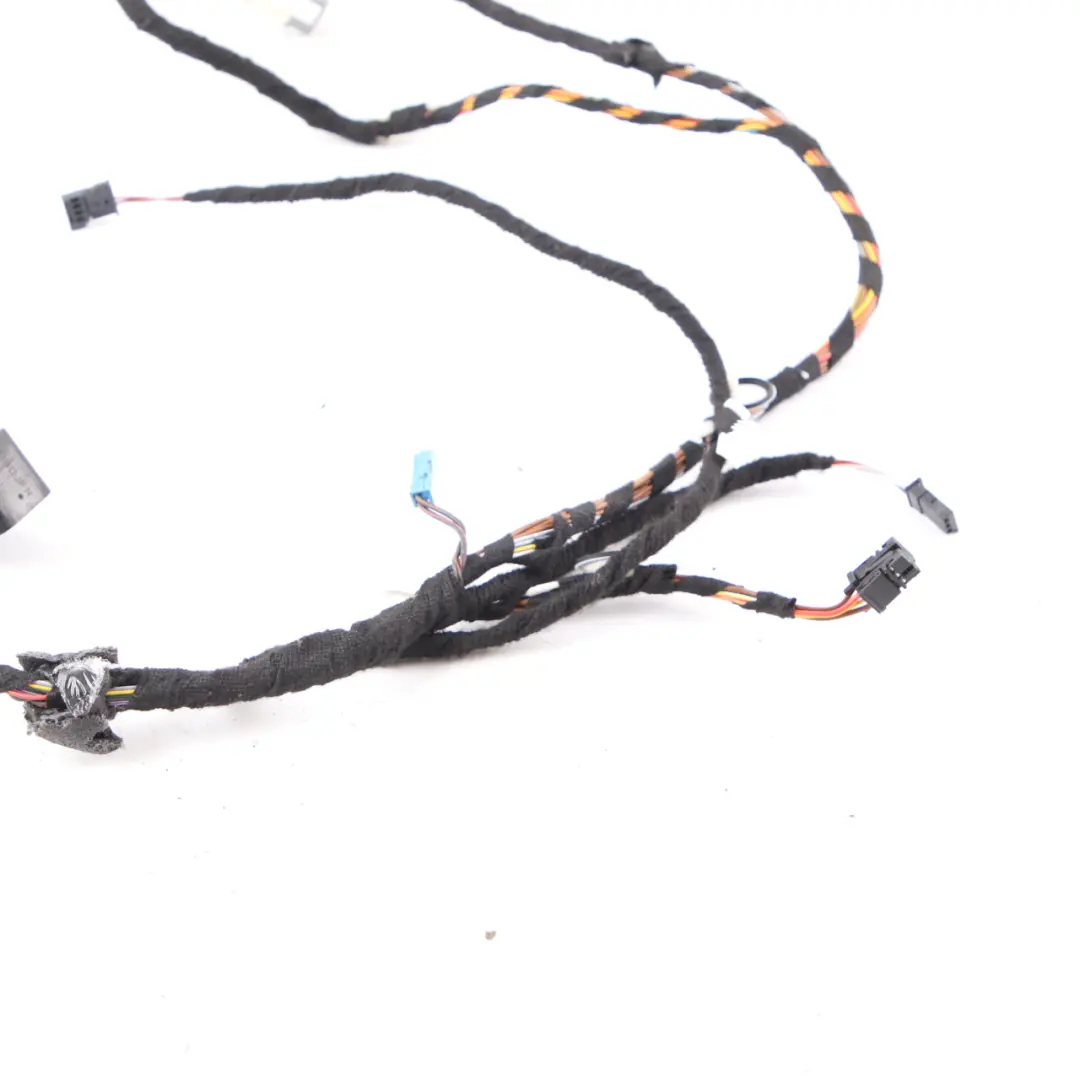

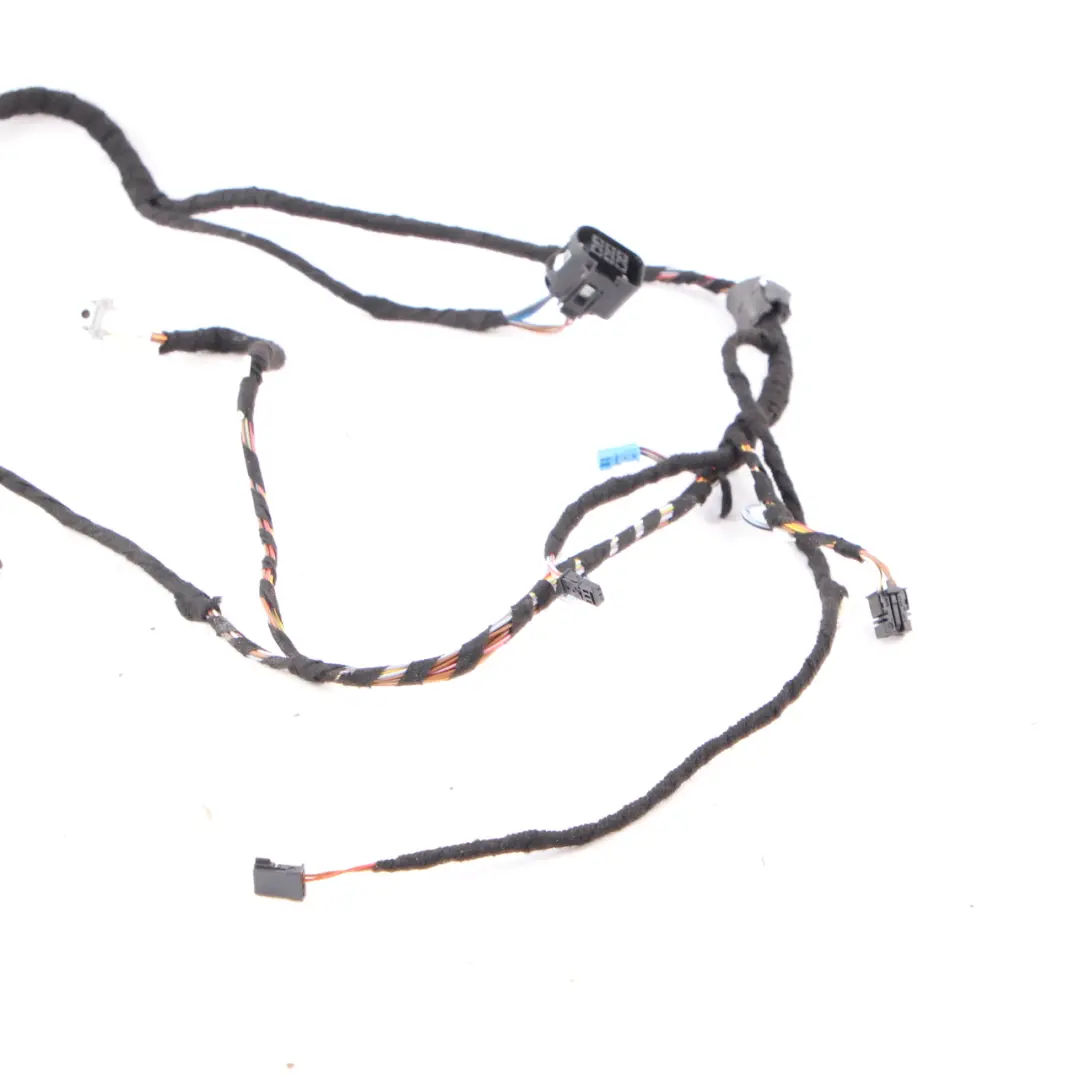

BMW F21 F22 Cable Harness Driver's Side Door Loom Electrical Wiring 9340971

The BMW F21/F22 Driver's Door Wiring Harness is an original, used door electrical cable designed for the driver's side installation in Series 2 and Series 1 models. This component ensures a proper electrical connection between the door and the body, responsible for stable power supply and communication of all electrical components within the door.

Specifications and technical data

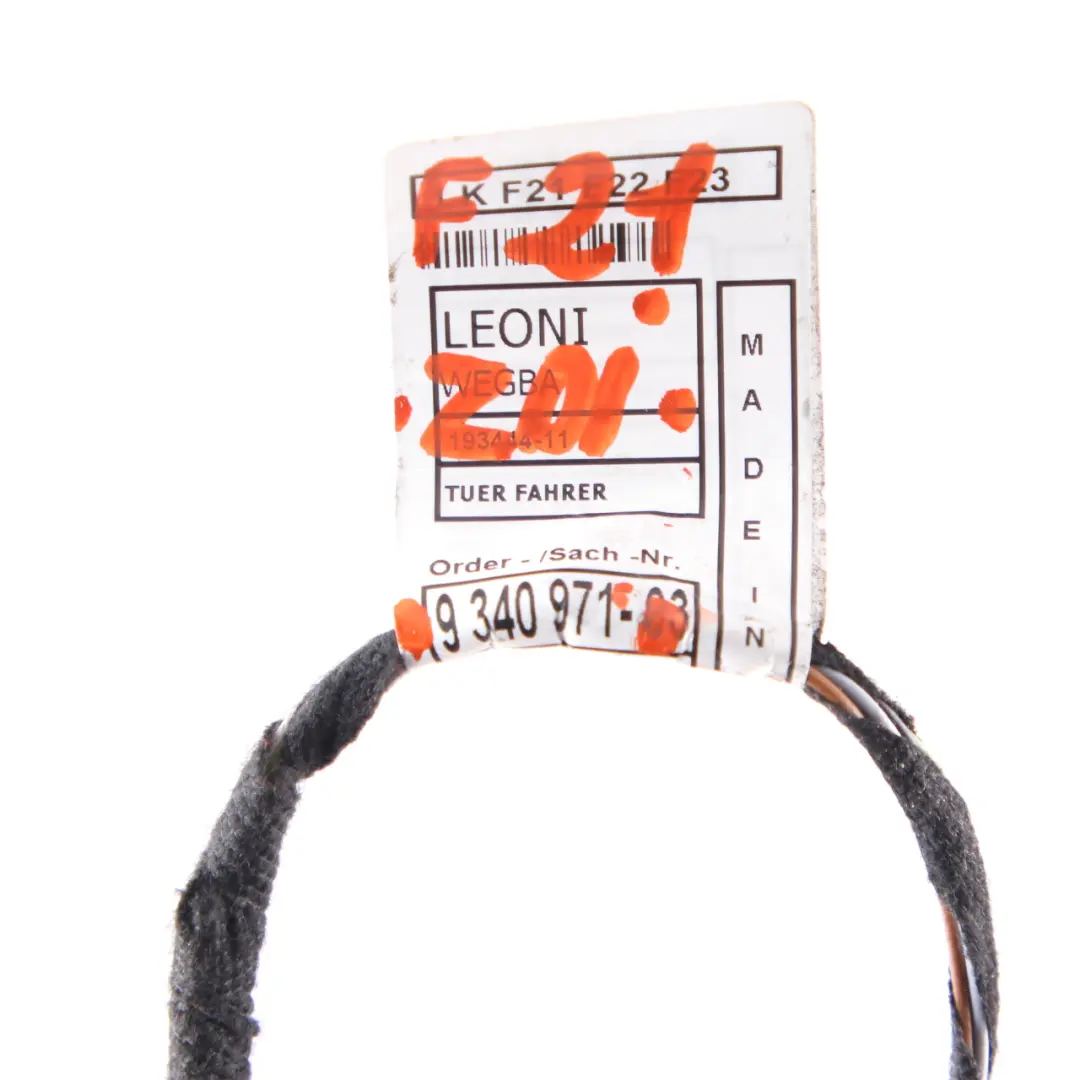

• SKU: 9340971
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9340971
• Substitutable numbers: 9340971, BG
• Category: Doors & Door Skins

Purpose and Function in the Vehicle

The driver's door wiring harness in the BMW F21/F22 is responsible for transmitting signals and power to key receivers located in the door. In practice, this means it handles elements such as:

• control of the driver's side power windows,
• power supply and communication with the door module,
• operation of the central locking system and door locks,
• transmission of signals to any sensors and switches in the door.

By using an original harness dedicated to a specific generation of BMW 1 and 2 Series, the factory wiring routing, appropriate cable lengths, and correct connectors are maintained, which facilitates installation and reduces the risk of installation errors.

Construction and Compatibility

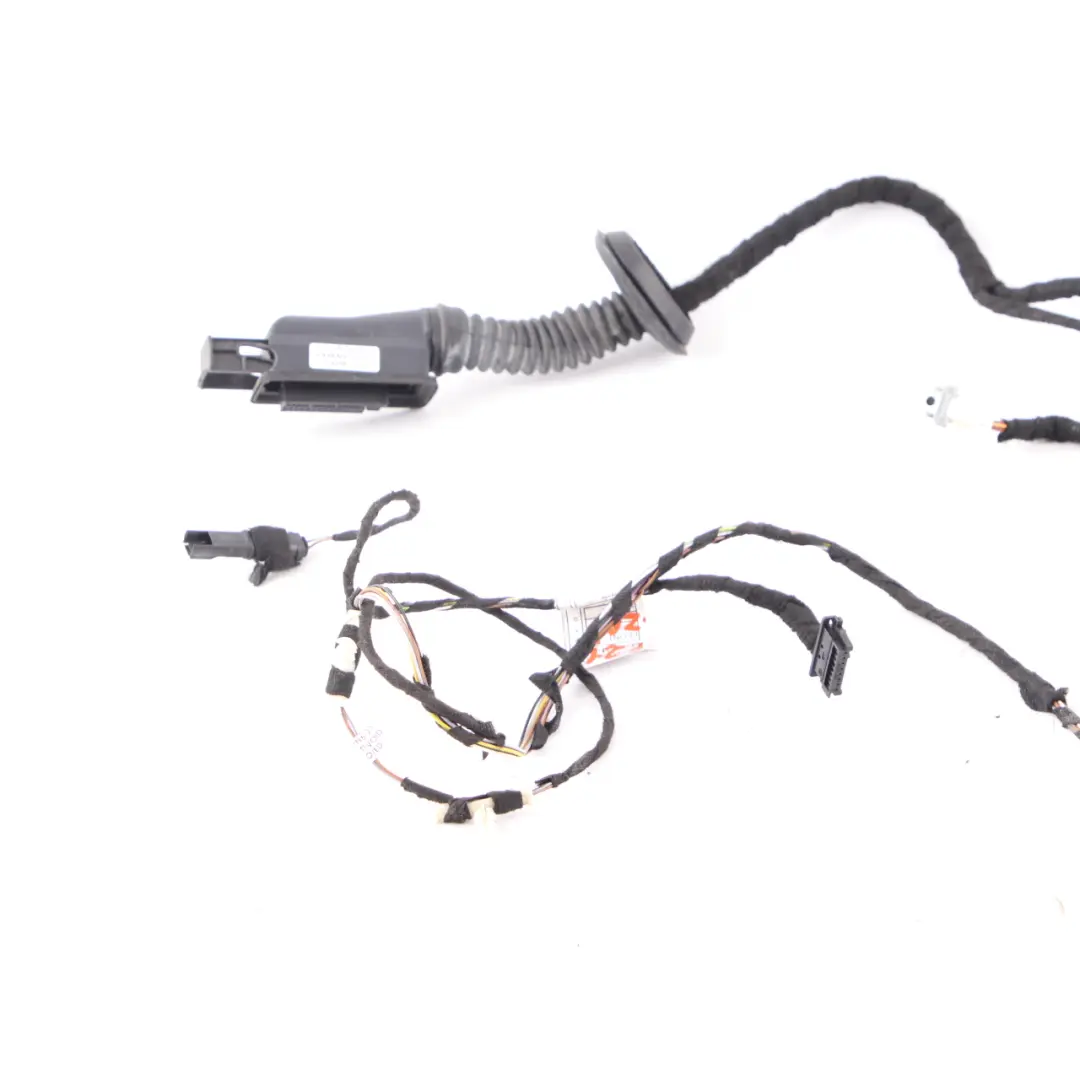

The BMW F21/F22 Driver's Door Wiring Harness is designed as a complete door wiring with factory connectors, adapted for operation in the hinge area between the door and the pillar. The construction allows for flexible movement with repeated opening and closing of the door, as well as adequate insulation protection against abrasion.

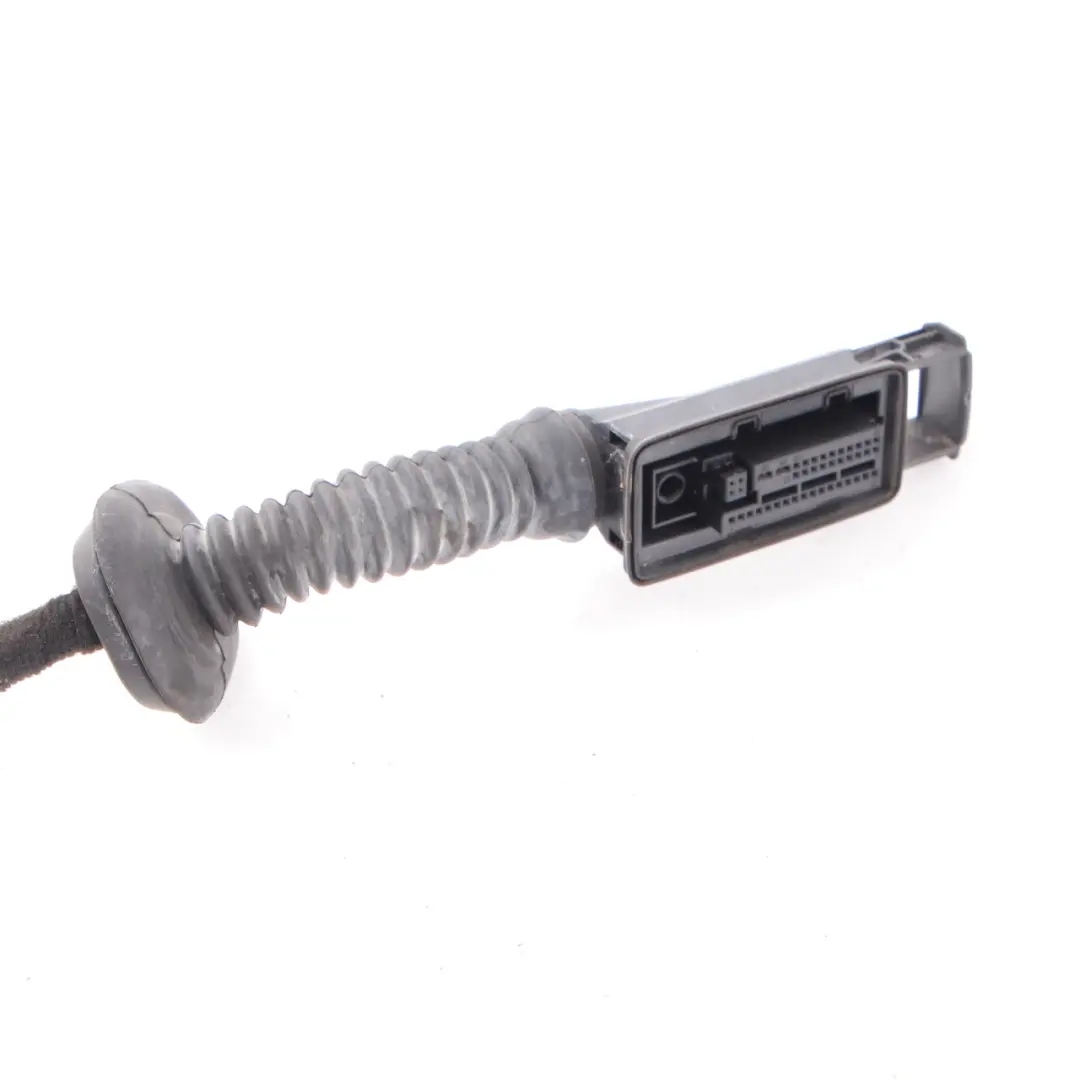

Original connectors and factory pin configuration allow for plug-and-play installation in compatible BMW models, without the need for modifying the existing wiring or soldering cables. This solution is particularly beneficial for repairs after collisions, replacement of damaged doors, or damaged wiring in the grommet.

Application in the Door and Door Panel Category

This item belongs to the Door and Door Panel category, which emphasizes its close connection to the side body area. Replacing the wiring harness is often necessary after mechanical damage to the door, water ingress into the wiring, or prolonged use leading to wire breakage in the grommet. Using original wiring allows for the restoration of full door control functionality without compromising electrical safety.

If you are planning a comprehensive repair or upgrade of the door area in your BMW and need other parts from the same group, such as panels, hinges, or complete door wings, check the available parts in the BMW Door and Door Panel category.

Benefits of Using an Original Harness

Using the factory driver's door wiring harness in the BMW F21/F22 offers a number of practical benefits:

• Full compatibility with the vehicle's electrical system – matched connectors and wire lengths facilitate installation and reduce the risk of errors.
• Stable operation of electrical systems in the door – correct power supply and module communication ensure predictable operation of windows, locks, and control units.
• Restoration of factory wiring routing – proper harness placement reduces the risk of abrasion and damage during operation.
• Installation safety – no need to cut and splice wires minimizes the possibility of short circuits or voltage drops.

Practical Installation and Operational Tips

When replacing the driver's door wiring harness in the BMW F21/F22, it is worth paying attention to several technical aspects:

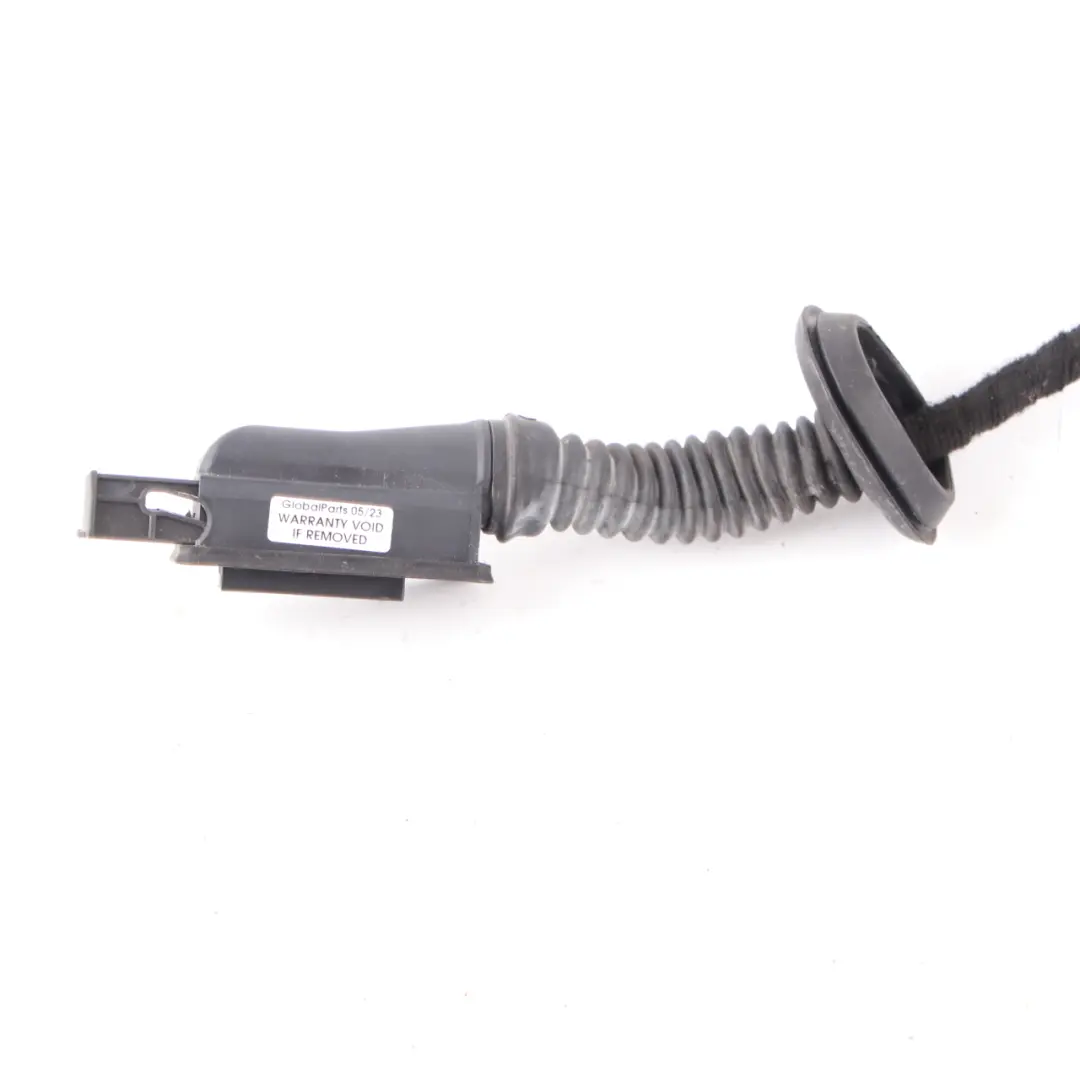

• checking the condition of the rubber grommet between the door and the pillar,
• inspecting the connector sockets on the body and door sides for contact corrosion,
• correct routing of the harness inside the door, maintaining factory mounting points,
• verifying the operation of all door functions after installation (windows, lock, any mirrors, lighting).

This approach not only allows for the replacement of a damaged component but also proactively eliminates potential sources of future faults within the door wiring system.
