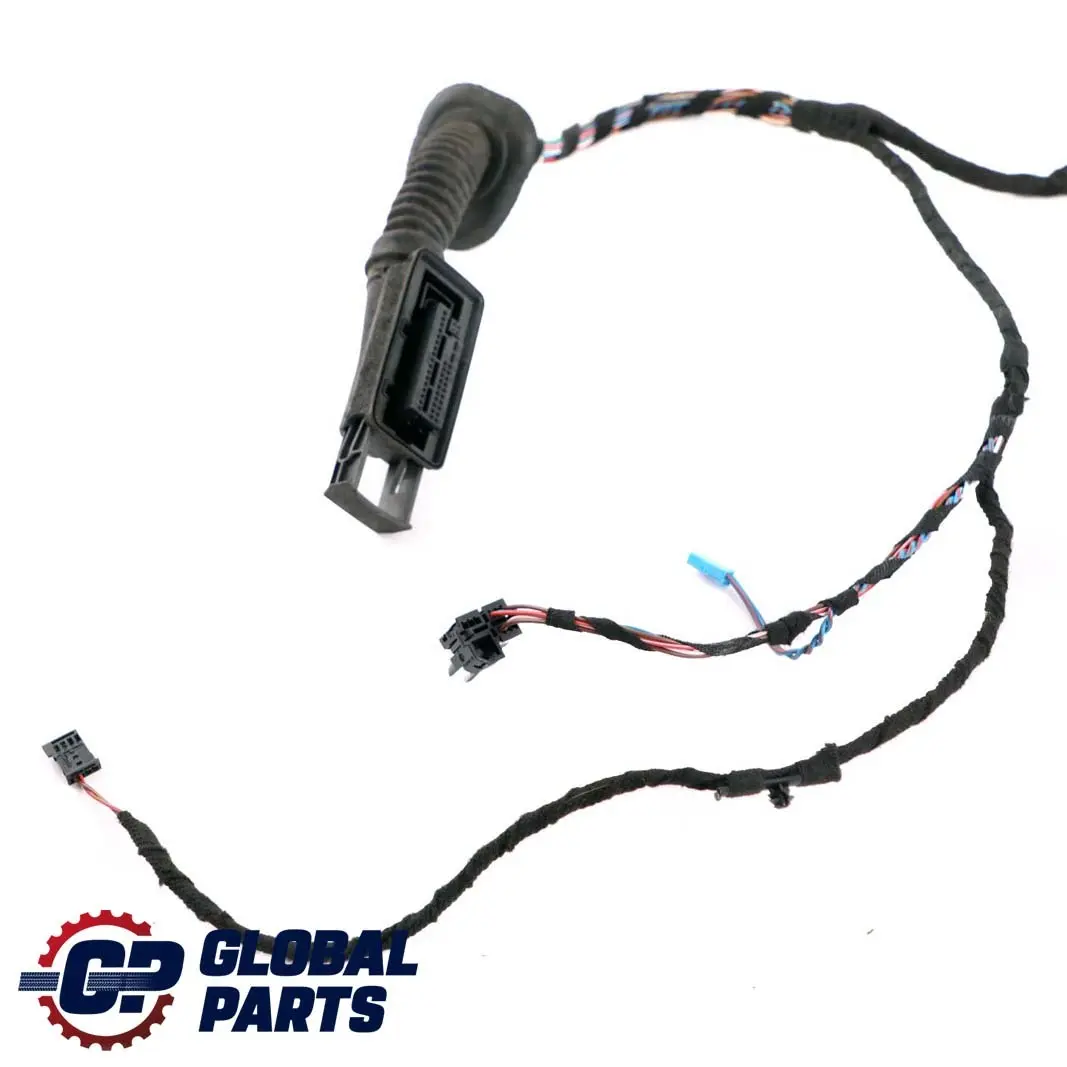

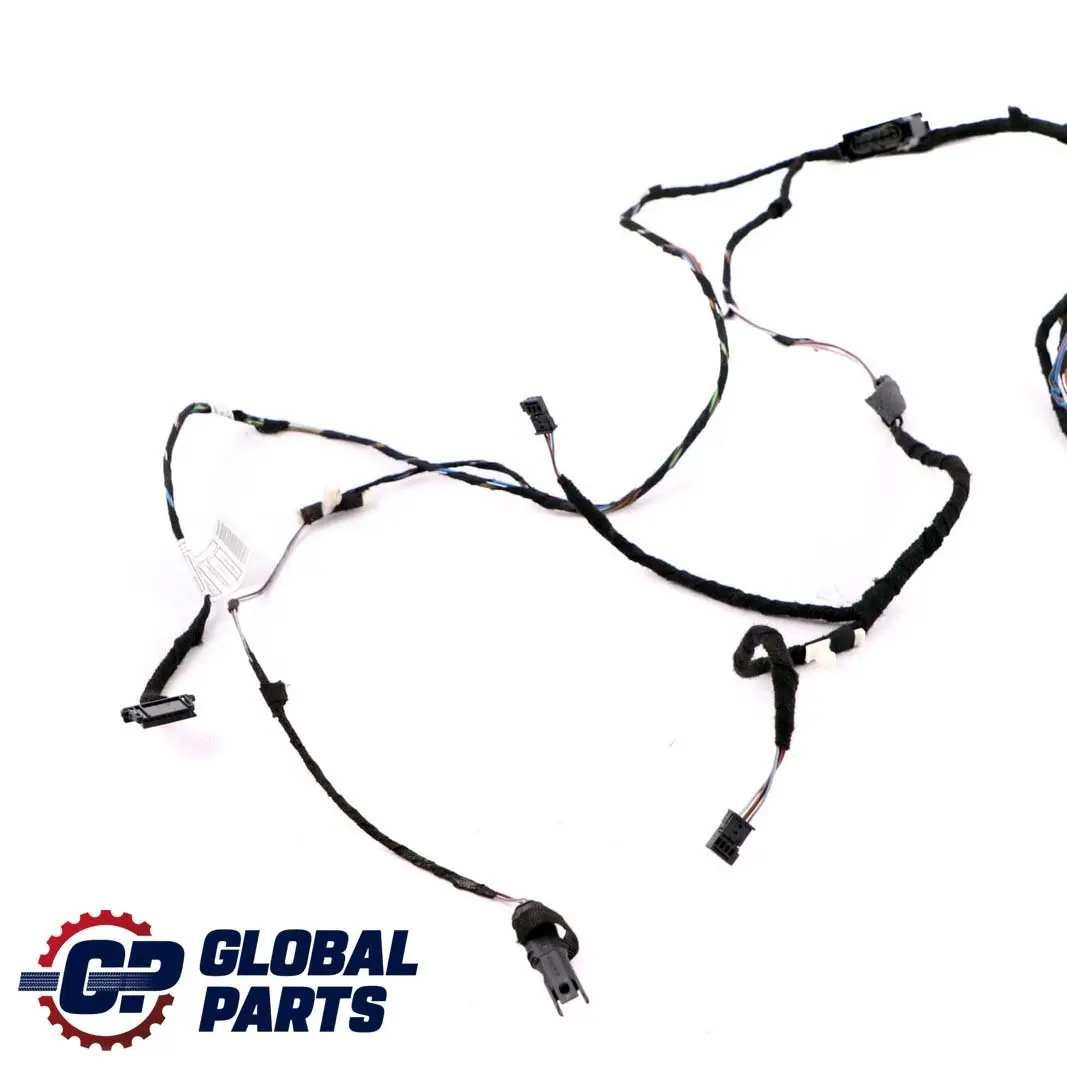

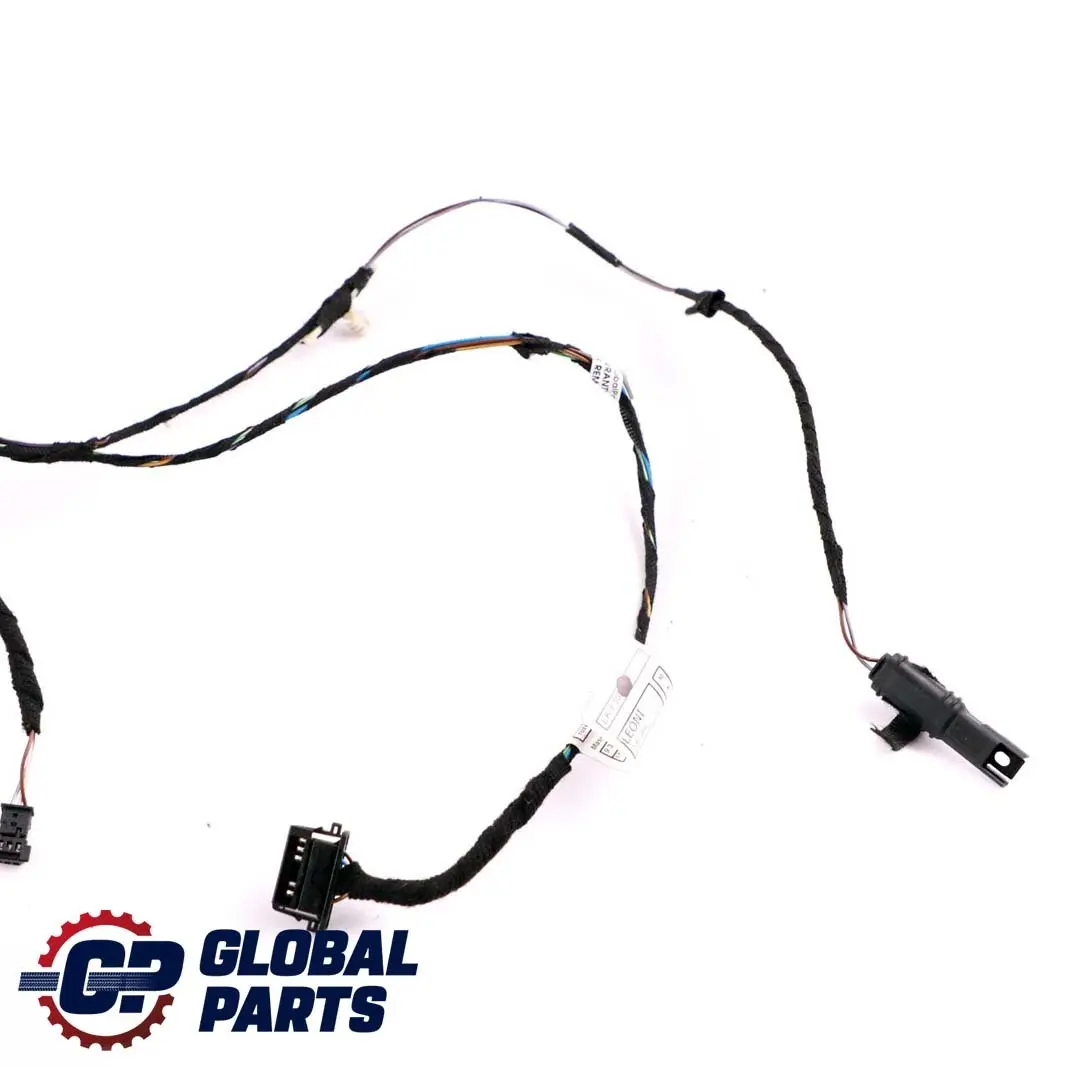

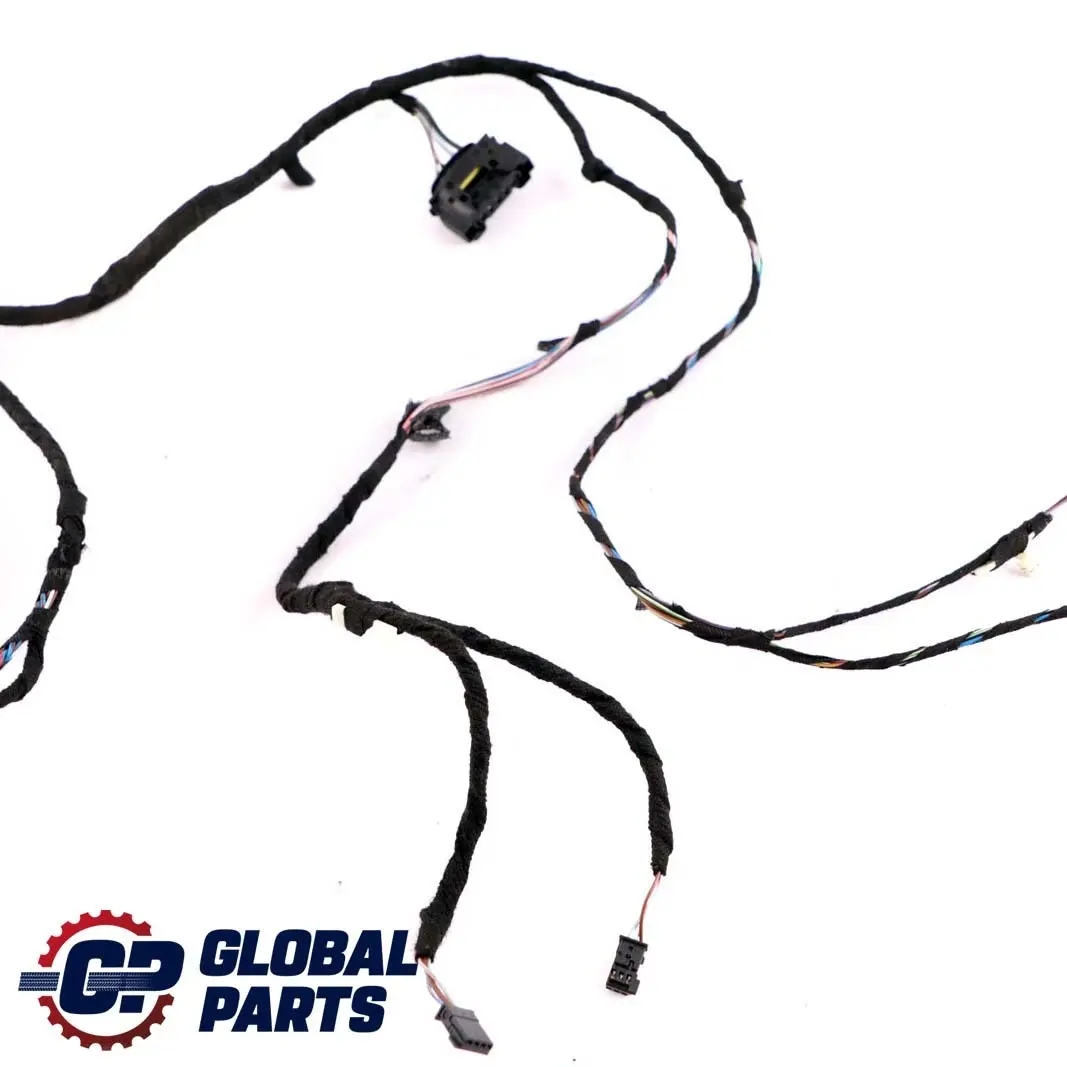

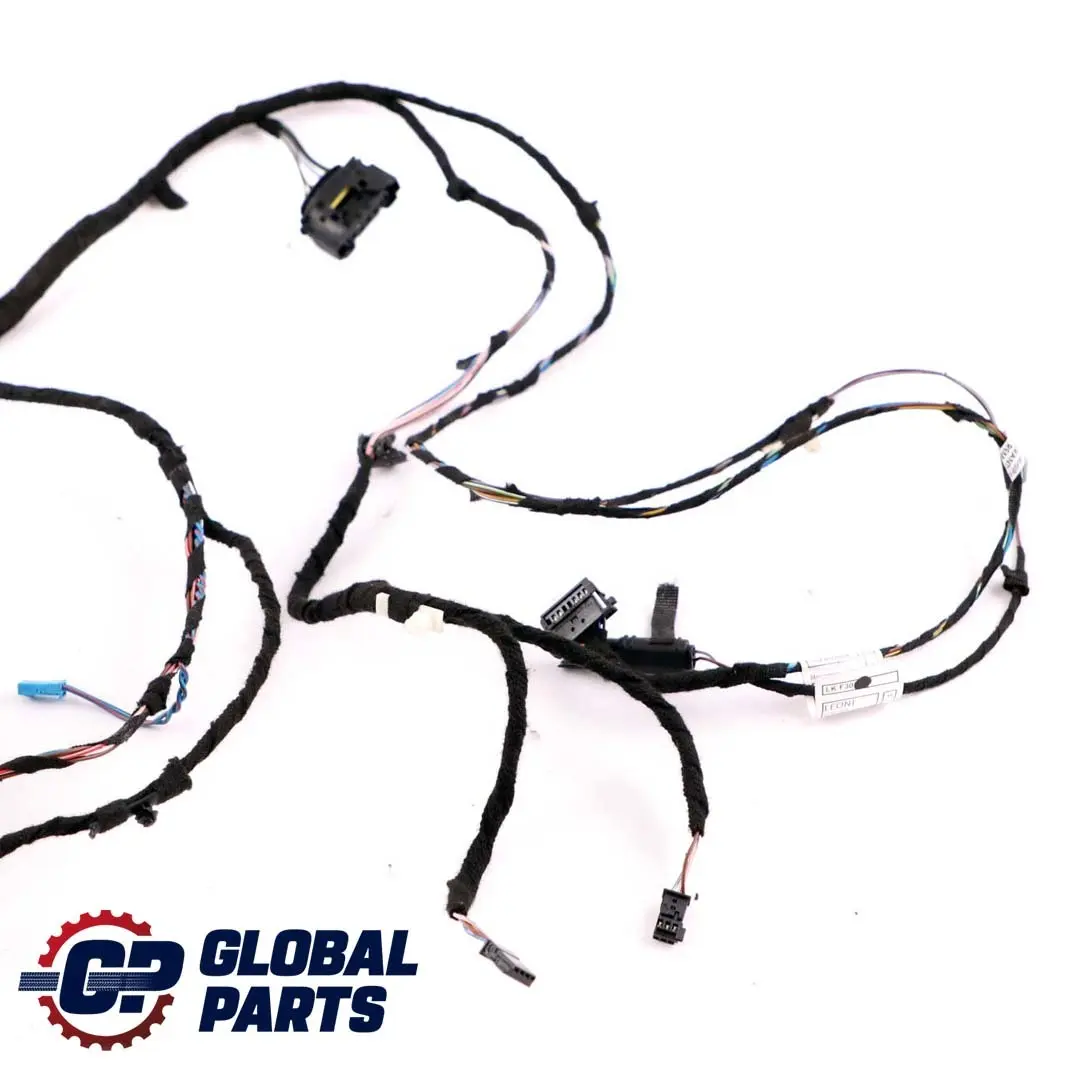

BMW 3 Series F30 LCI Cable Harness Loom Front Door Wiring Left N/S 9313636

BMW 3 Series F30 LCI Cable Harness Loom Front Door Wiring Left N/S is an original door wiring component designed for the precise connection of all receivers and sensors in the driver's door. Thanks to its factory design, it ensures proper electrical communication between the door and the body, which translates into stable operation of comfort and safety equipment. This used OEM component is a sensible choice for repairs when you want to maintain compliance with BMW's factory specifications.

Specifications and technical data

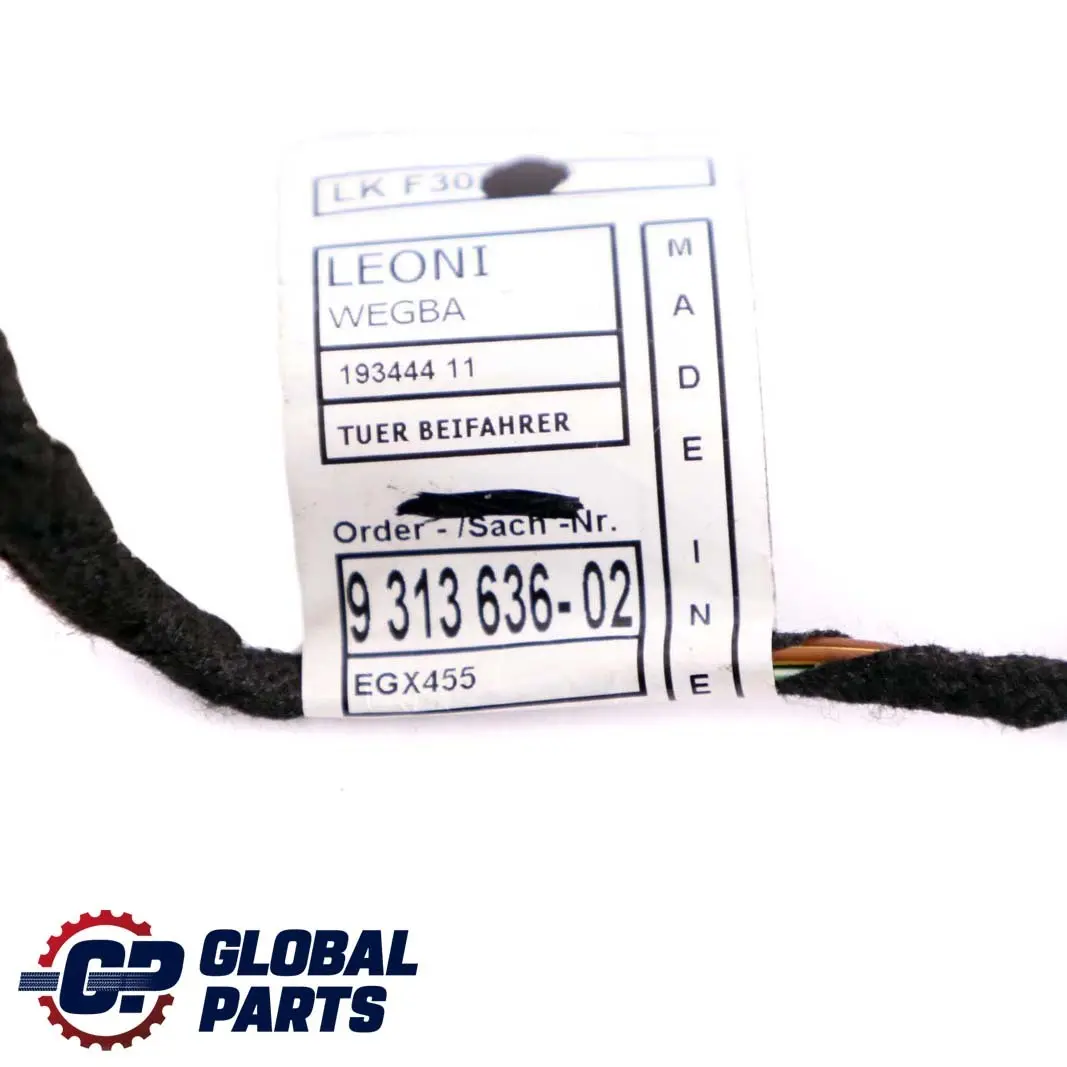

• SKU: 9313636
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9313636
• Substitutable numbers: 9313636, 9313602, KZ
• Location on the vehicle: Front, Left
• Category: Doors & Door Skins

Purpose and vehicle placement

The presented wiring harness is dedicated to the front left door of the BMW 3 Series F30 after the facelift (LCI). It is responsible for routing signals and power between the body modules and elements located in the door, such as window controls, central locking, or other receivers provided in the car's specific configuration. Placement in the driver's door area requires proper cable routing, which is ensured by the factory geometry of this harness.

Construction and technical function

The door harness was designed by BMW as an OEM installation element, with appropriately selected wire cross-sections, insulation, and connectors matched to the sockets in the door and pillar. The design accounts for the movement of the door relative to the body, which is why the wires are routed in a way that limits stress during repeated opening and closing. The used connectors allow for a secure, repeatable connection to factory modules without the need for installation modifications.

By maintaining the original electrical architecture, the harness supports the correct operation of the vehicle's diagnostic systems, minimizing the risk of communication errors in the buses used in this model. This is particularly important for modern comfort systems, where signal stability has a direct impact on the functioning of the entire system.

Use in repairs and upgrades

The used door harness for the BMW 3 F30 LCI will work well both for repairing mechanical damage or wire corrosion, as well as for replacing the component after a collision or interference with the installation. Using an original component allows you to avoid problems typical of aftermarket replacements, such as mismatched connectors, wires that are too short, or non-compliance with the factory diagram.

In practice, this means shorter assembly time, no need for soldering or making adapters, and greater certainty that all door functions will work as intended by the manufacturer after connection. This solution is particularly beneficial for workshops specializing in the BMW brand and for users who want to restore full door functionality after previous, unprofessional installation repairs.

Benefits of using an original BMW harness

• Factory fit for the front left door in the BMW 3 Series F30 LCI.
• Appropriate length and routing of wires, adapted to the door geometry.
• Connectors compatible with original modules and body installation.
• Support for correct diagnostics and communication of electrical systems.
• Reduced risk of faults resulting from installation modifications.

Integration with the body and other door elements

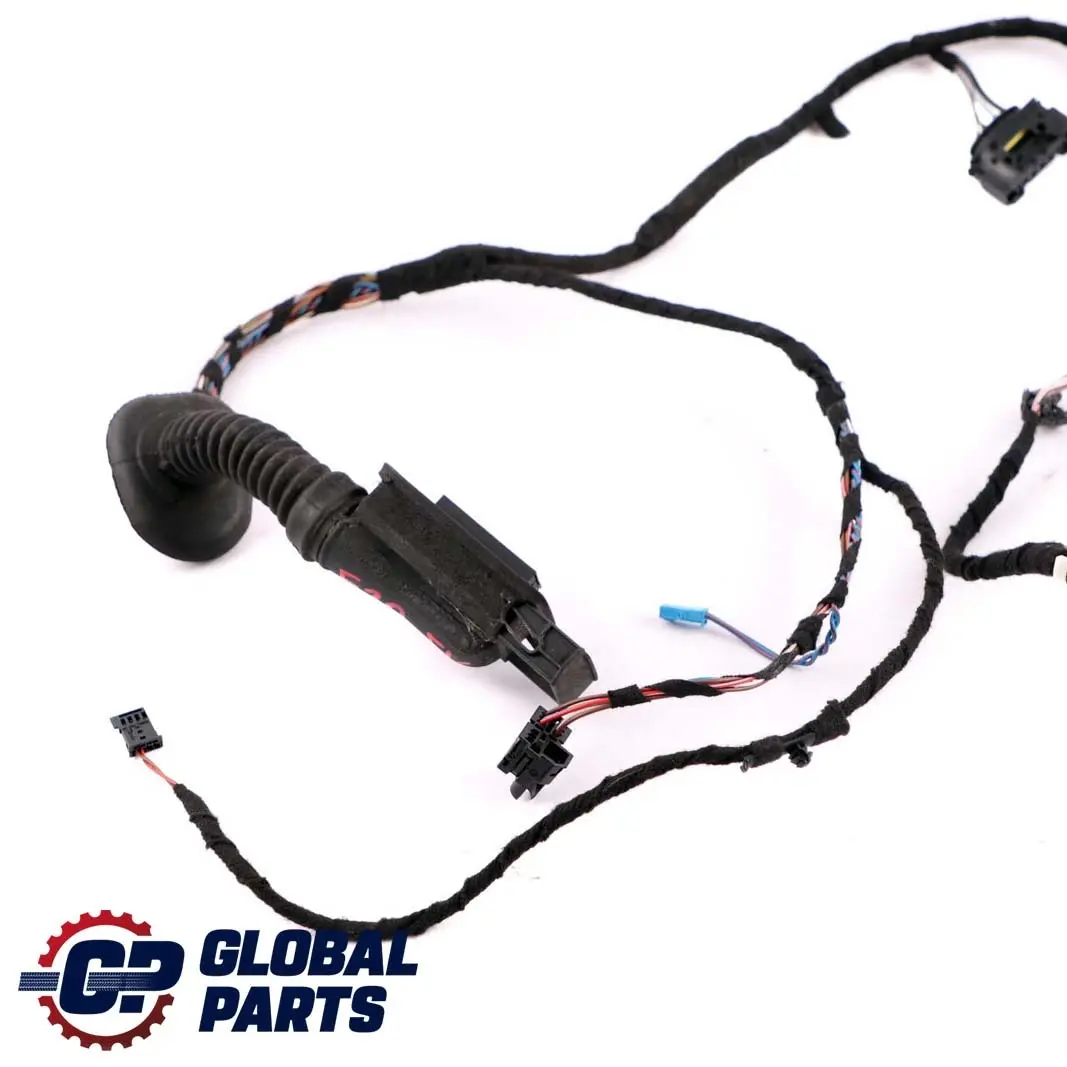

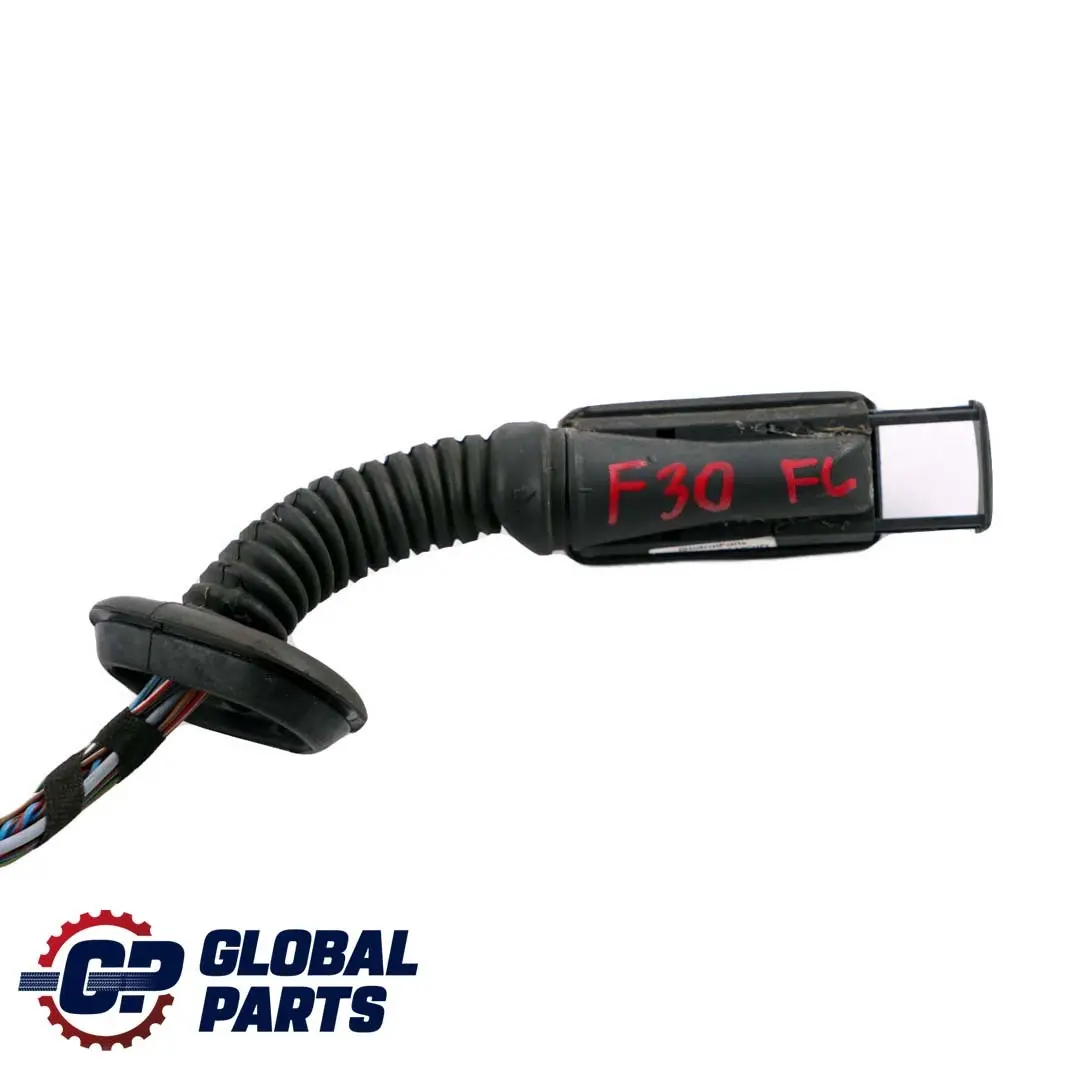

As an element from the Doors and door panels group, the harness works with the door structure, the grommet between the door and the pillar, and the mounts provided by the manufacturer. Proper installation requires routing the wires in the original holders and guides, which protects the installation against chafing and damage during operation. This maintains door functionality and significantly reduces the risk of electrical failures in this area.

If you are planning a comprehensive repair or upgrade of the door area in your BMW and need other elements from the same group, such as skins, reinforcements, or door frames, check out the available parts in the BMW Doors and door panels category.
