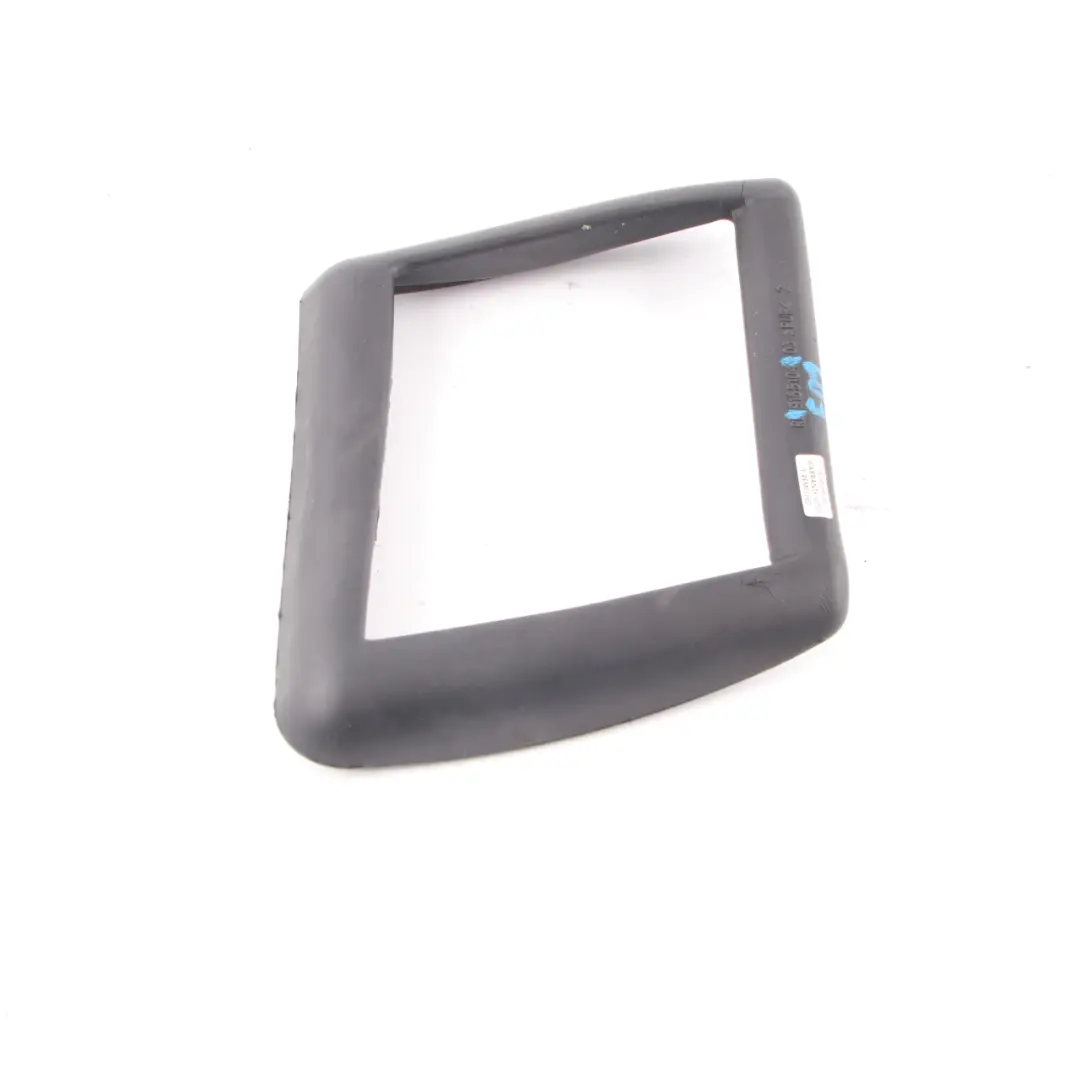

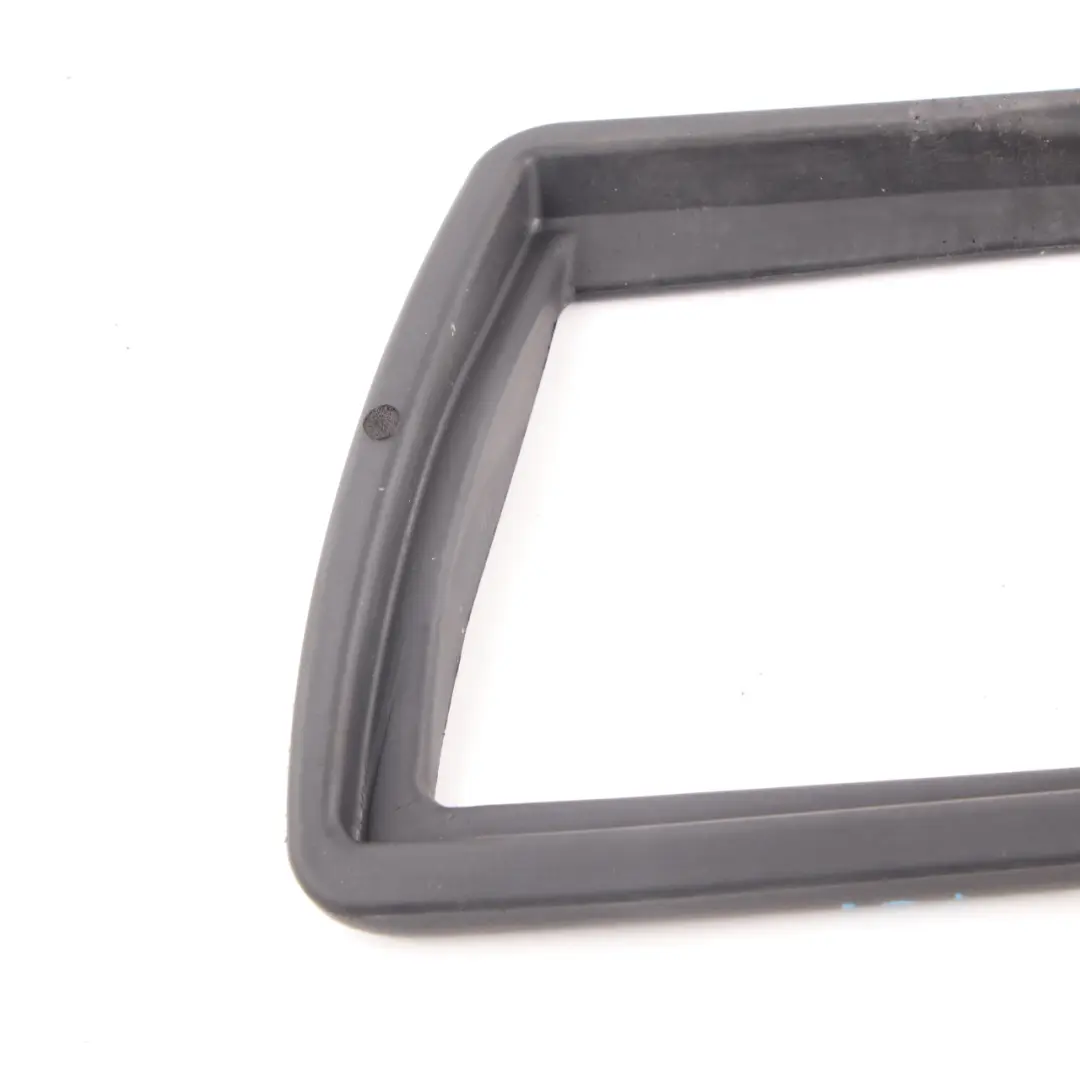

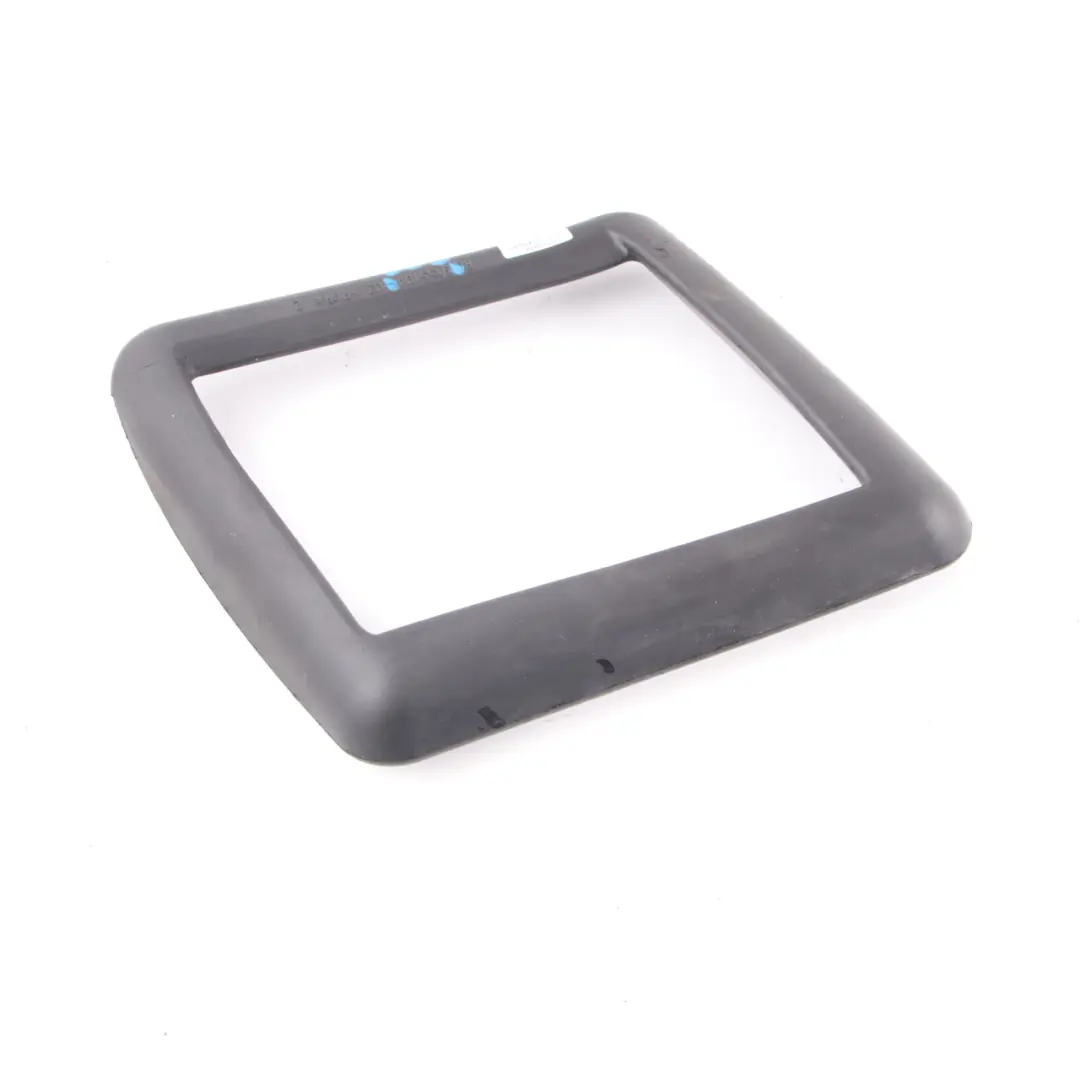

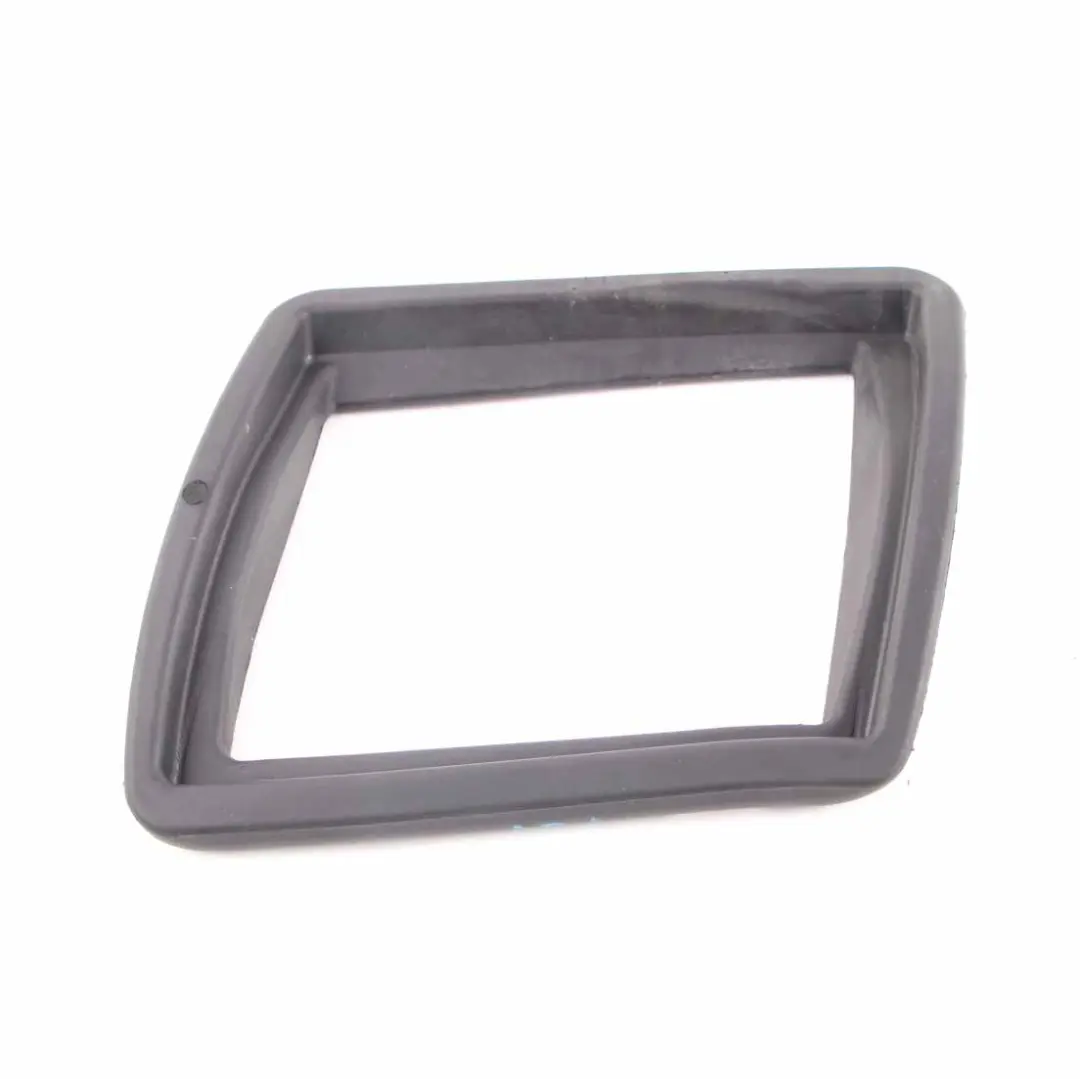

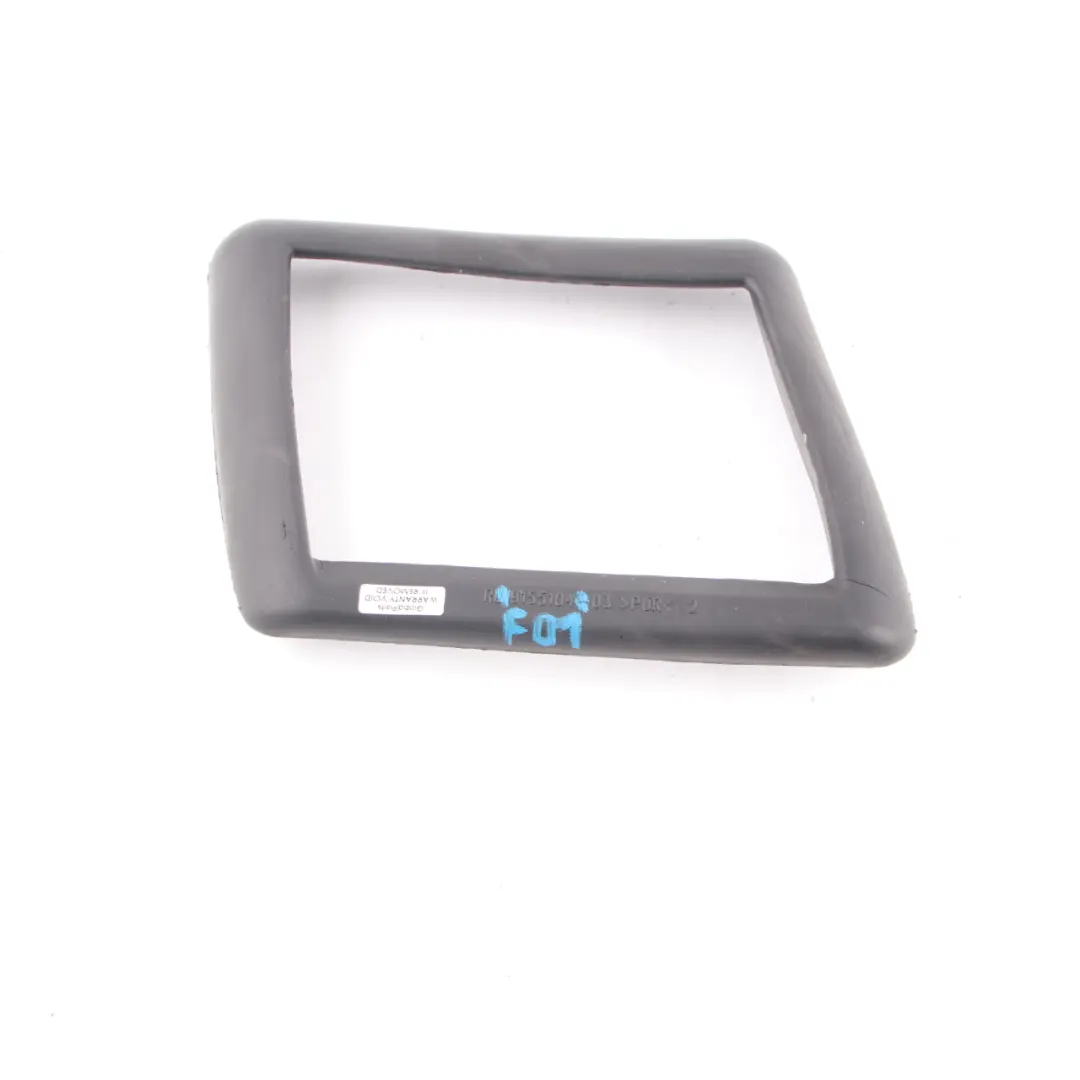

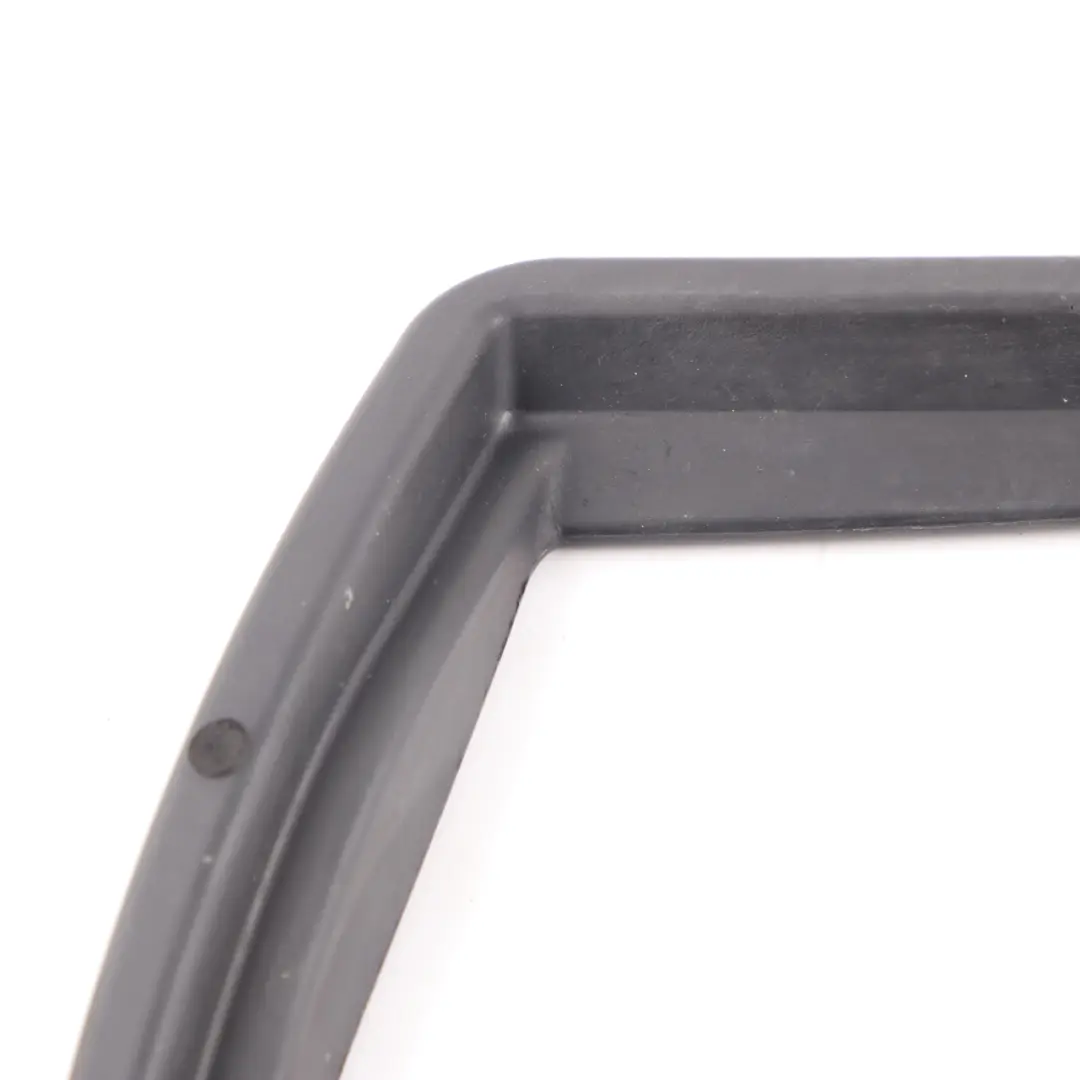

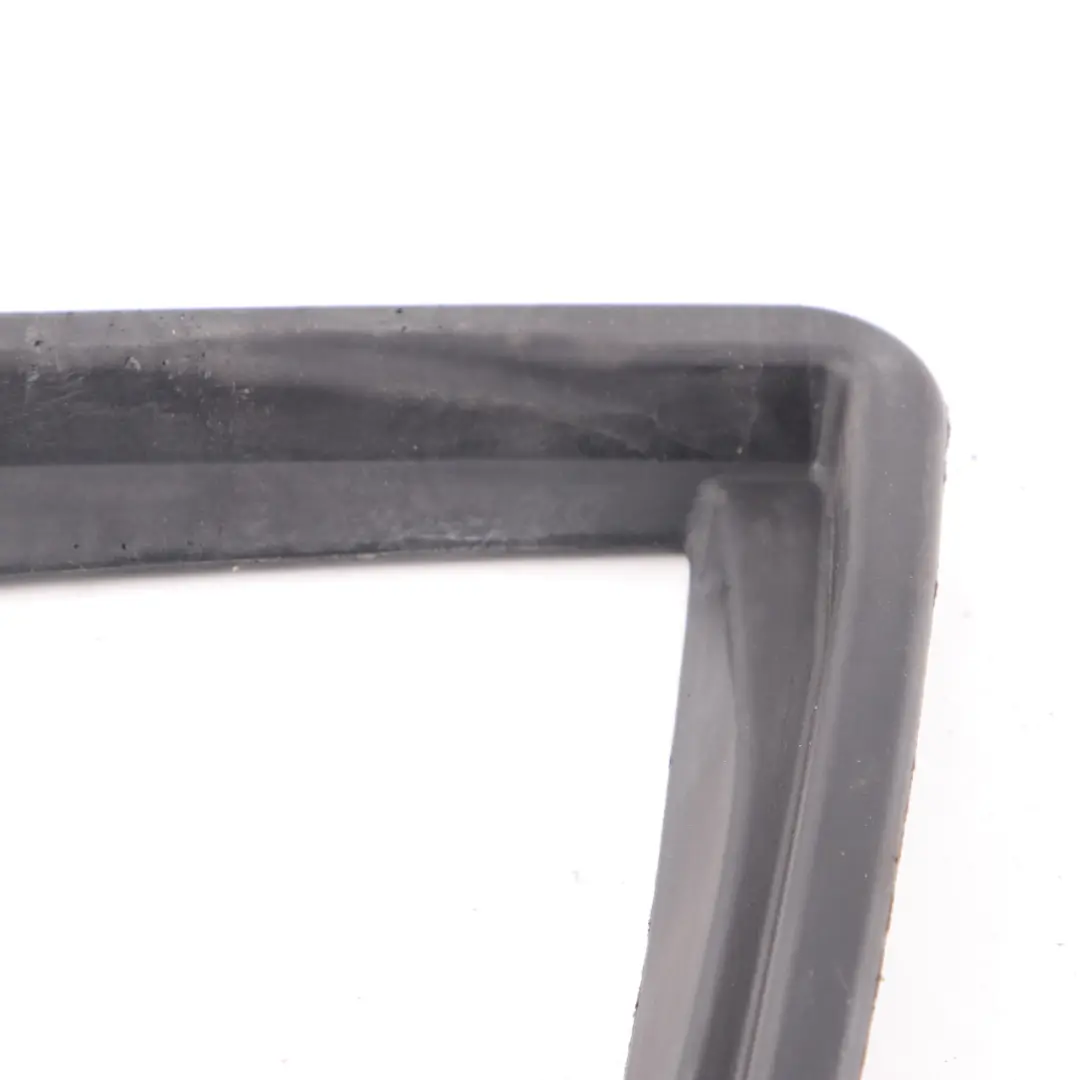

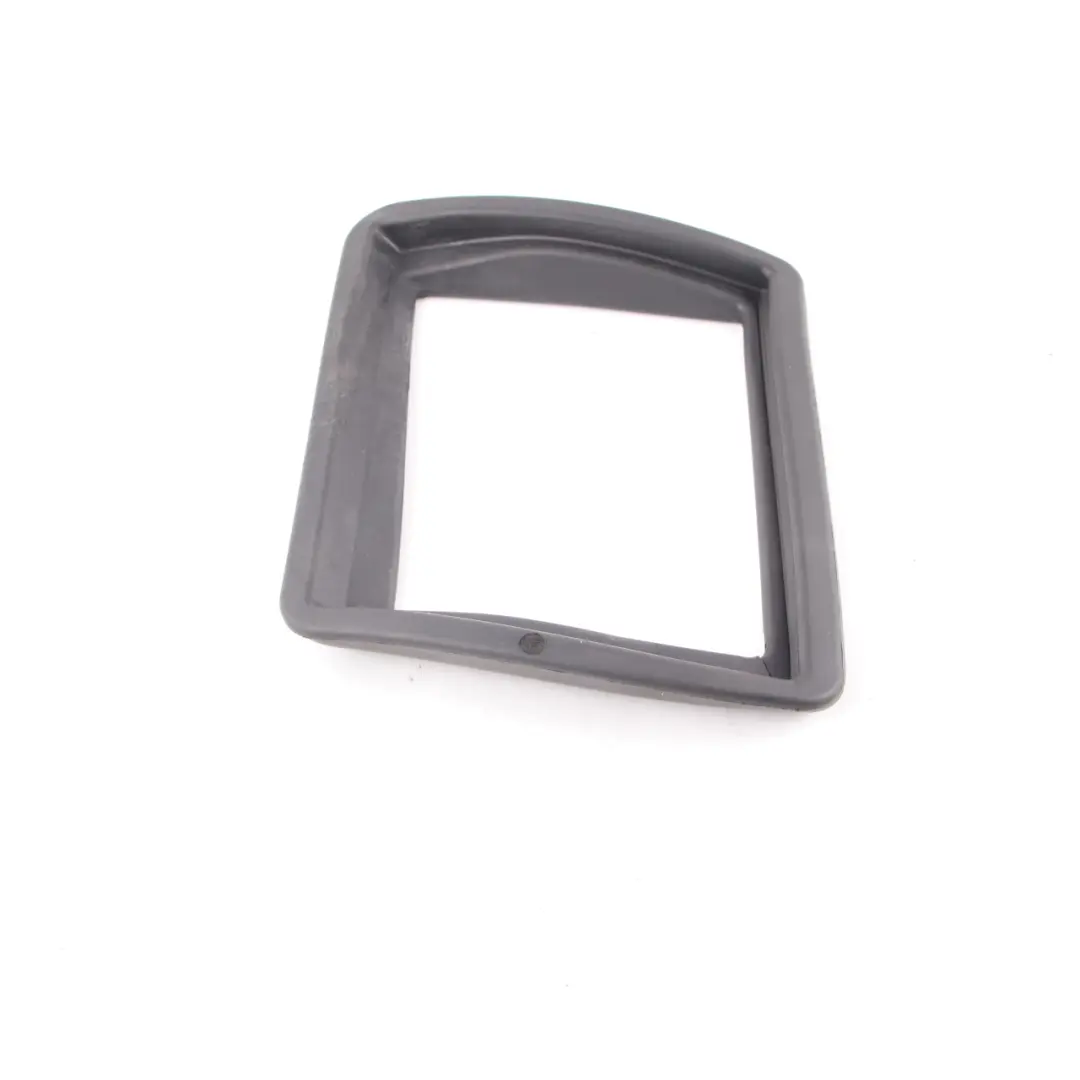

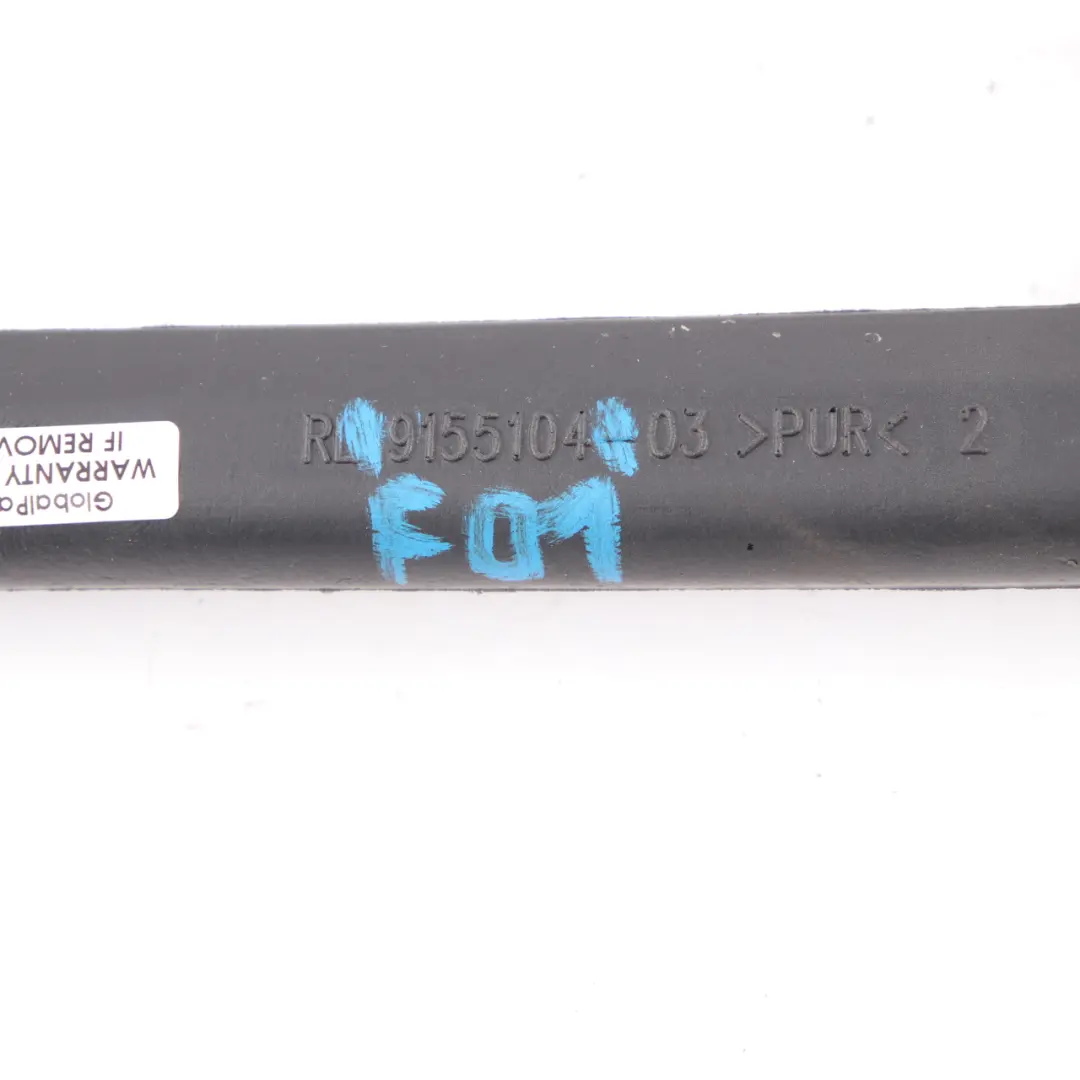

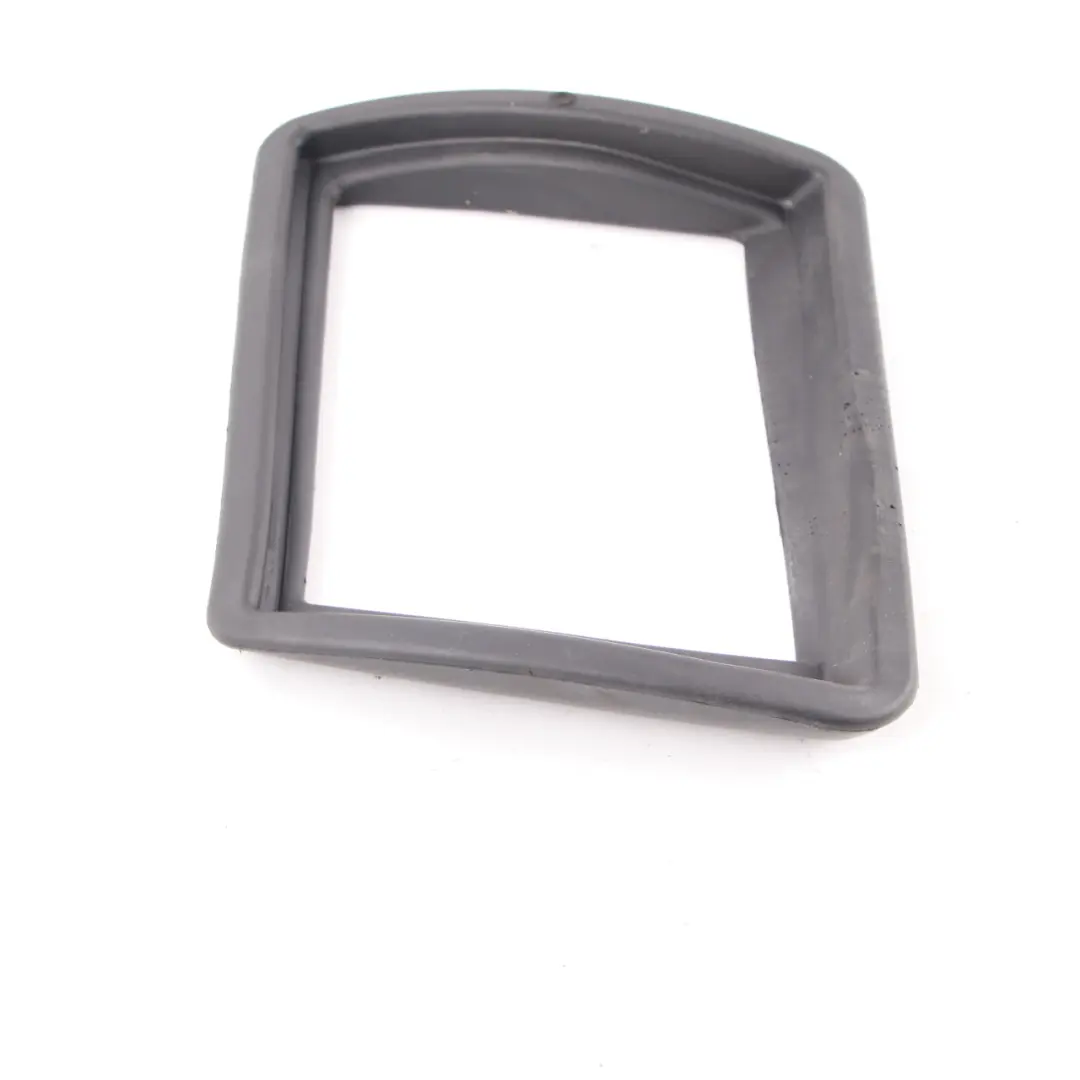

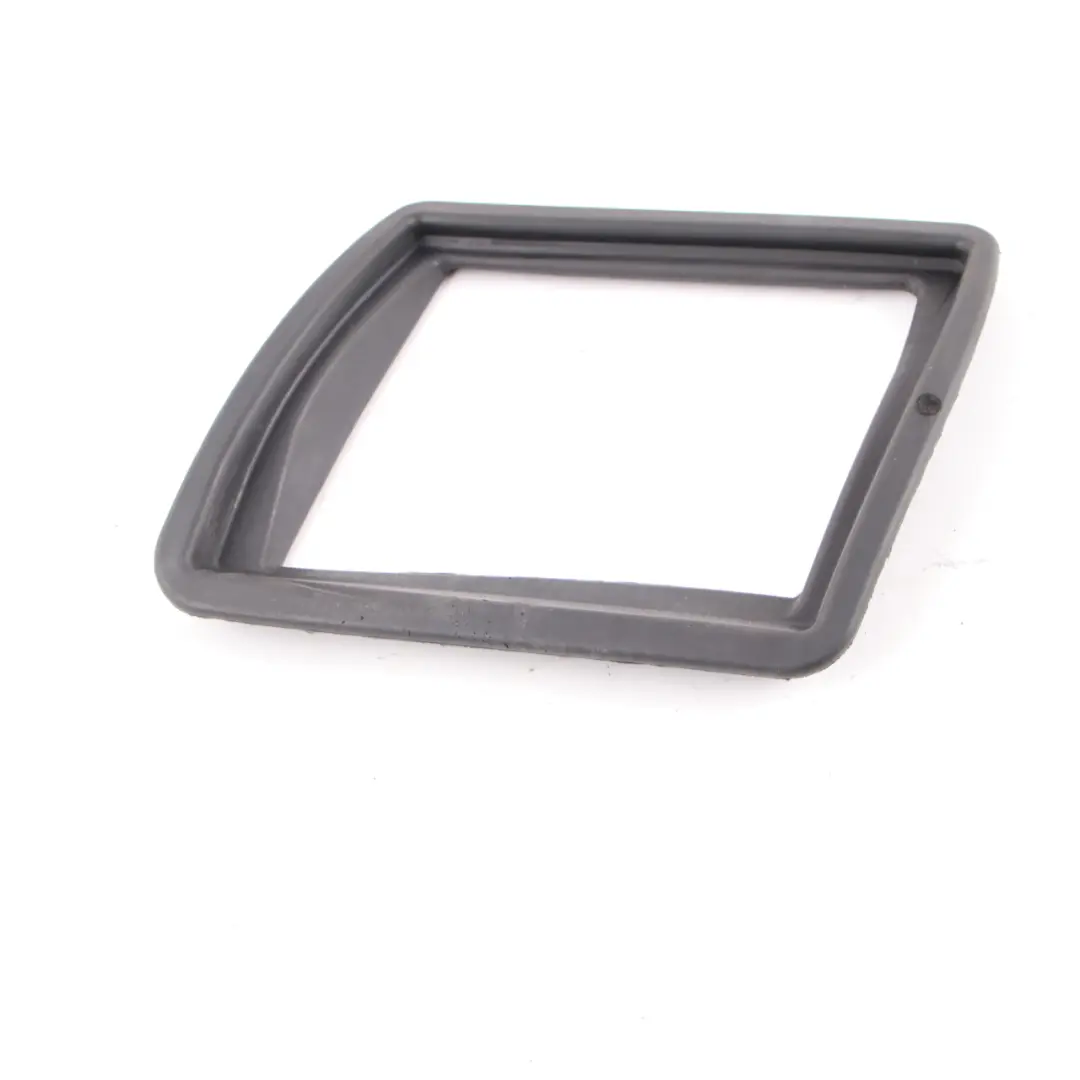

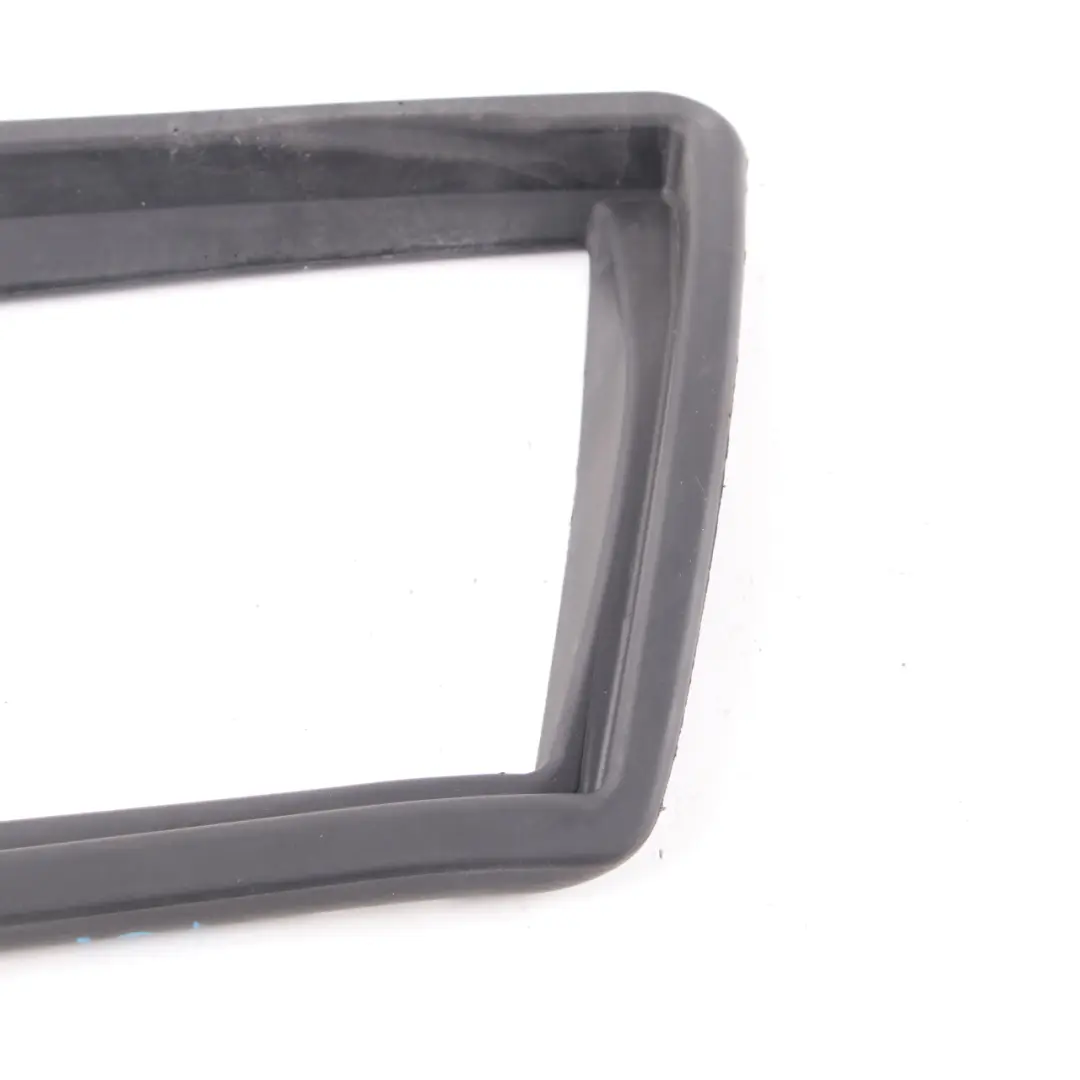

Head-Up Display Seal BMW F01 F02 Sealing Gasket Insulation Frame 9155104

Head-Up Display Seal BMW F01 F02 Sealing Gasket Insulation Frame is a precision component mounted in the front part of the vehicle, responsible for the tight seating of the HUD module within the dashboard structure. The black color ensures visual consistency with the factory interior finish, and the design, tailored to this specific BMW generation, facilitates service replacement without interfering with other components. It is a practical solution for workshops and users who care about the proper operation of the windshield projection and the aesthetics of the cockpit.

Specifications and technical data

• SKU: rhd-9155104
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9155104
• Substitutable numbers: 9155104, 62309155104, KD
• Location on the vehicle: Front
• Color: Black
• Category: Dashboard Panels

Purpose and function in the dashboard system

The described seal serves as an insulation and mounting element for the factory Head-Up Display in BMW F01/F02 series models. Its tasks include:

• stable seating of the HUD frame within the dashboard structure at the front of the vehicle,
• limiting the penetration of light, dust, and small debris into the mounting space,
• maintaining an aesthetic edge around the display opening, without unwanted gaps.

As a result, the data projection onto the windshield remains clear, and the entire cockpit area retains its factory look and visual consistency.

Construction, color, and fitment

The element is finished in black, which allows for neutral integration into most interior configurations of this BMW generation. The black color reduces light reflections around the display and promotes better image perception, especially in sunny conditions.

The seal is designed as part of the Dashboard group, with geometry matched to the factory opening for the Head-Up Display. In practice, this means:

• easier positioning during installation or replacement,
• proper adhesion to the dashboard edges,
• preservation of original parting lines and fitment of cockpit components.

Installation characteristics and service application

The seal is intended for installation in the front zone of the vehicle, where the Head-Up Display is installed. In service applications, it is particularly useful in situations where:

• the HUD module has been disassembled or replaced, and it is necessary to re-seat the frame tightly,
• the original seal has become worn, deformed, or mechanically damaged,
• leaks or unsightly gaps have appeared around the display following dashboard repairs.

A properly selected seal helps reduce subsequent issues with component rattling, dust ingress, and degradation of HUD image quality resulting from improper module seating.

Product condition and benefits of choosing a used part

The offered item is in used condition, which allows for an economical repair of the Head-Up Display system while maintaining the manufacturer's original specifications. For mounting and insulation components, such as HUD frame seals, using a used part is often a sensible service solution – especially when maintaining factory fitment and reducing costs is a priority.

Before installation, a standard visual inspection and cleaning of the contact surfaces with the dashboard and HUD module are recommended to ensure even adhesion and stable seating in the front part of the vehicle.
