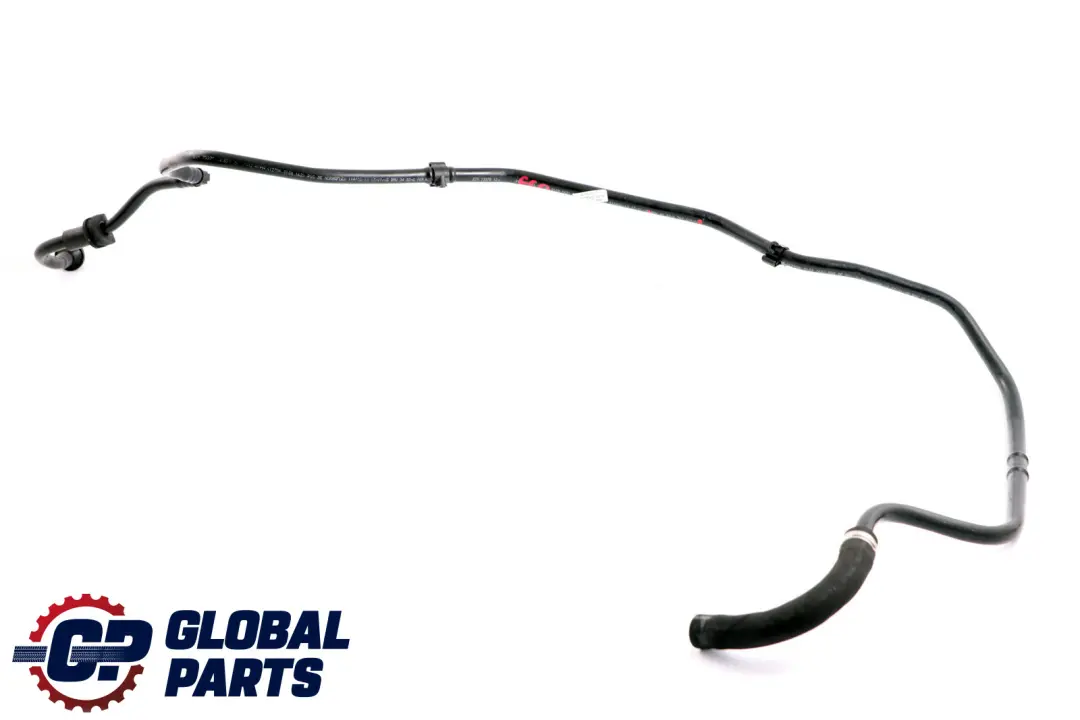

BMW 5 6 Series E60 E61 E63 E64 N52 Servo Brake Vacuum Valve Pipe 6769630

BMW 5 6 Series E60 E61 E63 E64 N52 Servo Brake Vacuum Valve Pipe is an original system component responsible for the stable delivery of vacuum to the brake servo. Thanks to its precise geometry and factory connectors, it ensures proper cooperation between the N52 unit and the brake booster system, which translates into predictable pedal response and safe deceleration. As a used BMW OEM component, this pipe allows for an economical yet technically correct repair without compromising on fitment.

Specifications and technical data

• SKU: rhd-6769630
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6769630
• Substitutable numbers: 34336769630, 6769630, 34336765828, 6765828
• Category: Coolant Hoses

Purpose and function in the vehicle system

This brake servo pipe is designed to work with the N52 engine in BMW 5 and 6 Series models of the E60, E61, E63, and E64 generations. It is responsible for transporting vacuum from the engine supply system to the brake servo, where the vacuum is used to assist the force applied to the brake pedal.

A properly functioning vacuum pipe:

• stabilizes brake servo operation under various engine loads,
• reduces the risk of decreased braking efficiency during rapid acceleration or engine braking,
• ensures system tightness, minimizing unwanted "false air" intake.

Construction, fitment, and installation

The pipe belongs to the Cooling system pipes and hoses group, although in this application, it acts as a vacuum pipe integrated with the brake servo valve. The design is based on factory diameters and shapes, which facilitates routing the pipe in the engine bay according to the original installation path.

Key installation features:

• original ends and connectors matched to the ports on the N52 engine and the brake servo,
• rigidity and flexibility selected so that the pipe does not kink during engine unit movements,
• compatibility with factory brackets and guides in the E60/E61/E63/E64 body.

Thanks to this, the element can in most cases be installed in a "plug and play" manner, without the need for modifications or fitting universal hoses.

Benefits of using an original BMW pipe

Using an original vacuum pipe instead of a worn or leaking component allows for the restoration of factory brake system performance parameters. The main advantages include:

• secure fitment for the specific BMW 5 and 6 Series generation with the N52 engine,
• preservation of the brake assistance characteristics designed by the manufacturer,
• reduction of the risk of diagnostic errors related to intake or vacuum system leaks,
• possibility of economical repair by using a used OEM element instead of replacements with uncertain geometry.

This solution is particularly beneficial for comprehensive vehicle maintenance when you want to ensure consistency of the components used with the factory BMW specification.

Condition, verification, and practical application

The element comes from dismantling and is offered as a used BMW brake servo pipe. This type of part is standardly inspected before reinstallation for any cracks, abrasions, deformations, and the condition of the connectors. In workshop practice, replacing the vacuum pipe is recommended for symptoms such as a hard brake pedal, unstable idle speed, or errors related to system leaks.

To better understand the impact of pipes and hoses on the operation of the power unit and the entire system, it is worth reading the guide on engine cooling and thermal loads: Engine cooling system – overheating, repair, and used radiators. This will provide a comprehensive view of the dependencies between equipment efficiency and engine longevity.

Repair economics and circular economy

Choosing a used brake servo vacuum pipe aligns with an approach that prioritizes the rational use of resources. Original parts from dismantling often offer a favorable price-to-quality ratio while maintaining factory fitment for a specific BMW model. If you want to better understand how such decisions affect the environment and your service budget, check out the article: Circular economy in your garage – how choosing used parts from dismantling really supports environmental protection and your wallet?.

If you are planning a comprehensive repair or upgrade of the engine area in your BMW and need other elements from the same group, such as pipes, hoses, or connectors, check the available parts in the BMW cooling system pipes and hoses category.
