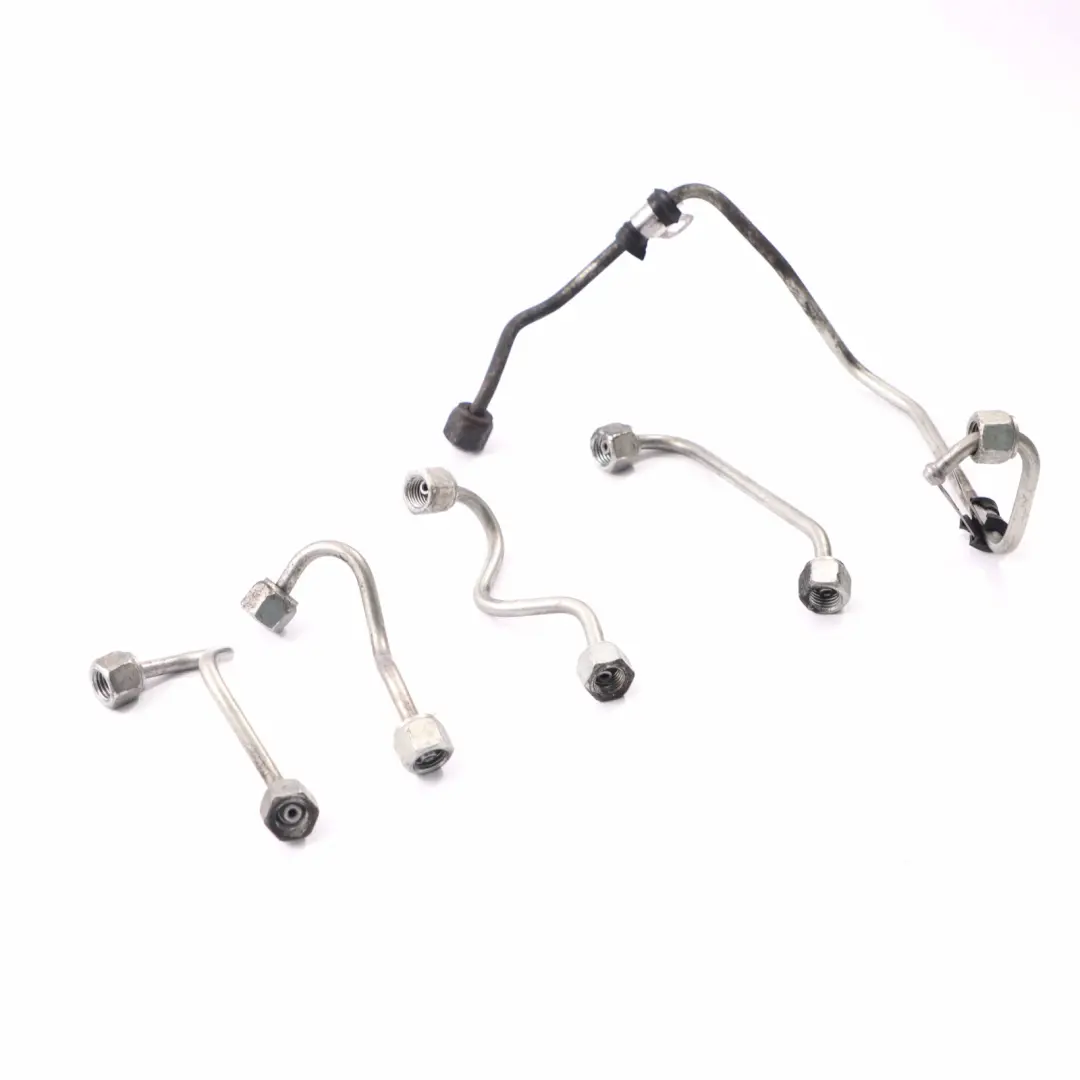

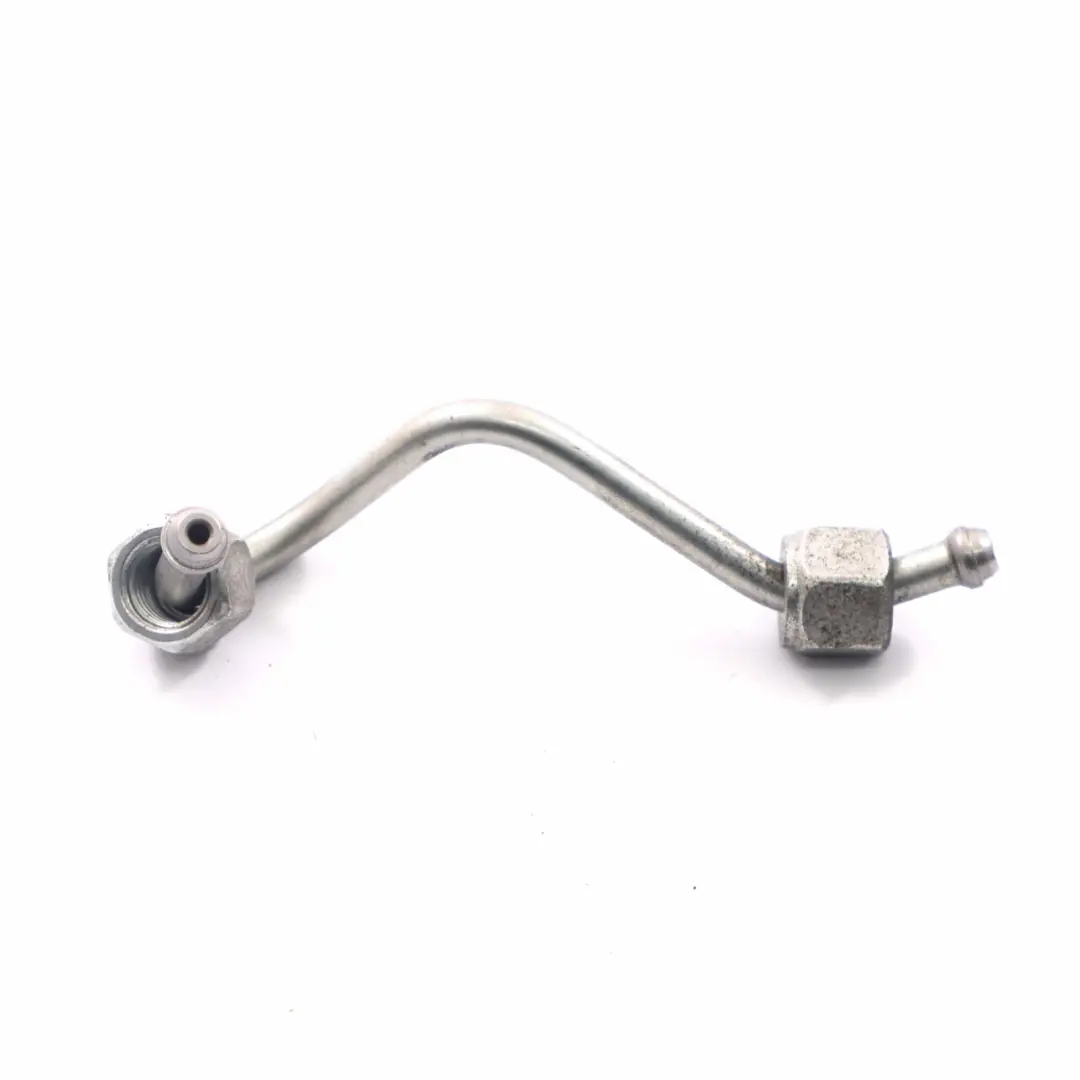

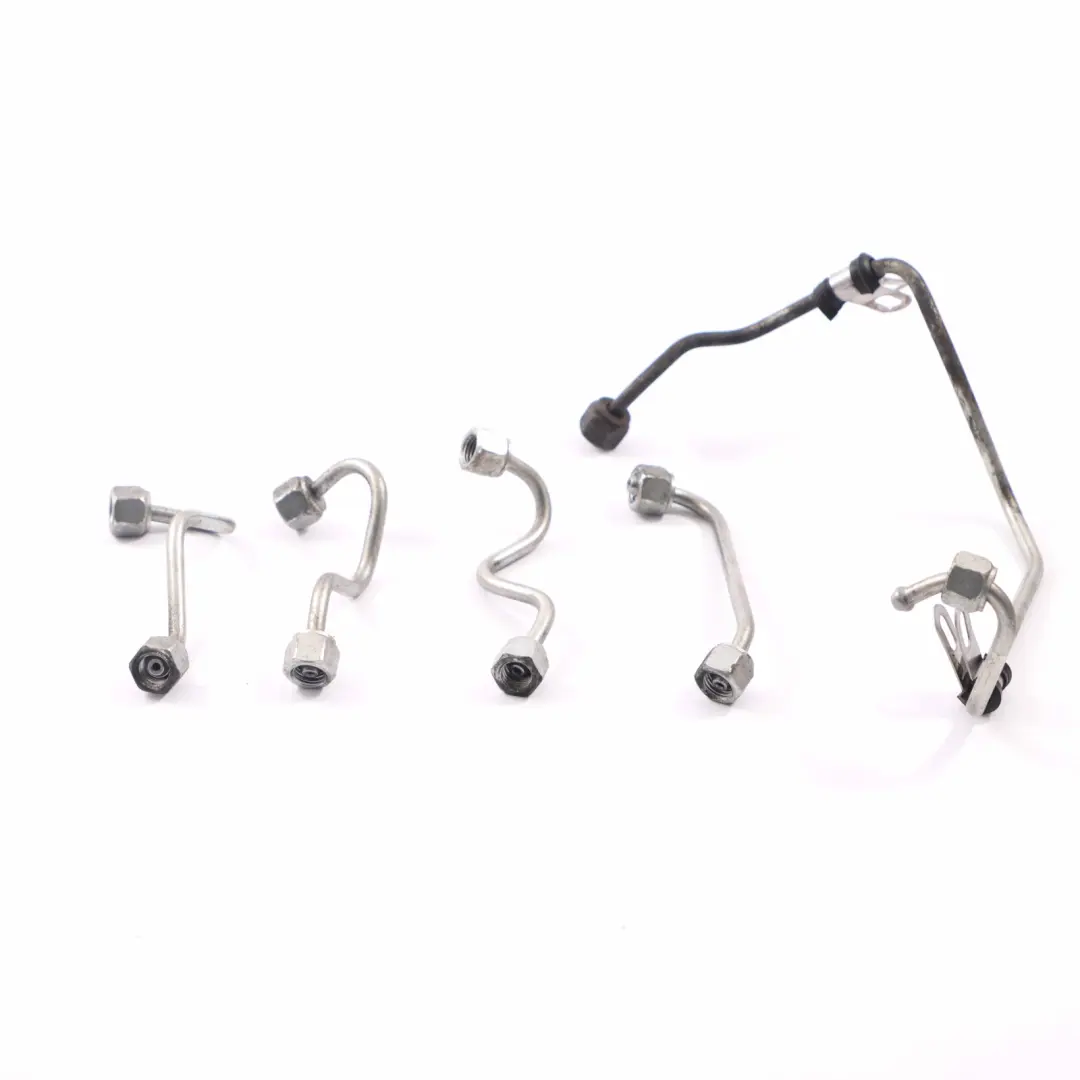

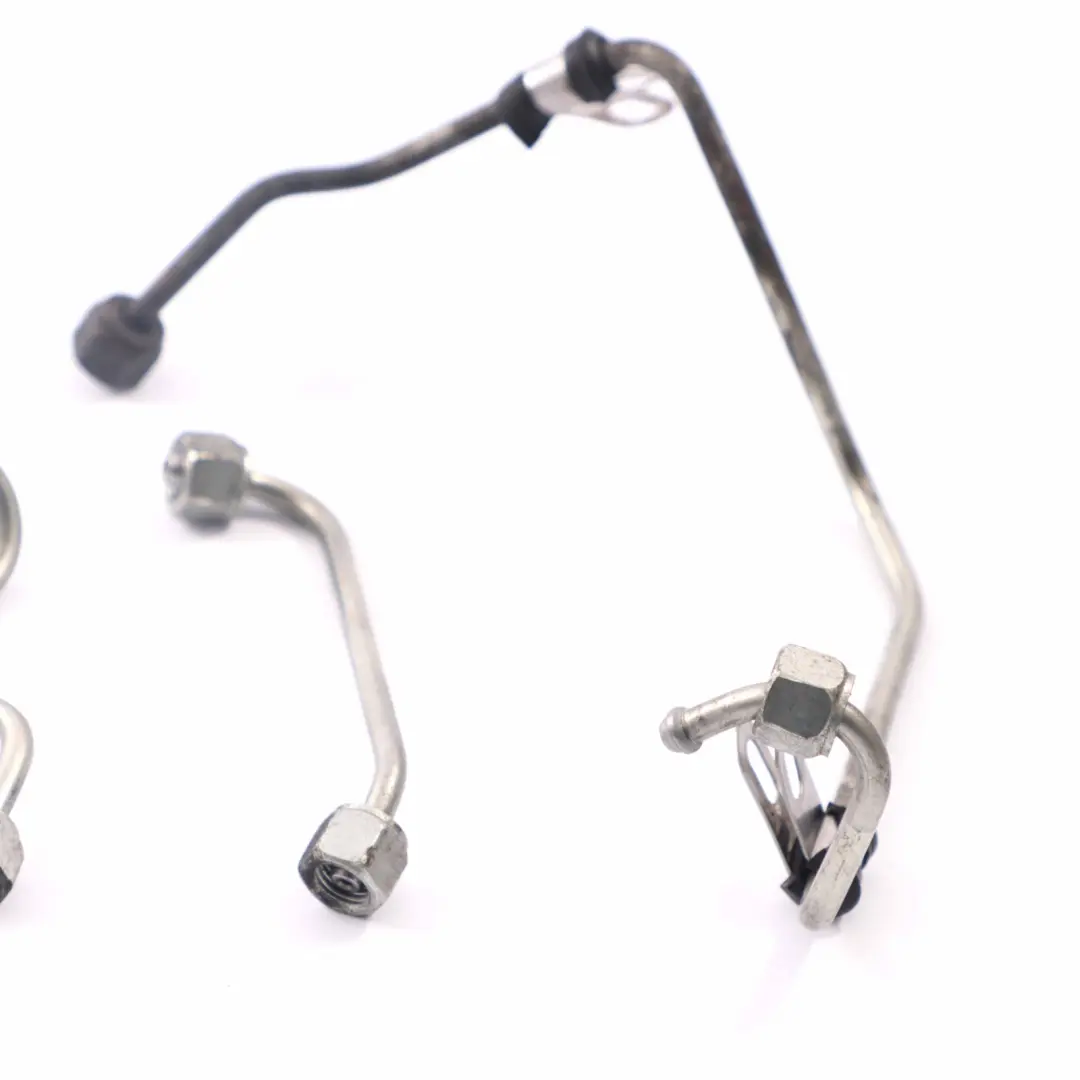

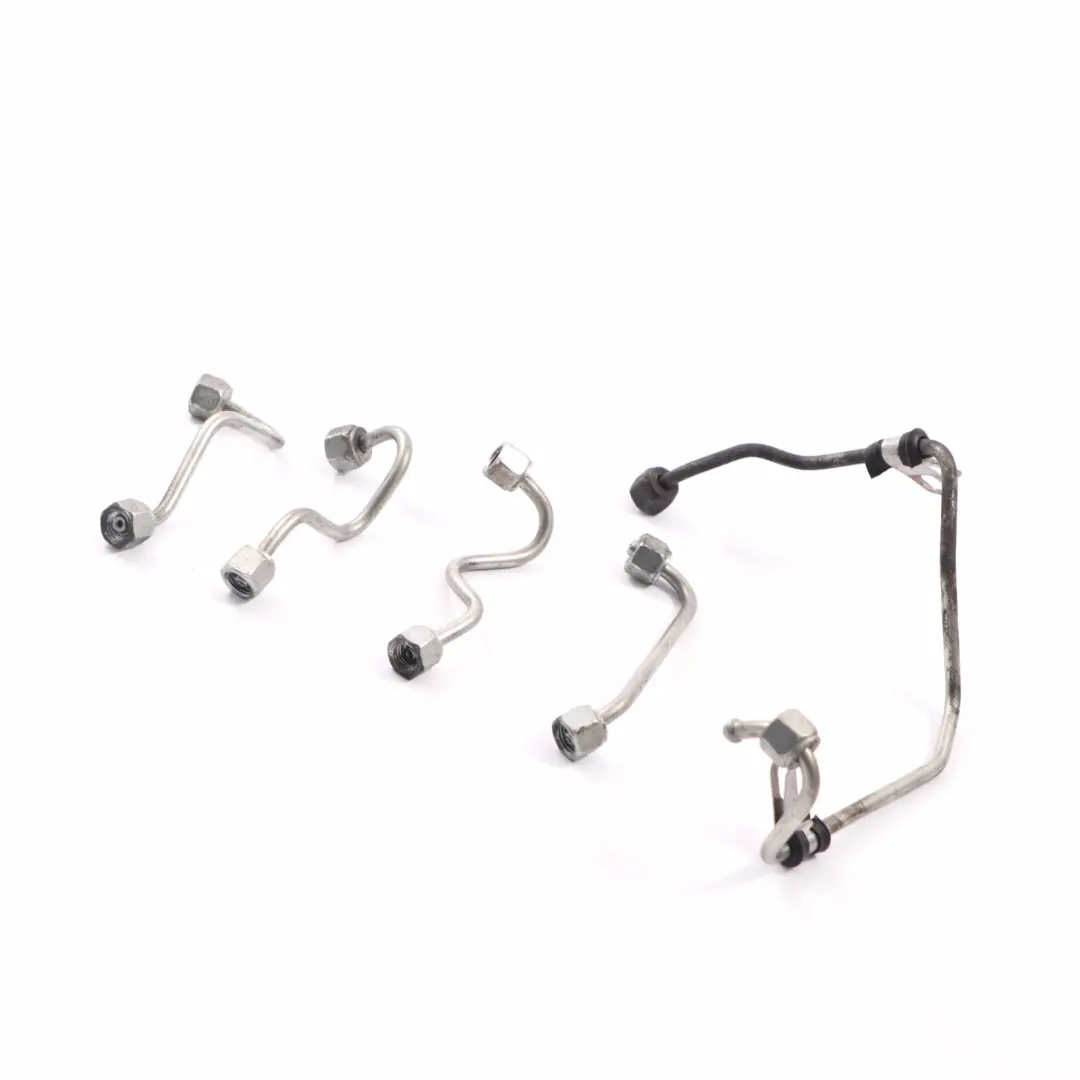

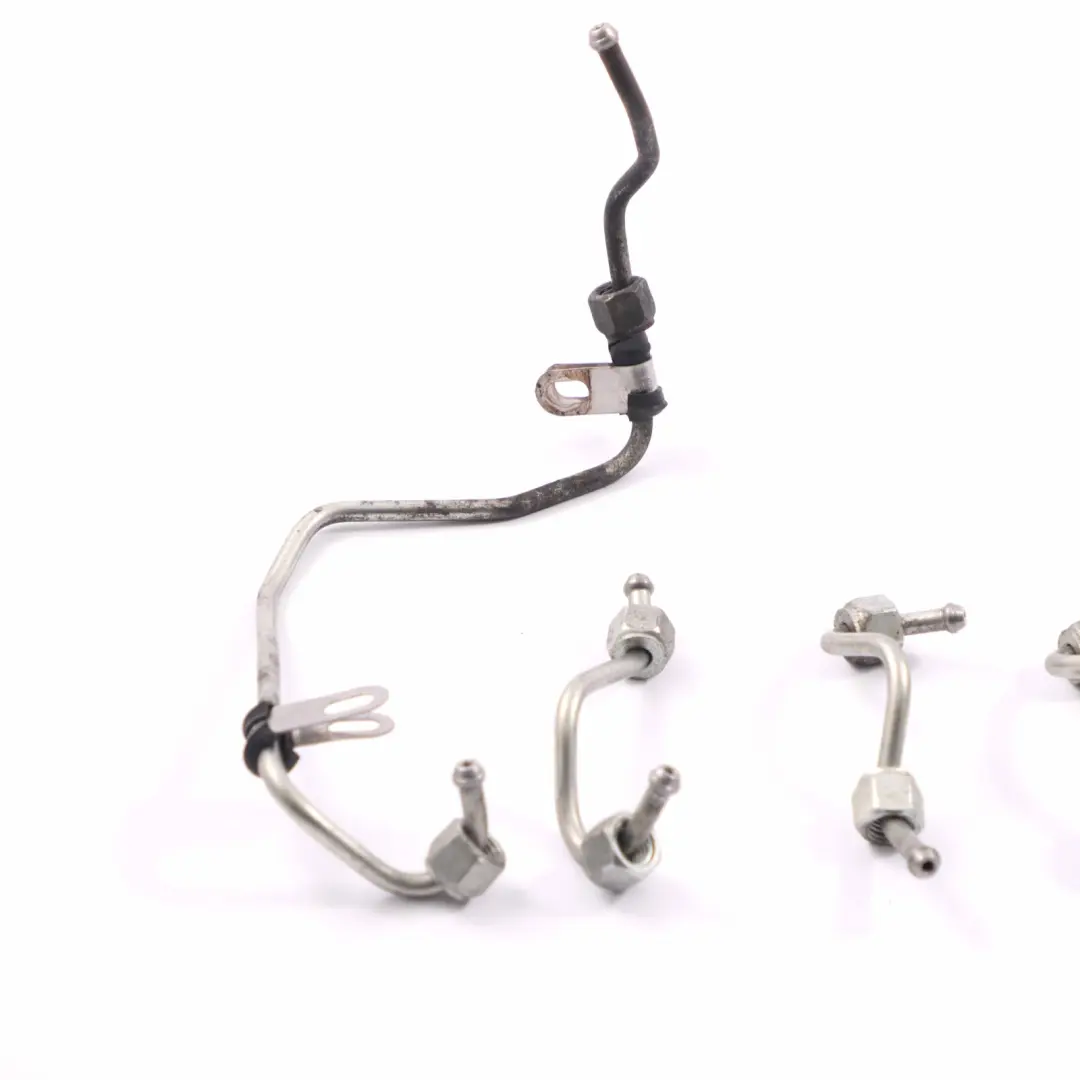

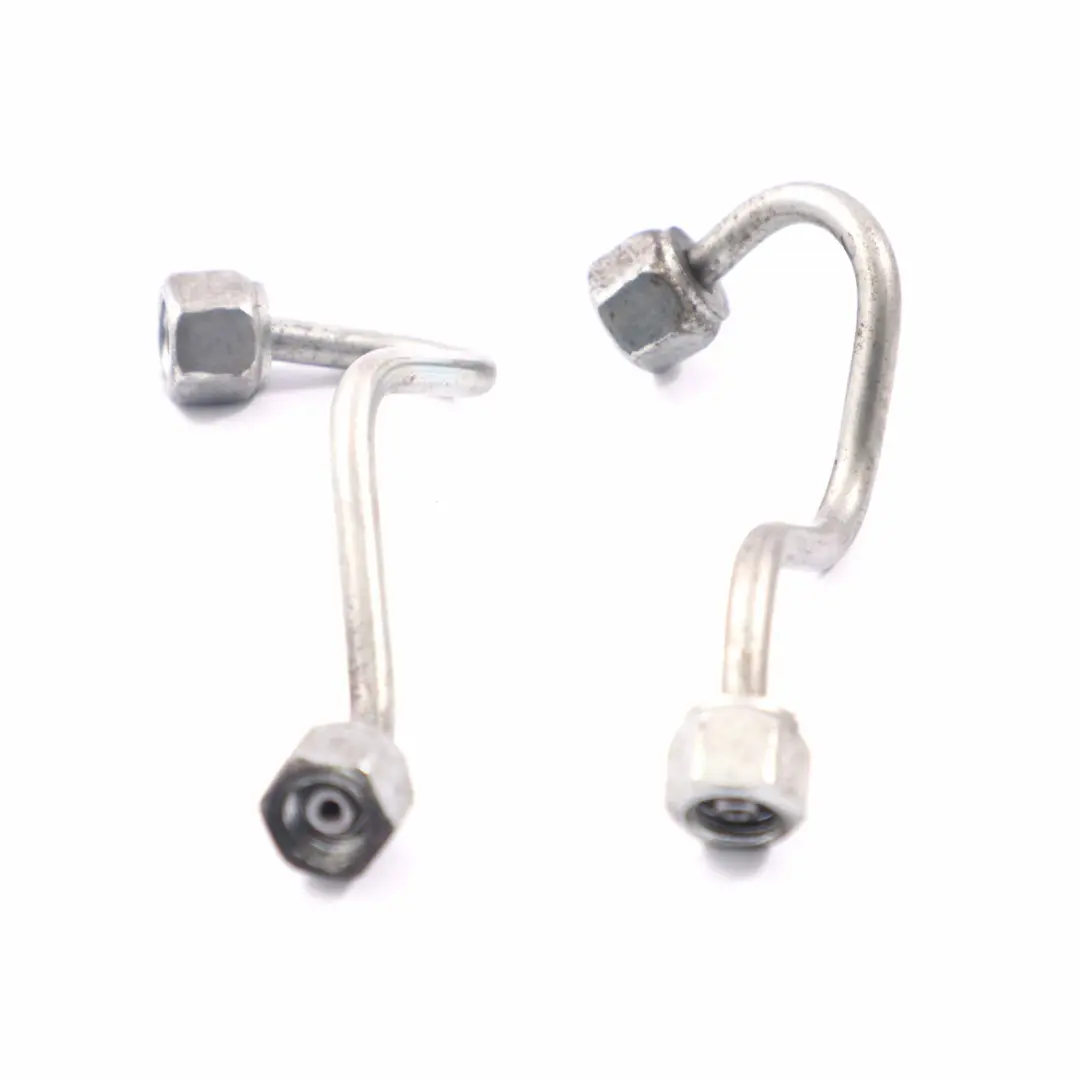

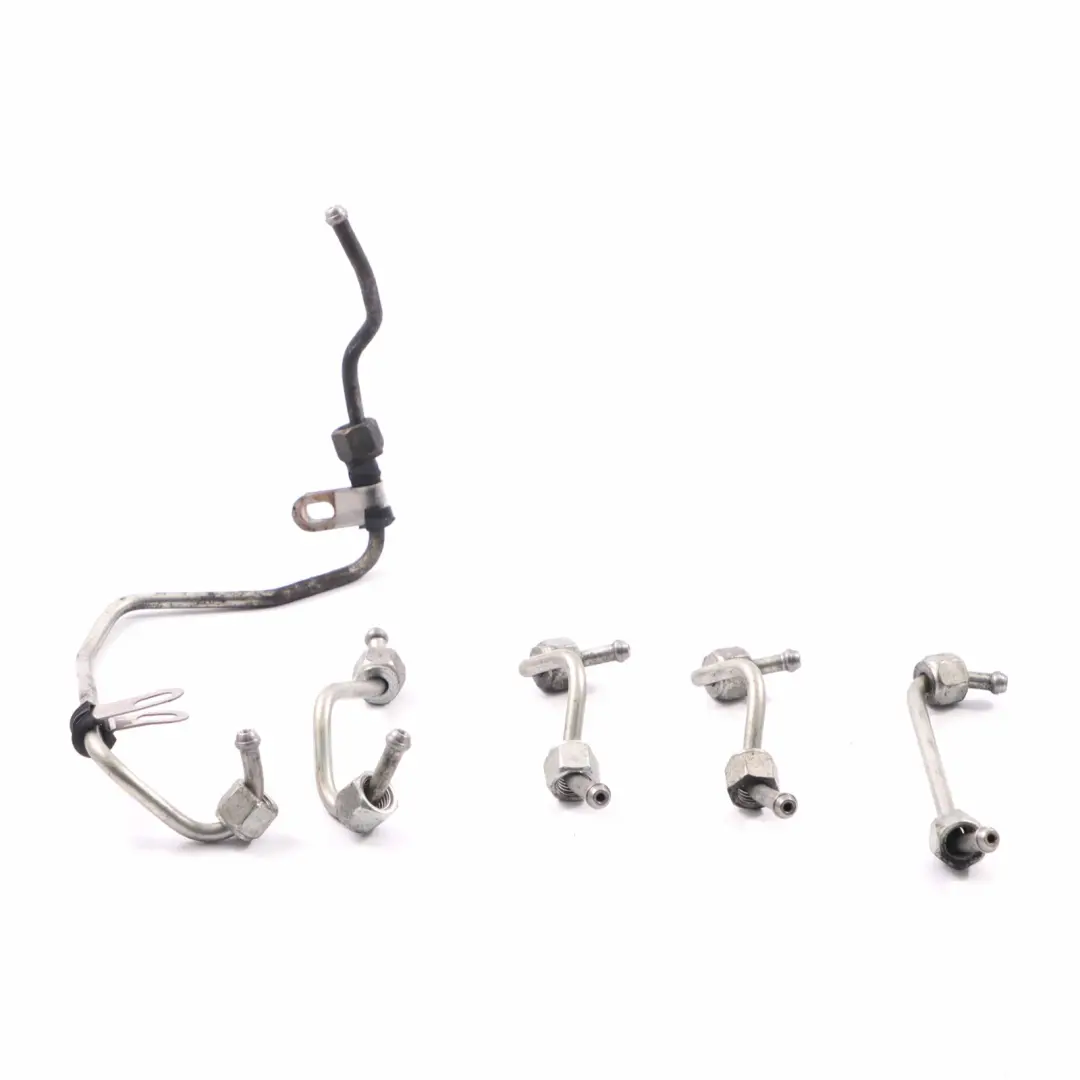

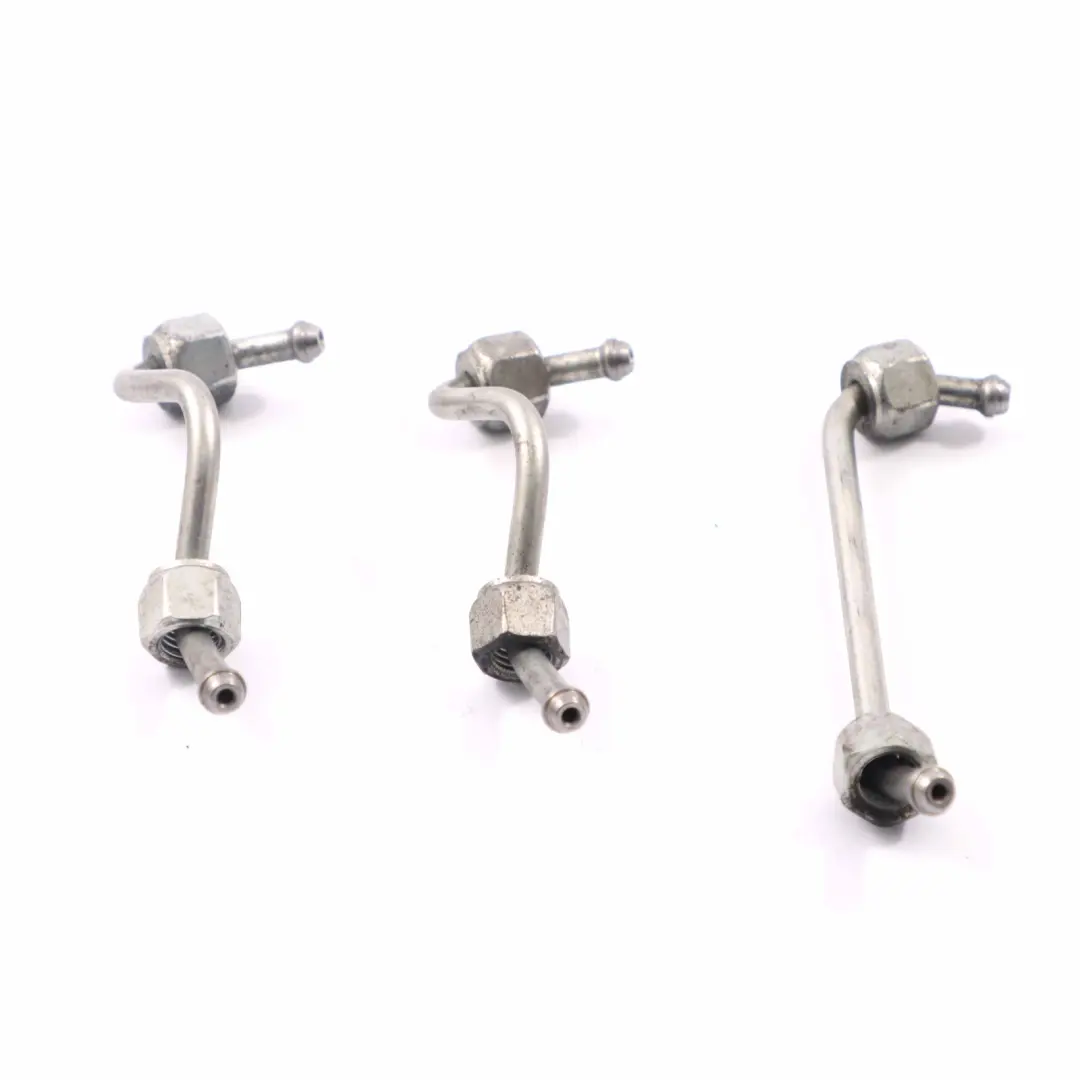

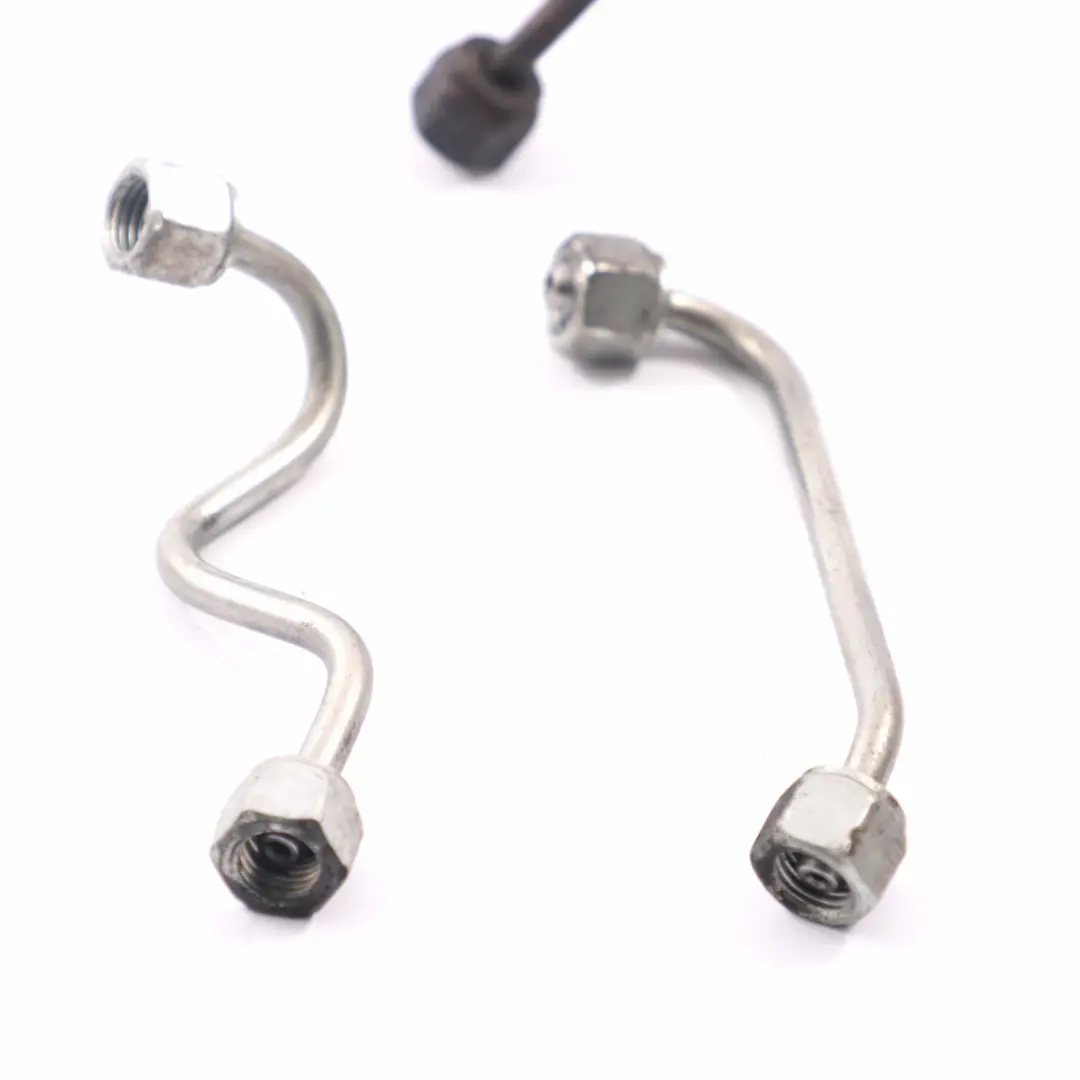

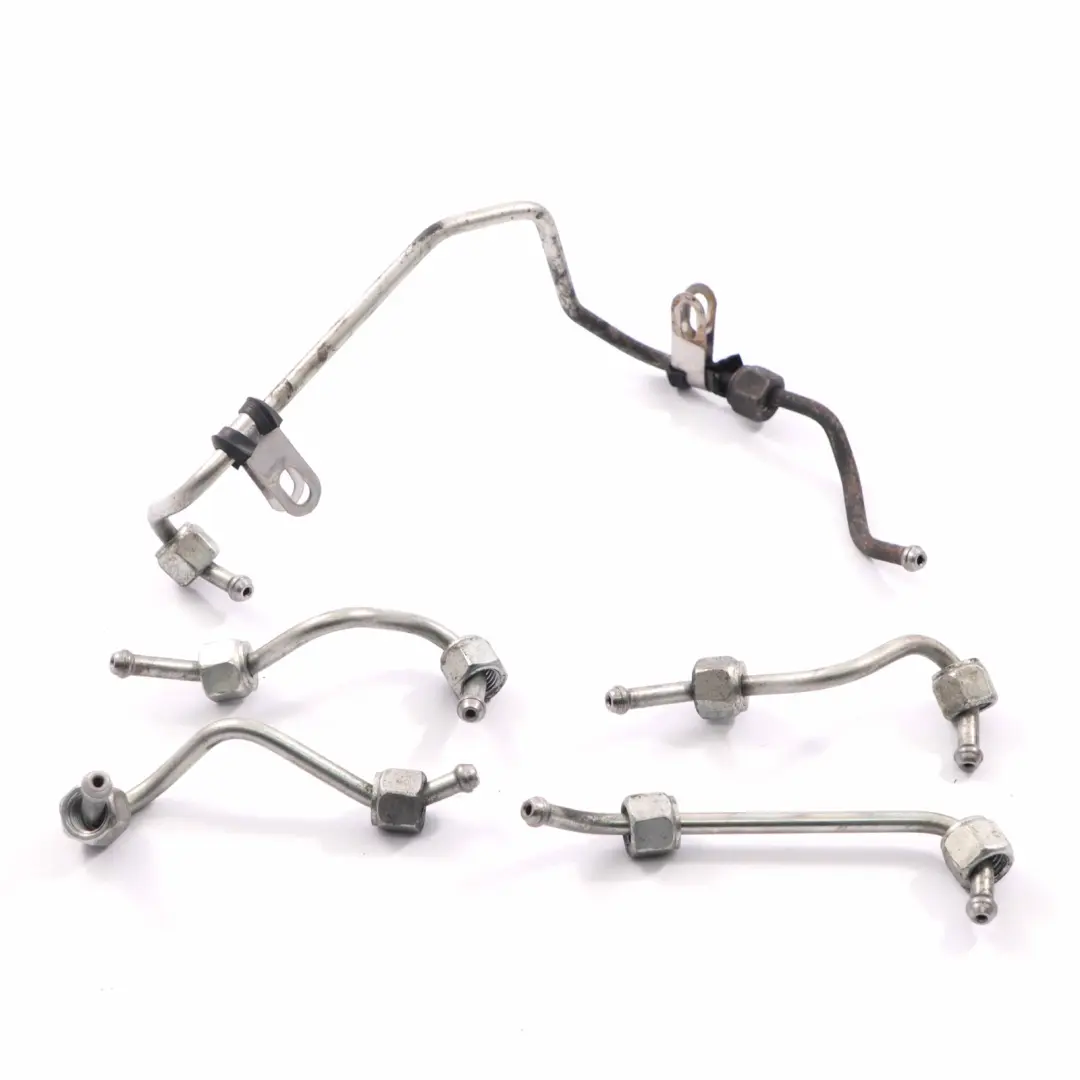

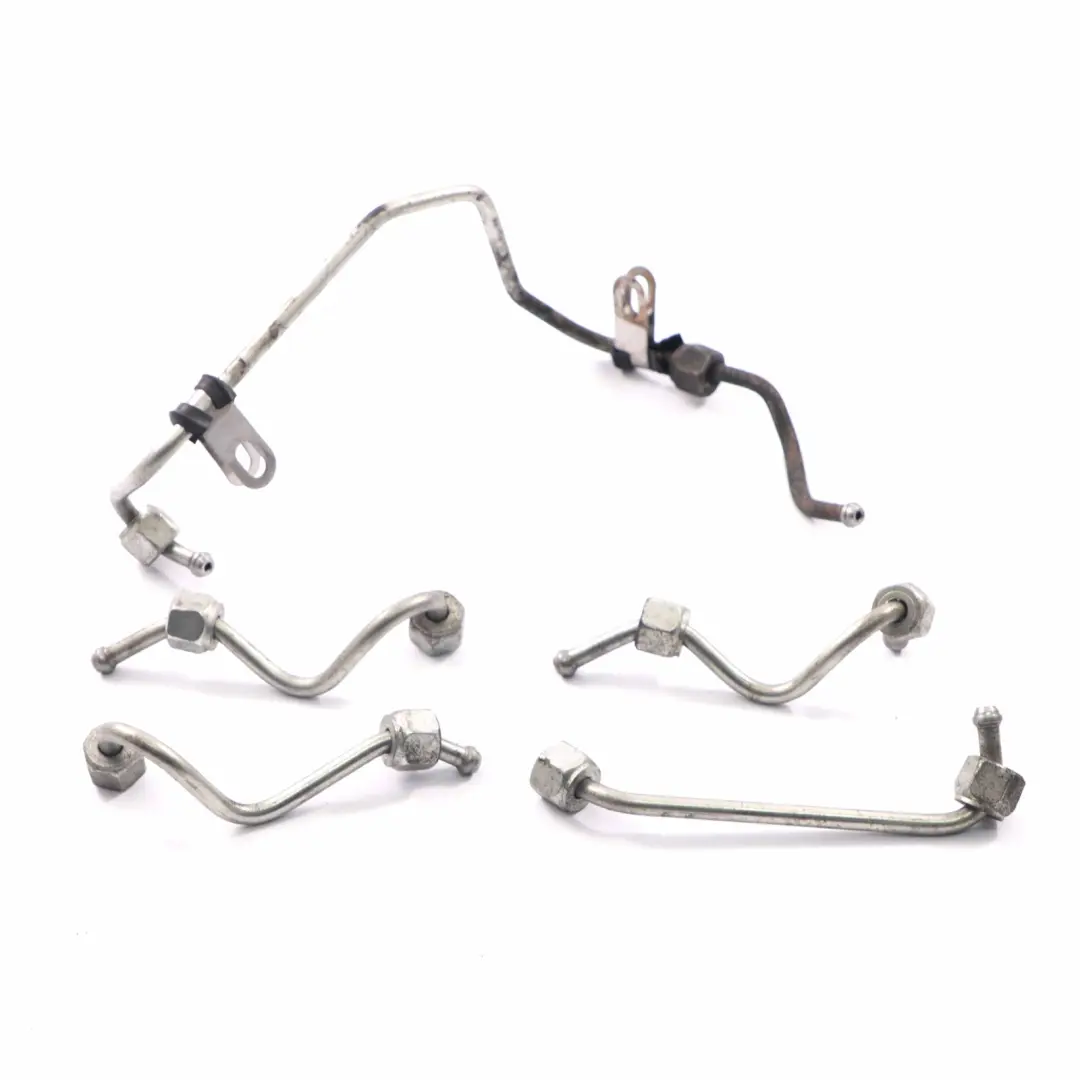

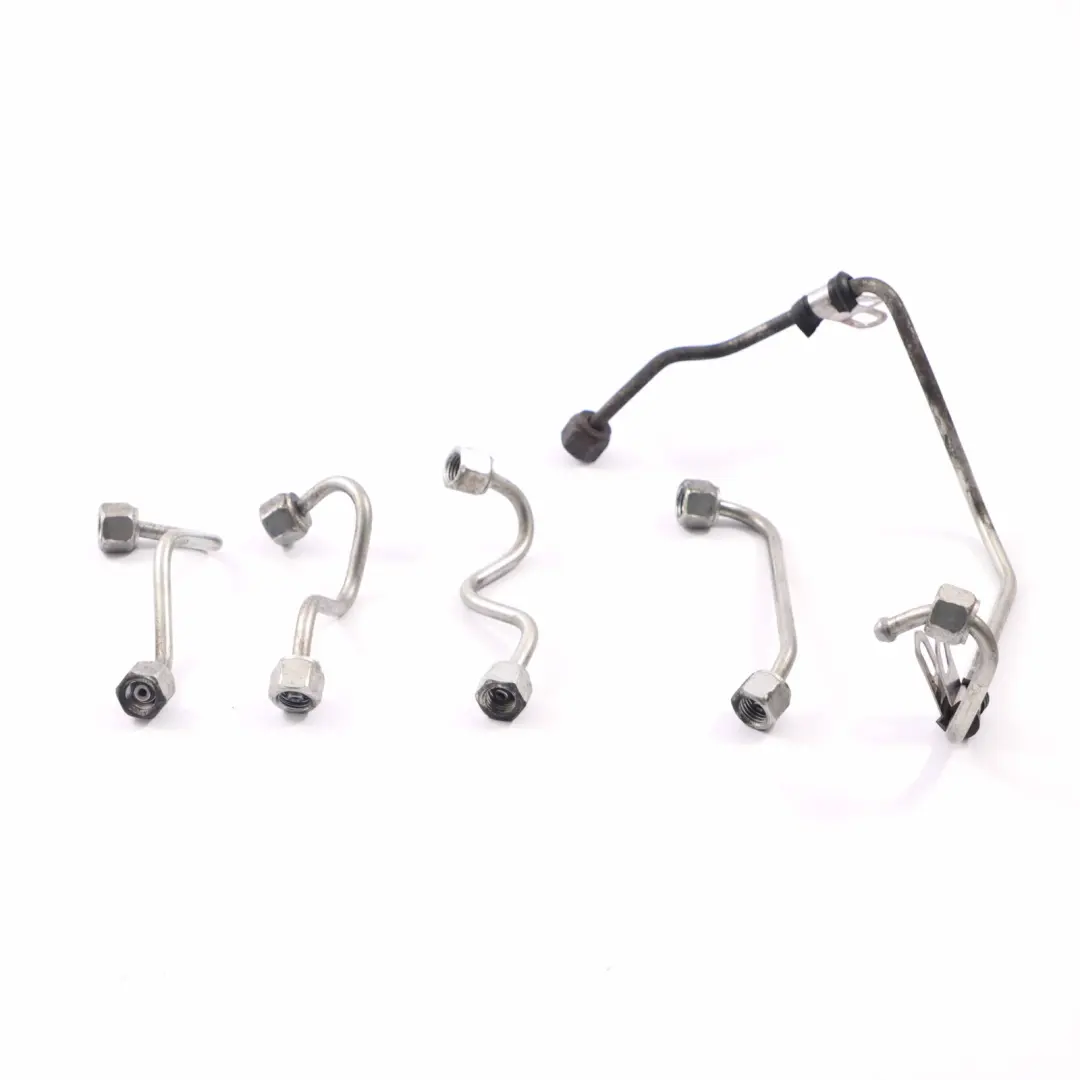

Ford Transit MK7 Diesel 2.2 TDCi Fuel Injection Line Pressure Pipe Injector Set

Ford Transit MK7 Diesel 2.2 TDCi Fuel Injection Line Pressure Pipe Injector Set is a set of original components designed for diesel engines, ensuring stable fuel supply to the injectors and proper operation of the power unit. Using a dedicated set in the diesel engine fuel system helps maintain correct pressure parameters and reduces the risk of leaks. This is a solution for users who expect proven, factory-spec pipe geometry and a secure fit within the system.

Specifications and technical data

• SKU: BK3Q9J323AE
• Mark: Ford
• Condition: Used
• OEM Part Number: BK3Q9J323AE
• Substitutable numbers: BK3Q9J323AE, BK3Q-9J323-AE
• Fuel type: Diesel
• Category: Coolant Hoses

Purpose and function in the fuel system

The presented set of pipes is a component of the fuel supply system in a diesel engine, working in conjunction with the injectors in the 2.2 TDCi unit. It is responsible for the precise delivery of fuel to each injector, which has a direct impact on the smooth operation of the cylinders, engine refinement, and power stability. By maintaining the factory routing of the pipes, the risk of vibrations, chafing, and localized stress, which could lead to leaks in the long term, is reduced.

Compatibility with the diesel engine

The set has been designed to work with a diesel power unit, meaning it is adapted to the high operating pressures typical of modern injection systems. The design of the pipes takes into account requirements regarding resistance to pressure pulsations, operating temperatures in the engine bay, and compatibility with diesel fuel. Proper fitment to the 2.2 TDCi engine architecture facilitates installation and allows for the preservation of the original fuel line routing.

Role in the cooling system and integration with accessories

Although the product is assigned to the Cooling system hoses and pipes category, in practice, it works with engine accessories that operate in the immediate vicinity of cooling system components. Proper routing of the injector pipes in relation to the cooling hoses helps maintain stable thermal conditions in the engine bay and limits local overheating of fuel supply elements. A correctly installed set of pipes minimizes the risk of contact with hot components, which translates into greater durability of the entire system.

To better understand the relationship between engine operating temperature and the durability of accessories, it is worth reading the guide on diagnostics and cooling system service: Engine cooling system – overheating, repair, and used radiators. The article explains how a stable temperature affects the lifespan of components operating in the engine bay.

Benefits of using the original set

Using the factory set of injector pipes in a Ford Transit MK7 brings a number of practical benefits:

• preservation of the original pipe routing geometry in the engine bay,
• better fitment to factory brackets and mounts,
• reduction of the risk of leaks and fuel pressure drops,
• more stable injector operation across the entire load range.

As a result, the fuel supply system operates in a predictable manner, and injection parameters remain closer to the design values. This is particularly important in diesel engines, where the precision of fuel dosing is crucial for performance, fuel consumption, and exhaust emissions.

Condition, cost-effectiveness, and choosing used parts

The offered set comes from the used parts group, which allows for a significant reduction in repair costs compared to purchasing a new set, while maintaining the original manufacturer's specifications. For many fleet users and workshops specializing in Ford Transit maintenance, this is a reasonable compromise between price and functionality. In the context of rising service costs, it is worth considering a strategy of consciously selecting used OEM parts – this is described in more detail in the guide: how to save on car service by choosing used parts.

Expanding service within the piping system

If you are planning a comprehensive repair or upgrade of the engine area in your Ford and need other components from the same group, such as additional pipes, connectors, or hoses working with the cooling system, check the available parts in the Ford cooling system hoses and pipes category.
