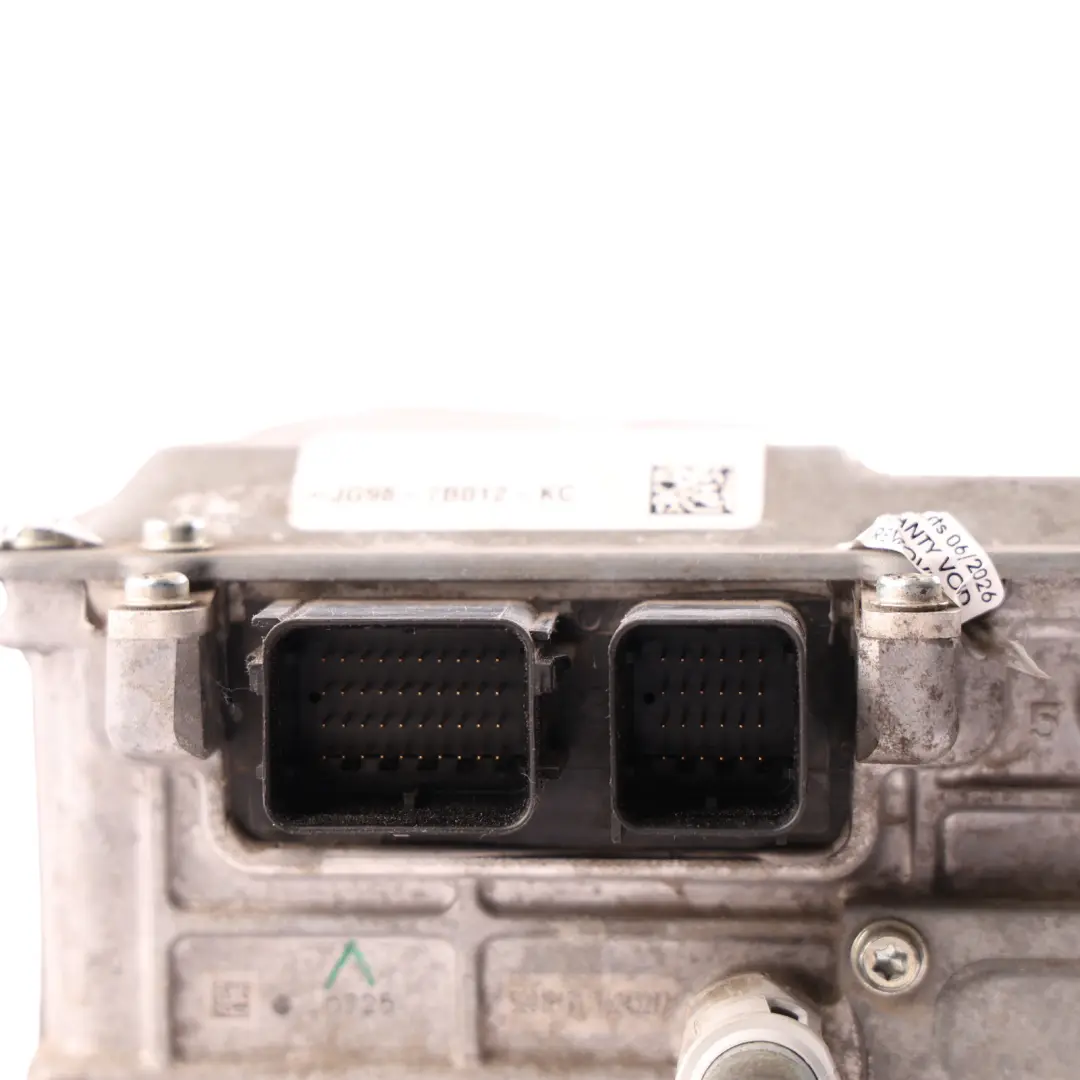

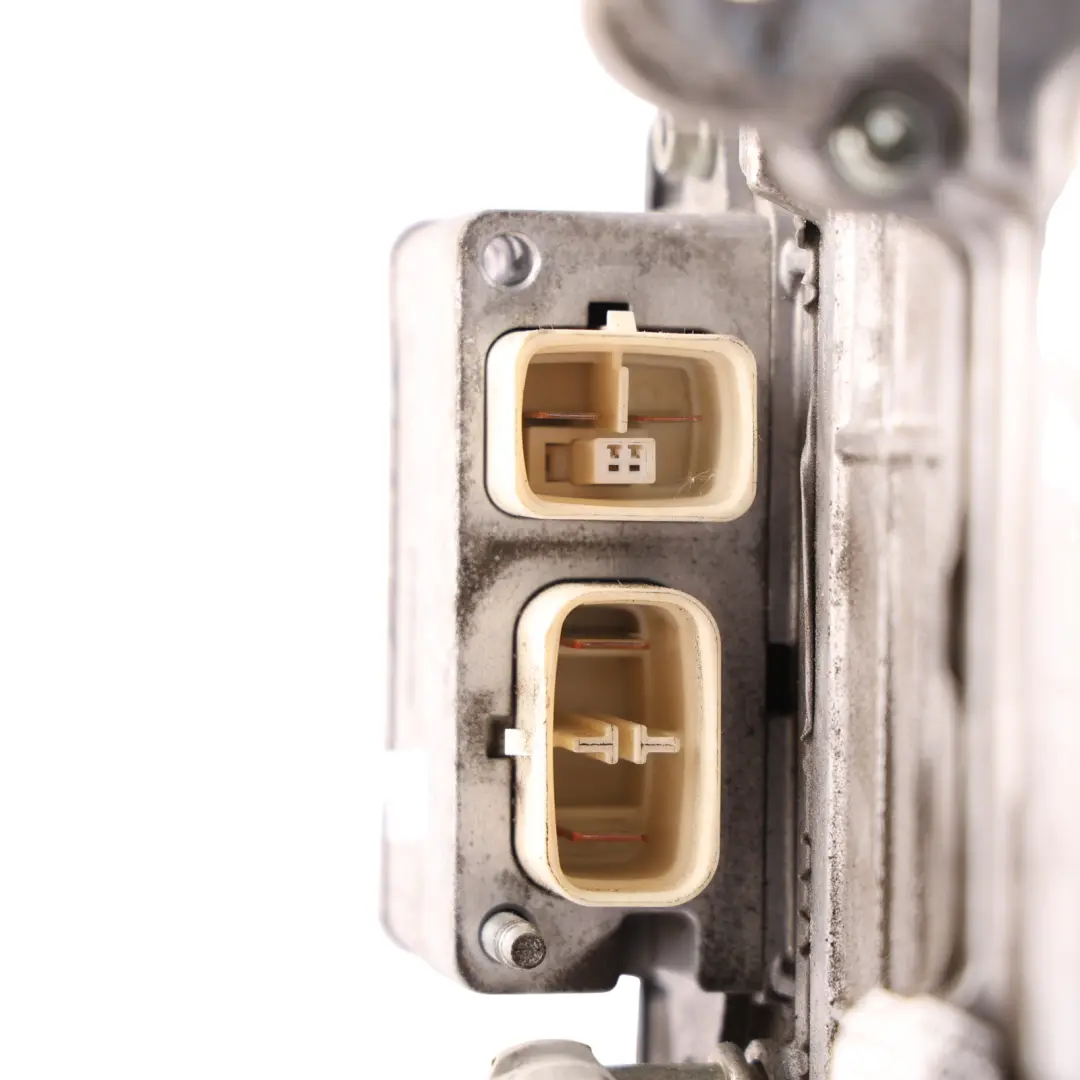

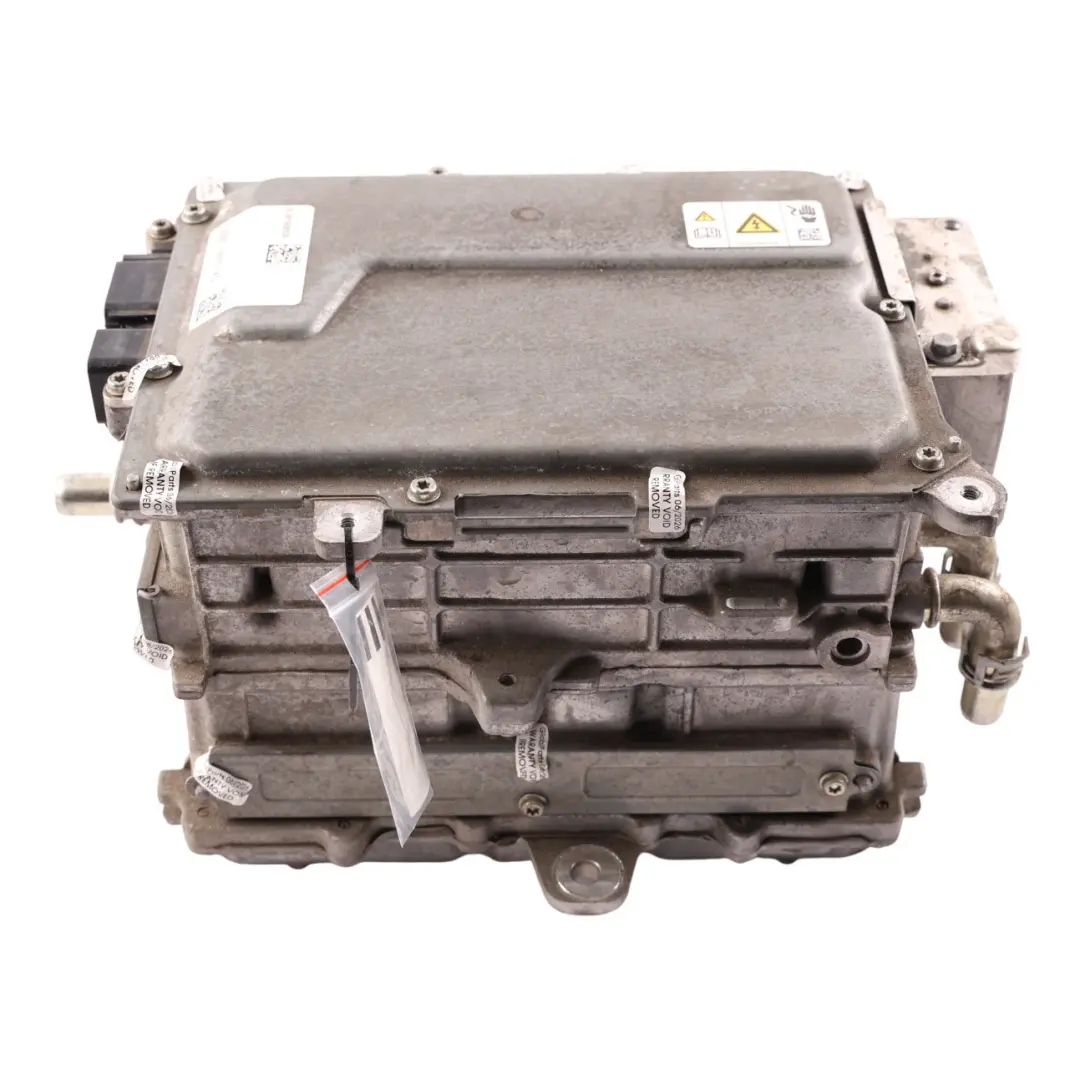

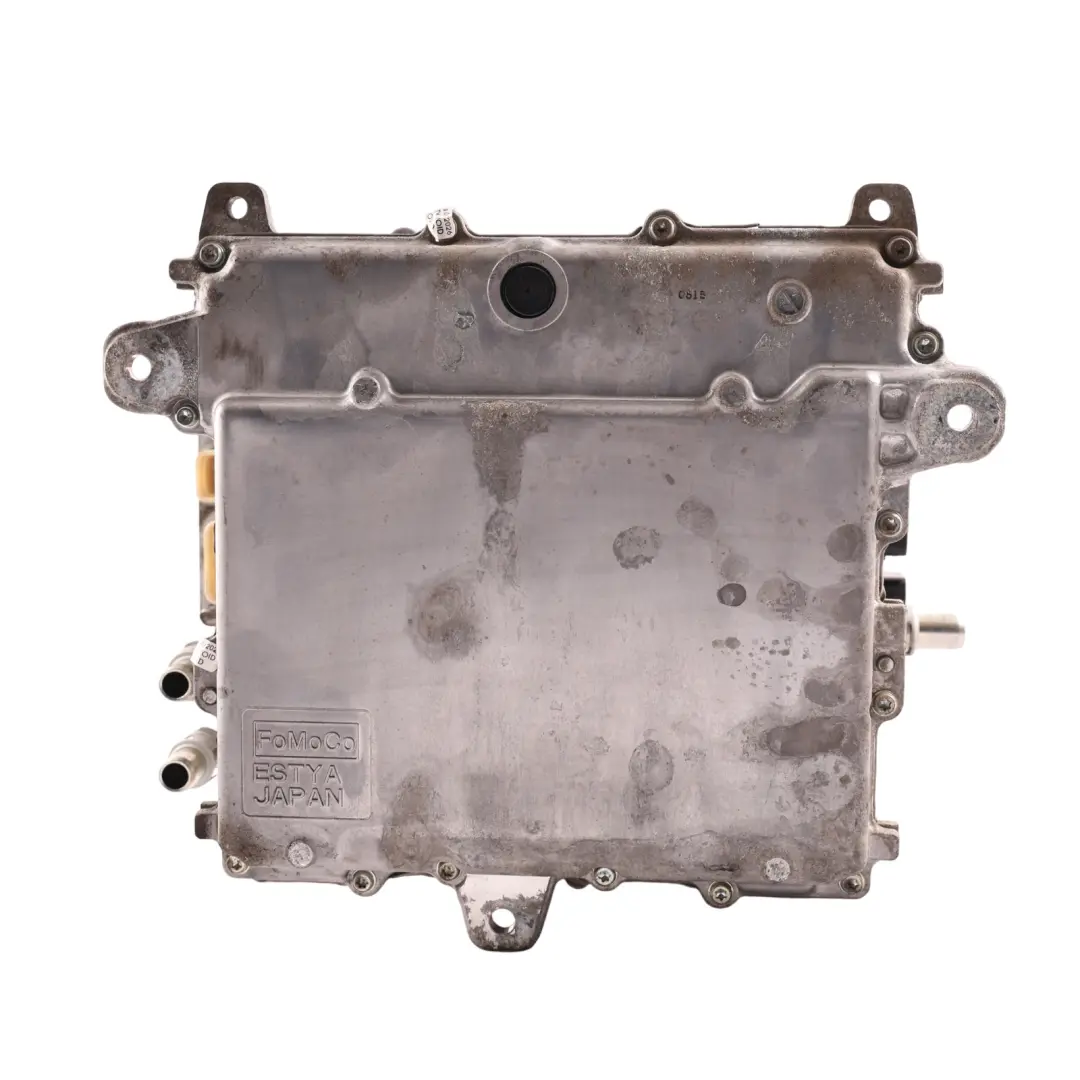

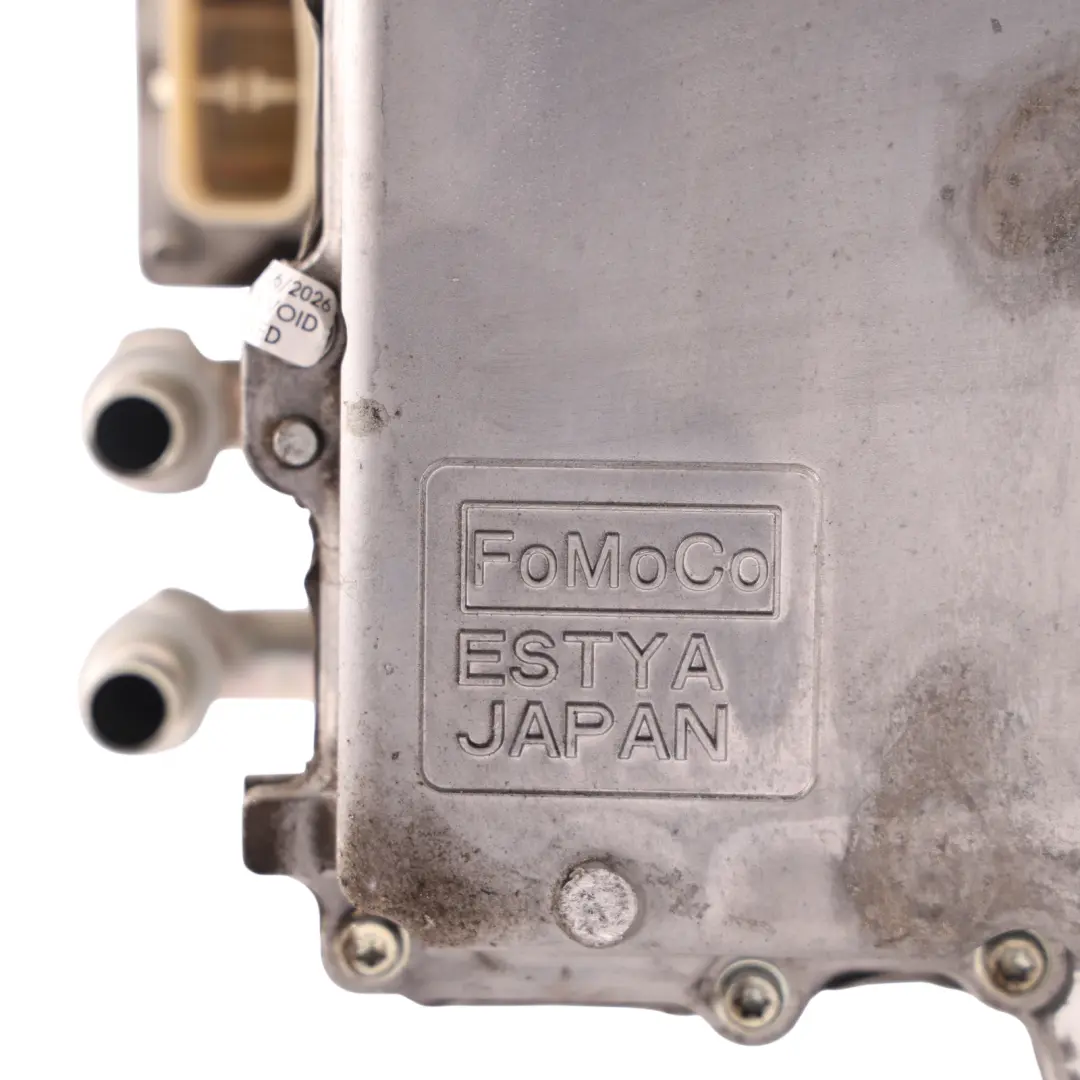

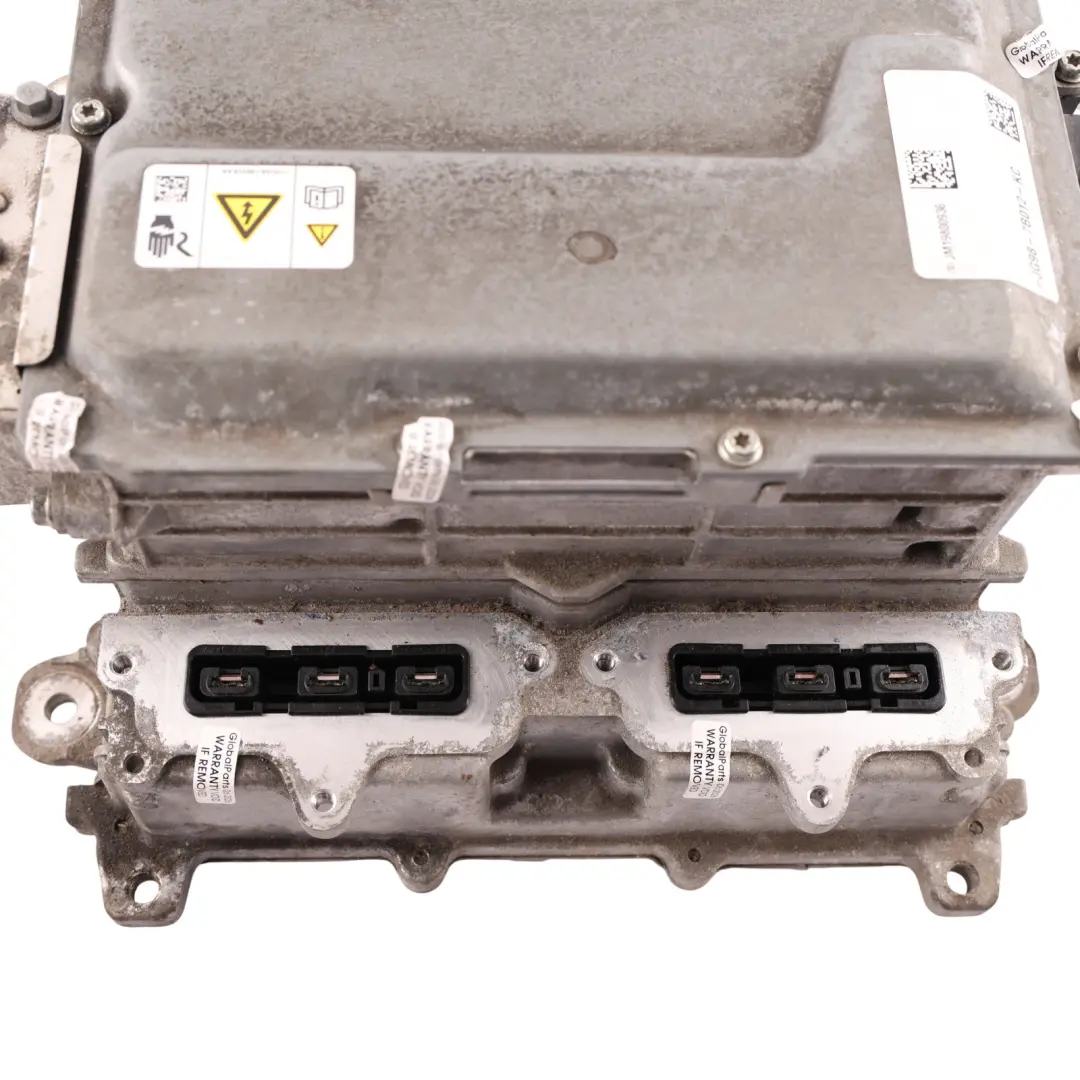

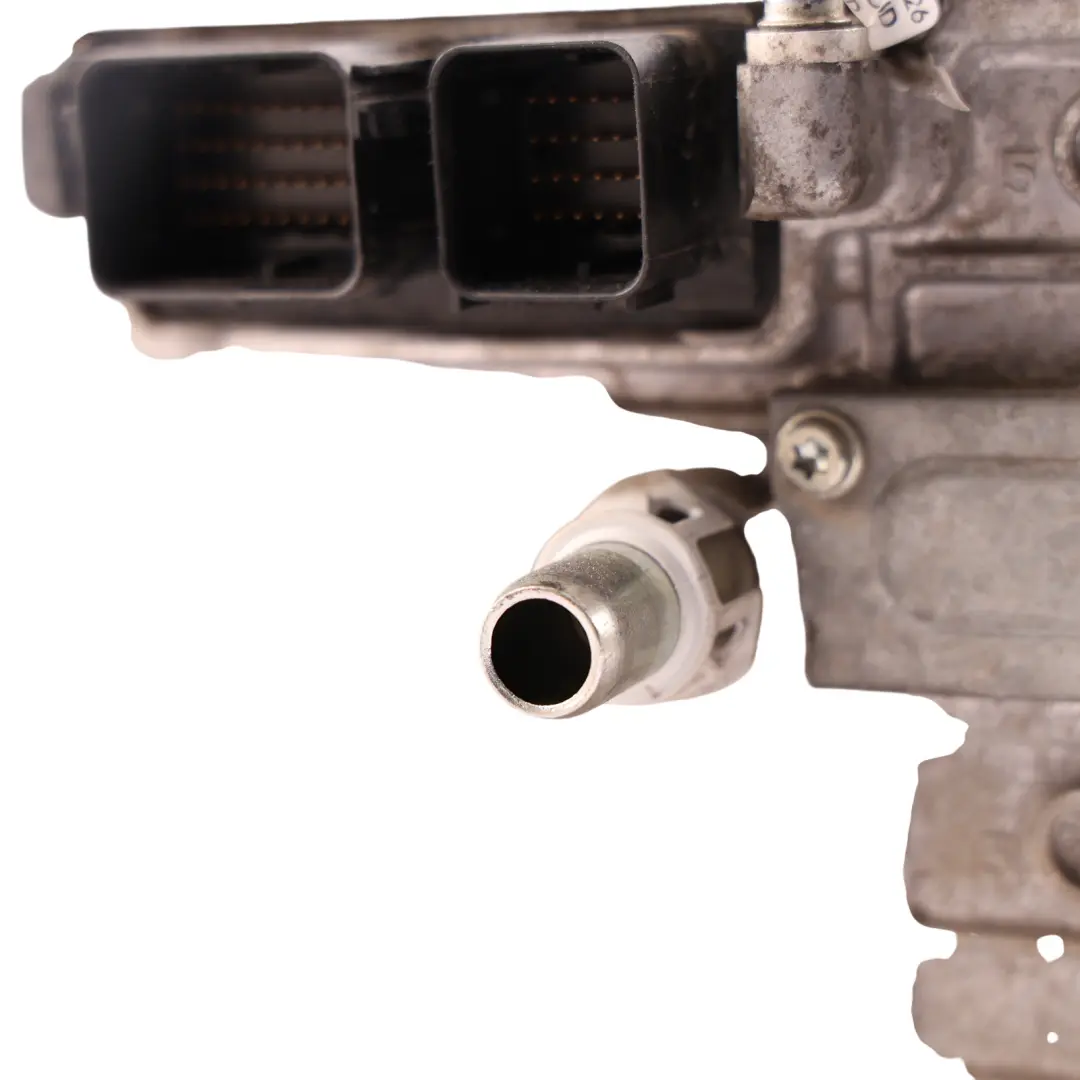

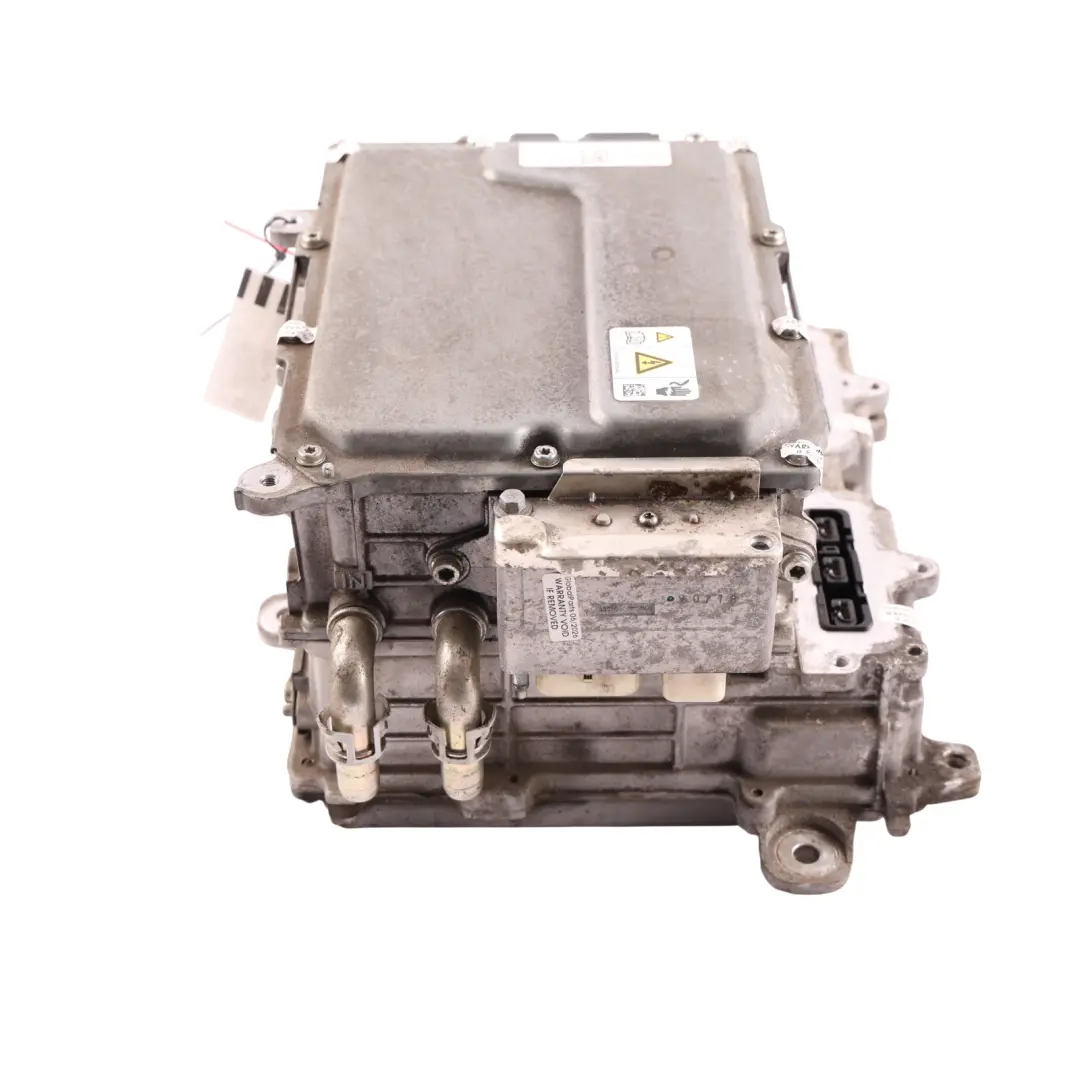

Ford Mondeo Mk5 High Voltage Battery Inverter Module Hybrid JG98-7B012-KC

Ford Mondeo Mk5 High Voltage Battery Inverter Module Hybrid is a specialized module from the Converters and inverters group, responsible for processing electrical energy between the high-voltage battery and the drivetrain. Designed for hybrid systems with a gasoline engine, it ensures precise power flow control and stable operation of the entire high-voltage system.

Specifications and technical data

• SKU: JG98-7B012-KC
• Mark: Ford
• Condition: Used

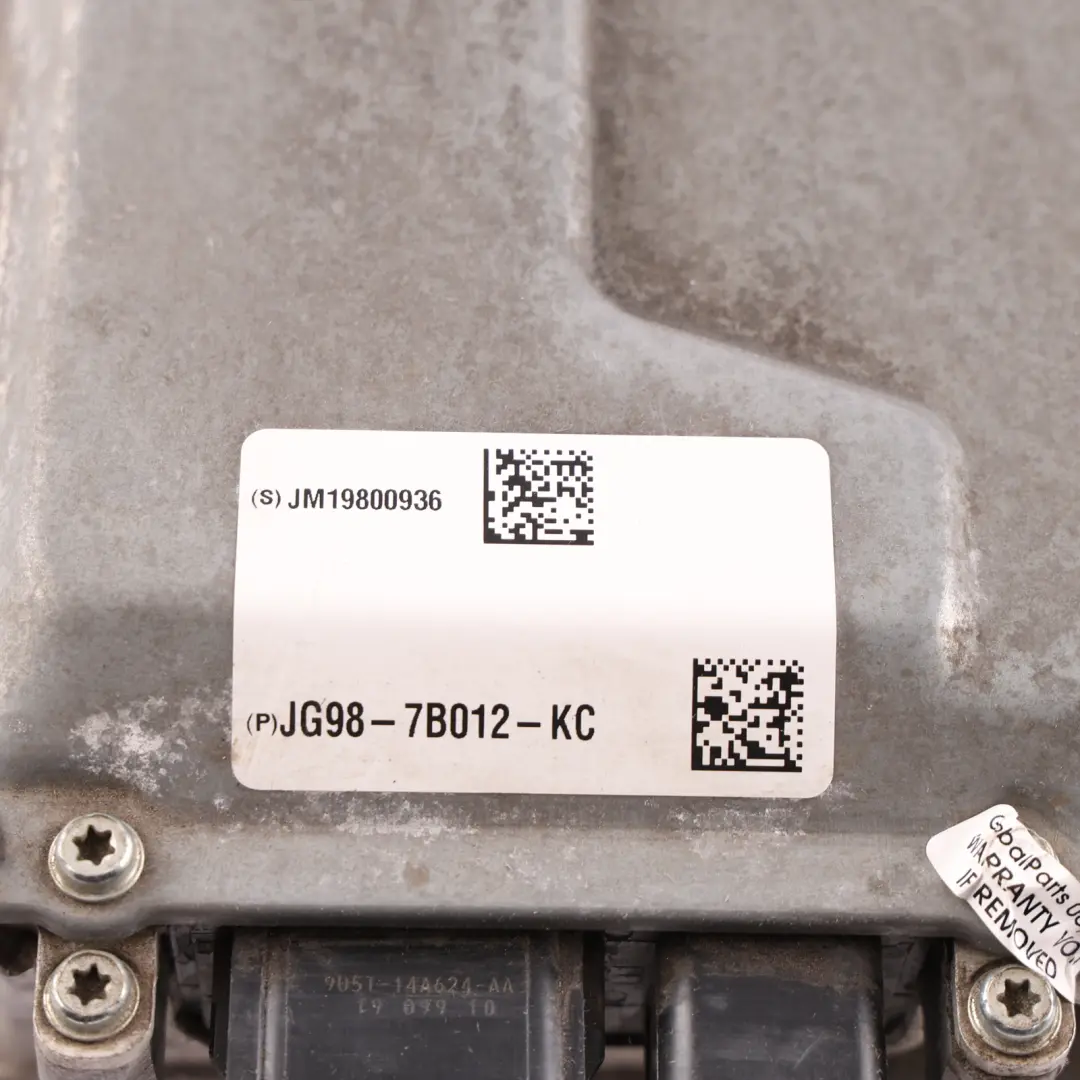

• OEM Part Number: JG98-7B012-KC
• Substitutable numbers: JG98-7B012-KC, JG987B012KC
• Fuel type: Petrol
• Part type: Power Inverter
• Category: Converters & Inverters

Purpose and function in the hybrid system

The high-voltage inverter module in the Ford Mondeo Mk5 is responsible for converting electrical energy between the traction battery and the electric motor, as well as other high-voltage consumers. In a gasoline-powered hybrid system, it works in tandem with the internal combustion engine, enabling smooth switching between driving modes, energy recuperation, and effective acceleration assistance.

Thanks to precise power electronics, the inverter stabilizes current parameters, which translates into predictable vehicle behavior, optimized fuel consumption, and improved refinement of the hybrid powertrain.

Benefits of using the original module

Using an original module from the Converters and inverters group in a Ford hybrid system allows for maintaining the factory performance characteristics of the powertrain. The appropriate cooling system architecture, compatibility with electrical harnesses, and compliance with control software minimize the risk of diagnostic errors and improper communication with other vehicle control units.

In practice, this means:

• stable operation of the electric drive across the full load range,
• correct handling of hybrid driving modes and recuperation,
• maintenance of factory high-voltage safety parameters,
• easier diagnostics using standard Ford service tools.

Integration with the gasoline system and high voltage

The inverter has been designed to work with a hybrid powertrain based on a gasoline engine, which means it is matched to the torque characteristics of the combustion unit and Ford's powertrain control strategy. The module manages the energy flow between the high-voltage battery, the electric motor, and other components, ensuring cohesive operation of the entire system.

Proper configuration of safety features, insulation, and high-voltage control logic is crucial for user safety and the durability of other hybrid system components, such as the traction battery or auxiliary converters.

Condition, origin, and service application

The offered module comes from a Ford vehicle and is a used part, making it an attractive service solution for hybrid system repairs, especially in the event of power electronics failure or mechanical damage to the original inverter. It is a practical alternative to new components, allowing for cost reduction while maintaining compatibility with the factory installation.

The module is suitable for both emergency replacement and comprehensive high-voltage system rebuilding following a collision or hybrid battery damage.

Expansion of upgrades within converters

If you are planning a comprehensive repair or upgrade of the high-voltage system area in your Ford and need other elements from the same group, such as additional converters, control modules, or other inverters, check the available parts in the Ford Converters and inverters category.
