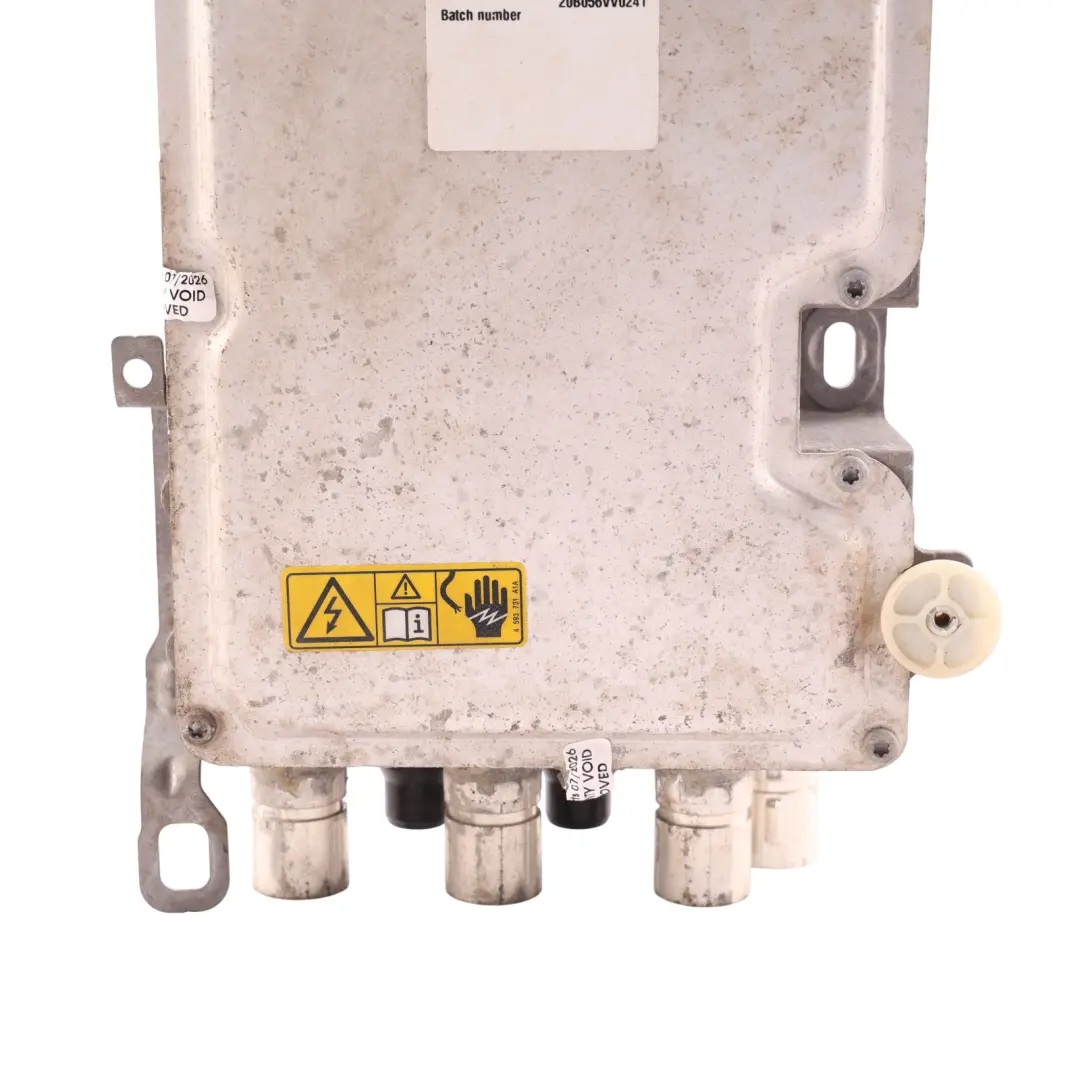

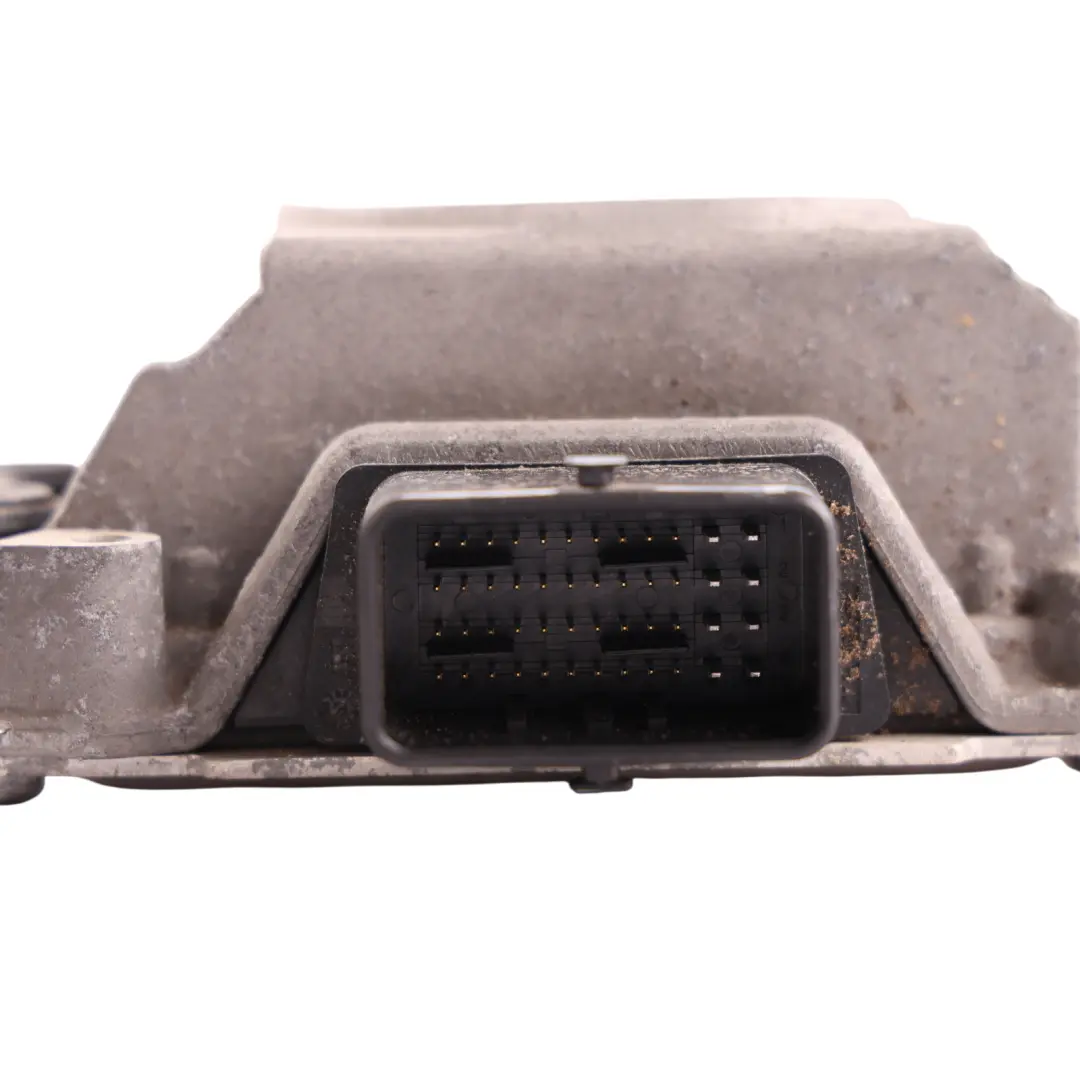

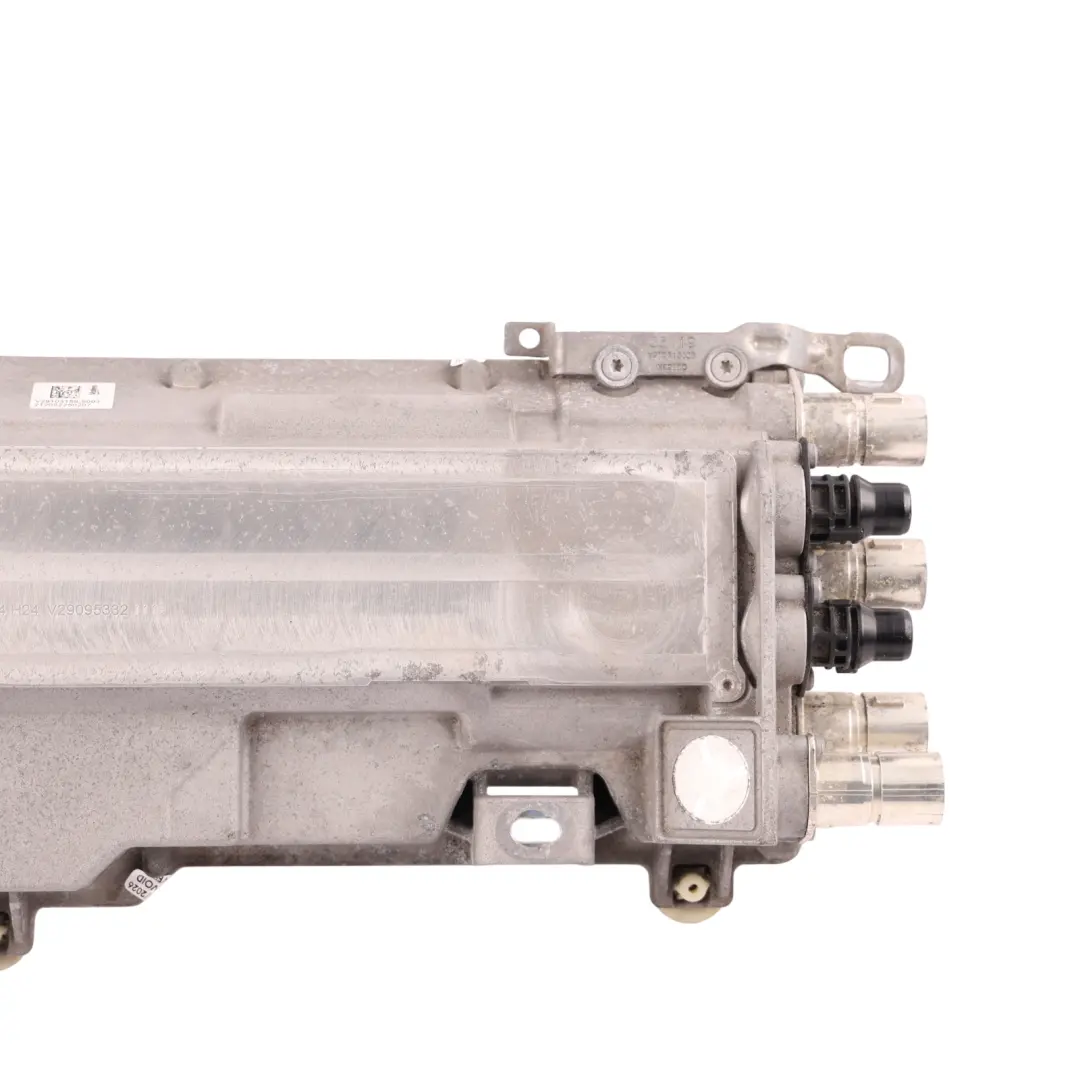

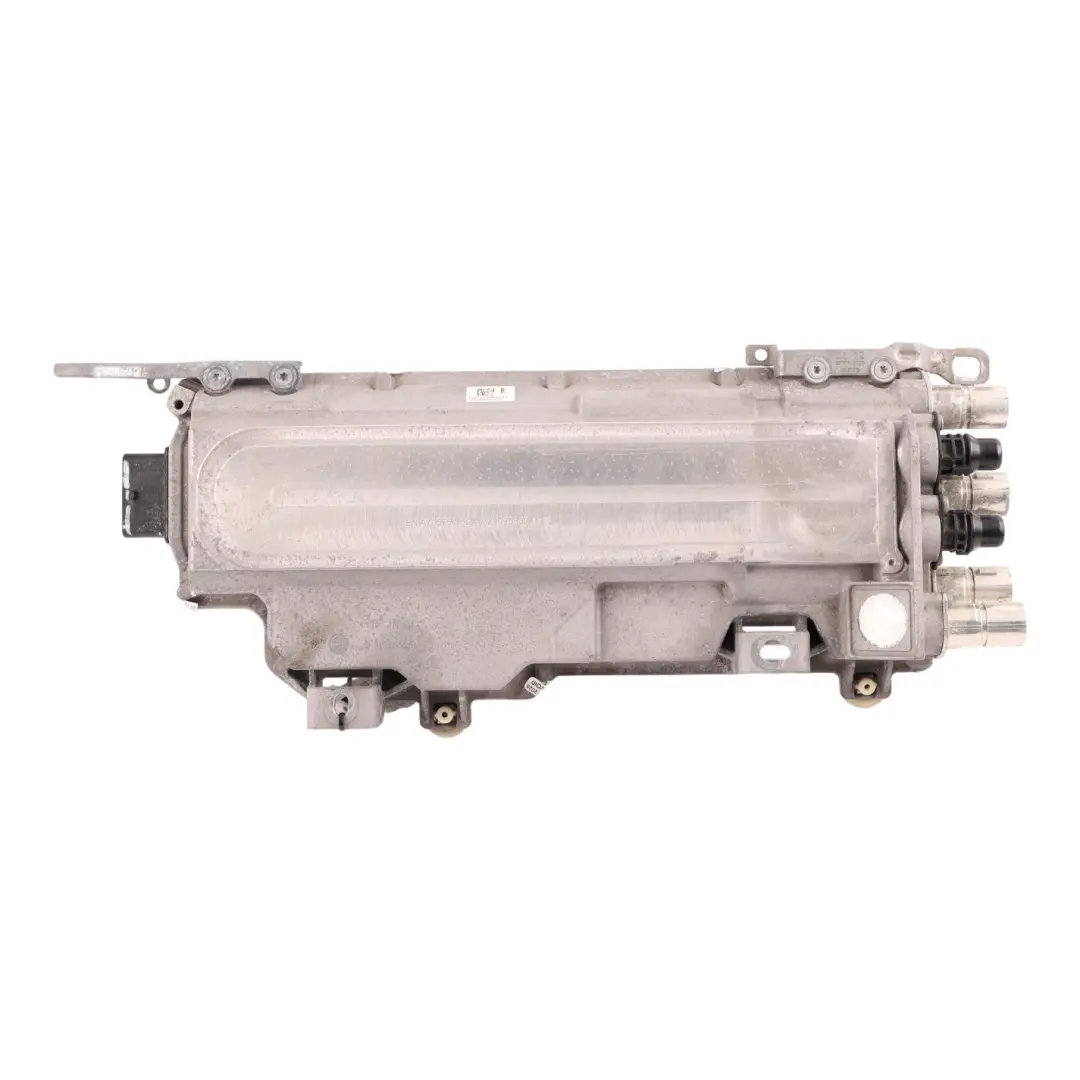

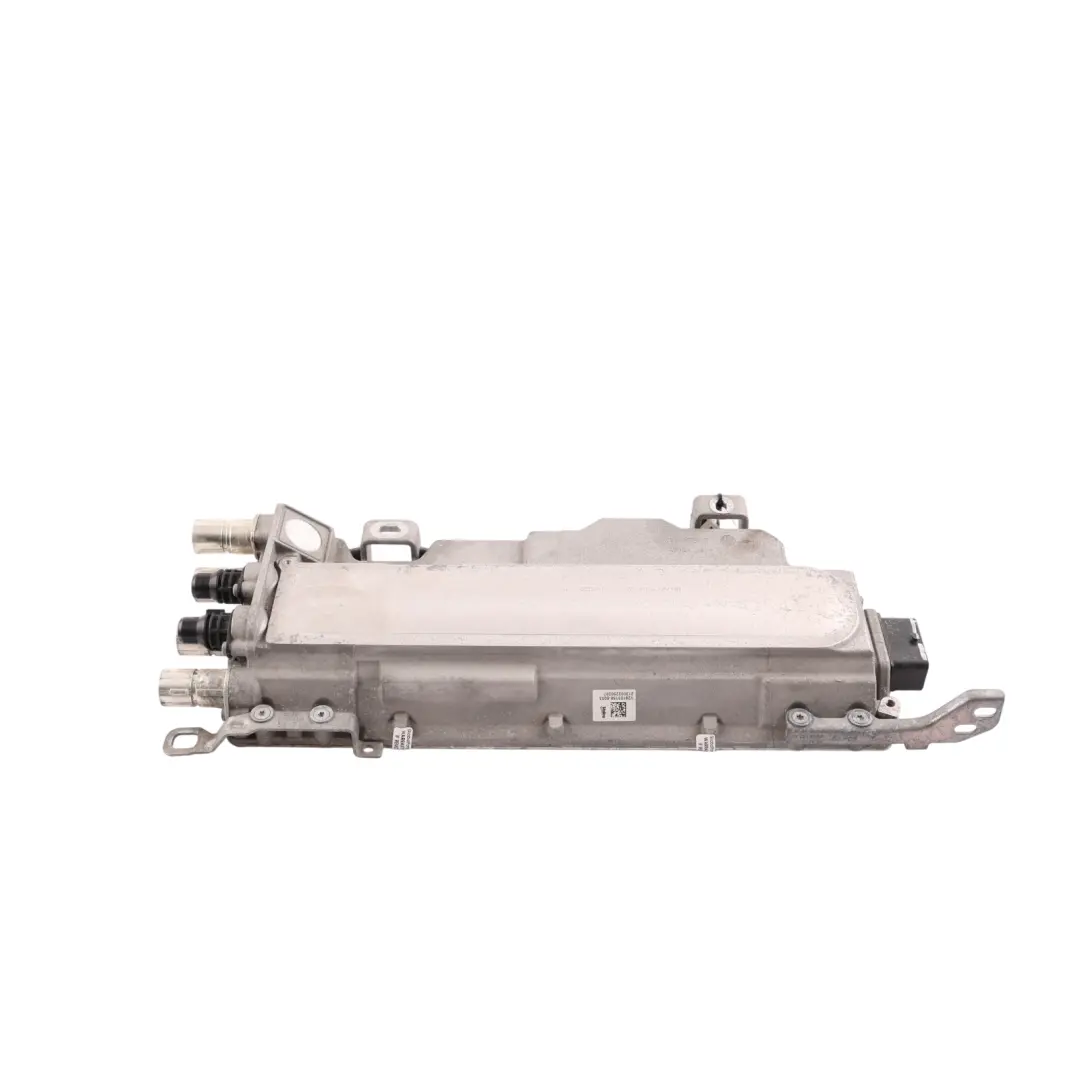

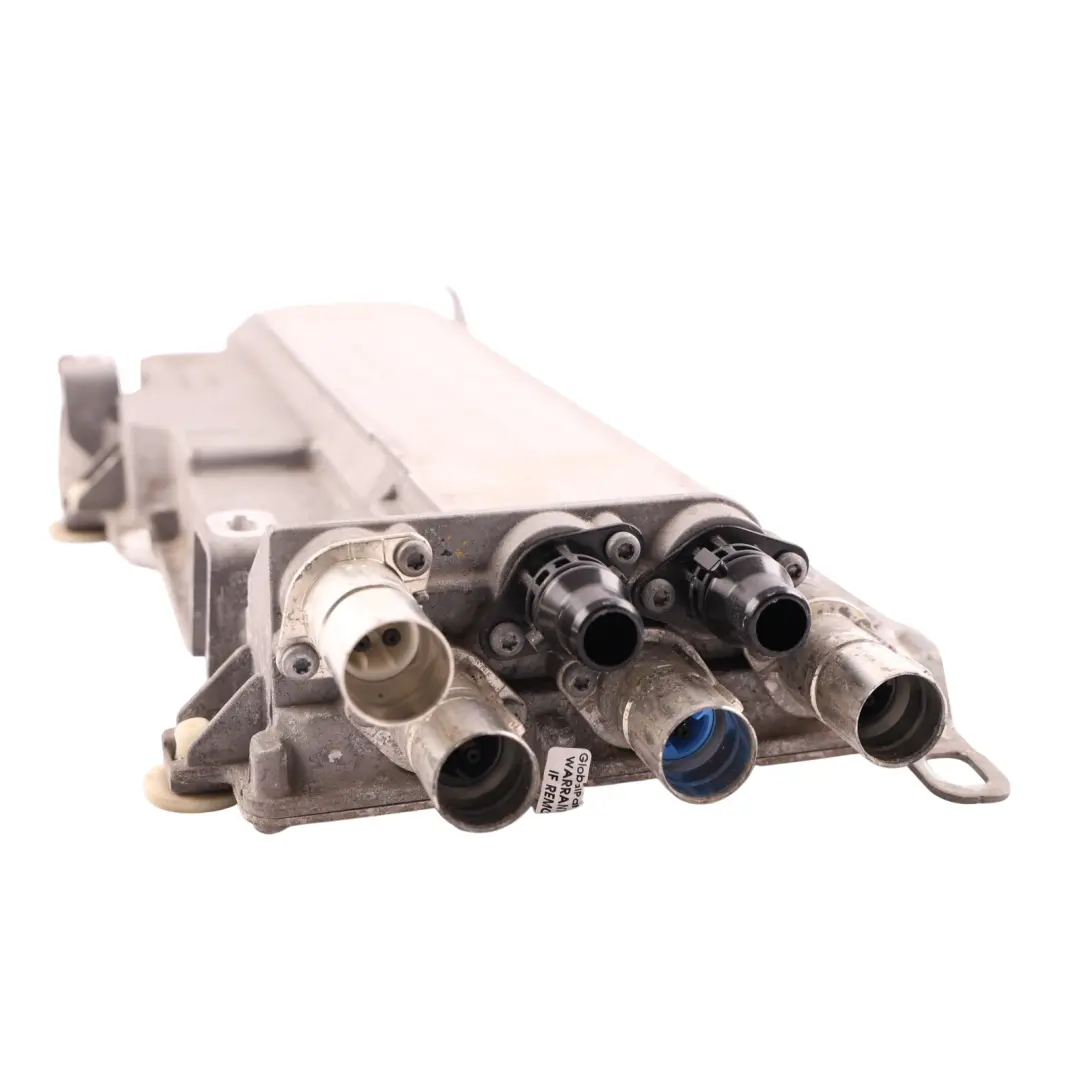

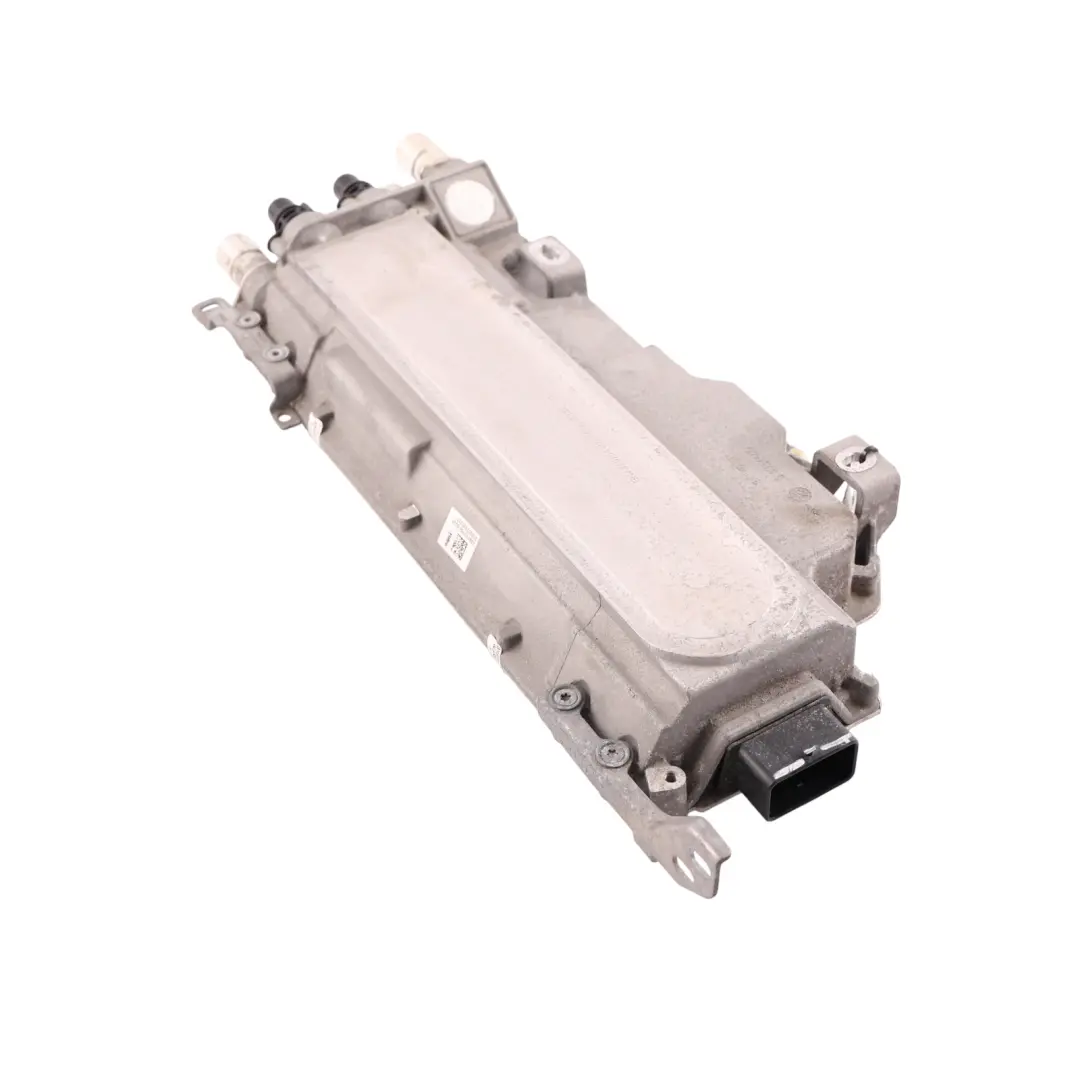

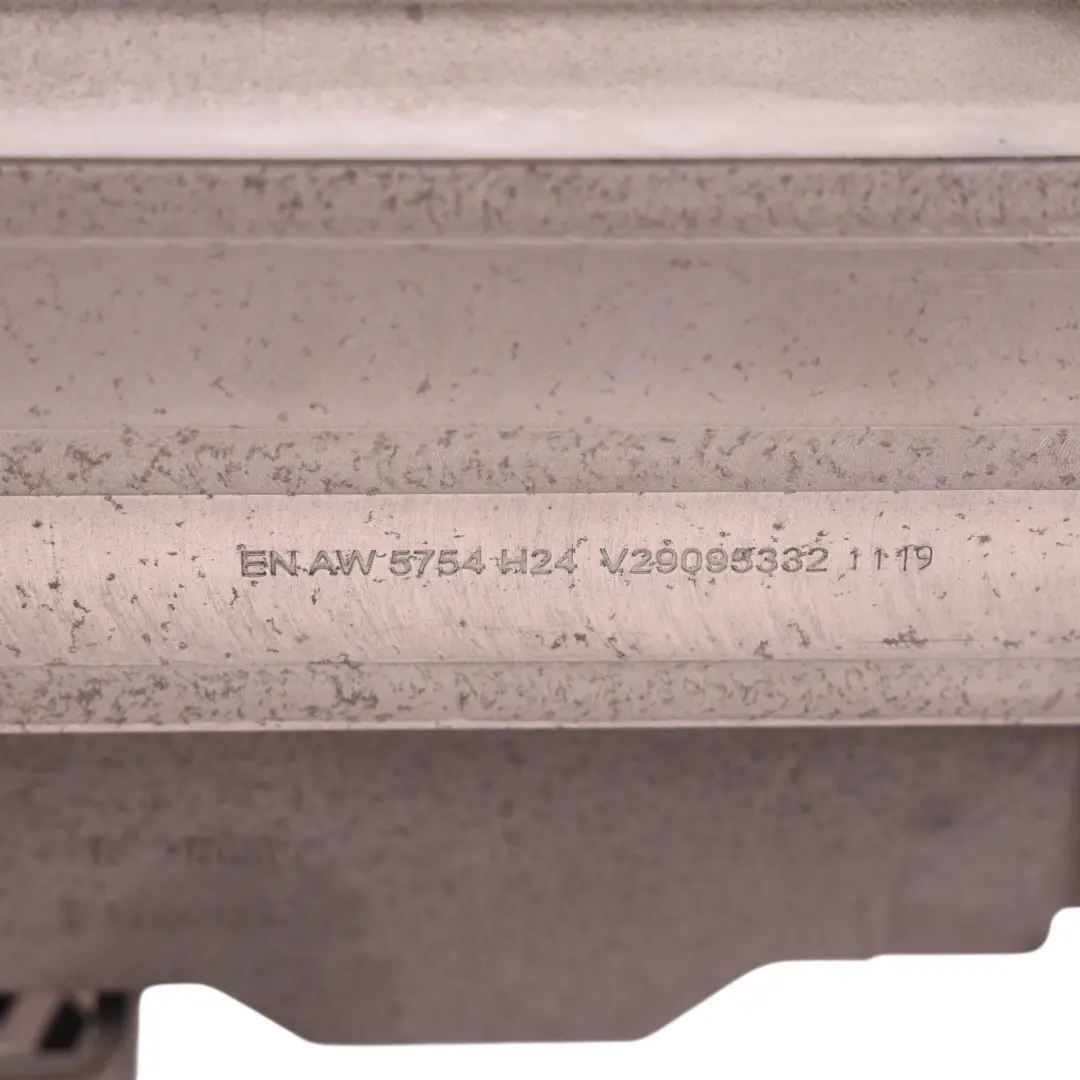

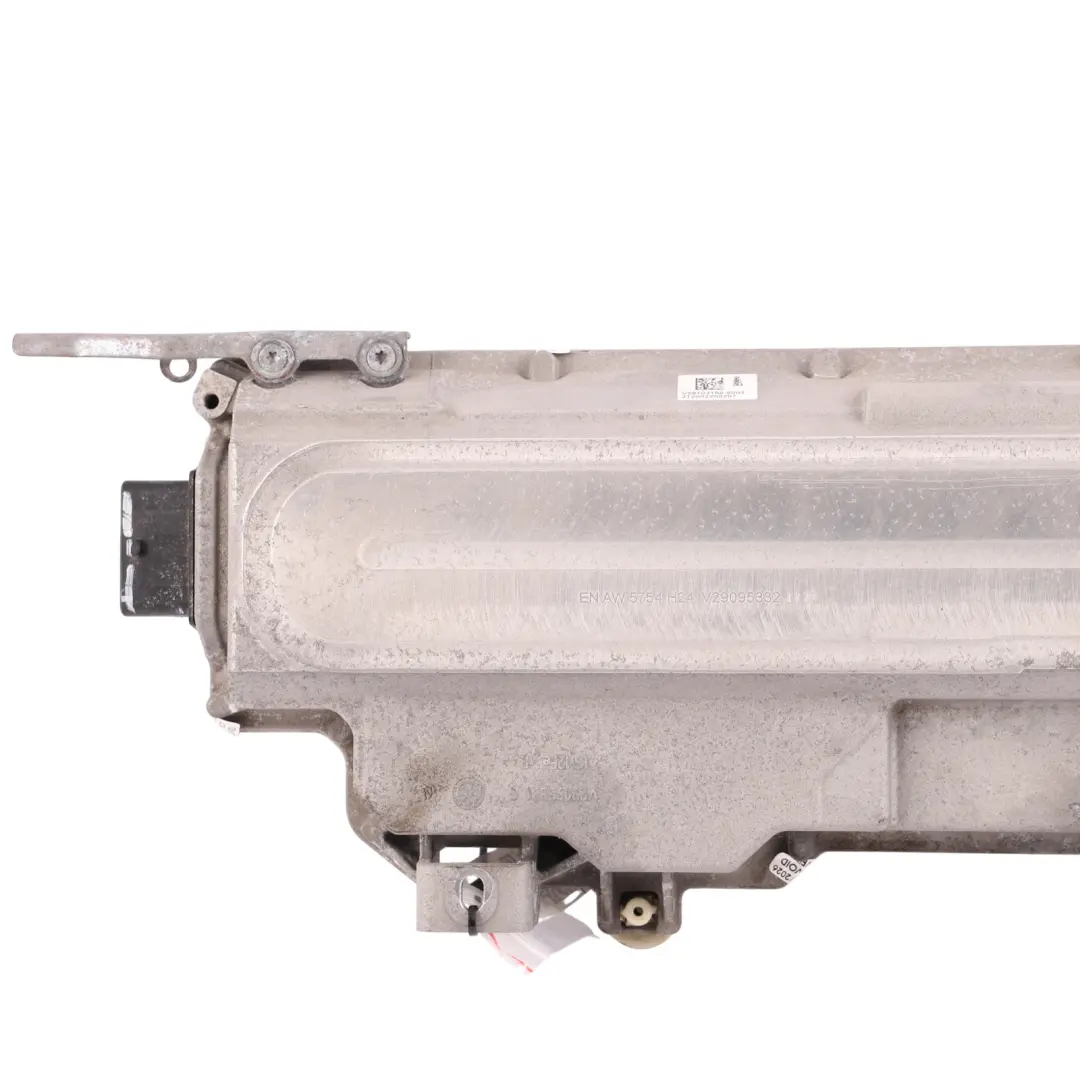

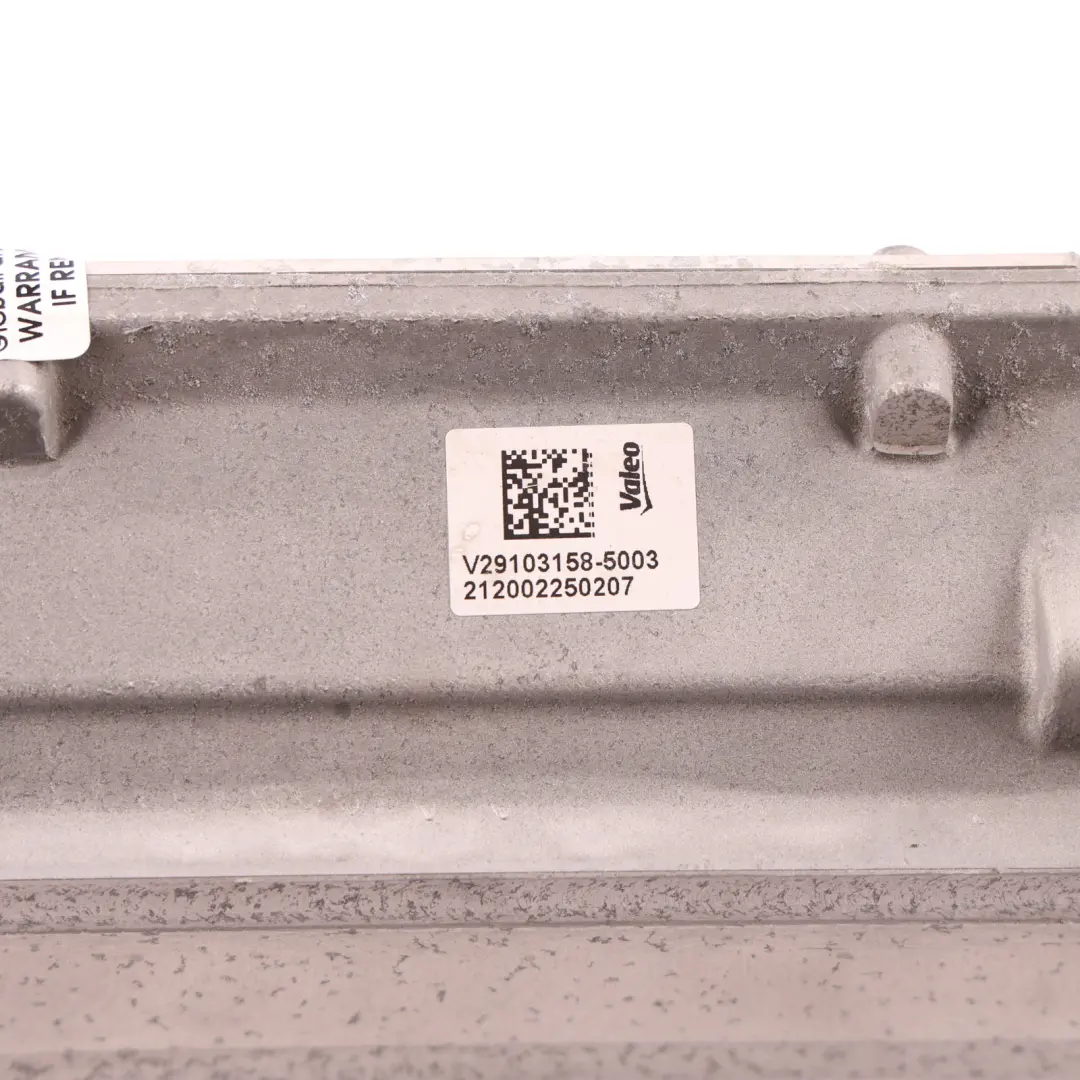

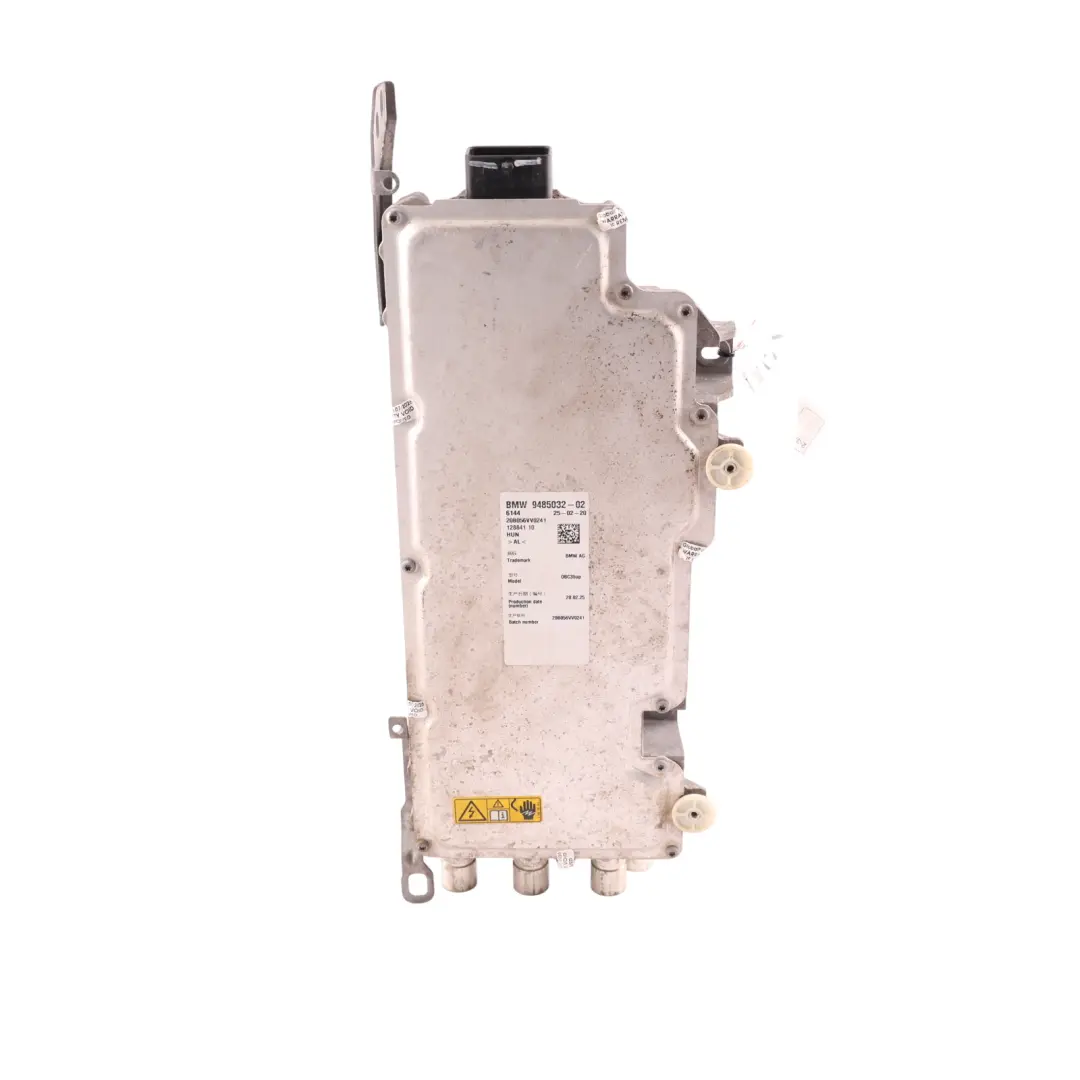

BMW G20 G21 330e Battery Charging Control Module 2.0 Hybrid 9485032

BMW G20 G21 330e Battery Charging Control Module 2.0 Hybrid is a specialized control module for the charging process in the BMW 3 Series G20/G21 hybrid system. It is responsible for precise traction energy management, cooperation with the high-voltage installation, and communication with other vehicle control units. As such, it is a key component of the powertrain in the 330e 2.0 Hybrid version.

Specifications and technical data

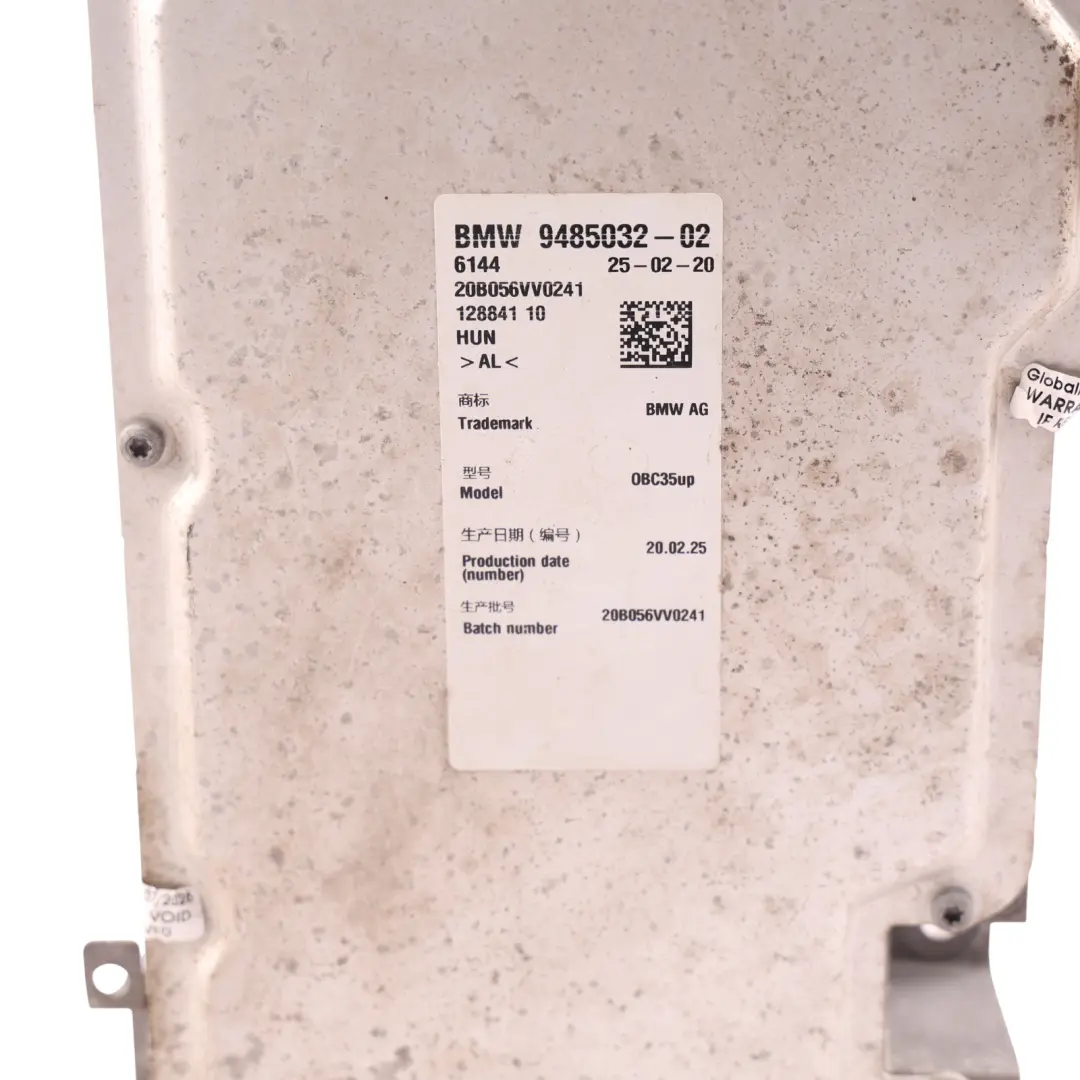

• SKU: 9485032
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9485032
• Substitutable numbers: 61449485032, 9485032
• Part type: High/Low Voltage Converter
• Category: Converters & Inverters

Purpose and function of the charging module

The presented module belongs to the Converters and inverters group and is responsible for controlling the high-voltage traction battery charging process in the hybrid BMW 330e. It manages the energy flow between the battery, the powertrain, and the onboard electrical system, ensuring stable operating parameters and proper cooperation with the vehicle's electronics.

The module operates within the BMW control unit network, processing signals from the powertrain, battery management system, and safety systems. A correctly selected and functional component of this type has a direct impact on:

• the efficiency of the traction battery charging,
• proper operation of hybrid driving modes,
• stability of communication within the control unit bus,
• overall reliability of the high-voltage system.

Compatibility and vehicle integration

The module was designed by BMW as part of the original hybrid powertrain control system in the 330e model. Its design and software are adapted to the electrical architecture of the 3 Series G20/G21, which enables full integration with the vehicle's factory systems. Consequently, after proper installation and configuration, the module works with:

• the high-voltage battery management system,
• the internal combustion engine and electric motor control unit,
• high-voltage safety systems,
• vehicle diagnostic systems.

Such compatibility allows for maintaining the factory operating parameters of the hybrid powertrain and facilitates service diagnostics using dedicated BMW tools.

Product characteristics and condition

The offered charging module comes from the group of original BMW components and is marked as a used item. This means it was previously used in a vehicle, and its design and connectors comply with the manufacturer's factory standards. This type of part is a good solution for professional hybrid system repairs where maintaining the original electrical architecture is required.

By using an original control unit from the same module family, it is possible to maintain software consistency and operating parameters with other powertrain components. This is particularly important in hybrid vehicles, where cooperation between control units has a direct impact on the safety and performance of the entire system.

Benefits of using an original BMW module

Using such a module in a BMW 330e 2.0 Hybrid allows for maintaining the factory charging control logic and full compatibility with other components. The most important advantages include:

• Proper electrical and software matching to the 3 Series G20/G21 architecture,
• maintaining factory operating parameters of the hybrid system,
• easier diagnostics and configuration at a service center specializing in the BMW brand,
• consistency with other elements from the Converters and inverters group in this model.

Choosing an original charging module is particularly important for repairs where precise cooperation with the existing high-voltage installation and minimizing the risk of communication errors between control units is essential.

System expansion and additional information

If you are planning a comprehensive repair or upgrade of the high-voltage system area in your BMW and need other components from the same group, such as converter controllers, inverter modules, or additional energy management units, check the available parts in the BMW Converters and inverters category.

For those interested in a broader context of modern powertrain design and the importance of original control components in vehicles of different generations, an article comparing classic and modern solutions may be helpful, available at the link: Classic Mini vs modern MINI – differences and OEM parts.
