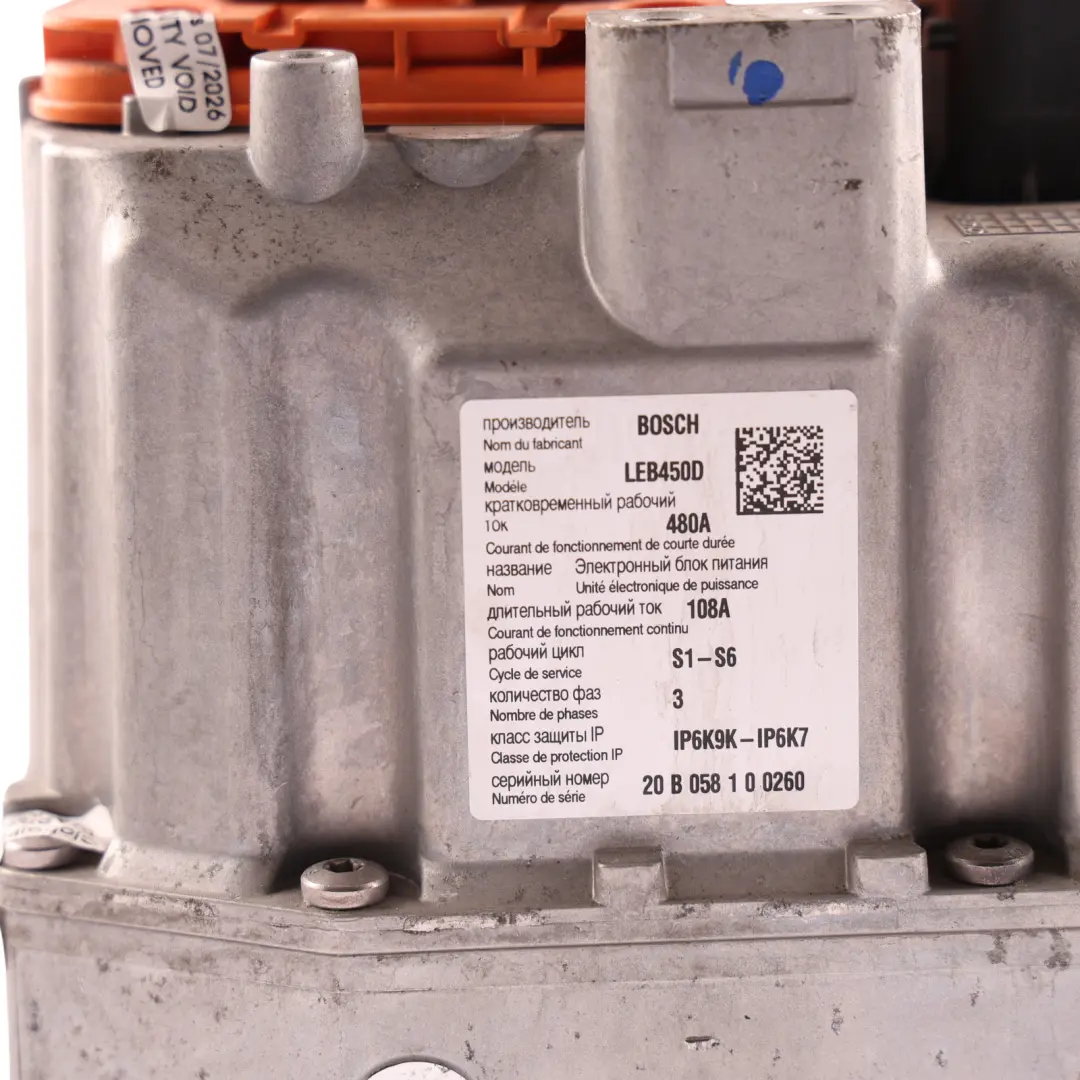

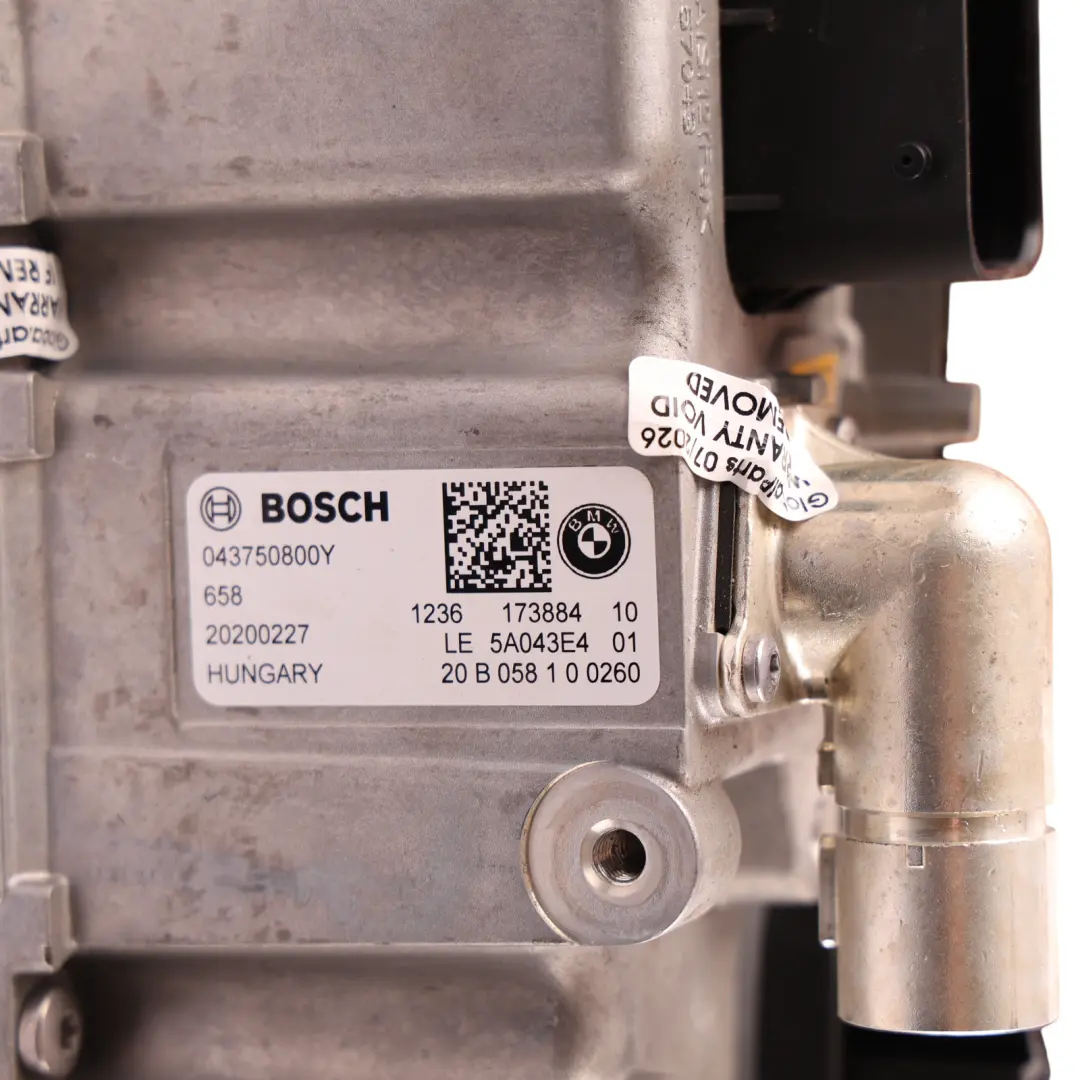

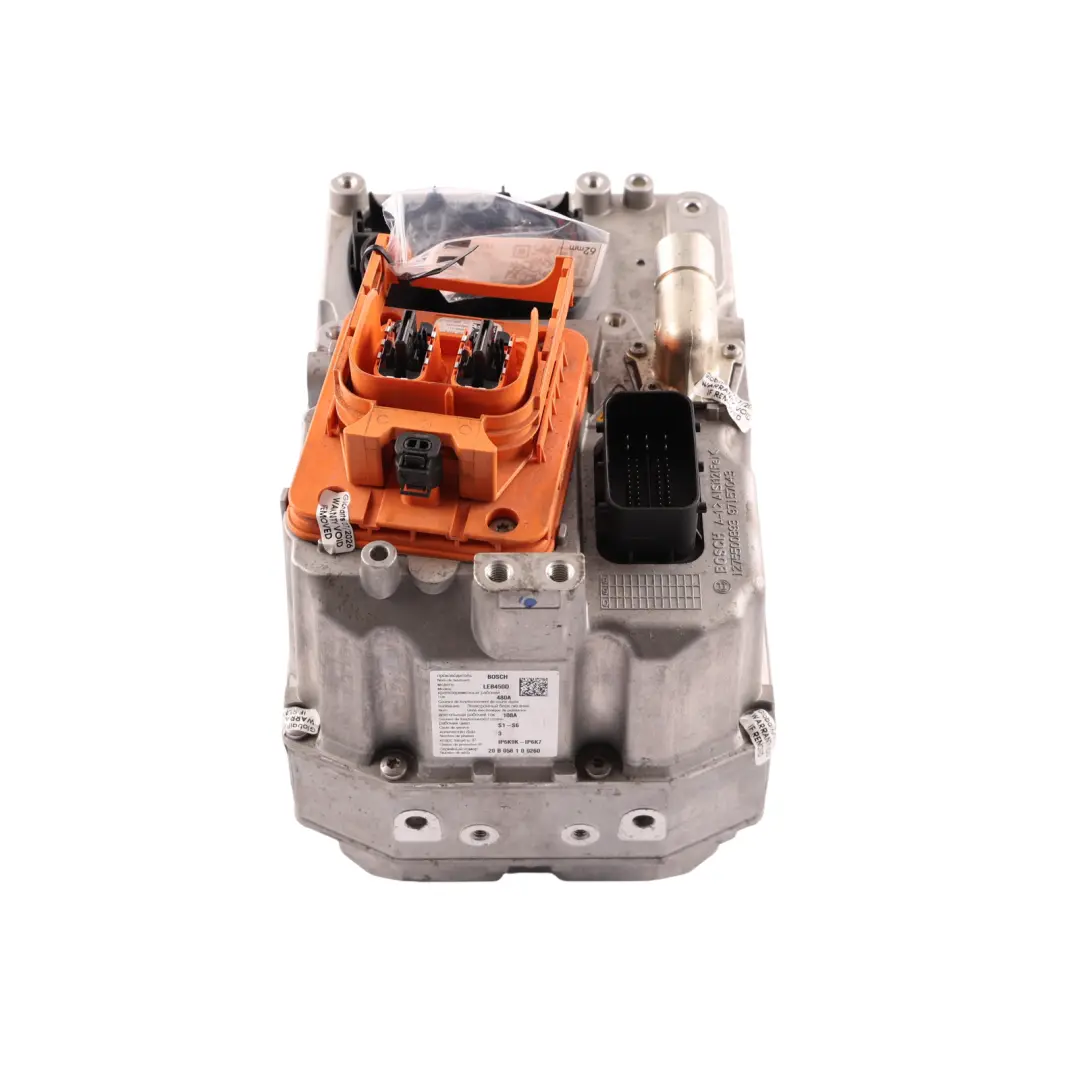

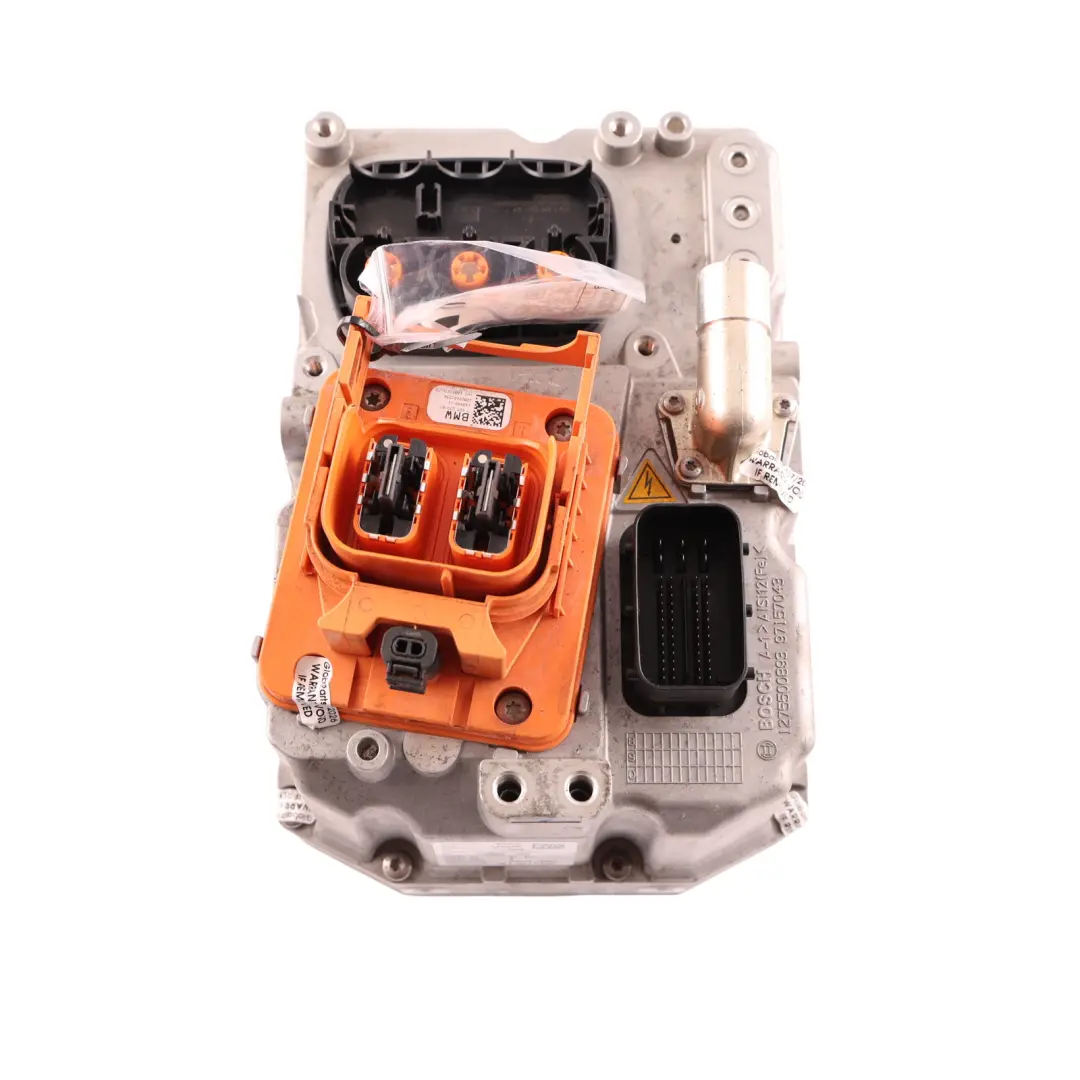

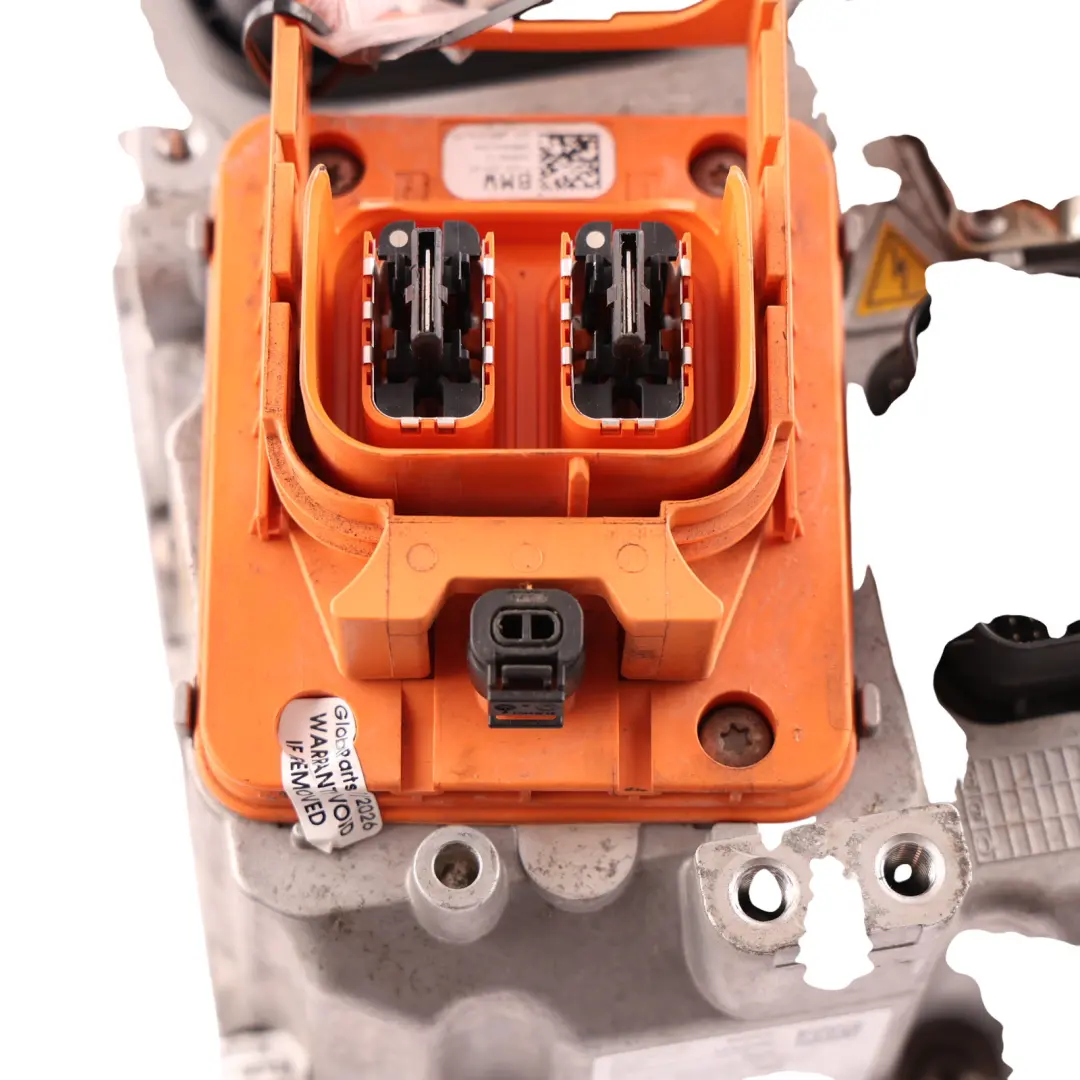

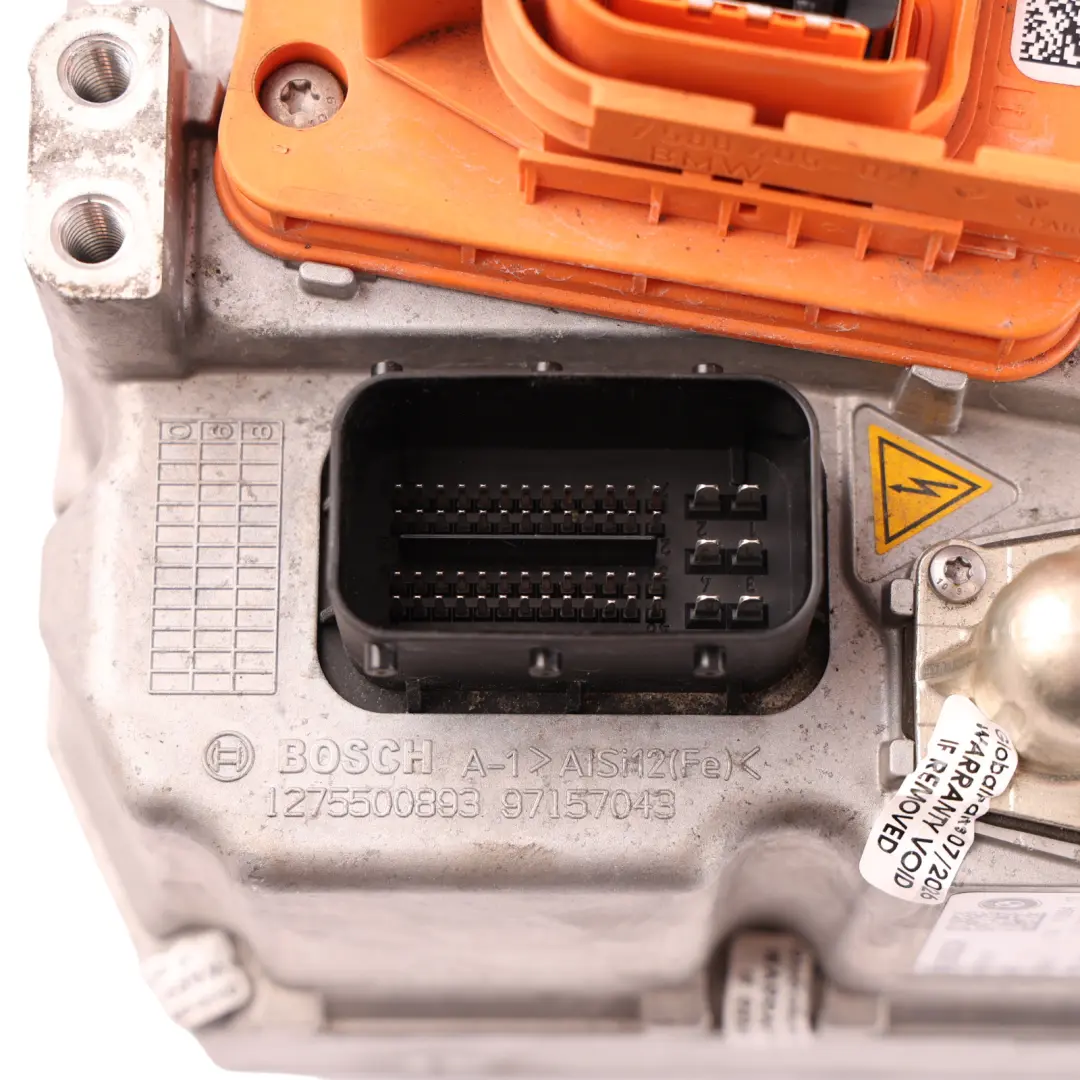

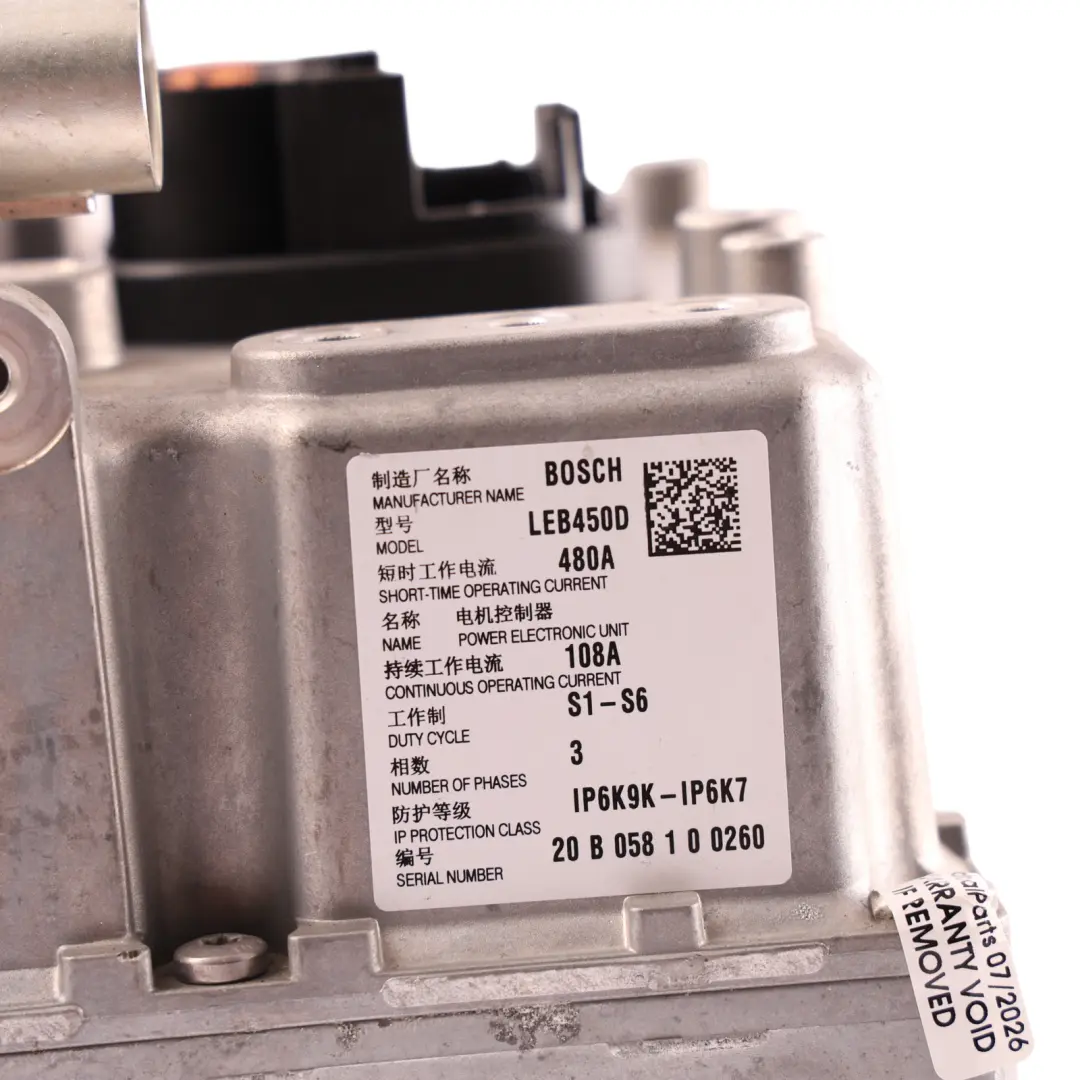

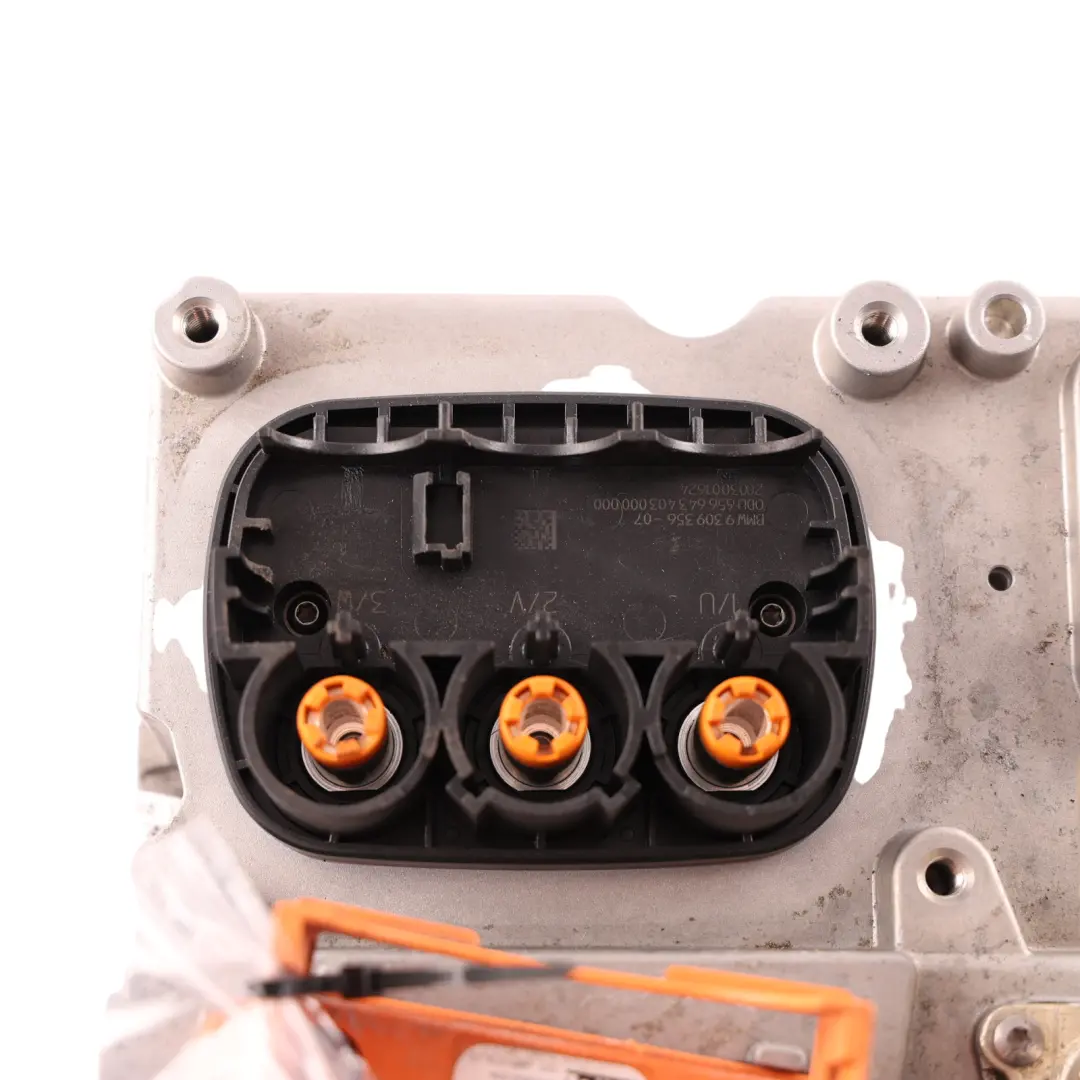

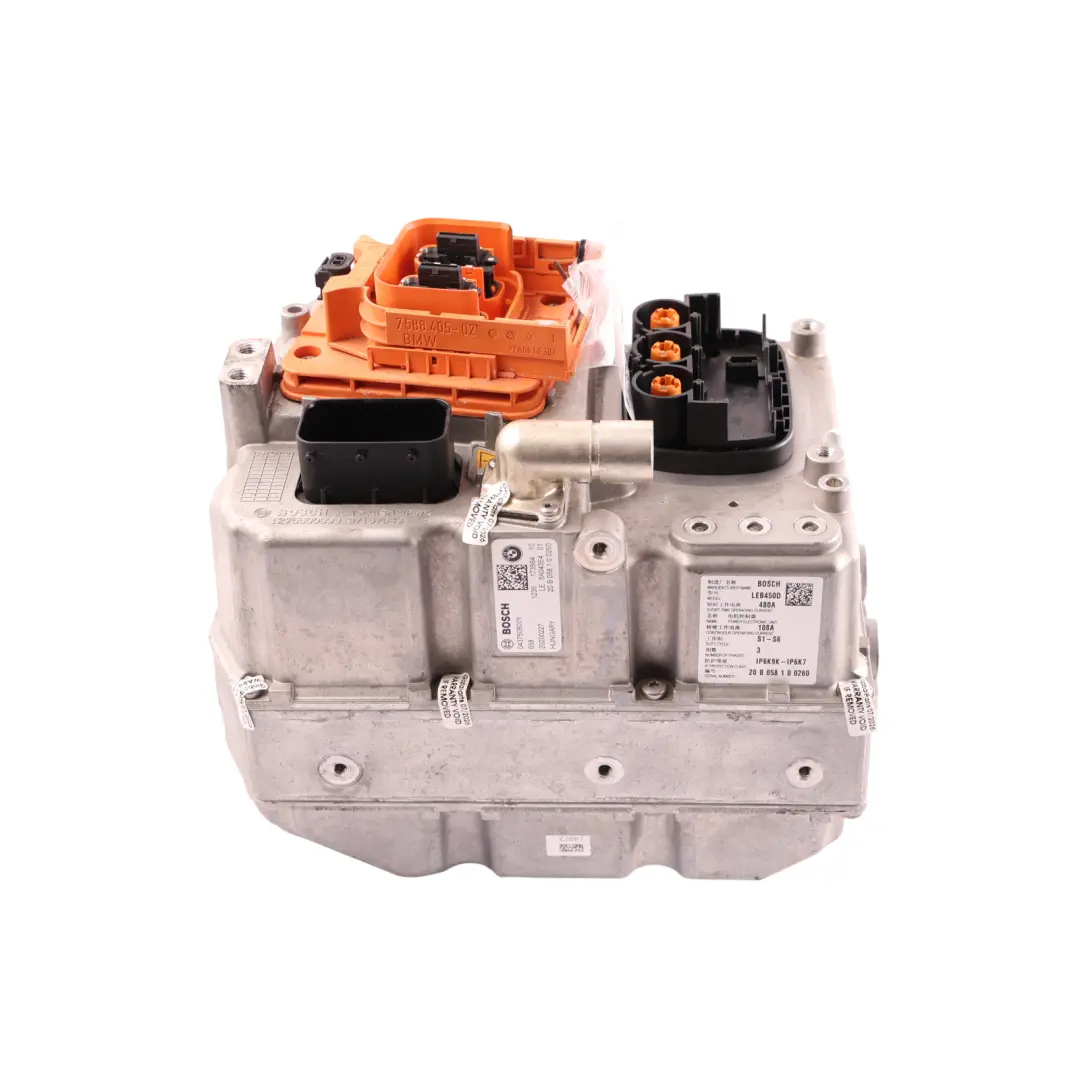

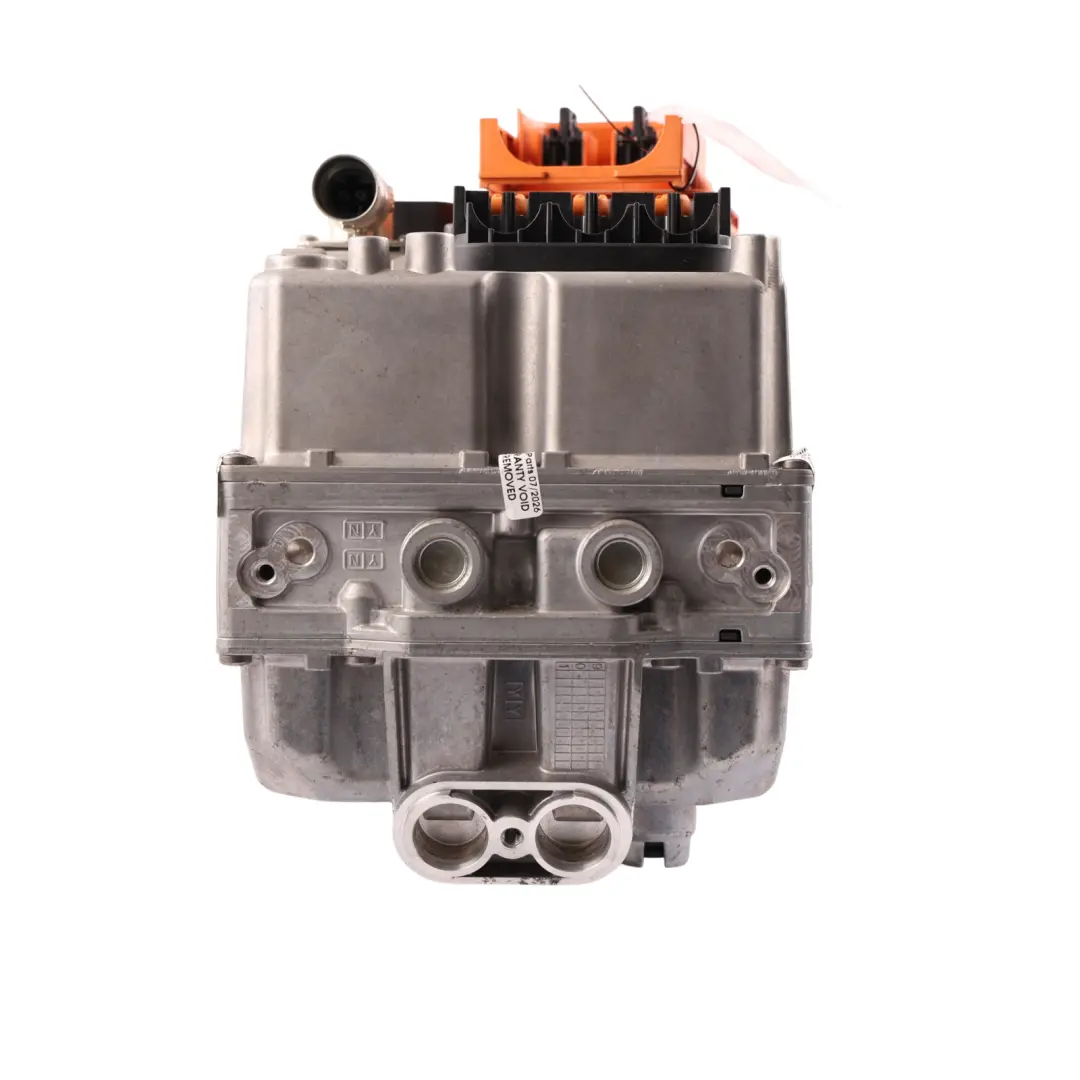

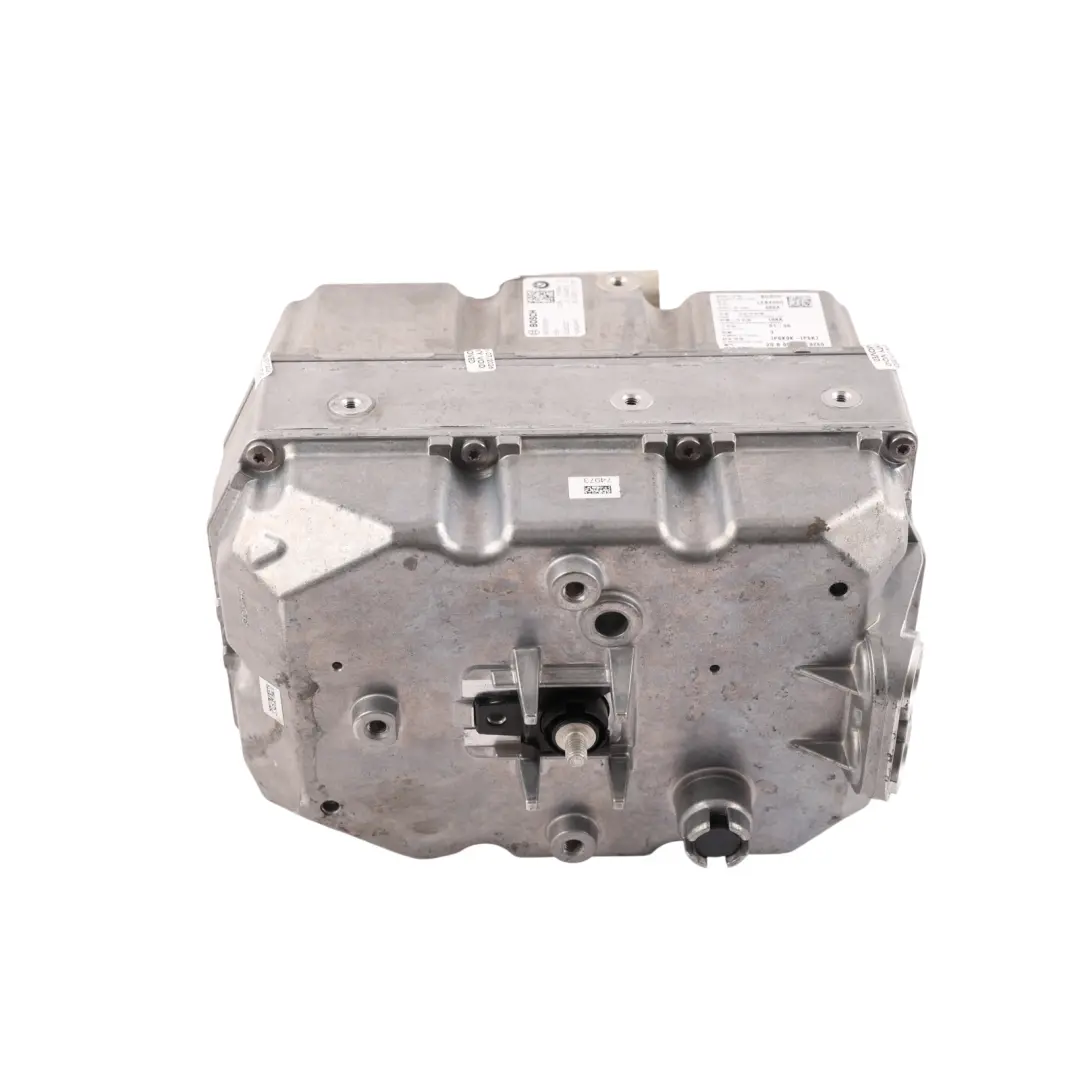

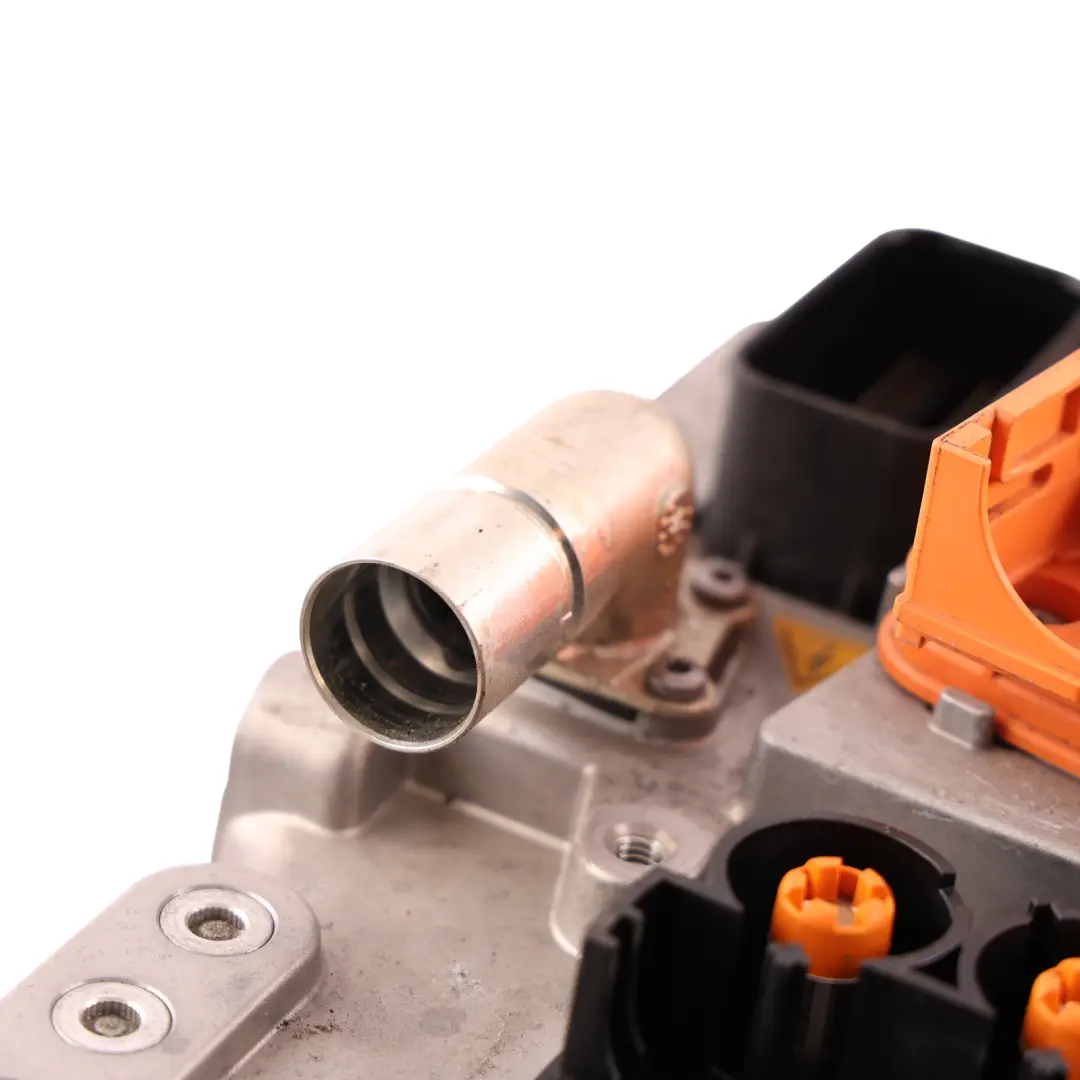

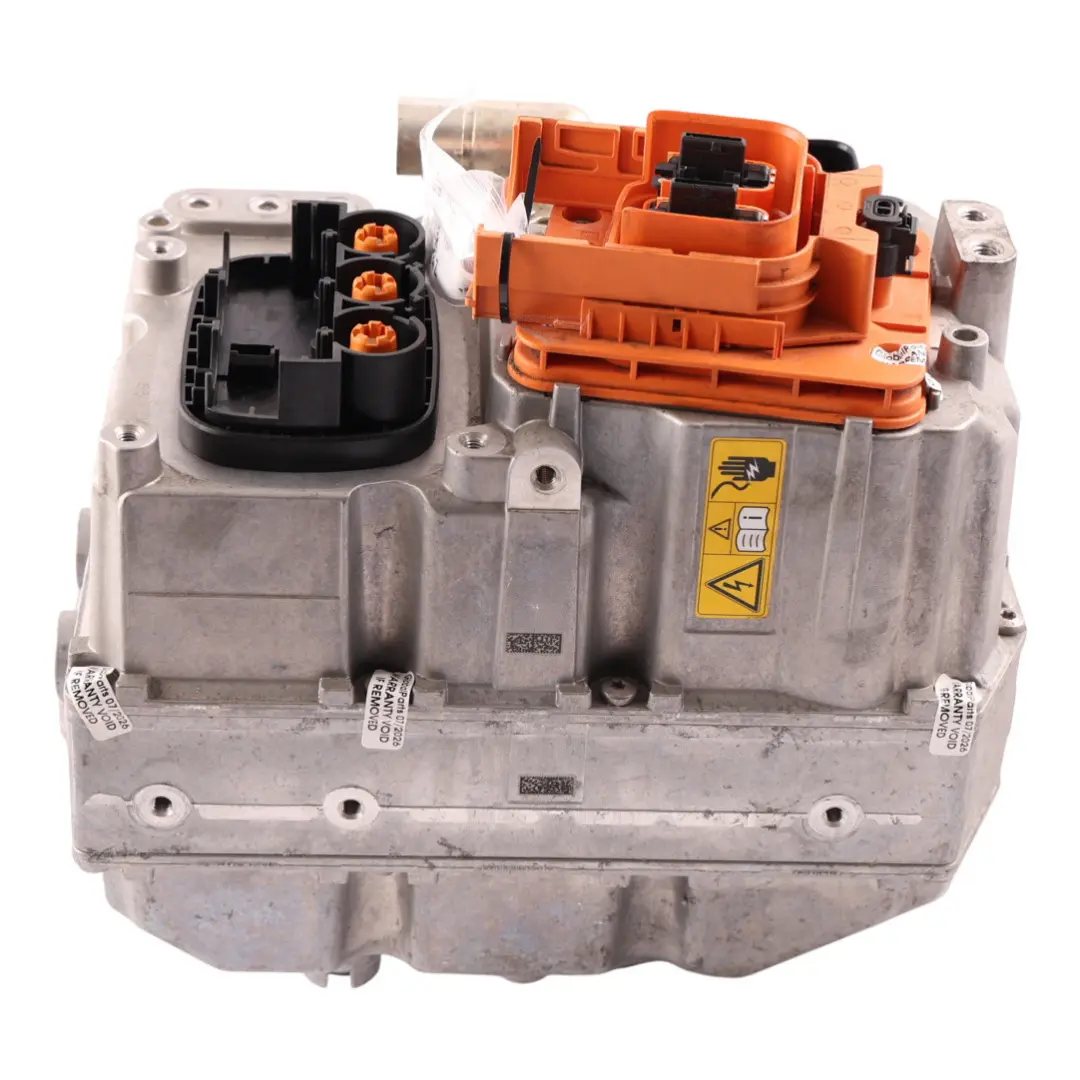

BMW G20 G21 330e Hybrid High Voltage Battery Inverter Converter 5A043E4

BMW G20 G21 330e Hybrid High Voltage Battery Inverter Converter is a specialized high-voltage system component responsible for energy conversion between the traction battery and the hybrid drive. This component, designed for a plug-in hybrid vehicle with a gasoline engine, ensures stable cooperation between the internal combustion unit and the electrical system. Thanks to the use of an original BMW solution, the high-voltage system maintains proper operating parameters and predictable behavior under load.

Specifications and technical data

• SKU: 5A043E4
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 5A043E4
• Substitutable numbers: 12365A1EB88, 12365A043E4, 12365A043E9, 12369847308, 12369847309, 5A1EB88, 5A043E4, 5A043E9, 9847308, 9847309
• Fuel type: Petrol
• Part type: Power Inverter
• Category: Converters & Inverters

Purpose and function in the hybrid system

The described inverter-converter is part of the Converters and inverters group, responsible for the controlled processing of electrical energy in the BMW 3 Series G20/G21 generation hybrid vehicle in the 330e version. The element works with the high-voltage traction battery and the drive system, enabling efficient use of electrical energy during acceleration, recuperation, and driving in electric mode. A properly functioning converter translates into smooth switching of driving modes, stable drive operation, and predictable fuel consumption.

In a vehicle powered by gasoline and supported by an electric motor, this type of component is crucial for the safety of the high-voltage system, correct battery charging and discharging, and integration with the vehicle's control electronics.

Benefits of using an original BMW converter

Using an original BMW high-voltage converter in the 330e model allows for maintaining the factory characteristics of the hybrid drive. Proper matching to the vehicle's electrical architecture reduces the risk of controller errors, incorrect dashboard messages, or power drops in electric mode. For the user, this means:

• consistent cooperation of the combustion and electric system in various driving modes,
• stable charging and energy recovery parameters during braking,
• preservation of factory energy management strategy settings,
• better predictability of range in hybrid and electric modes.

A used element from this group, coming from the original BMW production line, is a reasonable choice for high-voltage system repairs when maintaining compatibility with the existing installation and controllers is a priority.

Technical and assembly aspects

The high-voltage converter in the BMW 330e is integrated with the vehicle's energy management system, which is why maintaining compliance with the factory configuration is essential during replacement. In practice, this means the need to match it to a specific hybrid drive version and ensure cooperation with the appropriate control software. Professional installation includes:

• correct connection of high-voltage and low-voltage cables,
• adherence to safety procedures for high-voltage systems,
• potential adaptation or coding in the BMW diagnostic system,
• verification of system operation after installation (no errors, stable operating voltages).

Thanks to this, the converter can work in the system again as an element ensuring proper energy processing between the battery and the drive, without interfering with the operation of other modules.

Application in gasoline-hybrid vehicles

In the hybrid BMW 330e with a gasoline engine, the described element acts as a central link between the high-voltage battery and the electric drive. It is responsible for energy conversion in both directions – both when delivering power to the electric motor and during recuperation. A properly selected converter helps maintain:

• efficient switching of driving modes (electric, hybrid, combustion support),
• stable traction battery operating parameters,
• proper cooperation with the cooling and high-voltage protection system.

For workshops specializing in hybrid drive service, this is a component that directly affects vehicle comfort and the long-term reliability of the entire high-voltage system.

Condition, origin, and fitment

The offered converter comes from the used BMW parts group, which allows for economical repair of the hybrid system while maintaining the manufacturer's original specification. Before installation, it is recommended to always verify compatibility with the specific vehicle equipment version and consult the selection of the element with service documentation or a specialized BMW service to ensure full compatibility with the existing installation.
