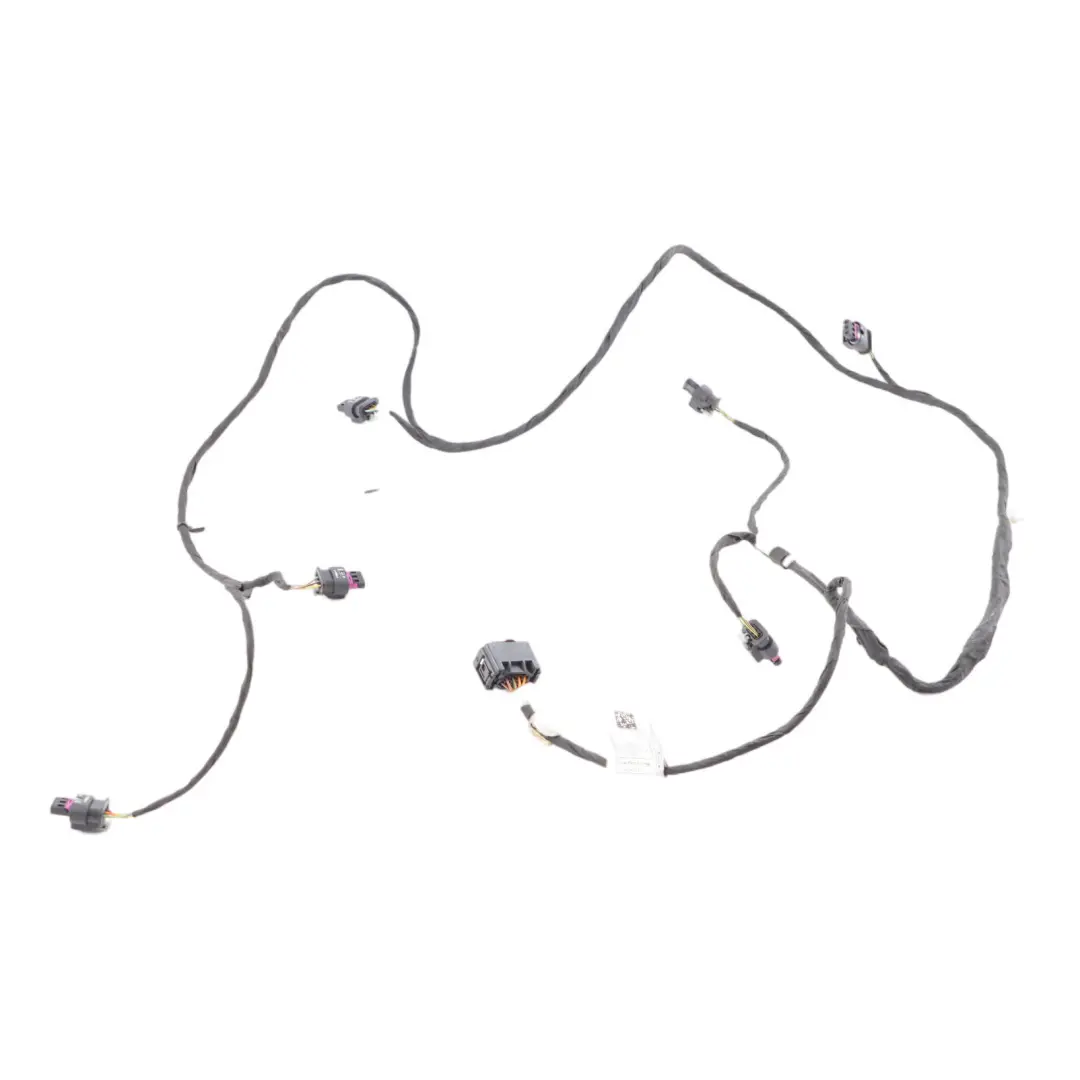

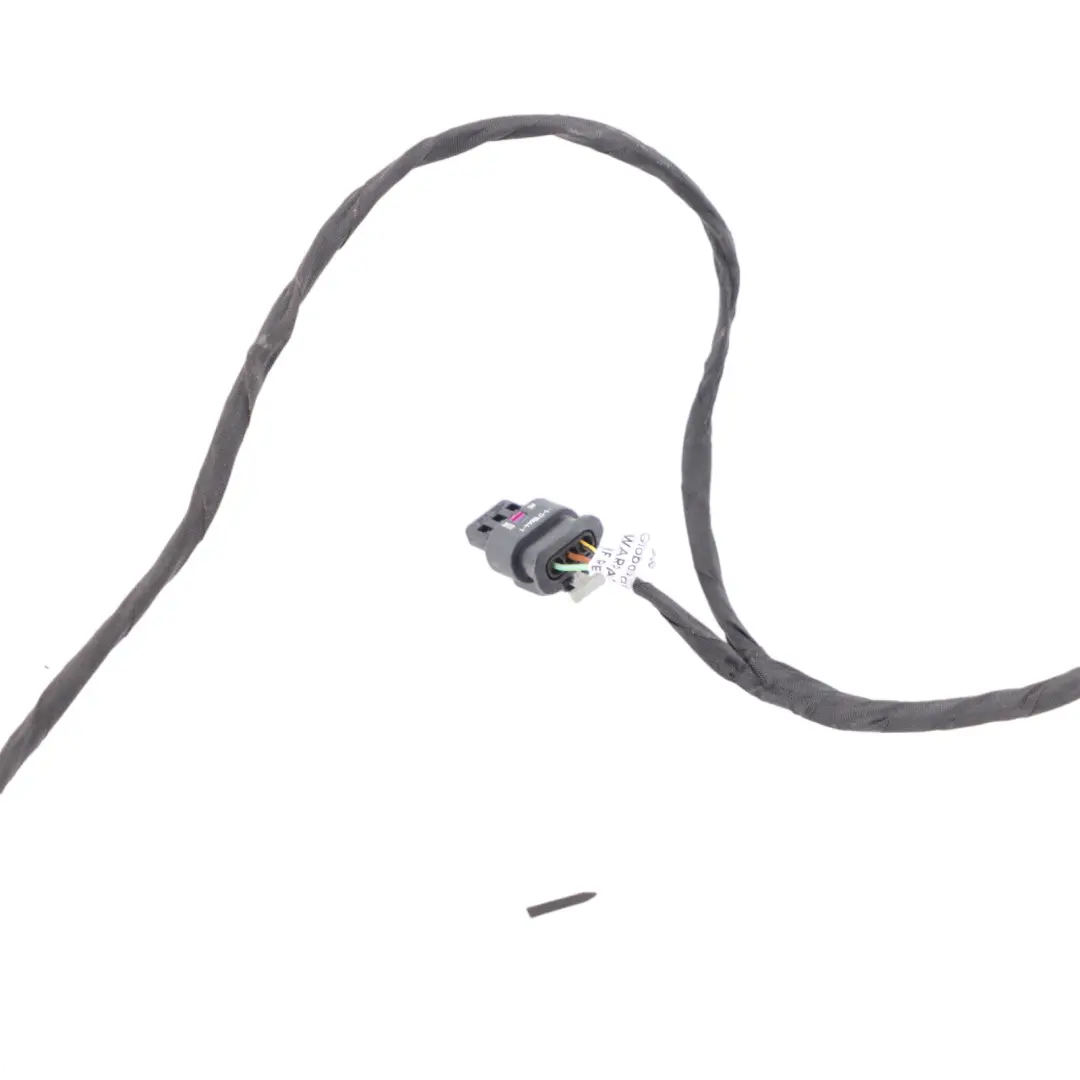

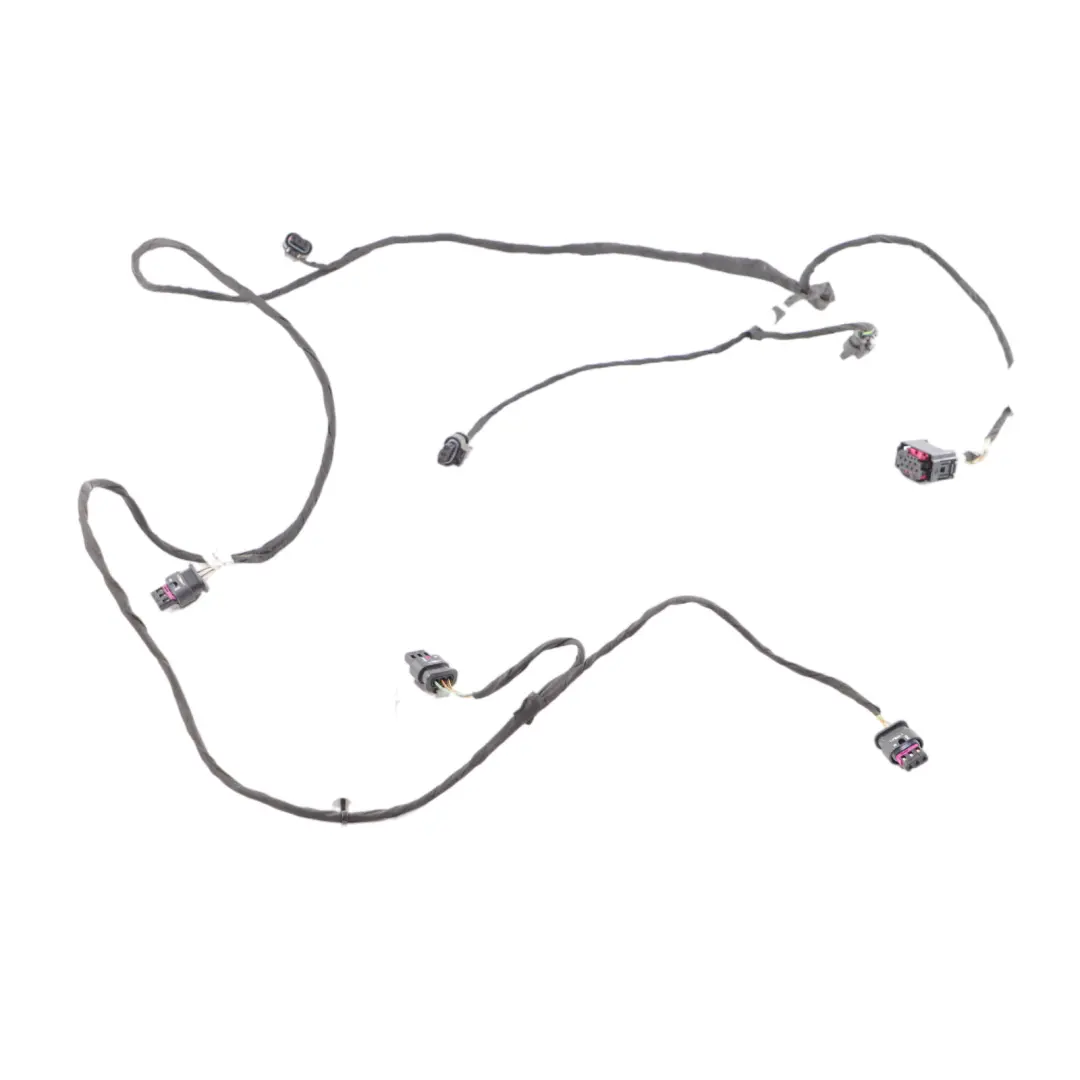

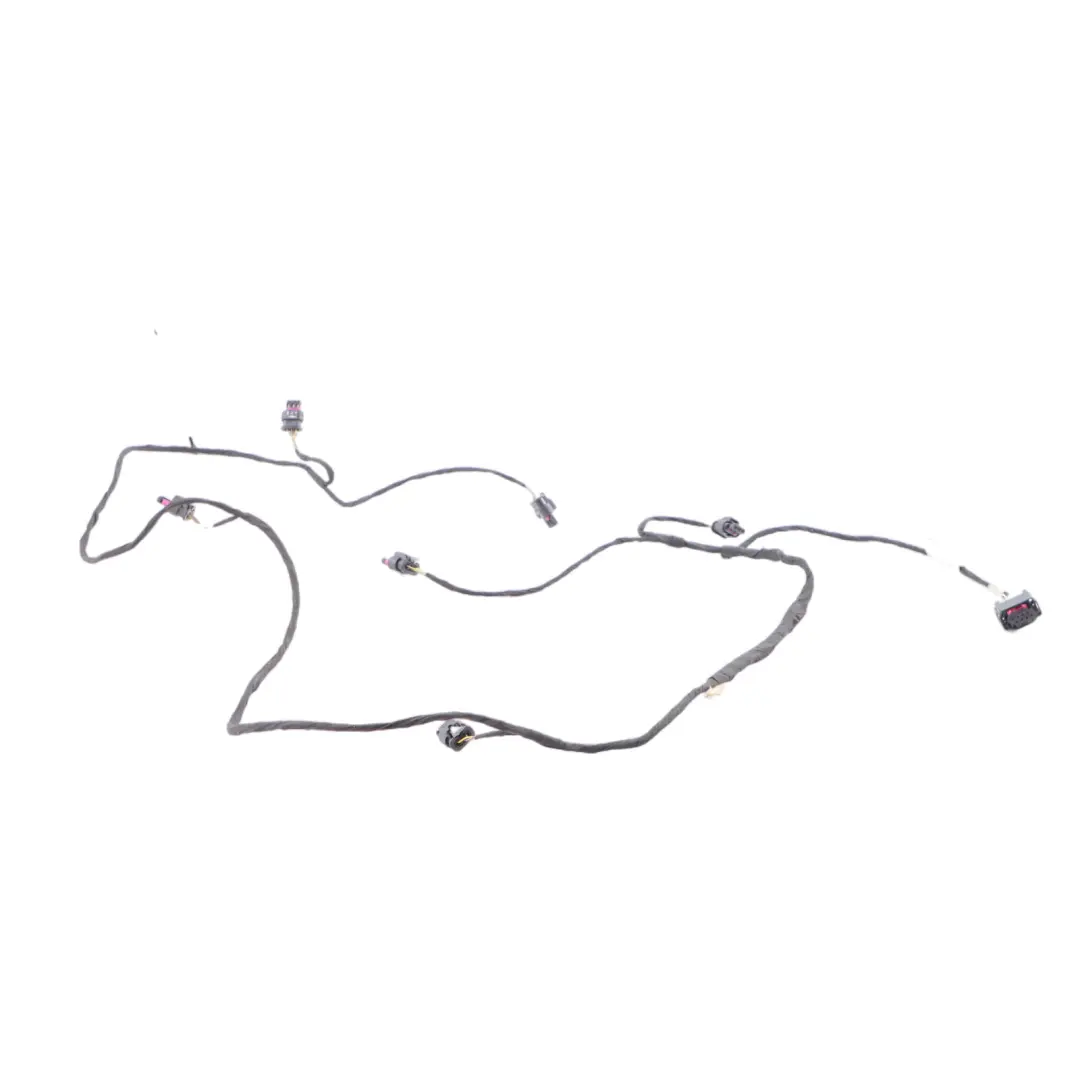

PDC Wiring BMW G30 G31 LCI Rear Bumper Parking Sensor Harness Loom 5A0A1D3

PDC Wiring BMW G30 G31 LCI Rear Bumper Parking Sensor Harness Loom is an original PDC installation component, designed for precise connection of sensors to the vehicle's factory wiring. By maintaining the manufacturer's specifications, the installation remains compatible with the factory electrical architecture, which reduces the risk of system errors and diagnostic issues. It is a practical solution for post-collision repairs, bumper replacement, or restoring the full functionality of the parking assistant.

Specifications and technical data

• SKU: 5A0A1D3
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 5A0A1D3
• Substitutable numbers: 5A0A1D3, 61525A0A1D3
• Location on the vehicle: Rear
• Category: Bumpers & Reinforcements

Purpose and function in the PDC system

The presented harness is an installation component responsible for operating the parking sensors in the rear of the vehicle. Mounted in the bumper area, it ensures:

• a stable connection between the PDC sensors and the vehicle's wiring,
• proper routing of signals sensitive to interference,
• maintenance of the factory wire layout in the bumper zone.

Thanks to the use of an original harness, the parking assistance system maintains proper communication with control modules, which translates into reliable distance readings and correct operation of acoustic and visual signals.

Construction and fitment for BMW 5 Series G30/G31 LCI

The harness has been designed specifically for the BMW 5 Series G30/G31 generation body after the LCI facelift, taking into account the geometry of the rear bumper and mounting points. Properly selected wire lengths and connector placement facilitate installation and minimize the risk of mechanical stress during operation.

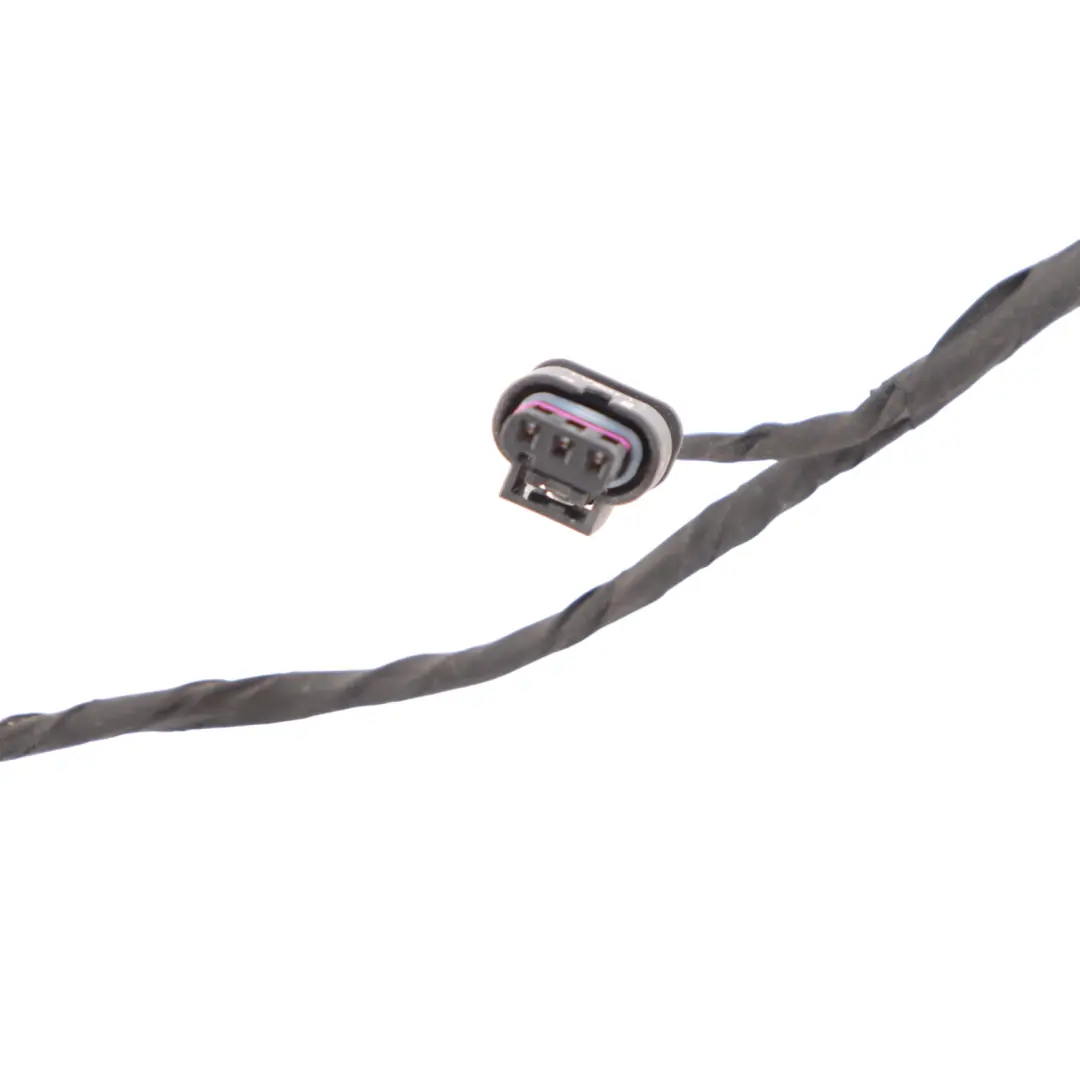

Dedicated parking sensor connectors allow for direct connection of PDC components without the need for modifications, soldering, or the use of adapters. This solution is particularly important for post-accident repairs, where connection reliability and resistance to external conditions in the bumper zone are crucial.

Service application and benefits of installation

Replacing the parking sensor harness is recommended in situations where there has been mechanical damage to the bumper, wire cutting, or contact corrosion. Using an original component allows you to:

• restore full functionality of the PDC system after rear body repairs,
• avoid issues with control unit memory errors resulting from unstable connections,
• maintain compliance with BMW factory electrical diagrams.

The used OEM component is a reasonable compromise between repair costs and maintaining high quality and vehicle compatibility. In practice, this means the possibility of an economical repair without sacrificing the original installation design.

Integration with other rear bumper components

During work on the rear of the vehicle, several components are often replaced simultaneously – from PDC sensors and harnesses to structural bumper elements. If you are planning a comprehensive repair or upgrade of the rear bumper zone in your BMW and need other parts from the same group, such as reinforcement beams, brackets, or guides, check the available parts in the BMW Bumpers and reinforcements category.

Summary

The PDC Wiring BMW G30 G31 LCI Rear Bumper Parking Sensor Harness Loom is a practical choice for repairing the PDC system in the rear of the vehicle. The original design ensures proper fitment to the bumper, correct wire routing, and stable cooperation with factory control modules. For drivers who are also considering improving interior ergonomics and vehicle handling comfort, the article Personalization and ergonomics – when is it worth replacing the steering wheel with a premium model?, which discusses the possibilities of upgrading the steering system in premium cars, may be helpful.
