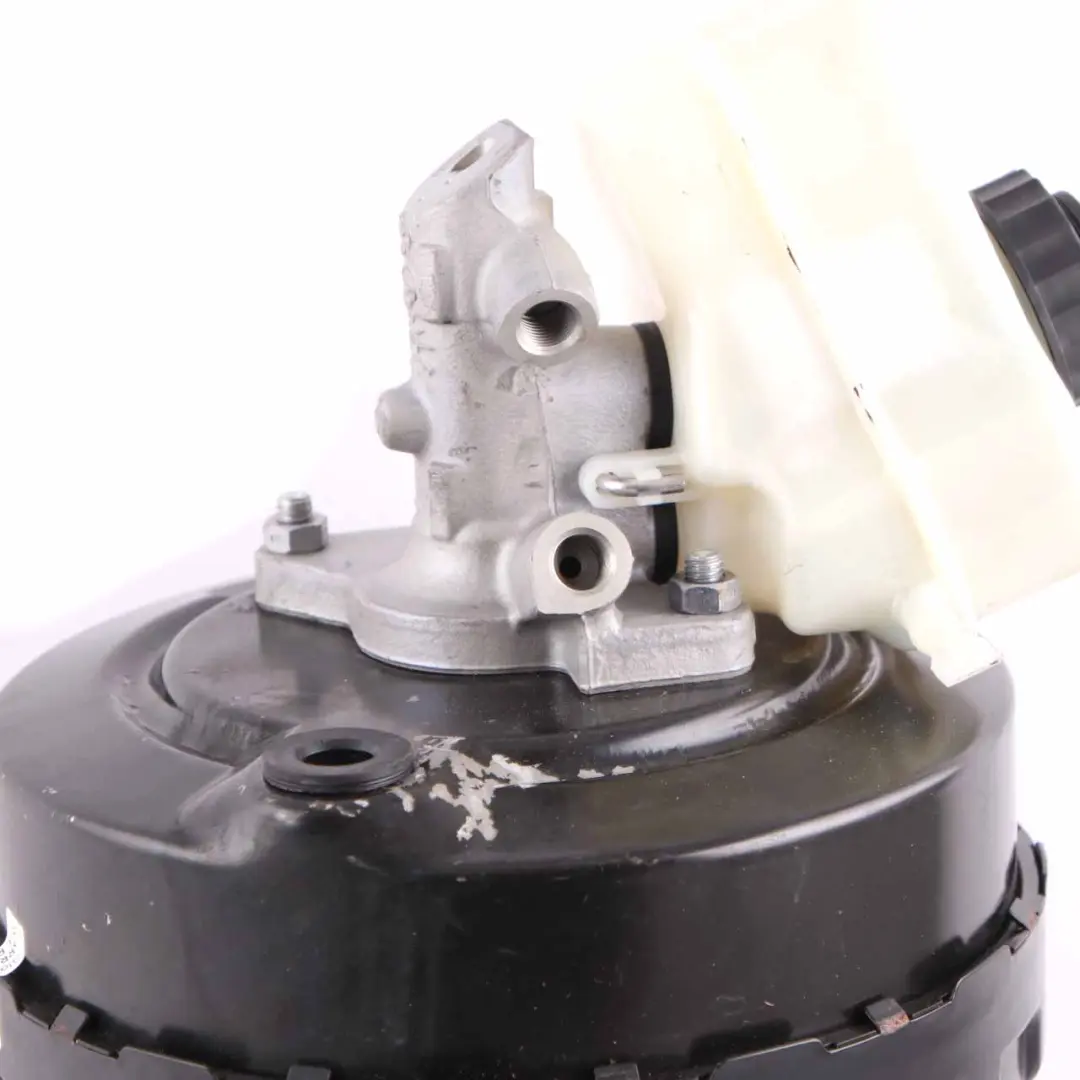

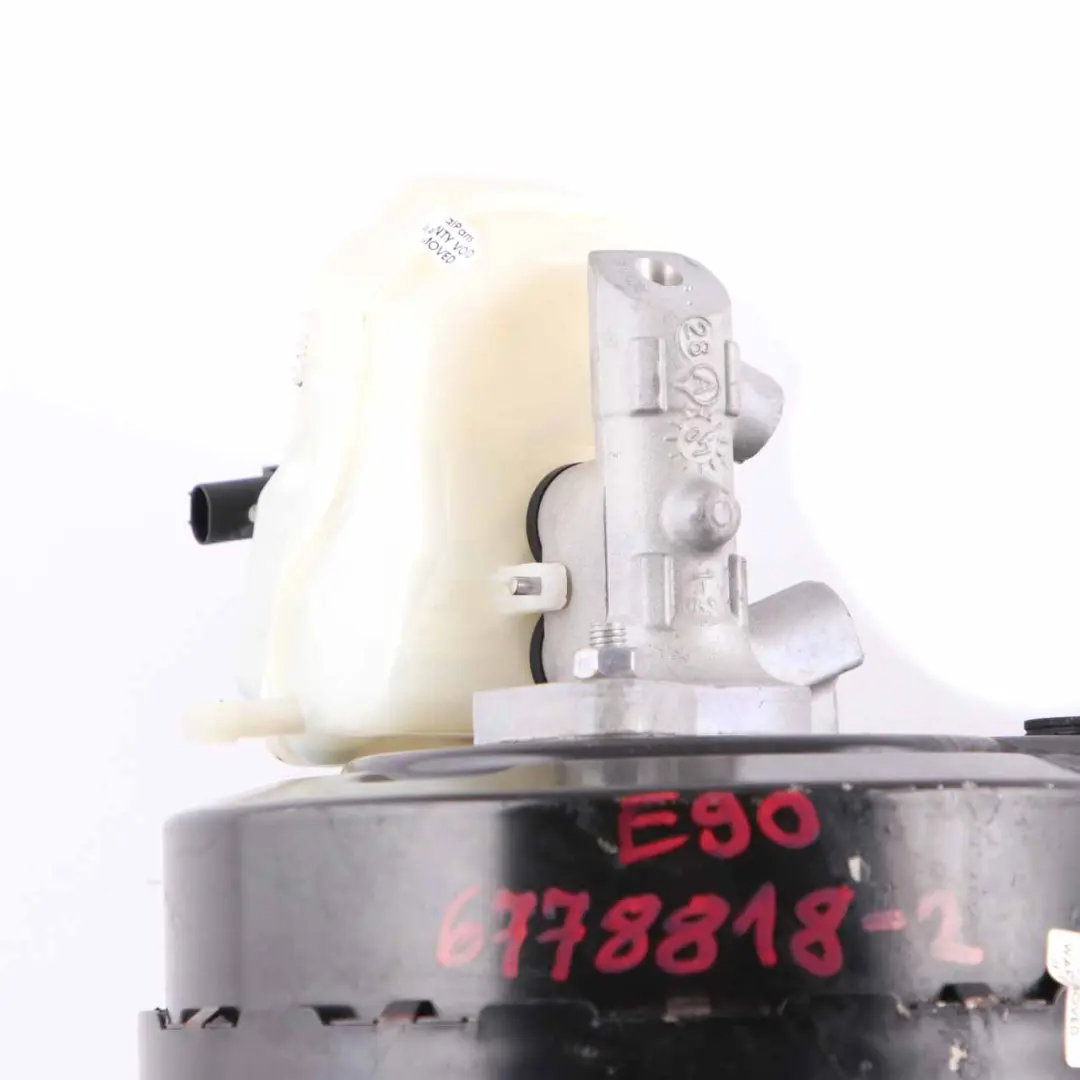

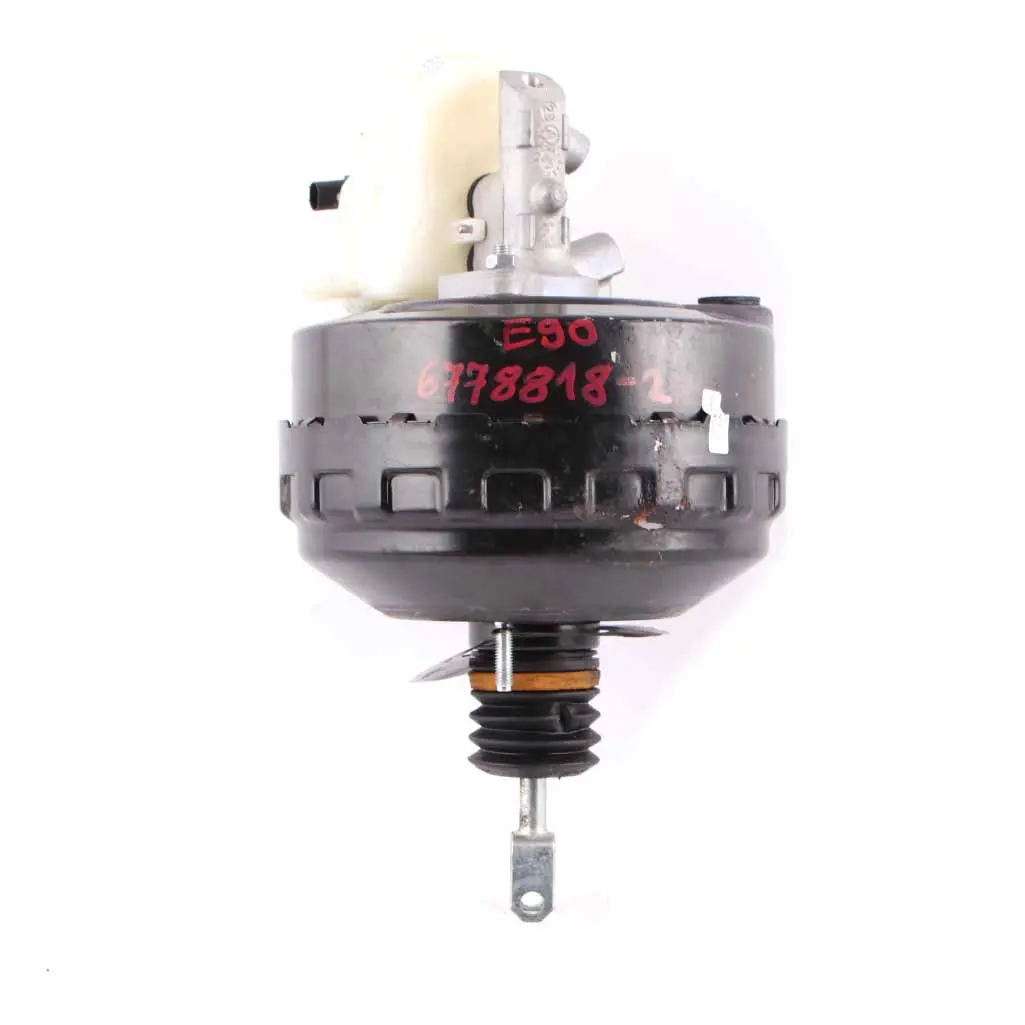

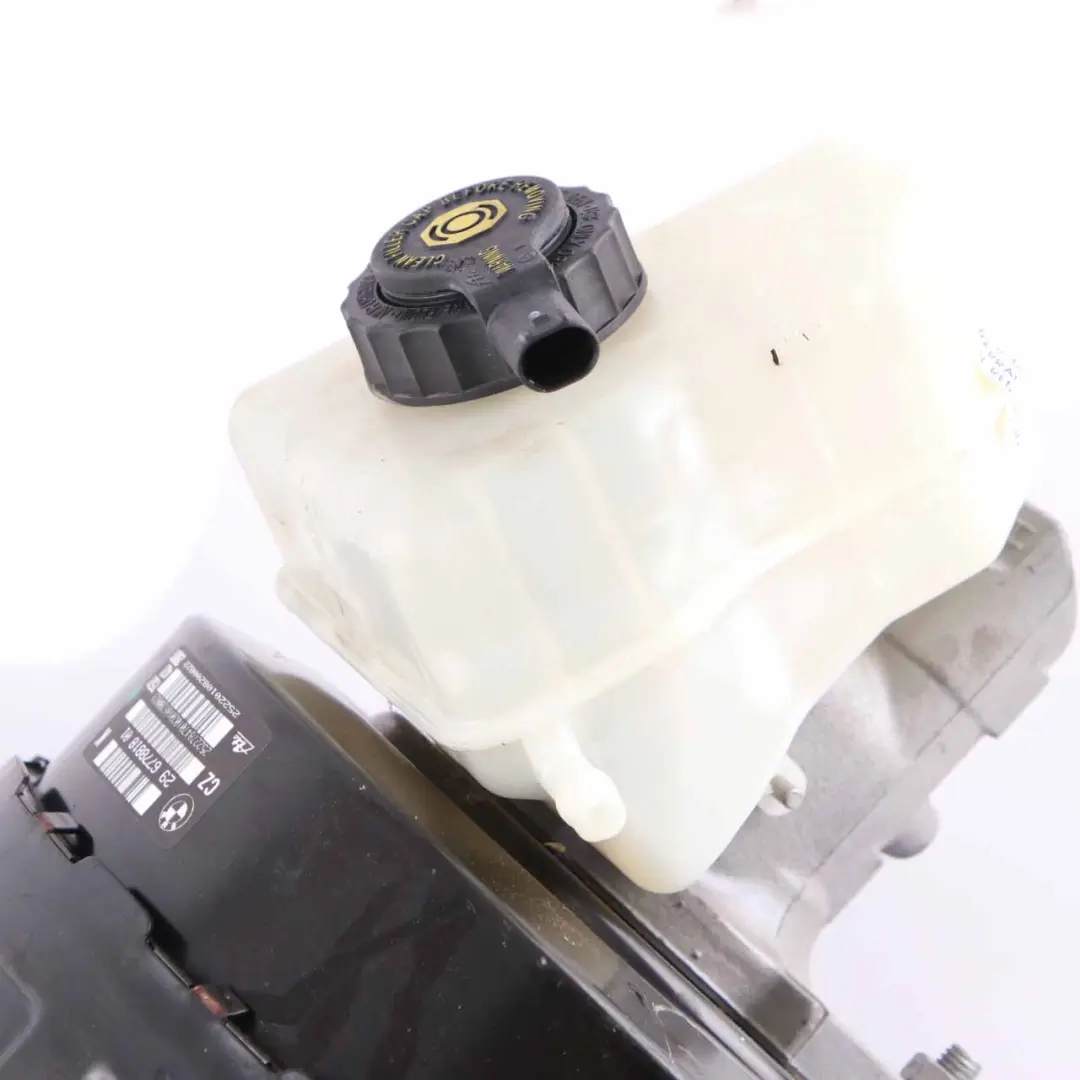

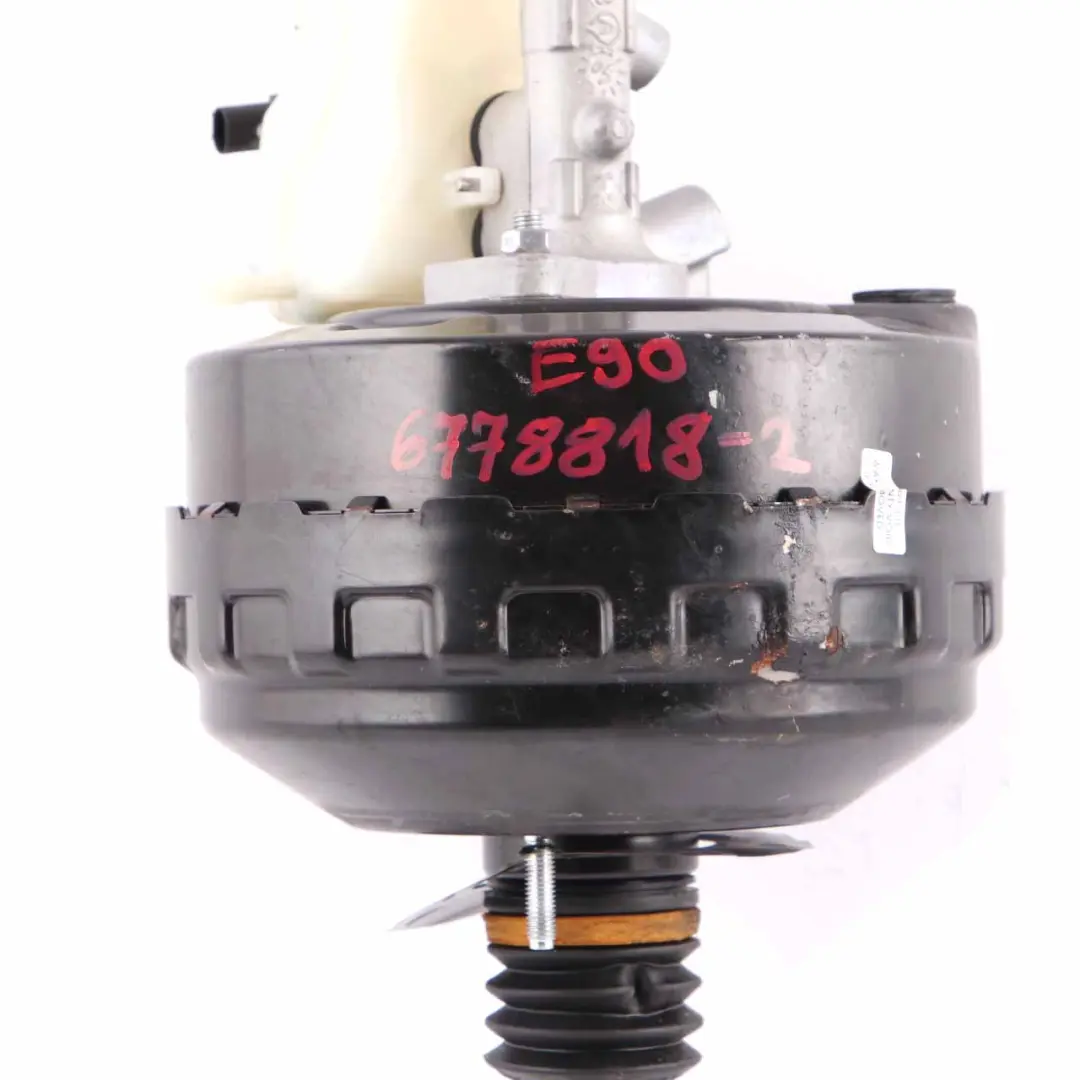

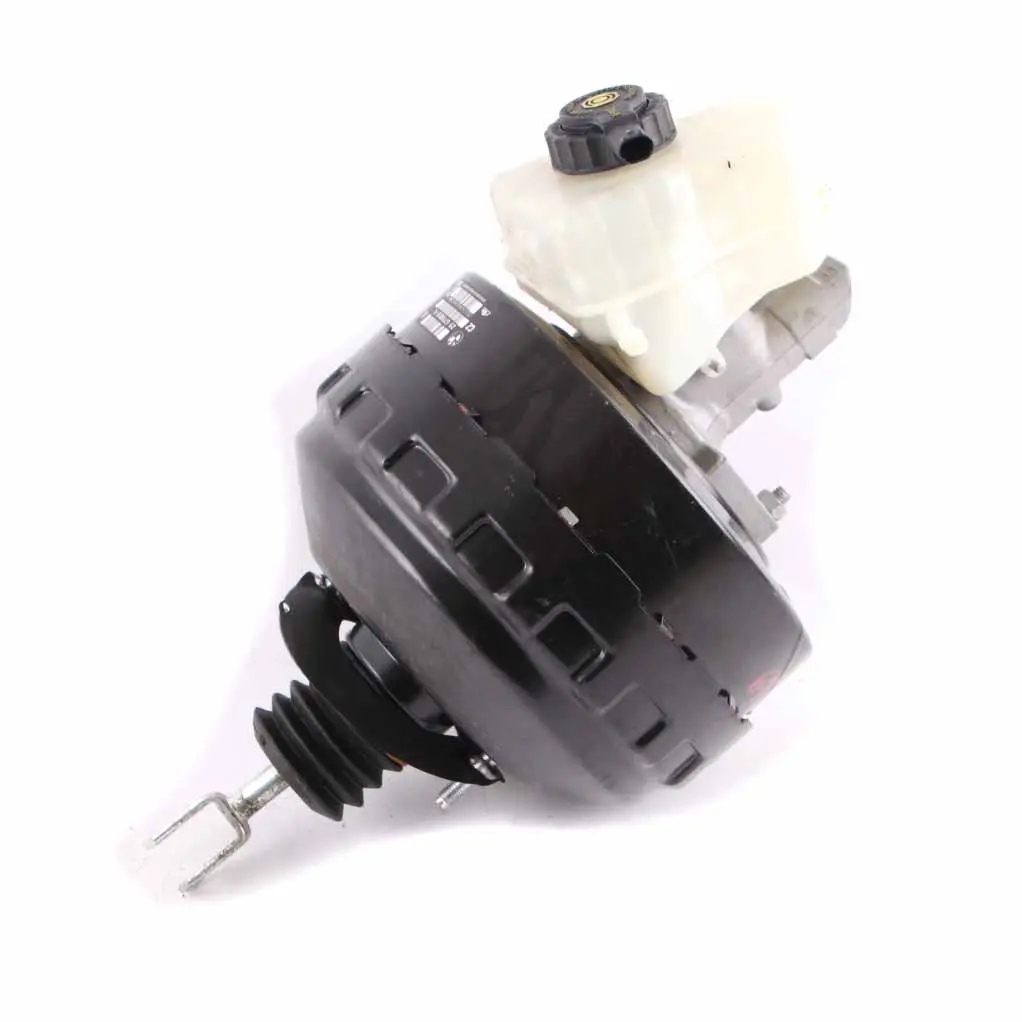

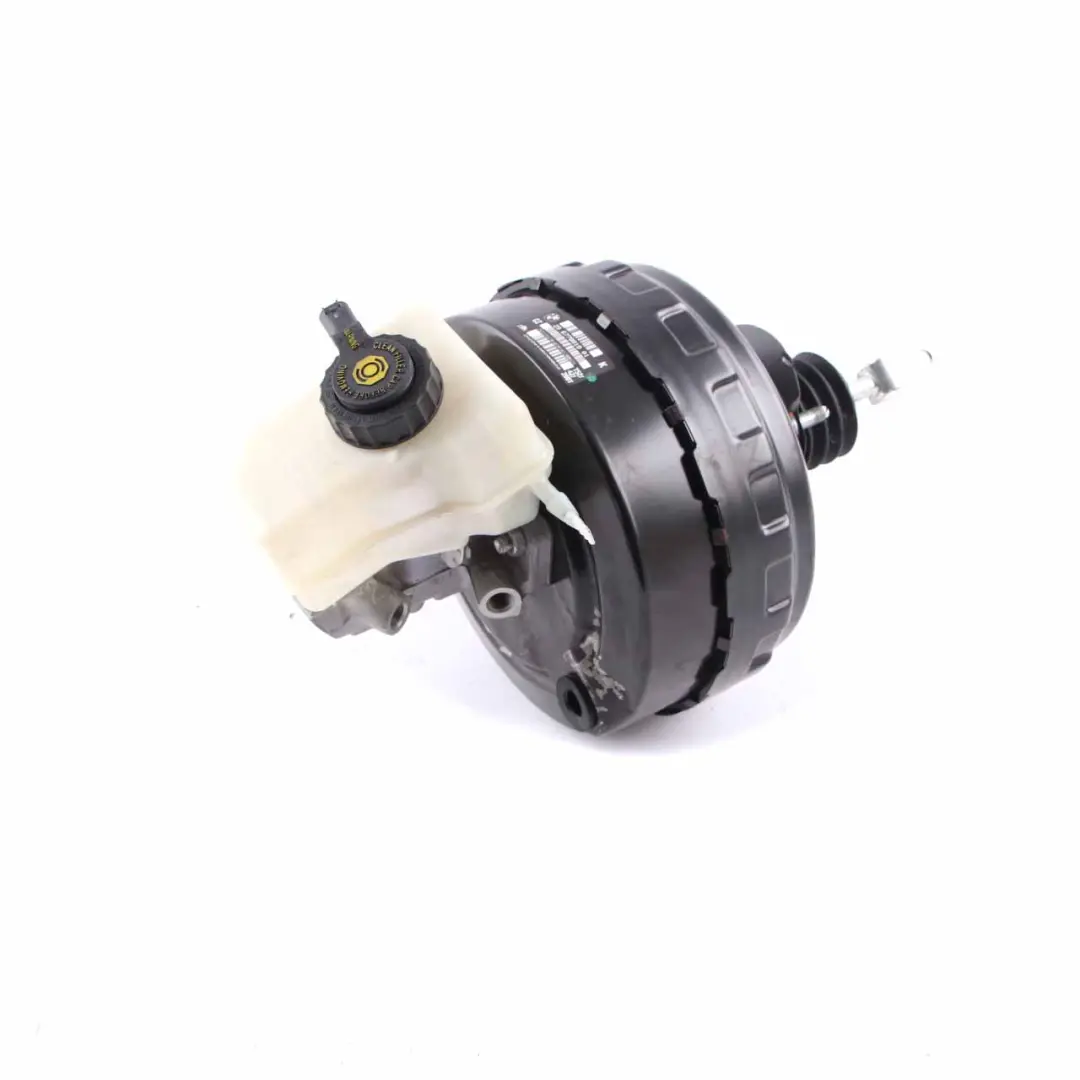

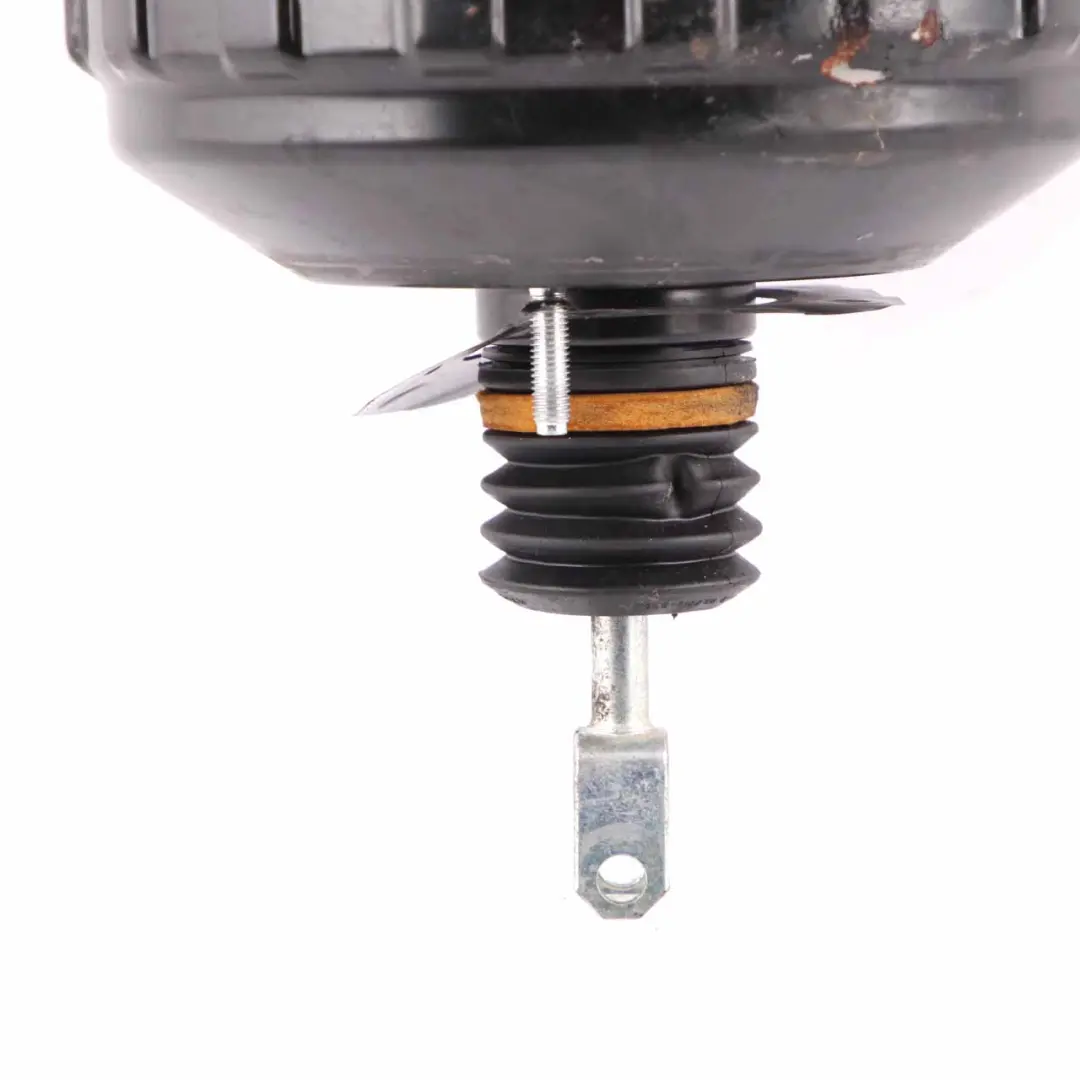

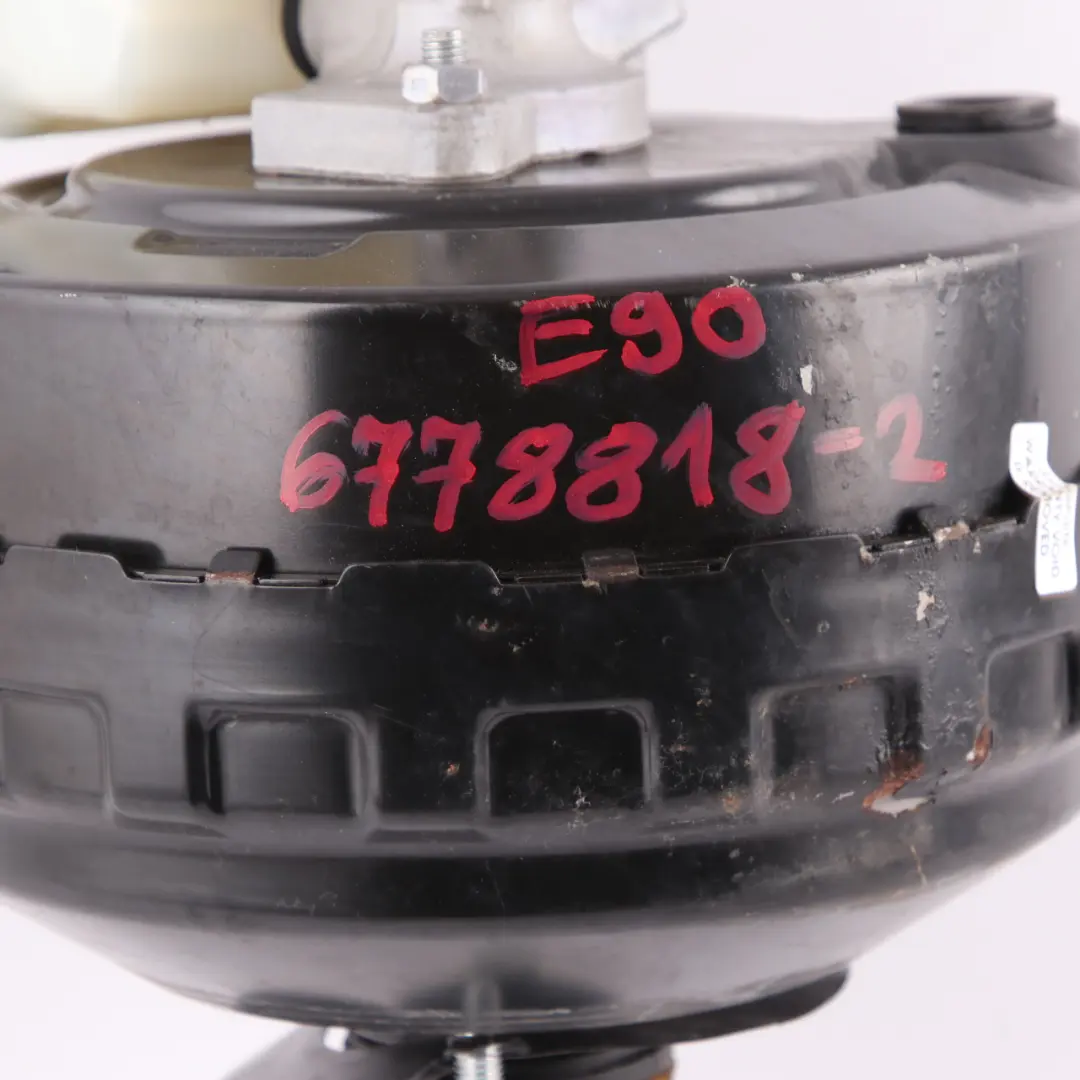

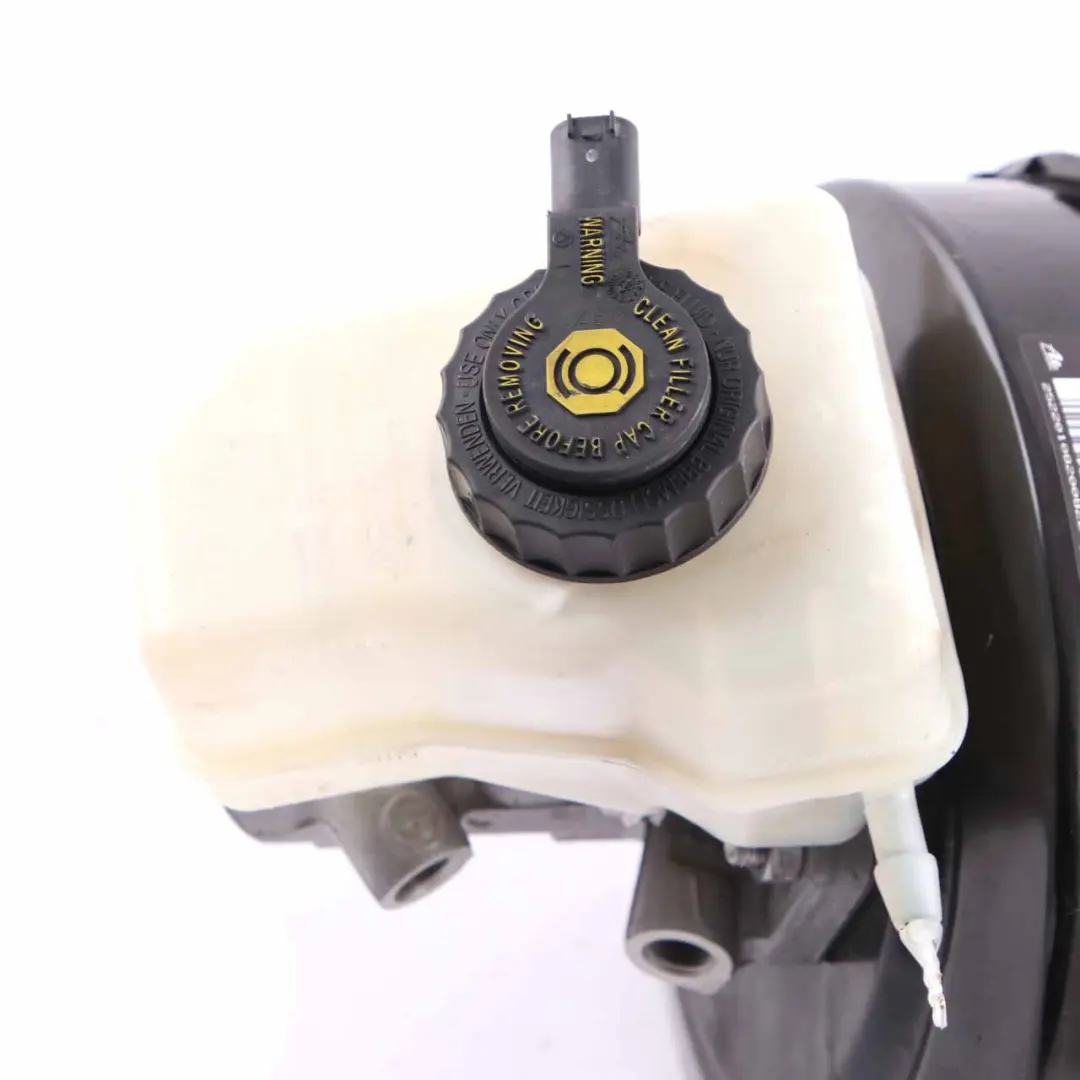

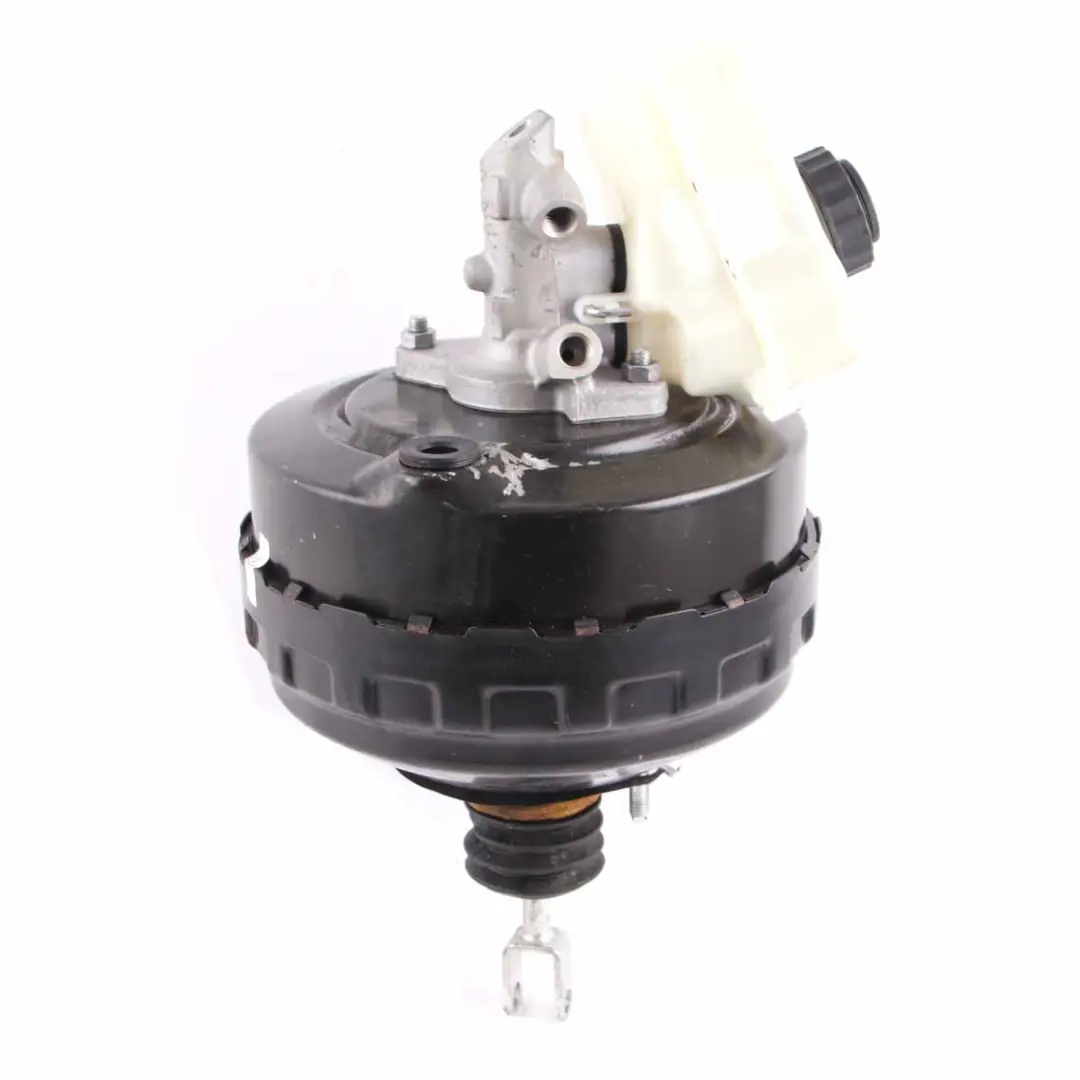

Brake Servo BMW E90 E91 E92 E93 Unit Master Cylinder 6778818

Brake Servo BMW E90 E91 E92 E93 Unit Master Cylinder is an original BMW braking system component designed for the 3 Series E9x generation. As part of the Brake servos and pressure regulators group, it ensures stable transmission of brake pedal pressure into system pressure, resulting in predictable and comfortable braking. This used OEM component is a sensible choice for servicing the factory braking system when you want to maintain the correct pedal operating characteristics.

Specifications and technical data

• SKU: rhd-6778818-2
• Mark: BMW (Genuine OE)
• Condition: Used

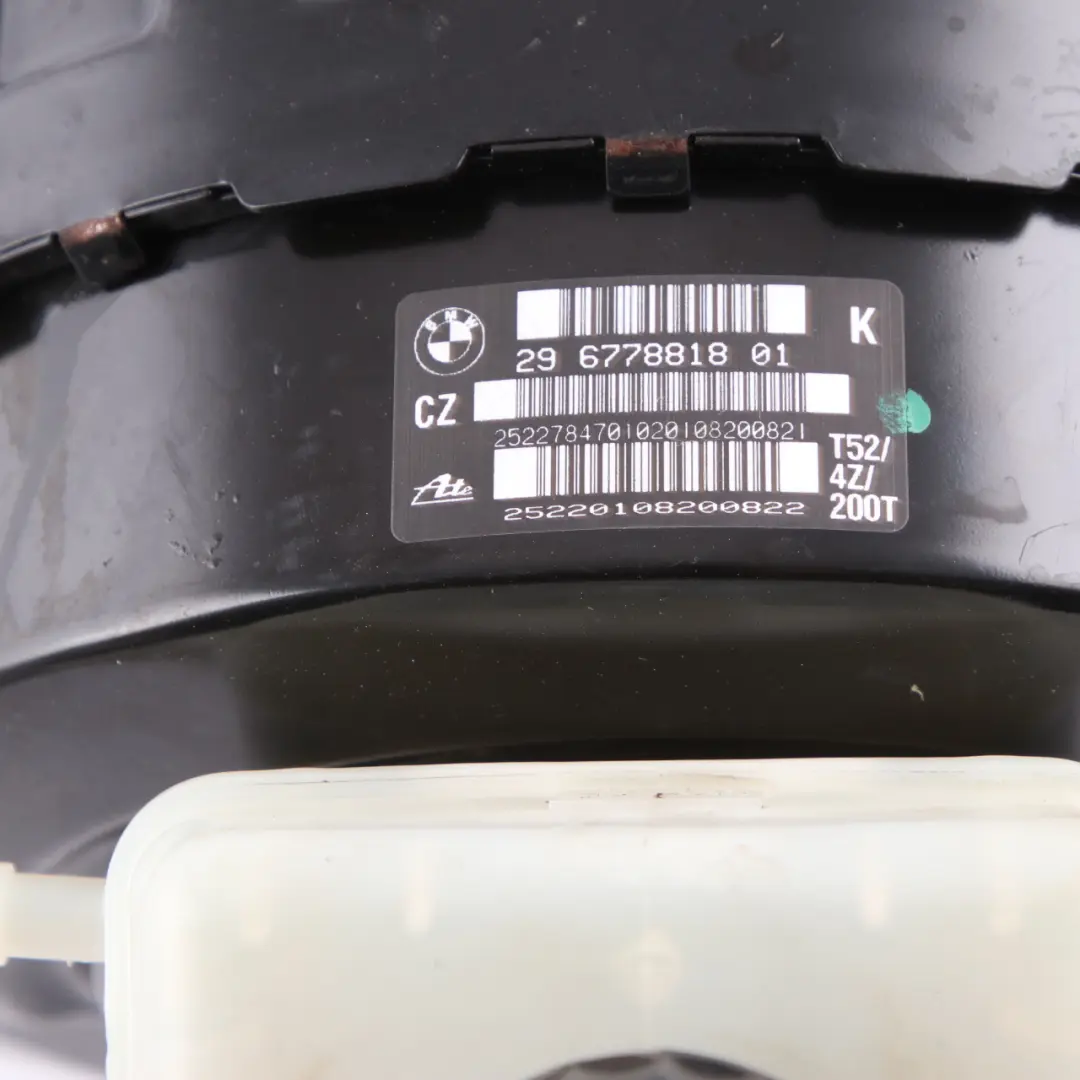

• OEM Part Number: 6778818
• Substitutable numbers: 6778818, 34336779733, 6779733, 34336785665, 6785665, 34326764117, 34336777341, 6764117, 6777341, 34336779722, 6779722, 34316764132, 6764132, KD
• Category: Brake Servos

Purpose and function in the braking system

The presented brake servo integrated with the master cylinder is responsible for assisting braking force in BMW E90, E91, E92, and E93 models. It works with the engine's vacuum system, reducing the driver's effort required to achieve the appropriate pressure in the brake lines. As a result, the brake pedal remains predictable, and the system's response is consistent with the manufacturer's original design.

The original BMW construction guarantees a proper fit to the bulkhead mounts, correct lever geometry, and compatibility with the factory brake pedal and lines. This is particularly important for maintaining even brake force distribution between the axles and stable operation of the ABS/DSC system.

Benefits of using an original BMW servo

Using a factory servo with a master cylinder in the 3 Series E9x allows you to maintain braking parameters consistent with the manufacturer's design. In practice, this means:

• consistent brake pedal feel – no excessive softness or overly aggressive "grabbing" under light pressure,
• proper cooperation with safety systems (ABS, traction control, electronic stability control),
• maintaining the factory brake force distribution between the front and rear of the vehicle,
• easier diagnostics and service due to compliance with BMW technical documentation.

By choosing an original BMW brake servo, you minimize the risk of compatibility issues that may occur when using replacements with different operating characteristics.

Installation and operational characteristics

The component is designed for installation in place of the factory servo in the engine compartment bulkhead, maintaining original mounting points and connections to the brake pedal and brake lines. Consequently, service work can be performed in accordance with the procedures provided for the E90–E93 series, without the need for system modifications.

The used OEM component allows for economical repair of the braking system while maintaining high manufacturing quality. This solution is particularly beneficial during comprehensive brake system service, when discs, pads, or flexible lines are being replaced simultaneously.

Part selection and compatibility

The brake servo working with the master cylinder in the BMW 3 Series E9x comes in several OEM numbering variants and interchangeable numbers. In practice, this means that one reference can be used interchangeably with others, which facilitates the selection of the right part for a specific body configuration and engine unit. In the product's technical specification, you will find both the OEM part number and related reference numbers, which allow you to verify compatibility with your BMW.

To ensure a perfect fit, it is worth comparing the markings on the removed part with the data in the specification and using the manufacturer's catalogs or service documentation. This approach reduces the risk of installing the wrong servo variant, which could affect the braking system's performance characteristics.

Condition and use in vehicle service

The offered item is a removed part and is classified as a used OEM component. This is a good solution for users who want to restore the efficiency of the braking system while maintaining the original manufacturer's specification, without the need to invest in a new part. Such components are commonly used both in workshops specializing in the BMW brand and by informed users servicing their own cars.

If you are planning a comprehensive repair or upgrade of the braking zone in your BMW and need other elements from the same group, such as servos, pressure regulators, or related modules, check the available parts in the BMW brake servos and pressure regulators category.
