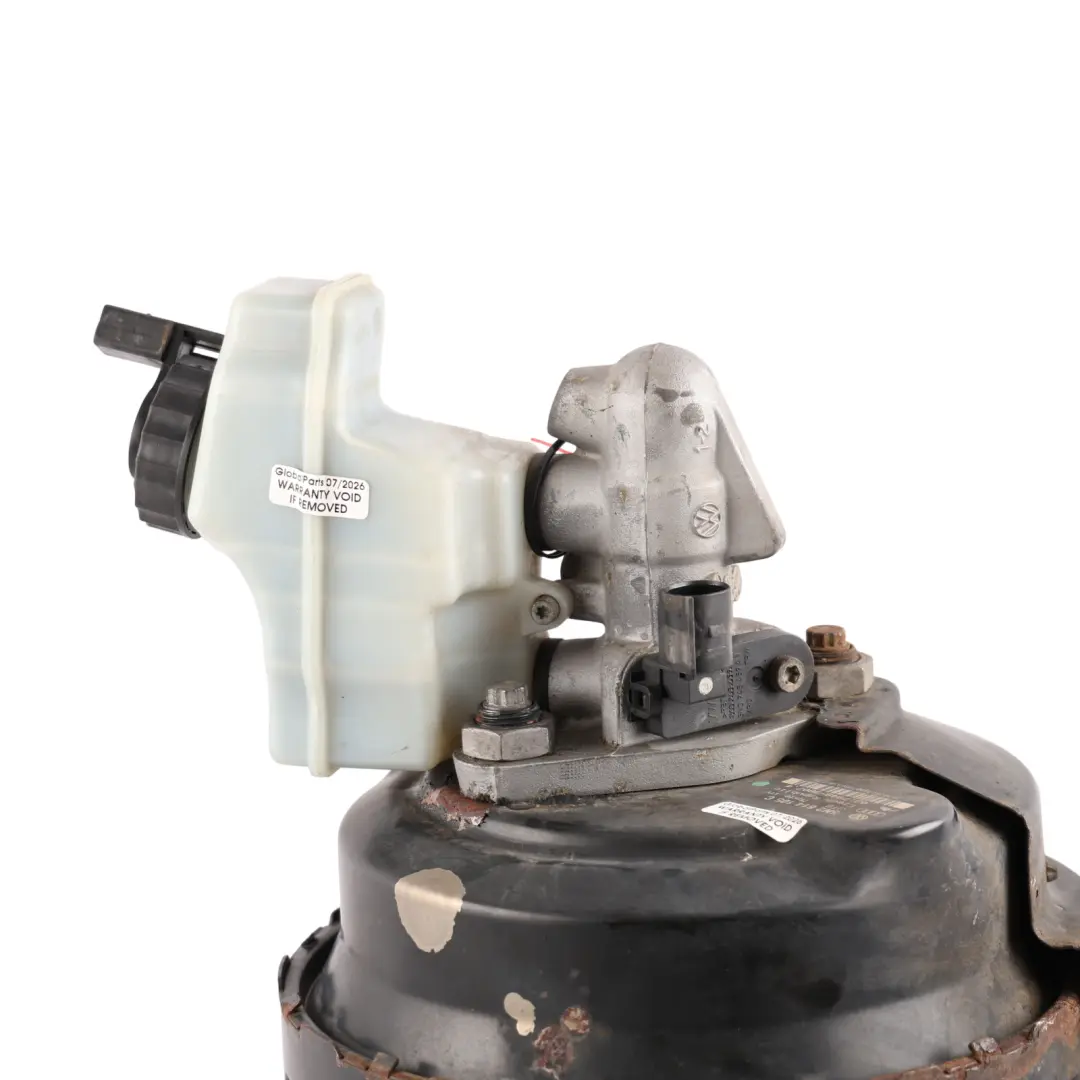

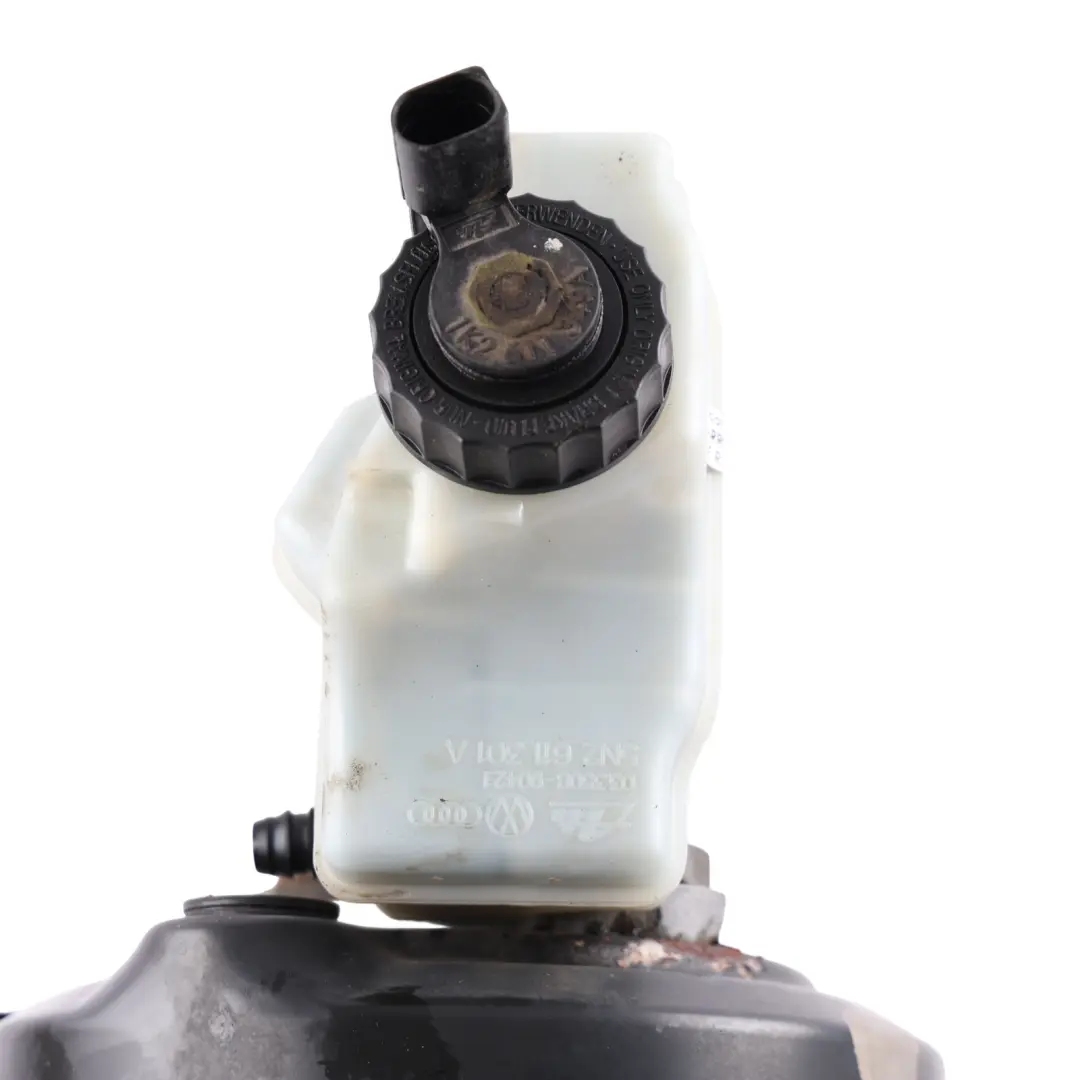

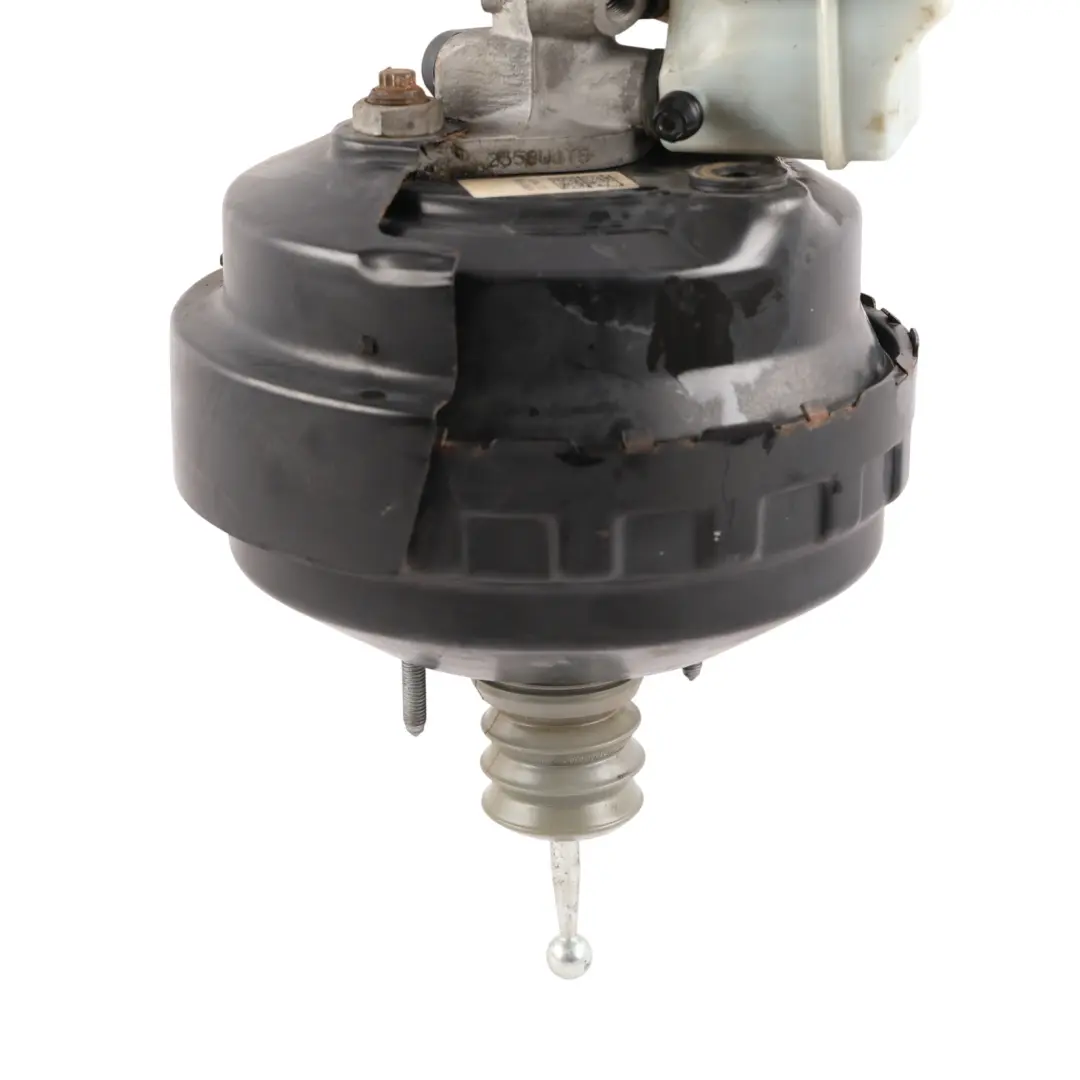

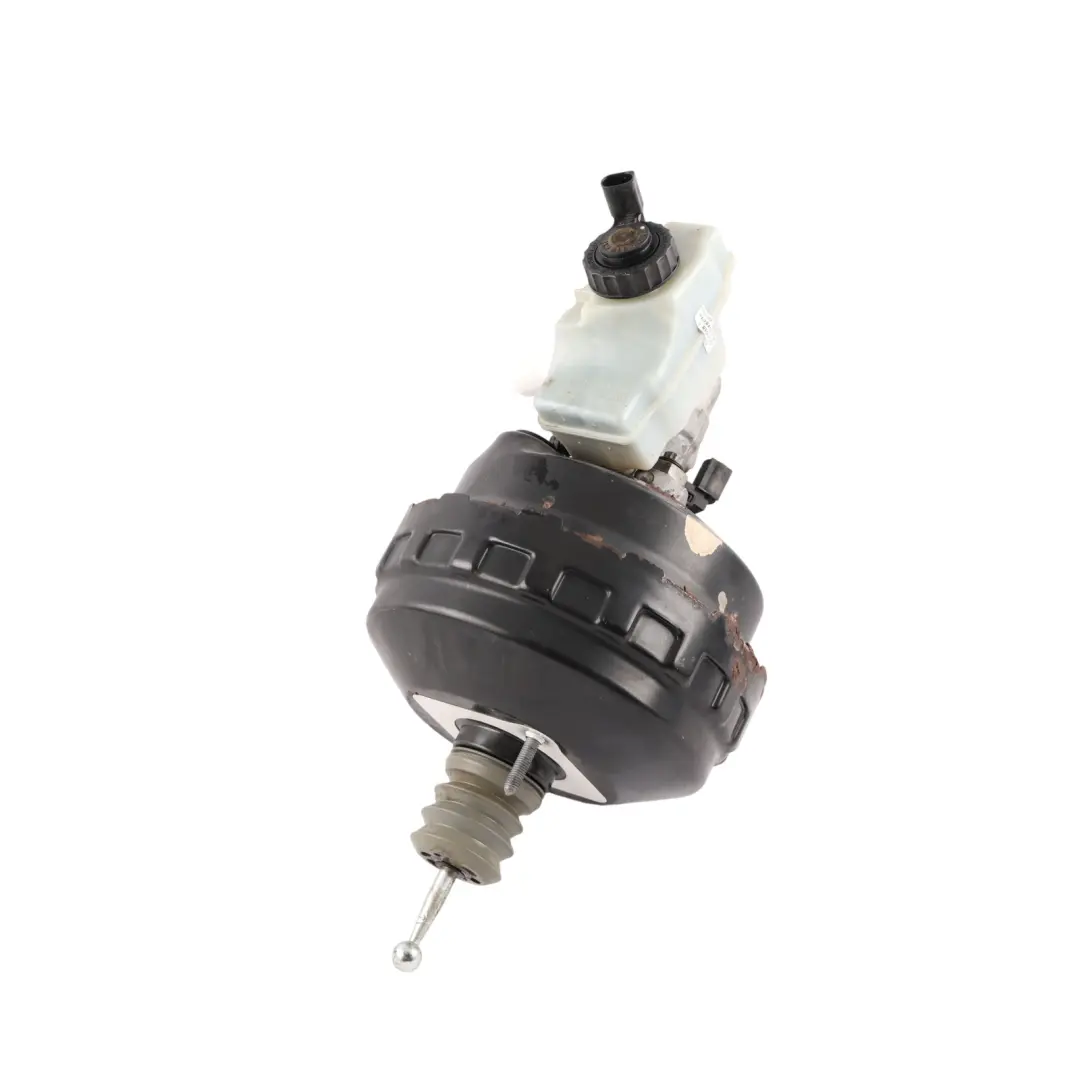

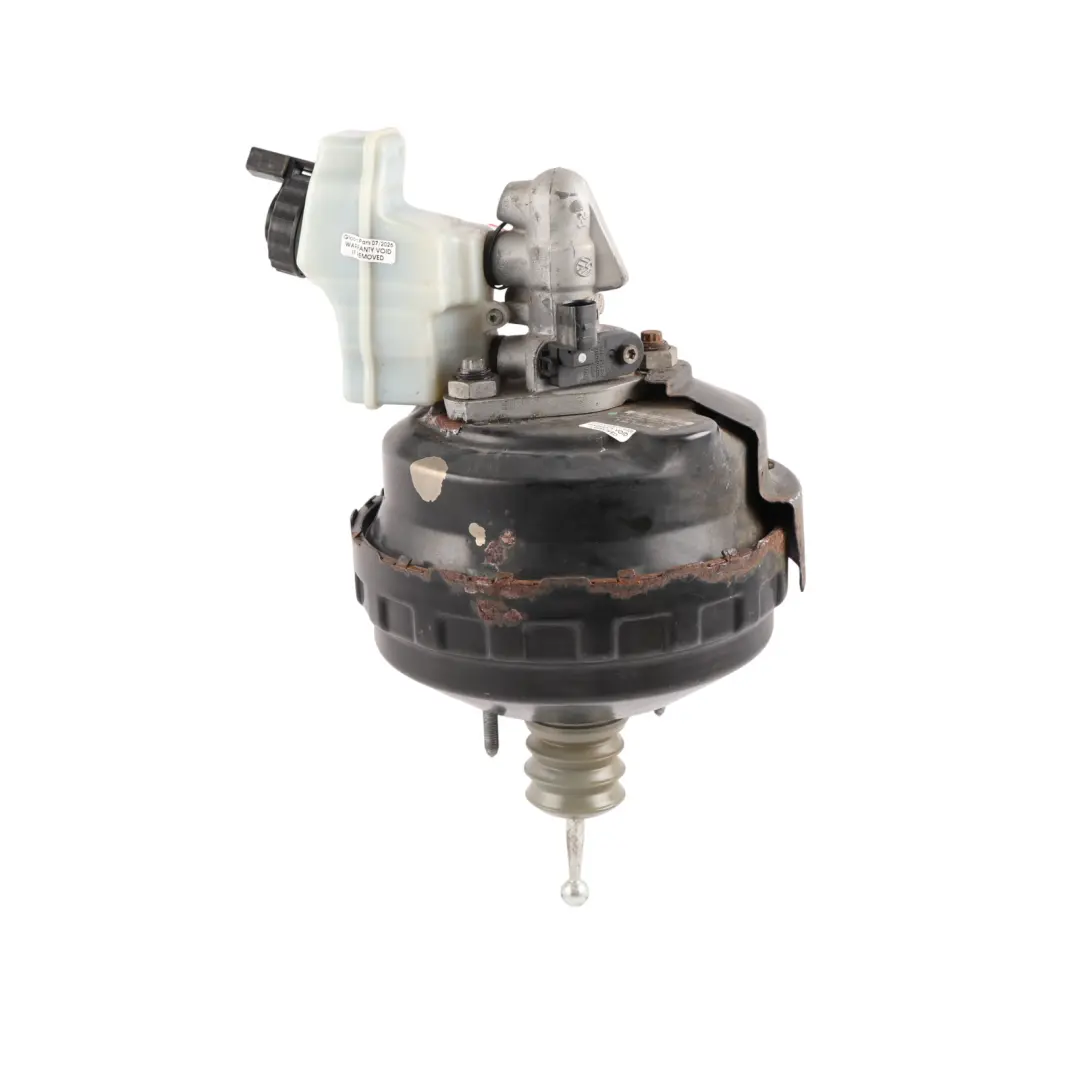

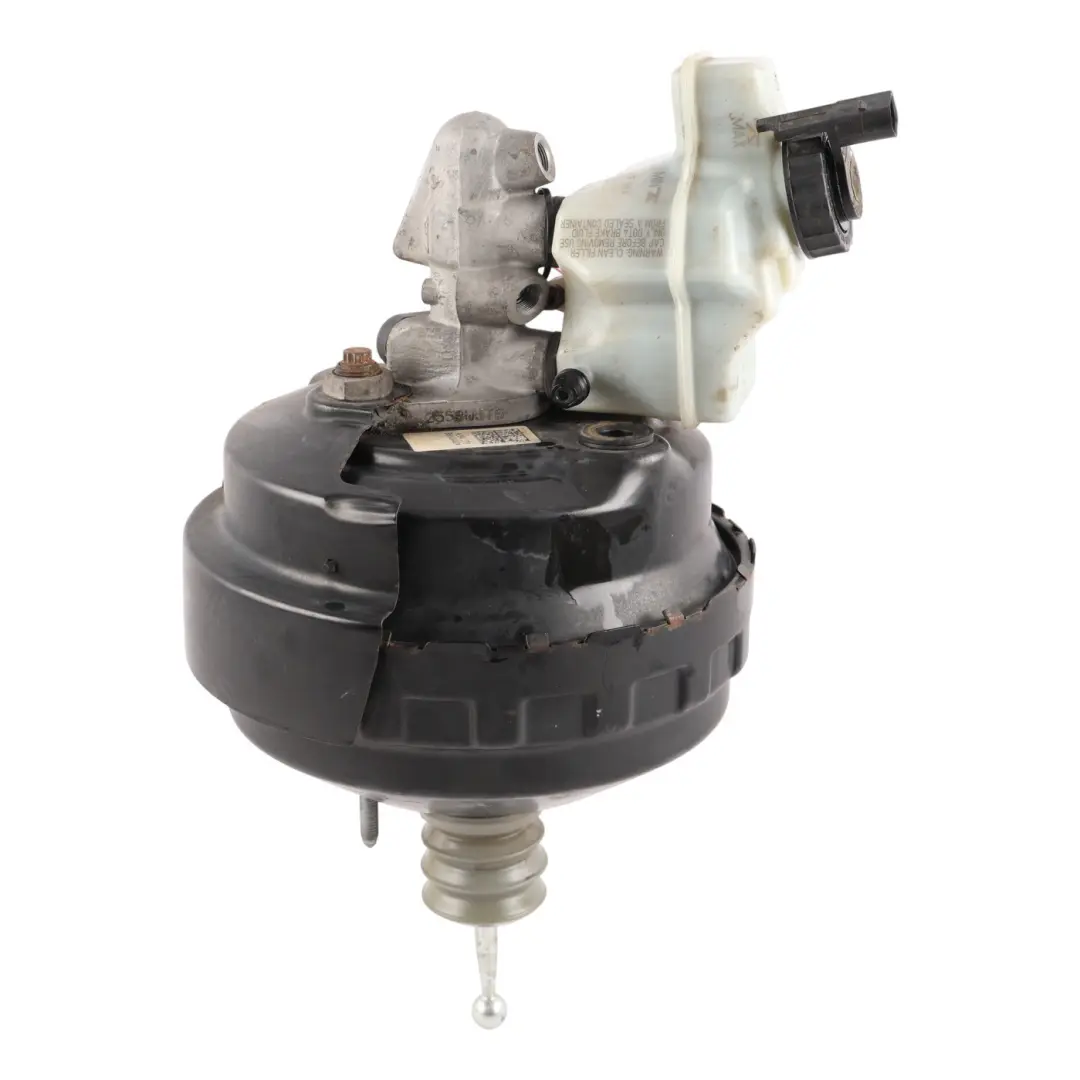

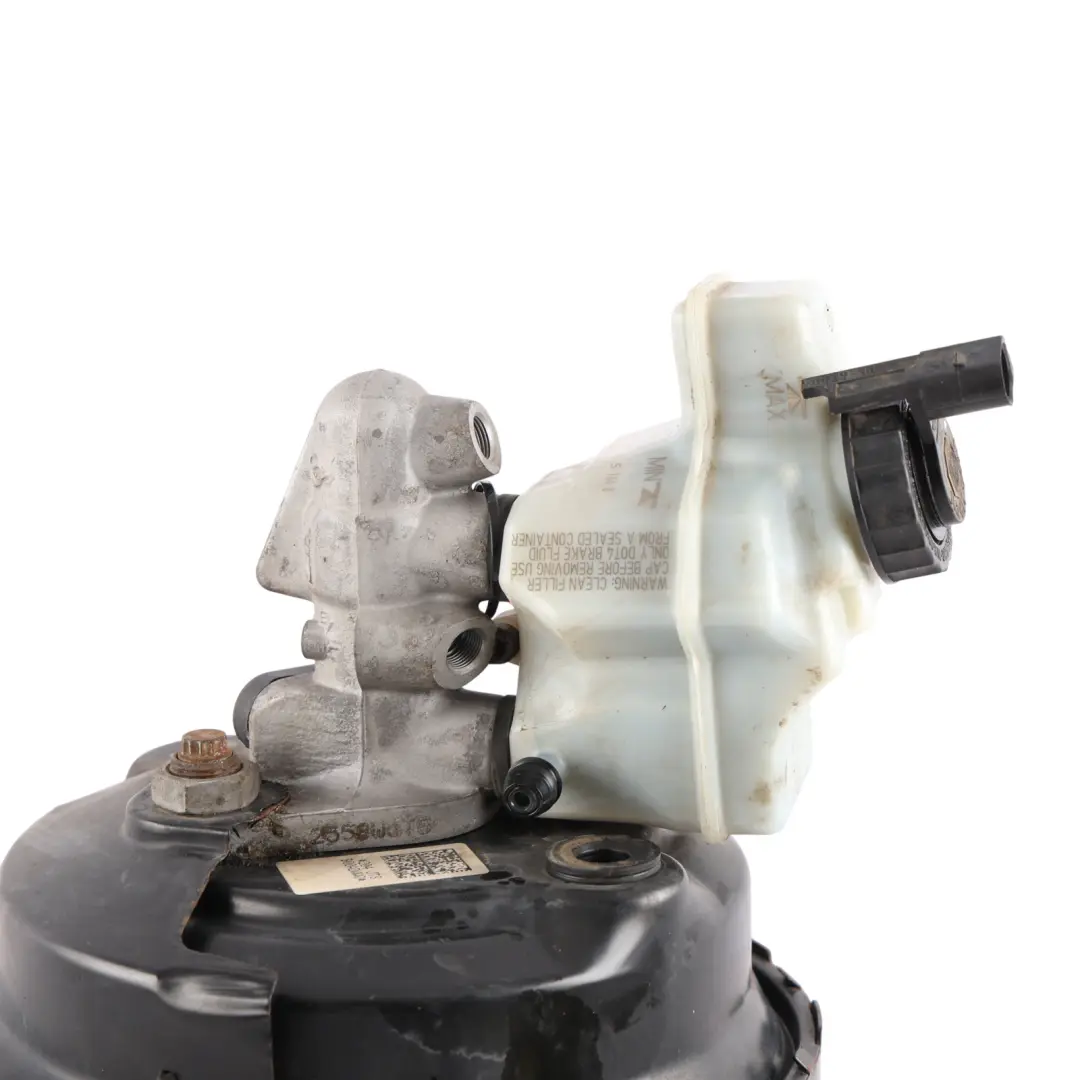

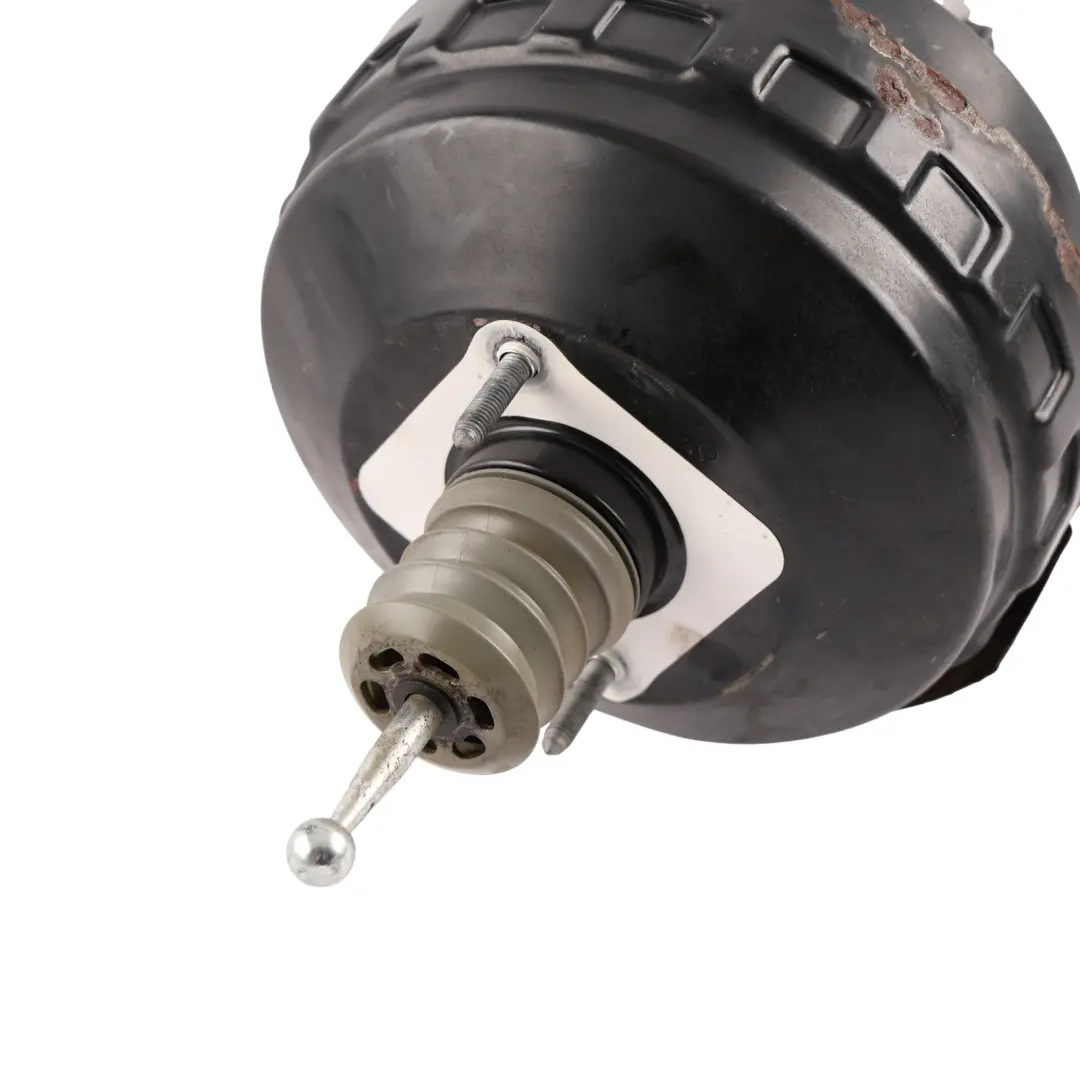

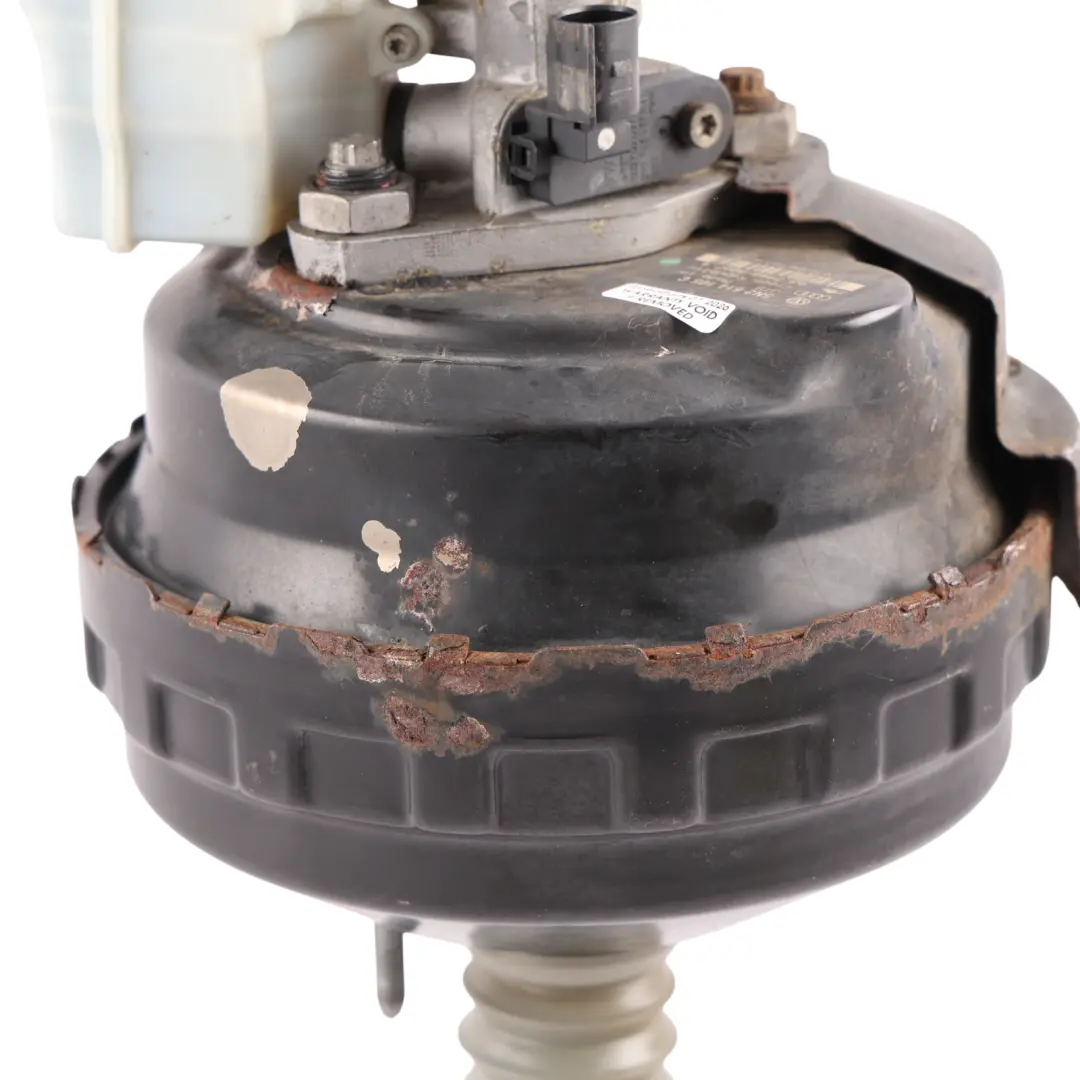

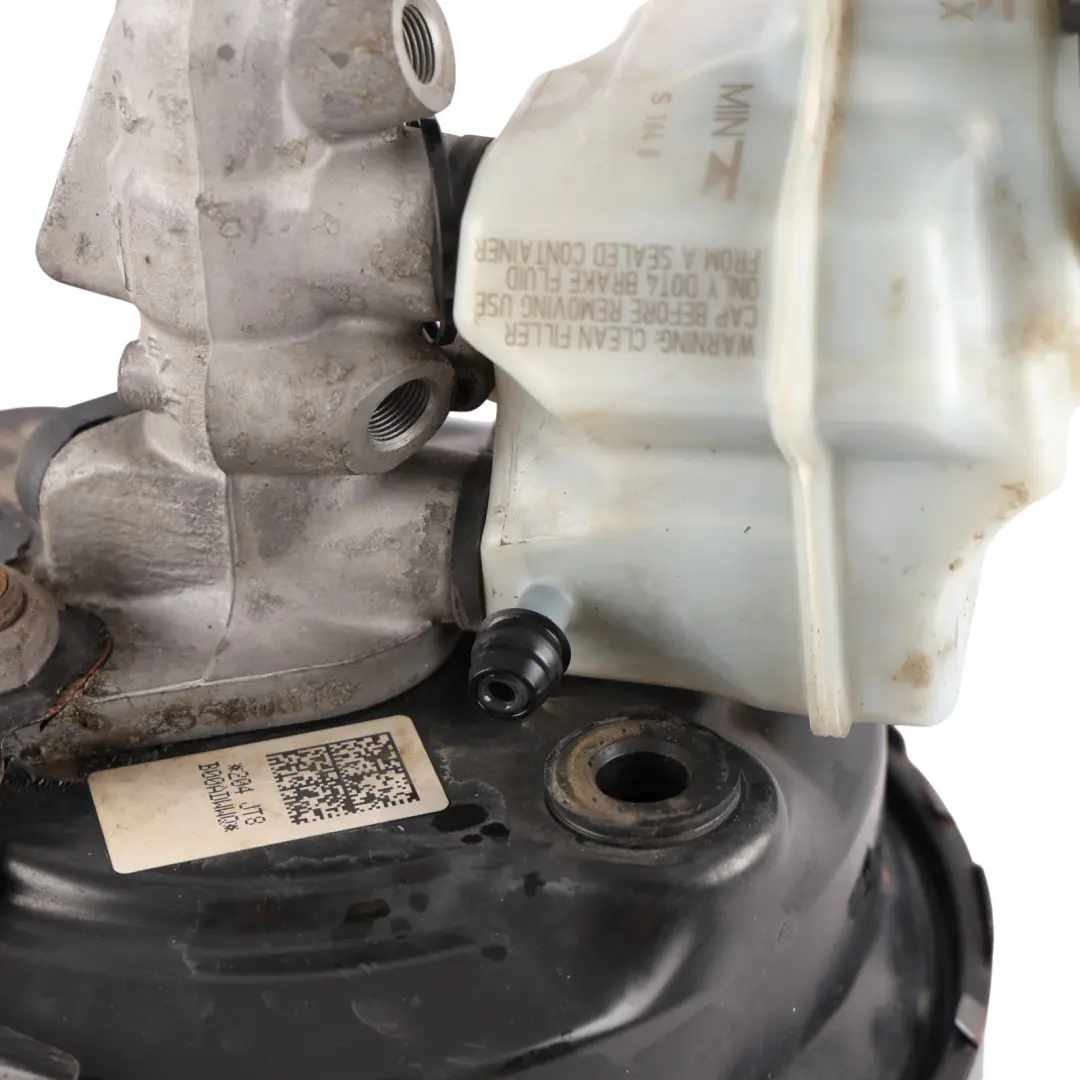

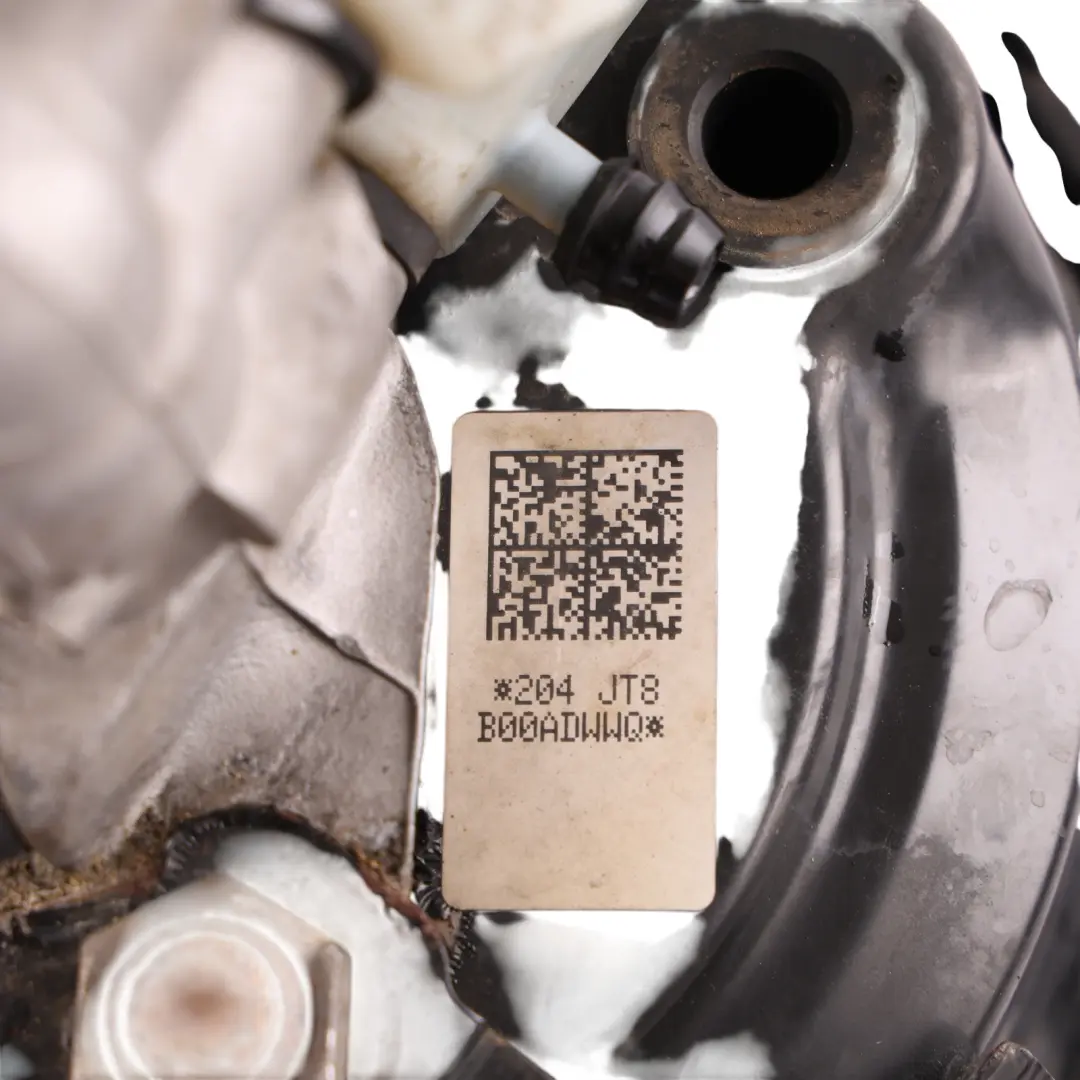

Volkswagen Tiguan 5N Brake Servo Booster Master Cylinder 5N2614105C

Volkswagen Tiguan 5N Brake Servo Booster Master Cylinder integrated with the master brake cylinder is an original brake system component designed for Volkswagen Group models. This component from the Brake Servos and Proportioning Valves group is responsible for stable reinforcement of the pressure applied to the brake pedal, ensuring predictable vehicle response and comfortable operation of the entire system. Thanks to its factory OEM design, it is the right choice for professional repairs or restoring the original brake configuration.

Specifications and technical data

• SKU: RHD-5N2614105C-1
• Mark: Volkswagen
• Condition: Used

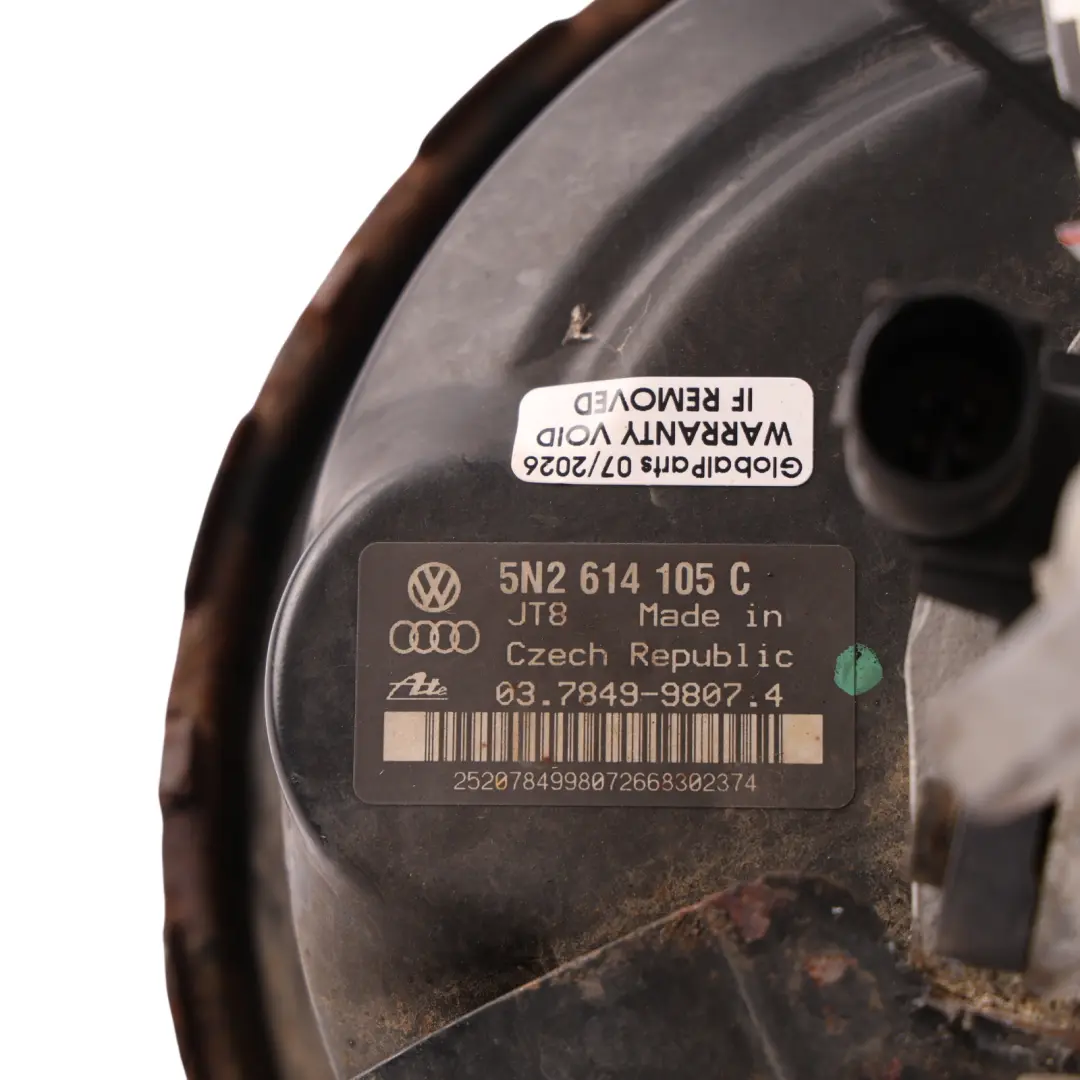

• OEM Part Number: 5N2614105C
• Substitutable numbers: 5N2614105C, 5N2 614 105 C, 3C2614106N, 3C2 614 106 N, 3C2614019E, 3C2 614 019 E, 5N2611301A, 5N2 611 301 A
• Part type: Brake Servo & Master Cylinder
• Category: Brake Servos

Purpose and function in the brake system

The presented servo integrated with the master cylinder has been designed as a vacuum brake booster element in Volkswagen vehicles. Its task is to increase the force transmitted from the brake pedal to the hydraulic circuits, so that the driver achieves effective braking with relatively little pressure on the pedal. The use of a complete servo-pump assembly reduces the risk of component mismatch and facilitates service.

This element is particularly important in vehicles with higher mass and a higher center of gravity, such as SUVs, where stable and repeatable brake assistance has a direct impact on driving safety, especially during sudden deceleration or when driving with a full load.

Construction of the servo-pump assembly

The brake servo operates based on the pressure difference between the vacuum chamber and the atmospheric chamber, which allows for mechanical reinforcement of the force generated by the driver. The integrated master cylinder is responsible for precise pressure dosing in the brake circuits, transmitting it to the wheel calipers or wheel cylinders. This configuration ensures consistency of the brake pedal feel and predictable vehicle behavior in various road conditions.

Thanks to the factory OEM design, the correct mounting points, lever geometry, and piston stroke are maintained, which is important both for braking efficiency and proper cooperation with the vehicle's electronic systems (ABS, ESP), which rely on specific hydraulic characteristics.

Benefits of using an original component

Using an original servo-pump assembly instead of a worn or damaged component allows for the restoration of the factory brake system performance parameters. Key advantages include:

• Consistent brake pedal feel – predictable engagement point and linear increase in braking force.
• Proper cooperation with vehicle safety systems that require stable pressure in the circuits.
• Reduced risk of leaks and bleeding problems due to structural matching.
• Ability to maintain the original system configuration without the need for installation modifications.

The product comes from dismantling, which makes it an attractive cost-effective solution while maintaining factory specifications. For many users, it is a reasonable compromise between OEM quality and the budget allocated for repairs.

Selection and installation in the vehicle

To correctly select this servo-pump assembly for a specific version of the Volkswagen Tiguan 5N or related group models, it is recommended to verify compatibility by the OEM part number and interchangeable numbers available in the technical specification. This avoids installation problems, differences in pump diameter, or brake line connector configurations.

The installation itself should be performed by a workshop experienced in working with brake systems, following bleeding and leak check procedures. After installation, it is necessary to check the pedal stroke, system response, and perform any necessary adaptations in electronic systems, if required by the service documentation for the given model.

How to care for used brake system components

For aftermarket components, proper preparation for installation and subsequent operation is key. It is worth paying attention to the condition of the brake lines, the quality of the brake fluid, and regular inspections to avoid operating the servo and pump under conditions exceeding their design assumptions. Additional tips on the operation and maintenance of used components can be found in the article How to extend the life of used car parts?, which discusses practical methods for extending the durability of dismantled parts.

If you are planning a comprehensive repair or upgrade of the braking zone in your Volkswagen and need other elements from the same group, such as servos, proportioning valves, or complete booster assemblies, check the available parts in the Volkswagen Brake Servos and Proportioning Valves category.
