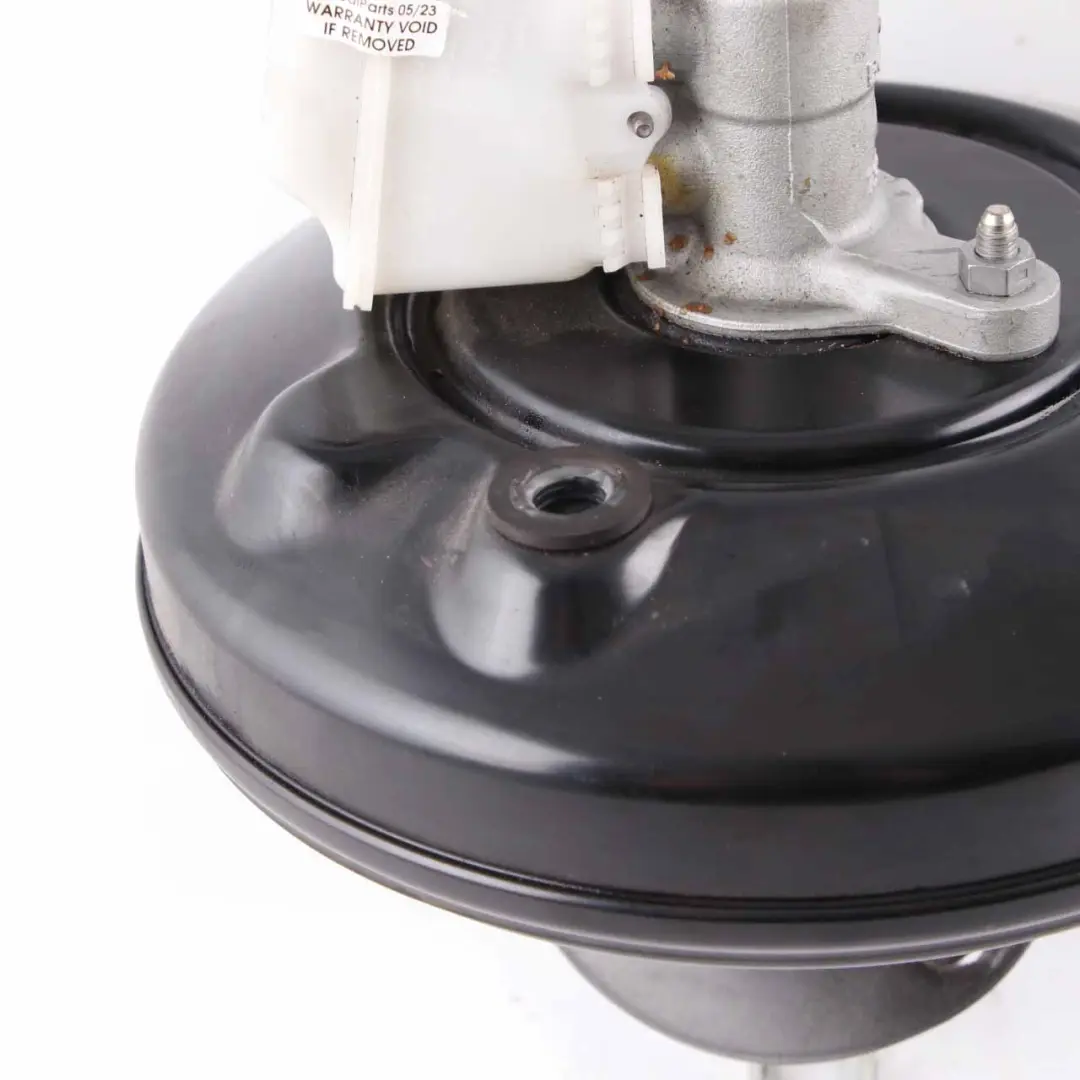

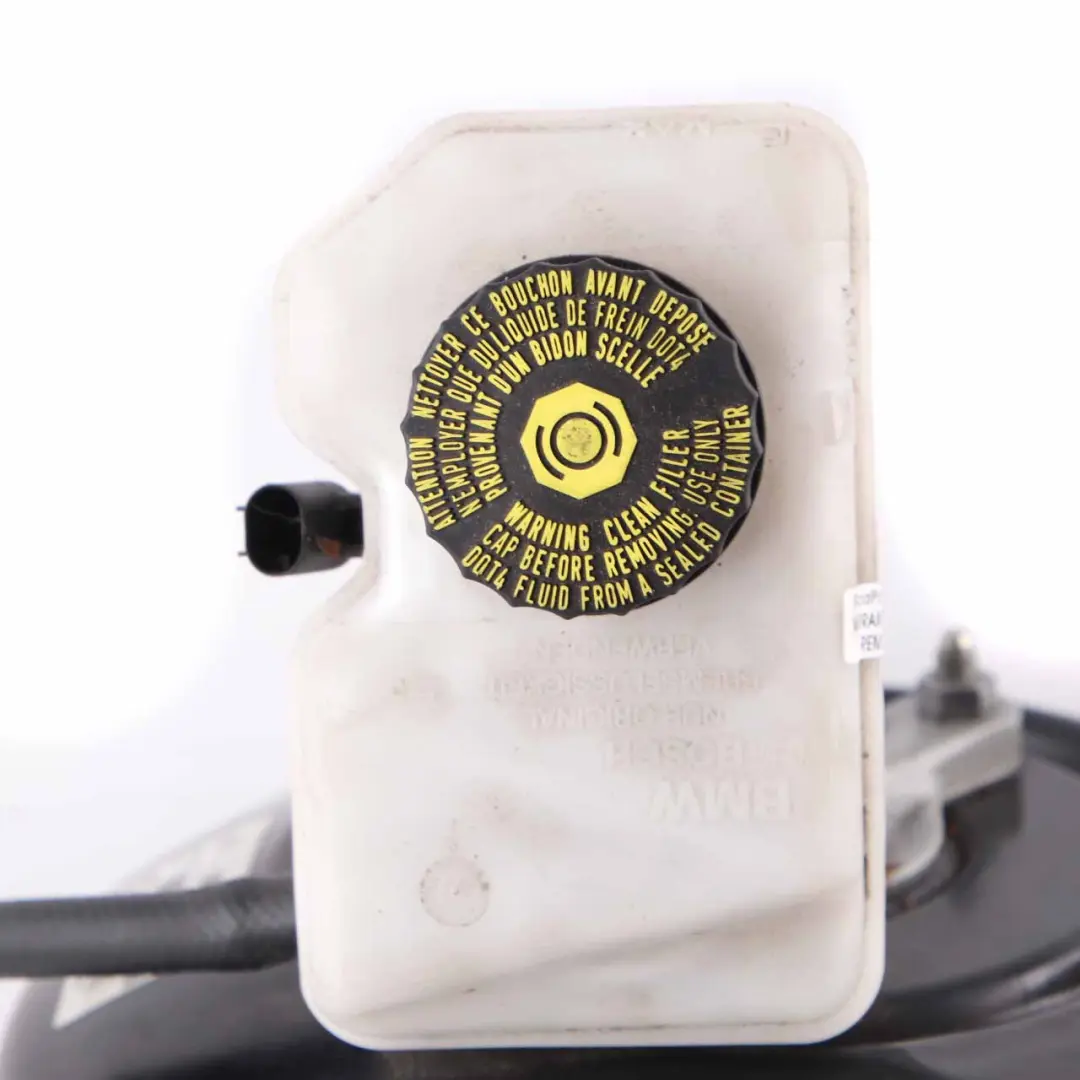

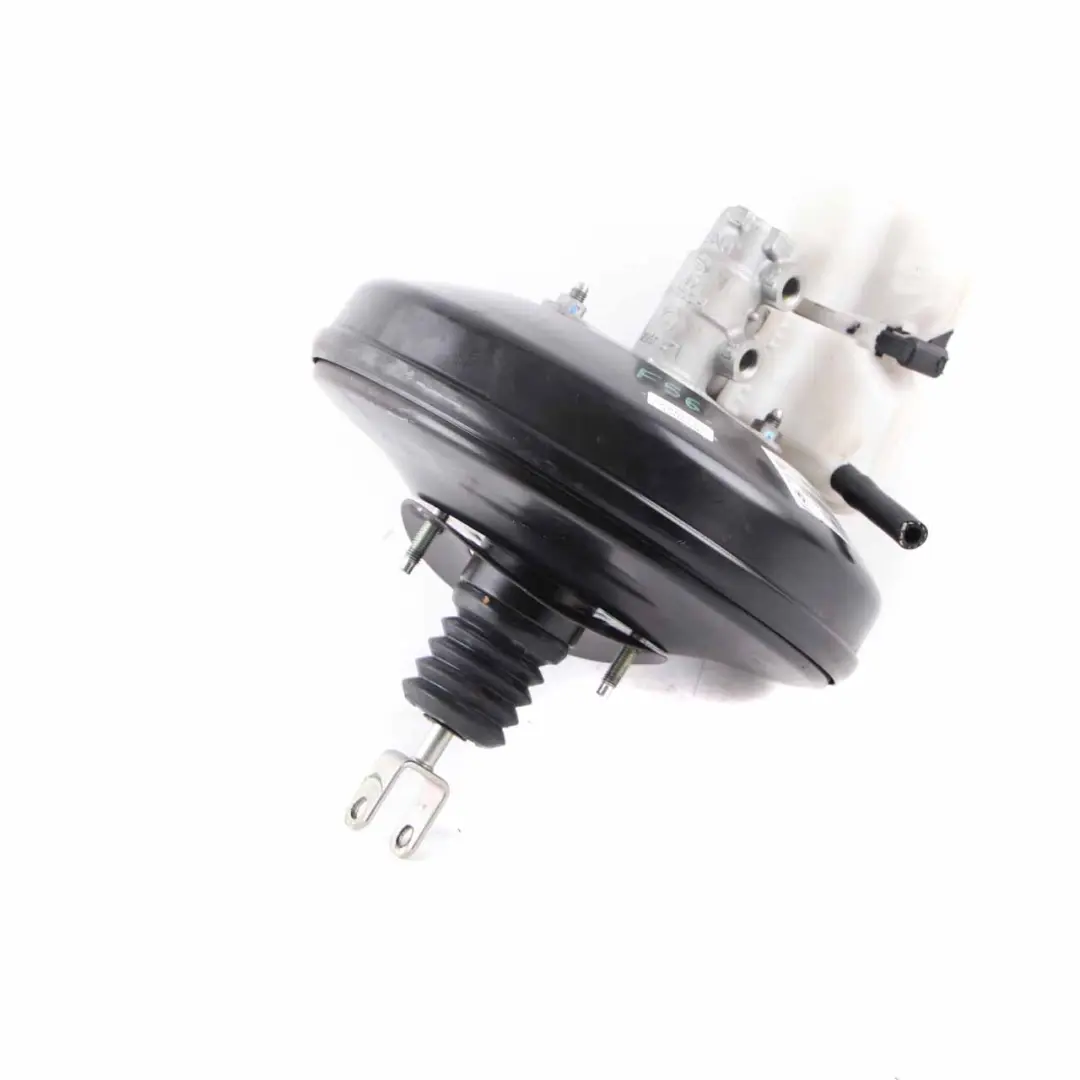

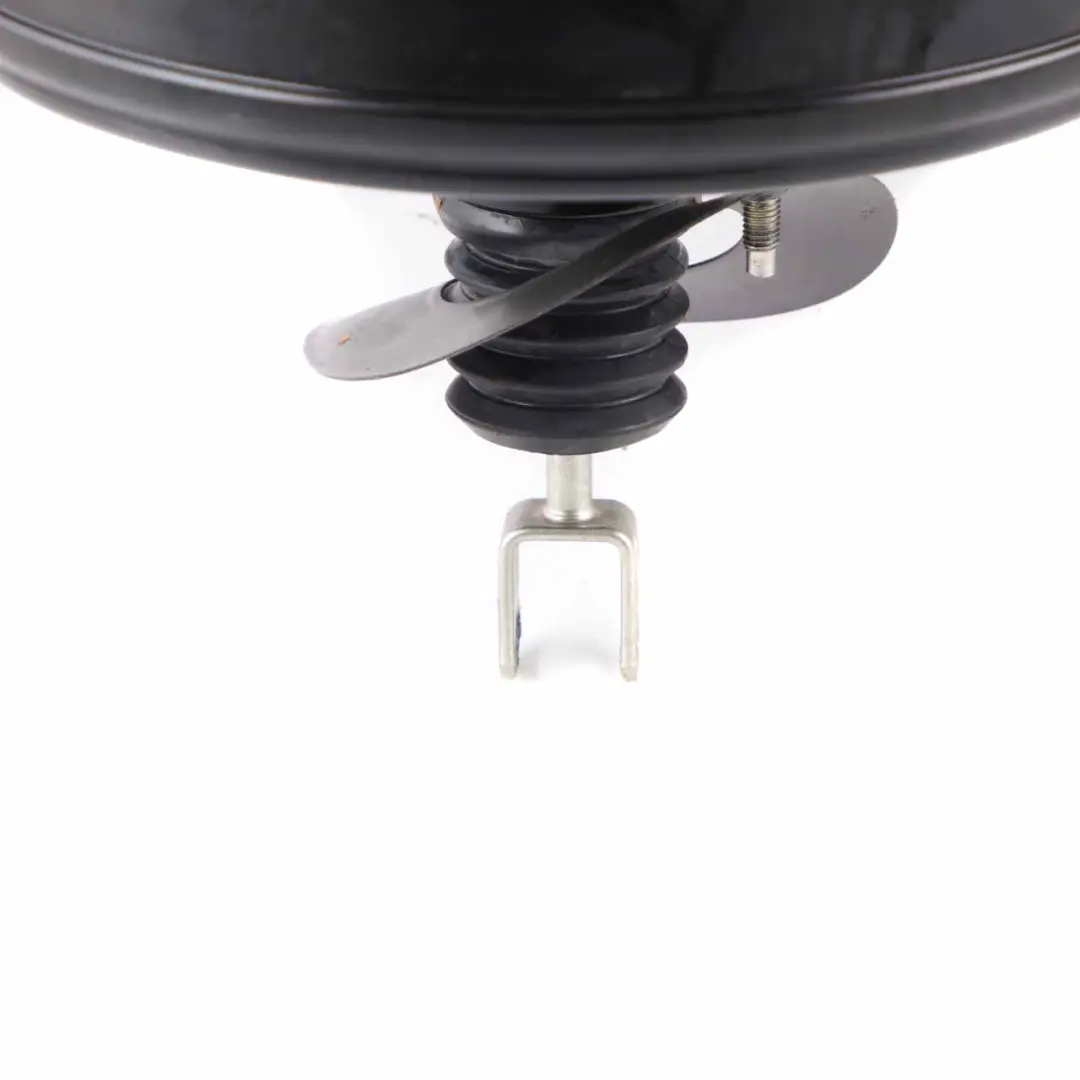

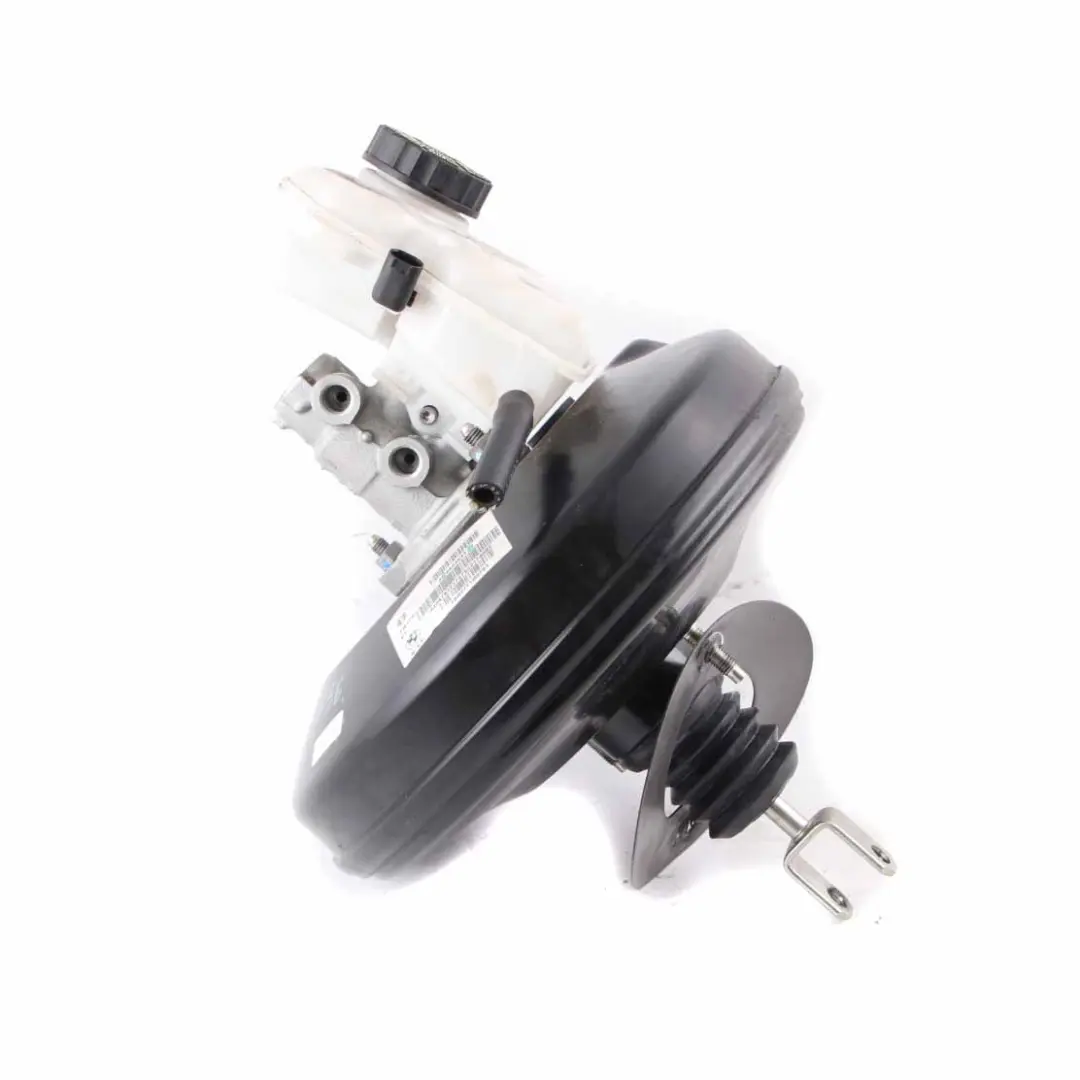

Brake Servo BMW F40 Mini F56 F57 JCW Master Cylinder Brake Booster Unit 6854643

Brake Servo BMW F40 Mini F56 F57 JCW Master Cylinder Brake Booster Unit is an original servo assembly with a master cylinder, designed for the factory braking system of the BMW F40 series and the sporty Mini F56 and F57 JCW versions. As an item in the Brake Servos and Proportioning Valves category, it ensures stable conversion of pedal force into system pressure, which translates into predictable brake response. This is an OEM solution that allows you to maintain the proper operating parameters of the braking system without compromising on safety.

Specifications and technical data

• SKU: 6869016-1
• Mark: BMW (Genuine OE)
• Condition: Used

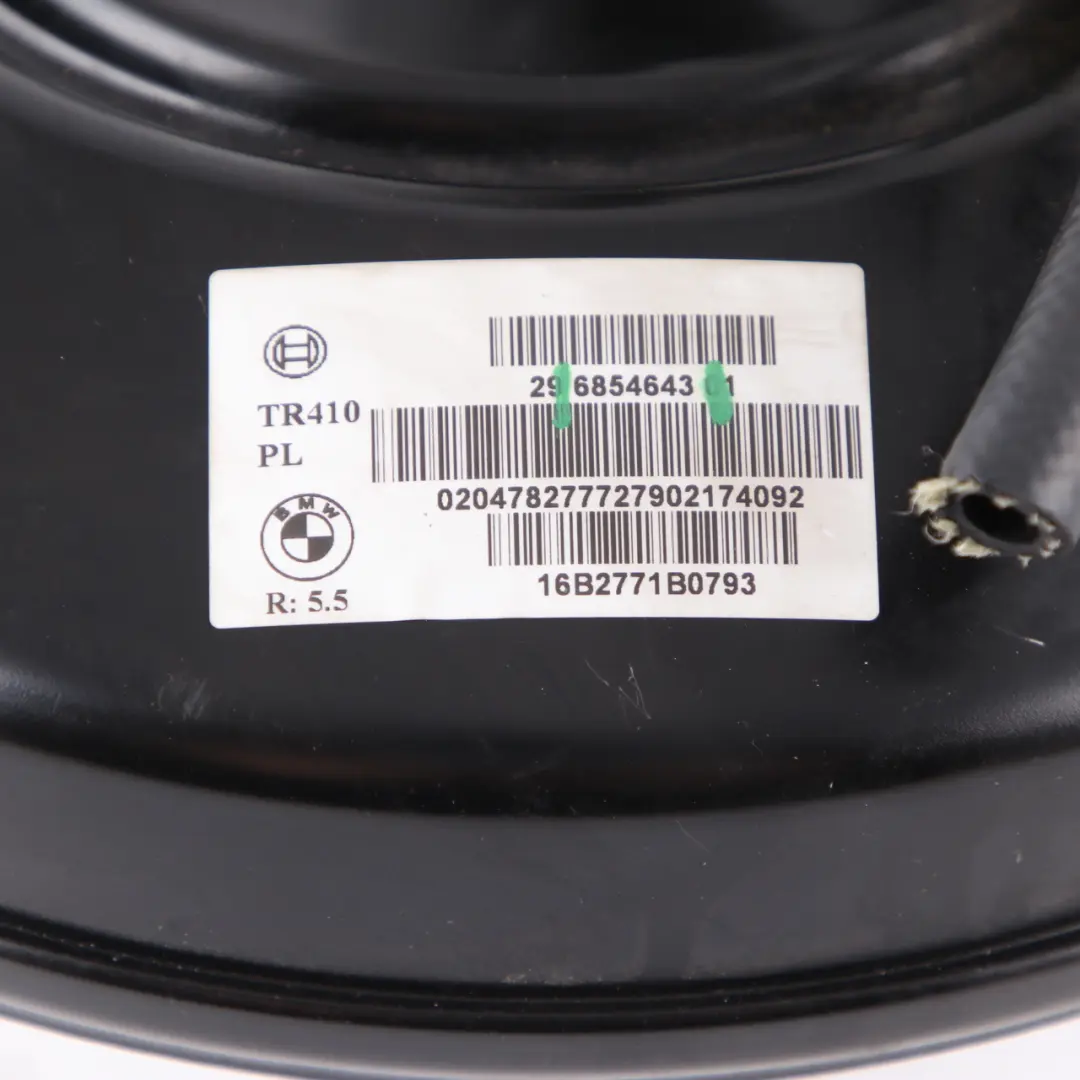

• OEM Part Number: 6869016
• Substitutable numbers: 6869016, 34336869016, 6854643, 6860686, 34336860686, 6868997, 34336868997, KD
• Category: Brake Servos

Purpose and function in the braking system

The described brake servo assembly with master cylinder has been designed specifically for the BMW F40 and Mini F56/F57 John Cooper Works platforms. Its task is to amplify the pressure force on the brake pedal using vacuum from the engine or a vacuum pump, and to precisely dose pressure in the brake circuits via the integrated master cylinder.

This design solution allows for:

• achieving a repeatable brake pedal travel,
• better control over braking force during dynamic driving,
• maintaining the factory operating characteristics of the system in both comfort and sport modes.

Benefits of using an original BMW servo

Choosing an original BMW brake servo integrated with a master cylinder primarily ensures reliable compatibility with the factory installation and vehicle control parameters. The braking system in modern BMW and Mini vehicles is linked to stability control systems, safety assistants, and control electronics, which is why using the correct module is crucial for the proper operation of the entire system.

The main advantages of this solution include:

• maintaining the original brake assistance characteristics,
• consistency with factory ABS/ESP system settings,
• reducing the risk of diagnostic errors associated with incorrect part selection.

Component condition and installation aspects

The presented brake servo assembly is a used part, sourced from dismantling, which allows for economical repair while maintaining the manufacturer's original specifications. This type of component is intended for installation in place of the factory servo, using existing mounting points and factory hydraulic and vacuum connections.

When planning the installation, it is worth paying attention to:

• proper bleeding of the braking system after replacement,
• checking the tightness of brake lines and threaded connections,
• verifying brake pedal operation after installation – travel, firmness, and response at various speeds.

Selection, reference numbers, and compatibility

The item has a dedicated OEM part number and associated interchangeable numbers, which facilitates precise identification and selection for a specific version of the BMW F40 or Mini F56/F57 JCW. When purchasing, it is worth comparing the markings with the previously installed component or using the manufacturer's catalog to avoid discrepancies resulting from differences in equipment, engine versions, or model years.
