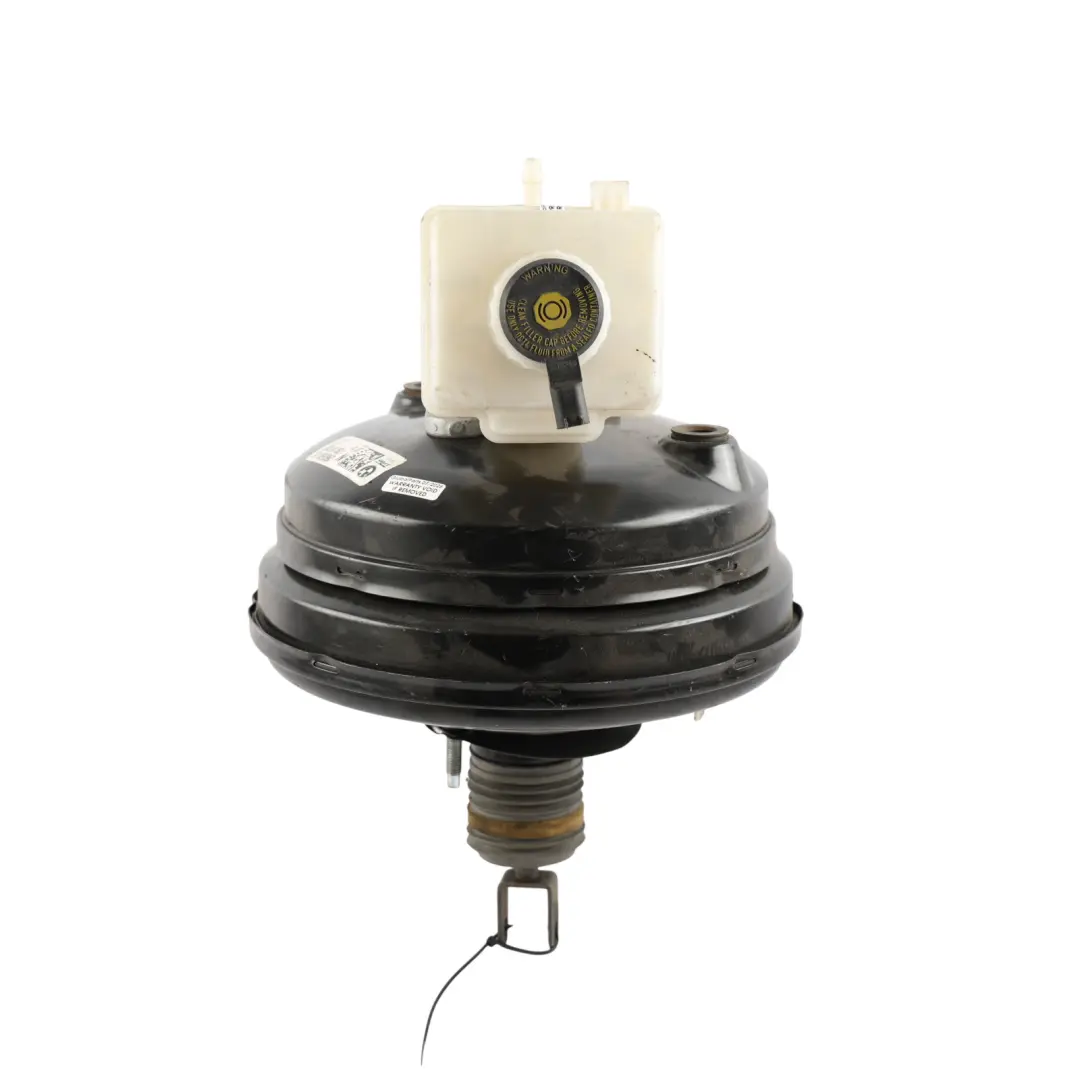

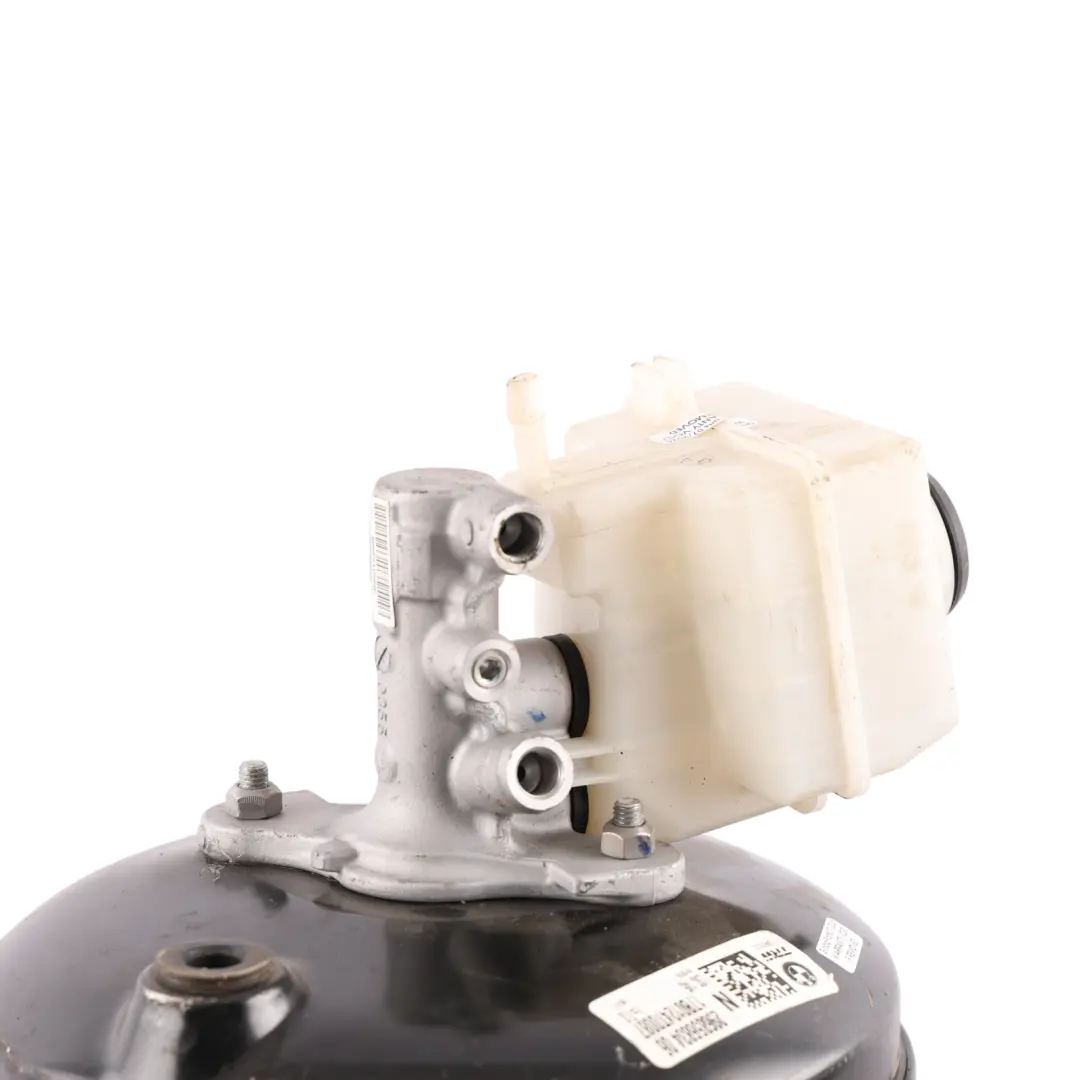

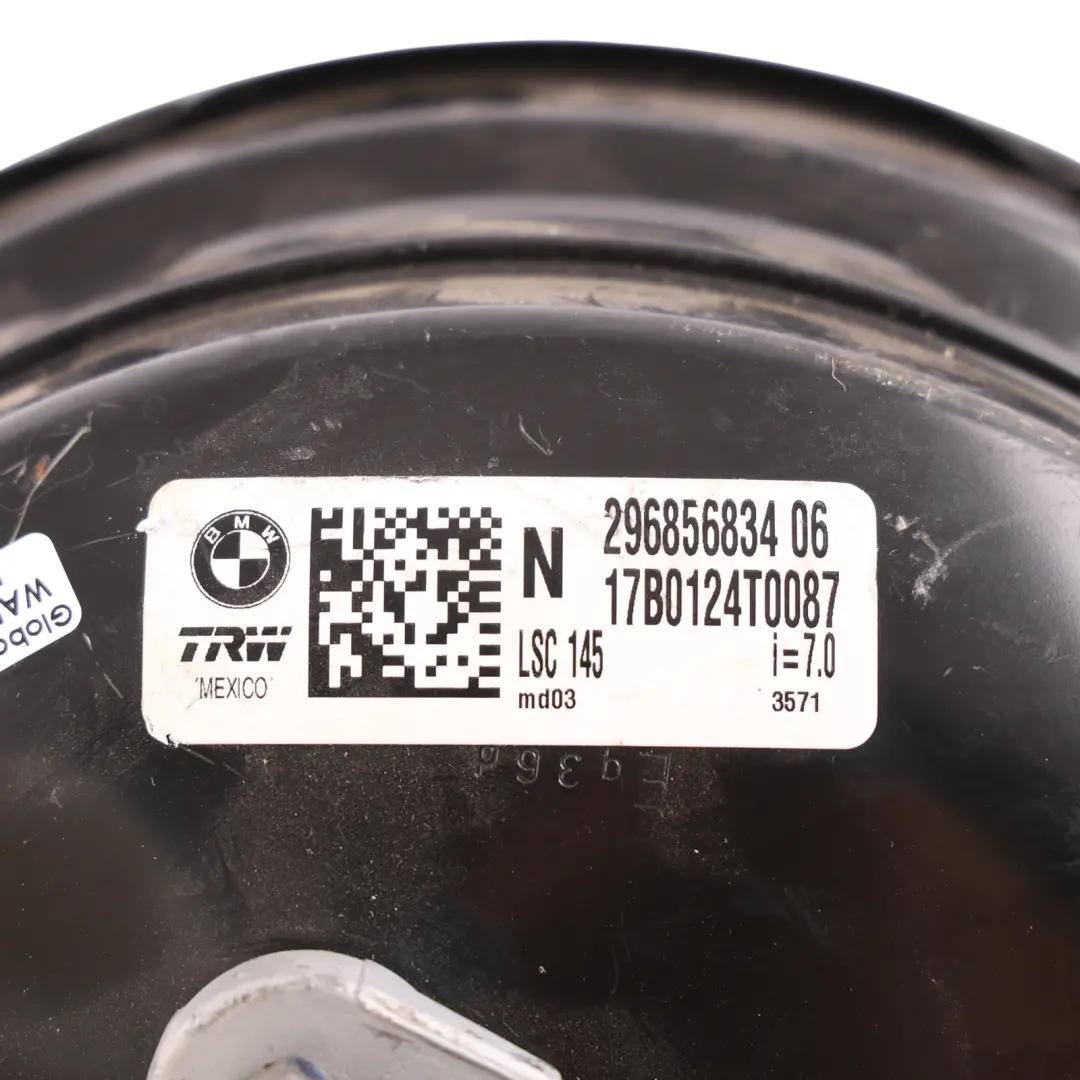

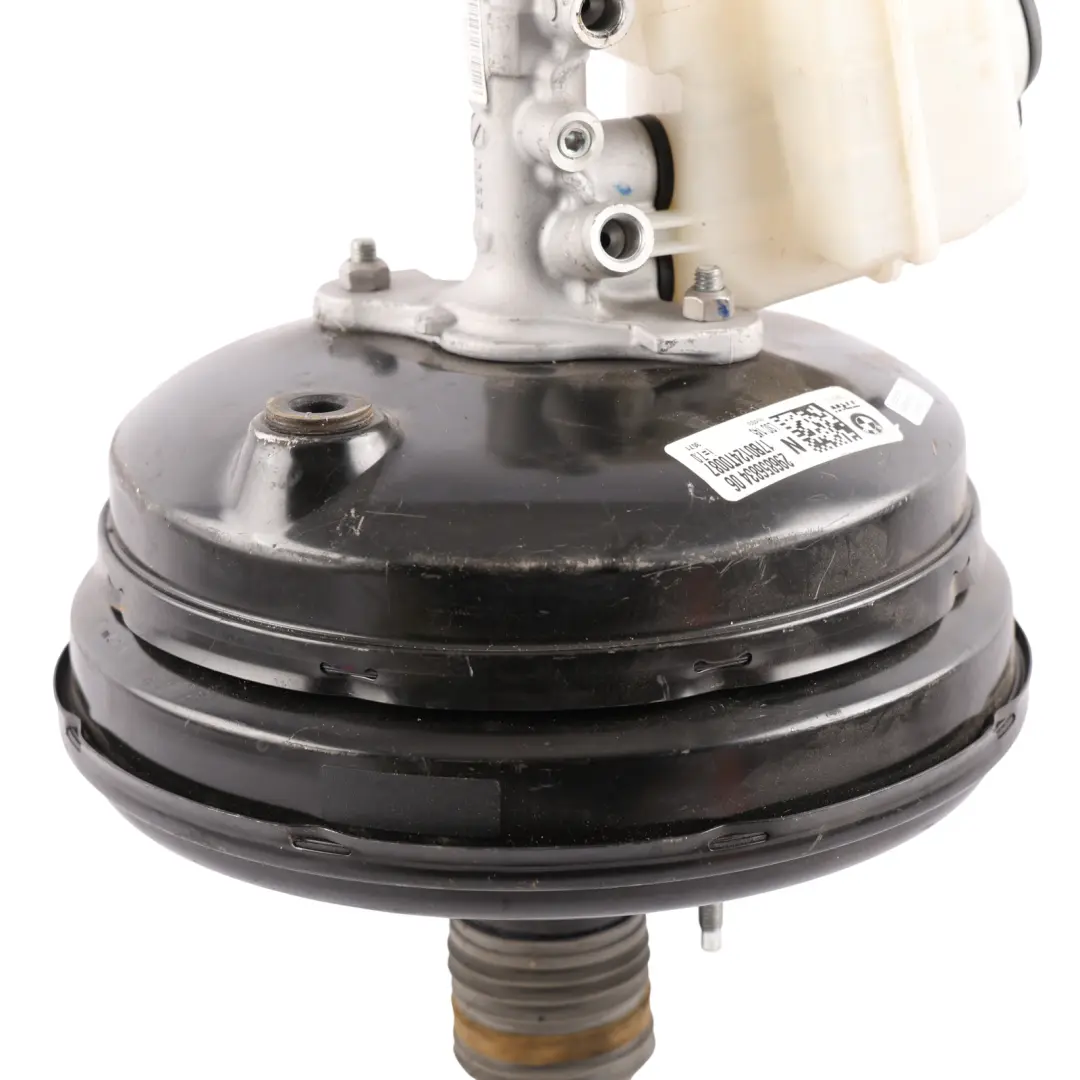

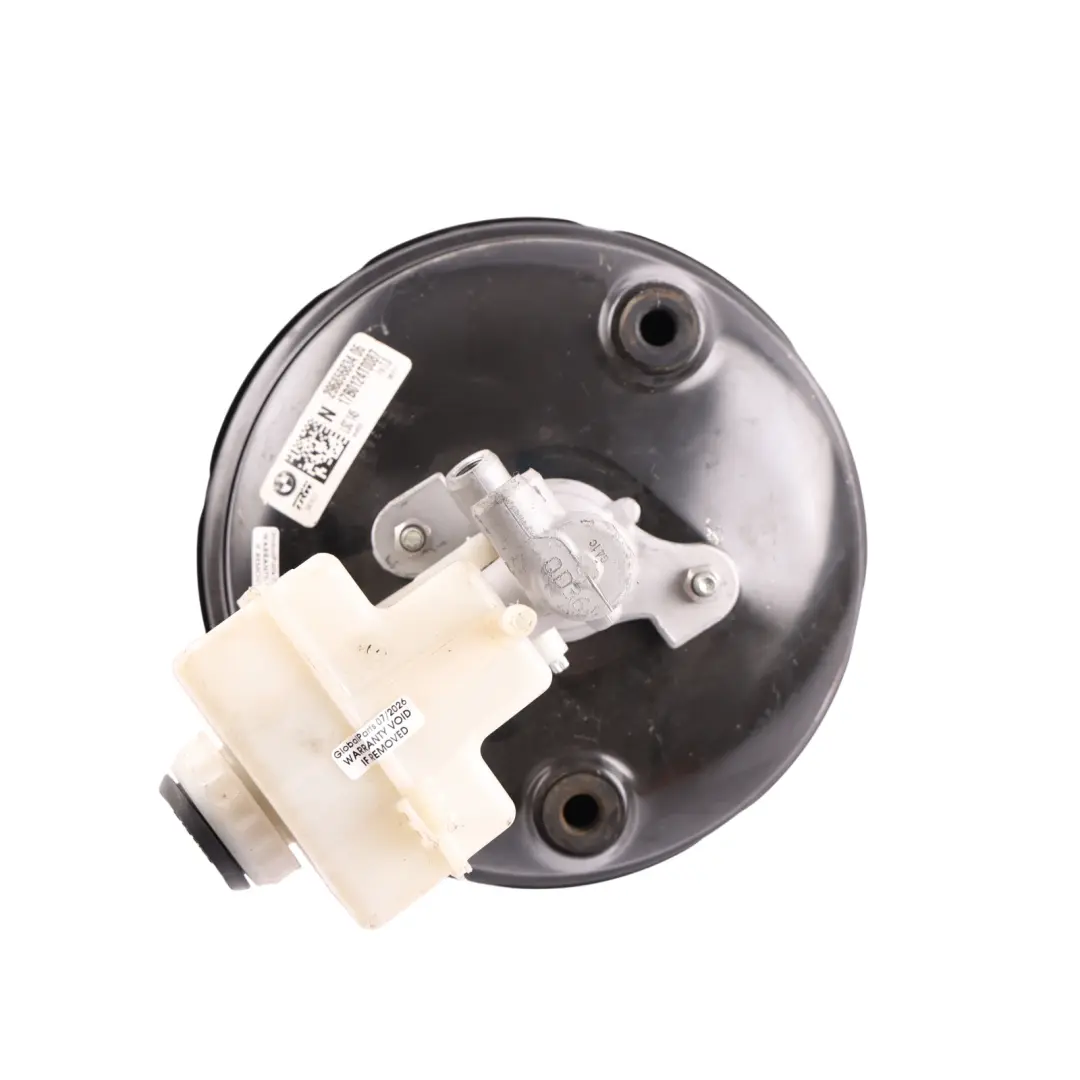

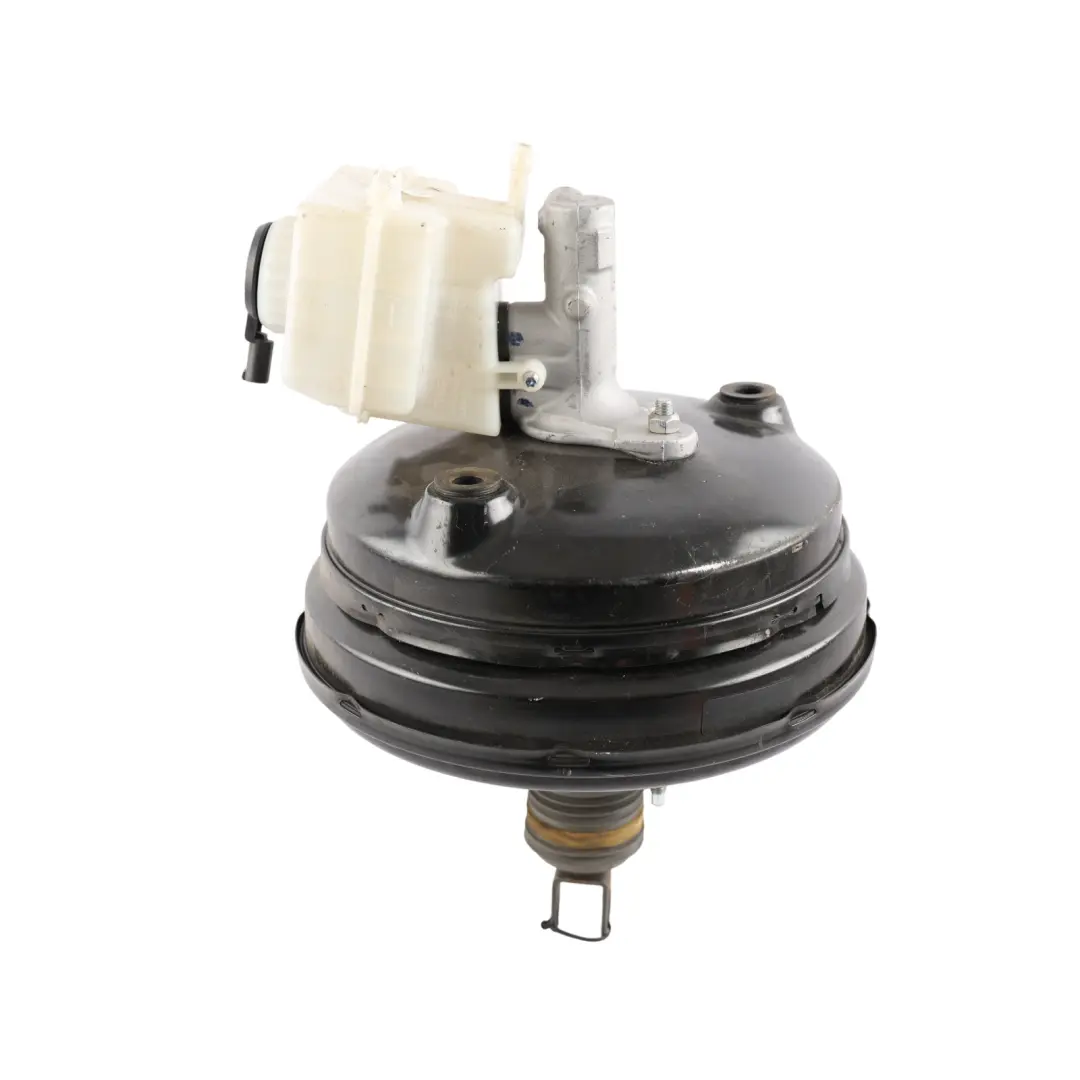

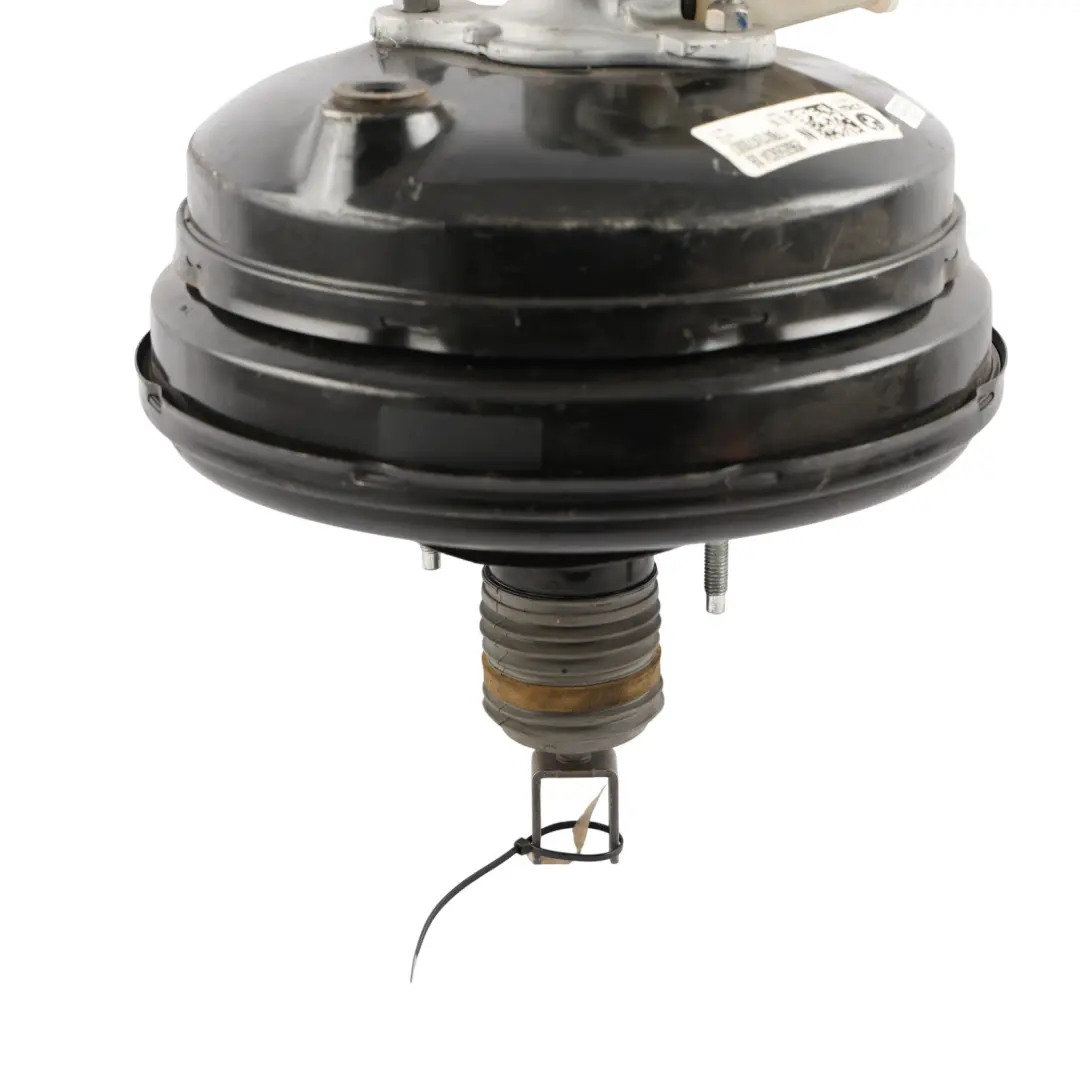

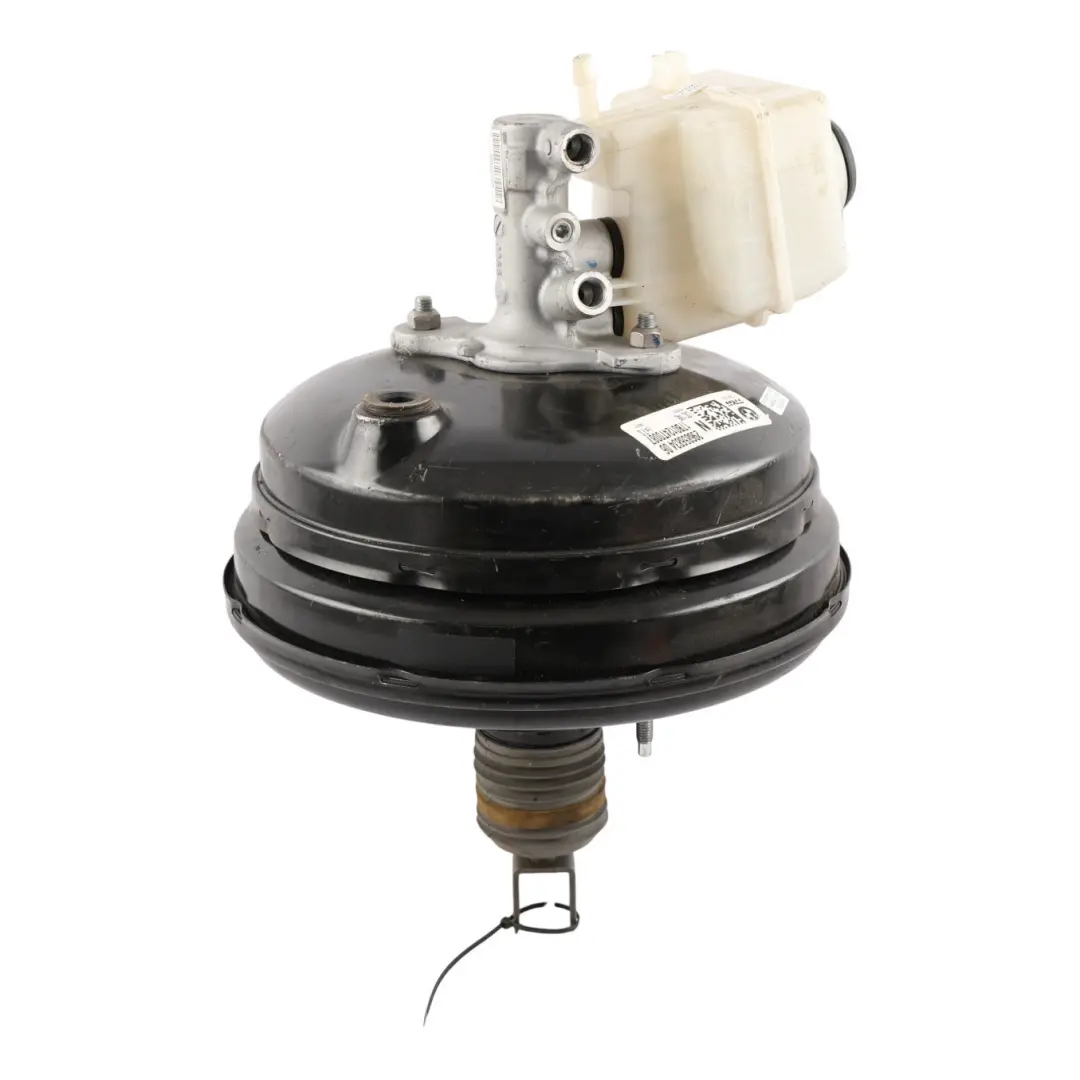

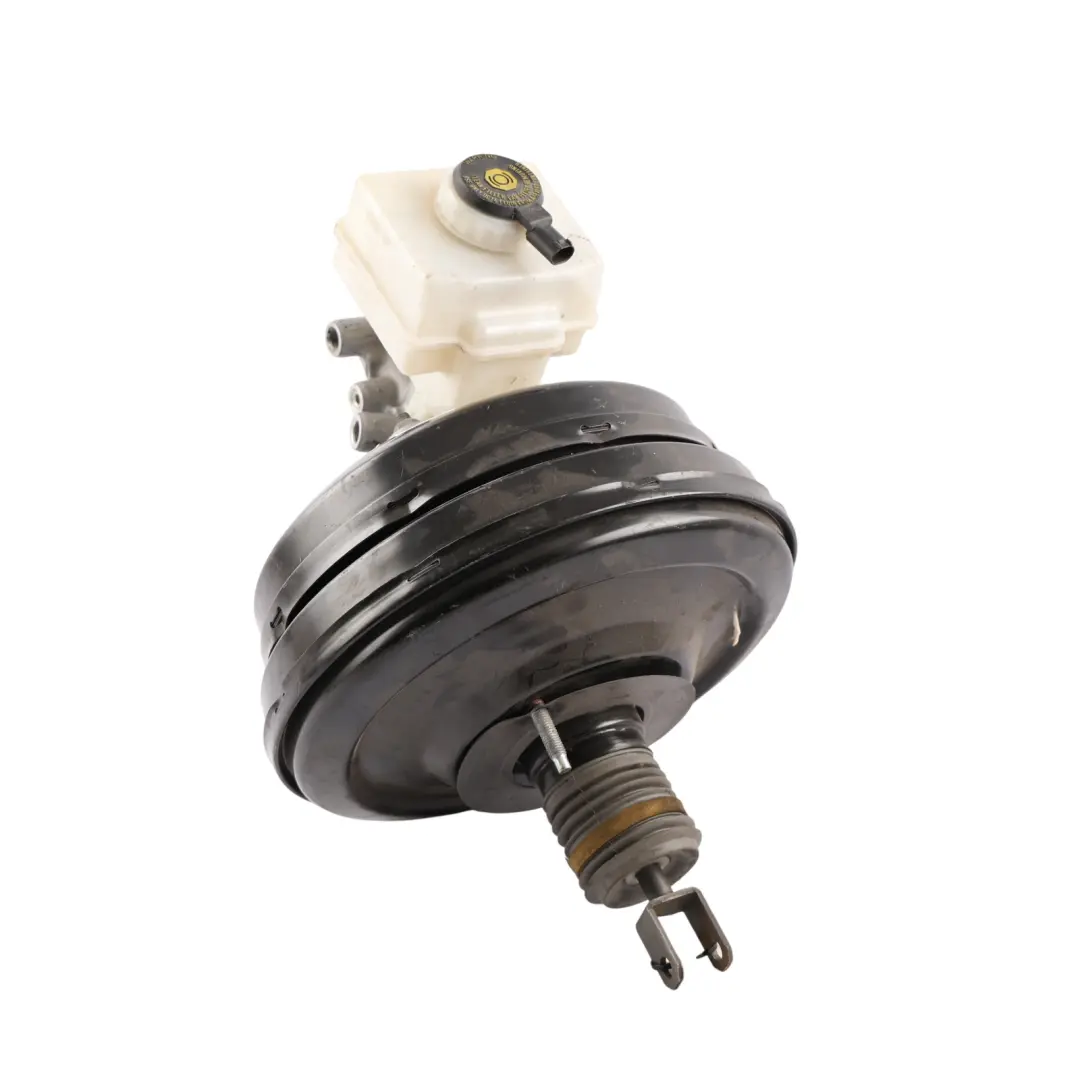

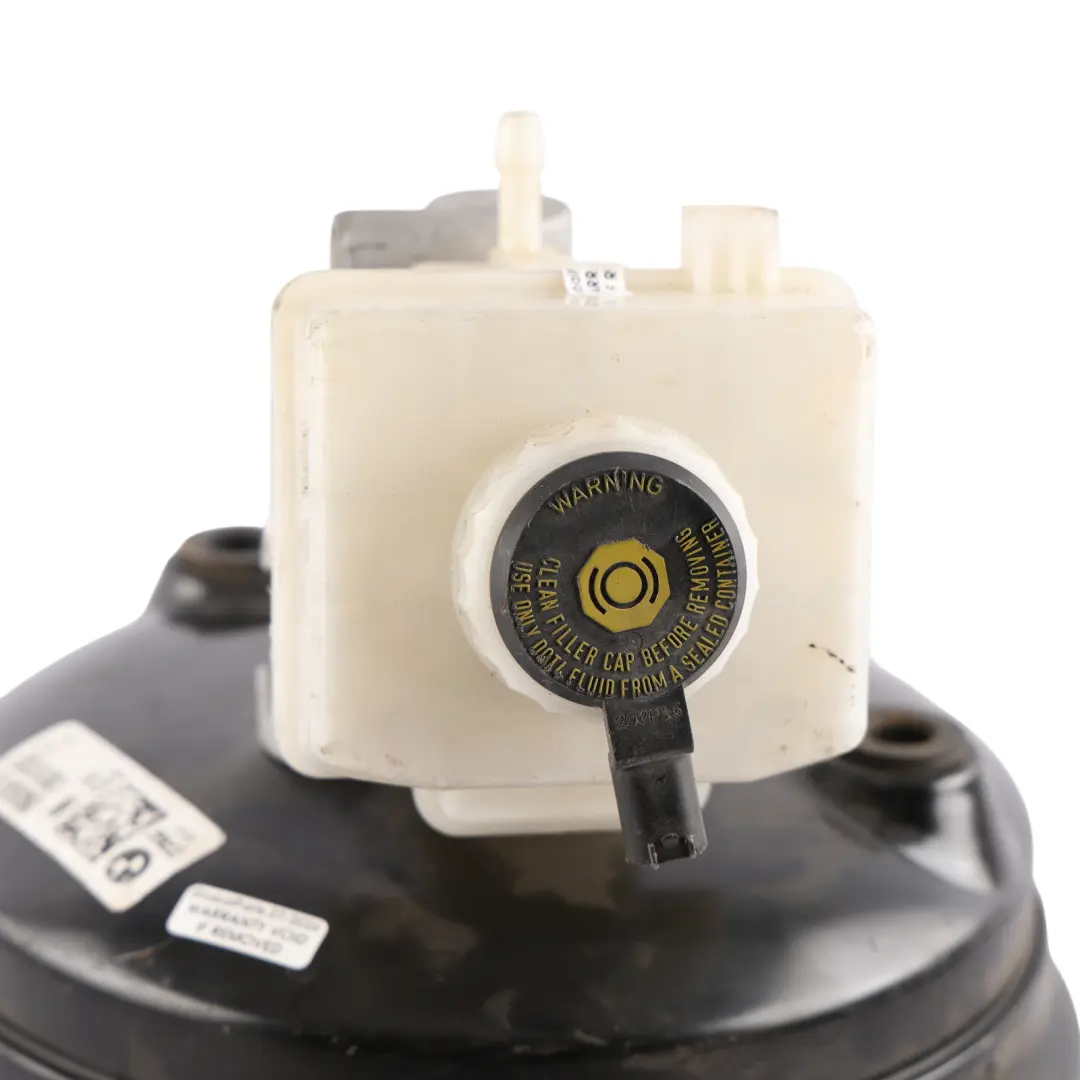

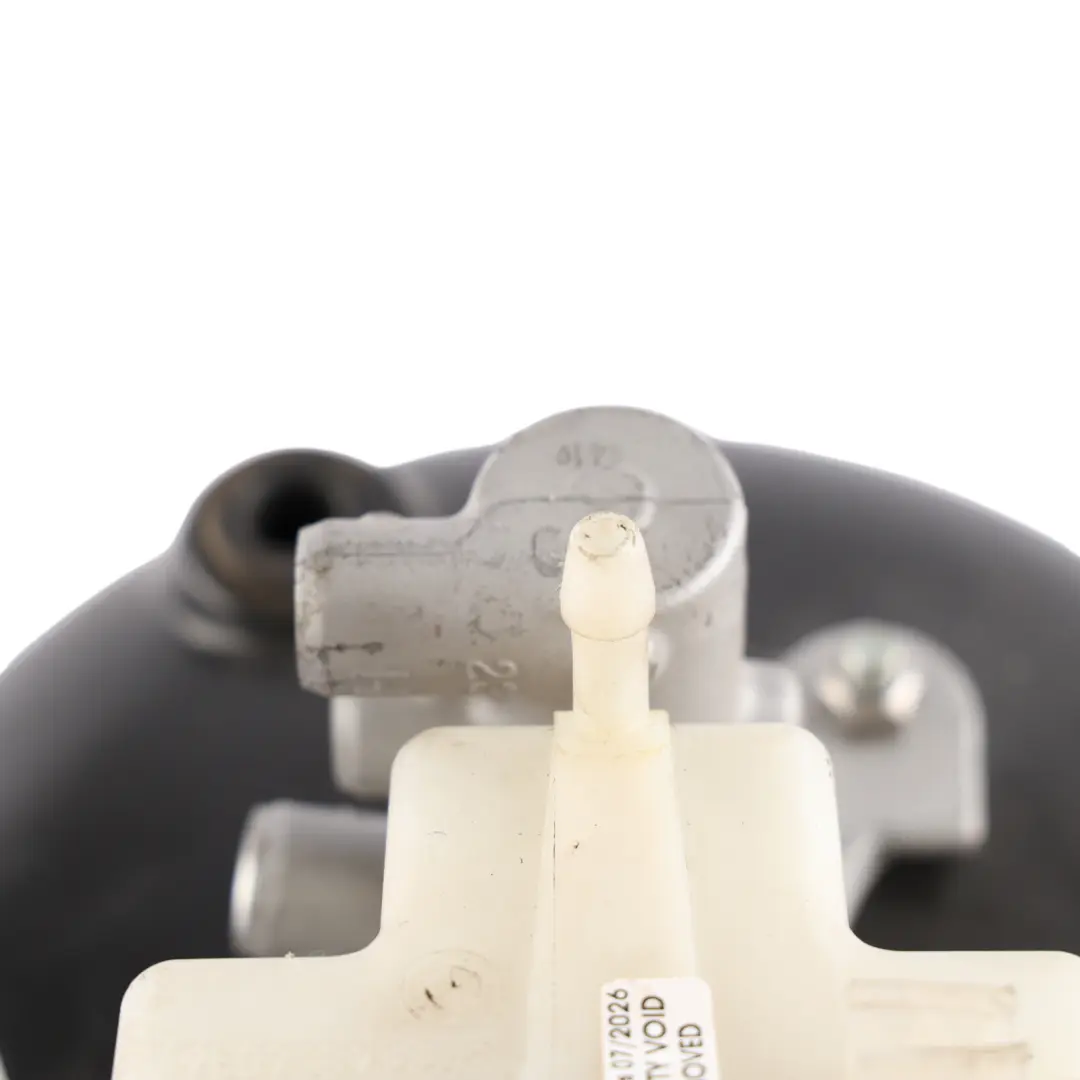

BMW X5 F15 Brake Servo Master Cylinder Booster Unit N20 Engine 6864122

BMW X5 F15 Brake Servo Master Cylinder Booster Unit N20 Engine is a key component of the braking system, responsible for effectively transferring force from the pedal to the hydraulic system. The offered brake servo and master cylinder unit is an original BMW component, designed for precise compatibility with the N20 engine in the X5 F15 model. This used part allows for a technically correct repair of the braking system while maintaining factory performance characteristics.

Specifications and technical data

• SKU: 6864122
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6864122
• Substitutable numbers: 6864122, 34336864122
• Part type: Brake Servo & Master Cylinder
• Category: Brake Servos

Purpose and function in the braking system

The brake servo and brake force regulator in the BMW X5 F15 with the N20 engine are responsible for assisting brake pedal pressure and ensuring proper pressure distribution in the brake circuits. This provides the driver with:

• stable, predictable brake pedal response,
• properly modulated braking force under various vehicle loads,
• consistent operation with the factory ABS/ESP system. The original brake servo and master cylinder unit ensures the maintenance of parameters specified by the vehicle manufacturer, which is particularly important in a heavier SUV like the X5 F15.

Construction and fitment for BMW X5 F15 N20

The presented brake servo has been designed specifically for use with the N20 engine in the BMW X5 F15, taking into account the engine bay geometry and vacuum characteristics. As a result:

• installation is performed at factory mounting points,
• connections to the brake master cylinder and vacuum system maintain their original routing,
• the braking system maintains proper rigidity and resistance to deformation during heavy braking. Such fitment reduces the risk of compatibility issues and simplifies maintenance, which is important for both workshops and individual users.

Benefits of using an original brake servo and force regulator

Using a factory component from the Brake Servos and Force Regulators group in the BMW X5 F15 translates into a number of practical advantages:

• preservation of factory brake assist characteristics,
• proper cooperation with vehicle electronics,
• reduced risk of malfunction in active safety systems. The used OEM component represents a reasonable compromise between repair costs and maintaining a high level of safety and driving comfort. This solution is particularly attractive for users who want to maintain the original braking system configuration without investing in a new part.

Condition, verification, and practical application

The item is offered as a used part, which allows for a significant reduction in repair costs while maintaining the original BMW design. Before installation, it is recommended to perform a standard check of the vacuum system for leaks and verify correct brake pedal operation after bleeding the system. A properly selected brake servo is particularly important in heavier vehicles, where stability and repeatability of braking force have a direct impact on safety. To maximize the potential of the used component and reduce wear on other parts, it is worth checking out practical tips on the operation and maintenance of dismantled parts – you can find them in the article How to extend the service life of used car parts?.

Expanding the BMW braking system

If you are planning a comprehensive repair or upgrade of the braking area in your BMW and need other components from the same group, such as brake master cylinders, brake force regulators, or additional assist components, check out the available parts in the category BMW Brake Servos and Force Regulators.
