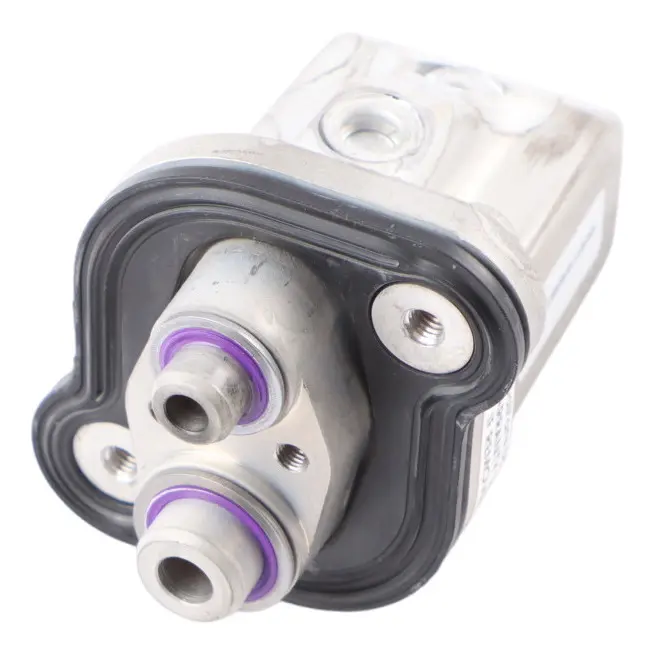

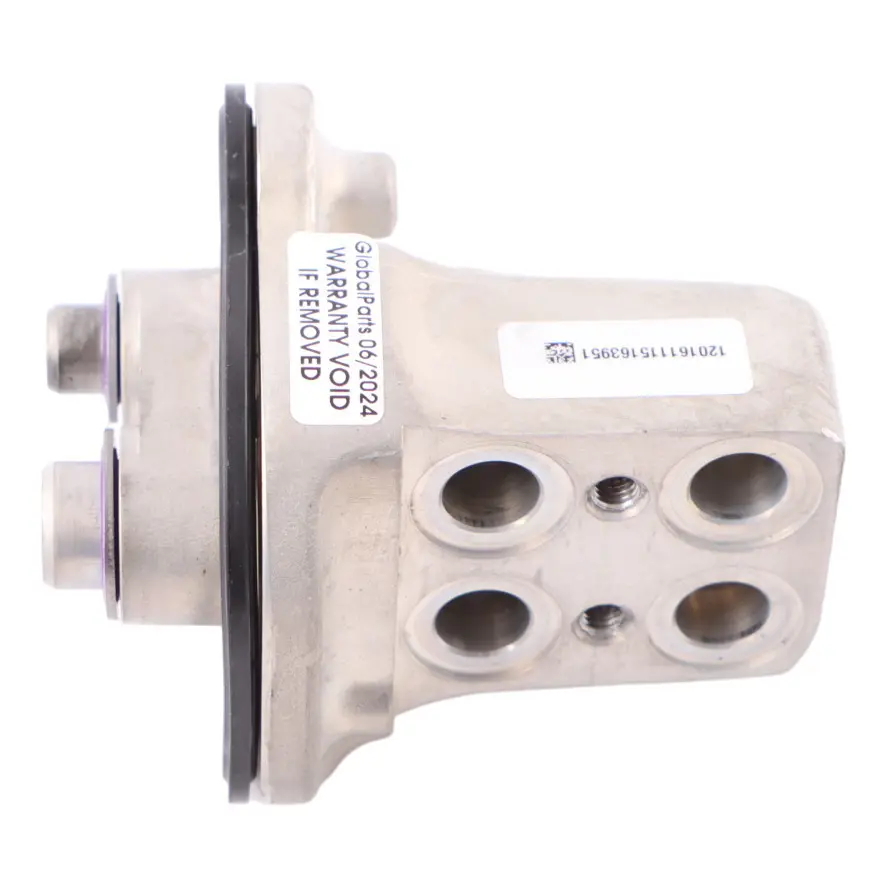

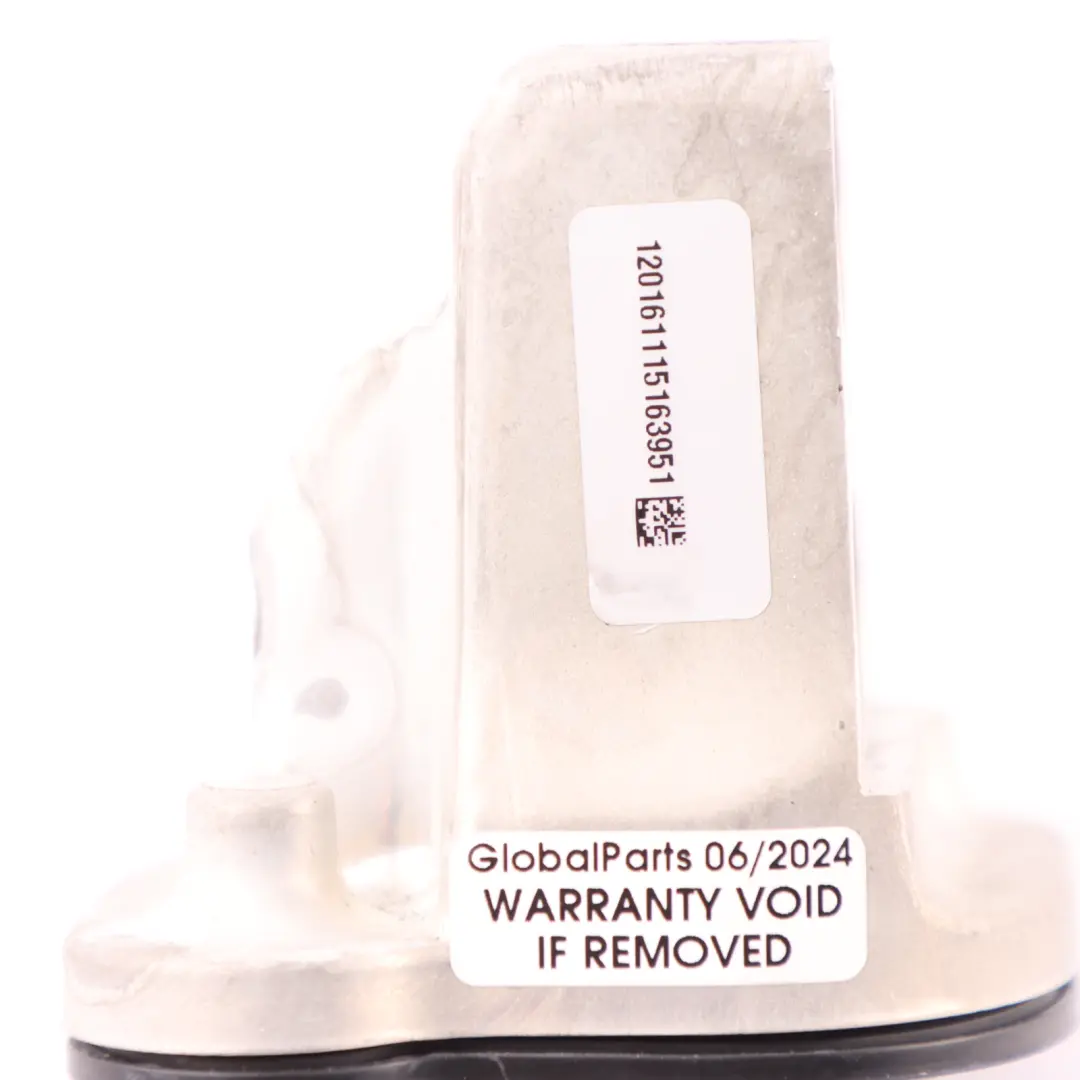

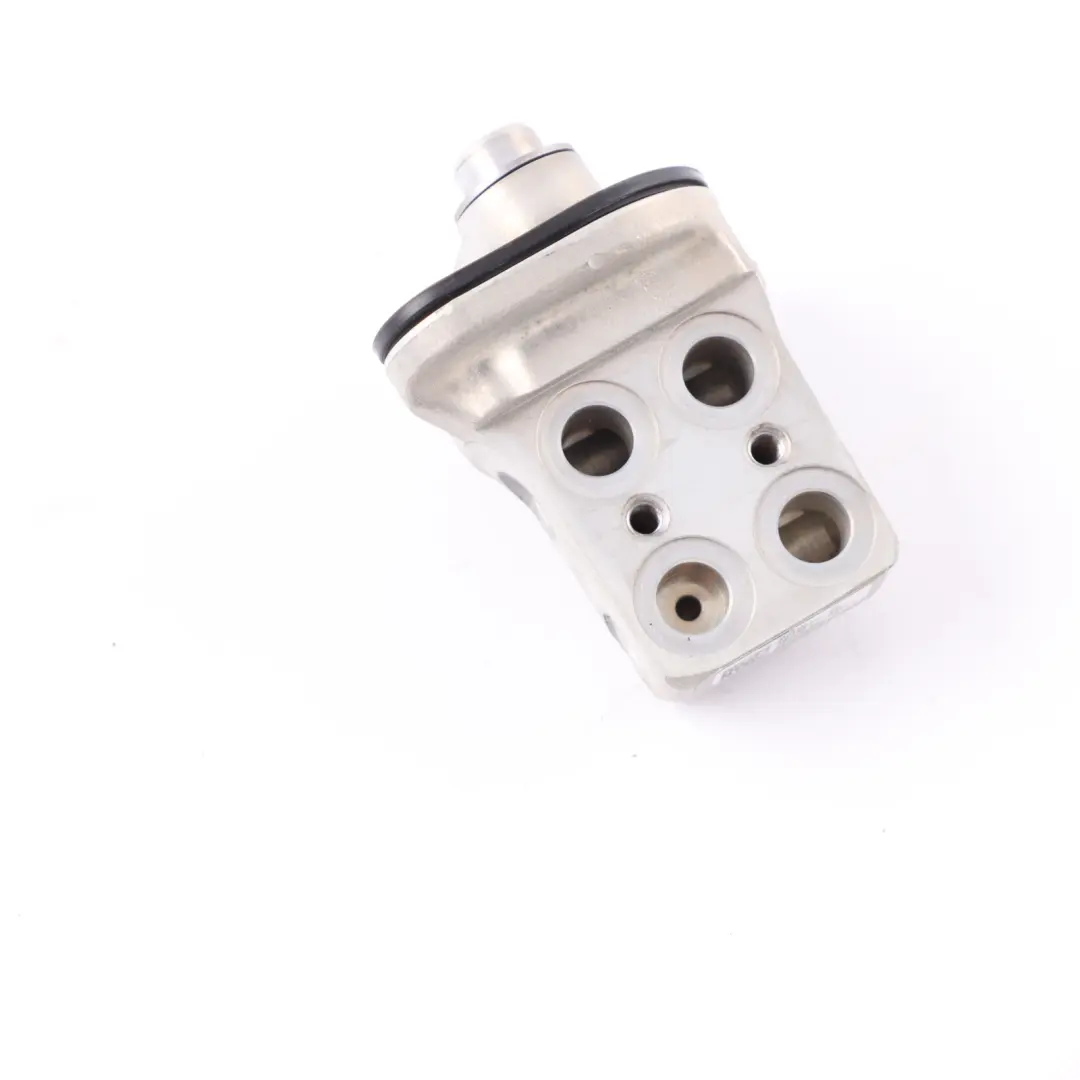

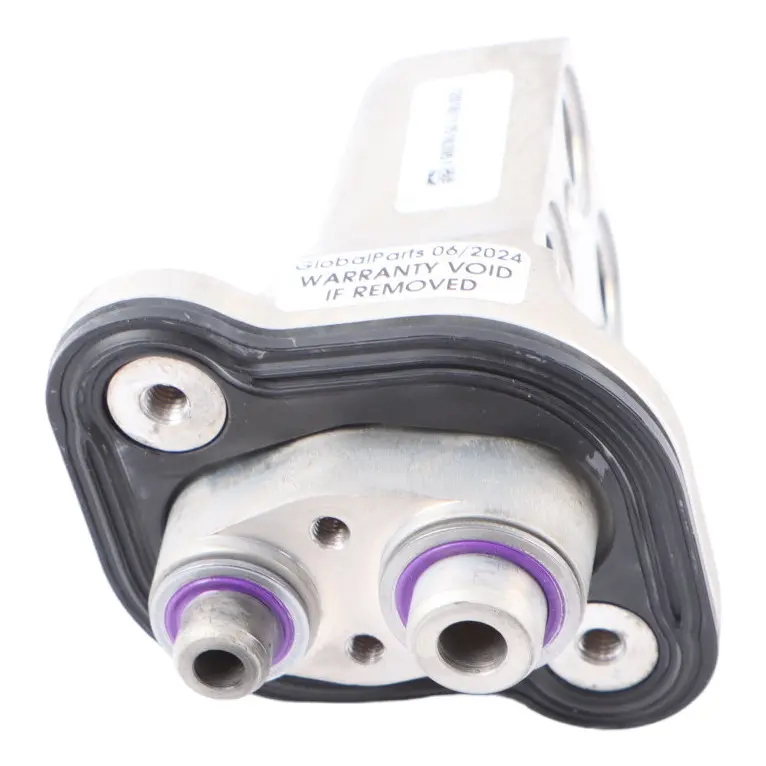

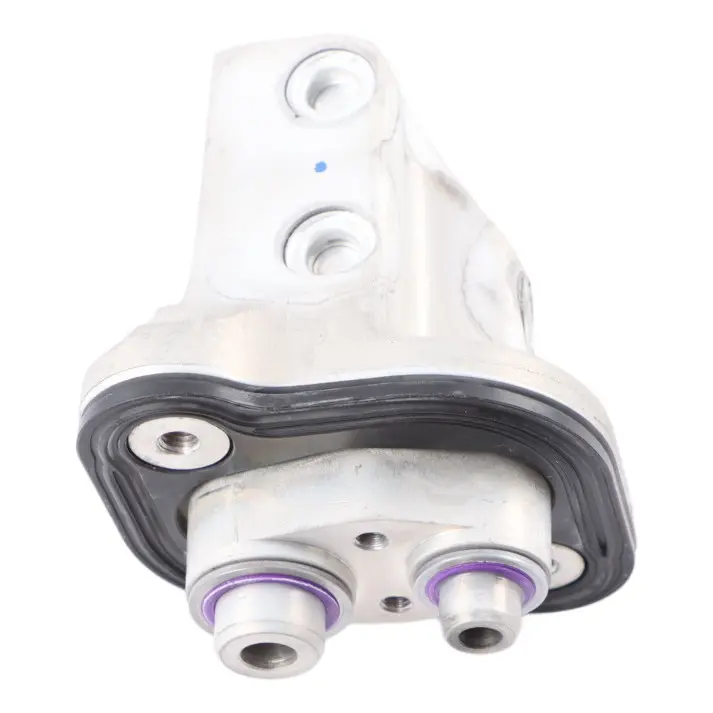

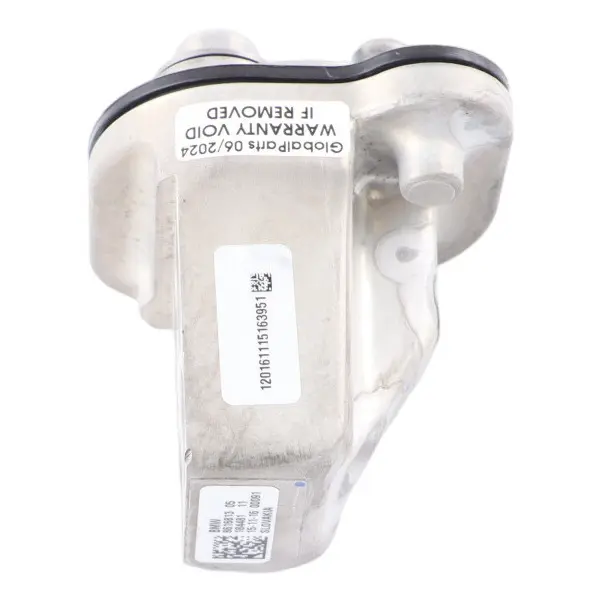

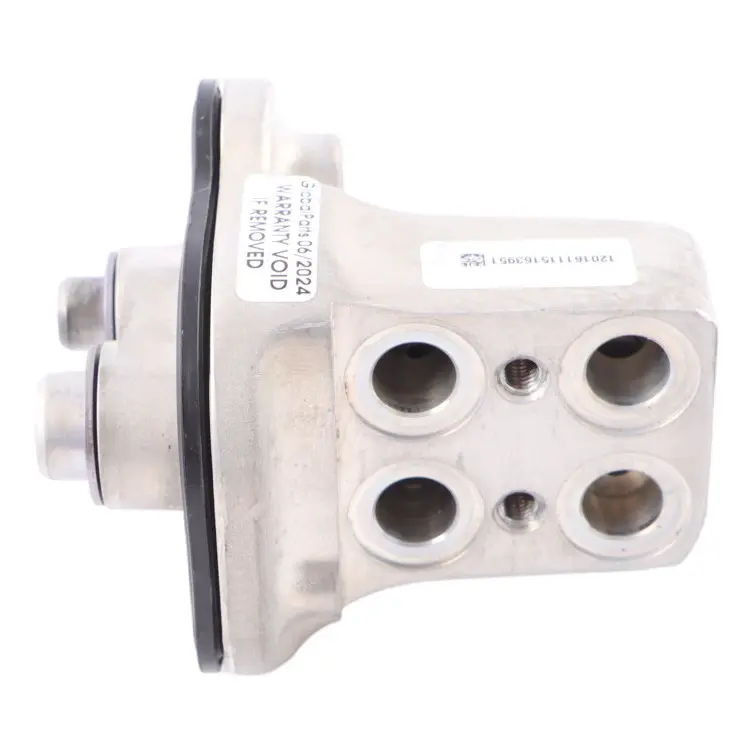

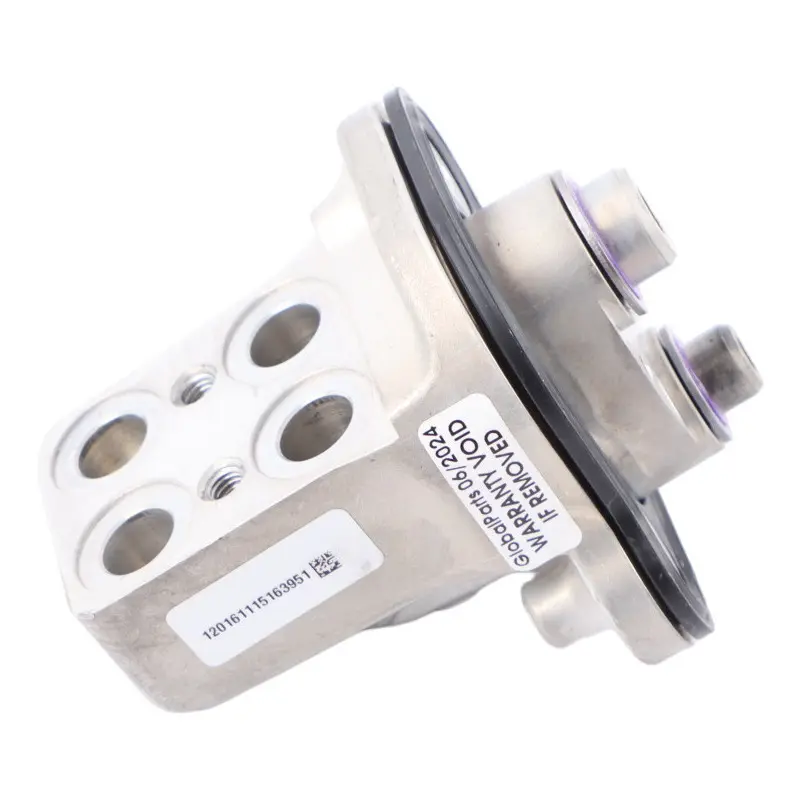

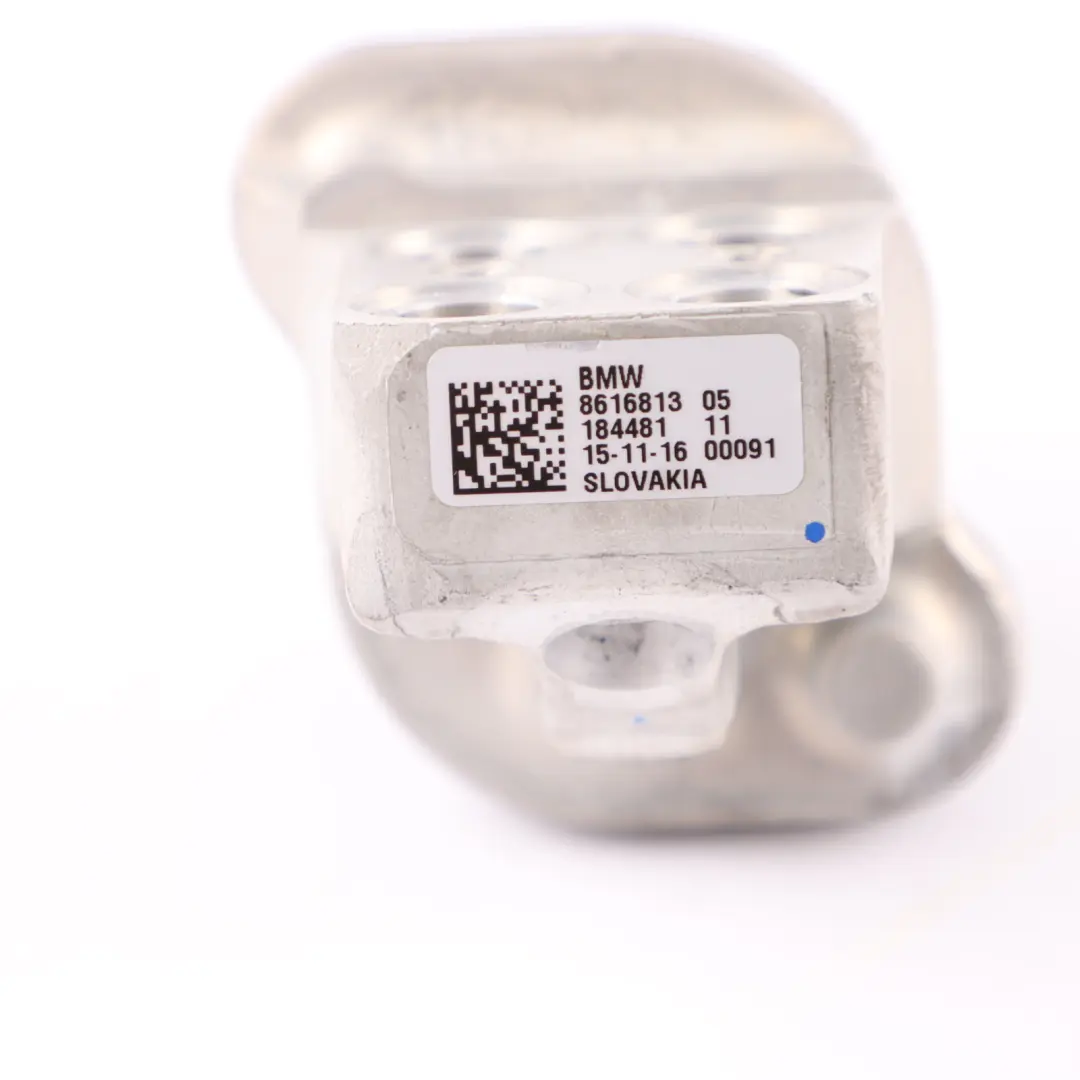

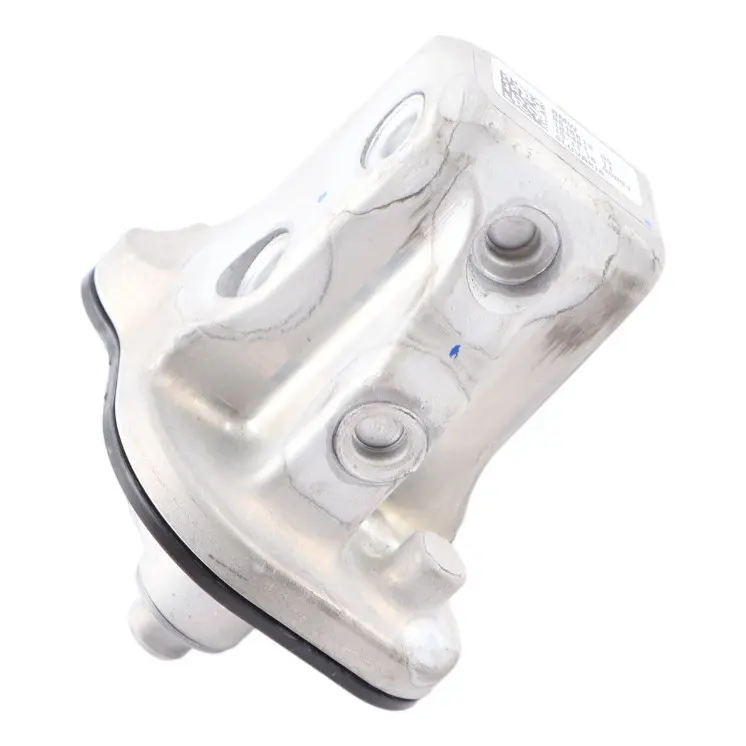

BMW X5 F15 N20 Radiator Connection Line High Voltage Battery 8616813

The BMW X5 F15 High-Voltage Battery Cooler Connection Hose is an original thermal system component, specifically designed for hybrid versions. Thanks to its factory geometry and precise fit for the F15 platform, it ensures a stable connection between the cooler and the high-voltage battery, contributing to the safe operation of the entire high-voltage system and predictable thermal conditions for the cells.

Specifications and technical data

• SKU: 8616813
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8616813
• Substitutable numbers: 8616813, 61278616813
• Category: Batteries

Purpose and Function in the High-Voltage System

The high-voltage battery cooler connection hose in the BMW X5 F15 is responsible for the correct flow of coolant between the cooler and the high-voltage battery. Maintaining a stable cell temperature is crucial for:

• preserving the efficiency of the hybrid drive across the full range of loads,
• limiting cell degradation over the long term,
• maintaining consistent charging and energy recovery parameters.

The original hose geometry minimizes the risk of flow turbulence, leaks, and mechanical stress resulting from the powertrain's operation and body movement.

Original Origin and Compatibility

This component originates from the BMW group, ensuring adherence to factory design and material standards for high-voltage systems. As a result, the hose is structurally adapted to:

• the layout of components within the high-voltage battery compartment,
• the mounting points and routing of the installation within the X5 F15 body,
• the safety requirements for components in the Batteries category for hybrid vehicles.

Its original origin also simplifies the selection of replacement parts based on the manufacturer's part numbers and BMW service documentation, which is important for professional servicing.

Characteristics of a Used Part

The hose is offered as a used part, allowing for cost-effective repair of the high-voltage battery cooling system while maintaining the original design specifications. In practice, this means:

• the ability to restore system functionality without the need to invest in a new component,
• maintaining factory fit with other installation elements,
• an attractive cost-to-functionality ratio compared to non-original aftermarket parts.

For workshops specializing in BMW X5 F15 hybrids, this solution optimizes repair costs while maintaining a high level of operational safety.

Benefits of Using an Original HV Battery Cooling Hose

Using the factory high-voltage battery cooler connection hose in the BMW X5 F15 offers a range of practical benefits:

• maintaining the designed flow path and cross-section of the hose, supporting stable battery cooling system operation,
• secure fit with brackets, clamps, and guides in the body, without requiring modifications,
• reduced risk of leaks due to imprecise end fitting,
• consistency with BMW service documentation, facilitating diagnostics and future inspections.

For the end-user, this translates to more predictable hybrid drive operation, stable battery thermal conditions, and a reduced risk of malfunctions related to overheating or undercooling of the cells.

Assistance with Selection and Additional Information

If you are planning a comprehensive repair or upgrade of the high-voltage power supply area in your BMW and require other components from the same group, such as connection hoses, power modules, or battery housings, check the available parts in the BMW Batteries category.

When selecting used parts for high-voltage systems, it is advisable to pay attention to their origin, compliance with technical documentation, and installation method. Additional practical tips for safely selecting components can be found in the article Buying Used Car Parts – Common Mistakes When Choosing Tuning Parts, which discusses typical pitfalls when purchasing parts from the secondary market and helps in consciously planning modifications and repairs.
