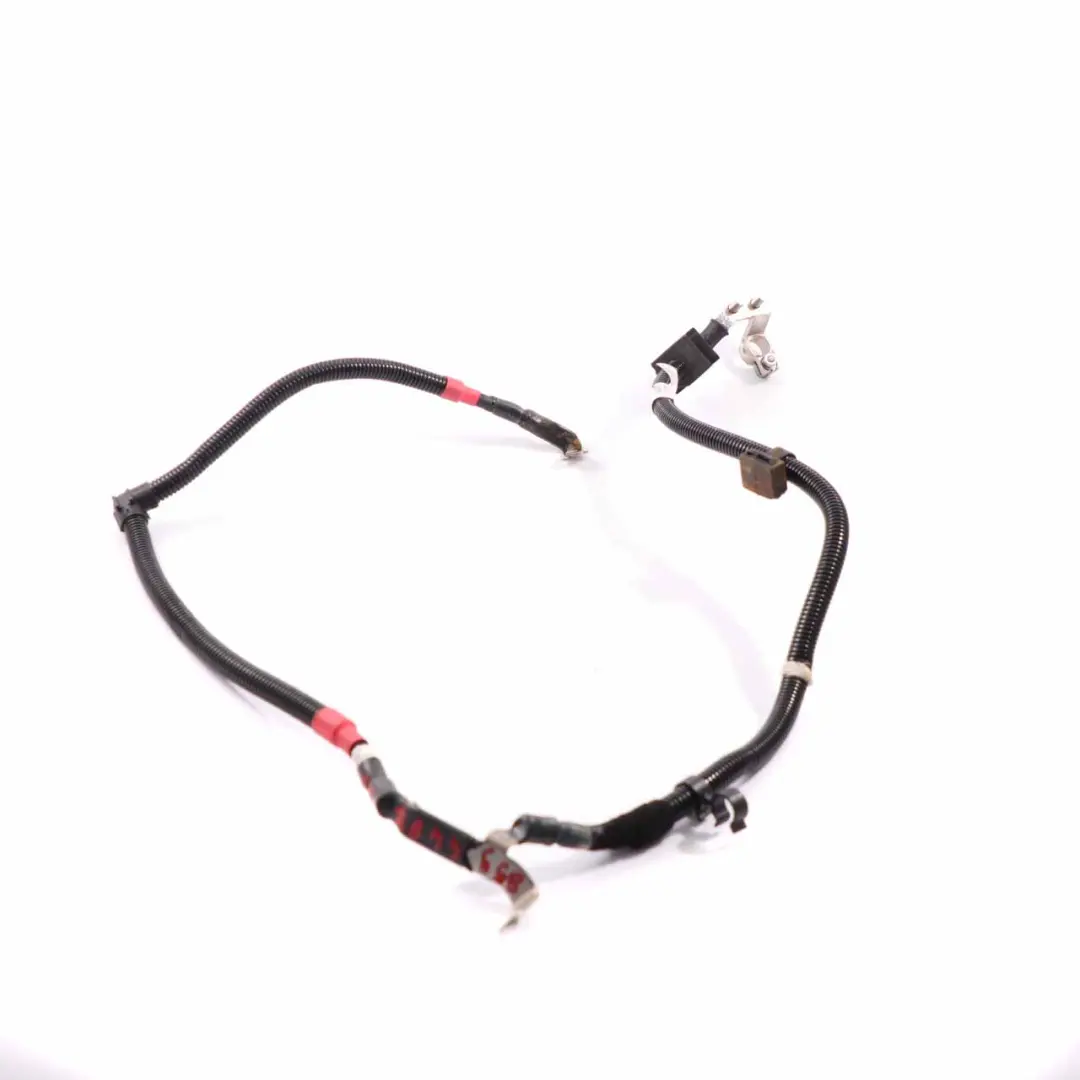

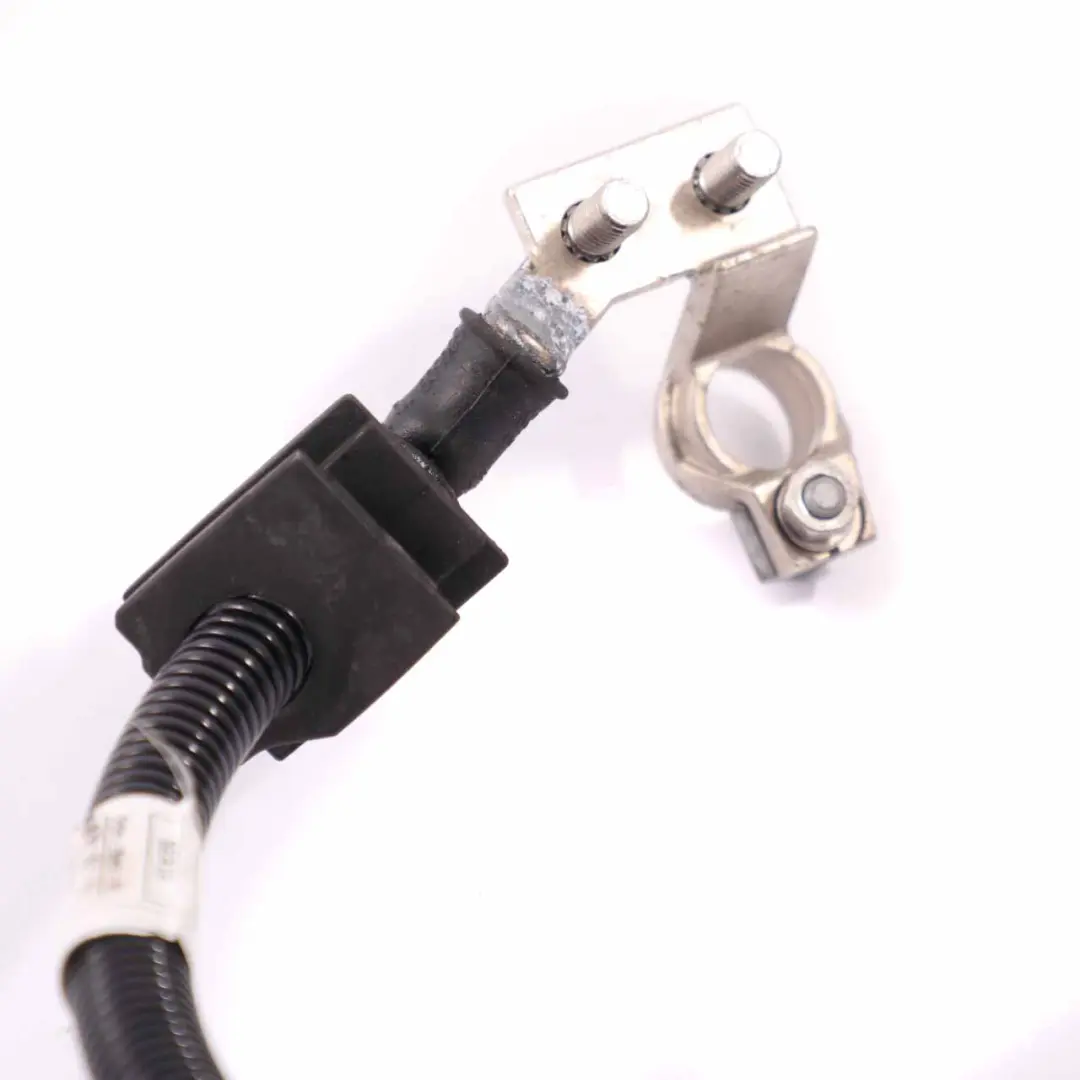

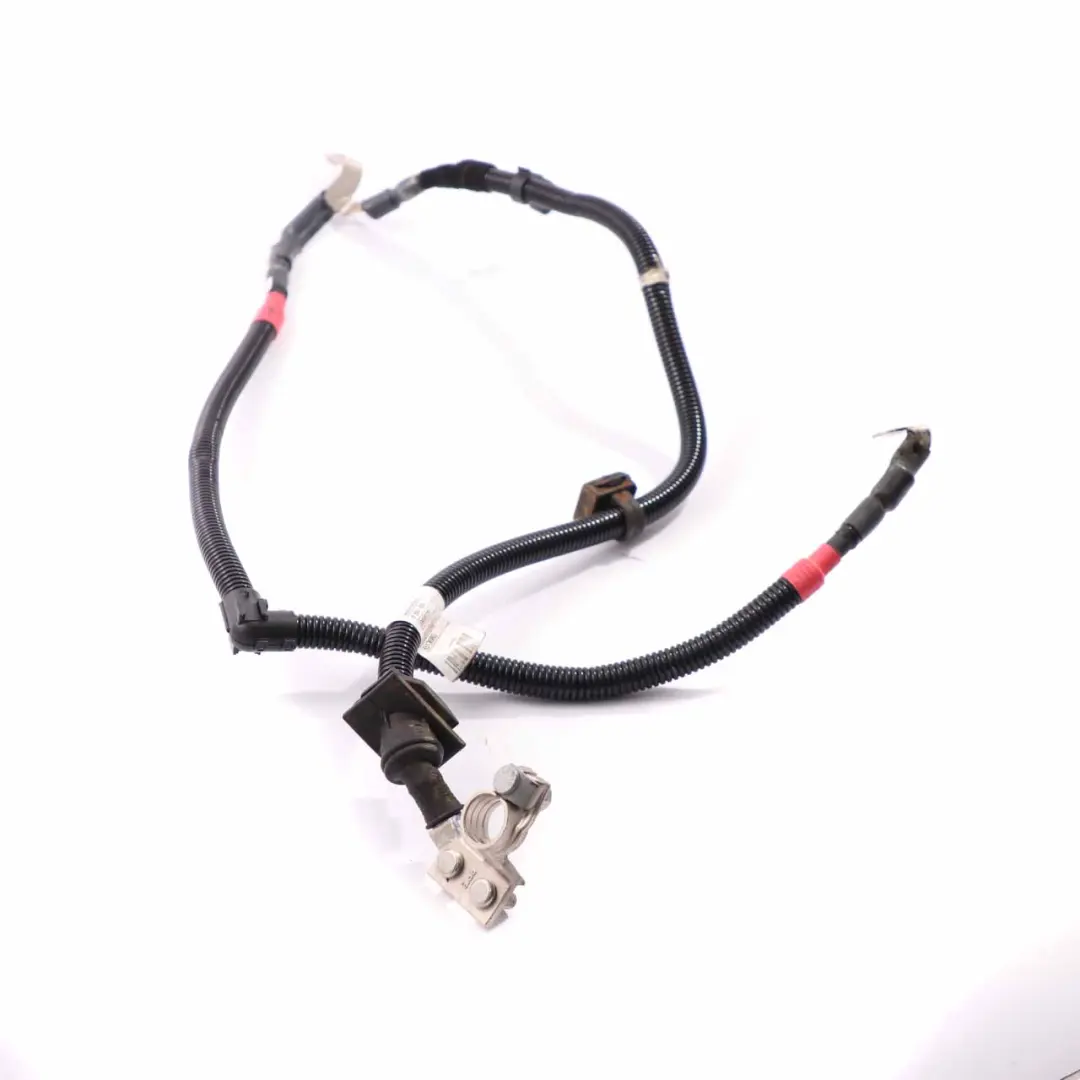

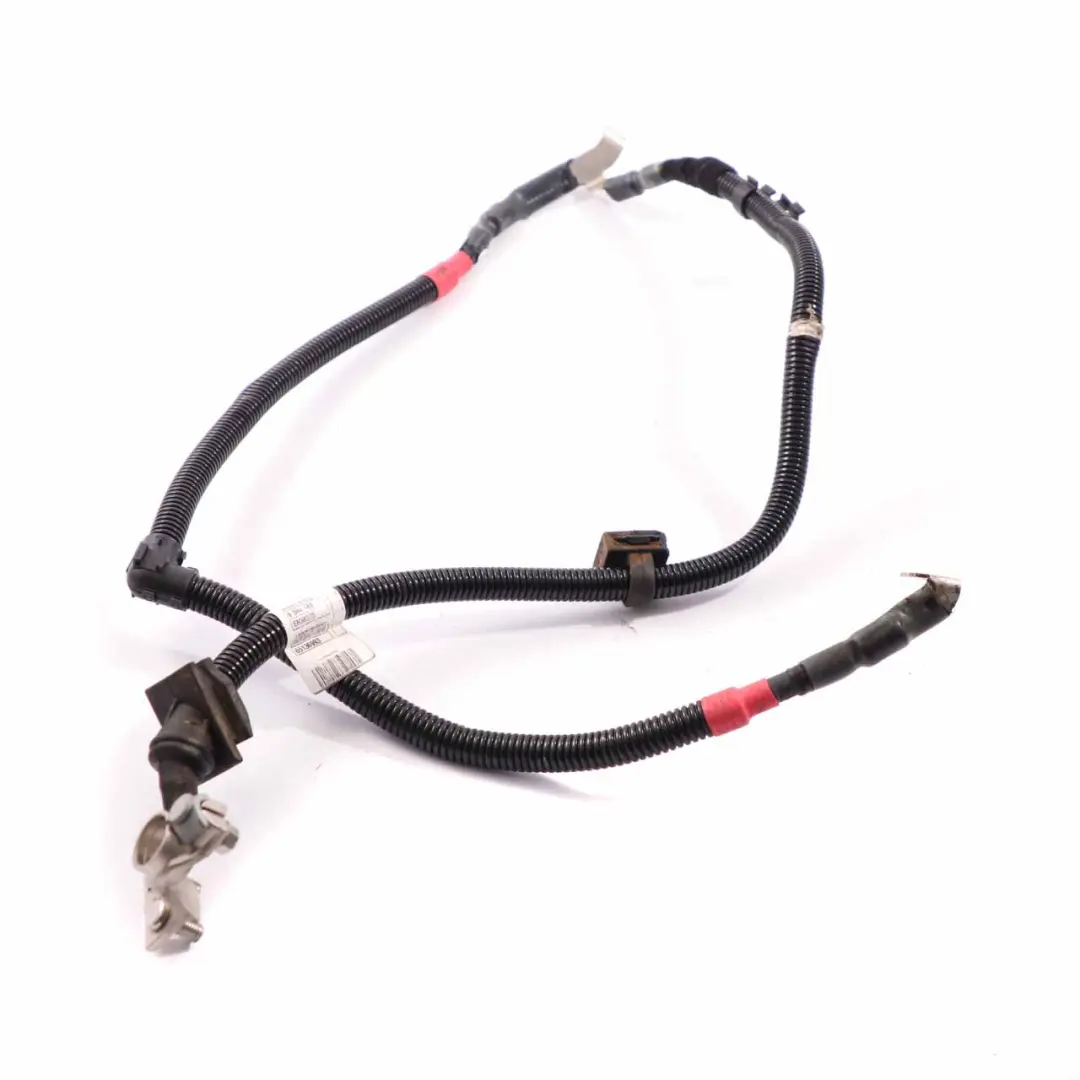

BMW F45 Mini F56 Positive Battery Alternator Starter Cable Wiring 8594487

BMW F45 Mini F56 Positive Battery Alternator Starter Cable Wiring is a specialized electrical system component designed for the charging system in diesel-powered vehicles. It is responsible for a secure, stable connection between the alternator and the vehicle's electrical system, which directly impacts the performance of the power supply and electronics. Thanks to a design consistent with Mini factory solutions, the wiring ensures proper cable routing and safe current load transfer under the demanding operating conditions of a diesel unit.

Specifications and technical data

• SKU: 8594487
• Mark: Mini (Genuine OE)
• Condition: Used
• OEM Part Number: 8594487
• Substitutable numbers: 8594487, 12428594487
• Fuel type: Diesel
• Category: Alternators & Generators

Purpose and function in the charging system

The alternator cable wiring in BMW F45 and Mini F56 diesel models is a key connecting element between the generator and the rest of the vehicle's electrical system. It is responsible for:

• transferring high charging currents from the alternator to the power supply system,
• providing stable power to electrical consumers while the engine is running,
• ensuring proper cooperation between the alternator and the vehicle's control electronics.

A well-chosen wiring harness in the Alternators and generators category minimizes voltage drops, reduces the risk of cable overheating, and supports the trouble-free operation of the entire charging system.

Compatibility with BMW F45 and Mini F56 Diesel

The presented wiring has been designed with the electrical architecture of the BMW F45 and Mini F56 diesel in mind. This means matched cable lengths, appropriately positioned mounting points, and connectors prepared for integration with the alternator and the wiring of these models. As a result, installation is orderly, maintaining factory cable routing paths.

The wiring is a component from the Mini group, which helps maintain compliance with the manufacturer's original design solutions. Such a fit reduces the risk of mechanical stress on the cables, accidental rubbing against engine components, and poor contact at the connectors.

Performance characteristics and advantages of the solution

In diesel systems, the alternator often operates under higher loads due to extensive electronics and additional energy consumers. The alternator cable wiring adapted for such a power unit should provide:

• an appropriate cable cross-section for high operating currents,
• insulation resistant to temperature and vibrations in the engine compartment,
• stable connectors that limit the risk of sparking and voltage drops.

Selecting a wiring harness dedicated to a specific BMW F45 / Mini F56 Diesel configuration helps maintain correct battery charging parameters and proper operation of onboard systems. This, in turn, translates into more predictable vehicle behavior, especially under intensive city and highway driving conditions.

Component condition and service application

The offered wiring comes from the used Mini parts segment, making it an attractive service solution for charging system repairs. It is suitable both for replacing a damaged alternator cable and for comprehensive work within the diesel engine's electrical system, where maintaining compliance with the factory configuration is required.

Replacing the wiring is particularly recommended in situations where symptoms such as unstable charging, signs of insulation overheating, corrosion on connectors, or mechanical damage to the cables occur. Using a component matched to the BMW F45 and Mini F56 allows for the restoration of correct alternator operating parameters without the need for system modifications.

Expanding the charging system in Mini vehicles

If you are planning a comprehensive repair or upgrade of the engine area in your Mini and need other elements from the same group, such as alternator power cables, connection harnesses, or additional generator installation sections, check out the available parts in the Mini Alternators and generators category.

To better care for the durability of parts sourced from dismantling, including electrical wiring and charging system components, it is worth learning practical principles of operation and maintenance. Useful tips can be found in the article How to extend the life of used car parts?, which discusses, among other things, the impact of proper installation and regular inspections on component longevity.
