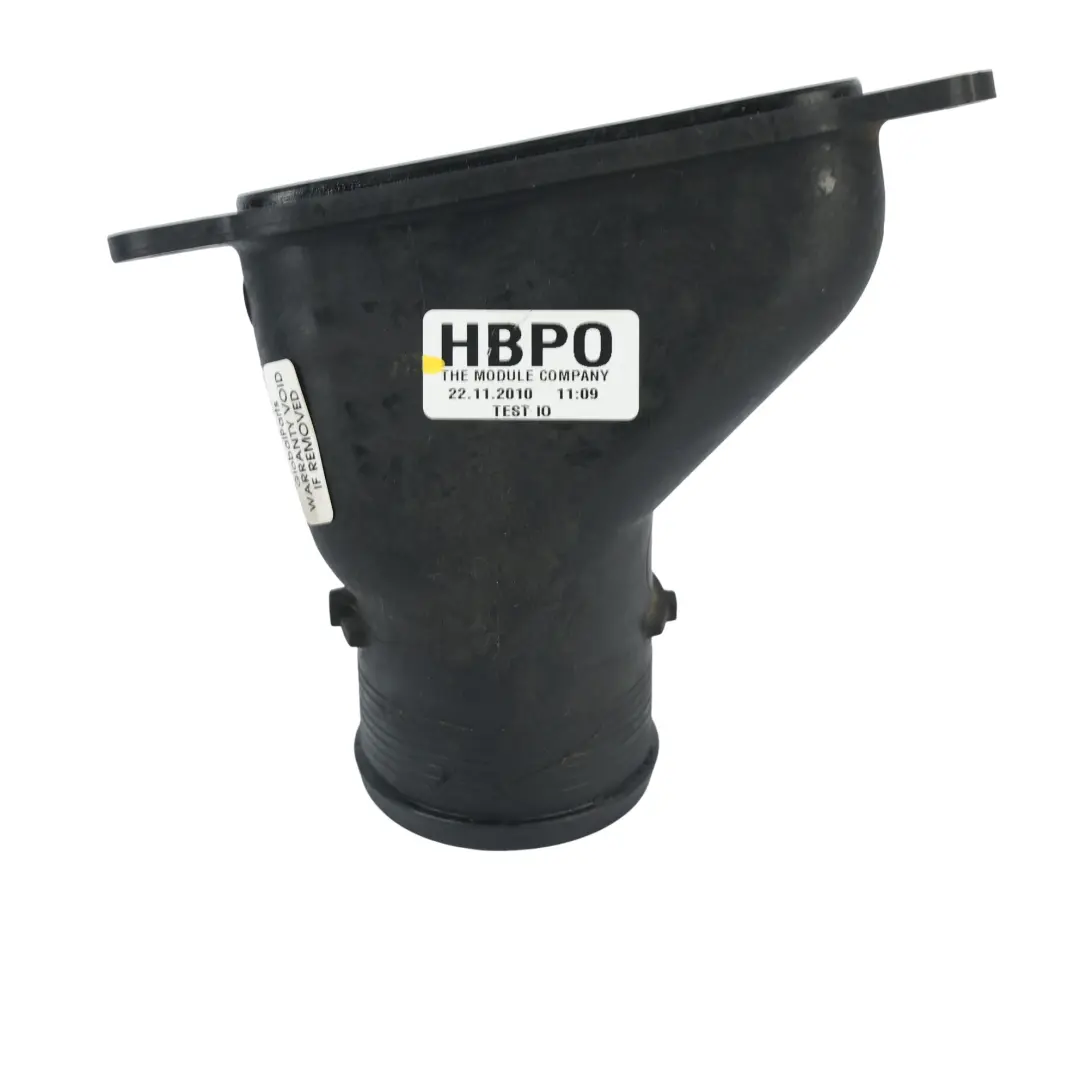

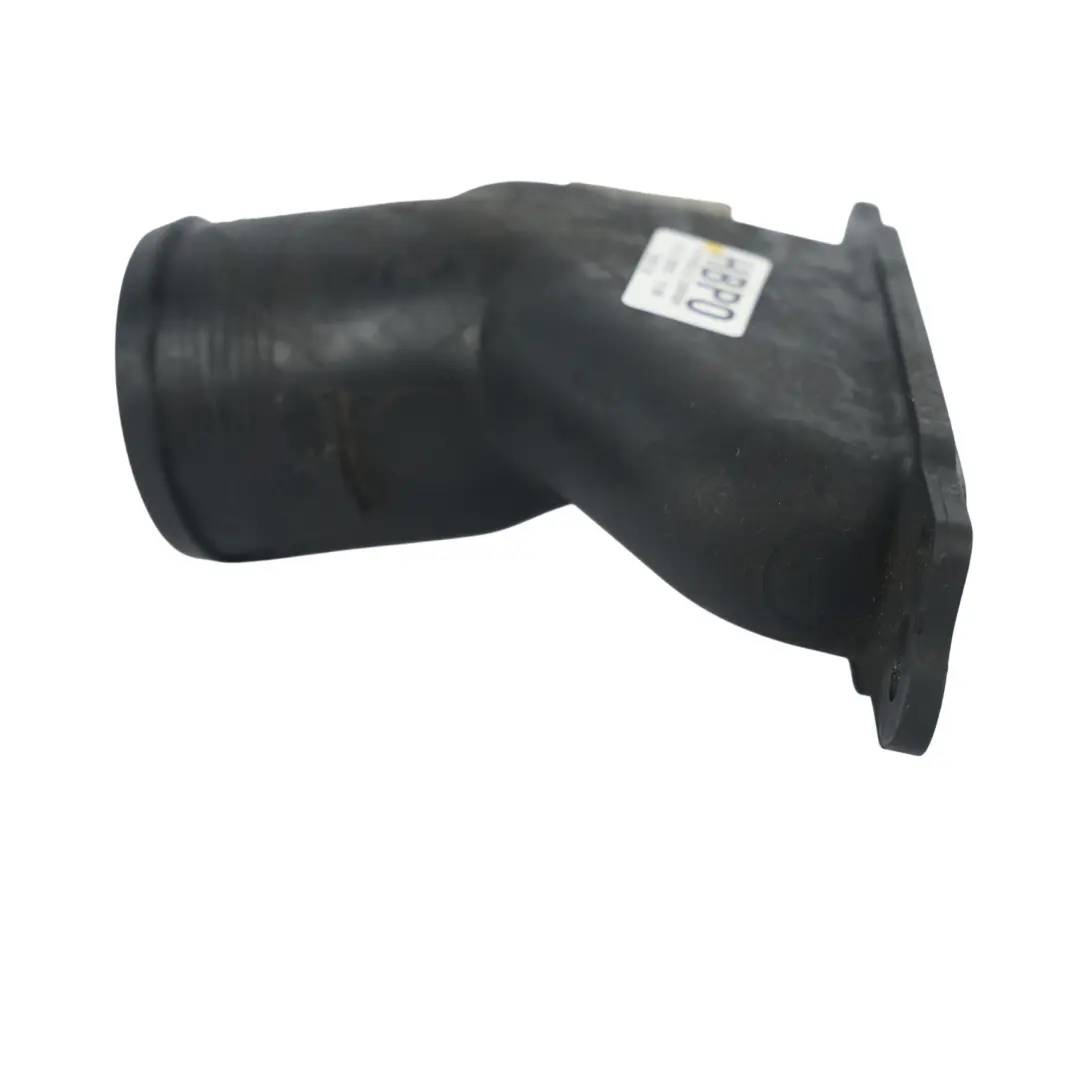

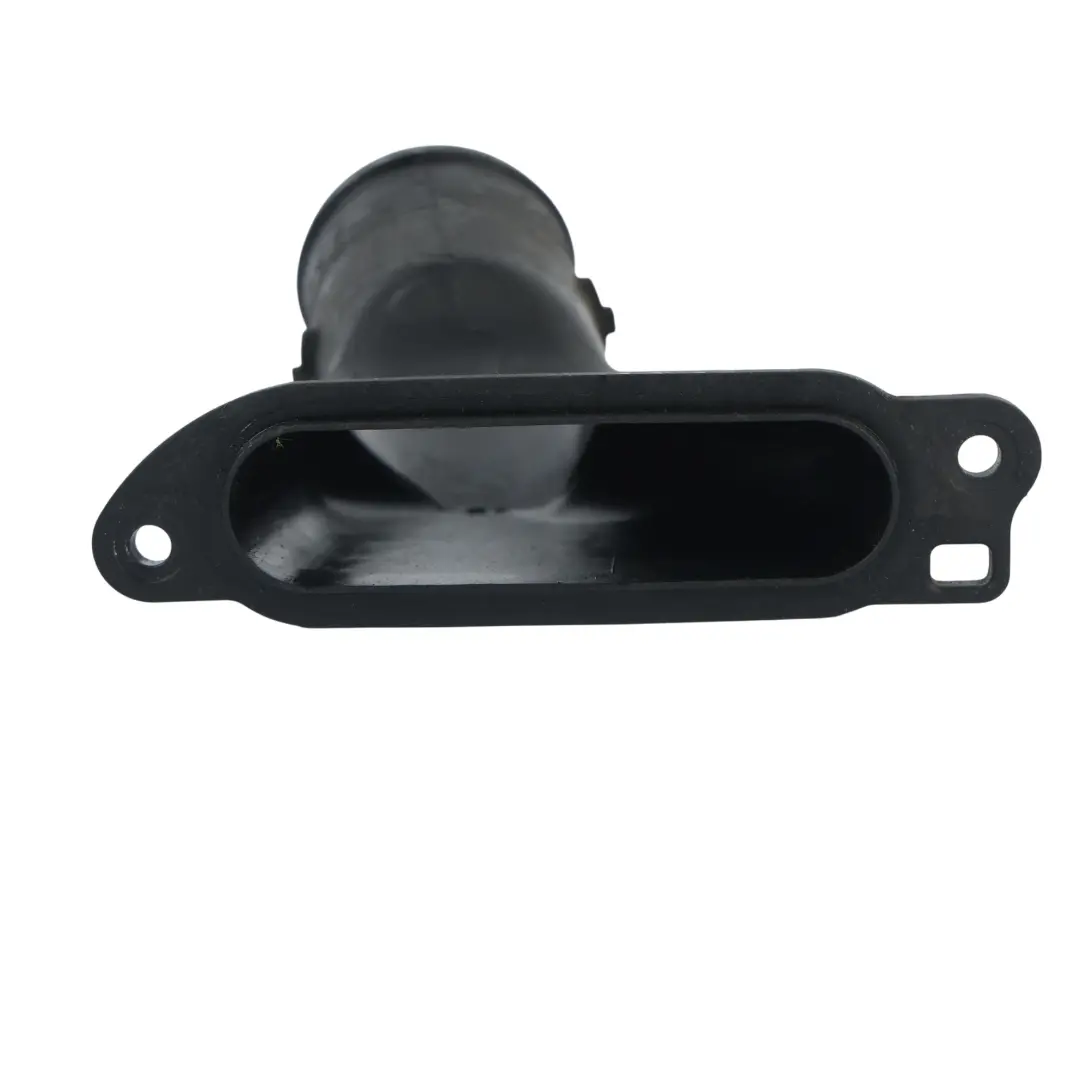

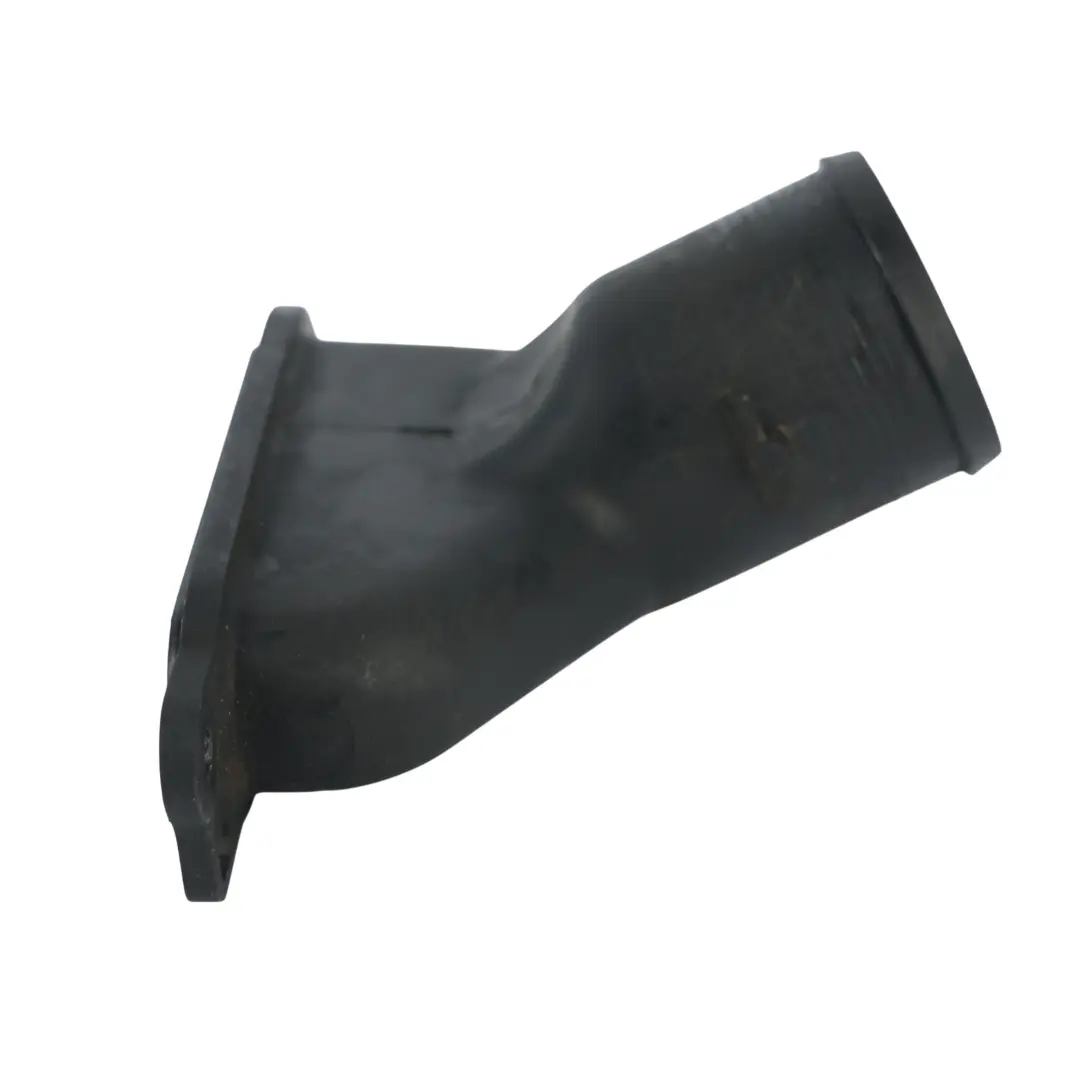

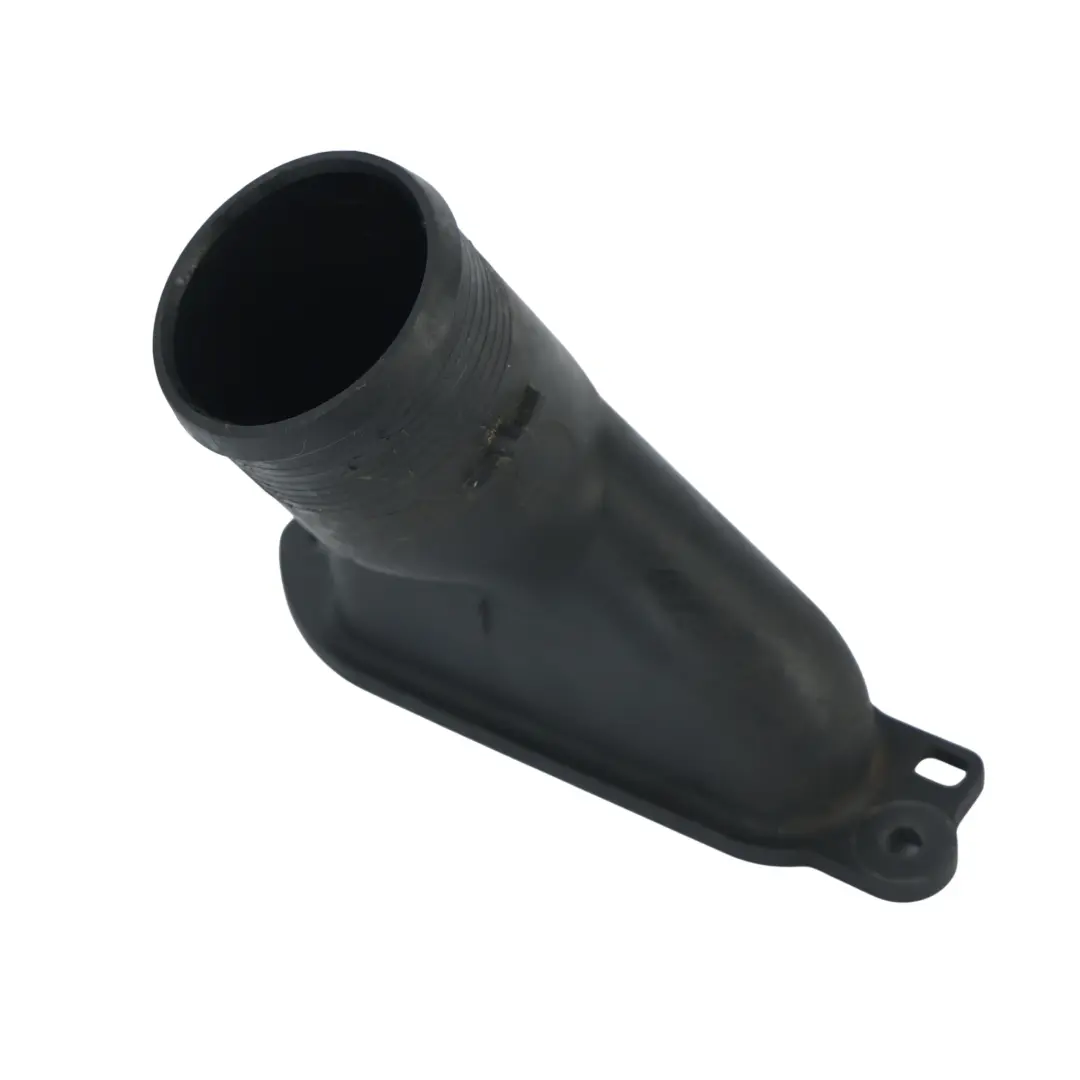

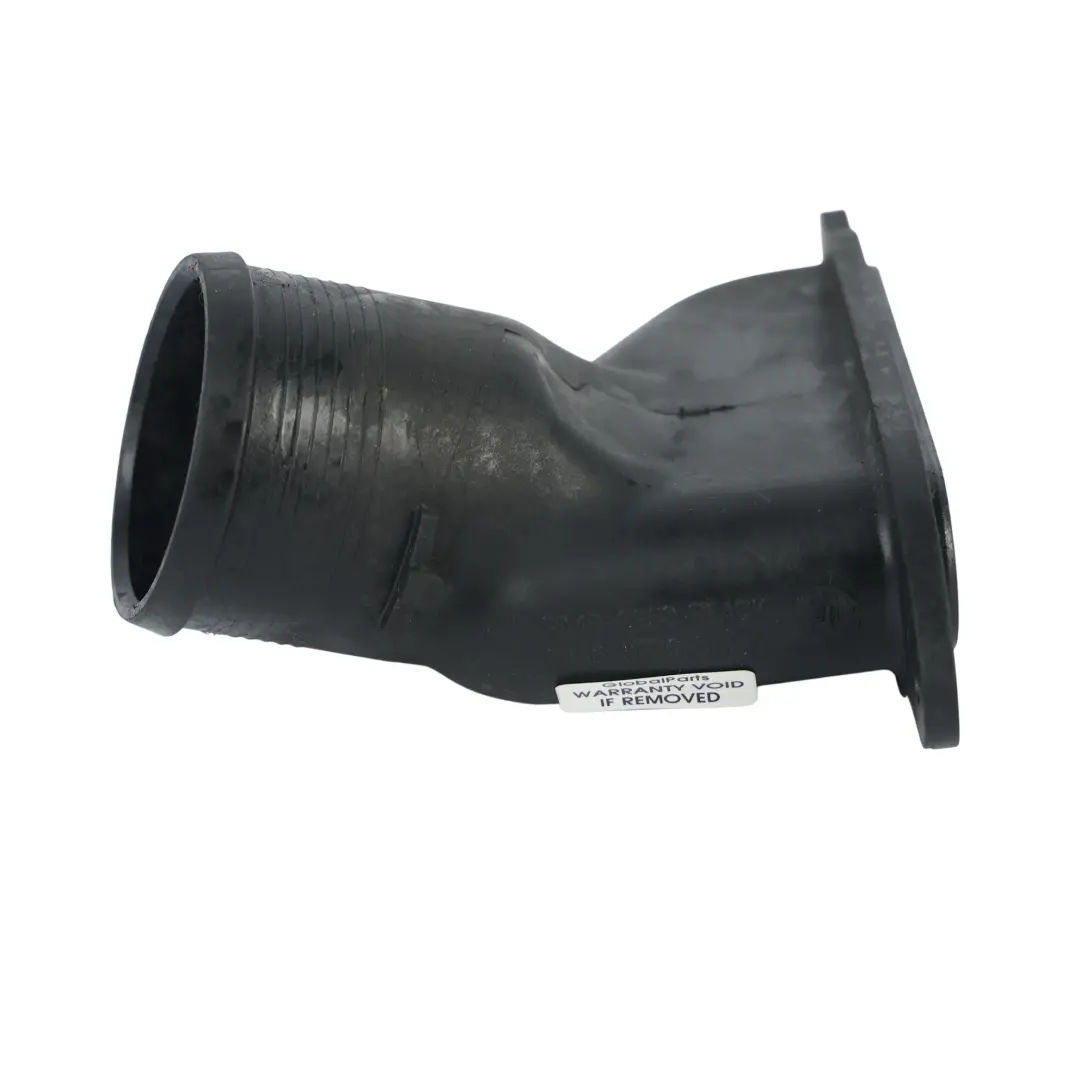

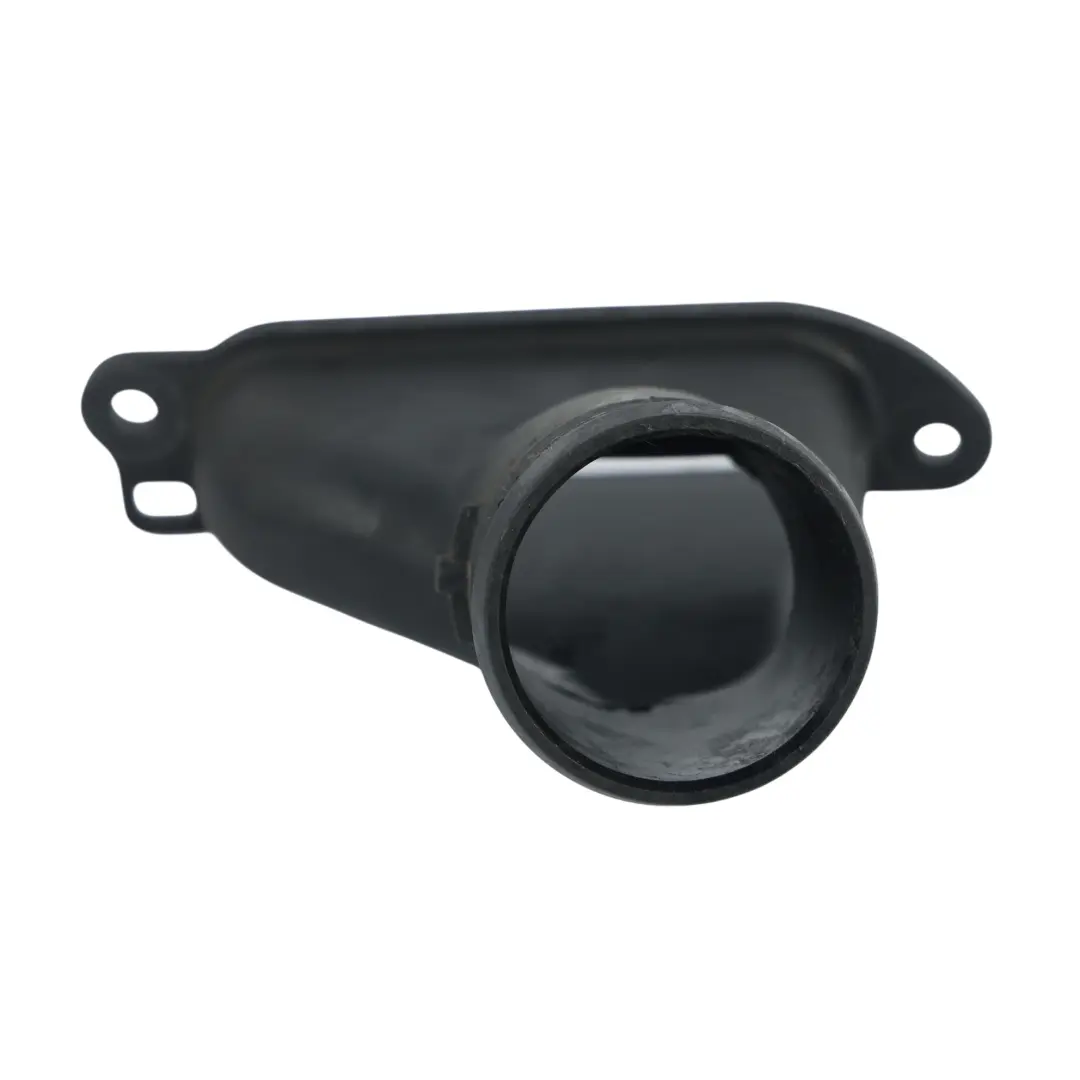

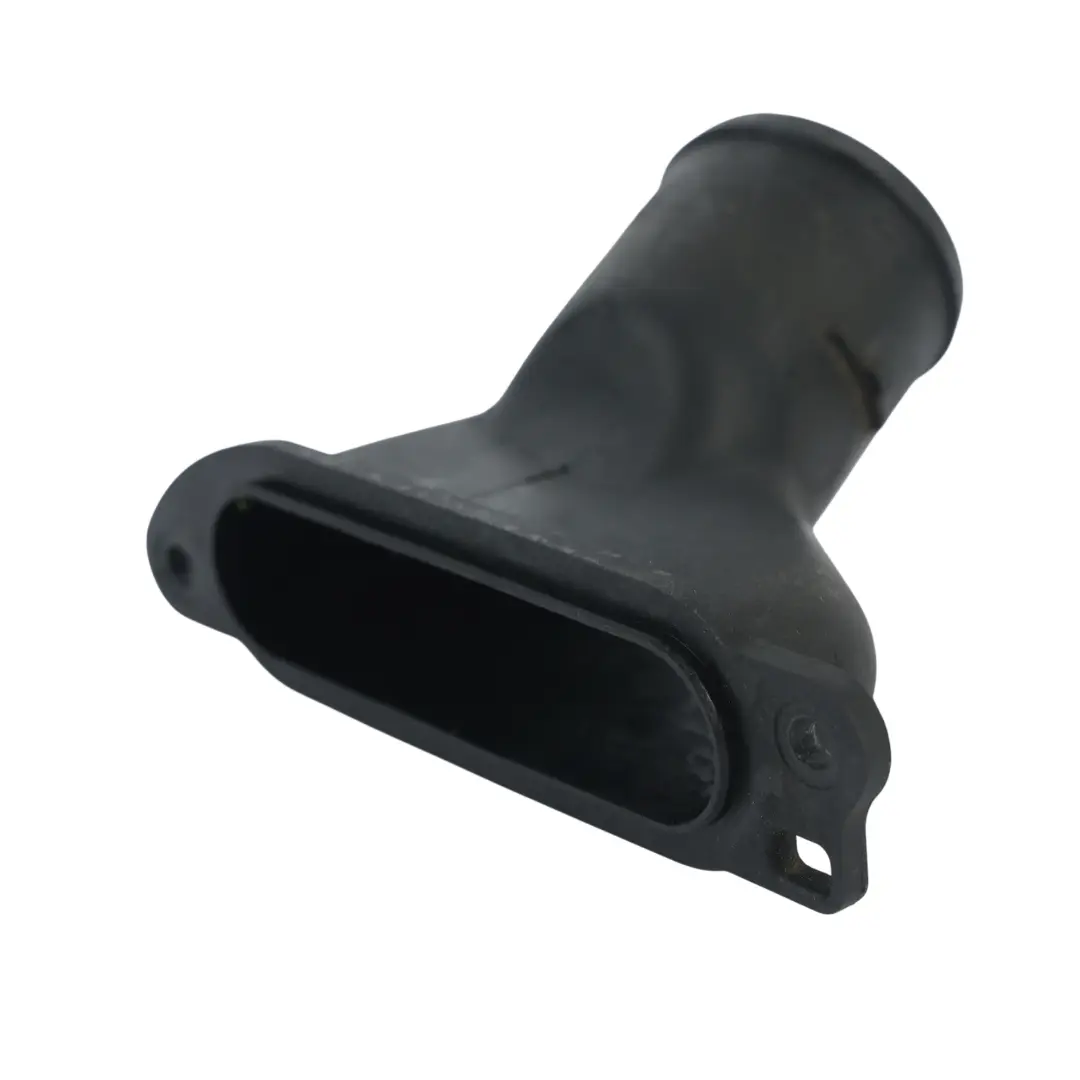

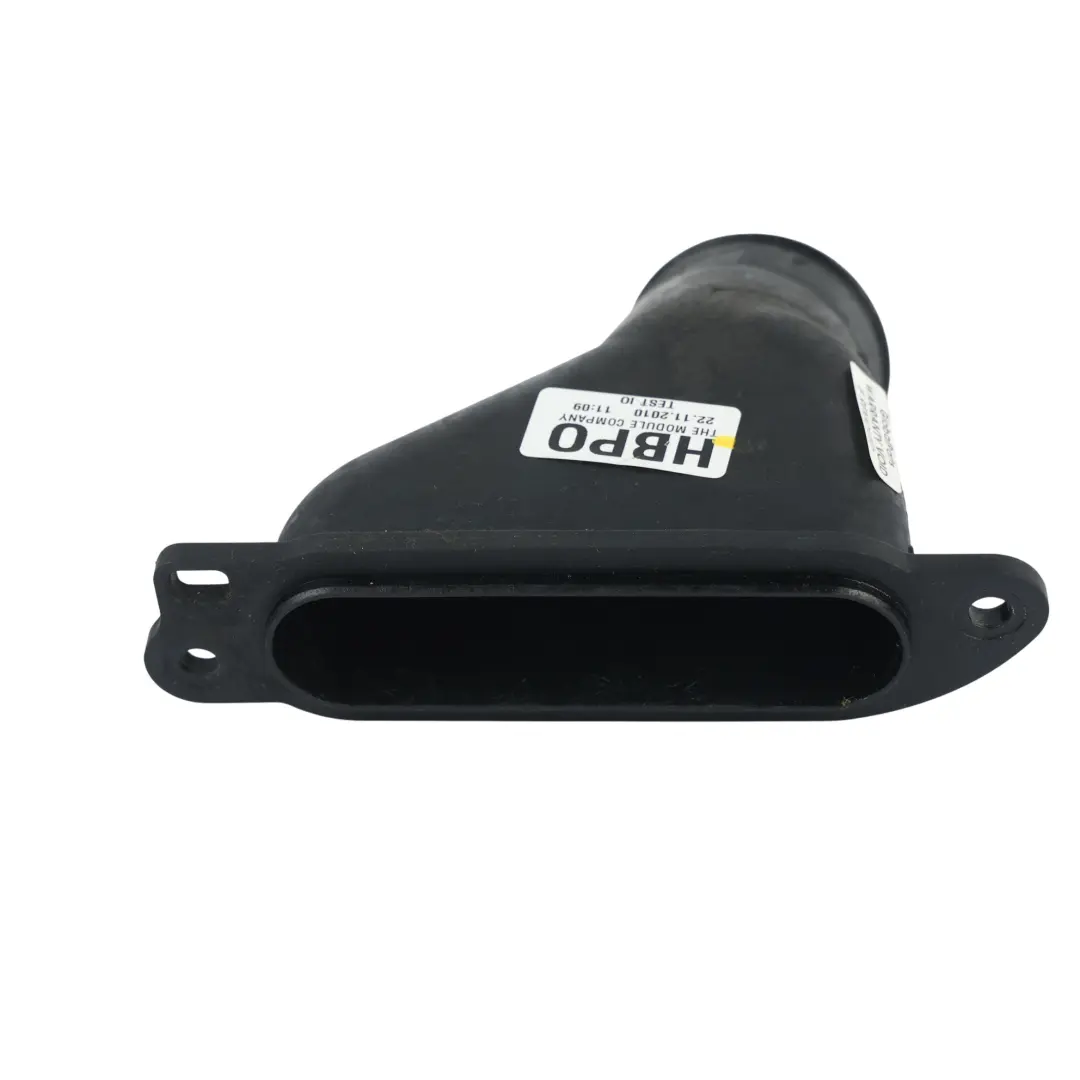

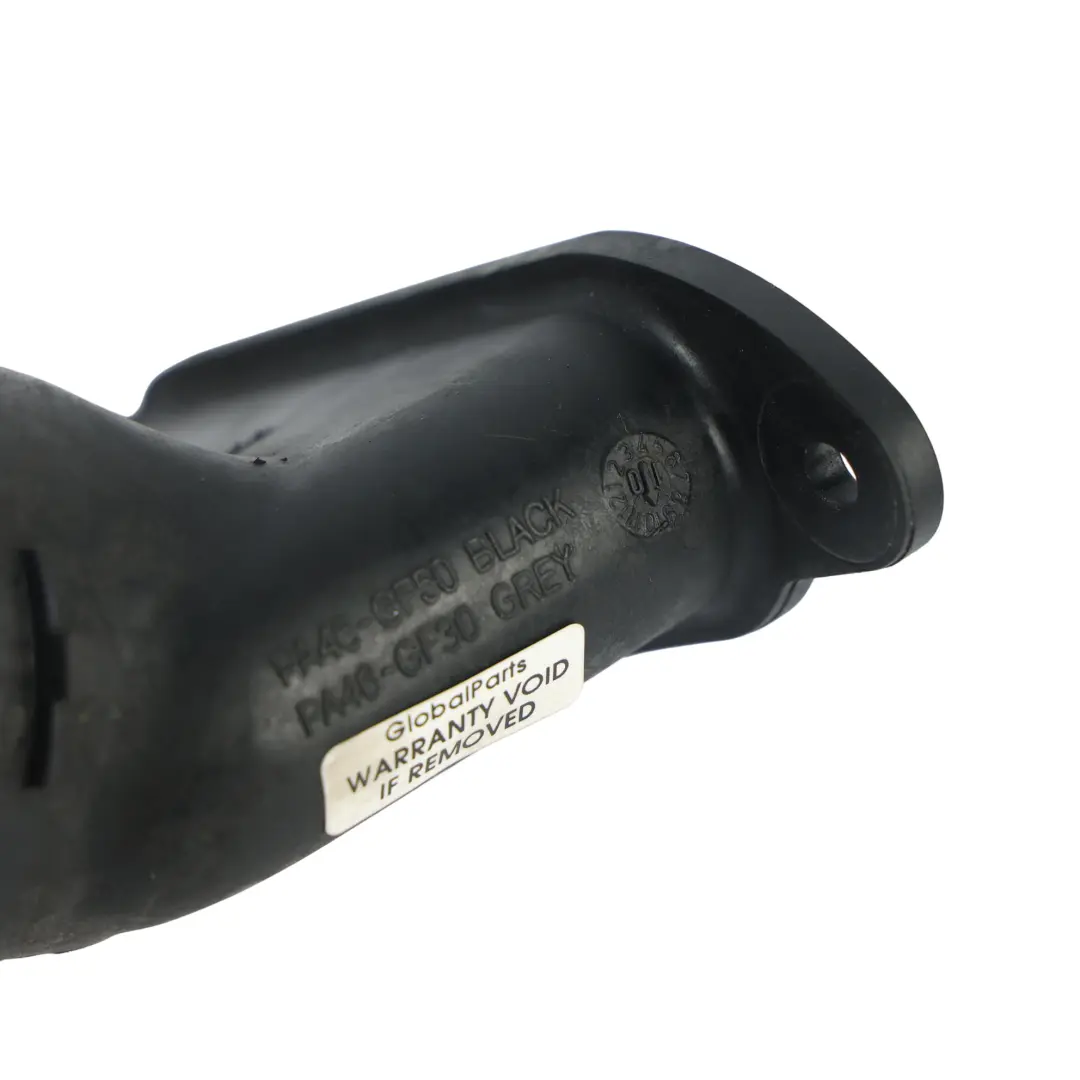

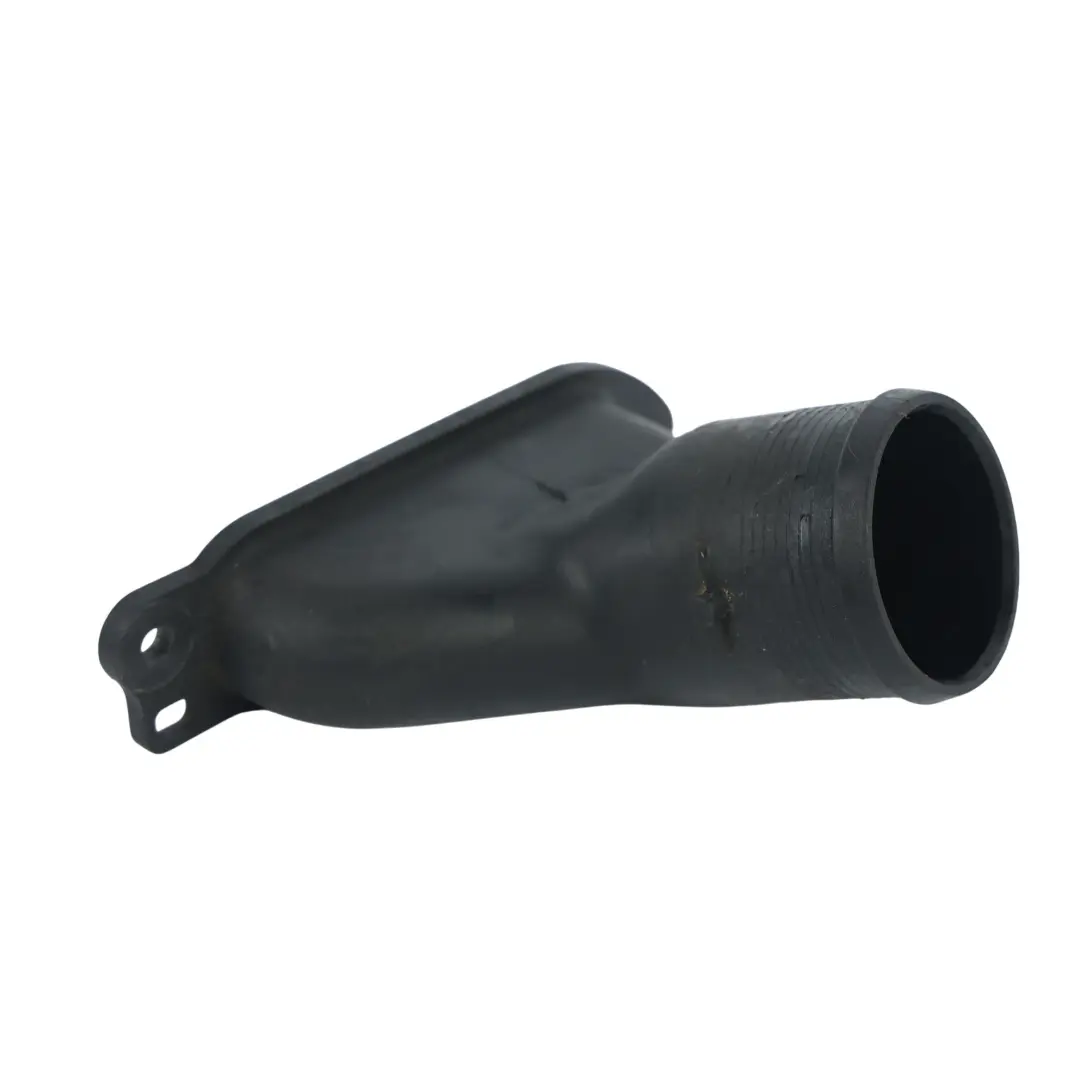

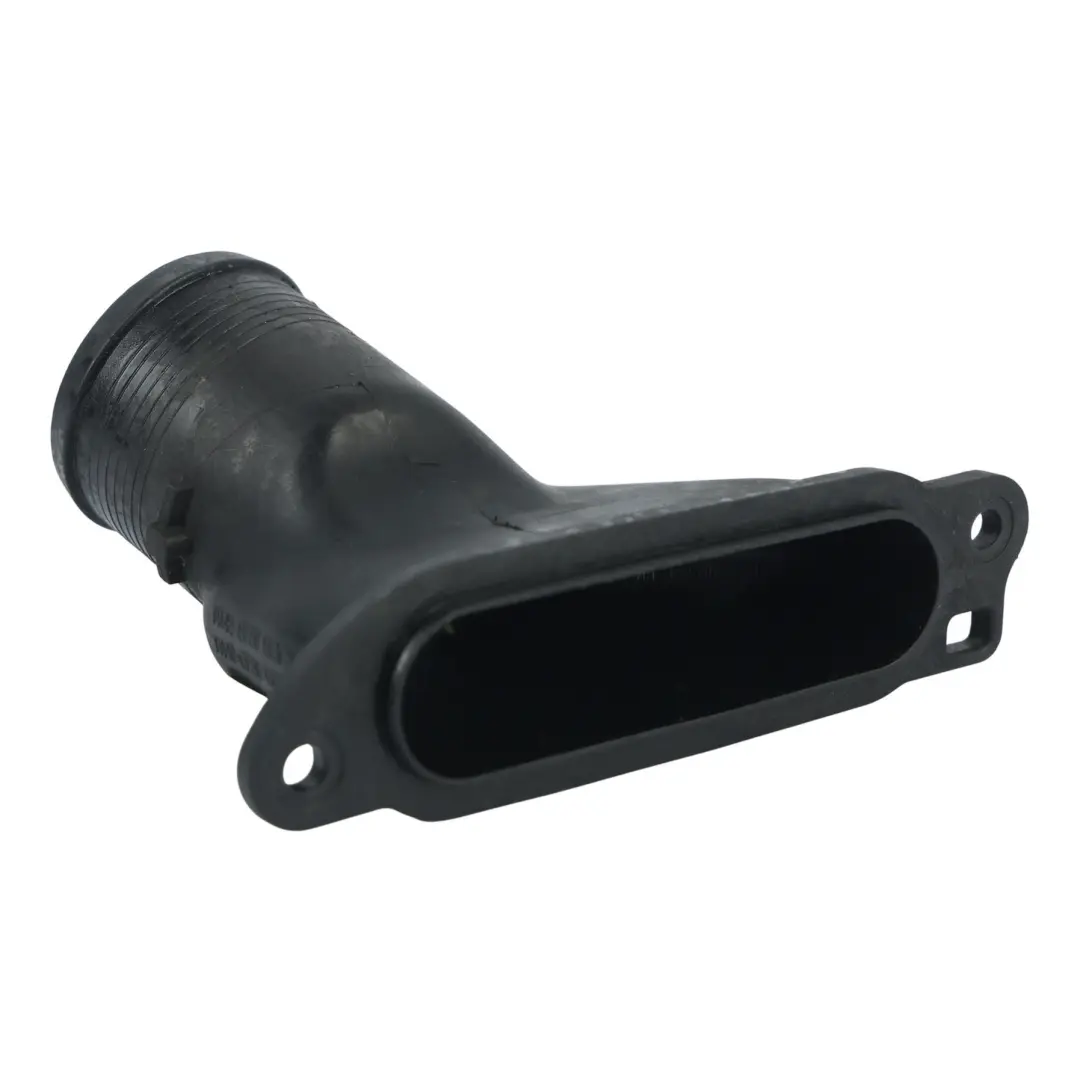

Jaguar XF X250 Intercooler Inlet Intake Spout Hose Pipe 3.0 Diesel 9X23-9M434-AB

Jaguar XF X250 Intercooler Inlet Intake Spout Hose Pipe is a turbocharging system component responsible for the efficient routing of compressed air between the intercooler and the engine. A properly selected intake pipe stabilizes airflow, supports the smooth operation of the 3.0 Diesel unit, and helps maintain correct combustion parameters. Thanks to the use of original geometry and pipe diameter, this component ensures compatibility with the factory performance characteristics of the engine and intake system.

Specifications and technical data

• SKU: 9X23-9M434-AB
• Mark: Jaguar
• Condition: Used
• OEM Part Number: 9X23-9M434-AB
• Substitutable numbers: 9X23-9M434-AB, 9X239M434AB, C2Z11677, 9X23-9M434-AA, 9X239M434AA, C2Z16190, 9X23-9M434-AC, 9X239M434AC
• Fuel type: Diesel
• Category: Air Intake & Fuel Sensors

Function in the 3.0 Diesel engine intake system

The intercooler intake pipe in the Jaguar XF X250 model operates in a demanding environment – it carries compressed, cooled air from the intercooler to the intake manifold. Its tightness and shape determine:

• stable boost pressure across the entire rev range,
• correct air filling of the cylinders,
• maintenance of the proper mixture in the diesel engine,
• reduction of power drops and unwanted turbocharger lag. In a Diesel engine, any leaks or deformations of the intake pipe can result in a drop in performance, increased fuel consumption, and engine control unit errors. Using the correct intake pipe allows for the restoration of the proper operating parameters of the turbocharging system.

Compatibility and functional group

The presented element belongs to the Air and fuel intake sensors group, which are components directly related to airflow and engine power supply. In practice, this means that the pipe works with air pressure and temperature sensors, as well as the fuel dosage control system, influencing:

• more precise control of the combustion process,
• better throttle response,
• stable engine operation under a wide range of loads. Thanks to the preservation of the factory pipe geometry, the engine controller receives predictable flow conditions, which facilitates diagnostics and limits the risk of random errors related to boost pressure.

Characteristics of the used component

The offered intercooler intake pipe is a dismantled component, which allows for combining a favorable purchase cost with the preservation of the original design. A used element is a good choice in situations where:

• the existing pipe has cracked, chafed, or deformed,
• there are oil leaks or signs of blow-by in the vicinity of the intake connections,
• after replacing the turbocharger or intercooler, it is necessary to match a pipe with factory specifications. By choosing an original pipe from the secondary market, you maintain the factory intake routing, which facilitates installation and limits the risk of collision with other elements in the engine bay.

Benefits of using an original intake pipe

Using the correct intercooler intake pipe in a Jaguar XF X250 brings a number of practical operational benefits:

• Restoration of intake system tightness – reduction of pressure drops and improvement of vehicle dynamics.
• Better cooperation with sensors in the intake system – more stable readings and a lower risk of diagnostic errors.
• Reduction of the risk of overheating the charge air – maintaining proper flow through the intercooler.
• Easier installation thanks to matching the factory mounts and the shape of the engine bay. This solution is particularly recommended for repairs of the intake system in diesel engines, where maintaining the appropriate air pressure and temperature has a direct impact on the durability of the power unit.

Related power supply and intake system components

When replacing the intercooler intake pipe, it is worth checking the condition of other power supply and turbocharging system elements – especially vacuum hoses, boost pressure sensors, and components responsible for fuel dosing. If you want to better understand the relationships between airflow and injection system operation and are looking for practical tips regarding dismantled parts, read the article: Fuel dosing problems – how to safely choose a used injection pump and fuel rails. If you are planning a comprehensive repair or upgrade of the engine area in your Jaguar and need other elements from the same group, such as intake hoses, airflow measurement elements, or components cooperating with the power supply system, check the available parts in the Jaguar Air and fuel intake sensors category.
