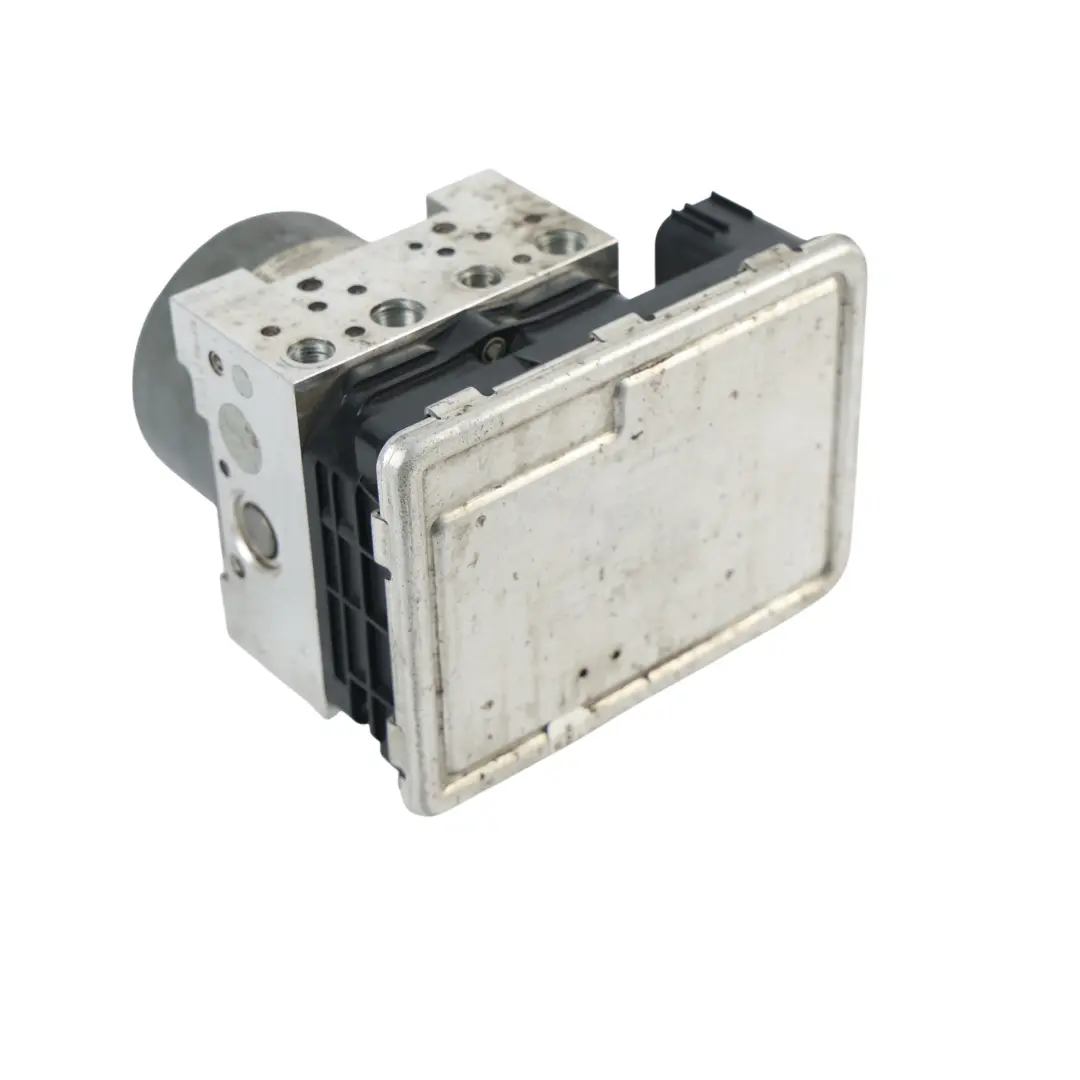

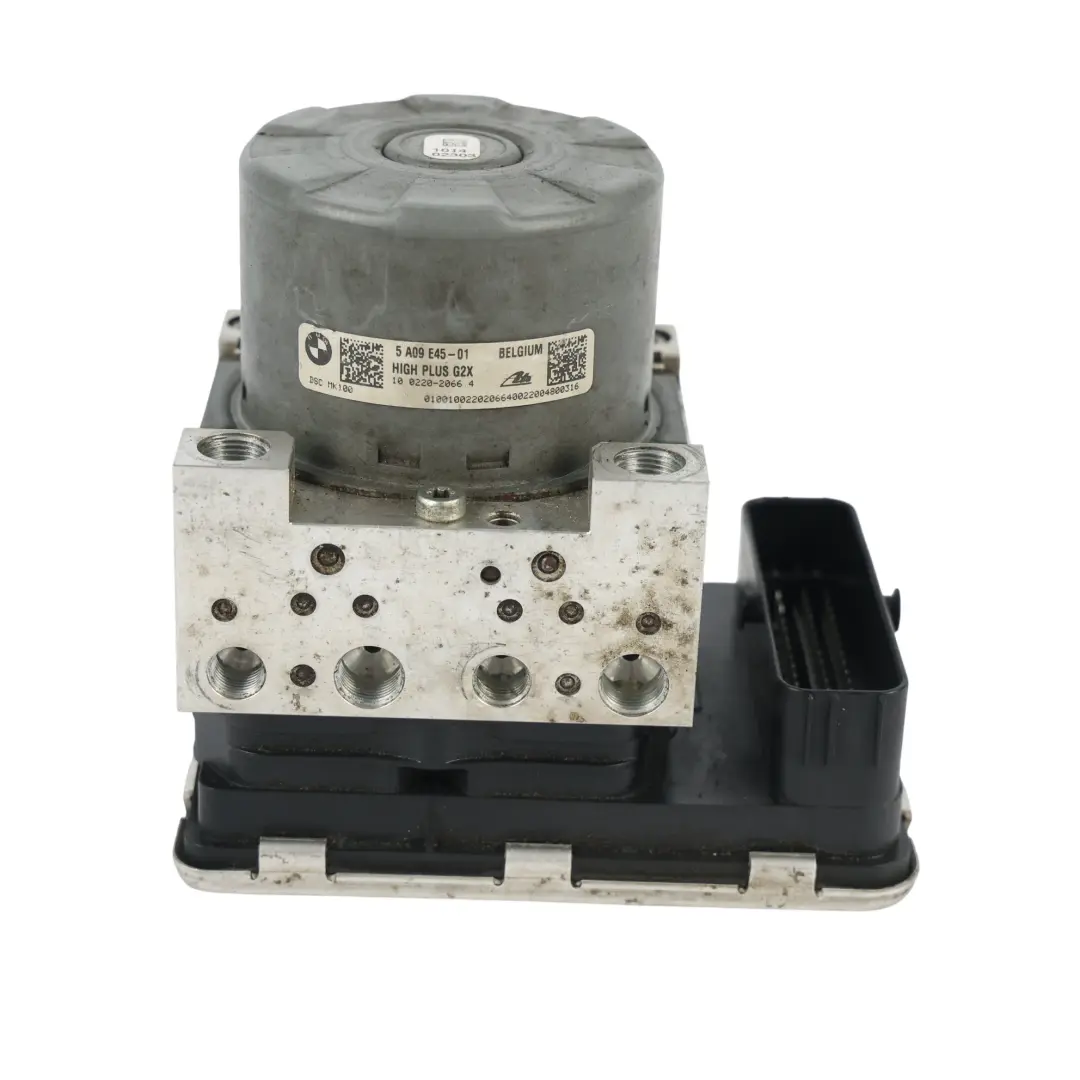

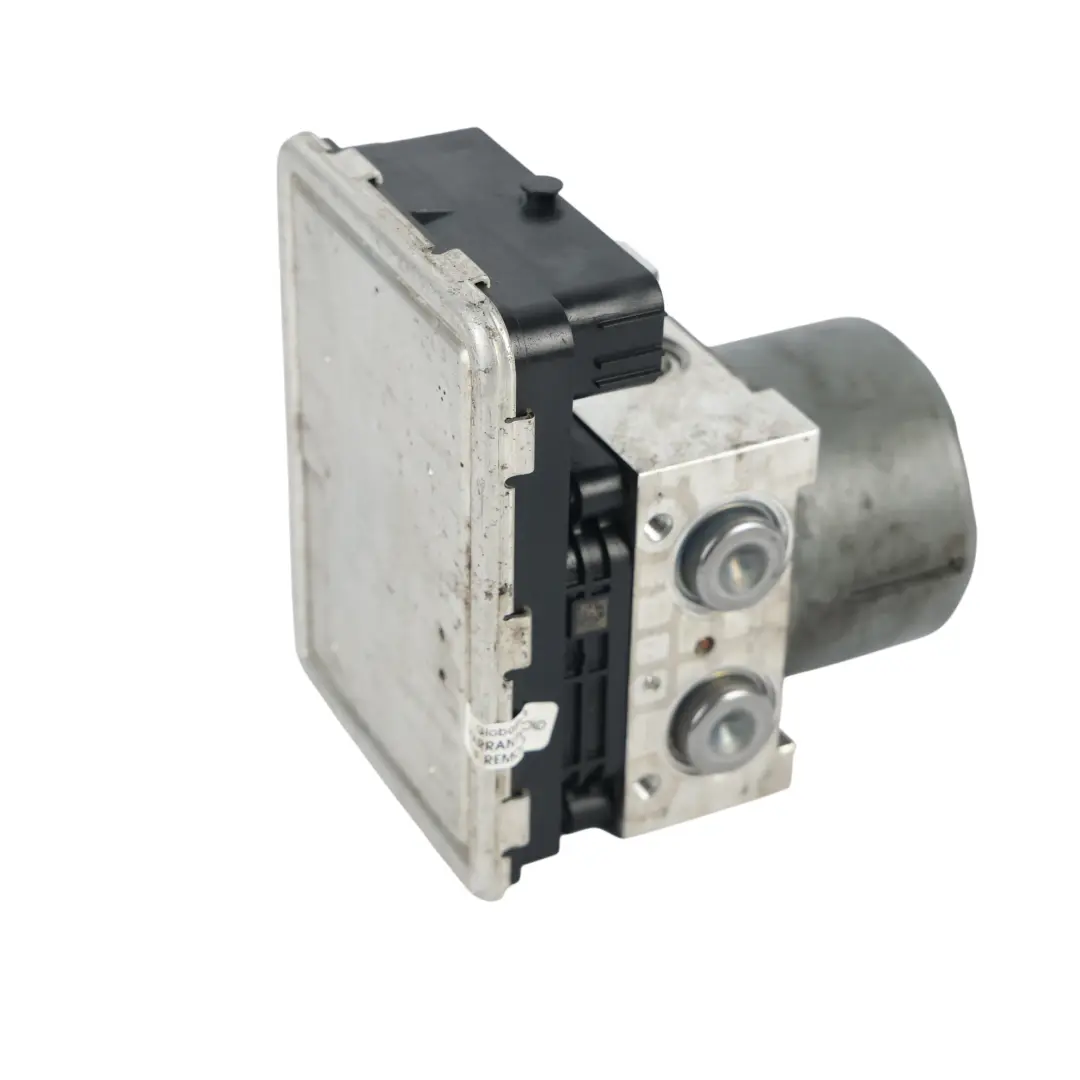

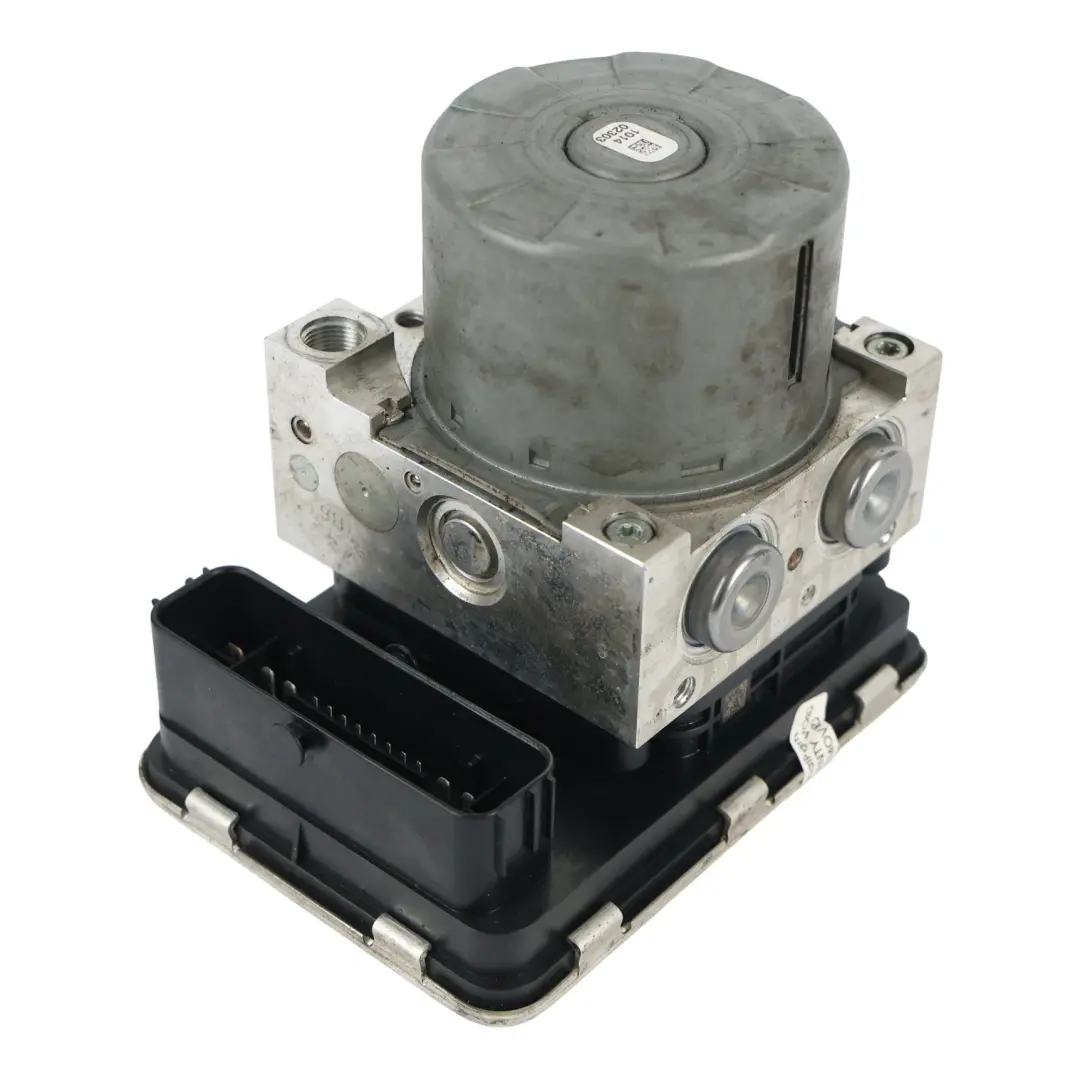

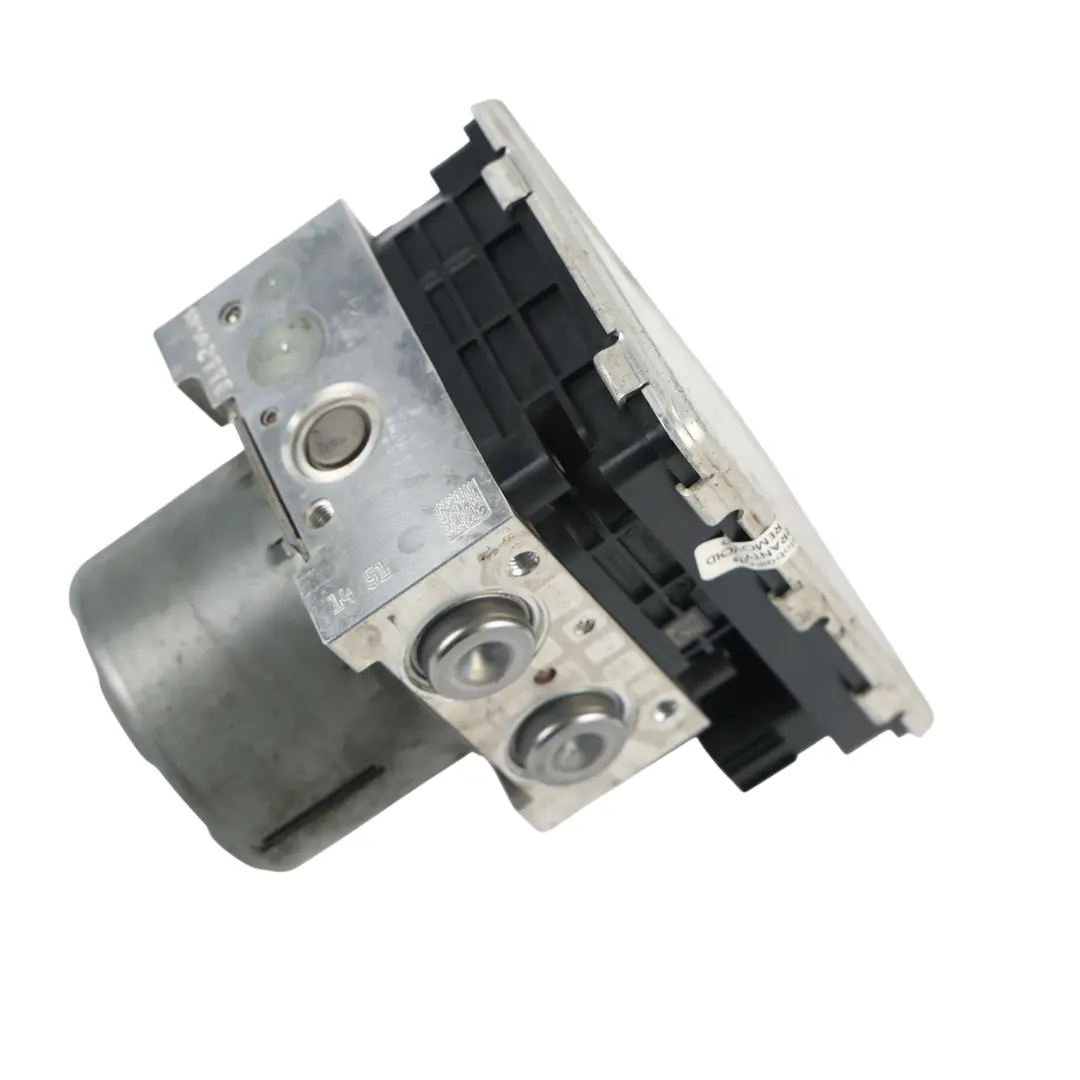

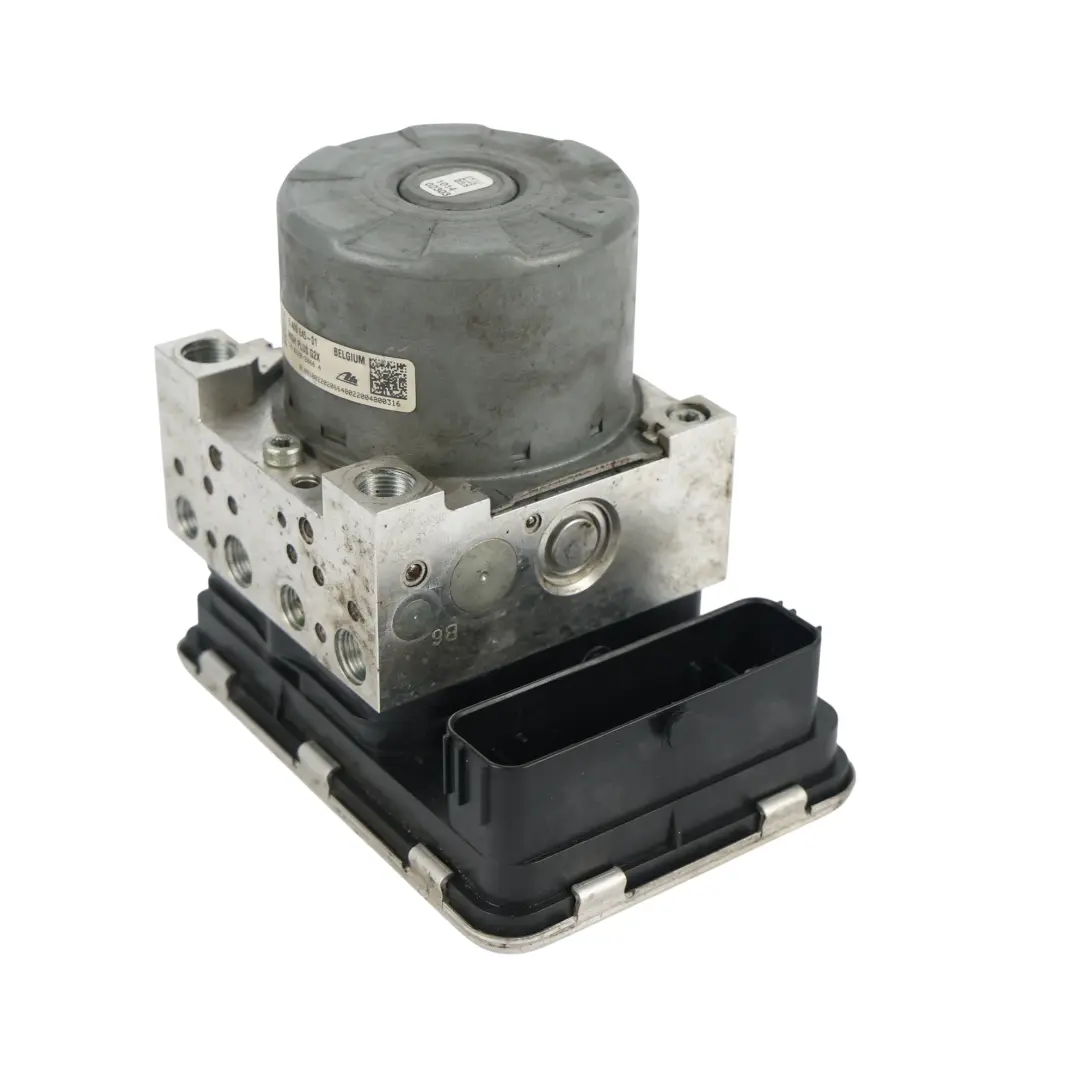

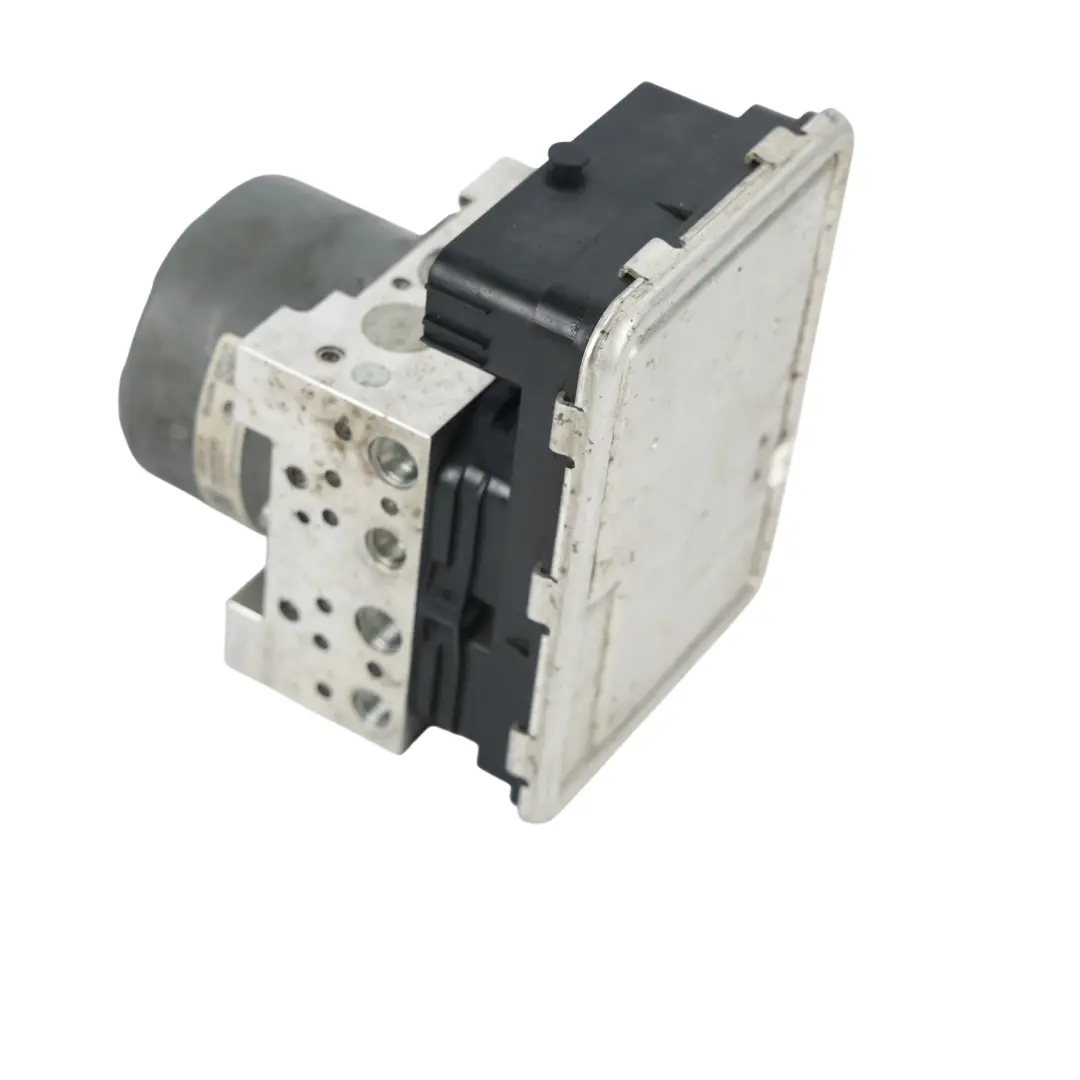

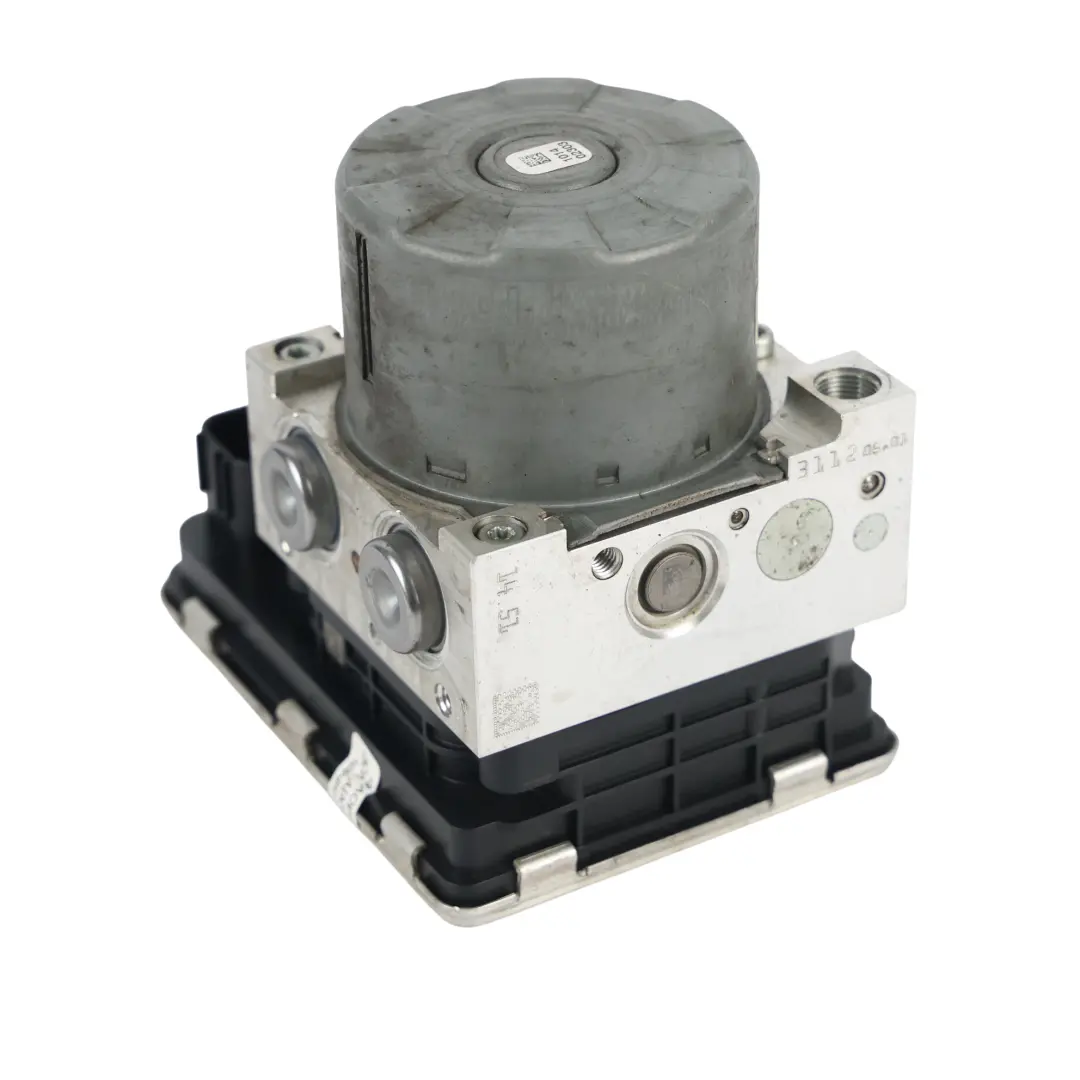

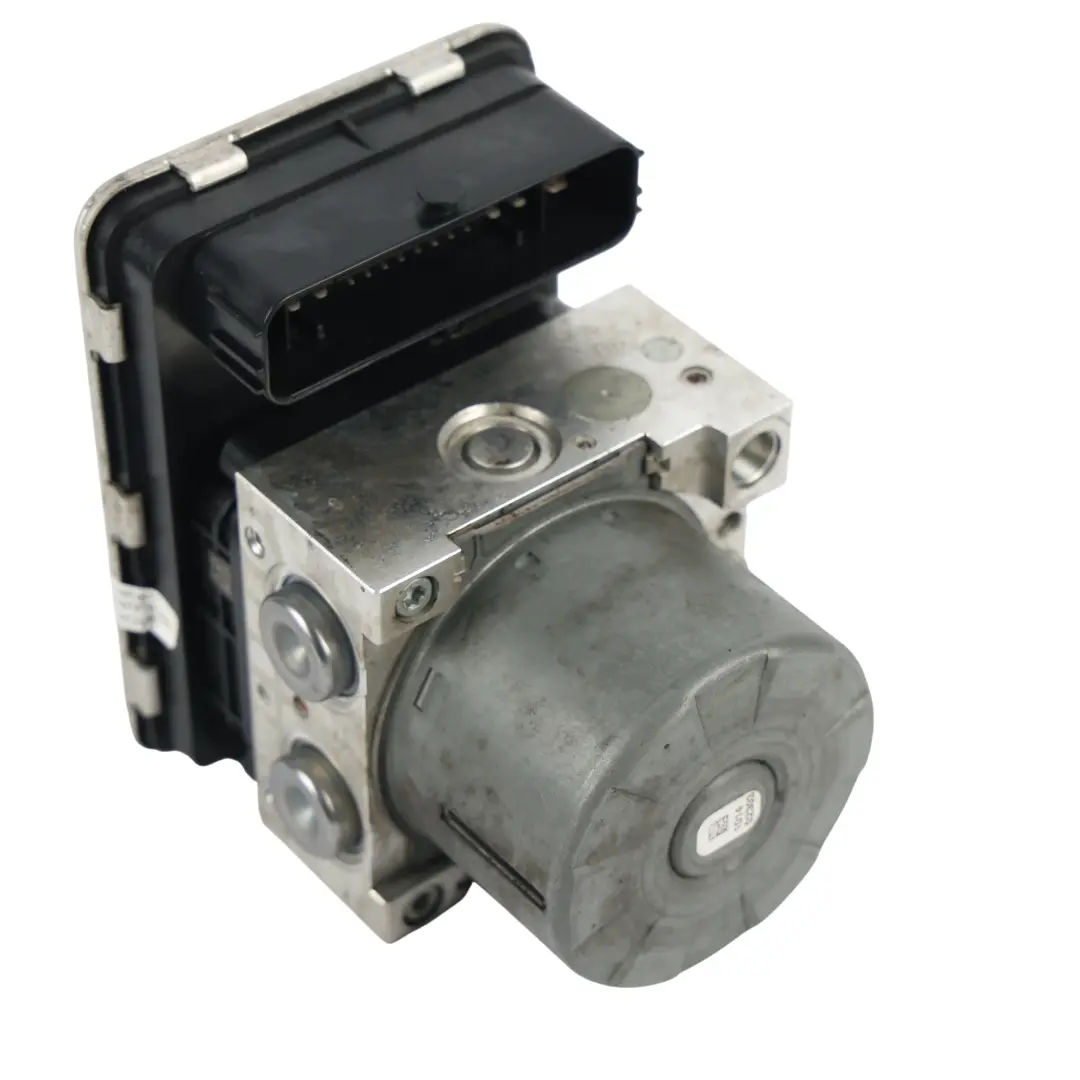

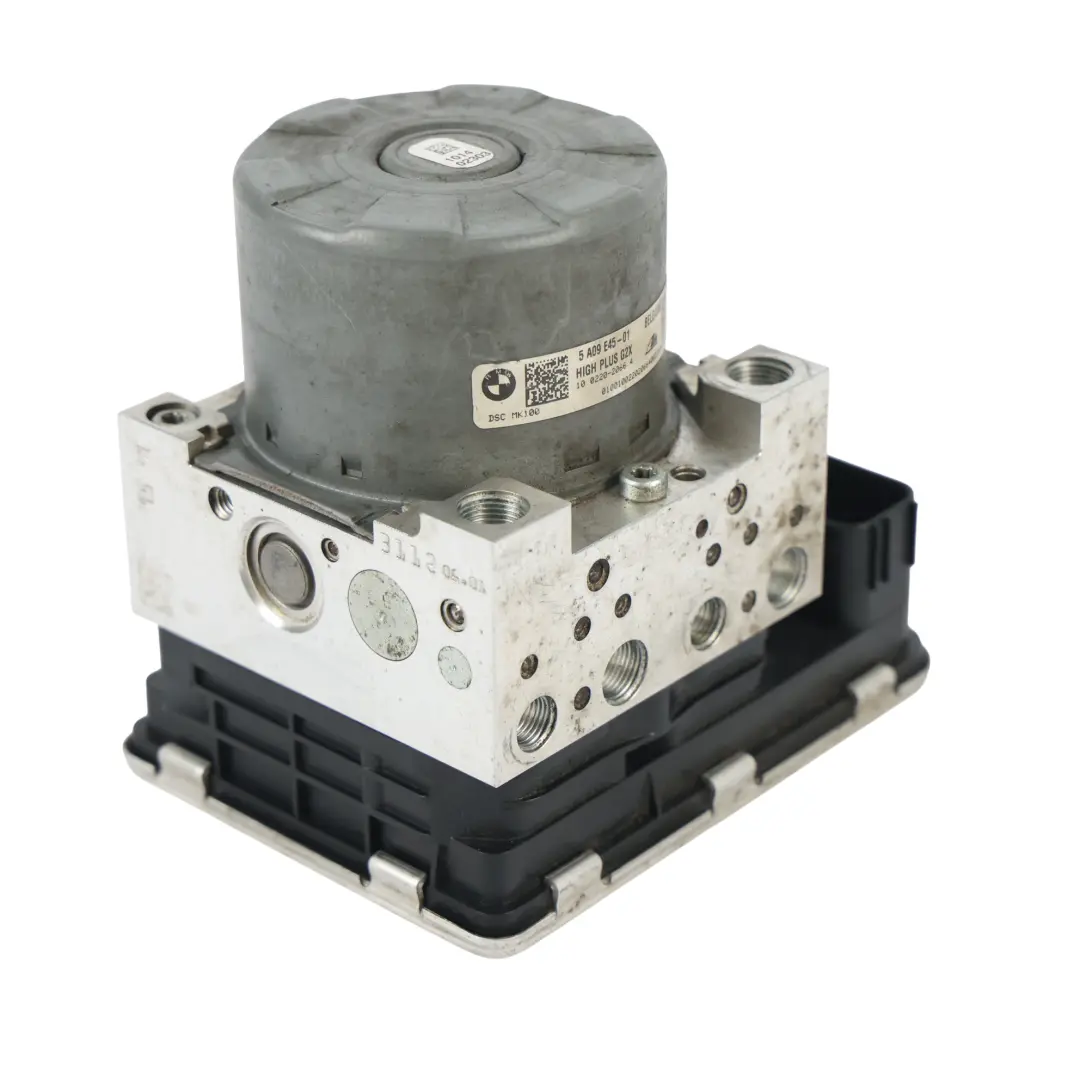

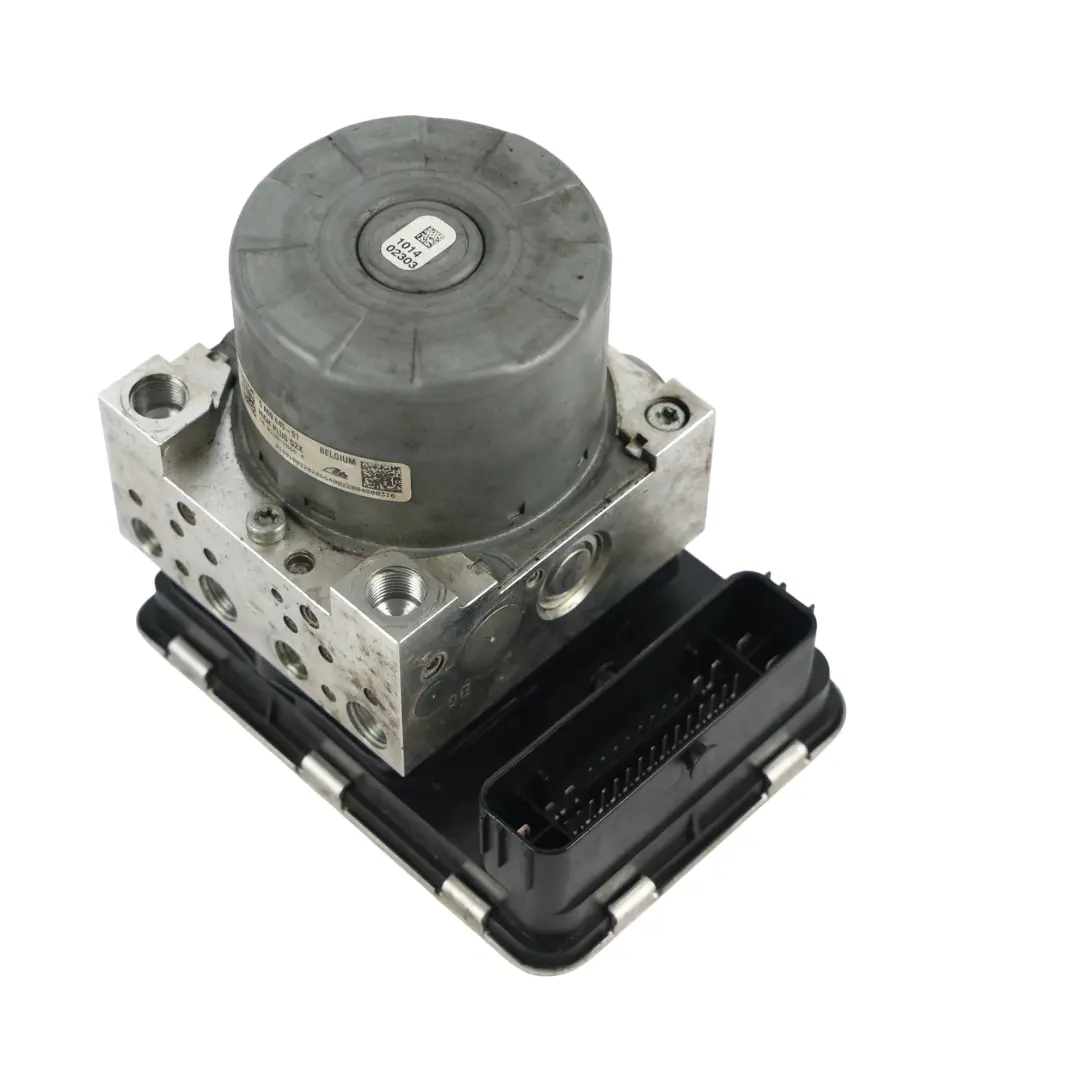

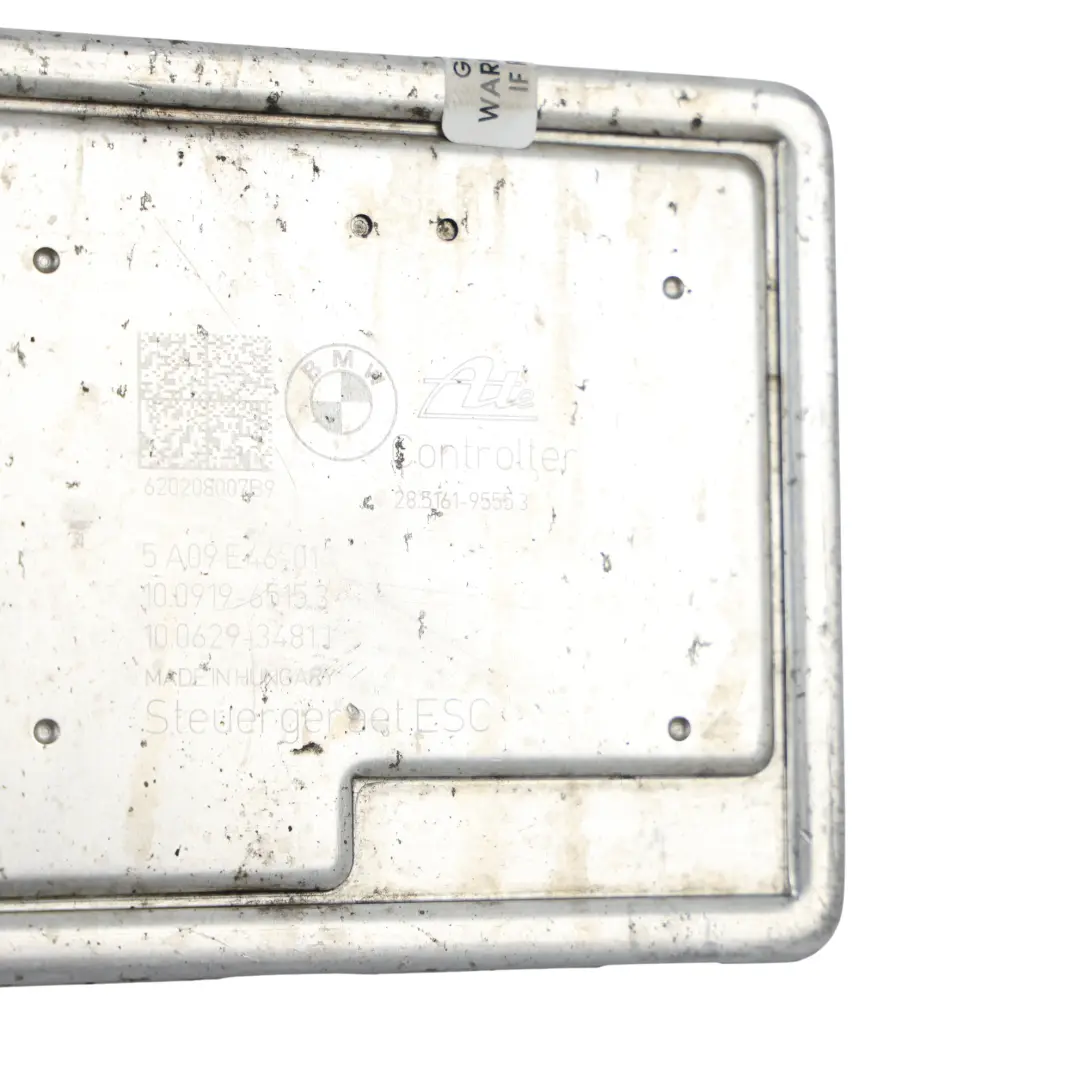

BMW G20 G21 ABS Pump Control Module Modulator 5A09E46

BMW G20 G21 ABS Pump Control Module Modulator is a precision braking system component responsible for advanced brake pressure control and integration with vehicle stability systems. This OEM solution is designed for modern BMW 3 Series G20/G21 models, ensuring seamless operation with the vehicle's factory electronics and predictable ABS/ESP system performance. Thanks to this component, the braking system maintains stability in emergency situations and during dynamic driving.

Specifications and technical data

• SKU: 5A09E46
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 5A09E46
• Substitutable numbers: 34505A52A75, 5A52A75, 34505A9CE85, 5A9CE85, 5A09E46, 5A09E45
• Part type: ABS Hydraulic Unit
• Category: ABS & Stability Hydraulic Units

Function and role in the braking system

The ABS pump with an integrated control module plays a key role in precisely metering pressure in the brake lines, which allows for limiting wheel slip during hard braking. The modulator works with wheel speed sensors and vehicle electronics to regulate braking force on individual wheels in real-time. As a result, the driver maintains better control over the vehicle, and the electronic stability control system can effectively react to sudden changes in traction.

In BMW 3 Series G20/G21 vehicles, such a pump and control module assembly is designed as a central element for active safety systems, which translates into consistent operation of ABS, traction control, and driver assistance systems. Using an original unit from the same model group minimizes the risk of communication errors in the vehicle's bus.

Construction of the pump – control module – modulator assembly

The described assembly combines the hydraulic section and the electronic control module in one housing, which simplifies installation and reduces the number of connections in the engine bay. The hydraulic section is responsible for rapid circuit switching and pressure modulation, while the electronic part analyzes signals from sensors and communicates with other control units in the vehicle. This design ensures a compact braking system architecture that is well-suited to the BMW.

As an element from the ABS and ESP System category, the pump with the control module is designed for resistance to vibrations, temperature changes, and moisture, which is important for long-term operation. Using an original solution allows for maintaining factory operating parameters and reduces the need for additional adaptations.

Selection, compatibility, and installation aspects

To ensure proper cooperation with the vehicle's electronics, the selection of this ABS pump should be based on compliance with the OEM part number and appropriate interchangeable numbers. This ensures the control module maintains correct communication with the CAN bus and modules responsible for stability control. In practice, this means it can be installed as a replacement for the factory-fitted unit while maintaining the operating parameters specified by the manufacturer.

Before installation, it is recommended to:

• verify compatibility by part number and vehicle equipment,
• check the condition of electrical connectors and brake lines,
• bleed the braking system using an appropriate diagnostic tester,
• perform adaptation procedures if required by the specific control module model.

This approach helps to reduce the risk of errors appearing in the ABS/ESP system after replacing the component.

Characteristics of the used product

The offered item is in used condition, which in practice means it has been removed from a vehicle and was previously in operation. This type of part is an attractive solution for users looking for a factory component at a reasonable price, while maintaining the original design and fitment for BMW installations. Before re-installation, computer diagnostics are recommended after starting the vehicle to confirm proper communication between the control module and other modules.

Why choose an original BMW ABS system

Using an original ABS pump with a control module in a BMW G20/G21 allows for maintaining the consistency of all safety systems, which is important both in daily use and in emergency situations. The factory hydraulic-electronic architecture ensures predictable vehicle reactions, and compatibility with control module software limits the risk of unwanted error messages.
