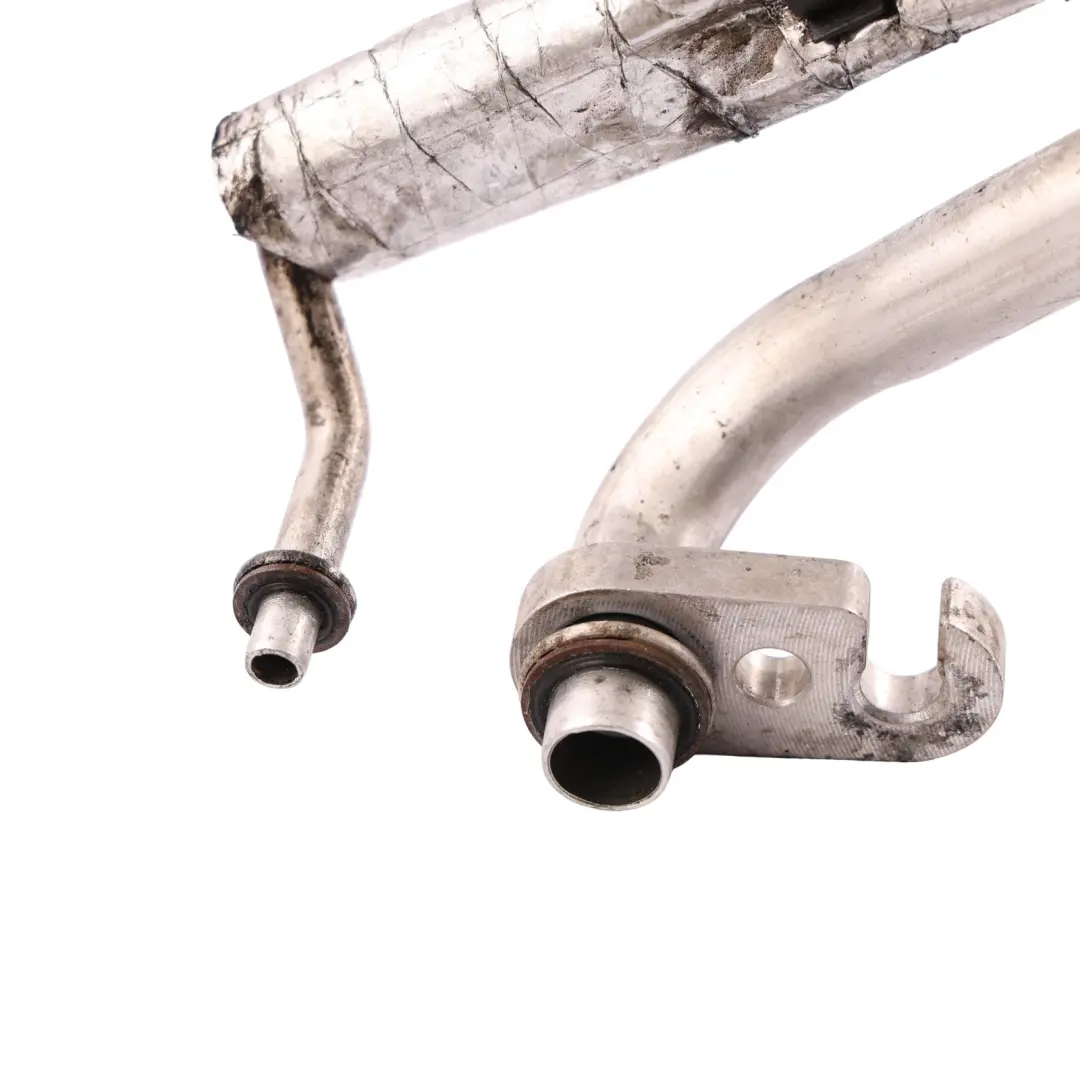

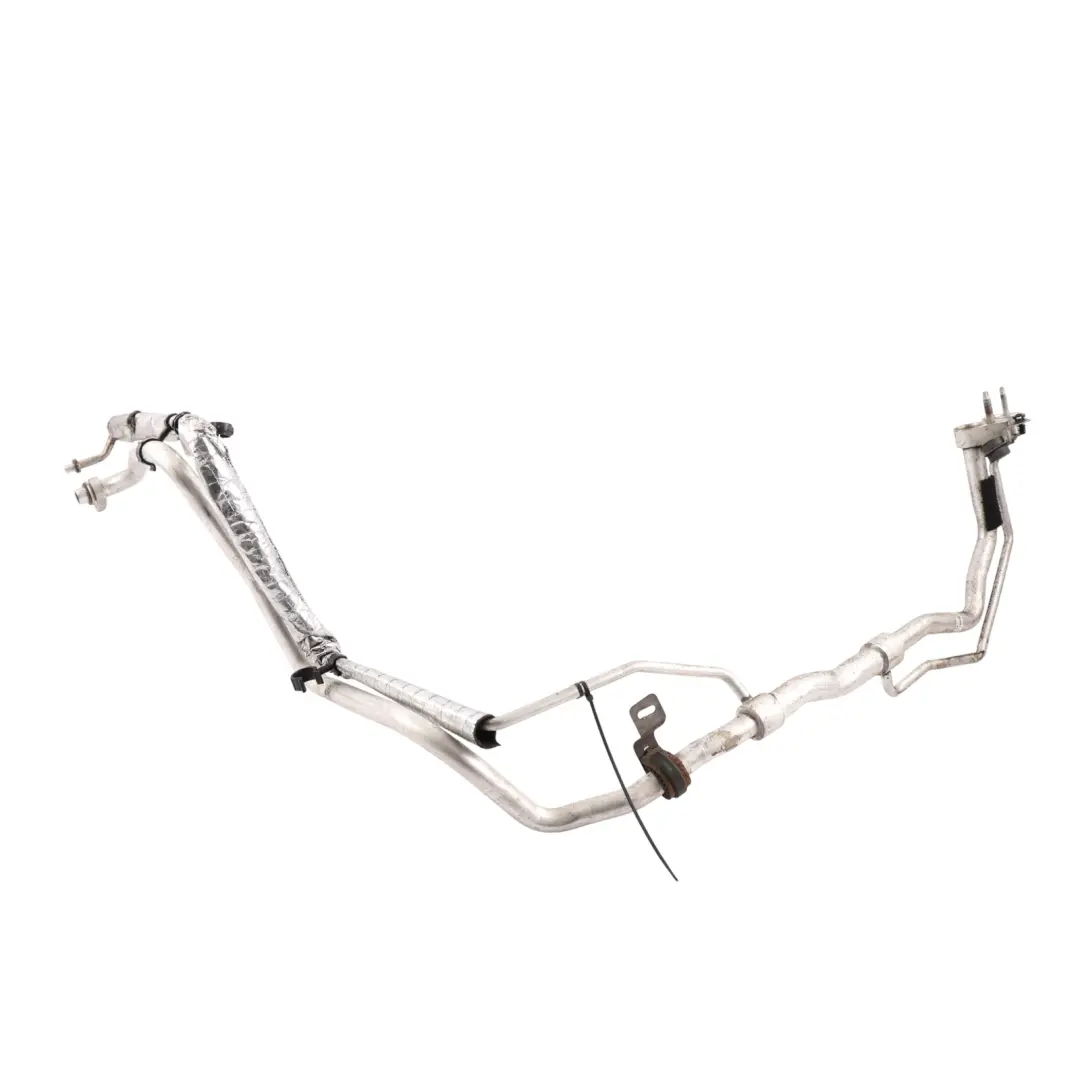

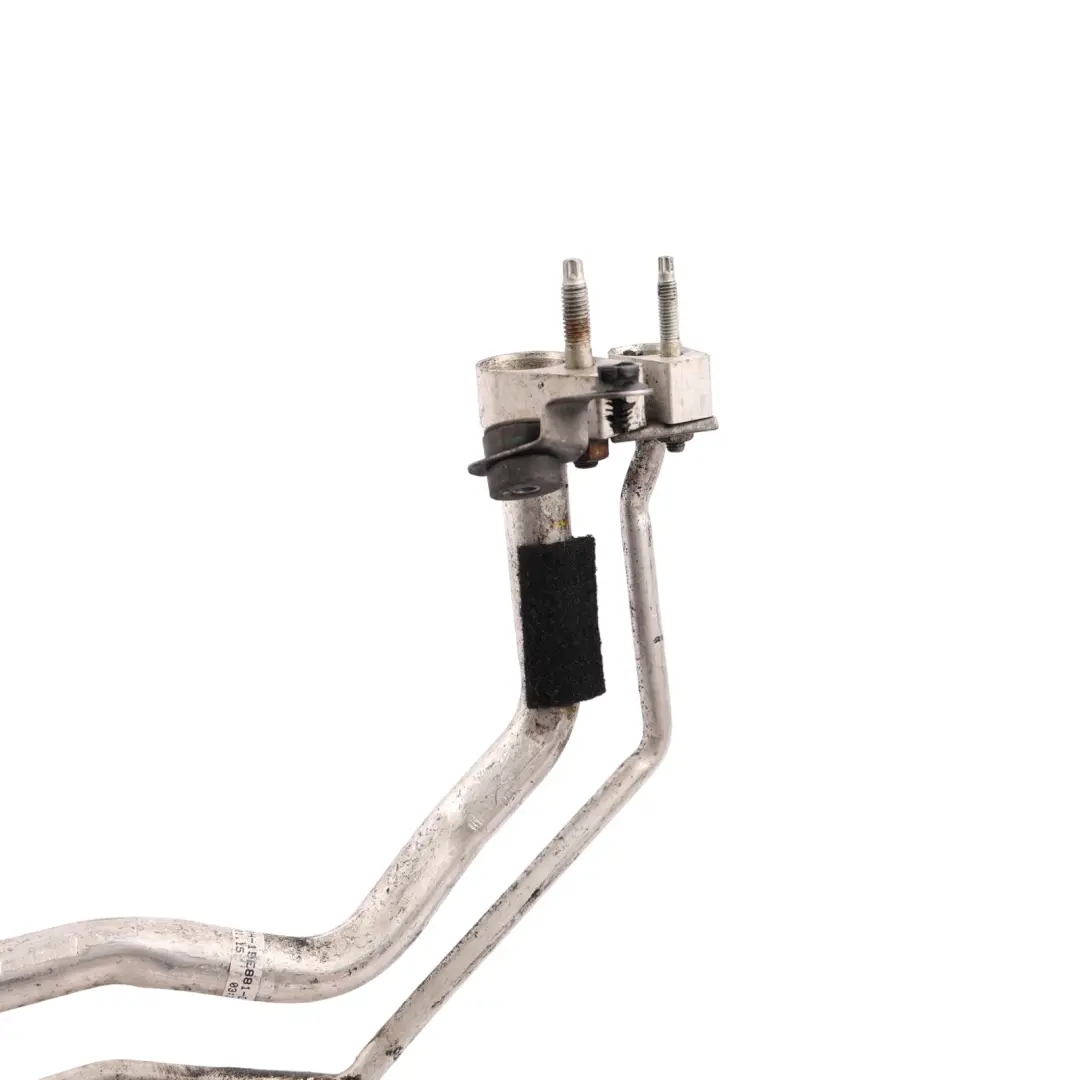

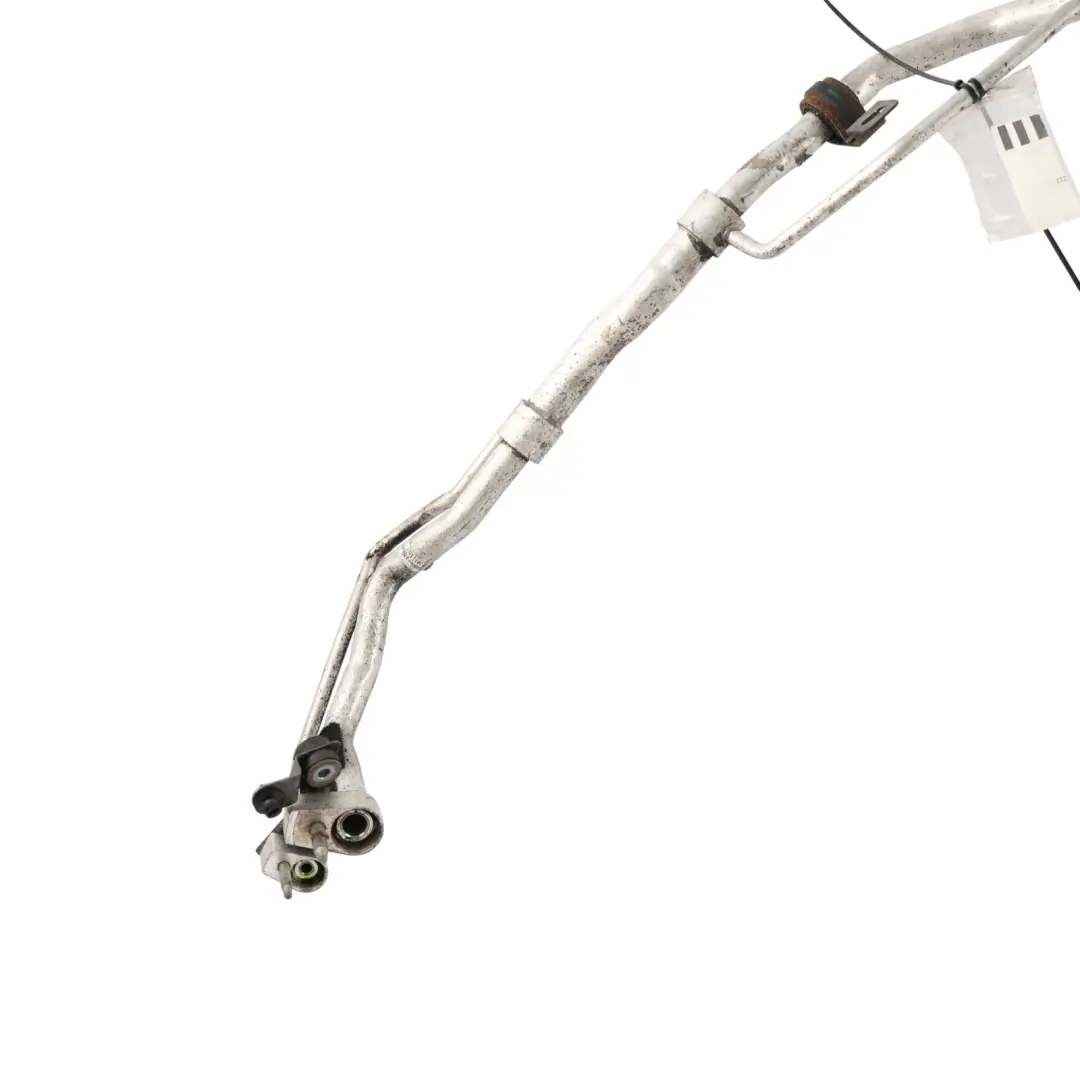

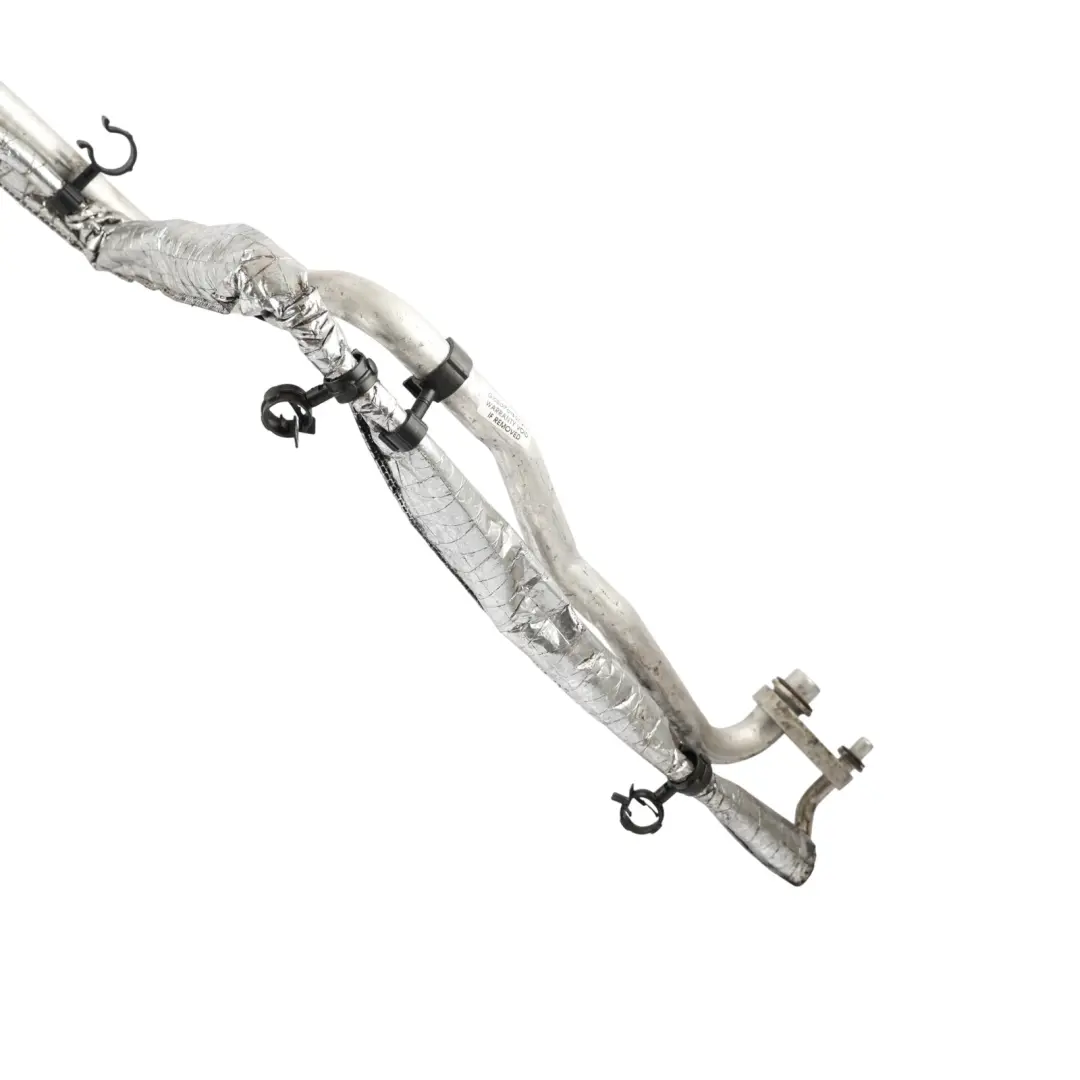

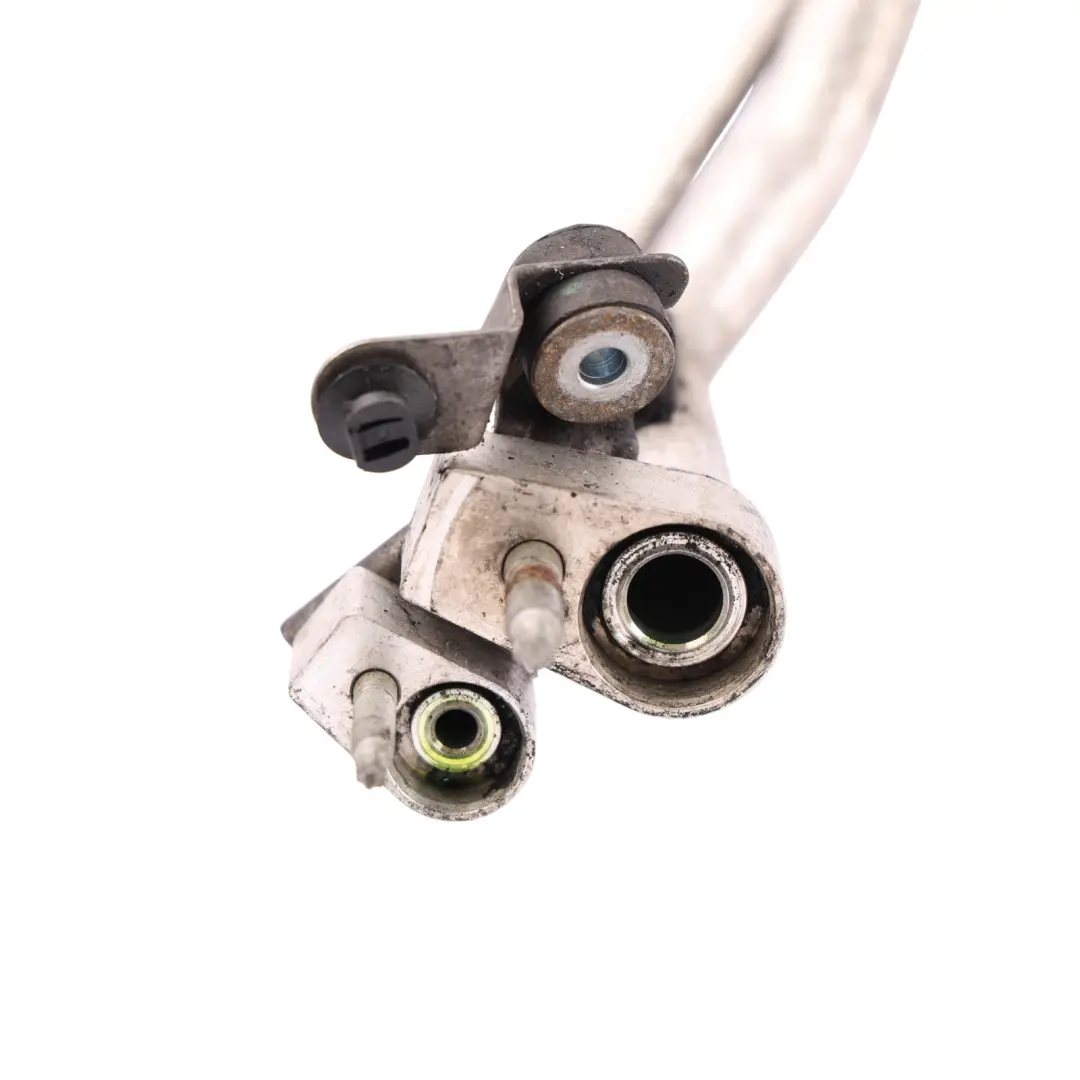

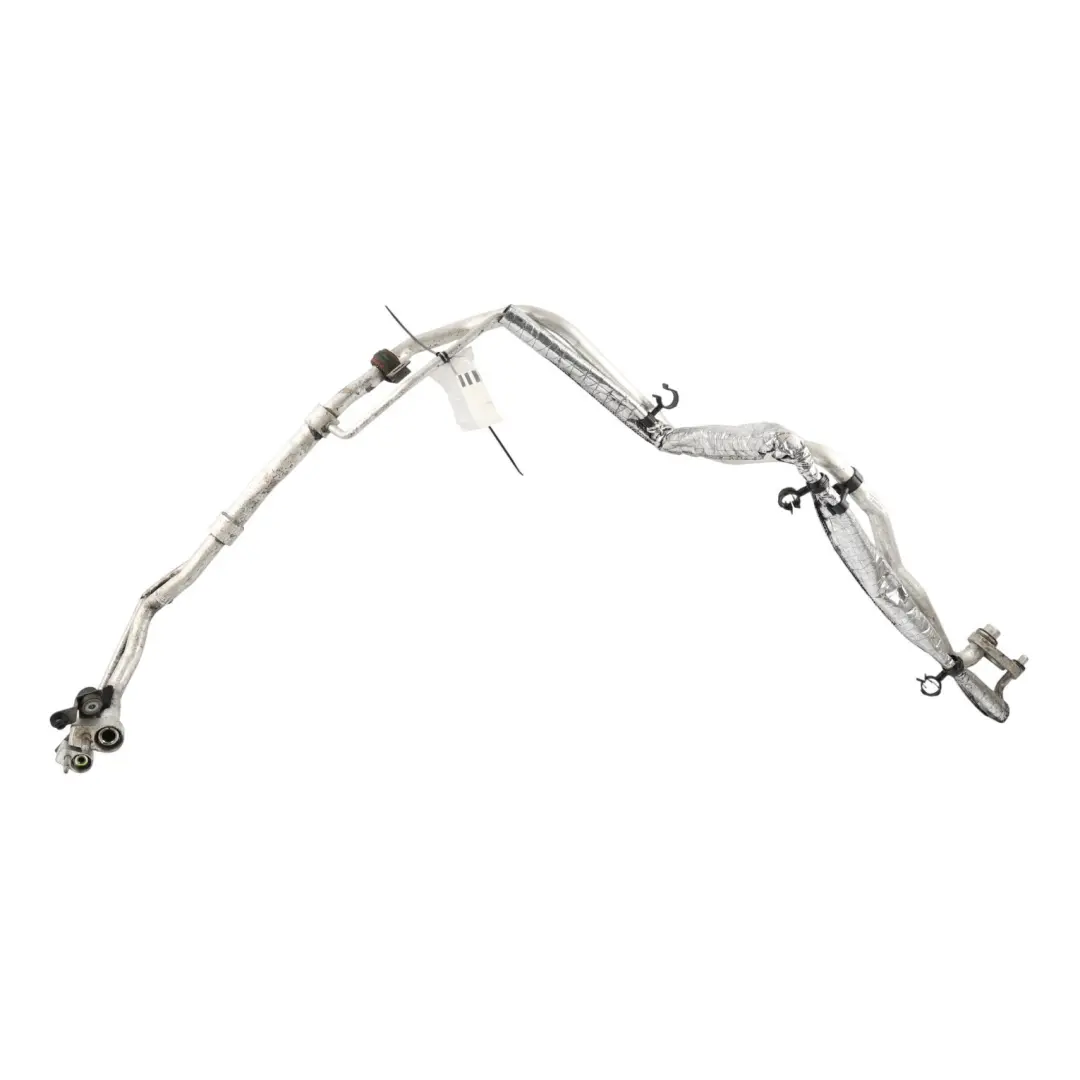

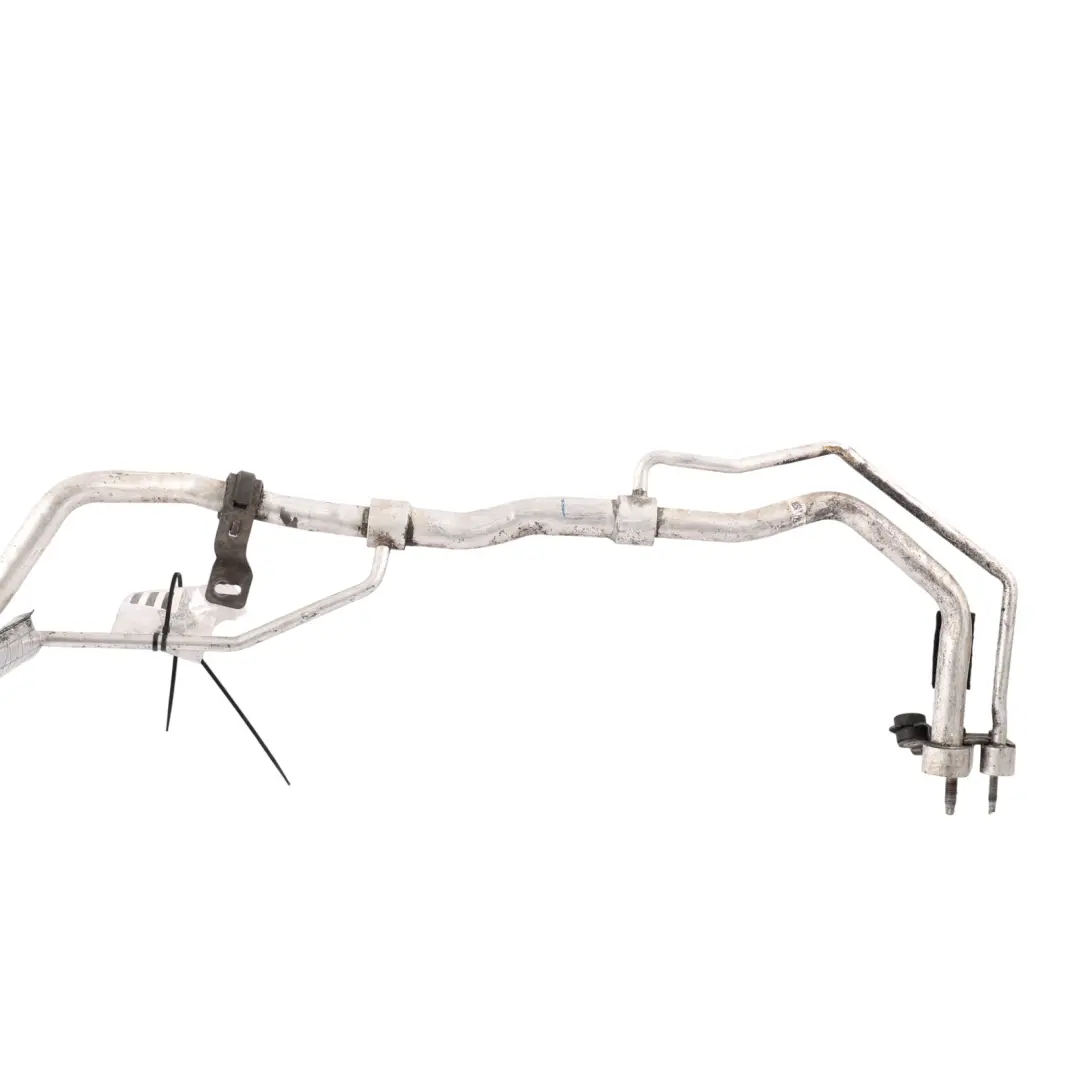

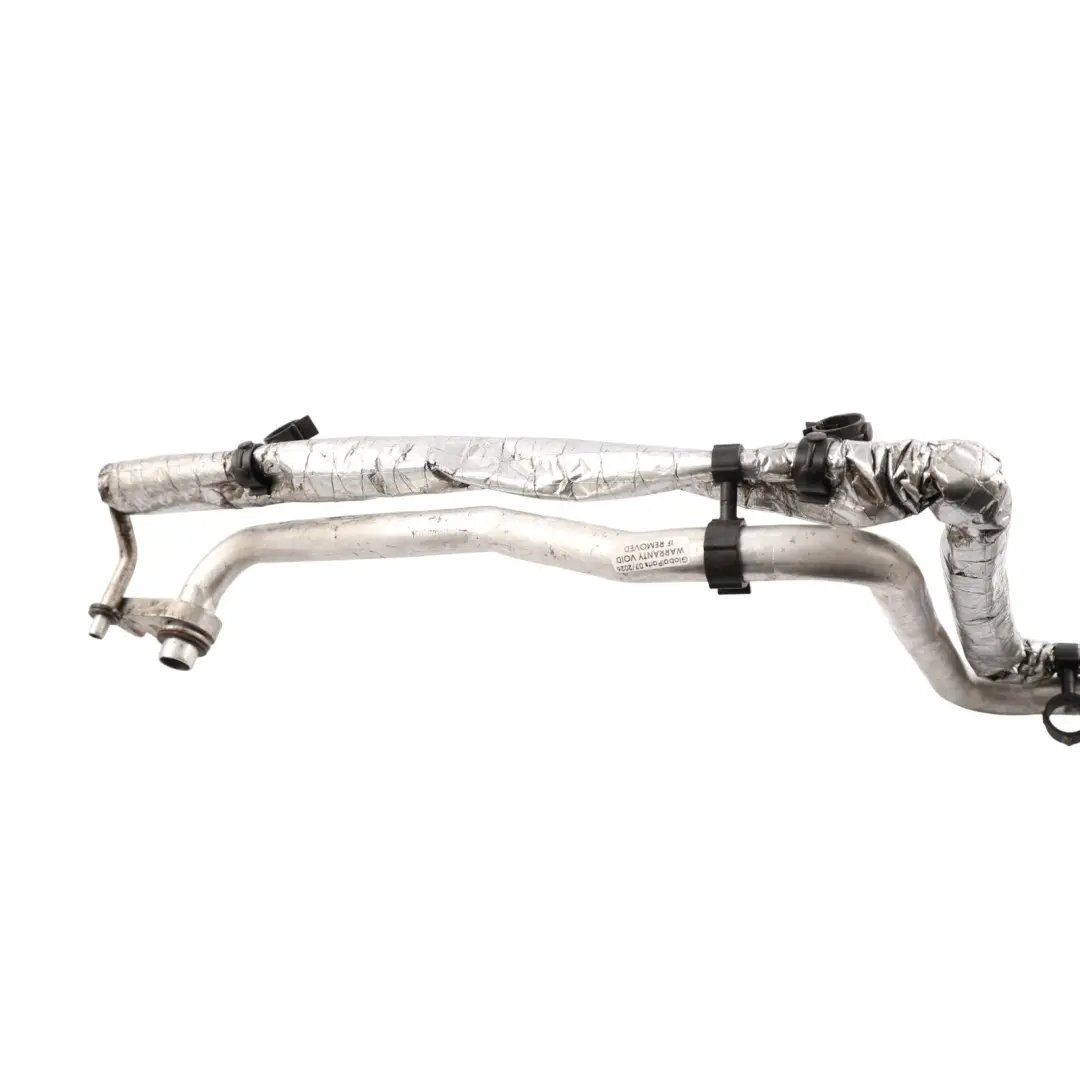

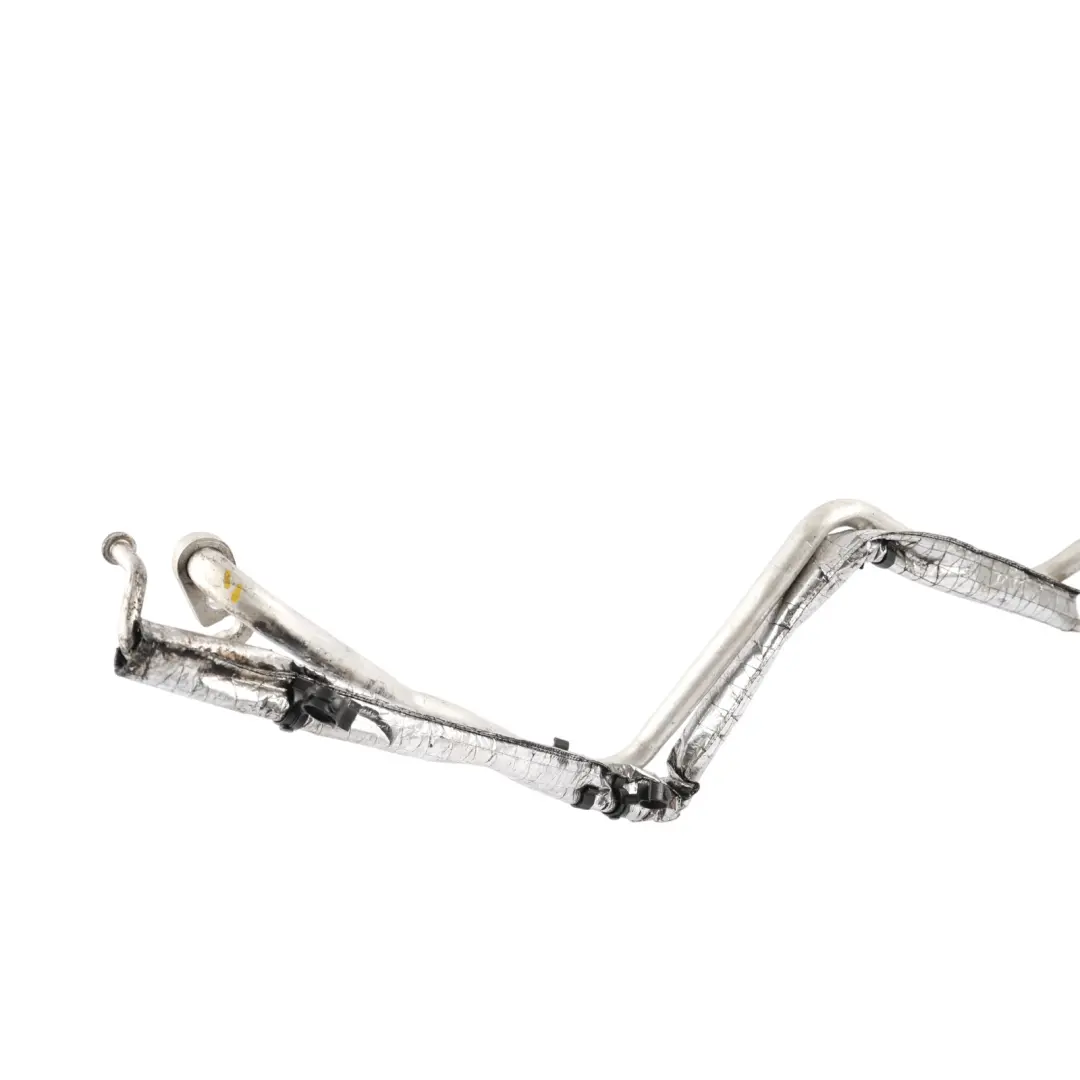

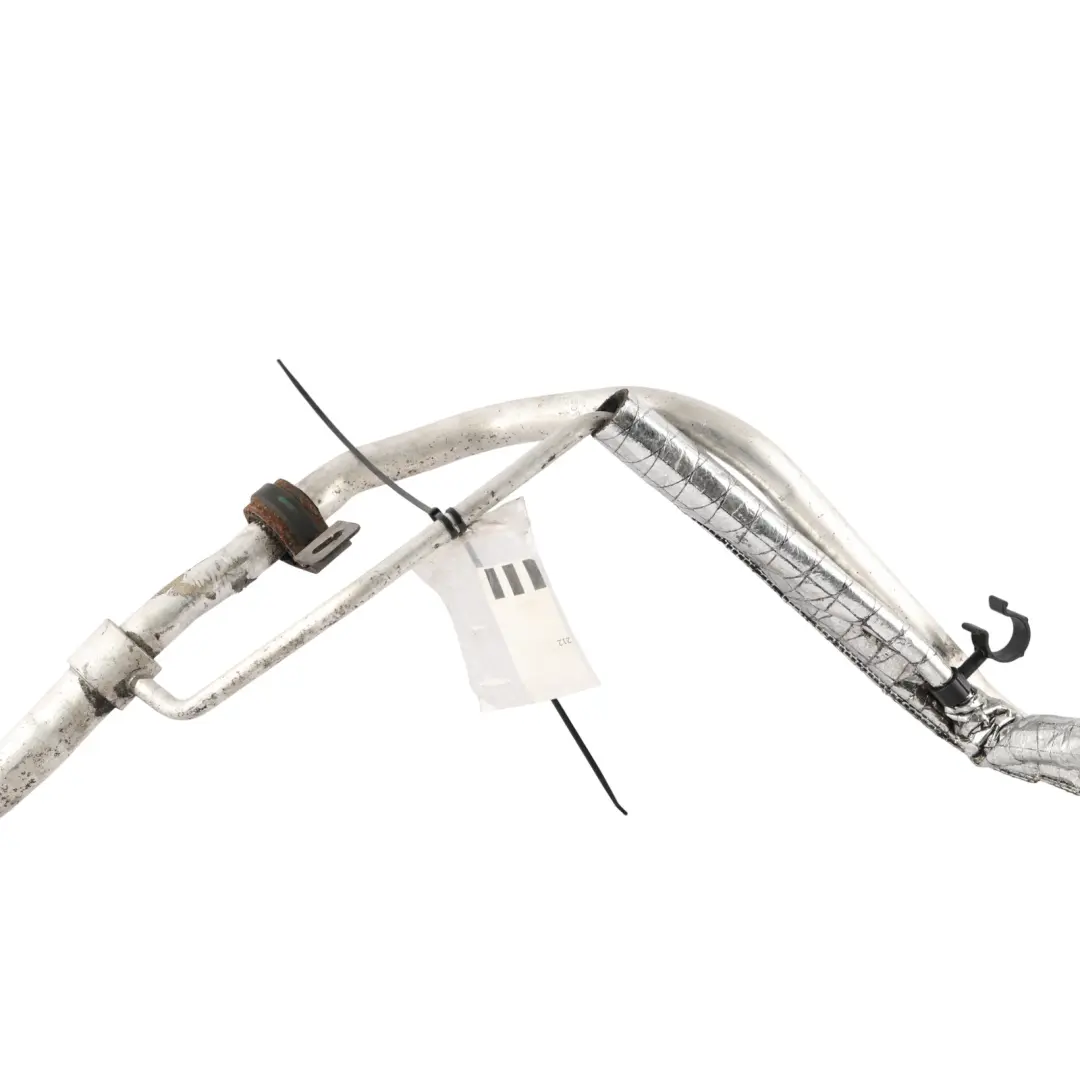

Ford Mondeo Mk5 Air Conditioning A/C Pipe Line 2.0 TDCI Diesel DG9H-19E881-DB

Ford Mondeo Mk5 Air Conditioning A/C Pipe Line is an original A/C system component designed for the precise routing of refrigerant within the installation. Thanks to its factory geometry and perfect fit for the specific 2.0 TDCI Diesel engine version, it ensures stable air conditioning operation and correct operating pressures throughout the entire circuit. It is a practical solution for repairs following leaks, collisions, or the replacement of other cabin cooling system components.

Specifications and technical data

• SKU: RHD-DG9H-19E881-DB
• Mark: Ford
• Condition: Used

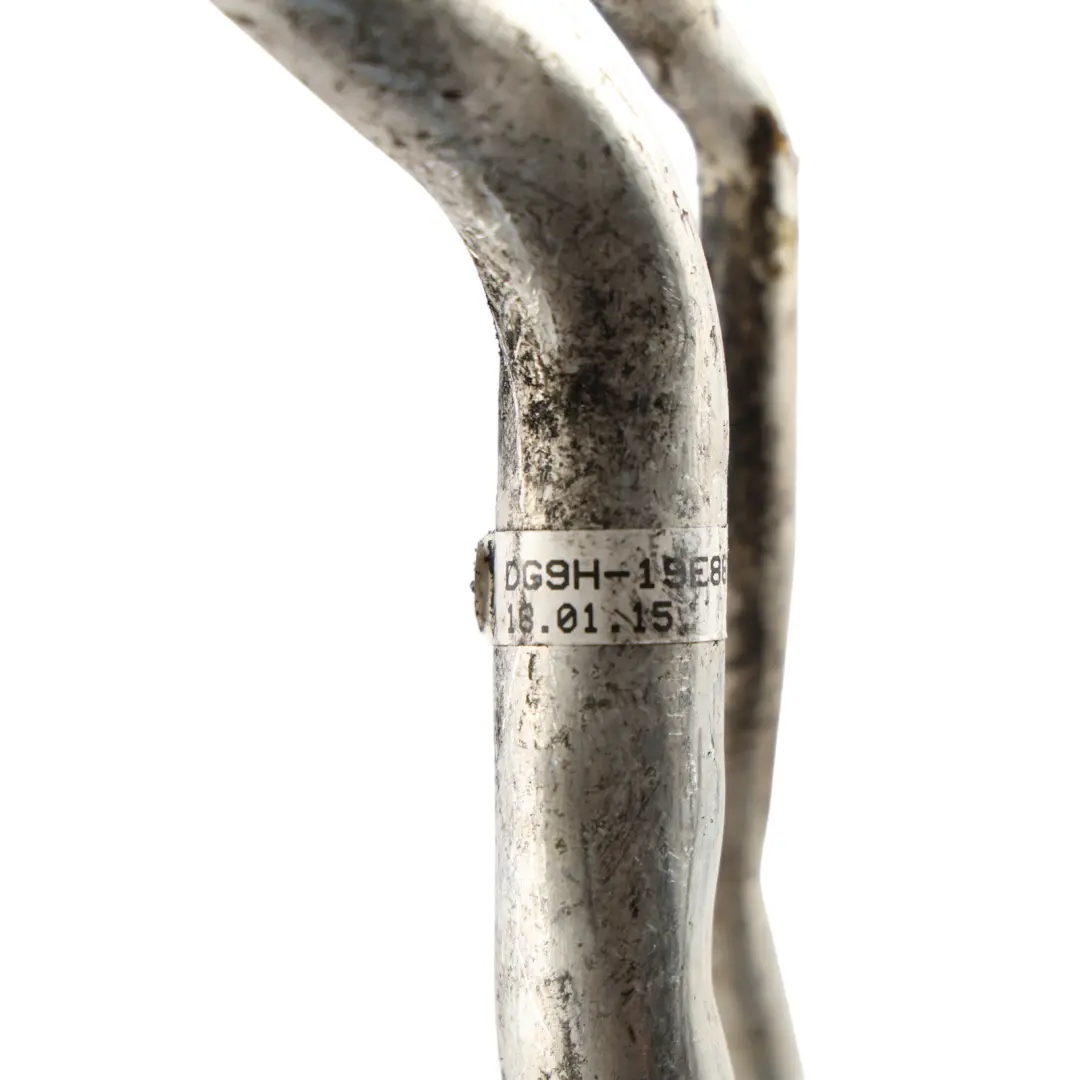

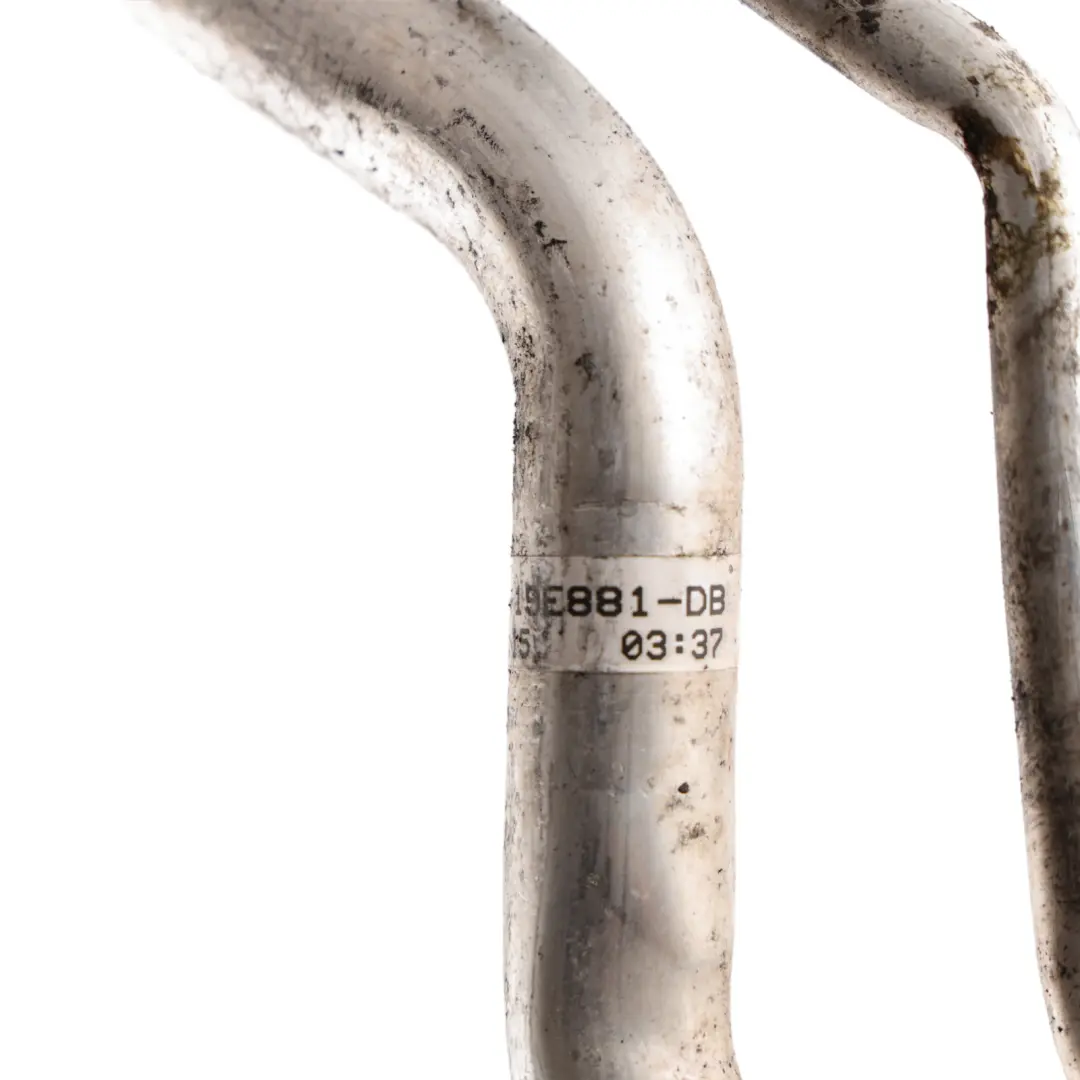

• OEM Part Number: DG9H-19E881-DB
• Substitutable numbers: DG9H-19E881-DB, DG9H19E881DB, 2493177, DG9H-19E881-DG, DG9H19E881DG
• Fuel type: Diesel
• Part type: Pipe
• Category: A/C Hoses & Fittings

Purpose and function in the air conditioning system

The offered pipe belongs to the Air conditioning pipes, hoses, and connectors group and is responsible for transporting refrigerant between A/C system components in the Ford Mondeo Mk5 with a diesel engine. The appropriately selected cross-section, shape, and connector placement allow for maintaining proper medium flow, reducing pressure drops, and minimizing the risk of vibration and stress during engine operation. The pipe is structurally matched to the engine bay architecture of the Diesel version, which facilitates routing the installation while maintaining safe distances from hot components and moving parts. Proper placement of the A/C line is crucial for the durability of the entire system and for reducing the risk of chafing or micro-cracks.

Compatibility with the 2.0 TDCI Diesel engine

The element has been designed specifically for 2.0 TDCI Diesel units in the Ford Mondeo Mk5, which means compatibility with factory mounting points, brackets, and pipe routing paths. As a result, installation is straightforward, without the need to modify other components in the engine bay. Being dedicated to a specific fuel type allows for maintaining appropriate resistance to temperature, vibrations, and operating conditions characteristic of diesel engines. This is important for long-term operation, where the air conditioning system works under variable thermal and mechanical loads.

Characteristics of the used component

This air conditioning pipe comes from the used parts group, which is a cost-effective solution while maintaining the manufacturer's original specifications. This type of component, sourced from dismantling, allows for the preservation of factory fit and geometry, which is particularly important for pressurized A/C system elements. Choosing a used pipe is a frequently used solution for post-accident repairs or mechanical damage to the installation, where it is crucial to quickly restore the tightness and efficiency of the air conditioning while minimizing service costs.

Installation and operational tips

When installing the air conditioning pipe, it is recommended to:

• use new seals at connection points,
• thoroughly clean the connection sockets before tightening,
• check the correct positioning of the pipe relative to brackets and covers,
• perform a system leak test before filling with refrigerant. Such an approach minimizes the risk of recurring leaks and ensures stable operation of the compressor, condenser, and evaporator. A correctly installed pipe supports even distribution of the refrigerant, which translates into thermal comfort inside the vehicle.

Related air conditioning system components and technical knowledge

During work on the A/C system, it is worth paying attention to the condition of the compressor, condenser, receiver-drier, and other pipes and connectors. For a better understanding of the relationships between individual components and typical air conditioning compressor failures, the following article will be helpful: Air conditioning compressor – symptoms of failure, causes, and safe replacement. It allows you to better plan the scope of repairs and consciously assess the condition of the entire system. If you are planning a comprehensive repair or upgrade of the air conditioning system in your Ford and need other elements from the same group, such as high-pressure lines, flexible hoses, or service connectors, check the available parts in the Ford air conditioning pipes, hoses, and connectors category.
