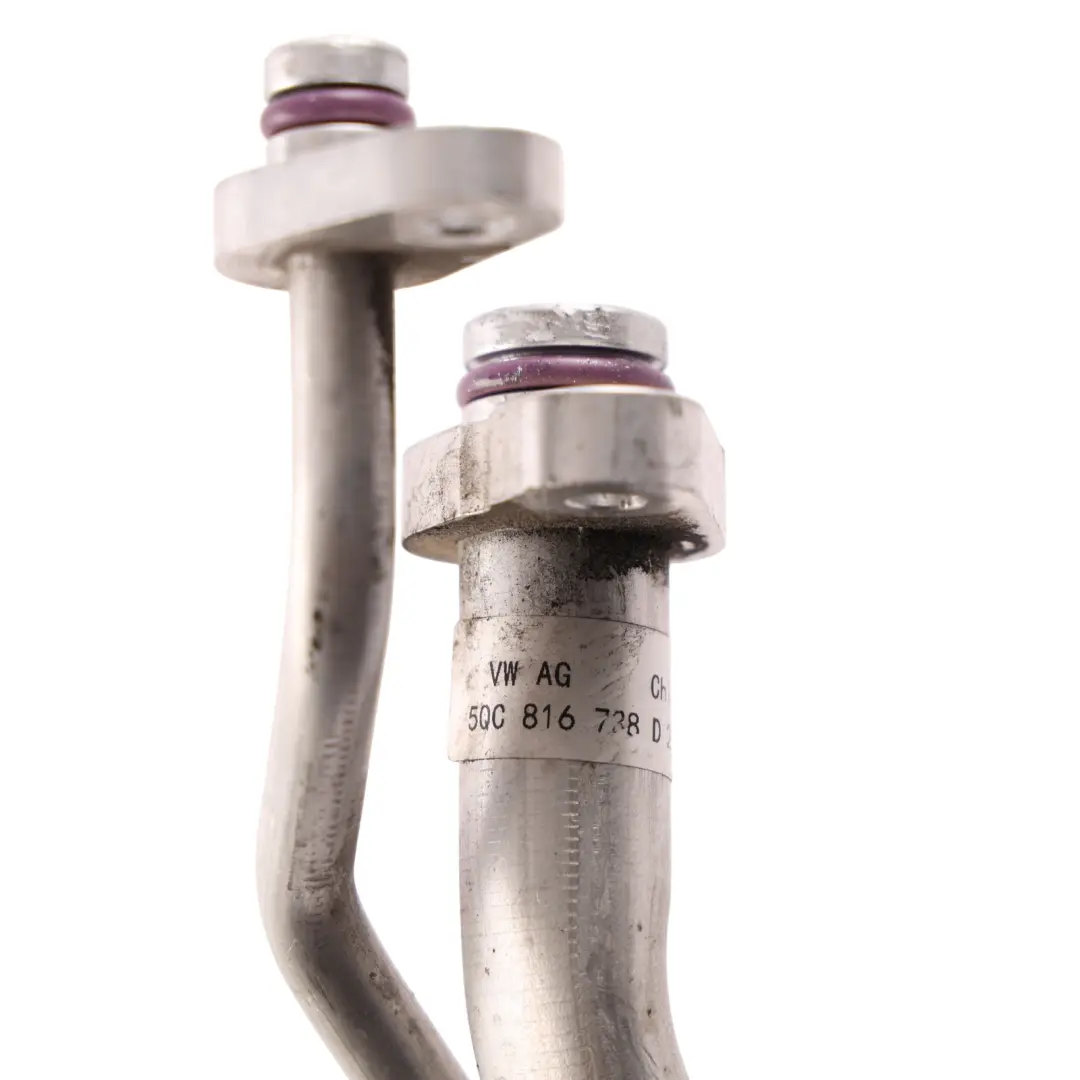

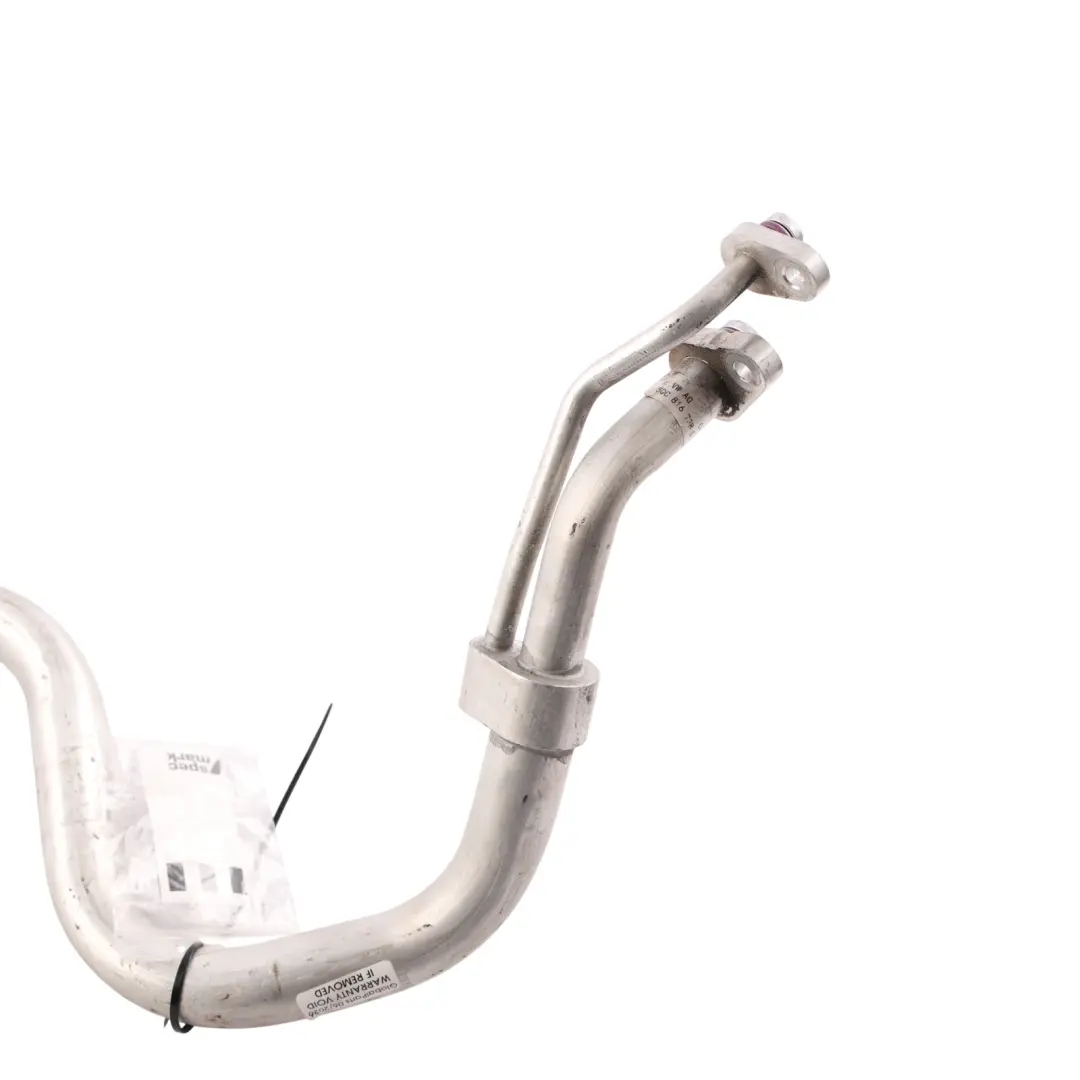

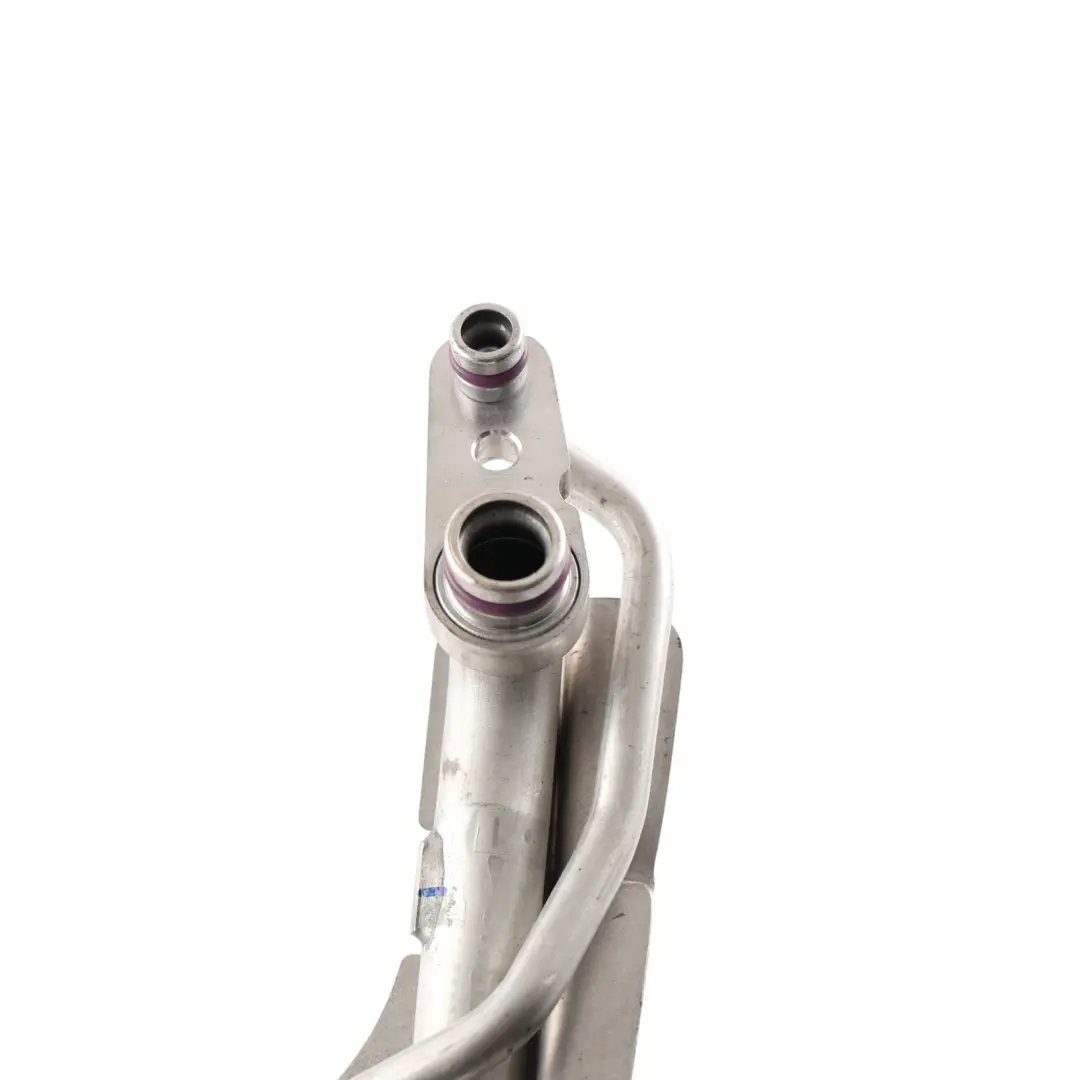

Volkswagen Caddy SB Air Conditioning A/C Air Con Pipe Hose Line 5QC816738D

The Volkswagen Caddy SB Air Conditioning A/C Air Con Pipe Hose Line is an original A/C system component designed for the precise routing of refrigerant between system modules. Thanks to its factory-spec geometry and connectors tailored to Volkswagen installations, it ensures stable air conditioning system operation and correct working pressure. This is a practical solution for users looking to restore full A/C efficiency without compromising on fitment.

Specifications and technical data

• SKU: RHD-5QC816738D
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 5QC816738D
• Substitutable numbers: 5QC816738D, 5QC 816 738 D
• Part type: Pipe
• Category: A/C Hoses & Fittings

Purpose and function in the air conditioning system

The offered pipe belongs to the Air conditioning pipes, hoses, and connectors group, responsible for transporting refrigerant between the compressor, condenser, evaporator, and other system components. The correct cross-section, length, and fitting design allow for maintaining system tightness and proper refrigerant flow, which translates into efficient vehicle interior cooling.

The element was designed specifically for Volkswagen models, which ensures the retention of factory mounting points, proper routing in the engine bay, and compatibility with original A/C connectors. Such fitment reduces the risk of stress, leaks, and improper compressor operation.

Construction, connectors, and fitment

The air conditioning pipe utilizes a construction combining rigid and flexible sections, which allows for the compensation of engine vibrations and body movements. The used ends with threaded or quick-connect fittings (depending on the system version) allow for service disconnection of the installation while maintaining high tightness after reassembly.

As this is part of the original Volkswagen component group, the pipe maintains the correct internal diameter, which is important for:

• maintaining proper refrigerant pressure,
• correct lubrication of the compressor with oil circulating in the system,
• stable operation of expansion valves and pressure sensors.

Condition, service application, and part number selection

The offered item is in used condition, which in practice means it comes from disassembly and can be an economical alternative to a new part while maintaining the original design. This type of solution is often chosen for maintenance repairs when it is crucial to maintain factory fitment and reduce service costs.

The selection of an air conditioning pipe for a specific vehicle should always be based on the OEM part number and interchangeable numbers. Verification using these markings helps avoid problems with installation, shape incompatibility, or different connector types in a specific body or engine version.

A/C system safety and technical support

A correctly selected air conditioning pipe has a direct impact on the durability of the compressor, system tightness, and even distribution of the refrigerant. Leaks or improper pipe geometry can lead to a drop in cooling efficiency, more frequent compressor engagement, and in extreme cases, its damage.

If you want to better understand the relationship between A/C pipes and compressor lifespan, it is worth checking out the service guide regarding air conditioning compressors: Air conditioning compressor – symptoms of failure, causes, and safe replacement. You will find practical tips there on how to diagnose system problems and how to perform repairs safely.

Expanding your Volkswagen air conditioning system repair

If you are planning a comprehensive repair or upgrade of the air conditioning system in your Volkswagen and need other elements from the same group, such as additional pipes, flexible hoses, or service connectors, check out the available parts in the Volkswagen air conditioning pipes, hoses, and connectors category.
