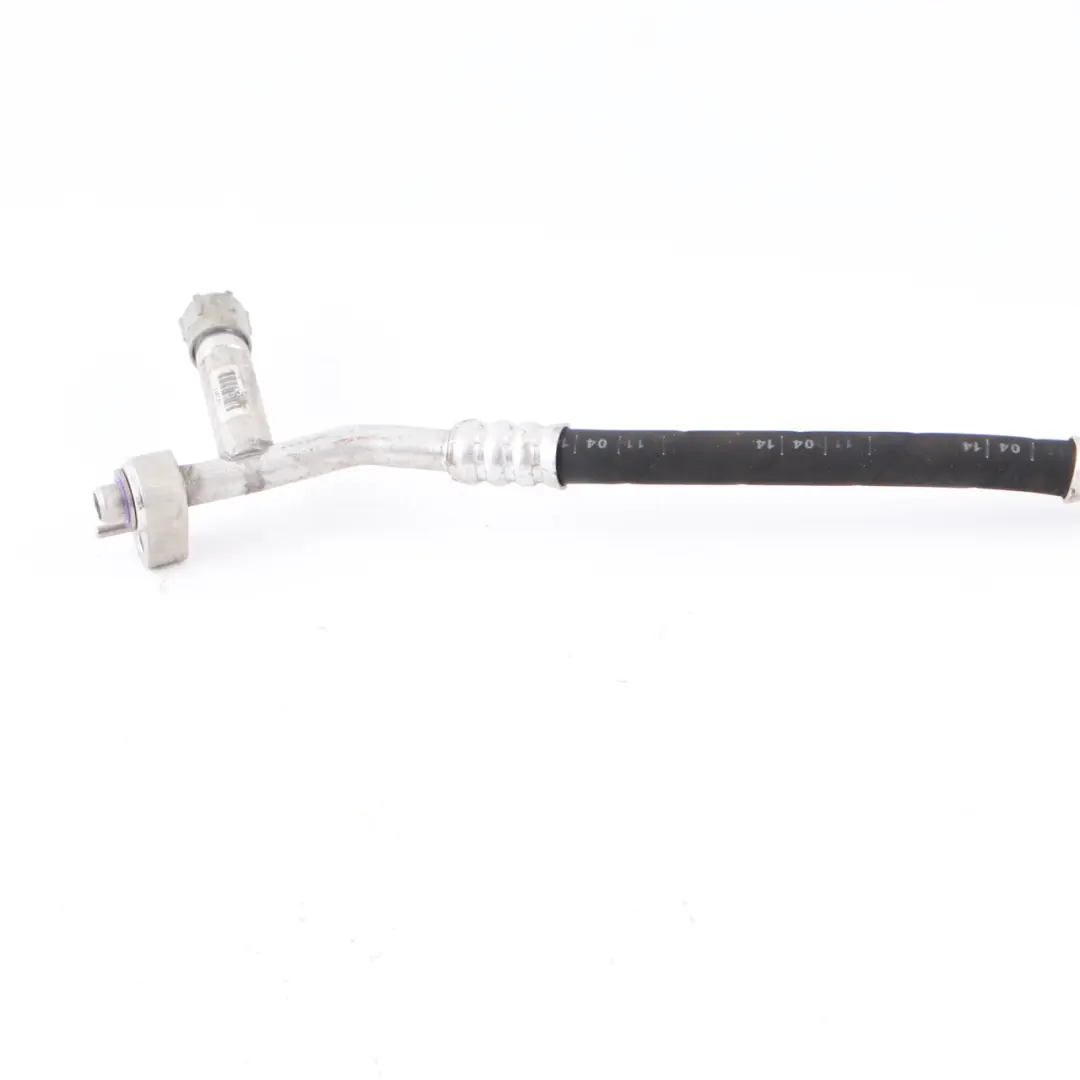

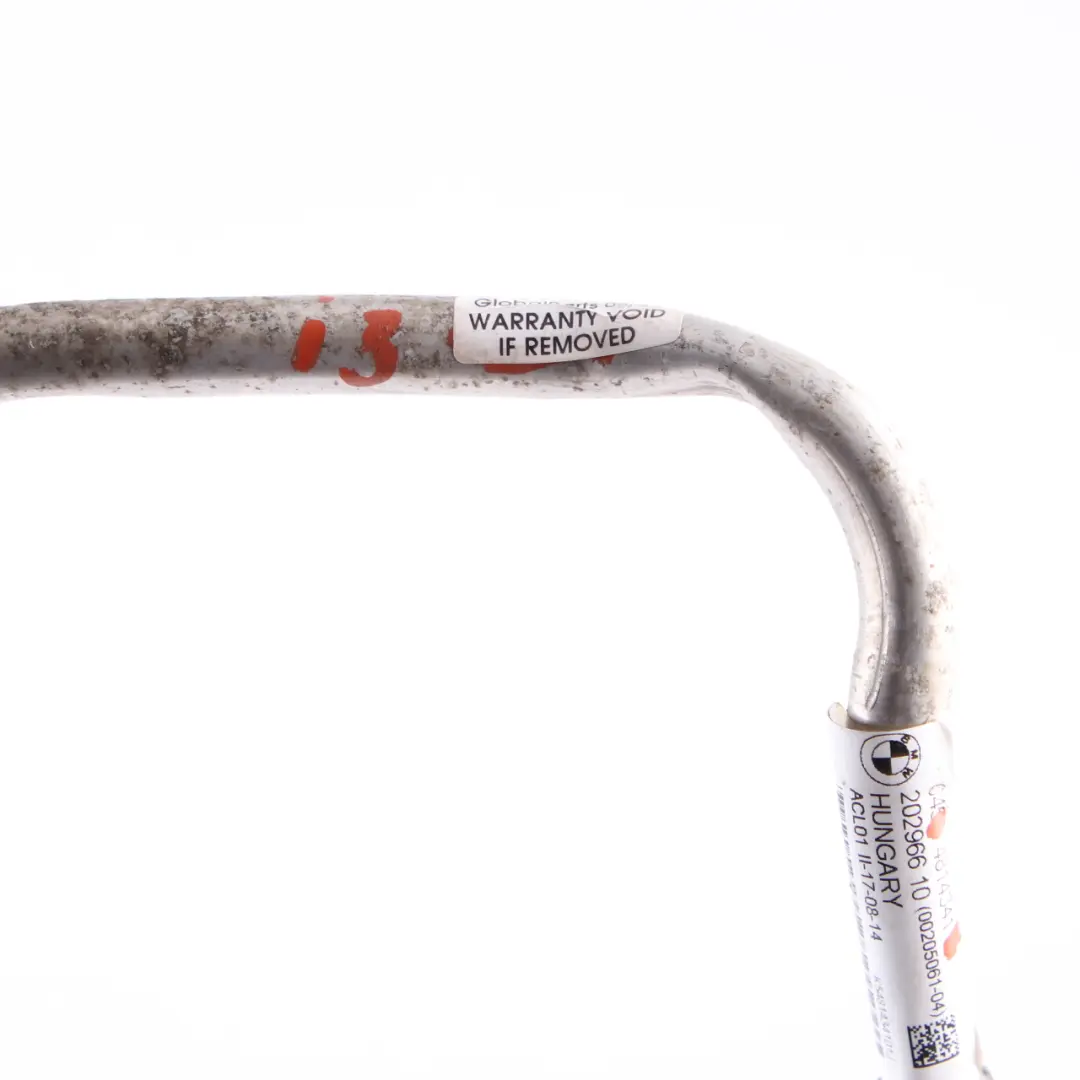

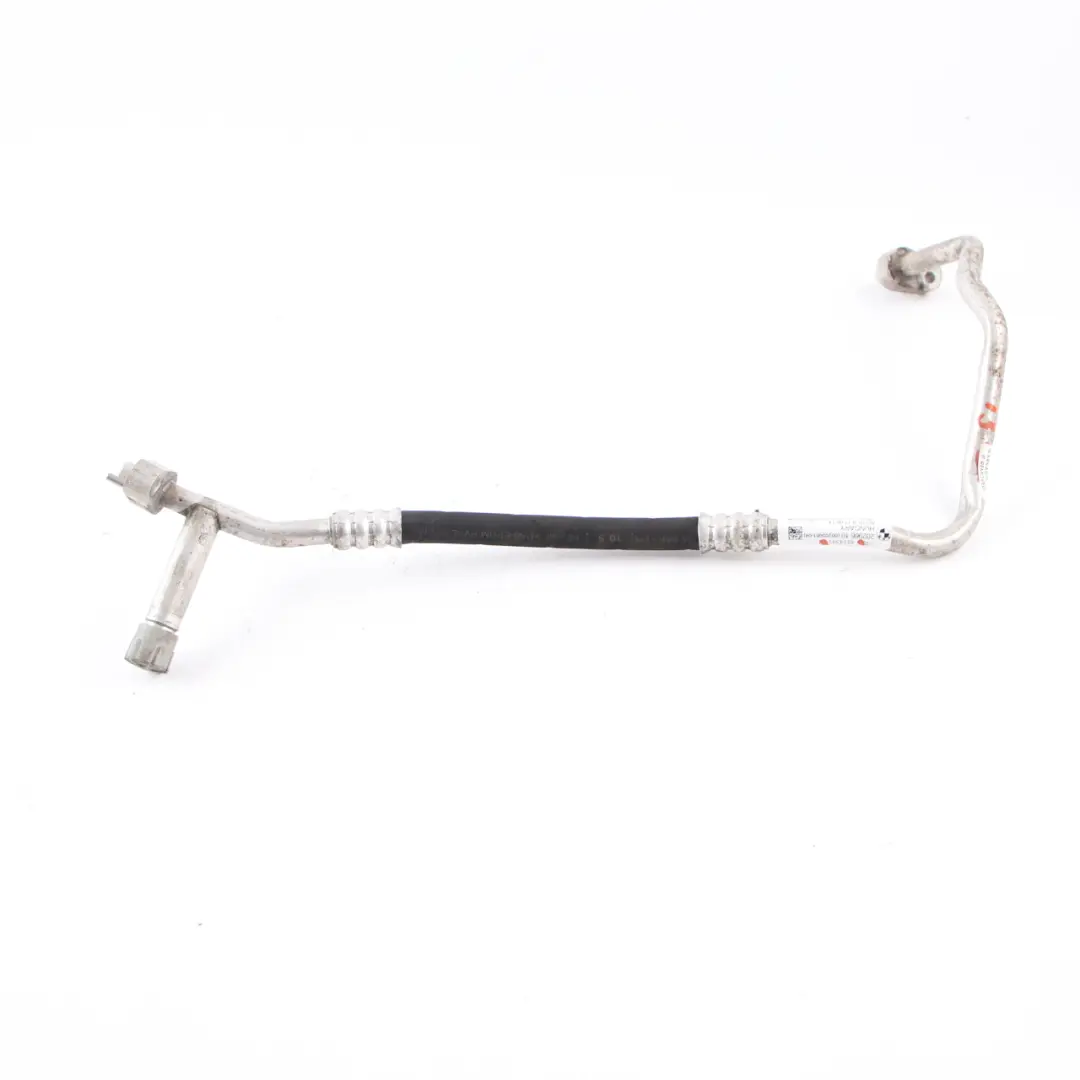

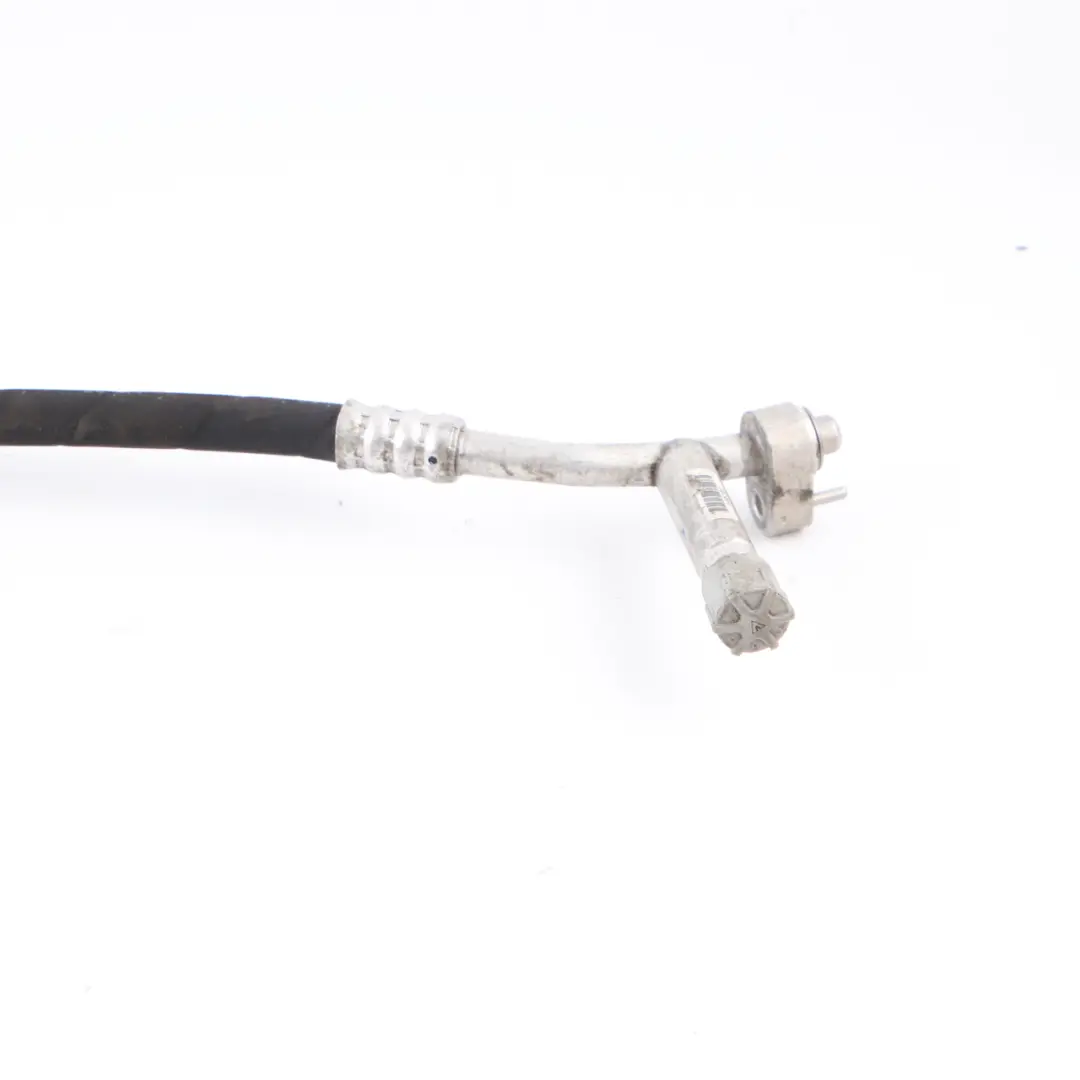

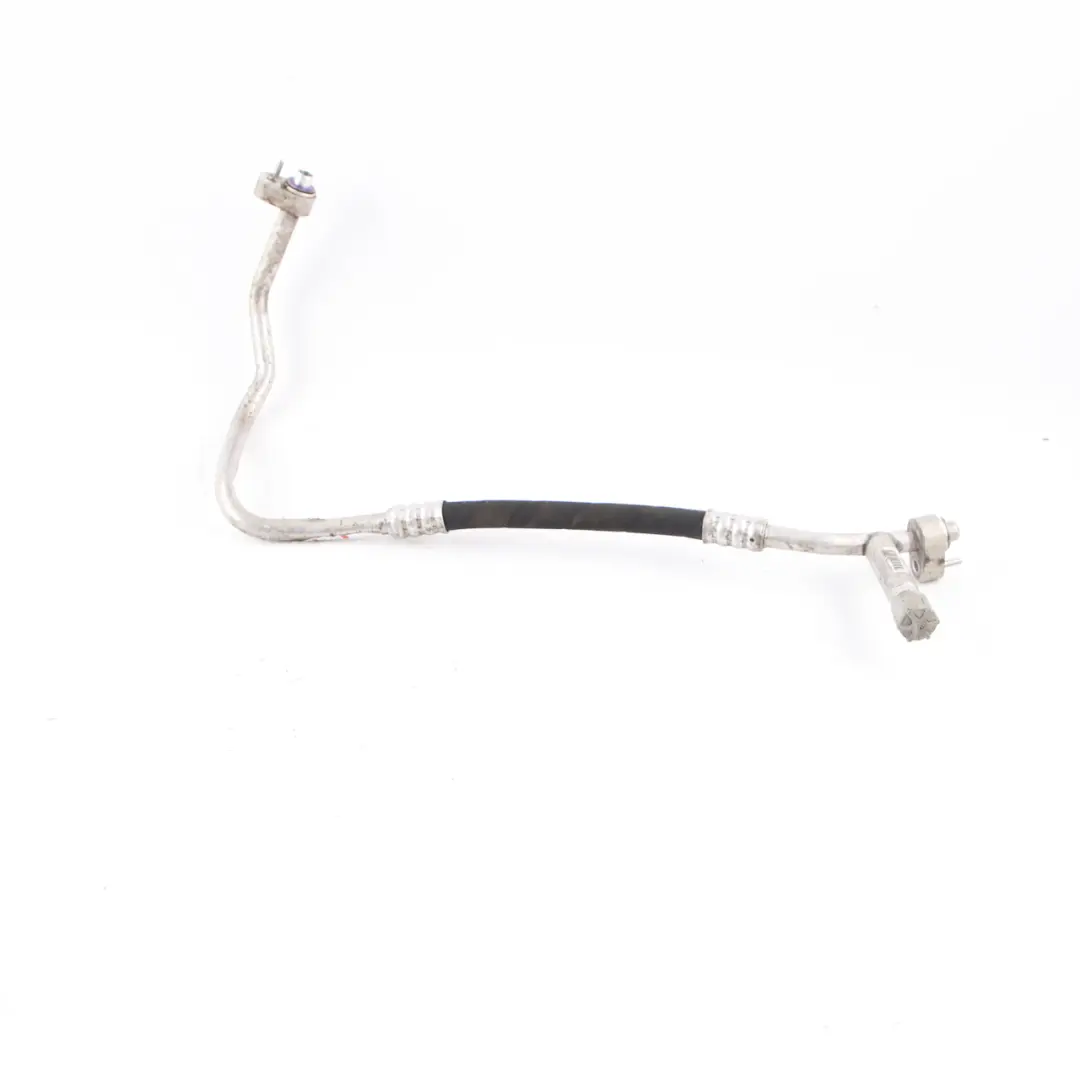

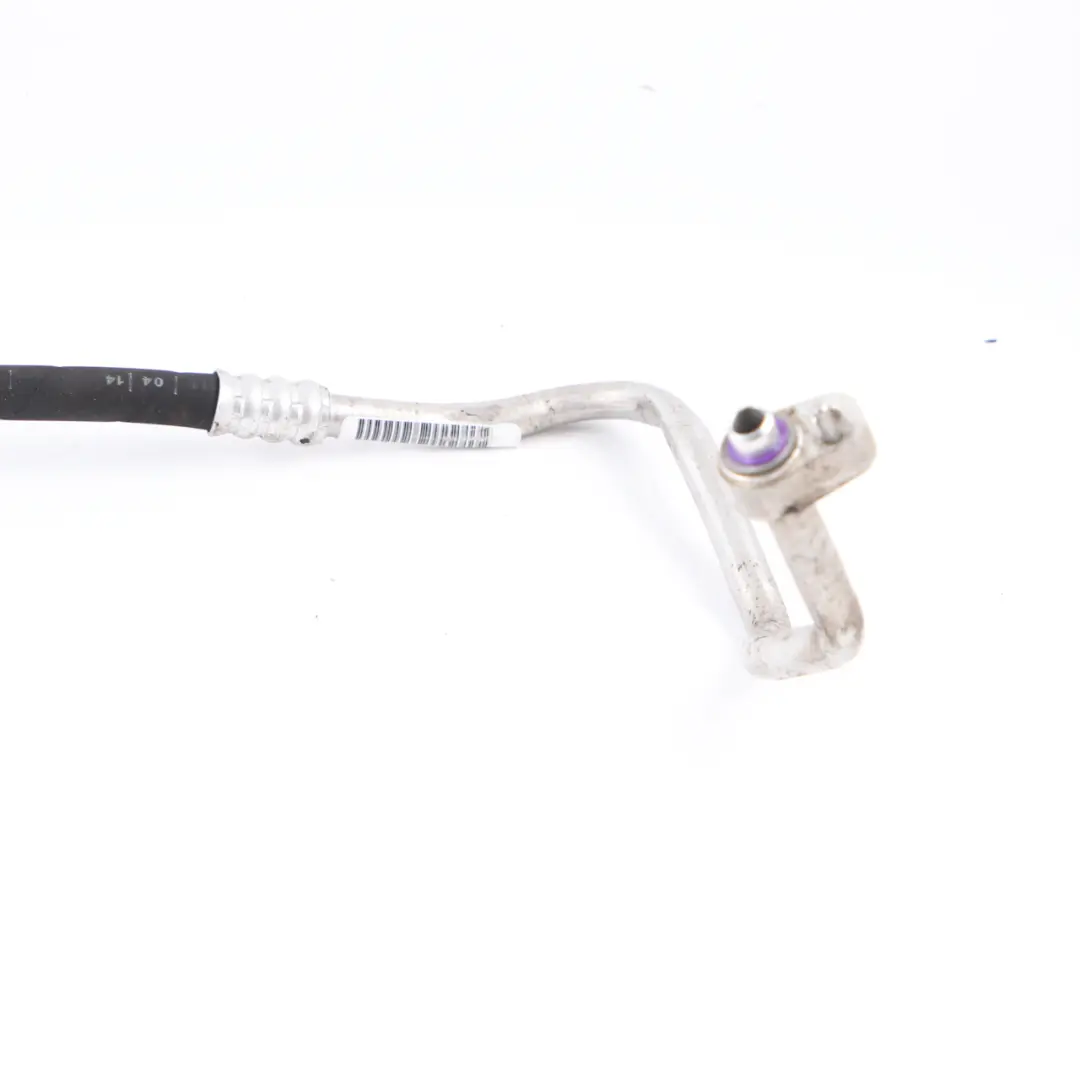

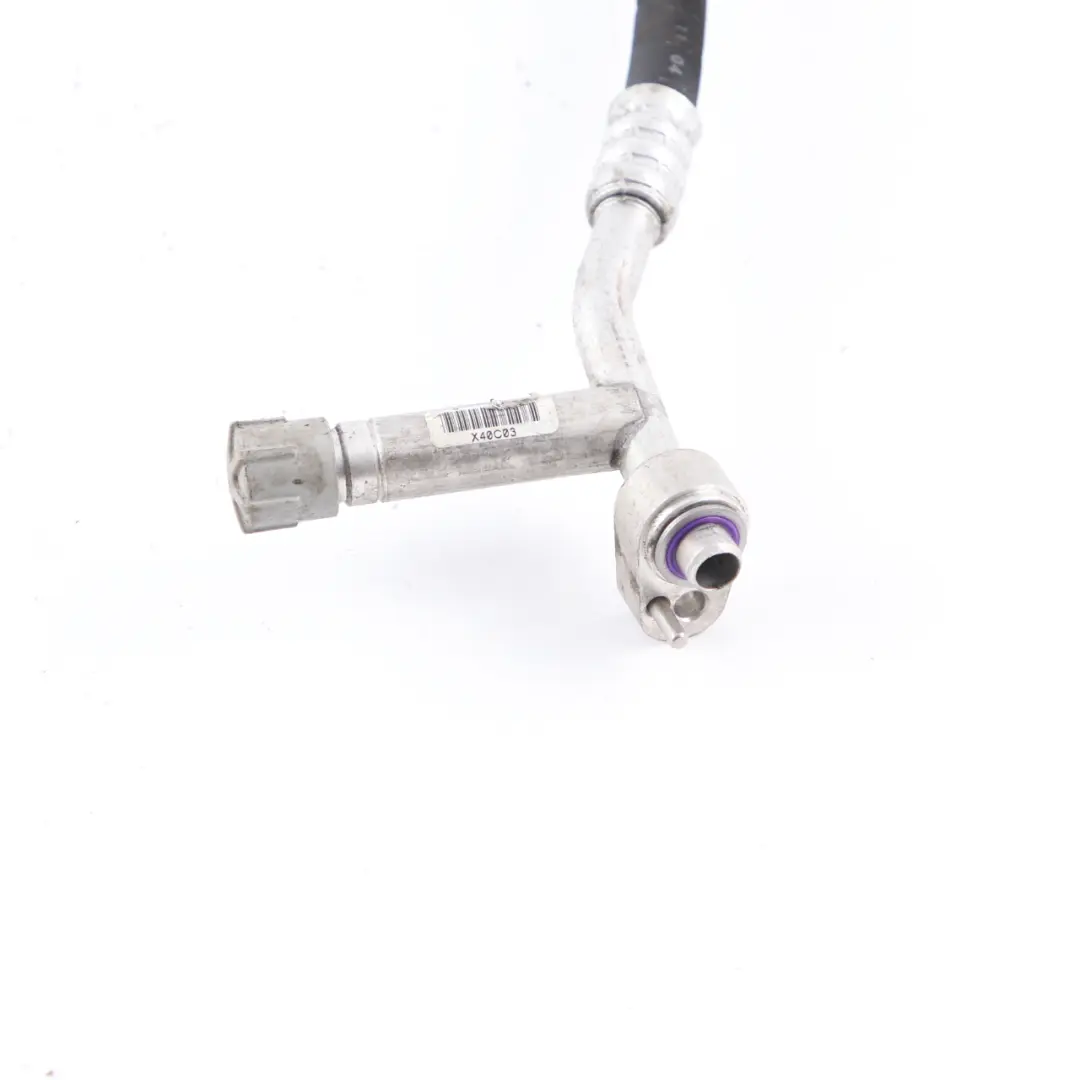

BMW i3 I01 Pressure Pipe Air Conditioning A/C Refrigerant Hose Line 4814341

The BMW i3 I01 Pressure Pipe Air Conditioning A/C Refrigerant Hose Line is an original A/C system component responsible for the safe routing of refrigerant under high pressure. Thanks to its factory-fit design for the I01 platform, it ensures stable operation of the compressor, condenser, and other air conditioning components, which translates into predictable cooling performance under urban driving conditions.

Specifications and technical data

• SKU: 9335483
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9335483
• Substitutable numbers: 9335483, 64509335483, 9291159, 64509291159, 4814341, KD
• Category: A/C Hoses & Fittings

Purpose and function in the air conditioning system

The original air conditioning pressure pipe for the BMW i3 I01 is designed as a component connecting individual A/C system parts, carrying refrigerant in its compressed phase. Its precise geometry and correct internal diameter support the maintenance of the proper operating pressure, which is crucial for the efficient operation of the air conditioning in an electric vehicle.

The part belongs to the Air conditioning pipes, hoses, and connectors group, responsible for system tightness and resistance to temperature and pressure fluctuations. A correctly selected pipe reduces the risk of cooling performance loss, improper compressor operation, and refrigerant leaks.

Construction, fitment, and installation

The pipe is constructed as an OEM part dedicated to the specific body configuration and air conditioning system of the BMW i3 I01. The properly shaped routing and factory-standard ends allow for installation at existing mounting points without the need for any modifications to the installation.

The main advantages of this solution include:

• factory connectors matched to A/C system components,
• properly selected stiffness and flexibility of the pipe sections,
• design engineered for the thermal and pressure specifications of an electric vehicle.

As a result, the pipe can be used as a direct replacement for a damaged component, which facilitates service work and reduces vehicle downtime.

Characteristics of the used part

The offered air conditioning pipe is a used part, sourced from vehicle dismantling, which allows for cost-effective repair while maintaining the manufacturer's original specifications. Unlike cheap aftermarket replacements, the OEM component retains the correct flow parameters and fitment to brackets and covers in the vehicle's technical compartment.

Choosing an original pipe from the secondary market is a cost-effective solution that is technically consistent with the other components of the air conditioning system. This helps maintain uniform quality of the entire A/C installation, which is particularly important in vehicles where the air conditioning system works in conjunction with the battery thermal management system.

Integration with other BMW A/C system components

The pressure pipe works with the compressor, condenser, evaporator, and control valves, creating a closed refrigerant circuit. Proper matching of the pipe's length, diameter, and shape reduces stress on the connectors and minimizes the risk of leaks at connection points.

If you are planning a comprehensive repair or upgrade of the air conditioning zone in your BMW and need other elements from the same group, such as low-pressure pipes, flexible hoses, or service connectors, check the available parts in the BMW air conditioning pipes, hoses, and connectors category.
