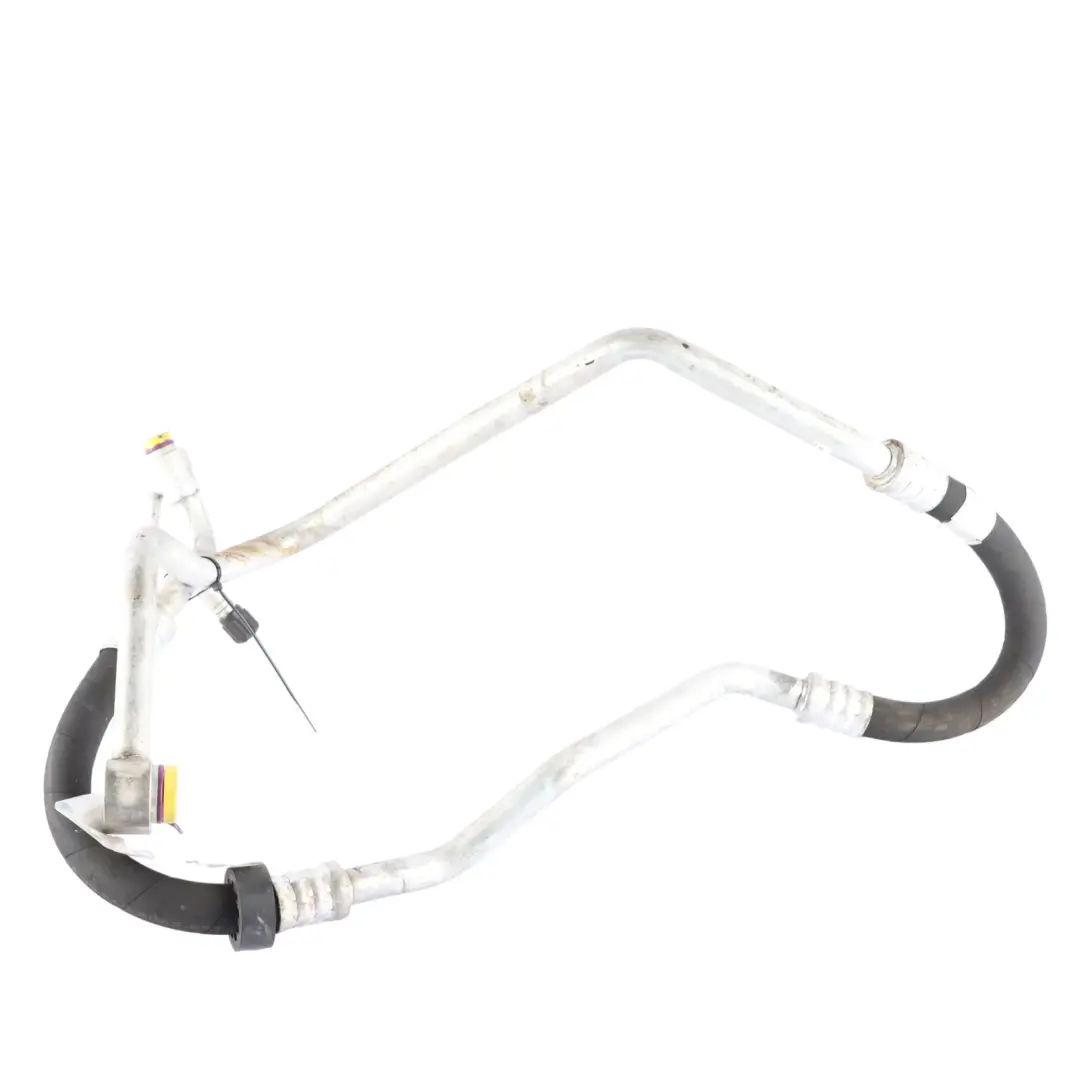

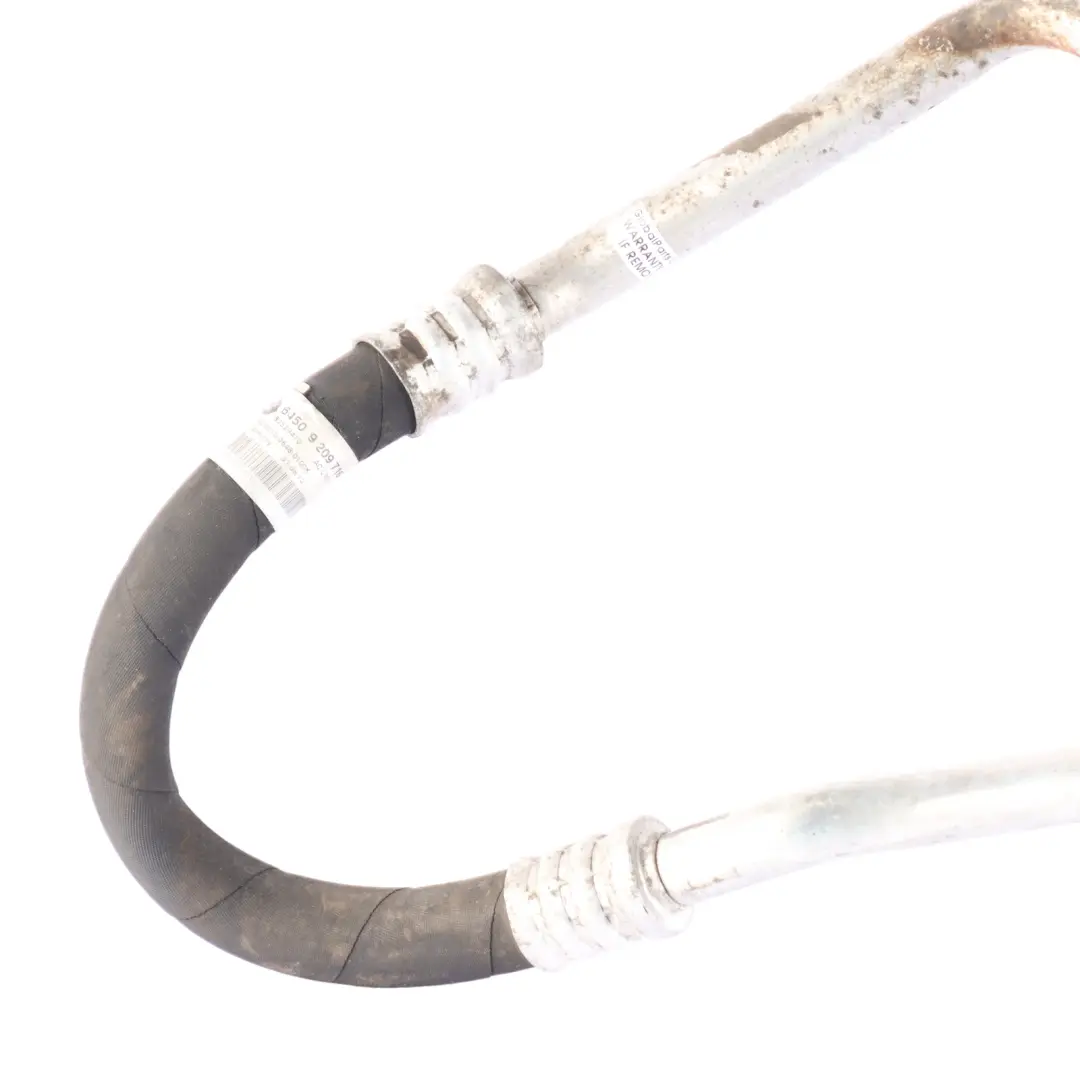

BMW E90 Air Condition Sunction Pipe Hose Line 9209716

BMW E90 Air Condition Sunction Pipe Hose Line is an original cabin cooling system component, designed for the precise discharge of refrigerant from the evaporator to the subsequent system components. Thanks to its factory geometry and fitment for the E90 platform, this item from the Air conditioning pipes, hoses and connectors category ensures stable system operation and facilitates maintenance without the need for installation modifications.

Specifications and technical data

• SKU: 9209716
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9209716
• Substitutable numbers: 9209716, 64509209716, 9113785, 64539113785
• Category: A/C Hoses & Fittings

Purpose and function in the air conditioning system

The air conditioning suction pipe in the BMW 3 Series E90 is responsible for transporting refrigerant in the low-pressure area between key system components. A properly selected inner diameter, shape, and factory-fitted connectors allow for maintaining the correct refrigerant flow, reducing pressure drops, and preserving the proper cooling efficiency of the vehicle's interior.

The original design of the pipe minimizes the risk of leaks at connections, which is particularly important when working with refrigerant under variable thermal loads. As a result, the air conditioning system can operate stably, and the compressor is less exposed to improper operating conditions.

Construction and fitment for BMW

The pipe has been designed specifically for the BMW E90 engine bay architecture, taking into account the installation routing, mounting points, and distance from heat-generating elements. Factory bends and profiles allow for collision-free routing of the pipe, which limits the risk of chafing, vibrations, and contact with moving engine accessory parts.

The original pipe ends are prepared to work with standard BMW air conditioning system connectors, which facilitates assembly and service. Such a solution allows for maintaining the consistency of the entire system without the need for adapters or modifications that could reduce the reliability of the installation.

Benefits of using an original BMW pipe

Using an original suction pipe in the BMW E90 air conditioning system brings a number of practical benefits:

• Factory fitment – the pipe is compatible with the body and accessory geometry, which facilitates assembly and service.
• Consistency with other system elements – maintaining original connectors and mounting points helps to keep the installation airtight.
• Stable compressor operating conditions – proper refrigerant flow in the low-pressure area supports the durability of other air conditioning components.
• A solution consistent with the manufacturer's assumptions – no need to modify the installation or interfere with the factory design of the vehicle.

The item in used condition allows for reducing repair costs while maintaining the original technical specification, which is particularly beneficial for comprehensive service work on older BMW 3 Series models.

Professional assembly and service application

The BMW E90 Air Condition Sunction Pipe Hose Line is intended for use both in professional workshops and by advanced users servicing their cars themselves. It is recommended to perform the assembly along with a system leak test, vacuuming, and refilling with refrigerant in accordance with the manufacturer's procedures.

Replacing the pipe is particularly recommended in the event of corrosion on metal sections, mechanical damage, traces of refrigerant oil, or leaks at the connections. Using an original component allows for restoring the correct air conditioning operating parameters without compromises in terms of fitment and functionality.
